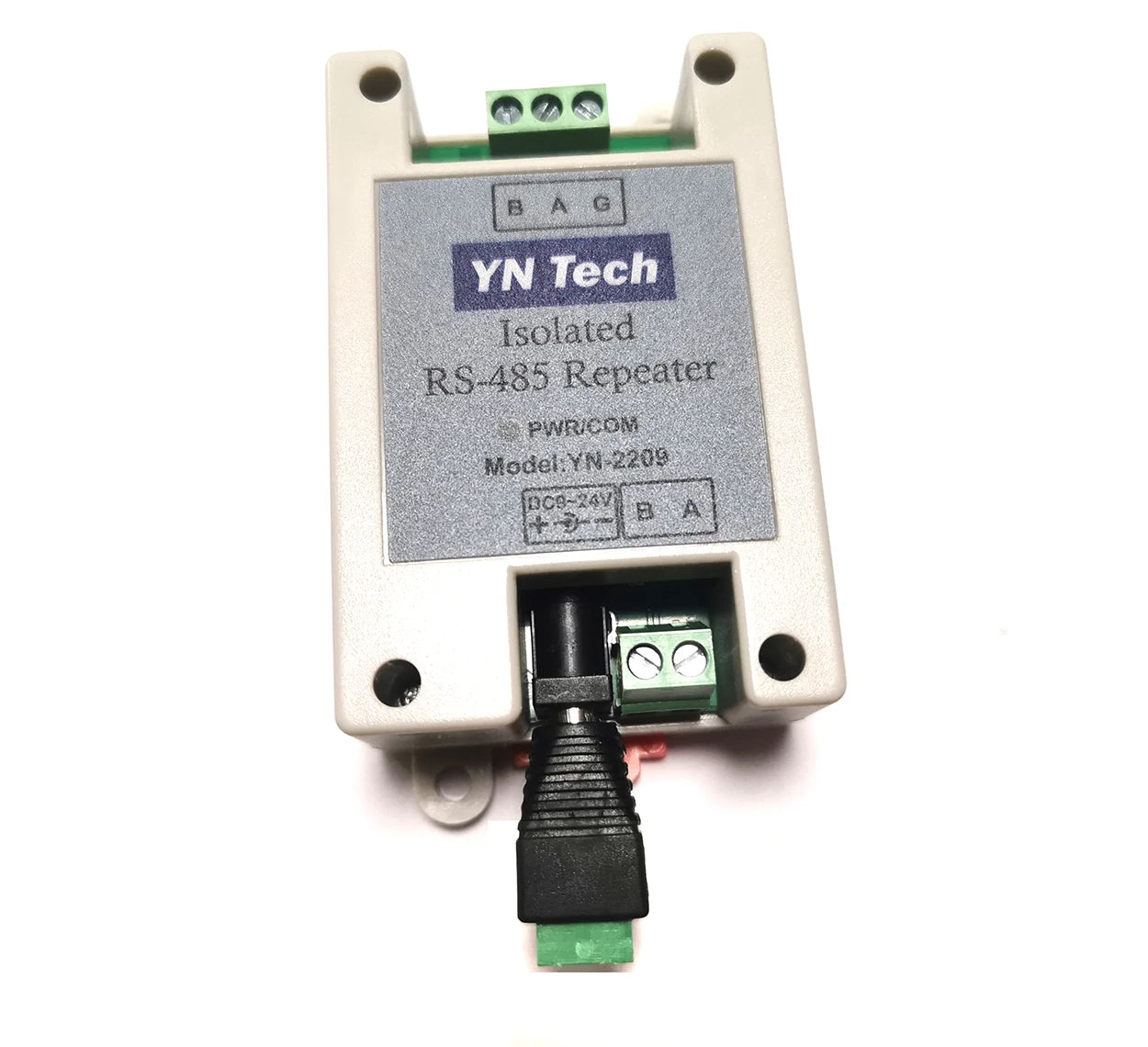

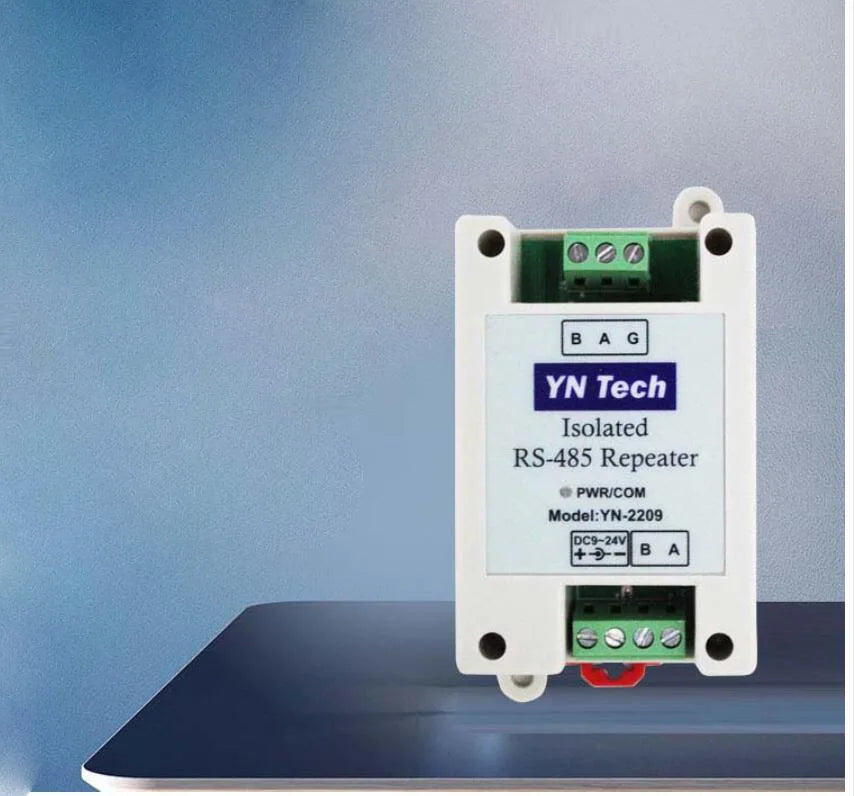

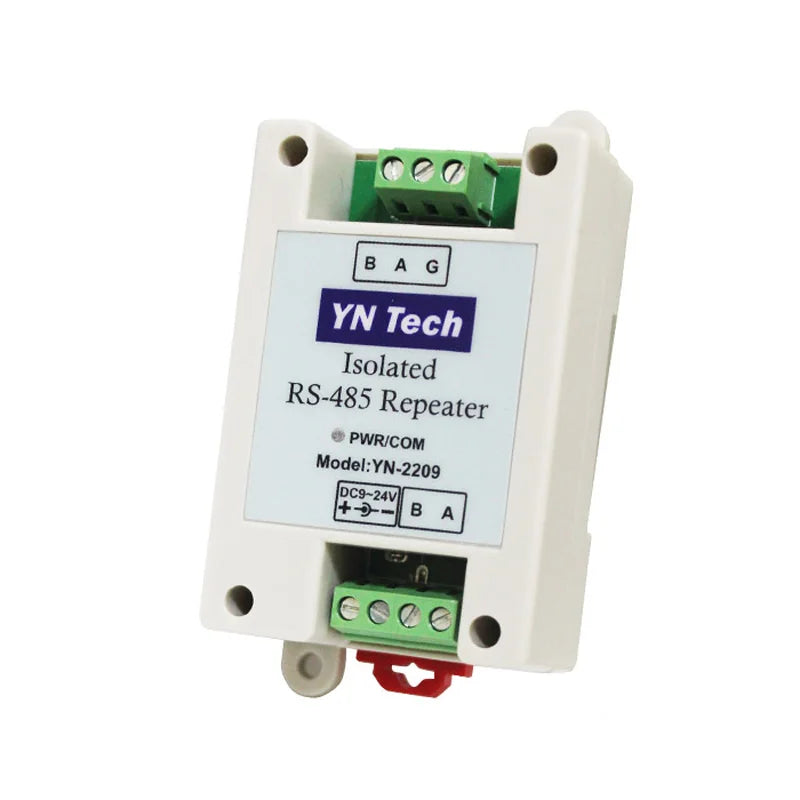

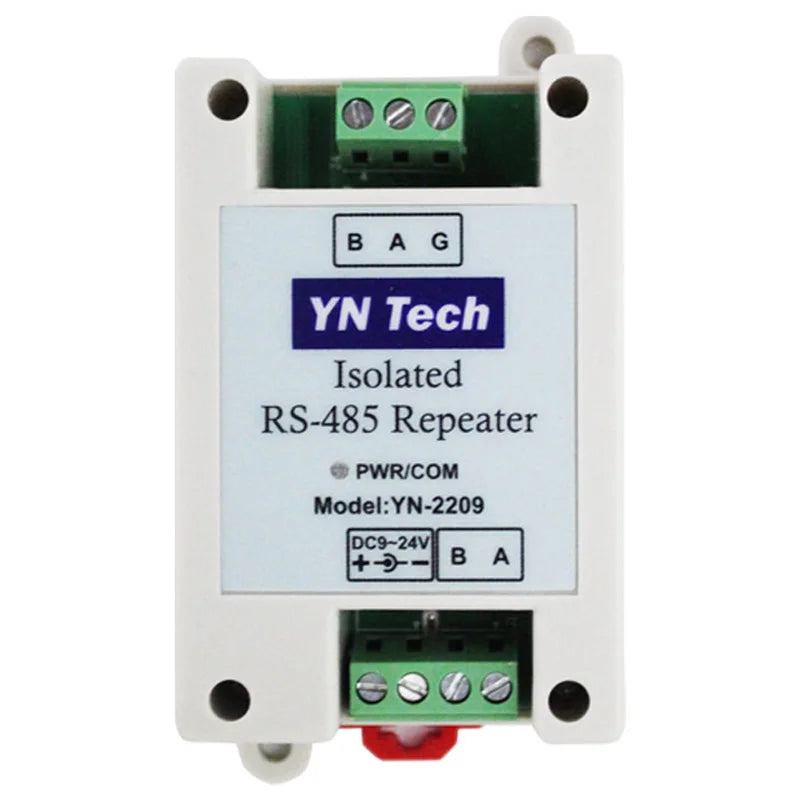

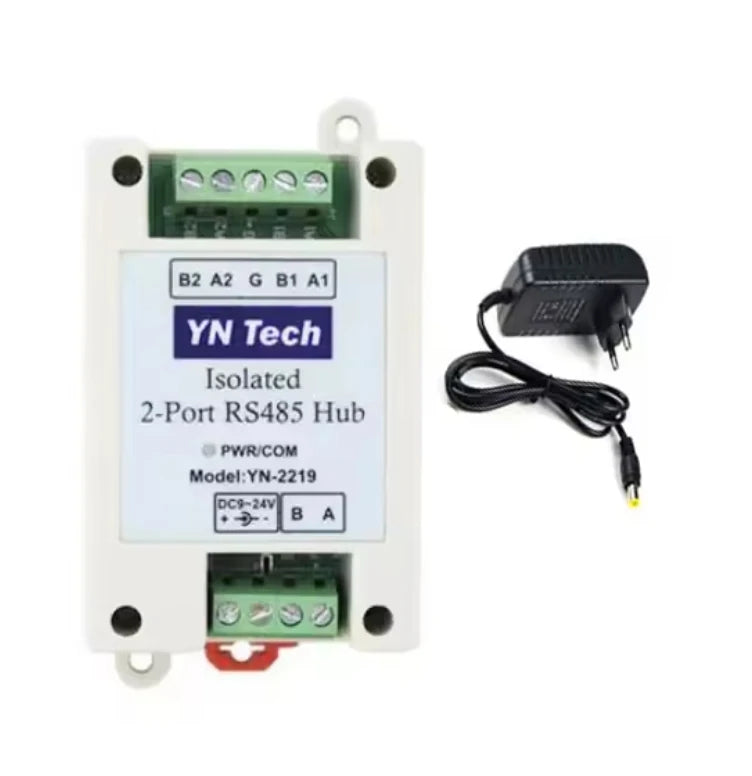

Industrial Lightning Protection Photoelectric Isolation RS485 Repeater Amplifier 485 Isolator
YN2219
$43.56
Sale price
$43.56
Regular price
$0.00
Skip to product information
Industrial Lightning Protection Photoelectric Isolation RS485 Repeater Amplifier 485 Isolator
$43.56
Sale price
$43.56
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: BoboYun Tech
Certification: CE
High-concerned chemical: none
Origin: Mainland China

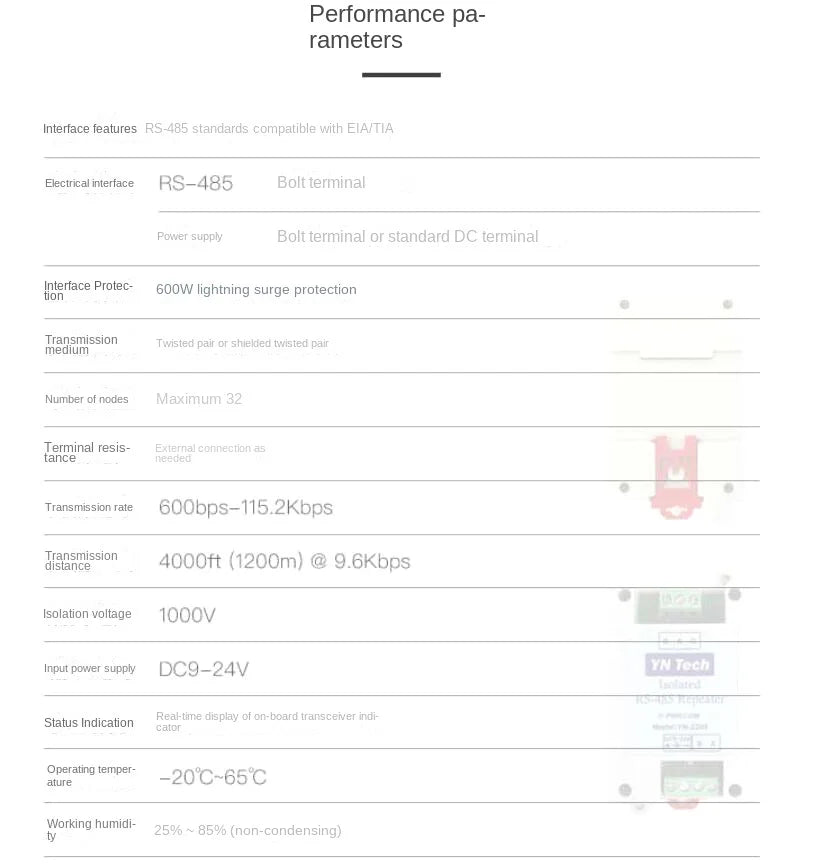

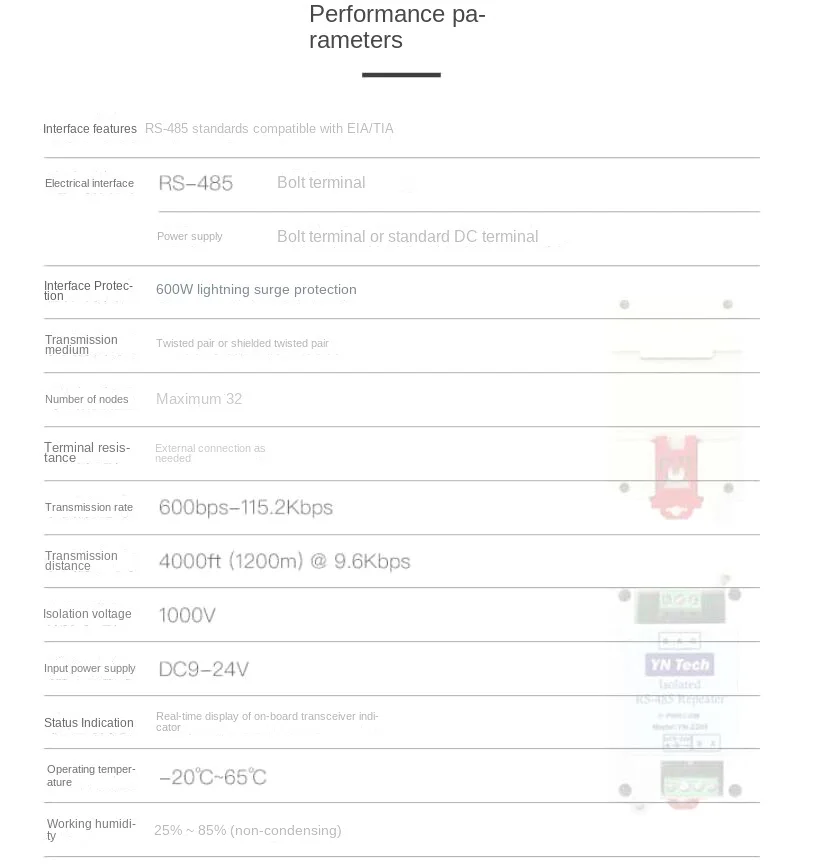

performance parameter
Interface characteristics: compatible with EIA/TIA RS-485 standard

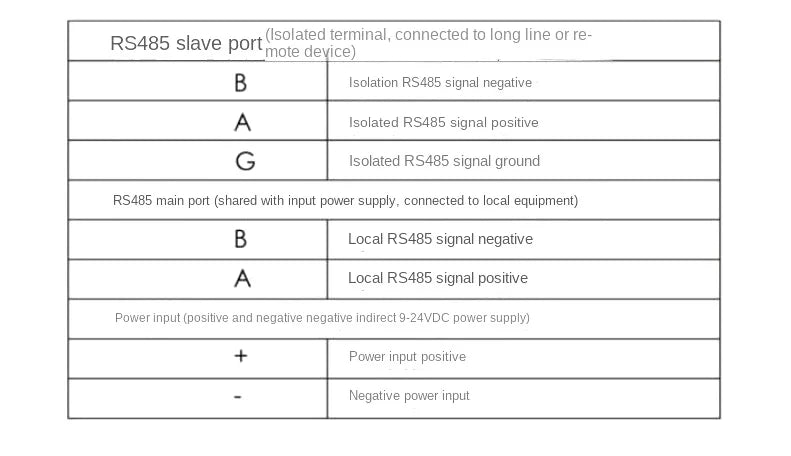

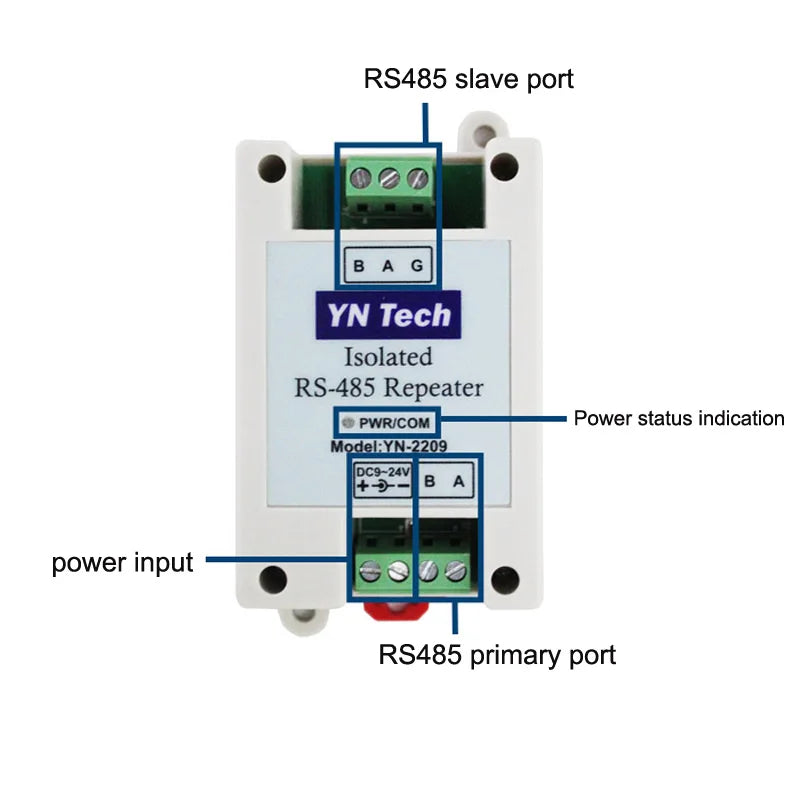

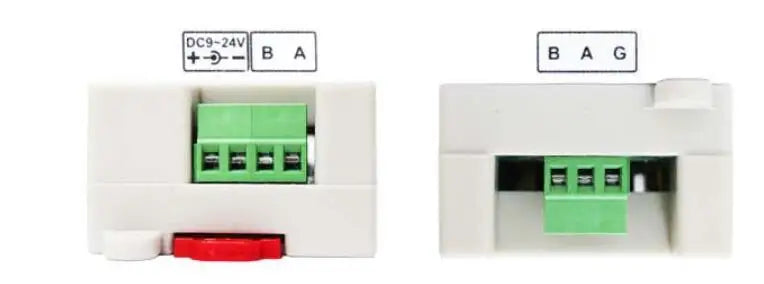

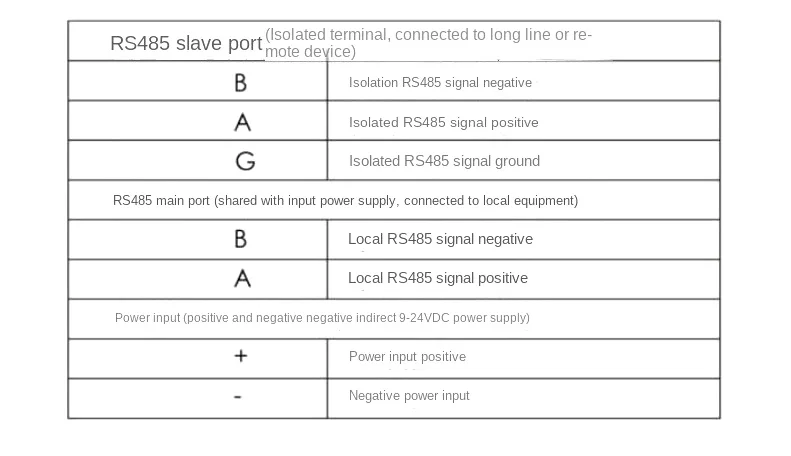

Electrical interface:
RS- -485
Bolt type terminal block
Power Supply

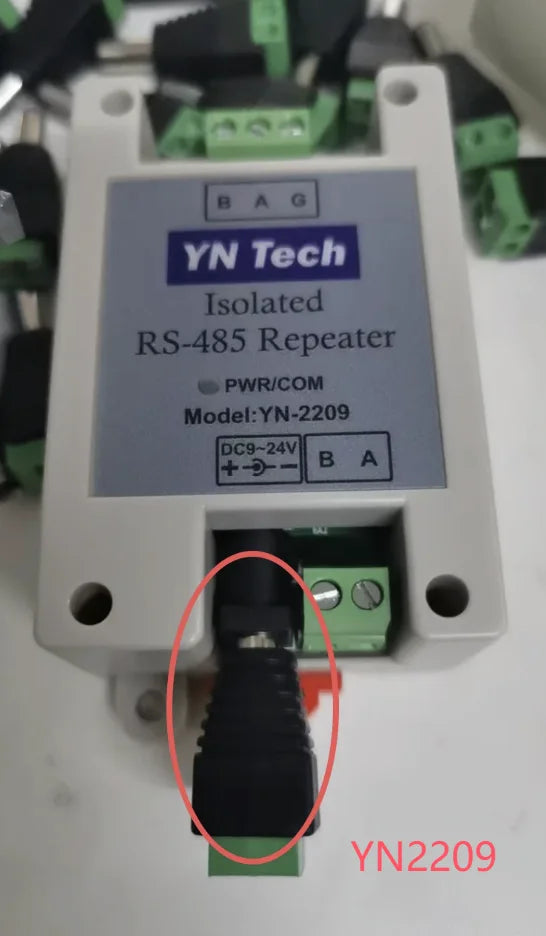

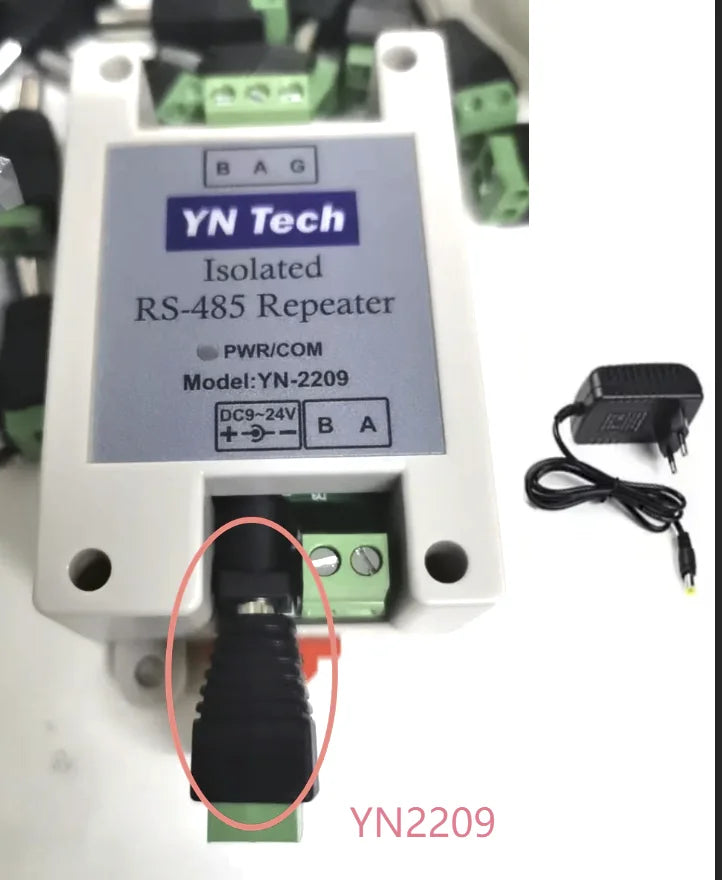

Bolt type terminal blocks or standard DC terminals
Interface protection: 600W lightning surge protection
Transmission medium: twisted pair or shielded twisted pair
Number of nodes: 32 at most (128 can be customized, contact customer service)
Terminal resistance: external connection as required
Transmission rate: 600bps - 115. 2Kbps
Transmission distance: 4000ft (1200m) @ 9.6Kbps
Isolation voltage: 1000V
Input power supply: DC9-24V
Status indication: real-time display of on-board transceiver indicator
Operating temperature: - 20 ° C-65C
Operating humidity: 25%~85% (non condensing)
