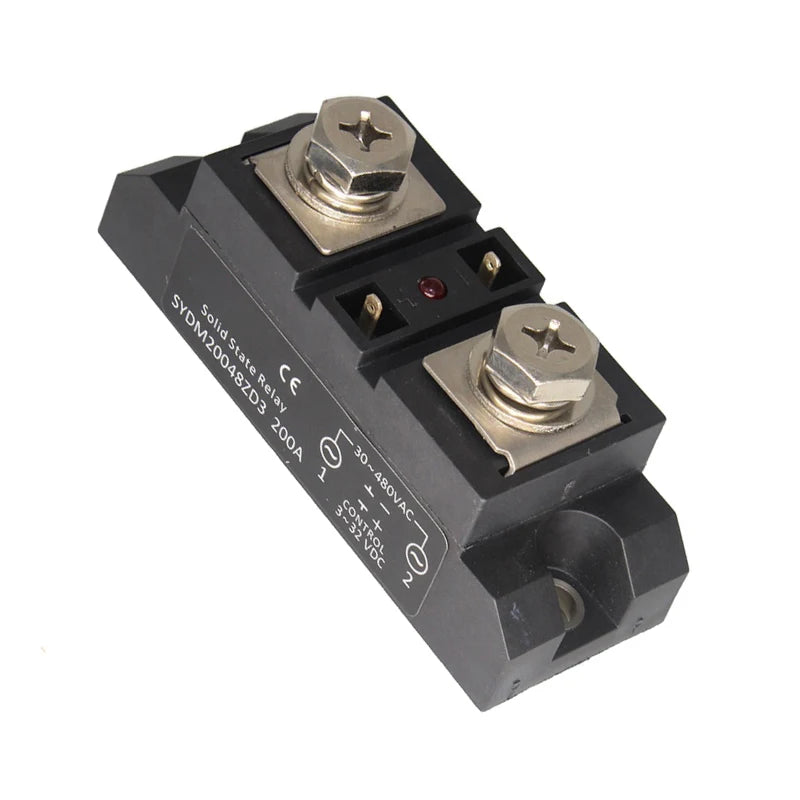

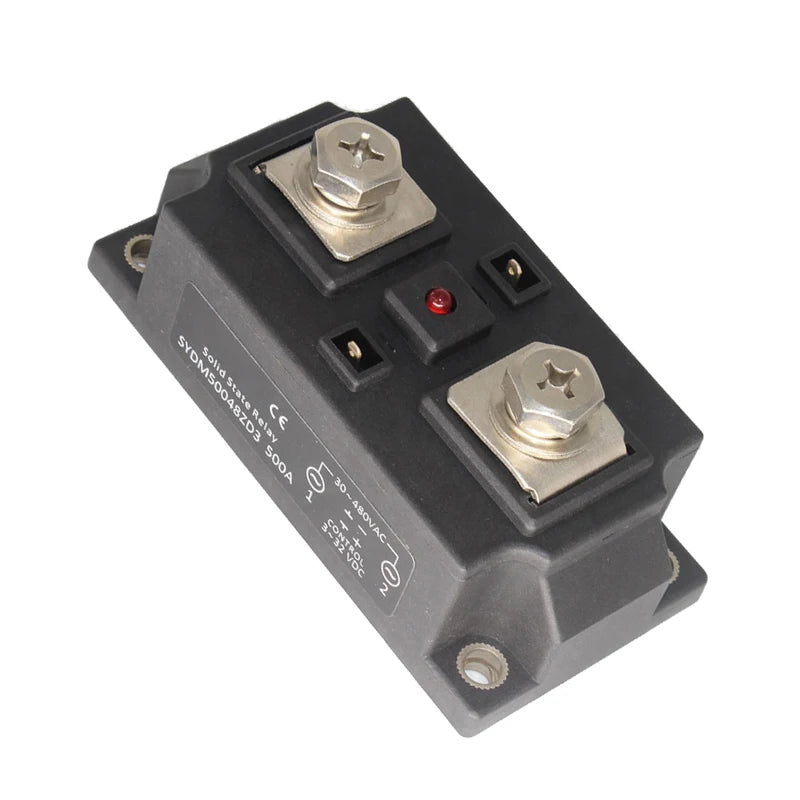

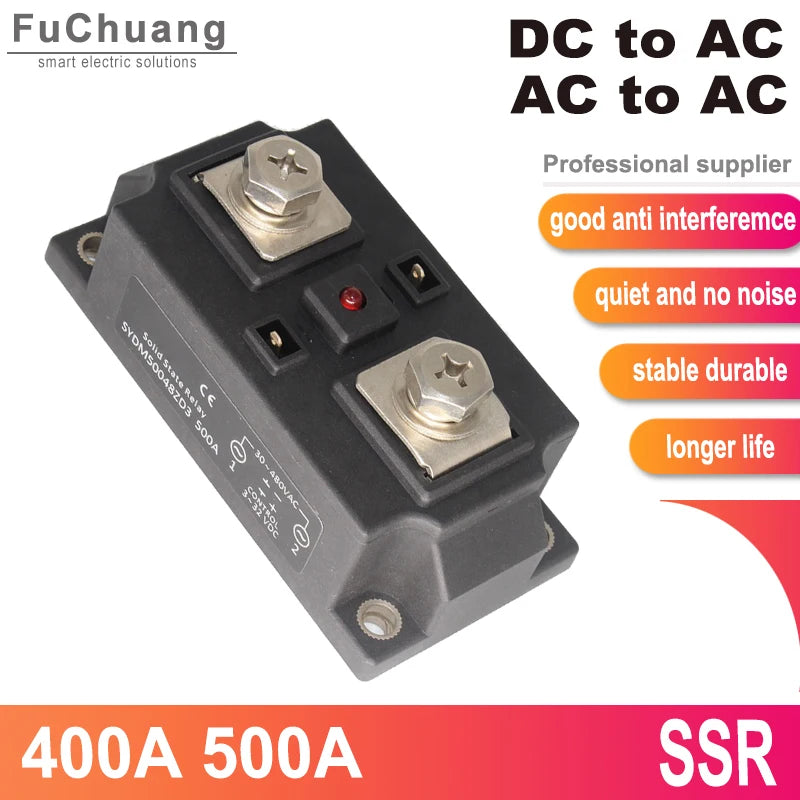

Industrial Relay Switch Module 400A 500A DC/AC AC/AC 480V SSR Dielectric Strength 4000V Single Phase Solid State Relay

Industrial Relay Switch Module 400A 500A DC/AC AC/AC 480V SSR Dielectric Strength 4000V Single Phase Solid State Relay

$231.89

$231.89 $0.00

Color 400A 500A

Dimensions AC to AC DC to AC

Description

SPECIFICATIONS

Brand Name: NONE

Control Voltage: 3-32VDC / 80-280VAC

Current consumption in control circuit: 3-25mA(Dc to Ac) / less than 12mA(Ac to Ac)

Dielectric strength: 2500V AC (1min)

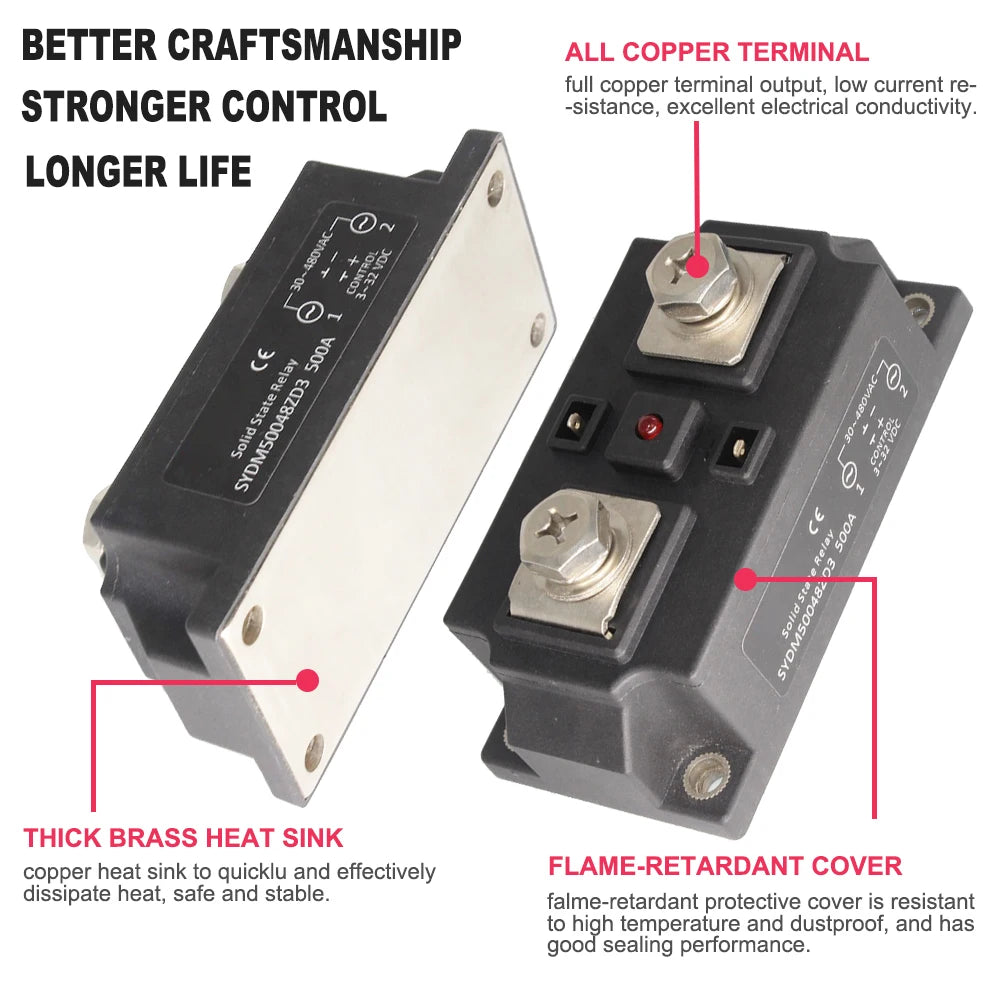

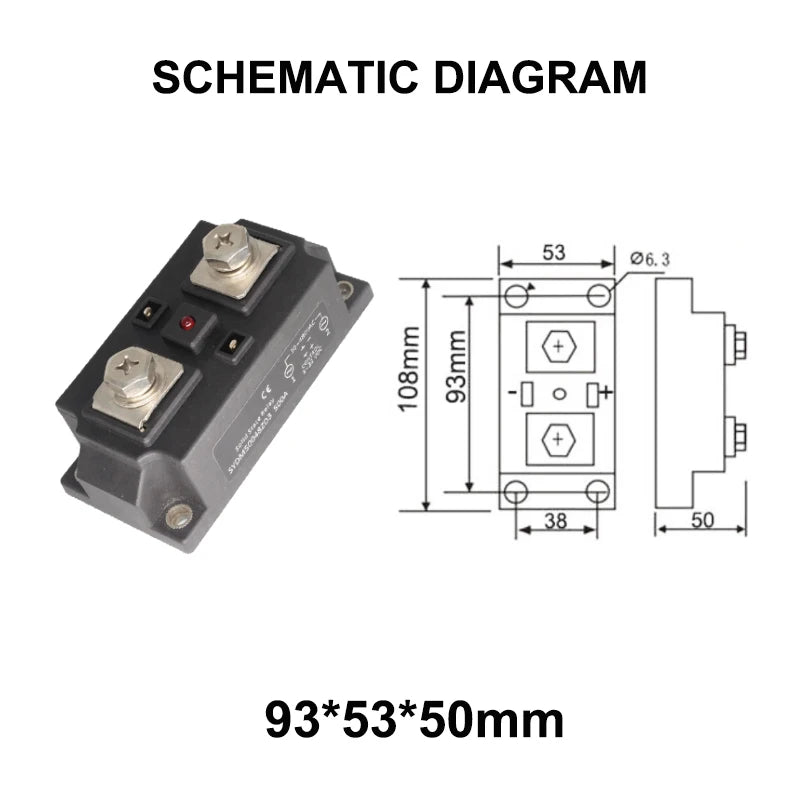

Dimensions: 93*53*50mm

Insulation resistance: 500MOm with 500VDC

LED indication: yes

Leakage current(off-state): <10mA

Load Current: 400A , 500A

Load Voltage: 24-480VAC

Model Number: LD1600XXXDAZ

Mounting method: Screws on

Operating temperature: -20C to +75C

Origin: Mainland China

Peak voltage: 800V AC

Product: solid state relay

Relative humidity: <95%, (non-condensing)

Switching time: <10ms

Voltage ON/OFF: 3VDC/1.5VDC(Dc to Ac) / 80VAC/50VAC(Ac to Ac)

Voltage drop in load circuit: <1.5V AC

is_customized: Yes

Electrical Parameters
Function type	DC control AC	AC control AC
Load Current	400A, 500A
Control Voltage	3-32VDC	80-280VAC
Load Voltage	24-480VAC
Current consumption in control circuit	3-25mA	≤12mA
Voltage ON/OFF	3V DC/1V DC	80V AC/50V AC
Peak voltage	800V AC
Voltage drop in load circuit	≤1.5V AC
Leakage current(off-state)	≤10mA
Switching time	≤10ms
LED indication	yes
Dielectric strength	2500V AC (1min)
Insulation resistance	500МОм with 500V DC
Operating temperature	-20...+75°C
Relative humidity	≤95%; (non-condensing)
Dimensions	93х53х50mm
Mounting method	Screws on

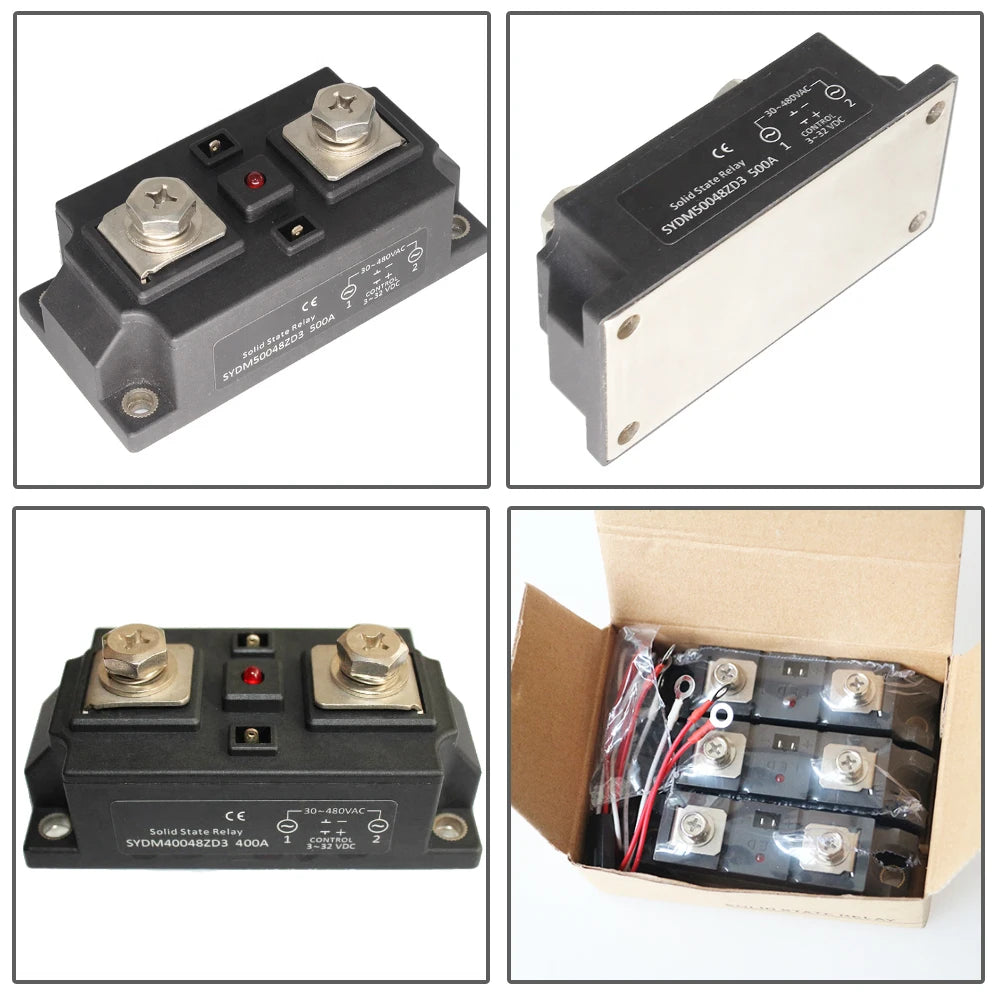

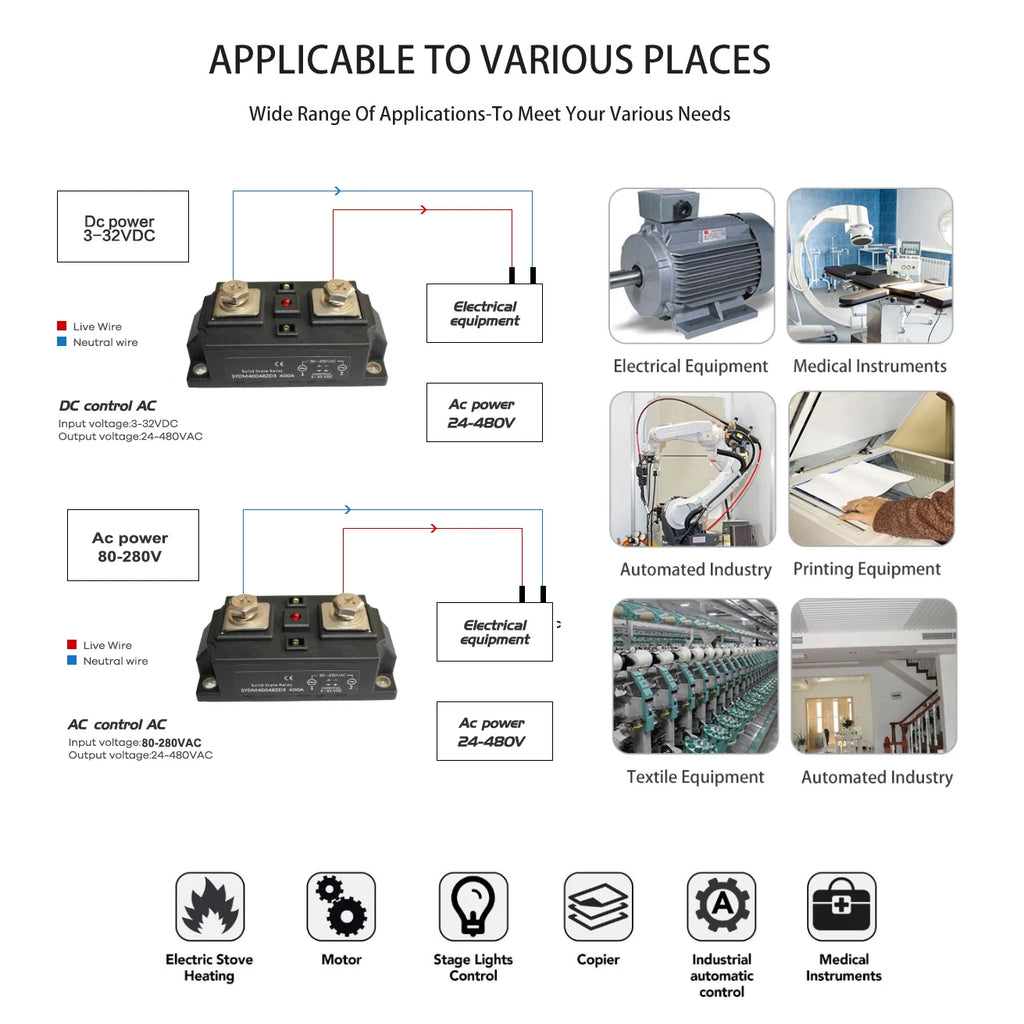

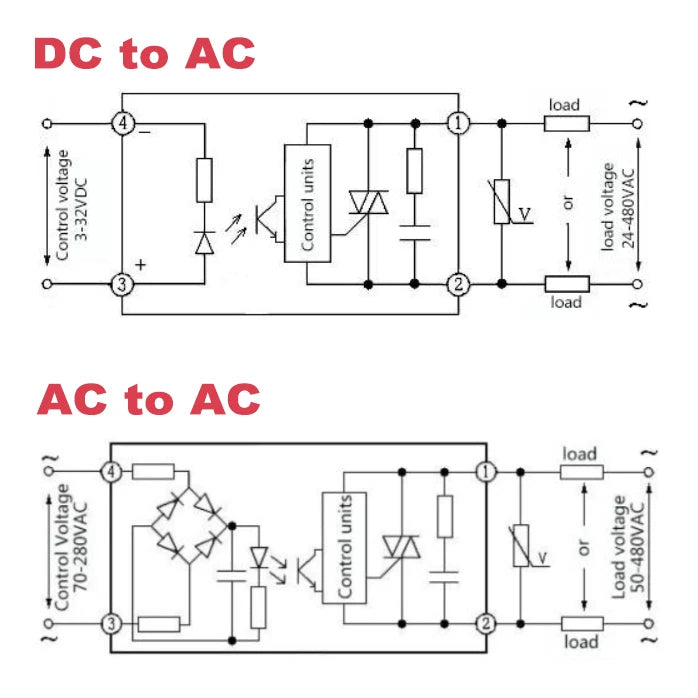

STEP 1: Choose a correct control Mode.
DA: DC Control AC
AA: AC Control AC
DD: DC Control DC
VA: Resistance Regulator(Controlled By Potentiometer)
LA: Current Input 4-20mA
VD: Voltage Input 0-10V

STEP 2: Choose a correct type.
Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment.
Resistive load :60%, Inductive load:30%

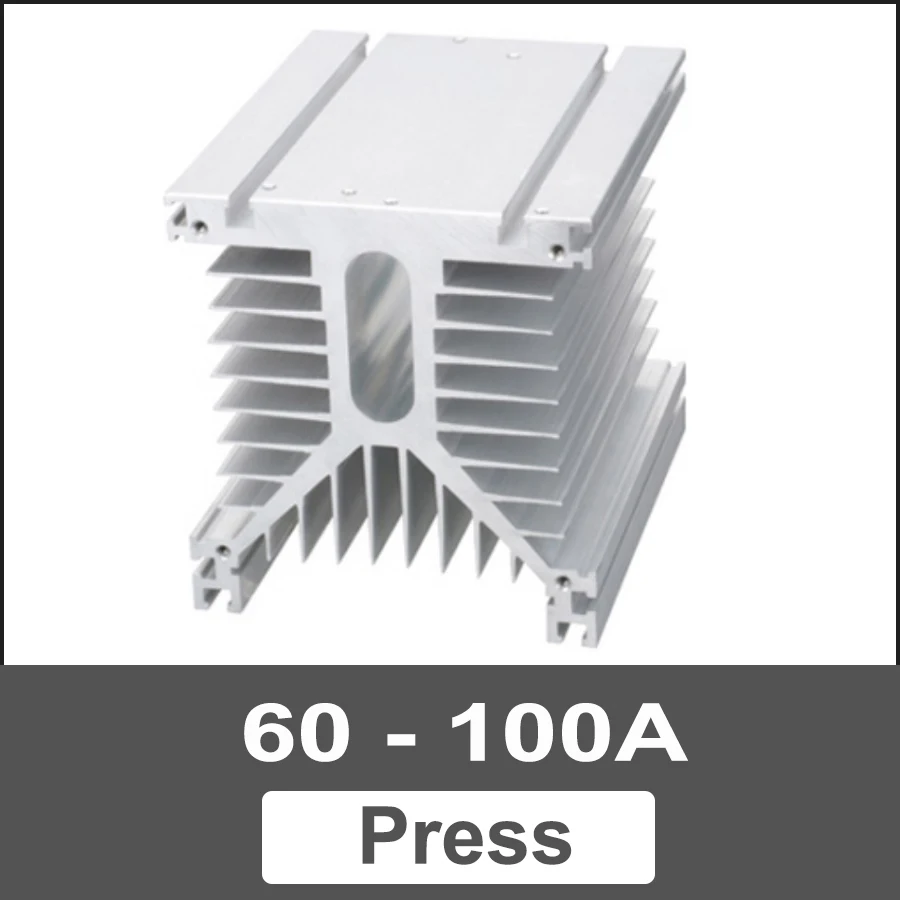

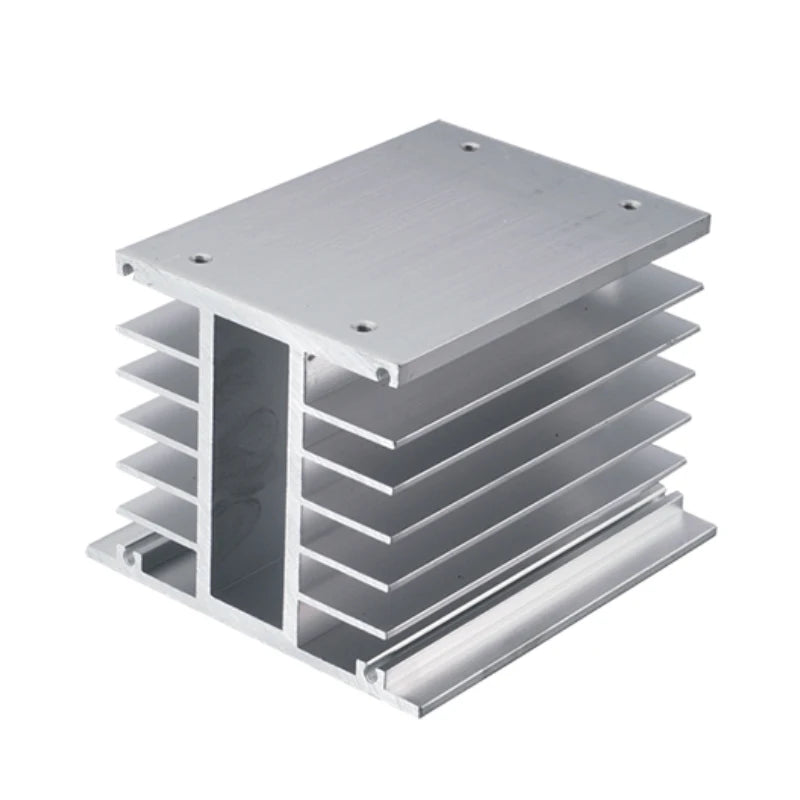

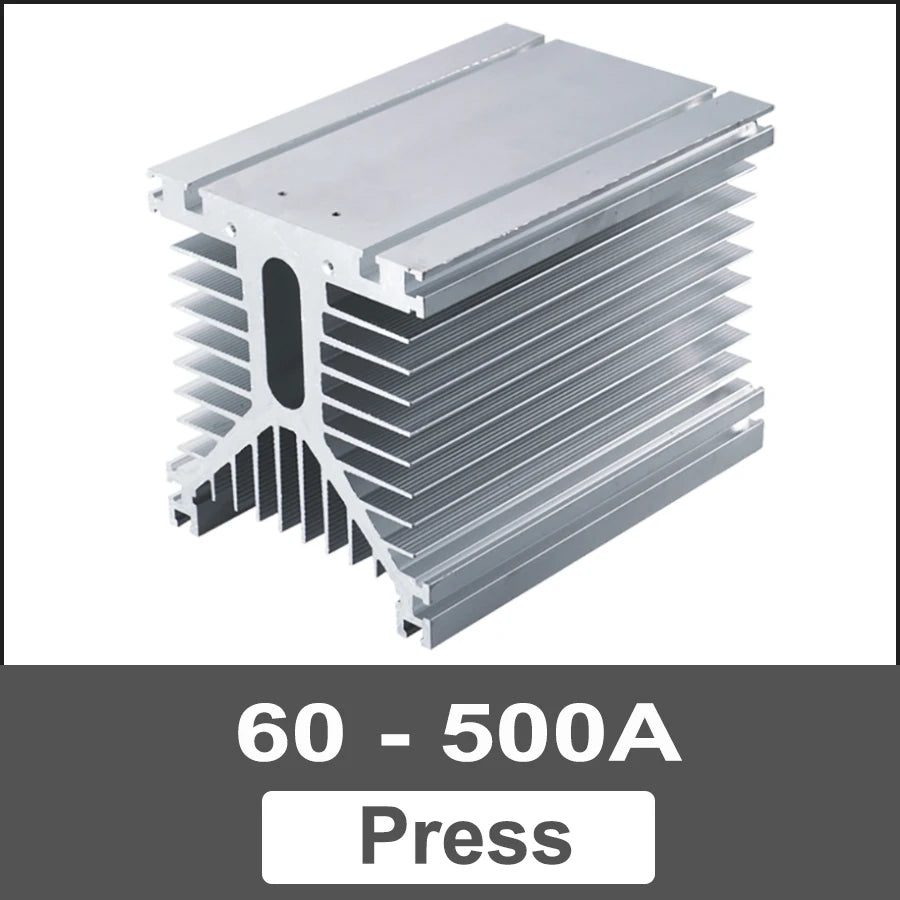

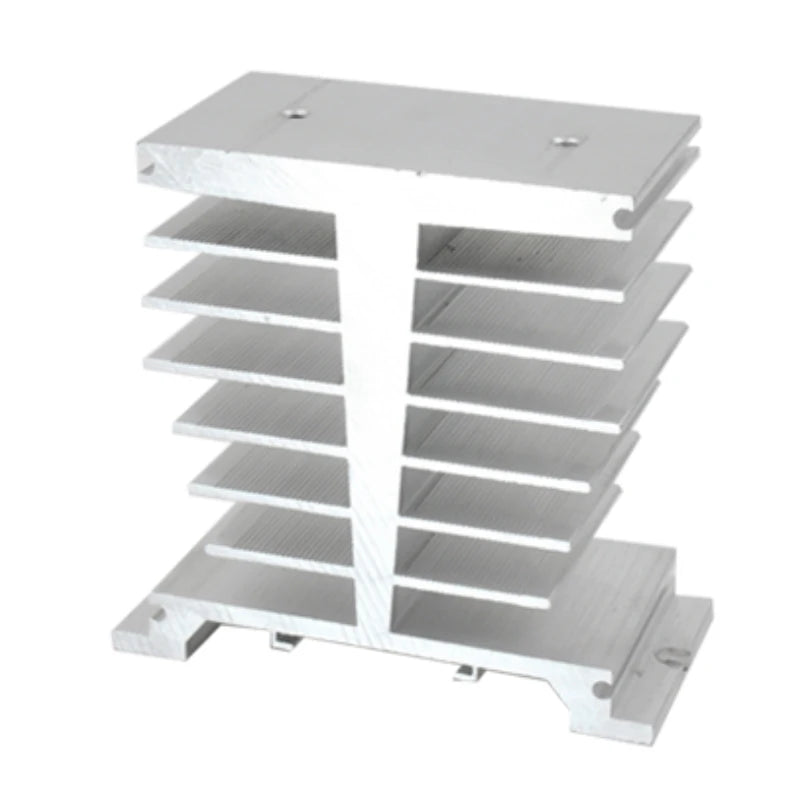

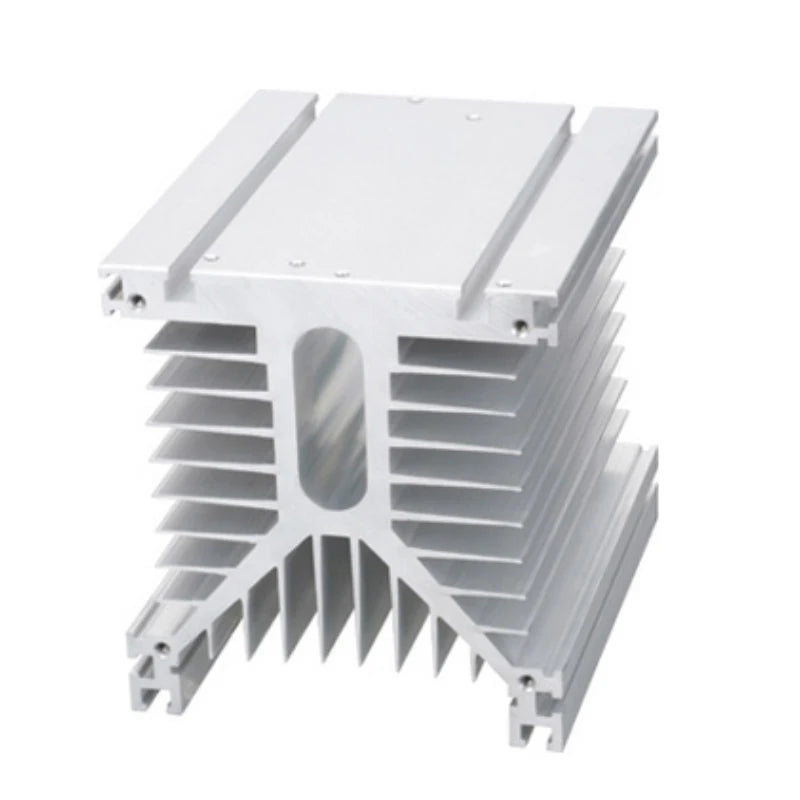

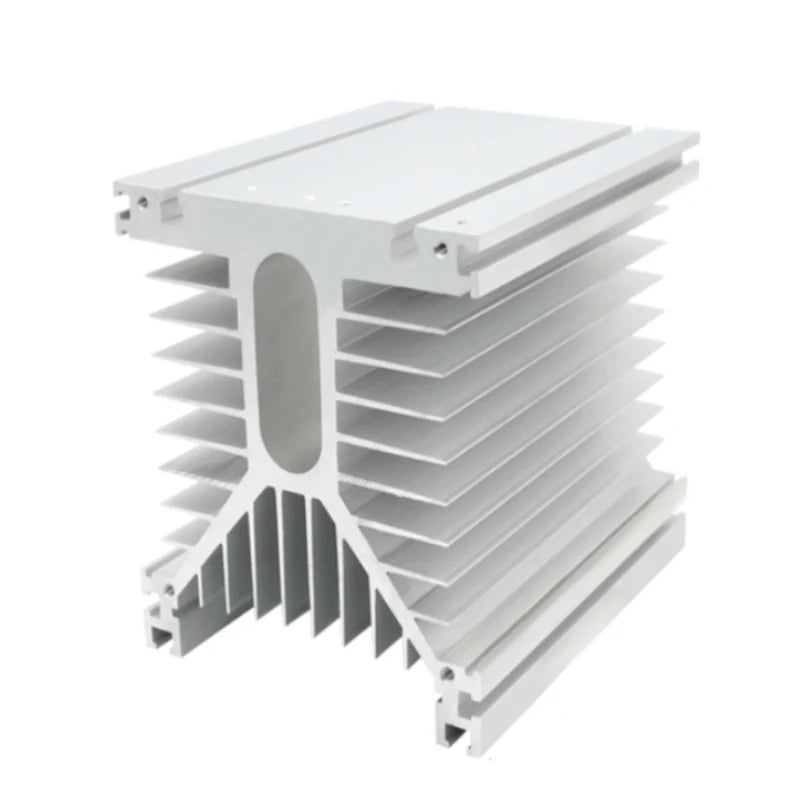

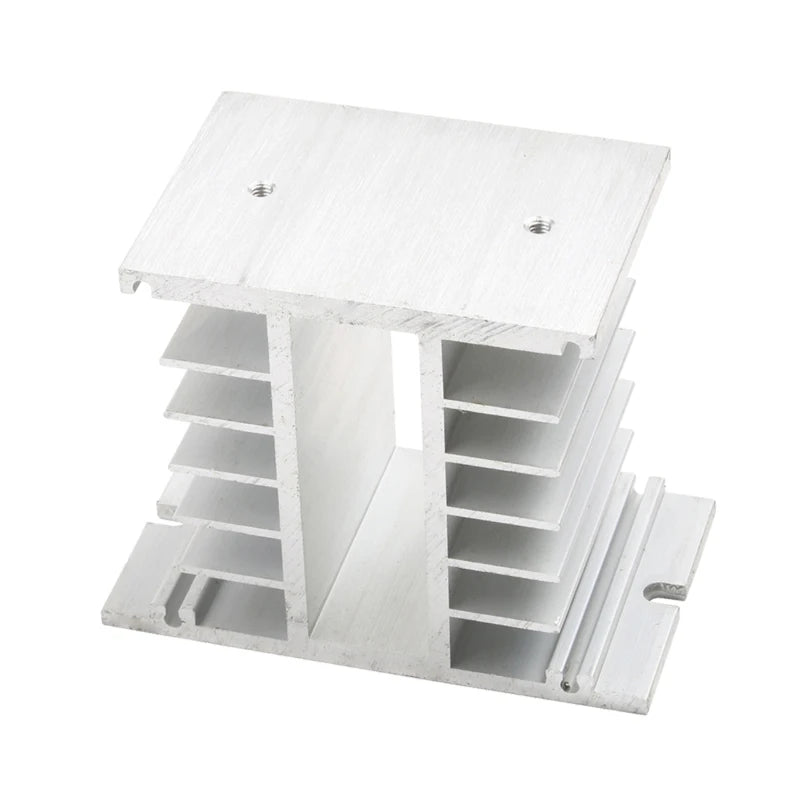

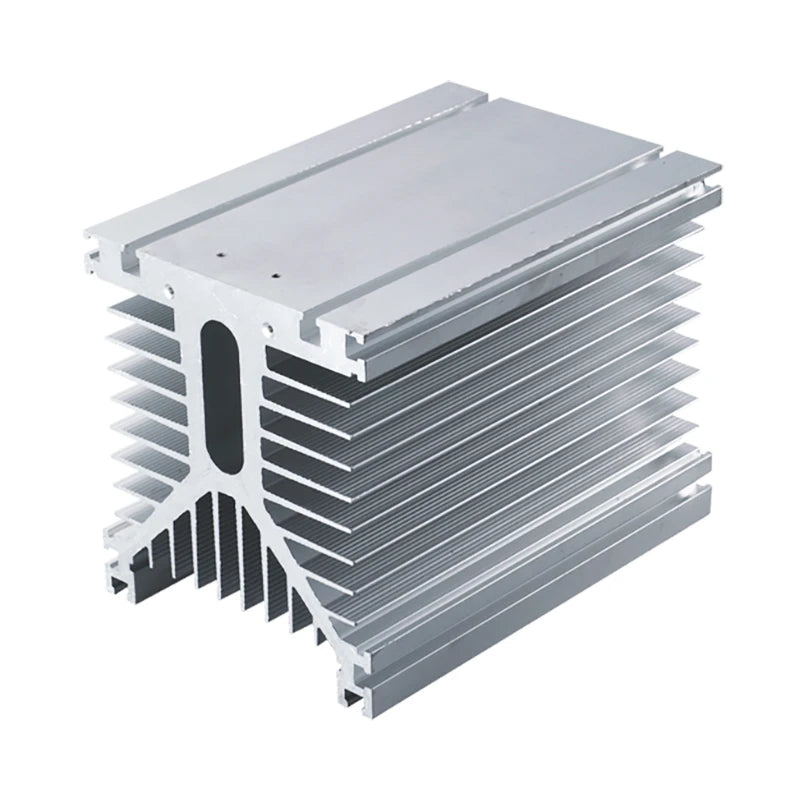

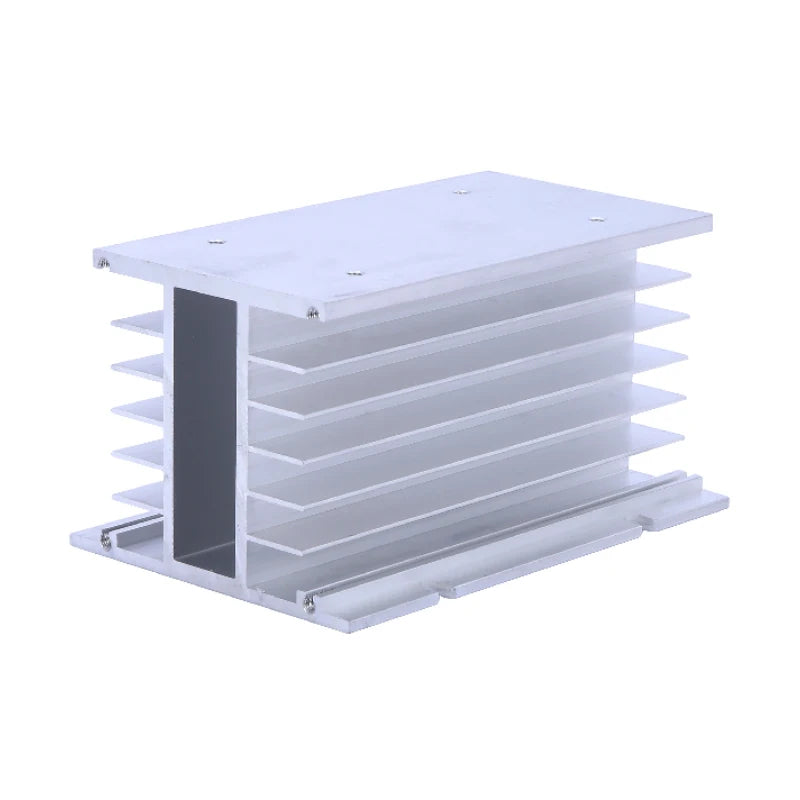

STEP 3: Choose a suitable heat sink.

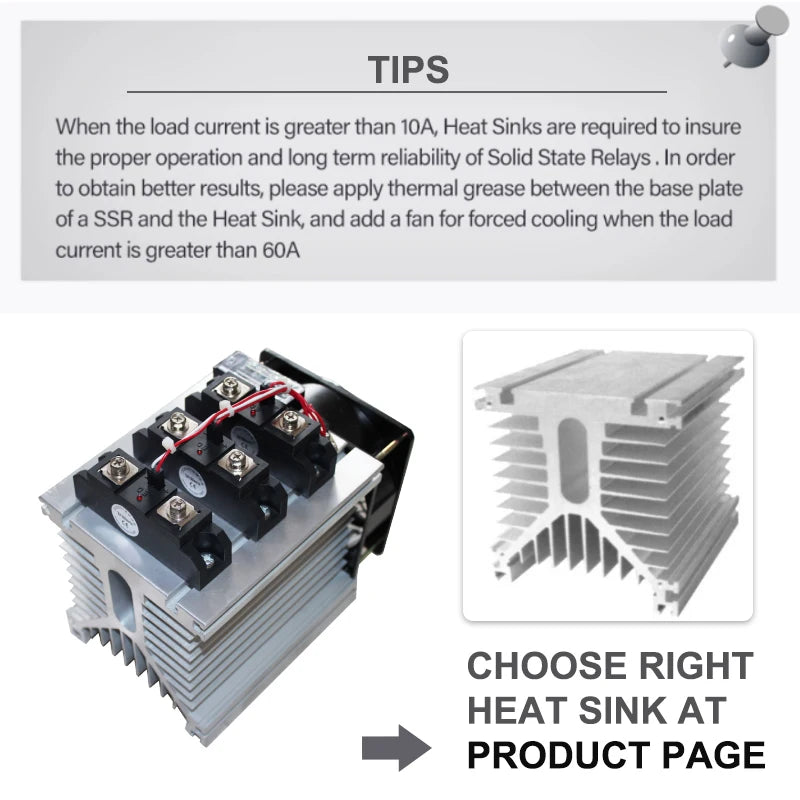

During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A, the cooling fan also required.

Type	Image	Feature	Control Mode
Type	Image	Feature	DC control AC	AC control AC	DC control DC	Resistance Regulator	Current Input 4-20mA	Voltage Input 0-10V

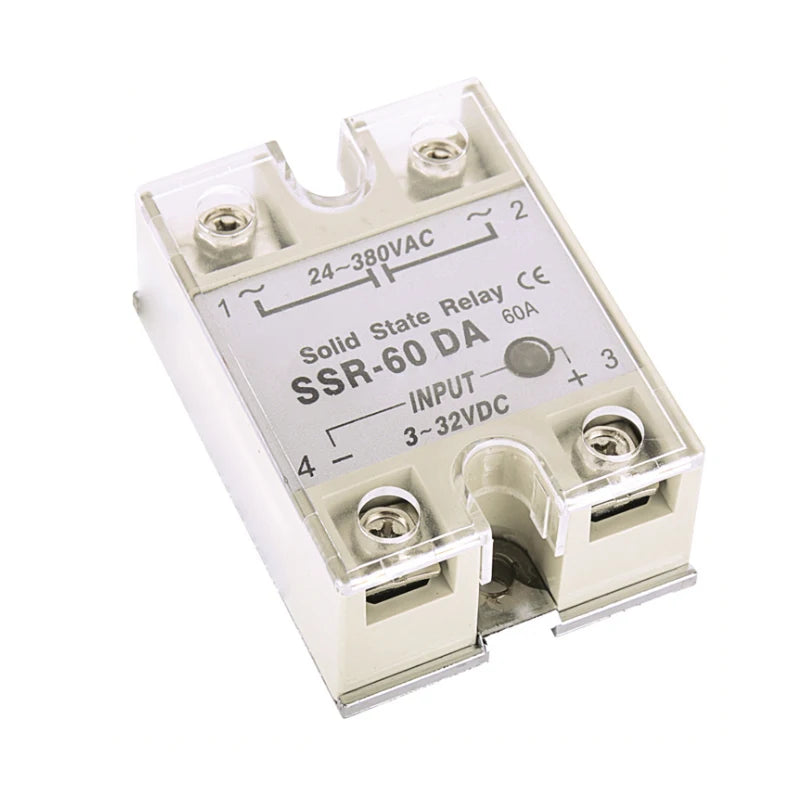

Single Phase		Cost-effective	Press	Press	Press	Press	/	/
		Better heat dissipation	Press	Press	Press	Press	Press	Press

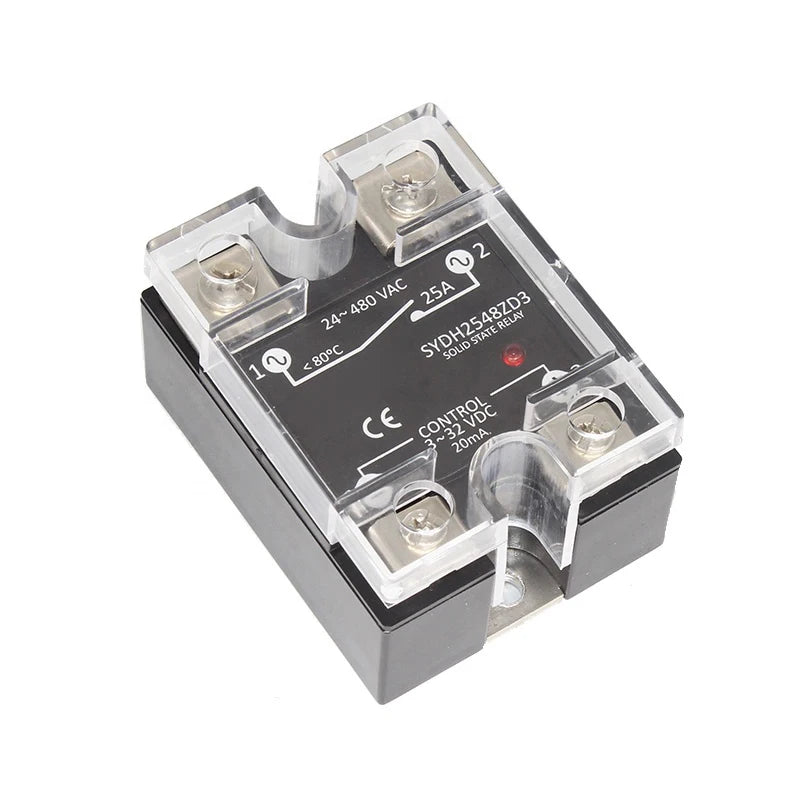

		Flip cover design for easy wiring	Press	Press	Press	Press	Press	Press

Type	Image	Feature	Control Mode
Type	Image	Feature	DC control AC	AC control AC	DC control DC	Resistance Regulator	Current Input 4-20mA	Voltage Input 0-10V

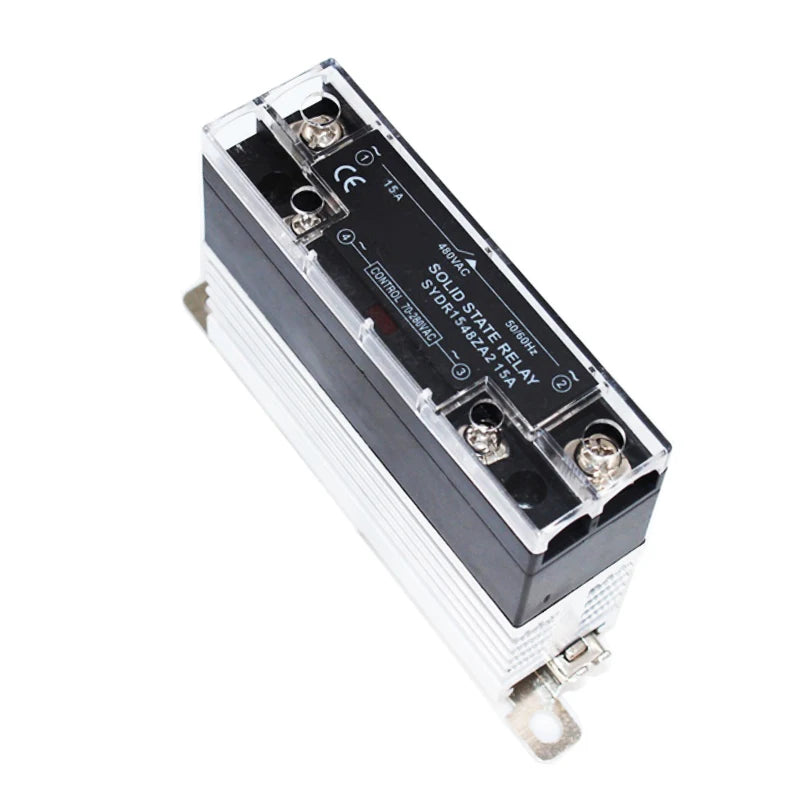

Single Phase		Slim, combined with heatsink, for 10-25A	Press	Press	/	/	/	/
Single Phase		Slim, combined with heatsink, for 25-40A	Press	Press	/	/	/	/

Type	Image	Feature	Control Mode
Type	Image	Feature	DC control AC	AC control AC	DC control DC	Resistance Regulator	Current Input 4-20mA	Voltage Input 0-10V

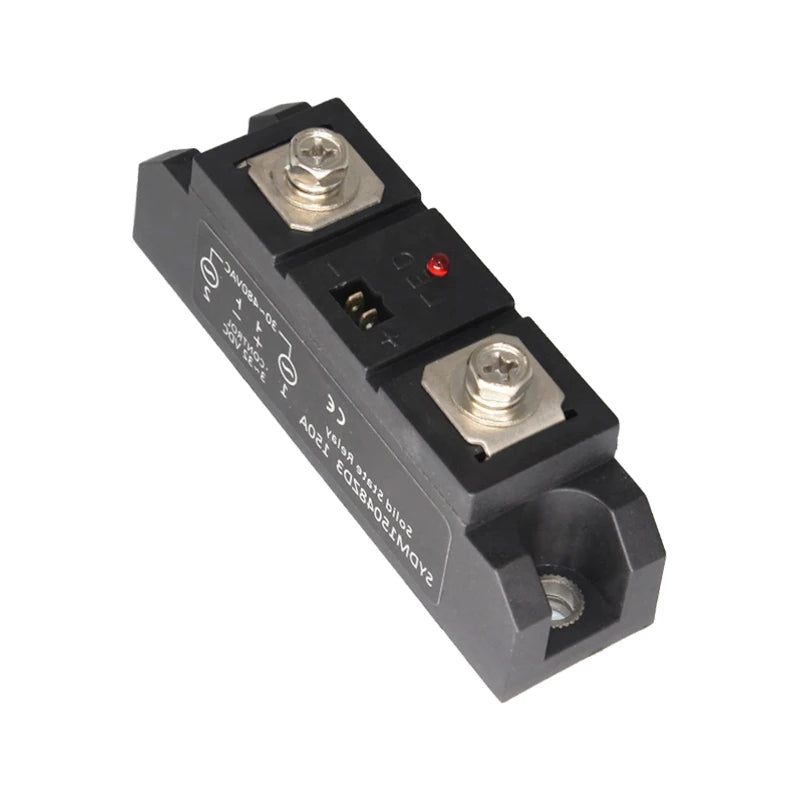

Single Phase		Industrial SSR, for 60-120A	Press	Press	/	/	/	/
		Industrial SSR, for 200-400A	Press	Press	/	/	/	/
		Industrial SSR, for 400-500A	Press	Press	/	/	/	/

Type	Image	Feature	Control Mode
Type	Image	Feature	DC control AC	AC control AC	DC control DC	Resistance Regulator	Current Input 4-20mA	Voltage Input 0-10V

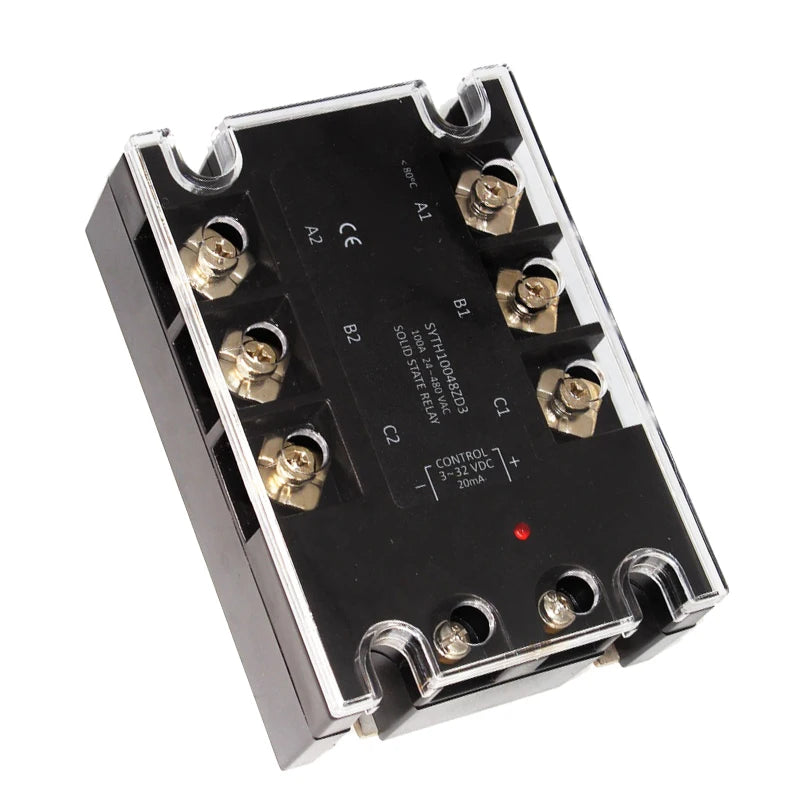

Three Phase		Universal	Press	Press	/	/	/	/

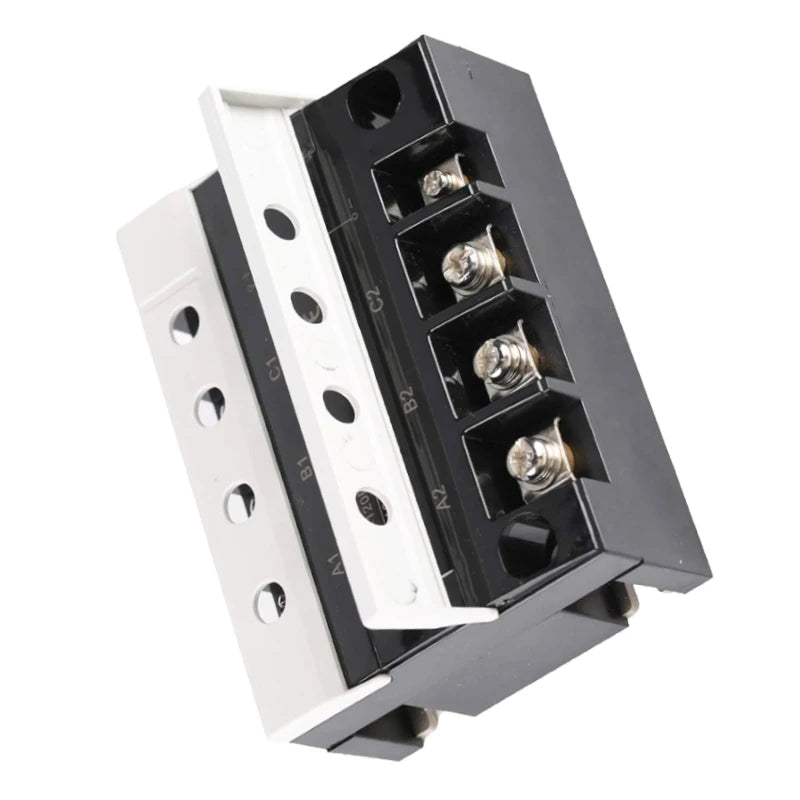

Three Phase		Flip cover design for easy wiring	Press	Press	/	/	/	/

Product	Image	Function	Matched relay	Link

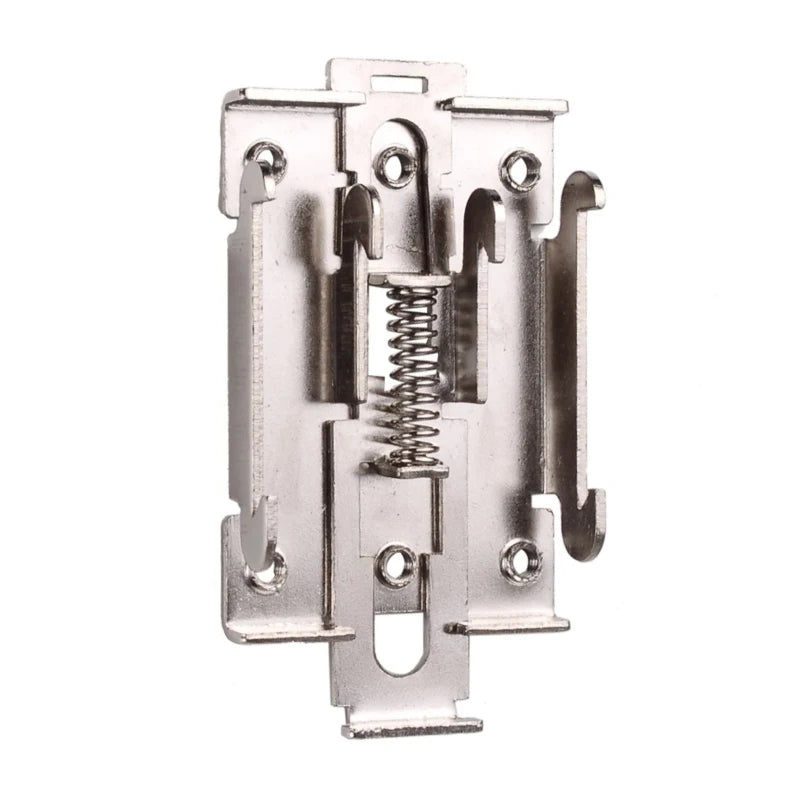

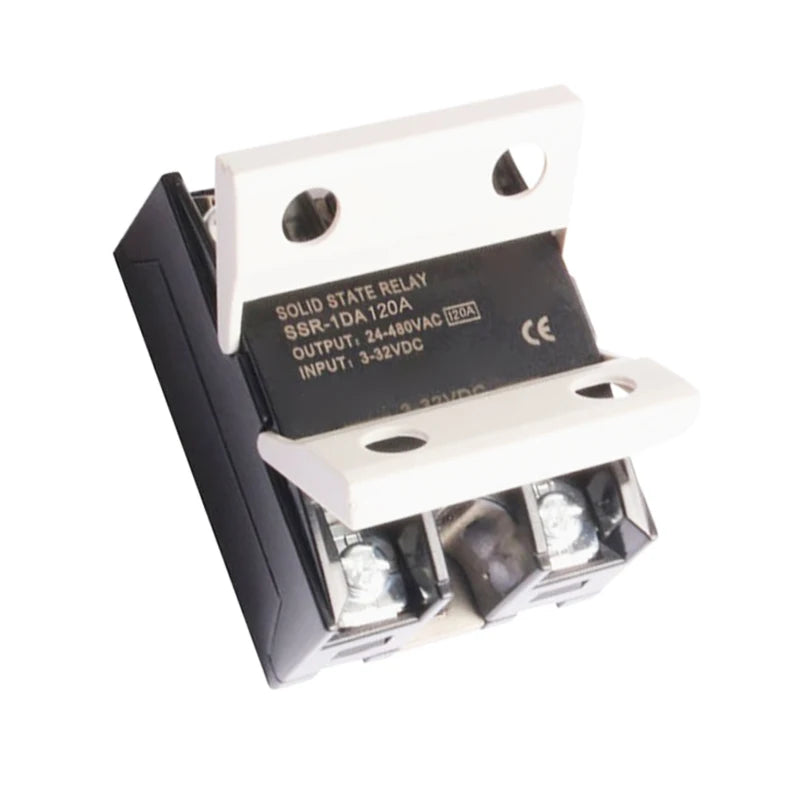

Relay Buckle		35mm Rail Mounting Fixed	Single Phasee SSR, 1 piece	Press

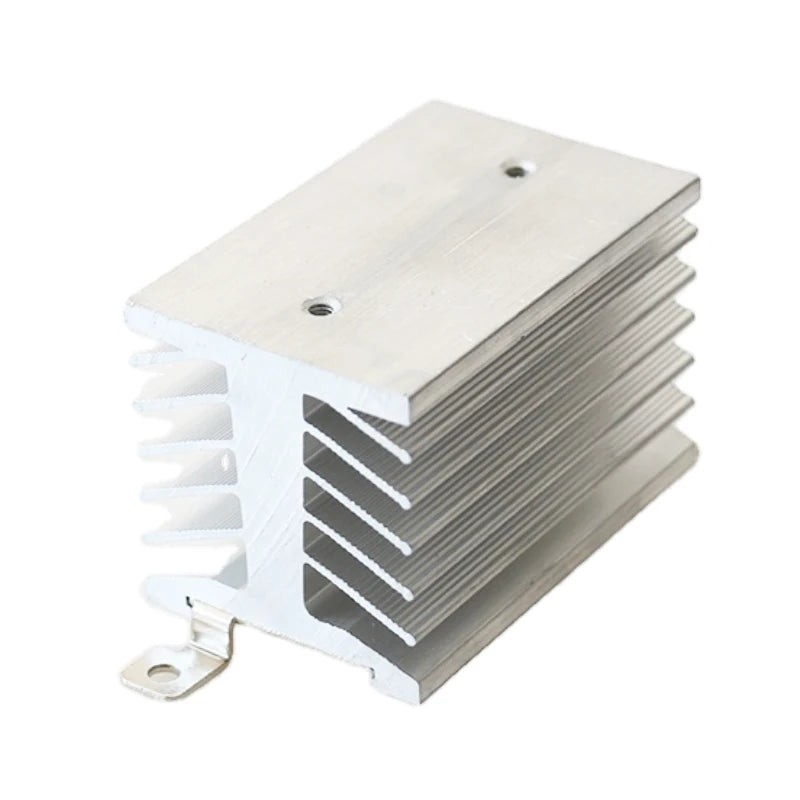

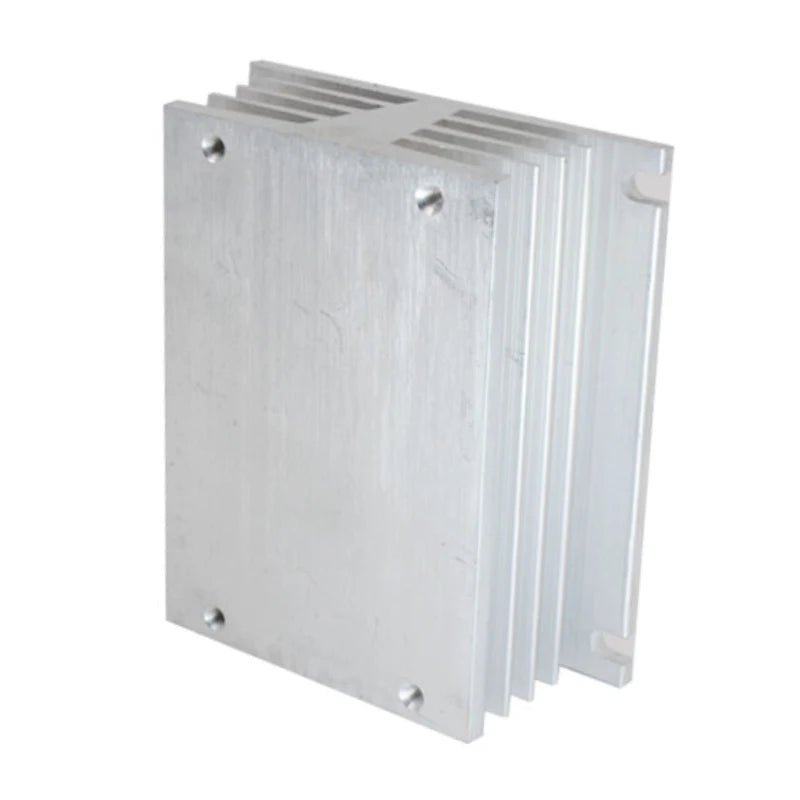

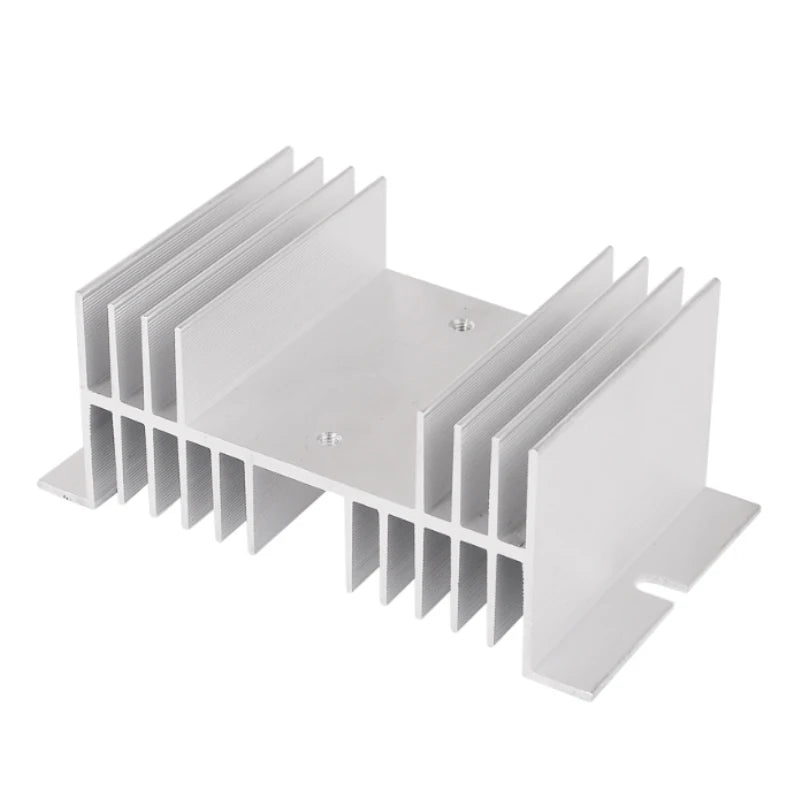

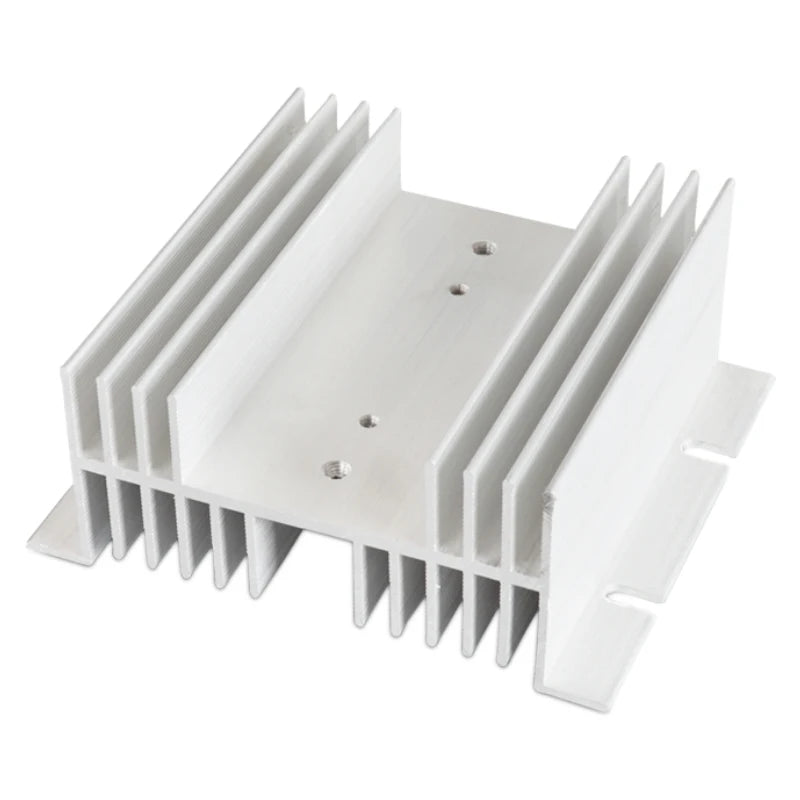

Model	Image	Matched relay	Link

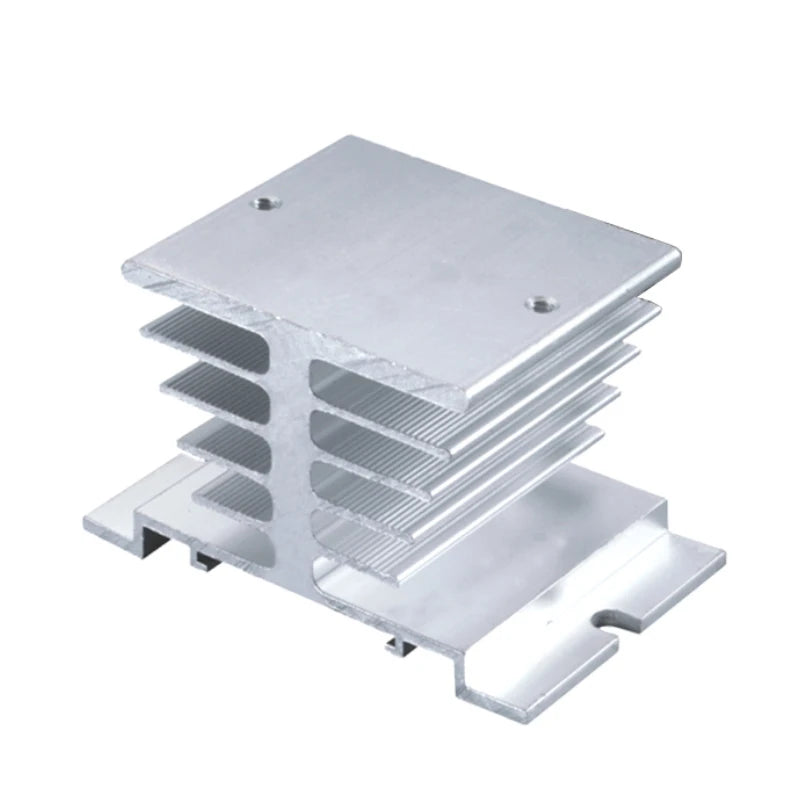

I-50		Single Phase SSR, 1 piece, 10-25A	Press
W-70		Single Phase SSR, 1 piece, 10-40A	Press
D-74		Single Phase SSR, 1 piece, 10-40A	Press
H-50		Single Phase SSR, 1 piece, 10-60A	Press
W-100		Single Phase SSR, 1 piece, 10-80A	Press
I-96		Single Phase SSR, 1 piece, 10-120A	Press
Y-80		Industrial SSR, 1 piece, 60-100A	Press

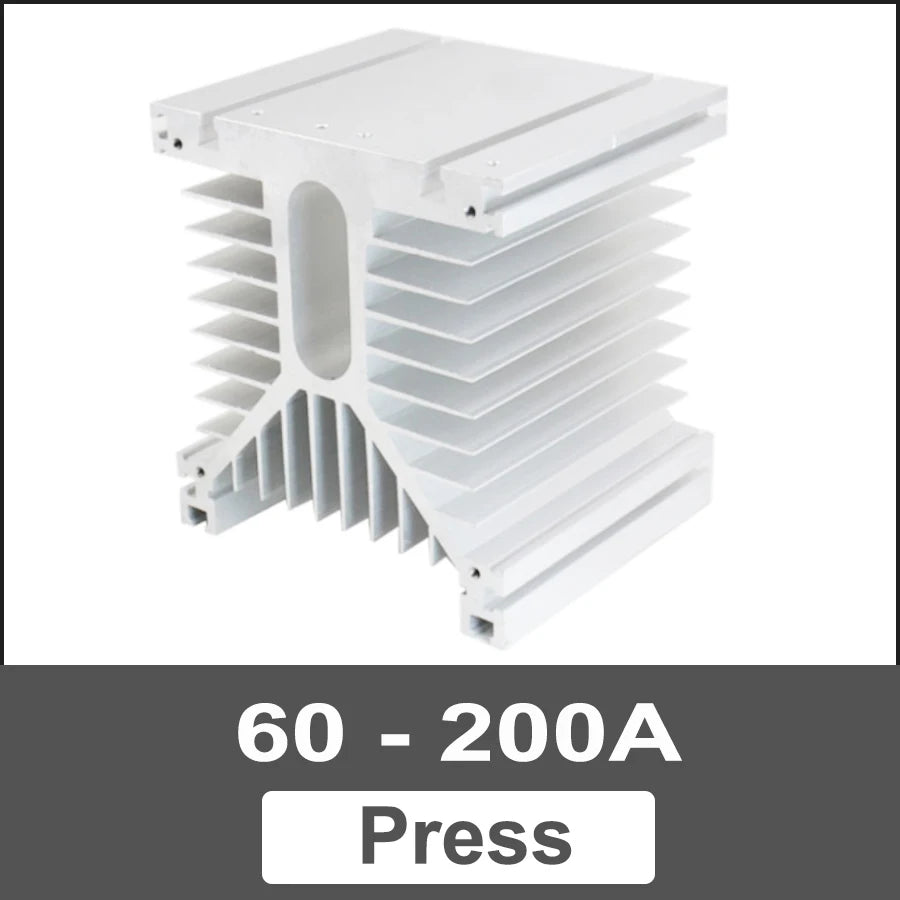

Y-110		Industrial SSR, 1 piece, 60-200A	Press

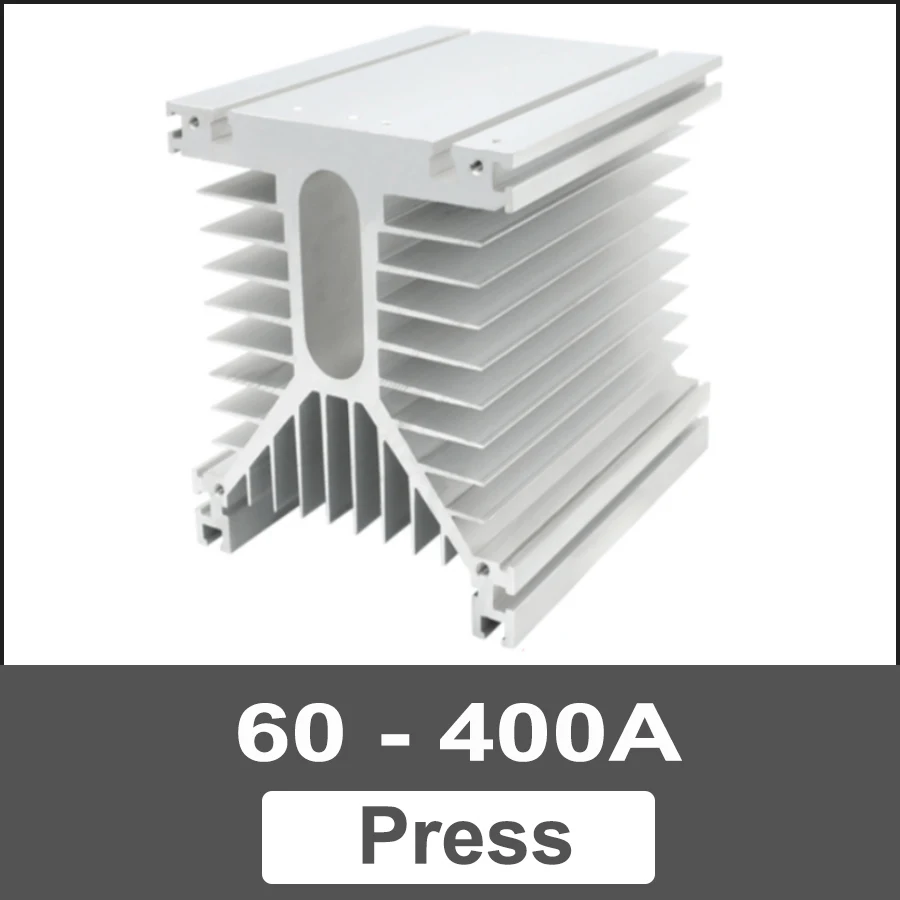

Y-150		Industrial SSR, 1 piece, 60-400A	Press
Y-150		Three phase SSR, 1 piece, 10-120A	Press

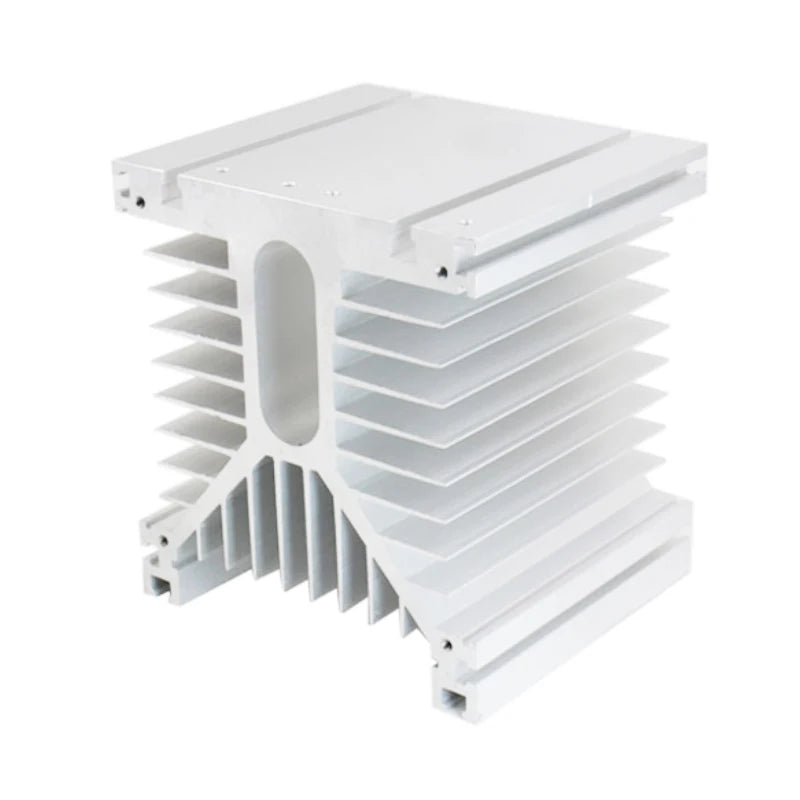

Y-200		Industrial SSR, 1 piece, 60-500A	Press
F-100		Three phase SSR, 1 piece, 10-25A	Press
H-110		Three phase SSR, 1 piece, 10-60A	Press
H-150		Three phase SSR, 1 piece, 10-80A	Press
