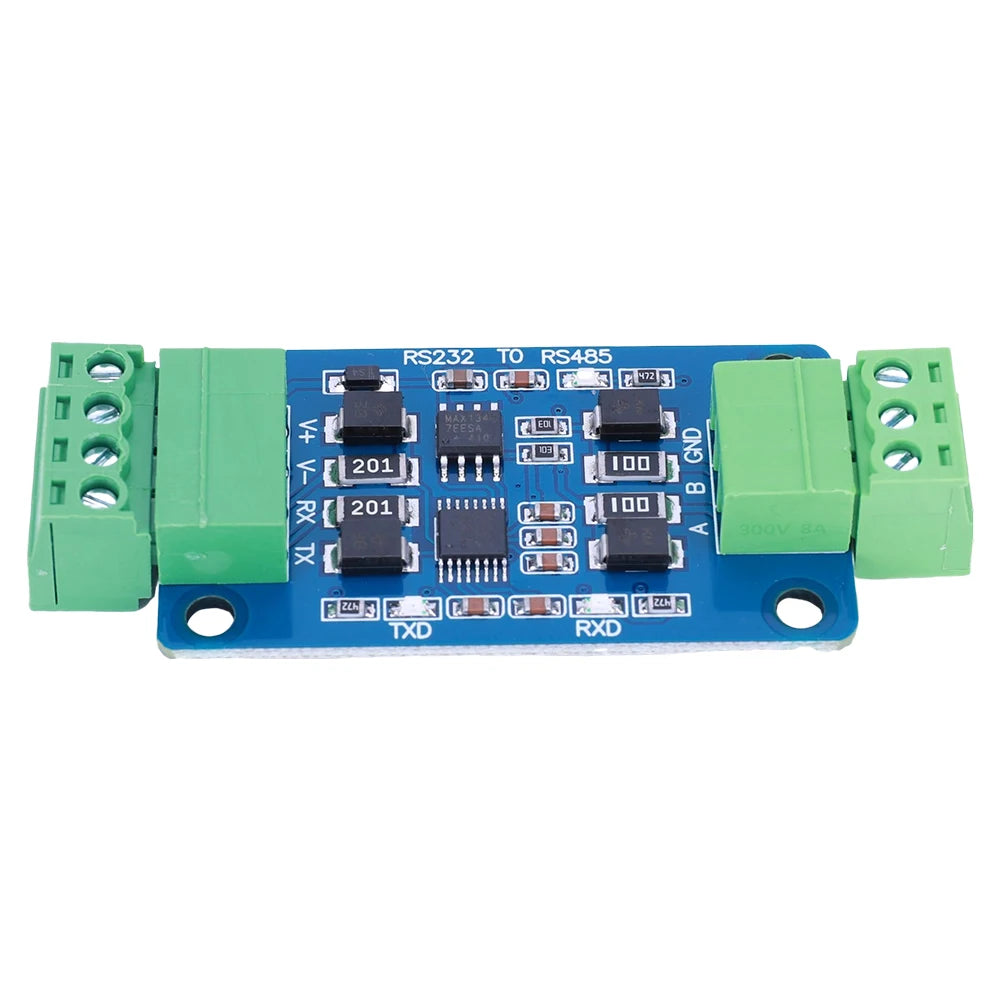

Industrial RS232 To RS485 Module 3.3V/5V Power Supply Serial Port Conversion Module RS232 To RS485 Adapter Module

Industrial RS232 To RS485 Module 3.3V/5V Power Supply Serial Port Conversion Module RS232 To RS485 Adapter Module

$23.60

$23.60 $0.00

Description

SPECIFICATIONS

Application: others

Brand Name: VODOOL

Choice: yes

High-concerned chemical: none

Input: Other

Origin: Mainland China

Output: Other

Type: Other

semi_Choice: yes

Welcome to Niceol Store! If you purchase more than 5 items at once, we can offer you a discount. Please contact our customer service for a better price.

Should you be interested in establishing a long-term partnership, do not hesitate to reach out to me directly on W e C h a t: xixihahawoshixiexie.

Industrial RS232 To RS485 Module 3.3V/5V Power Supply Serial Port Conversion Module RS232 To RS485 Adapter Module

Industrial RS232 To RS485 Module 3.3V Or 5V Power Supply Serial Port Debugging Assistant RS232 To RS485 Adapter Module Serial Port Conversion Module

Feature:
1. Versatile Power Supply Options: The industrial rs232 to rs485 module supports both 3.3V and 5V power supplies, making it suitable for a wide range of applications.
2. Stable and Reliable Industrial-Grade Design: Featuring a industrial-grade design, the serial port debugging assistant ensures stable and reliable performance with a signal transmission rate of up to 120Kbps.
3. Comprehensive Protection Measures: The serial port conversion module includes multiple protection measures such as ±15KV ESD protection and 600W dual-path TVS protection, ensuring safe and secure operation.
4. Supports Multi-Device Communication: The rs232 to rs485 converter allows for multi-device communication, supporting up to 128 devices on the 485 bus with hot-swappable capability and strong driving power, enabling a maximum transmission distance of 1200 meters.
5. User-Friendly Indicators and Installation: Equipped with a blue VCC power indicator and green RXD/TXD signal indicators, the rs232 to rs485 adapter module also features four 3mm mounting screw holes and pluggable terminals for easy installation and use.

Specification:
Origin: Mainland China
Type: Module
Description:
RS232 to 485 module description
RS232 to 485 module can realize the mutual conversion between RS232 and 485 communication systems: the module has automatic flow control function,
realizes automatic conversion of RS485 transmission and reception. The module is designed with special consideration of signal integrity and EMC characteristics, and multiple protection measures are added, so it can be used in various industrial applications. The module is simple in design, beautiful in appearance, stable and reliable.
Working voltage: 3.3V or 5.0V (should not exceed +/-5% of the nominal voltage)
Working current: 5mA
Working temperature: -30℃-70℃
Communication rate: 300-120000 (120K) bps, transparent transmission
Module size: PCB size 28*50*10mm (length*width*height): with terminal size 2865*13mm (length*width*height)
Screw hole size: screw hole center distance 22*42mm
Interface description:
V+ and V-: positive and negative poles of the power input interface.
RX and TX: RS232 bus receiving and sending, need to cross when connected with other RS232 modules, that is, RX is connected to TX.
A and B: DATA+ (A) and DATA- (B) of RS485 bus.
GND: RS485 reference ground, same as V-, generally can be left unconnected.
Product size: 68.00x28.00x12.00mm
Product size: 2.68x1.1x0.47inch

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1 x Industrial RS232 to RS485 Module
