SPECIFICATIONS

Battery Included: no

Brand Name: OPEN-SMART

Certification: NONE

Choice: yes

High-concerned chemical: none

Model Number: IR Emitter + IR Receiver

Origin: Mainland China

Package: Yes

Products Status: Stock

Type: Industrial Computer Accessories

semi_Choice: yes

Description

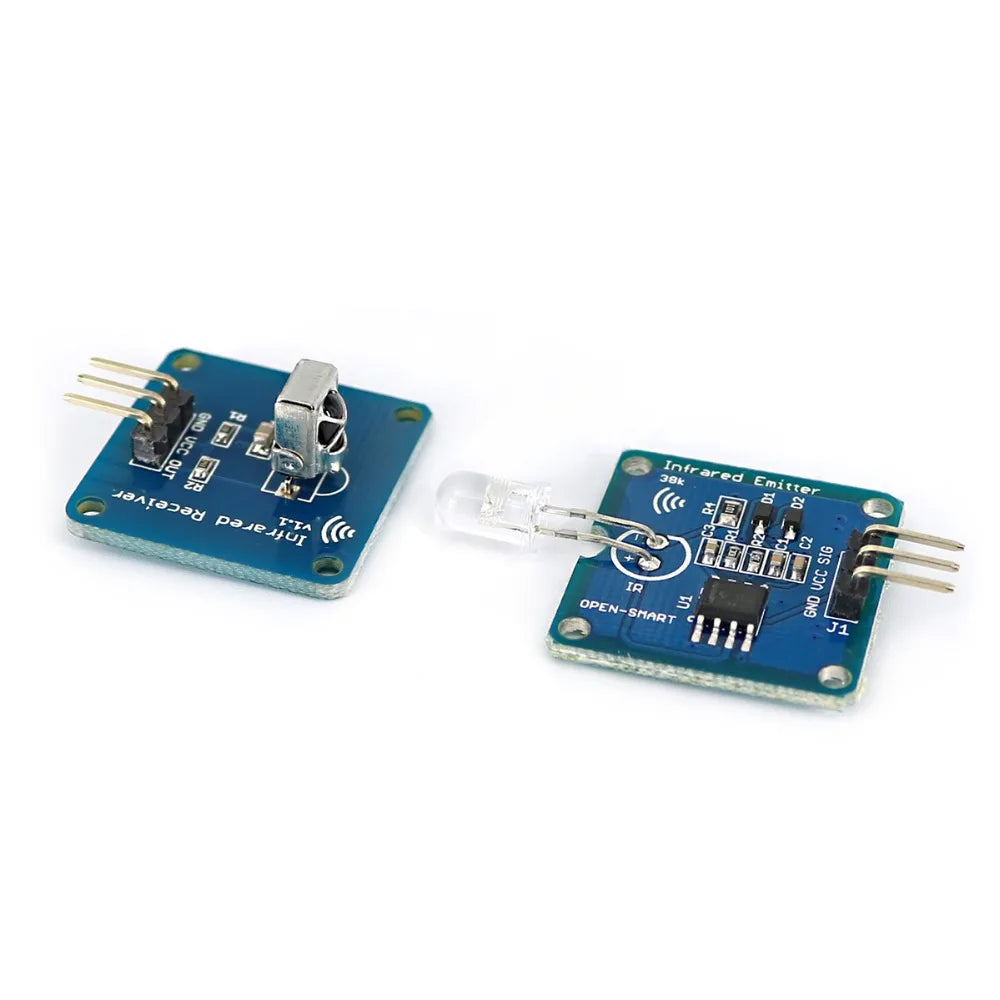

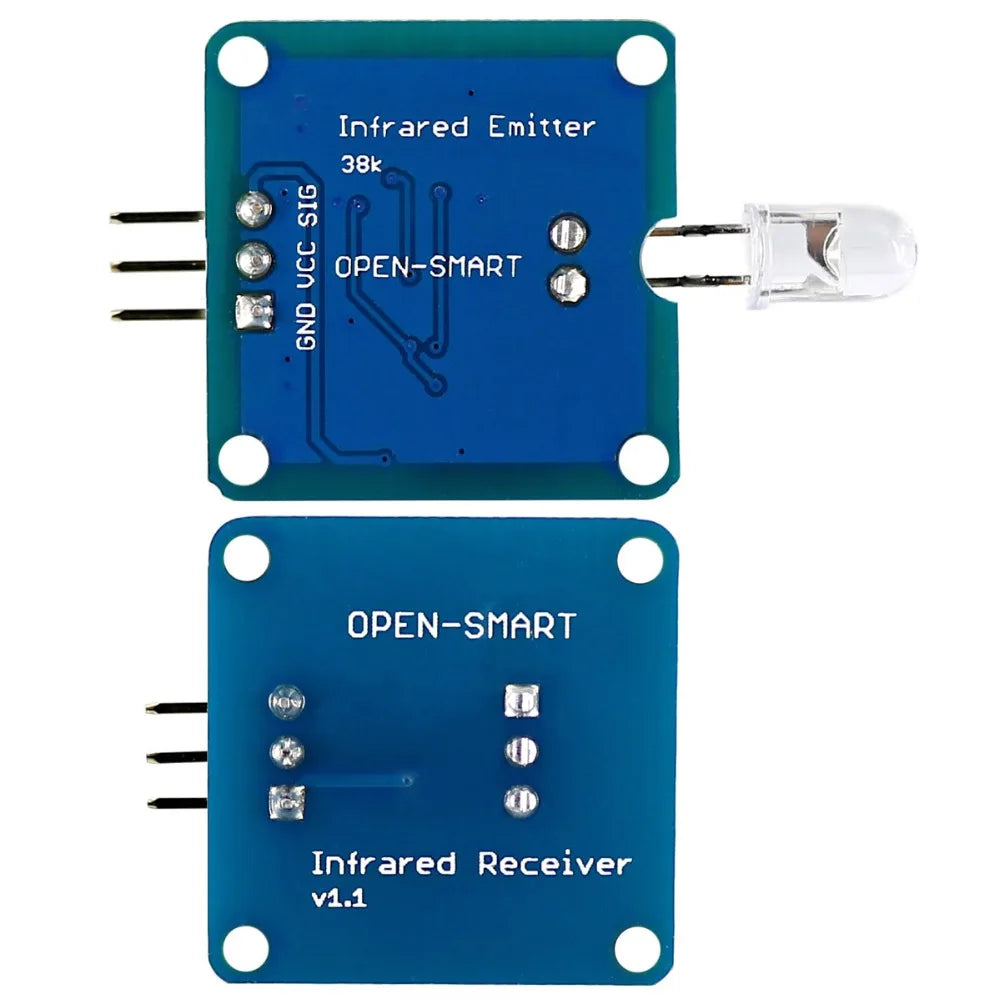

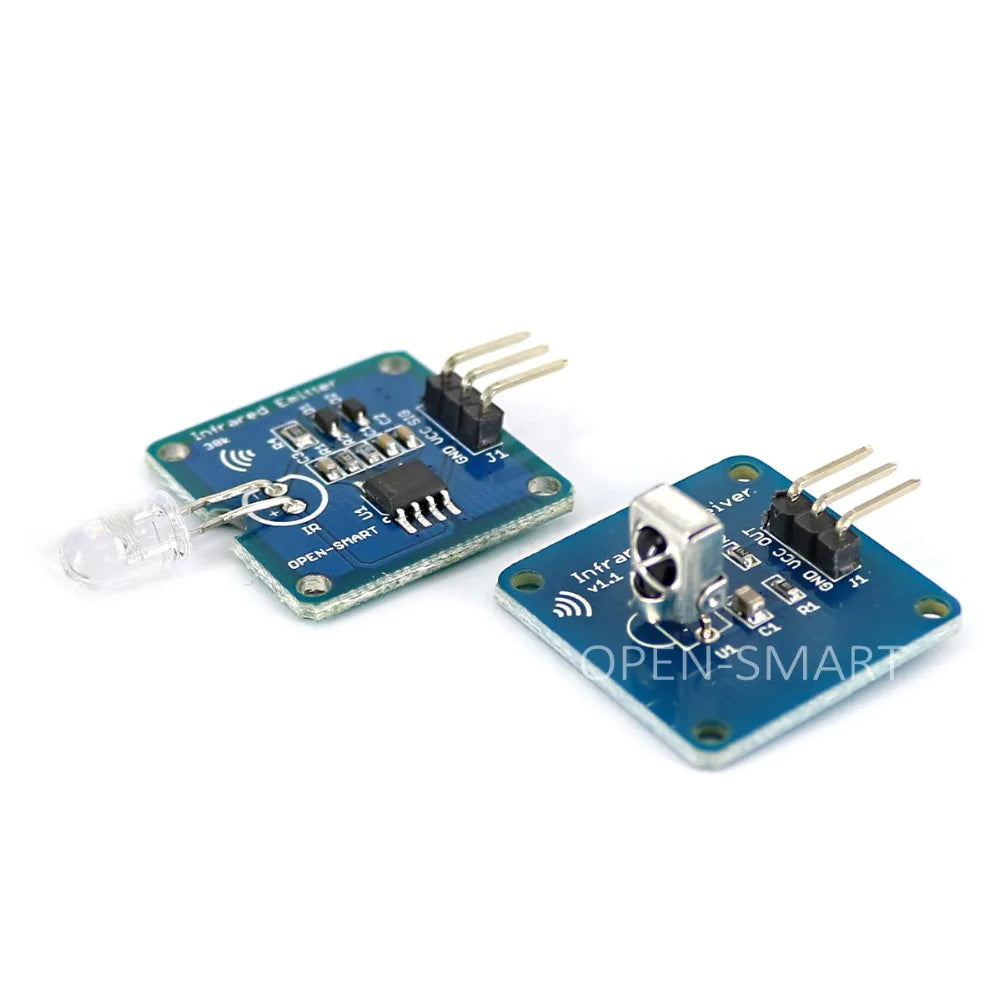

Note: 1 Set = 1 x Infrared Emitter + 1 x Infrared Receiver

Note: This set of Infrared Transceiver Kit is paired, with use the board that has upload the NEC protocol program, The remote control distance can reach about 6 meters, and with the angle of the transmitting and receiving module aligned, the remote control distance may reach up to 8 meters.

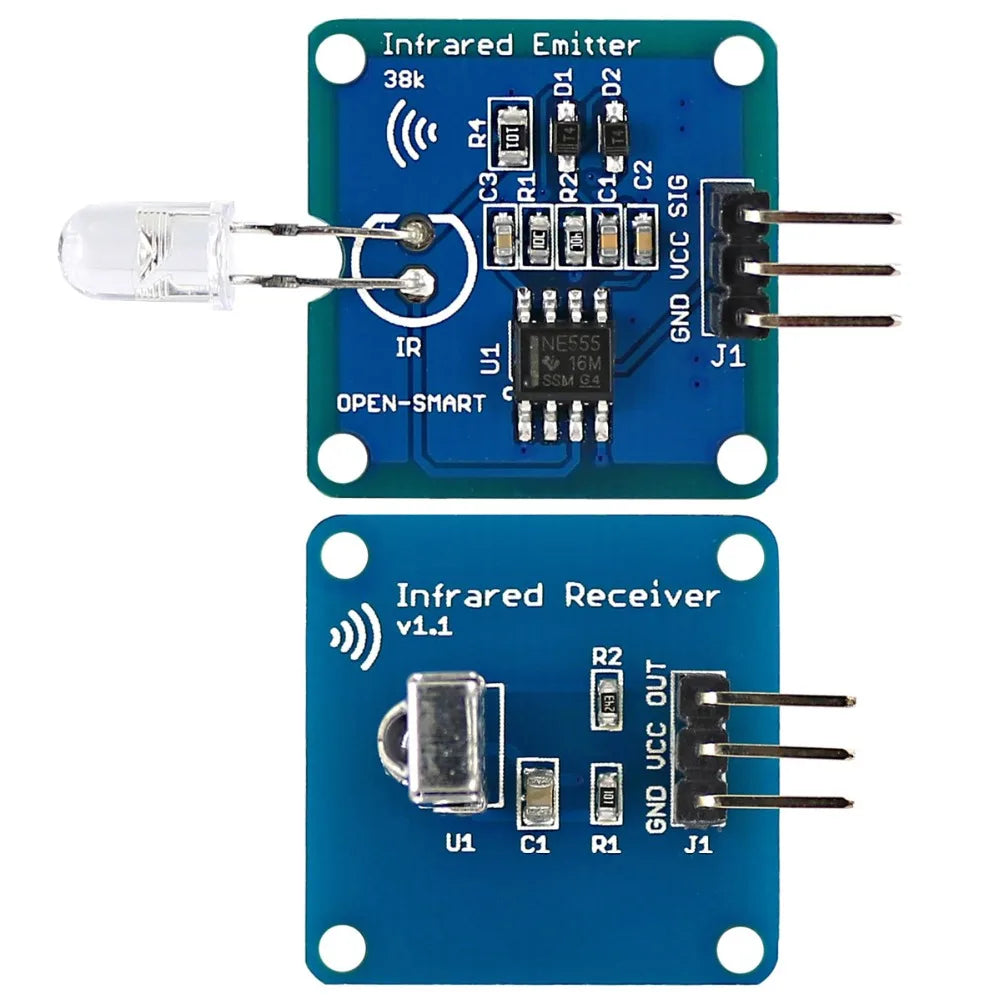

The Infrared Emitter (Link) is based on NE555 infrared transmitter module. 38KHz carrier circuit board produced by the NE555, no MCU's PWM pins to reduce the corresponding code, reducing the burden on the MCU. SIG module pin is high, the module will send an infrared signal of 38KHz, SIG pin is low, the module will stop sending infrared signals, the use of very simple, so ordinary single-chip infrared remote control can also be easily produced items .

Features:

- Compatibility: compatible for Arduino.

- Operating voltage: 4.5 - 5.5VDC

- Operating Current: 50mA (max)

- Emission angle: 45 degrees

- SIG pin current: High lelel 0.4mA (max), low level 1.4mA (max)

- You can manually adjust the direction of the launch tube according to the actual application requirements

- Great for infrared remote control projects

Infrared Receiver (Link) module:

This is infrared receiver module based on integrated infrared receiver head. It can receive the modulated infrared signal of 38KHz that is sent by the IR transmitter module and demodulate it into logic level, when it gets the modulated infrared signal, it outputs one negative pulse and returns to normalcy (High level). The infrared receiver module and transmitter module can complete the infrared remote control with the codec program.

- Operating voltage: 3.0 - 5.5VDC

- Operating Current: 2mA (max)

- Receiving angle: 90 degrees

Photos

The Usage



Part List (Schematics and program can be sent, Please contact us)

1 x Infrared Emitter with 38K Carrier

1 x Infrared Receiver
