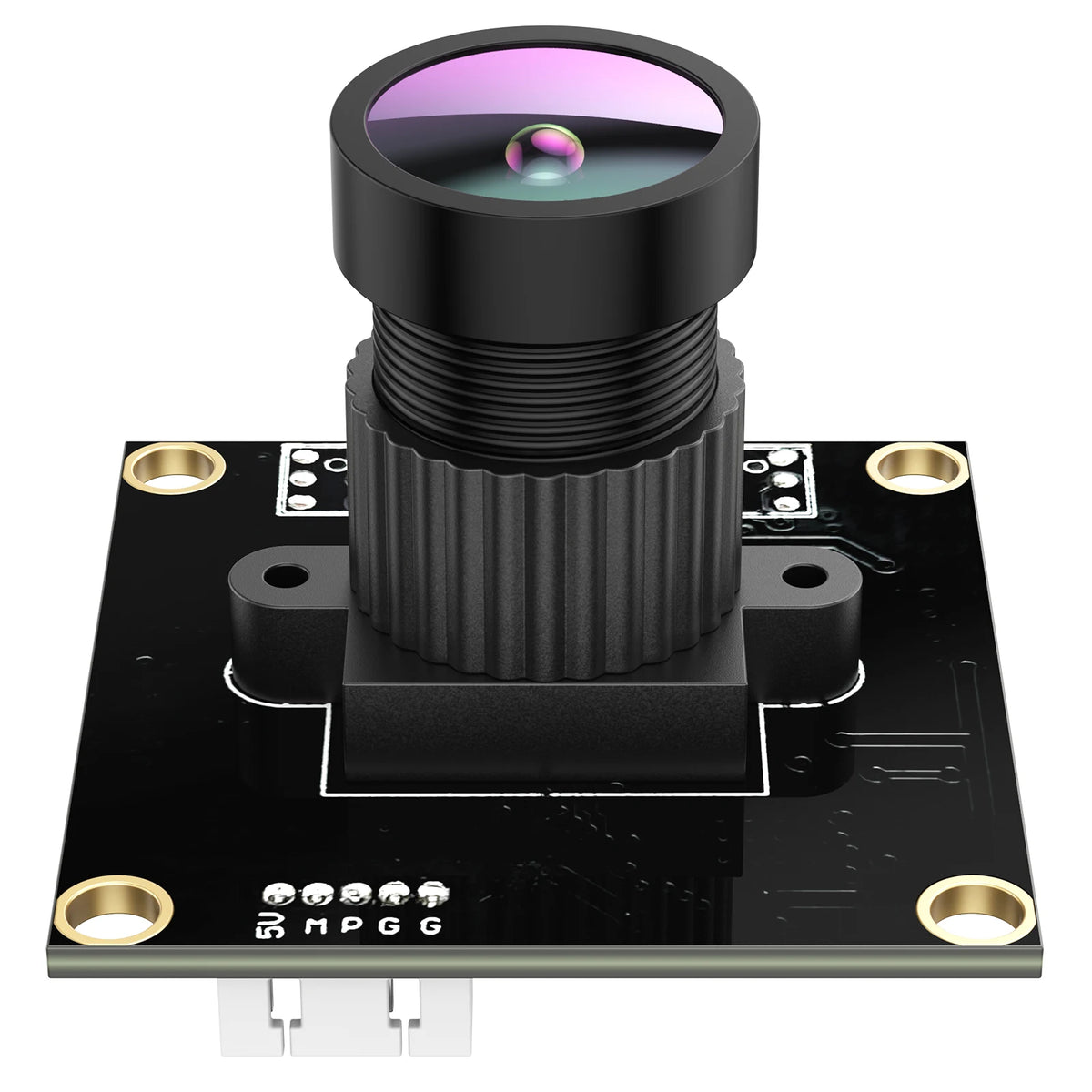

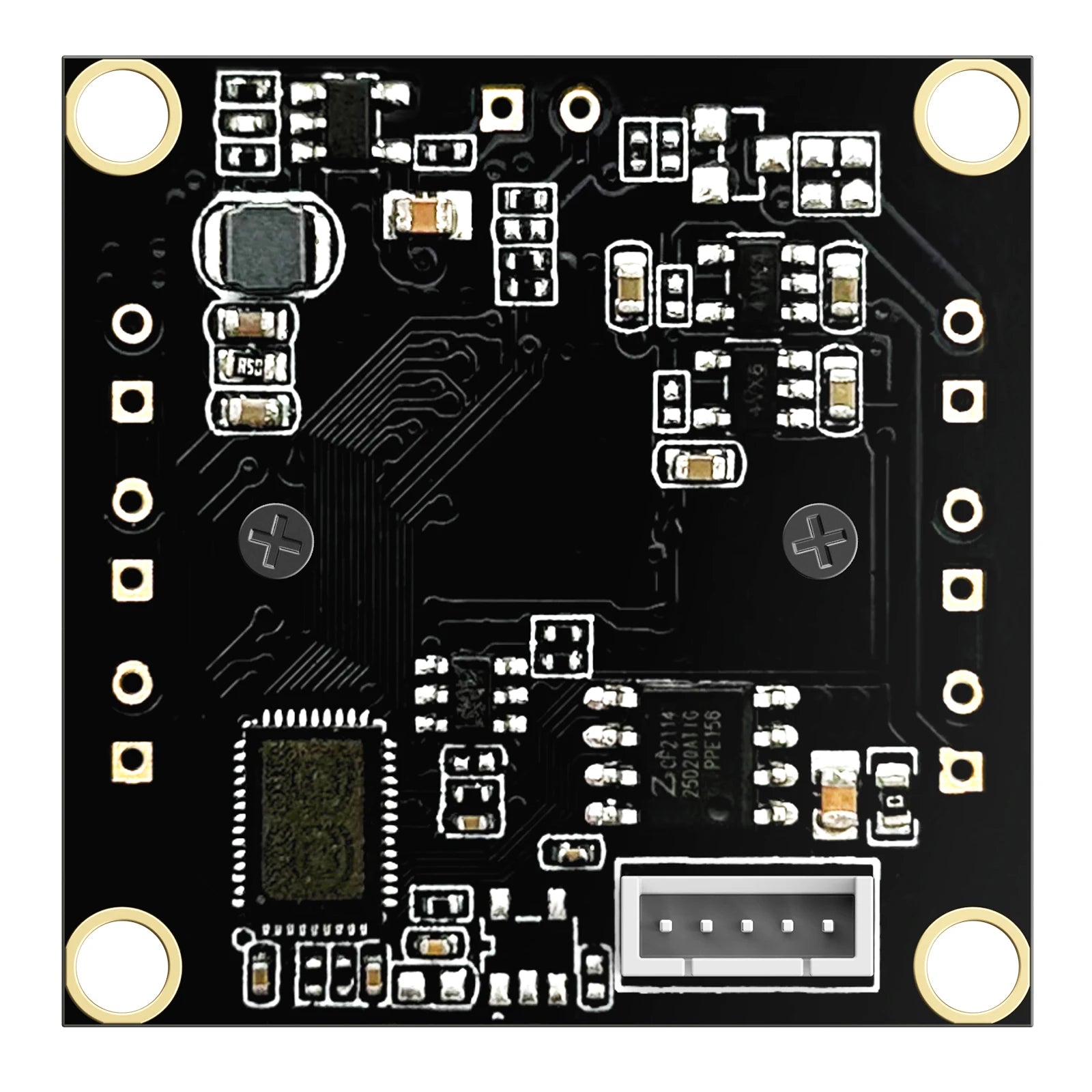

innomaker USB 2.0 UVC Camera Module U20CAM-PS5268 with 2MP PS5268 Color Sensor 85dB Wide Dynamic Range 1080p 30fps,
$253.67
Sale price
$253.67
Regular price
$0.00
Description
SPECIFICATIONS
Accessory Type: Camera Module
Battery Included: no
Brand Name: CHINGKAM
Compatible With: Raspberry Pi/Jetson Nano/ARM Boards/PC
High-concerned chemical: none
Origin: Mainland China
Typical Application Fields: Consumer Electronics
1 General
1.1 Description
U20CAM-PS5268 is A Low Cost wide dynamic range Camera Module resolution Up to 2MP with PS5268 sensor, which features high sensitivity of 5800 mV/Lux-sec and wide dynamic range (WDR) of 85dB, and can be used for all kinds of lighting conditions. Compatible with Raspberry Pi ,Jetson Nano, PC Computers, Windows Linux Android Mac OS with UVC Driver.
1.2 Features
2MP resolution (1920×1080) with PS5268 Sensor, High sensitivity of 5800 mV/Lux-sec and wide dynamic range (WDR) of 85dB and can be used for all kinds of lighting conditions.
Plug And Play: UVC-compliant, support Windows, Linux, Mac OS and Android device with UVC, just connect the camera to PC, laptop or Raspberry Pi with the USB cable without extra drivers to be installed.
This camera module is widely used for many applications like security, surveillance, CCTV, industrial automation, automotive, factory automation, monitoring, access control, artificial intelligence (AI), machine vision, robotics, robots, computer vision, agriculture, education, 3D, detection, vision system, imaging, etc
2 Specification
Item |
Specification Details |
|||||||||||||||
Sensor |
1/2.7’’ PS5268 Sensor
2 Mega Pixel 1920(H) x 1080(V) 3.0µm x 3.0µm Color |
|||||||||||||||
Output Parameter |
MJPG 1920×1080@30fps |
|||||||||||||||
Shutter Type |
Electronic rolling shutter |
|||||||||||||||
Dynamic range(WDR) |
85dB |
|||||||||||||||
Sensitivity |
5800mV / lux-sec |
|||||||||||||||
Focus type |
Fixed focus / Manually adjustable |
|||||||||||||||
Output Format |
MJPG/YUY2 |
|||||||||||||||
MJPG Resolution &Frame rate |
1920×1080@30fps/
1280×960@30fps/ 1280×720@30fps/ 768×1024@30fps,20fps,15fps,10fps,5fps/ 720×1080@30fps,20fps,15fps,10fps,5fps/ 640×1080@30fps,20fps,15fps,10fps,5fps/ 640×480@30fps,25fps,20fps,15fps,10fps,5fps/ 480×640@30fps,20fps,15fps,10fps,5fps/ |
|||||||||||||||
YUY2 Resolution &Frame rate |
1920×1080@5fps
1280×960@5fps 1280×720@10fps 768×1024@5fps 720×1080@10fps 640×1080@5fps 640×480@30fps 480×640@30fps |
|||||||||||||||
Auto Parameters |
Auto Exposure Control (AEC)
Auto White Balance (AEB) Auto Gain Control (AGC |
|||||||||||||||
Controllable Parameters |
Brightness/ Contrast / Hue/ Saturation/ Sharpness/ Gamma /White Balance/ Backlight Comp/ Gain/ Exposure / Powerlines Frequency /Low Light Compensation |
|||||||||||||||
USB Type |
USB2.0 High Speed USB2.0 OTG USB Video Class（UVC） |
|||||||||||||||
Cable Length |
1M |
|||||||||||||||
Support Os |
Window /Mac Os / Android /Linux with UVC |
|||||||||||||||
S/N Ratio |
41dB |
|||||||||||||||
|
Working Condition
|
|
|||||||||||||||
Lens |
F/N 2.3
Focus Length 3mm CRA 14° Distortion 25％ FOV 135（H）x 110(V)x 58(D) Lens Seat distance 18mm Fixed Type Fixed Len IR 650±10nm |
|||||||||||||||
