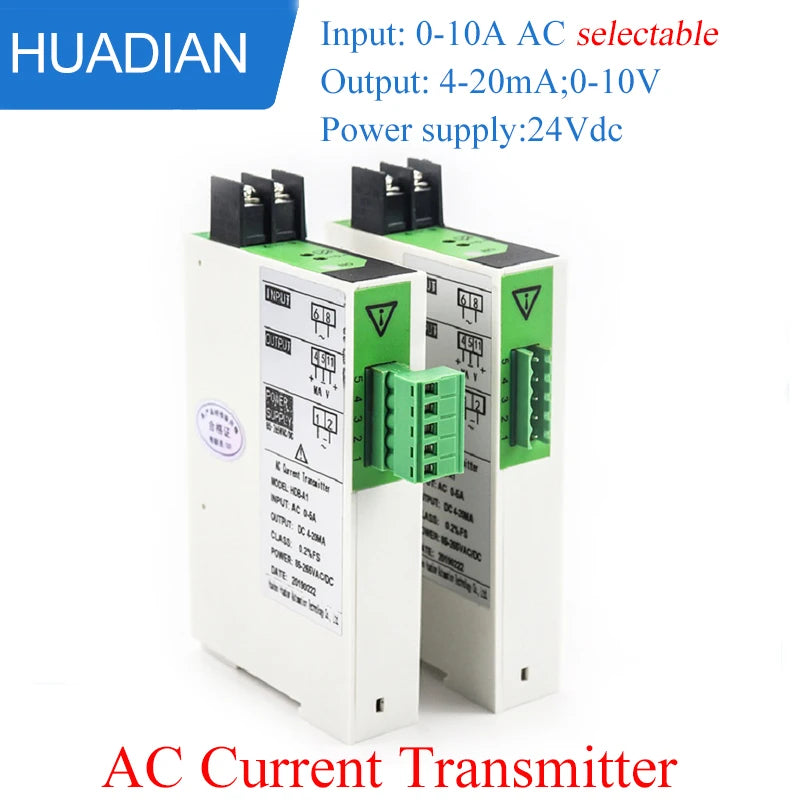

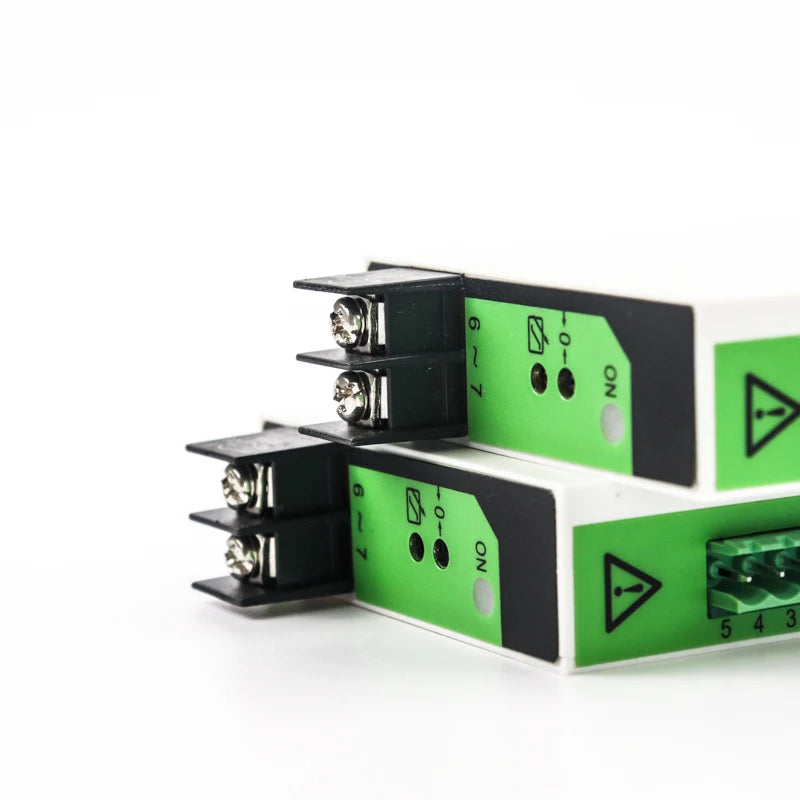

Input 0-10A Ac Transmitter Current Transducer Sturdy Fast Response Output Dc 0-5V Transmitter For Electrical Installations

Input 0-10A Ac Transmitter Current Transducer Sturdy Fast Response Output Dc 0-5V Transmitter For Electrical Installations

$145.13

$145.13 $0.00

Color85-265VAC DC power

Size Output 4-20mA Output 0-20mA Output 0-10V Output 0-5V

Measuring Range Input 0-1A AC Other remark Input 0-5A AC Input 0-10A AC

Description

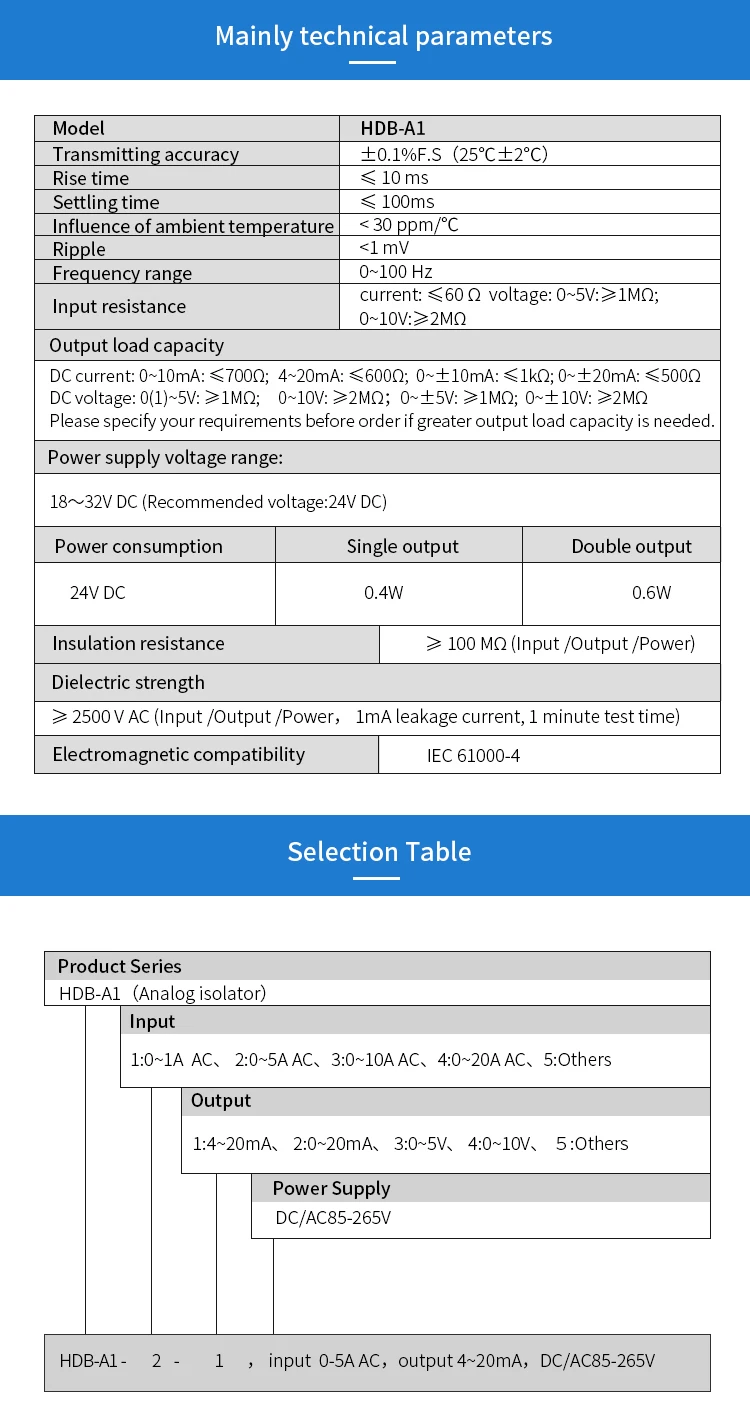

SPECIFICATIONS

Accuracy Class: 0.2%

Battery Included: no

Brand Name: NoEnName_Null

Certificate: ISO9001 CE ROHS FCC SGS

Certification: CE

DIY Supplies: Electrical

Dimensions: 24*92*135mm

Display Type: Analog and Digital

High-concerned chemical: none

Input signal: 0-1A/0-5A/0-10A/0-500V

Install Method: 35mm rail

Linearity: 0.1%

Model Number: HDB-A1

Operating Temperature: -40~85℃

Origin: Mainland China

Output signal: 4-20mA 1-5V 0-10V

Product name: ac current voltage transducer

Response time: ≤50MS

Semi-finishedproduct: No

Supply Voltage: 85-265VDC/AC

Input 0-10A Ac Transmitter Current Transducer Sturdy Fast Response Output Dc 0-5V Transmitter For Electrical Installations

Product description

This apparatus transmits the AC current signal （From motor or AC current transformer etc.）to isolated current or voltage signal such as 4-20mADC、0-10VDC , and the input, output, and power supply are galvanically isolated from each other.
It can be used together with modular instrumentation and DCS, PLC and other systems,to offer signal isolation, signal conversion, signal processing and otherfunctions to field instrument, thereby enhancing the immunity of automatic control system in the industrial production process, and ensuring system stability and reliability.
Compared with other similar products, this apparatus has the advantages of small volume，fast response time, low power loss and quite well temperature characteristics.

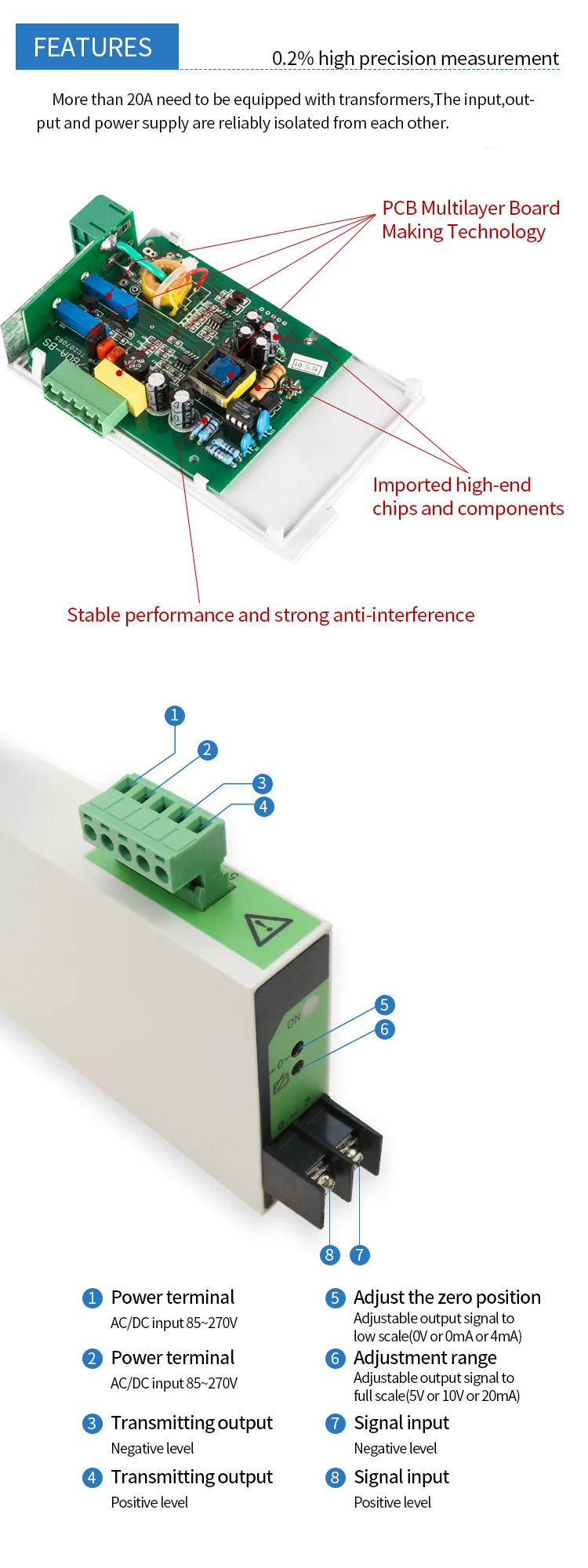

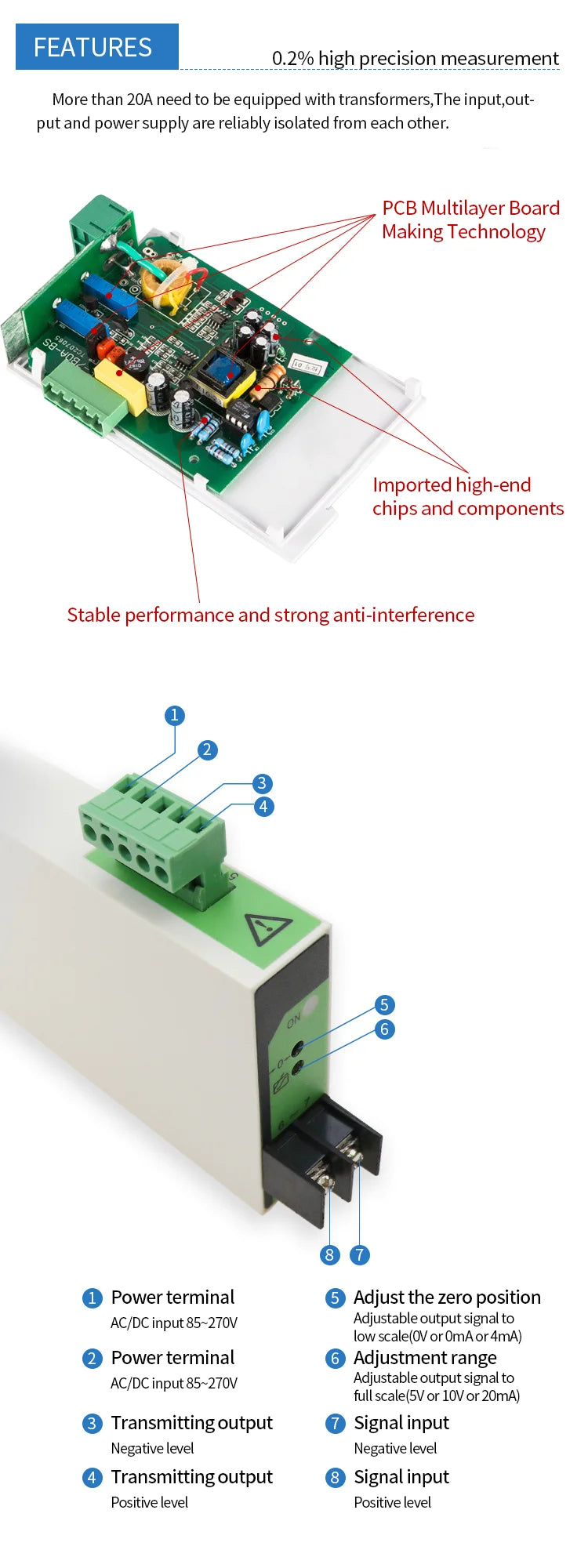

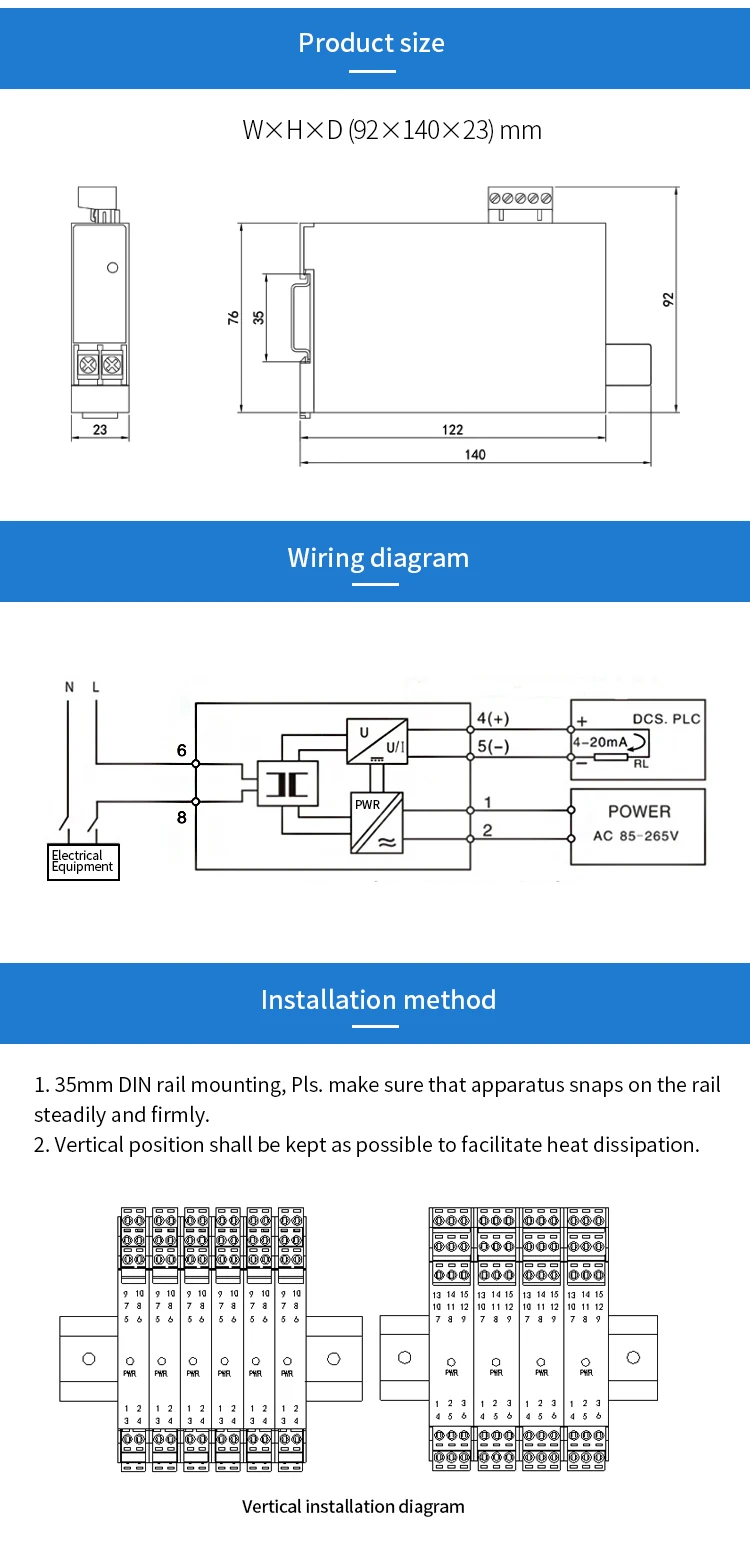

Product details

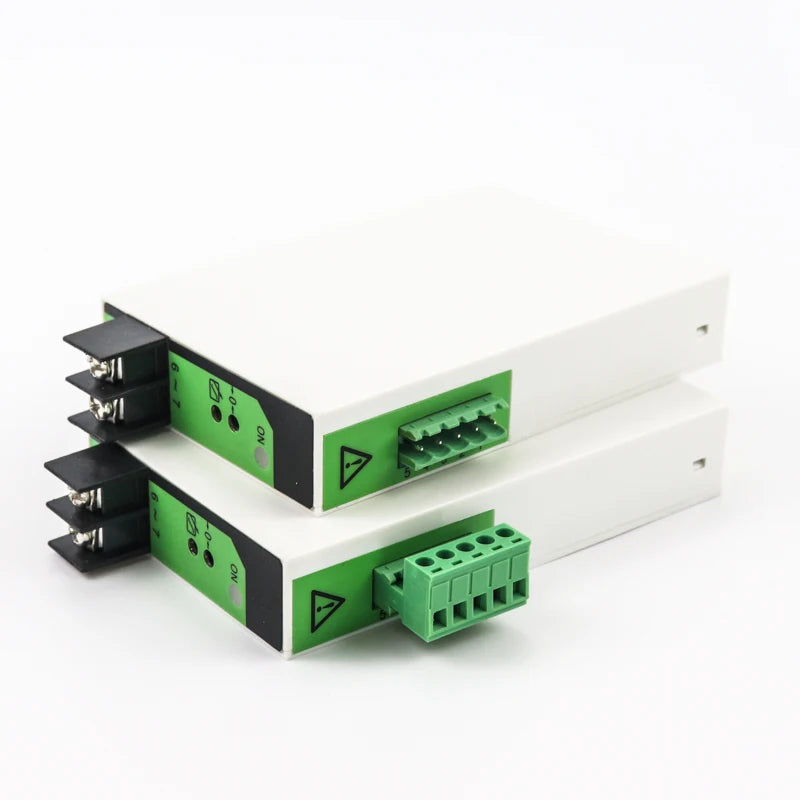

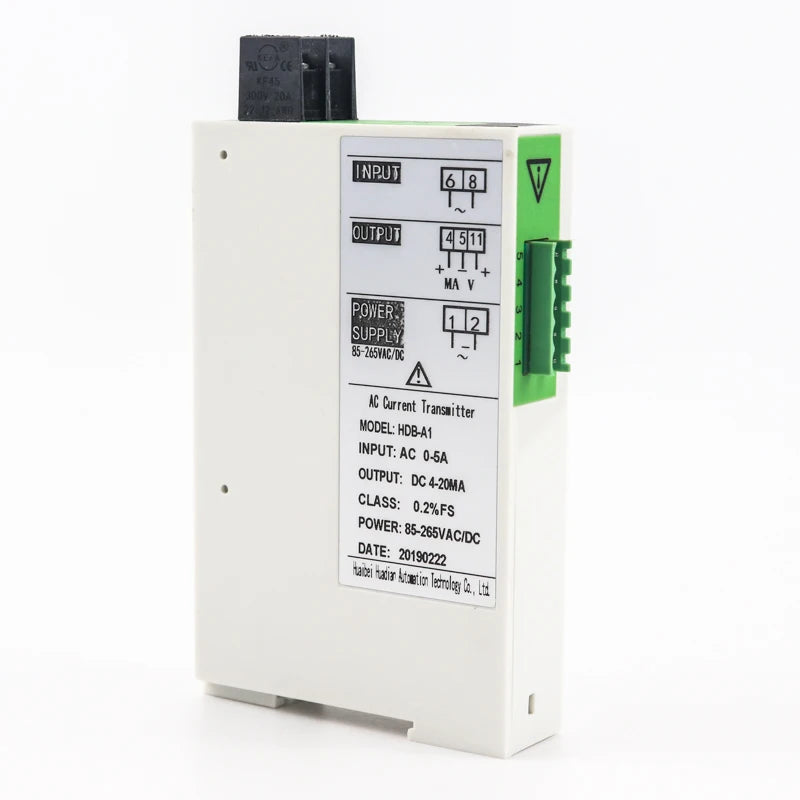

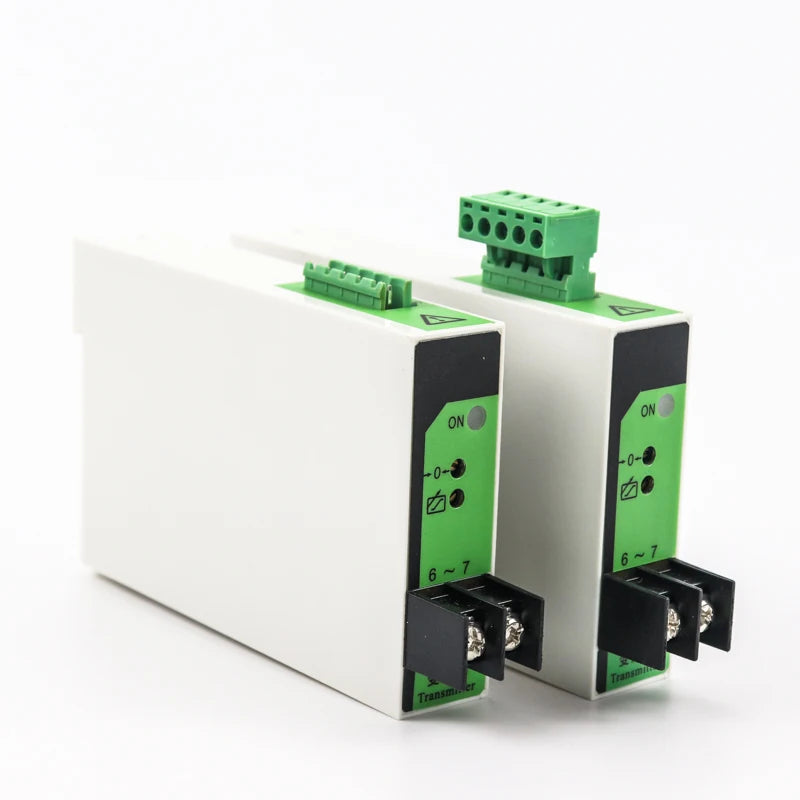

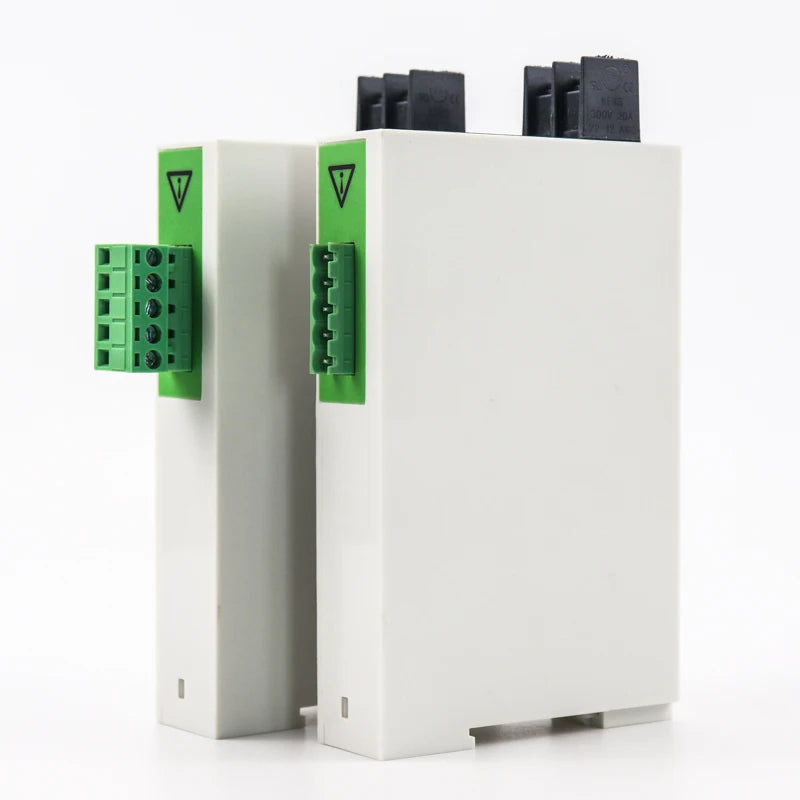

AC current transmitter

Our service

1.Contains a variety of industrial control products such as signal isolators, pressure and liquid level sensors, temperature, current, voltage, frequency and other transmitters.

All products are in stock (except for special customization).

2.OEM, Accept lower quantity trial order

3.Fast delivery. 24 hours With Discount Courier, Air shipment

4.We guarantee you the lower pricing from us compared with your any competitive prices from others in volume.

5. We can guarantee you any quality issue from us will be refund you immediately or replace with new & qualified products.

6.We can support you 24Hours online service via email, skype, what’sapp, facebook etc.

7.Long term warranty. Pressure and level transmitters are 2 years. The others in our shop are with five-year warranty!!

Application

Company information

Huadian specializes in High-tech R&D, focuses on selfdeveloping, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer, committed to producing high accuracy, long-term stability, cost-efficient pressure/ level/ temperature measuring instruments.

Q: What's your quality control system?

A: All of our products are completed with temperature compensation and 48 hours aging test before shipment. And all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.

Q: What is the warranty of your products?

A: 2 years for level transmitter and pressure transmitter series others are 5 years from shipment date, for non-man-made damages.

Q: What is your shipping method?

A: Small orders are delivered with DHL, FedEx, TNT, UPS , EMS. Large orders are recommended to ship by sea.

Q: Do you provide samples ?

A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q: How long will you give me the reply?

A: We can support you 24Hours online service via email, skype, what’sapp, facebook etc within 1 hour.
