Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector

Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector

Each color is 1PCS / 5PCS
$8.12
$8.12 $0.00
Skip to product information
Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
  • Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
Insulated Safety 32A 4MM Banana Terminal 6 Colors Female Jack Panel Mount Socket Binding Post Wire Connector
$8.12
$8.12 $0.00
Color
Package Quantity
Description

SPECIFICATIONS

Brand Name: DQLZV

Certification: CE,RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: 32A 4MM Banana Terminal

Origin: Mainland China

Voltage: 36 V

semi_Choice: yes

Feature:

Thickened pure copper, strong conductivity, high current. High temperature resistance, high insulation material fuselage. Self-contained nuts, fixed and firm, not easy to loosen. Long used in testing, testing equipment for power supply jack output, HIFI power amplifier audio jack and so on. It has the characteristics of high current, good conductivity, good strength, plug-in resistance and long service life.

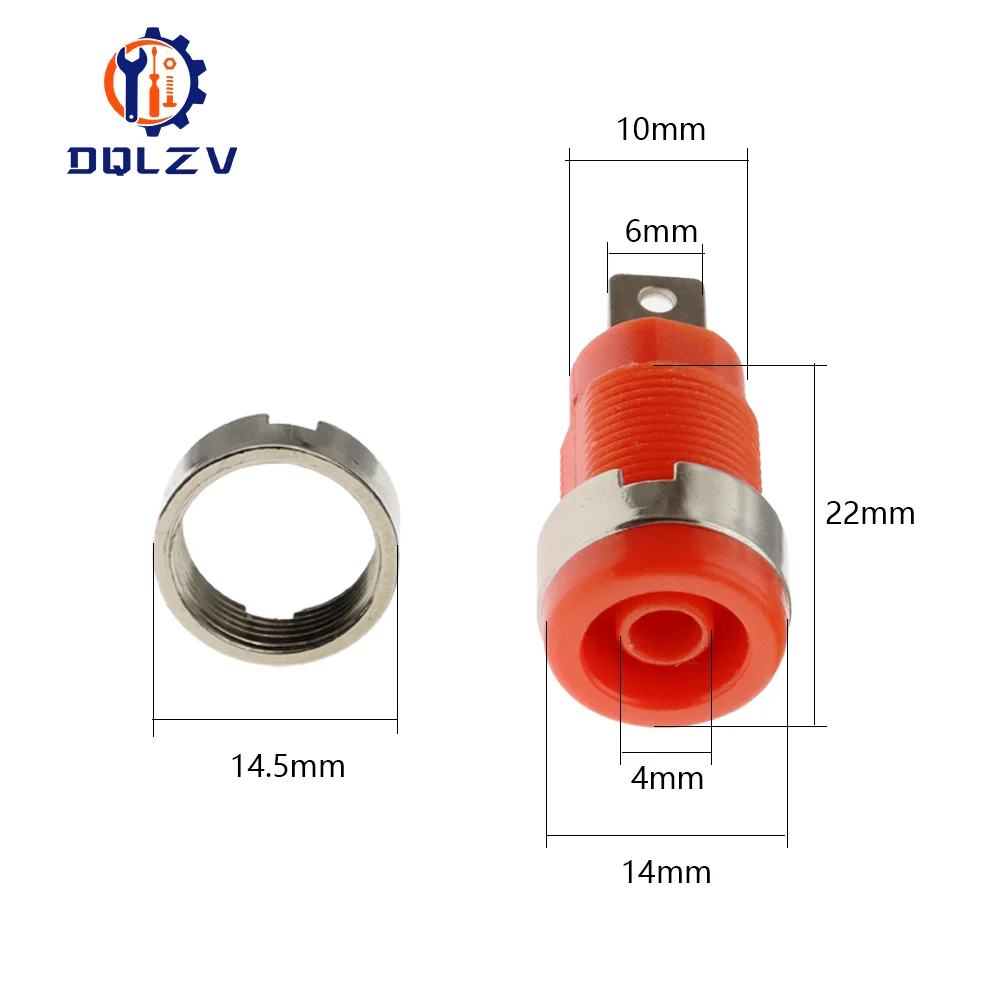

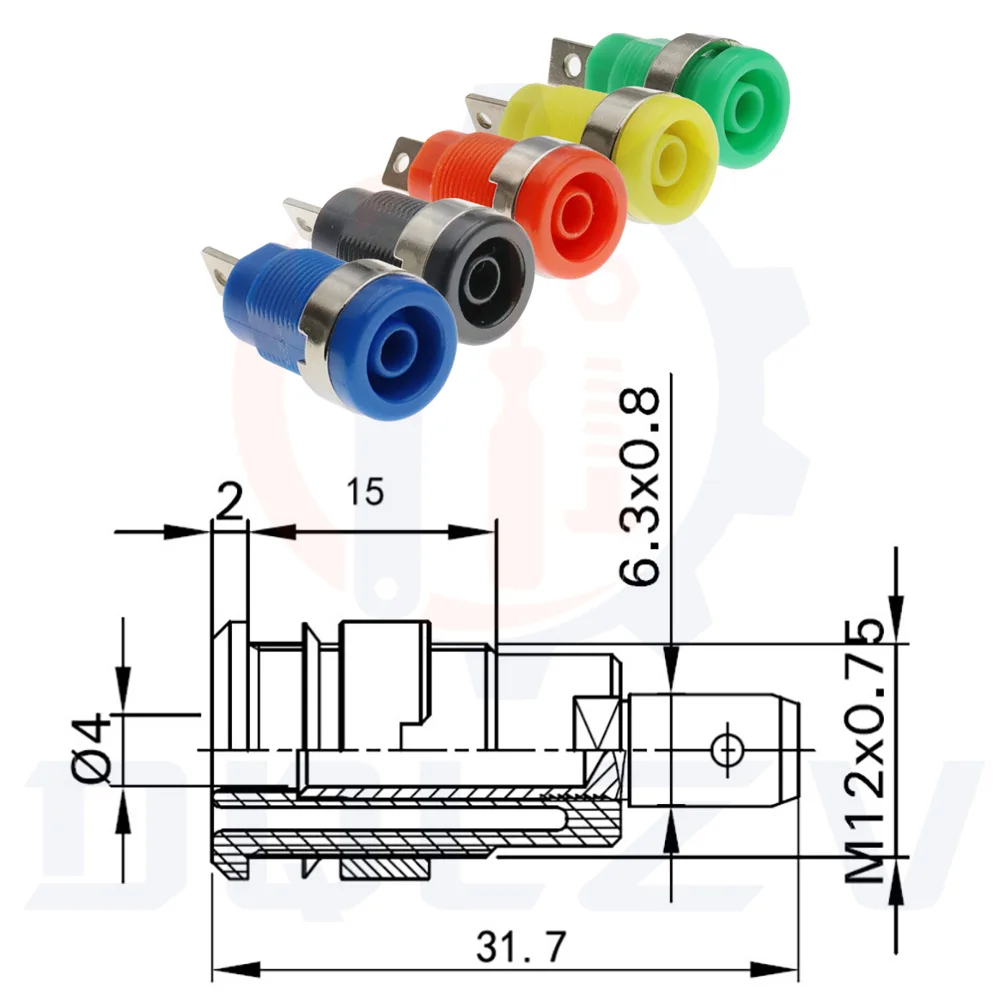

Specifications:

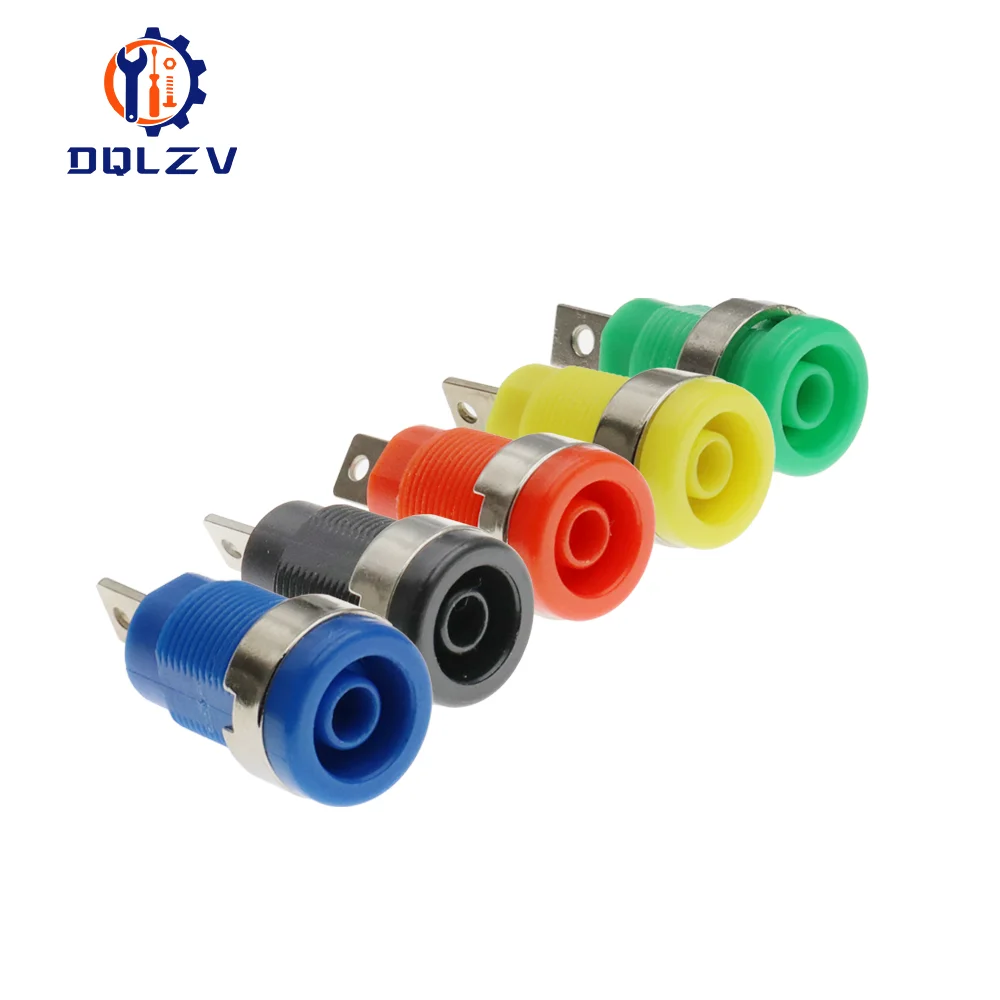

Color: Red/Black/Yellow/Green/Blue/White

Type: 4mm Insulated Safety Panel Mount Banana Socket

Mount Diameter: 12mm

Contact Material: Brass Nickel-Plated

Insulator: ABS

Current and voltage: 32A 1000V

Protruding Panel Height: 2mm

Contact Size (mm): 6 x 0.8 (6mm width,0.8mm thickness,can use 6.3mm Crimp Terminals)

Total length: 32mm

Suitable for 4mm Male Banana Plug

Quantity: 1/3/5Pcs

Note:

Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Contents:

1/3/5Pcs x Banana Jack Socket
