Integrated 20ch RS485 Switch Digital Analog IO Module with Modbus RTU PLC UART Expanding,4-20MA Current 0-10V Voltage Read

Integrated 20ch RS485 Switch Digital Analog IO Module with Modbus RTU PLC UART Expanding,4-20MA Current 0-10V Voltage Read

$185.00

$185.00 $0.00

Description

SPECIFICATIONS

Brand Name: eletechsup

Choice: yes

Condition: New

Dissipation Power: 0.2W

High-concerned chemical: none

Operating Temperature: -40-85

Origin: Mainland China

Package: SMD

Supply Voltage: DC 12V/24V

Type: Logic ICs

is_customized: Yes

semi_Choice: yes

Product Name:

20ch RS485 Switch Digital Analog IO Module Modbus RTU PLC UART Expanding Board 4-20MA Current 0-10V Voltage Read

Package inlcuded:

1PCS
DC 12V/24V 20Ch Multi-function PLC IO expansion board

Specific according to the version and quantity you choose

Description:

1:DC 12V (12V Version),DC 24V (24V Version)

2.Standby current (all relays closed) 14MA, 1 relay open 40MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 200MA,8 relays open 226MA,and so on

3:2-channels digital input (PNP active high), 1-channel 0-20MA current analog input, 1-channel 0-10V voltage analog input, 20 channels 10A relay switch outputs

4: Support standard Modbus RTU command, function code:
Command 1 (default): write 06/16 read/03;
Command 2 (solder M0 jumper): write 05/06/15/16 read 01/02/03/04

5: With hardware Reset function, with TVS anti-surge protection

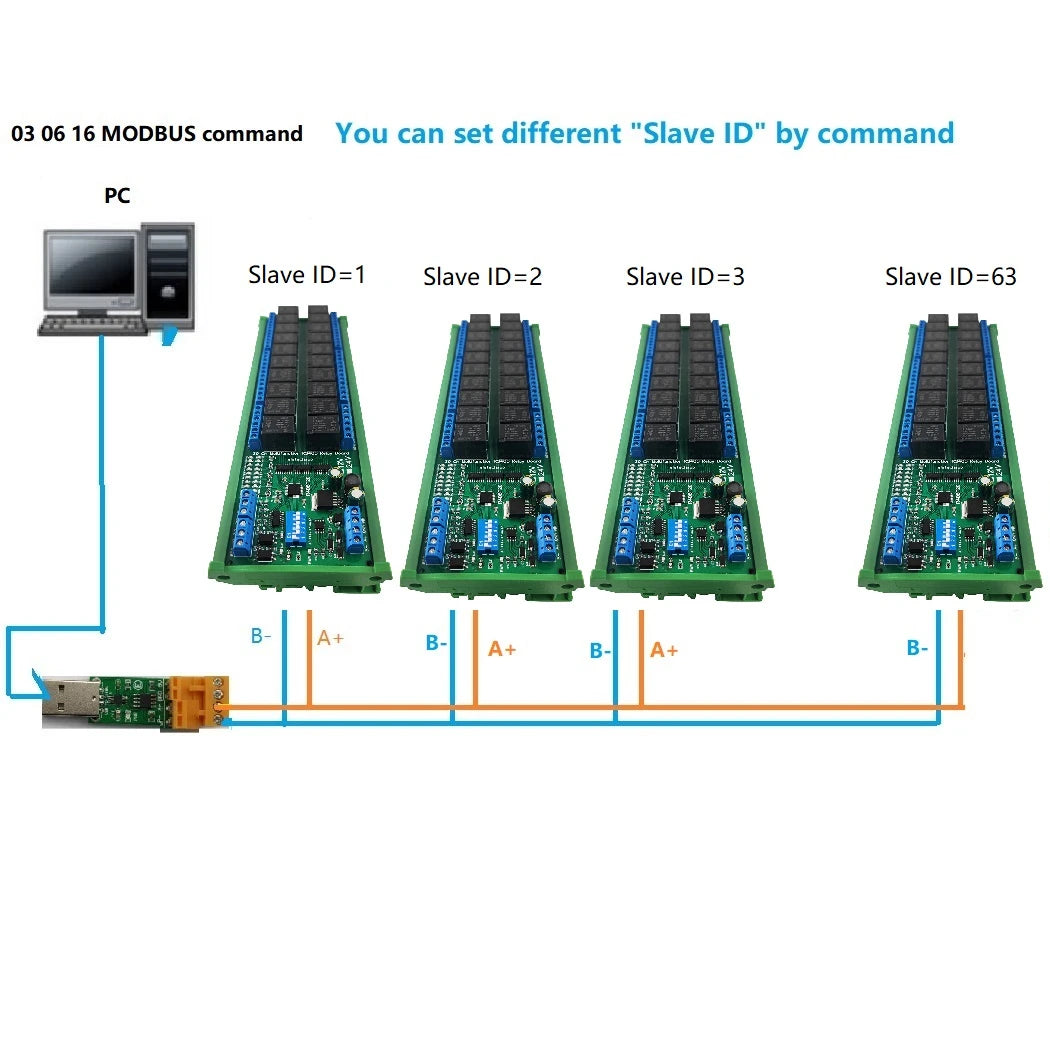

6 Under the MODBUS command mode, it can support up to 64 devices in parallel

7 The default baud rate is 9600BPS. The baud rate can be selected by Conmand 2400 4800 9600 19200 38400 57600 115200BPS

8 The parity can be none parity, even parity and odd parity

9 The data sending and returning time can be set,with a maximum value of 1000ms

10 Size: 239 * 72 * 12mm(Only PCB Board);243 * 82*40mm(with Din Rail Box)
11 Weight: 267g(Only PCB Board);427g(with Din Rail Box)

12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

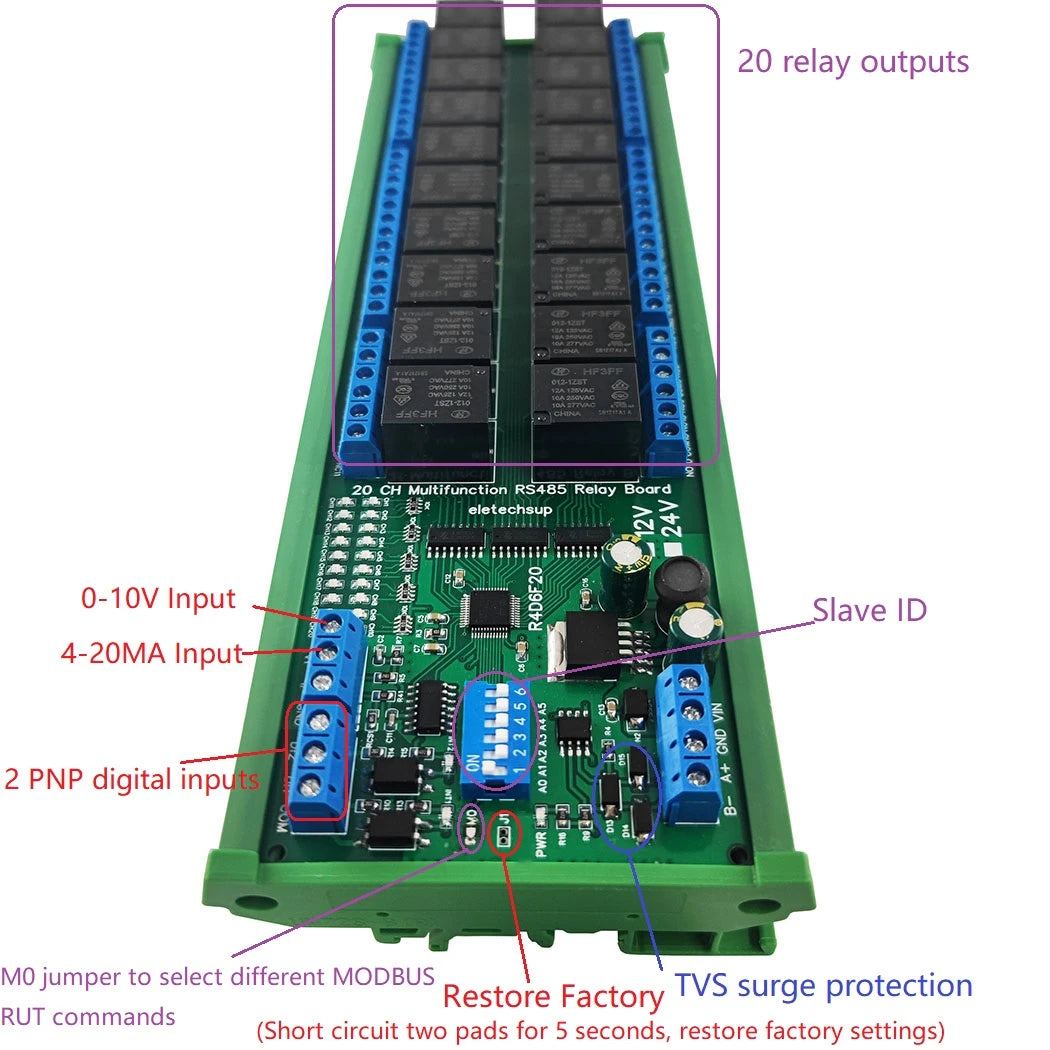

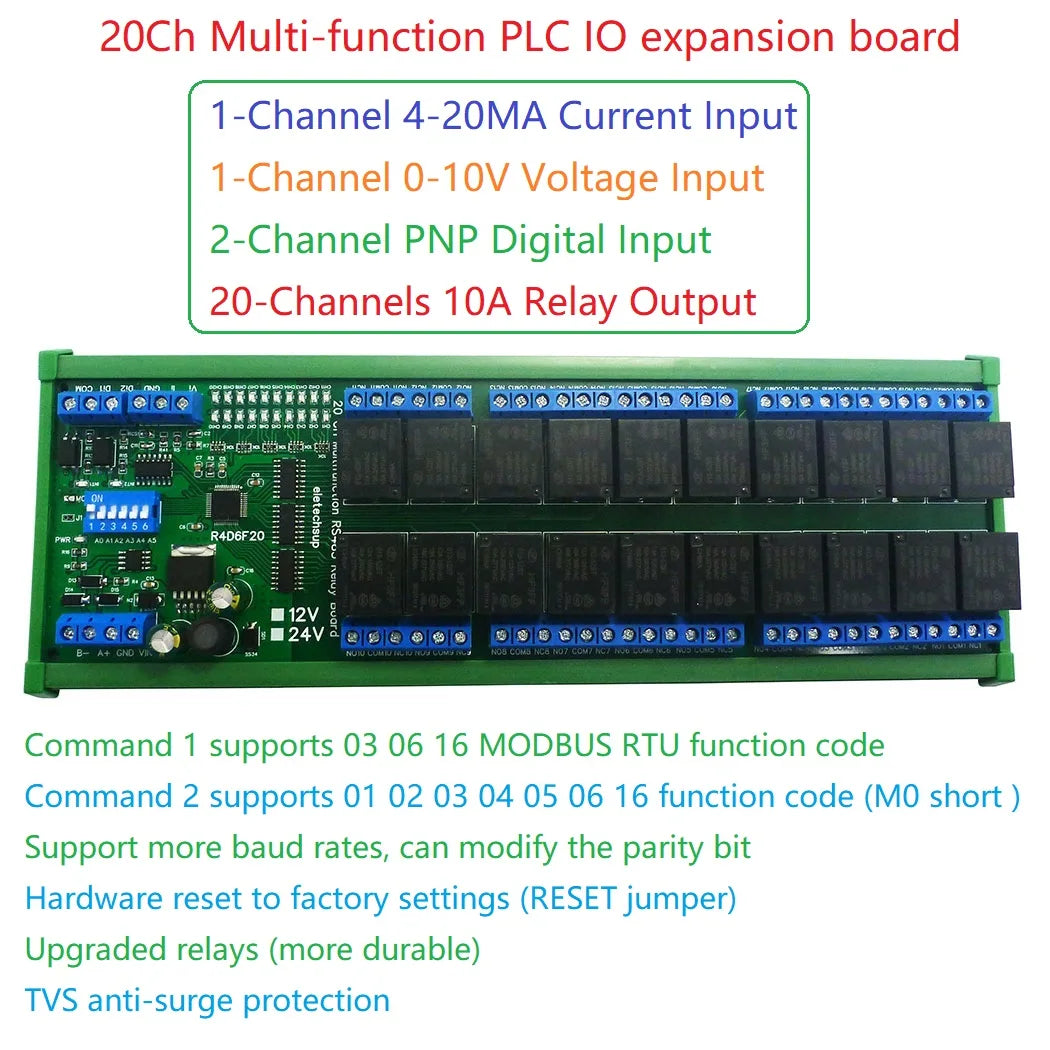

Upgraded Features:

Command 1 supports 03 06 16 MODBUS RTU function code
Command 2 supports 01 02 03 04 05 06 16 function code (M0 short circuit)
Support more baud rates, can modify the parity bit
Hardware reset to factory settings (RESET jumper)
Upgraded relays (more durable)
TVS anti-surge protection

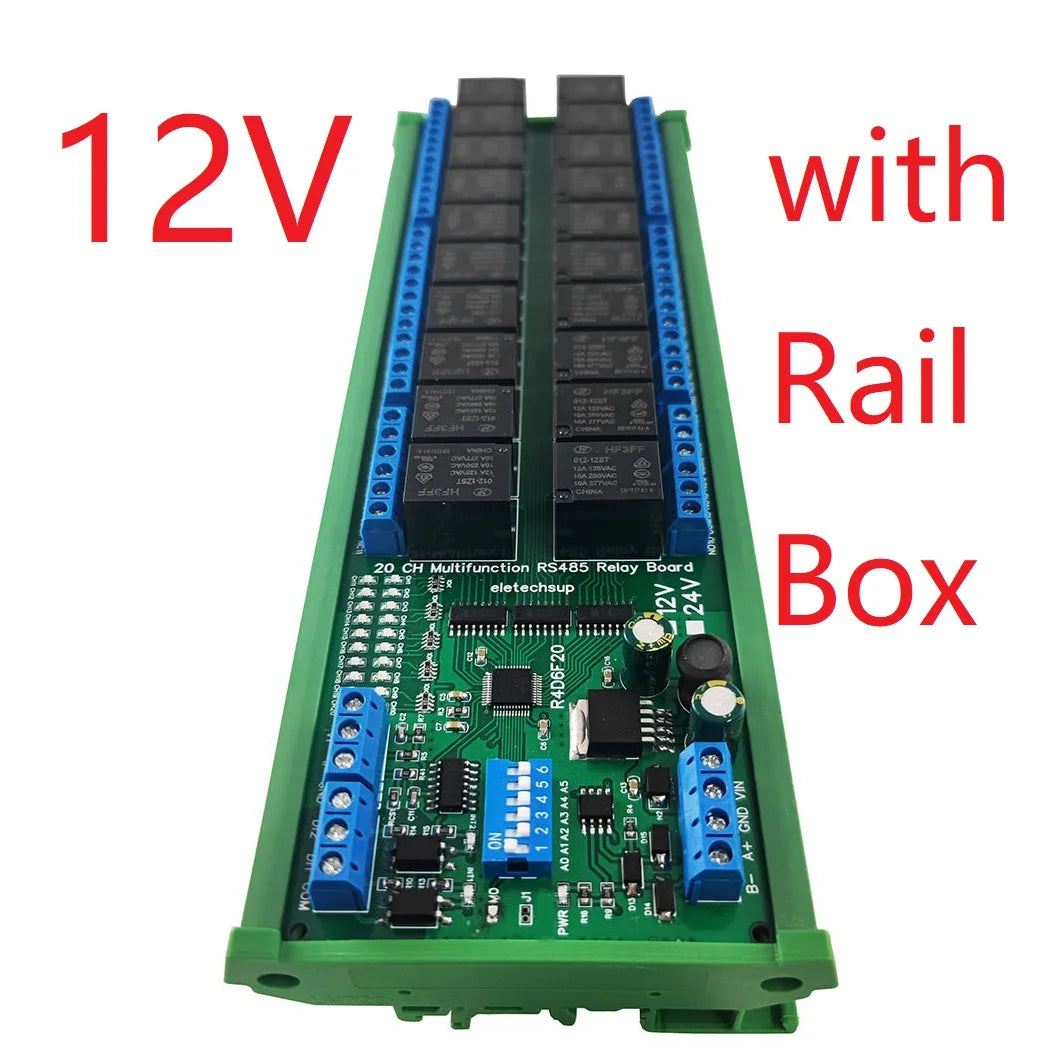

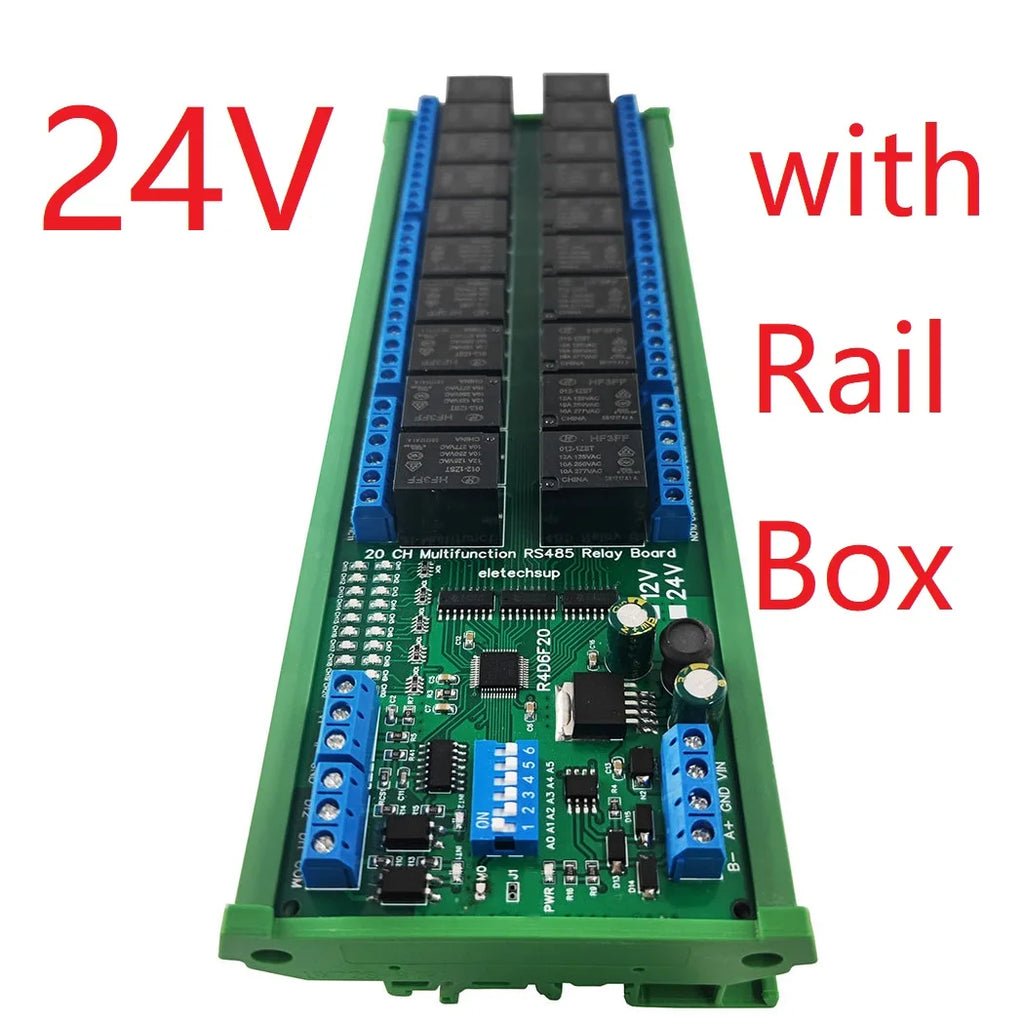

DIN rail Box parameters:
Product model: UM72
Color:
Green

Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 239 mm PCB boards
Net weight: 160g
Installation: DIN35 and C45 rail

For more information, please open the link and download

https://1drv.ms/u/s!Av4PLxH_z8f1h1Zo_UtHxvW8HEDw?e=0ji3li

Application

PLC IO expansion board
Smart Home,Home Automation ,Wiser Home;
PTC Camera
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control

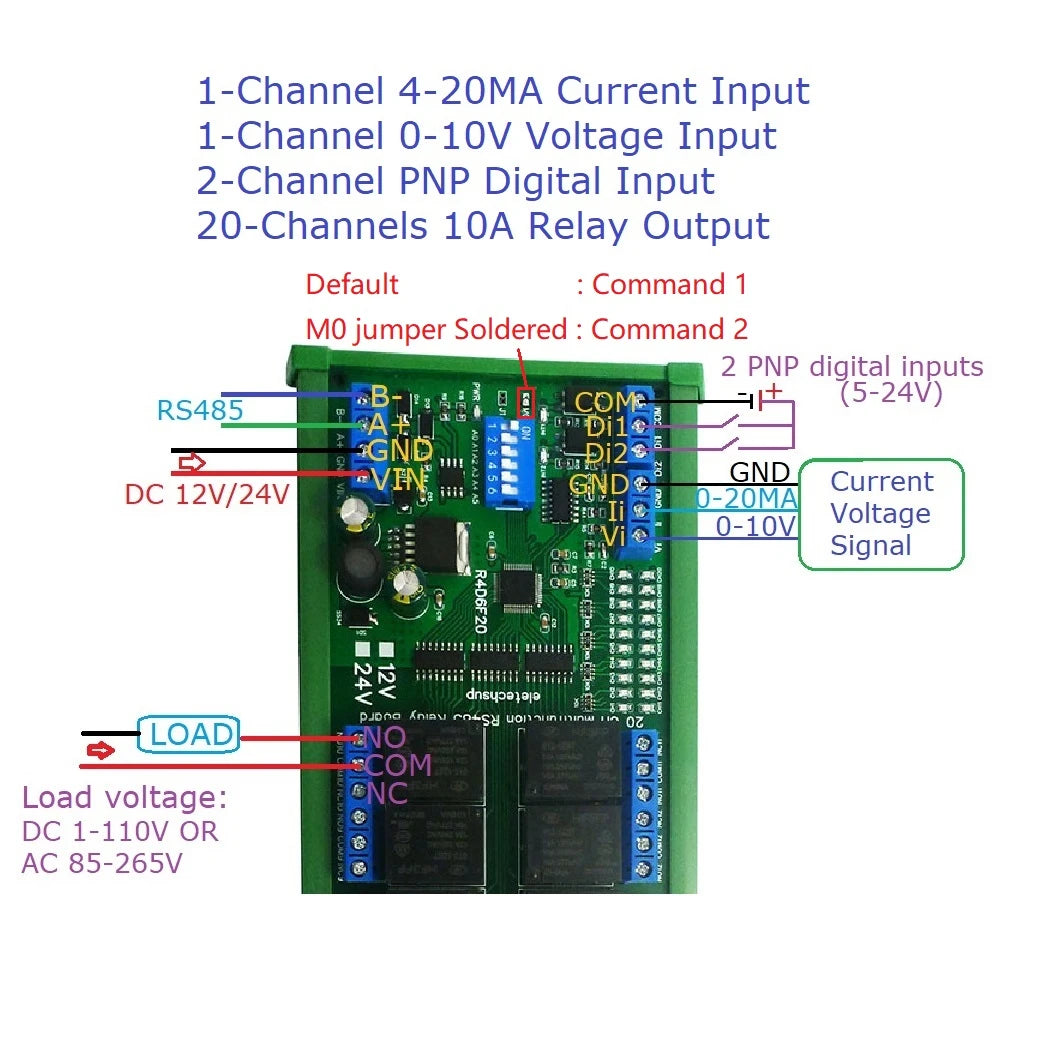

Wiring Diagram:

Ii : 1-Channel 4-20MA Current Input
Vi : 1-Channel 0-10V Voltage Input
Di1/Di2 : 2-Channel PNP Digital Input
Relay: 20-Channels 10A Relay Output

Typical applications:
1 The dial switch (slave address) is invalid and can only control one module at a time.

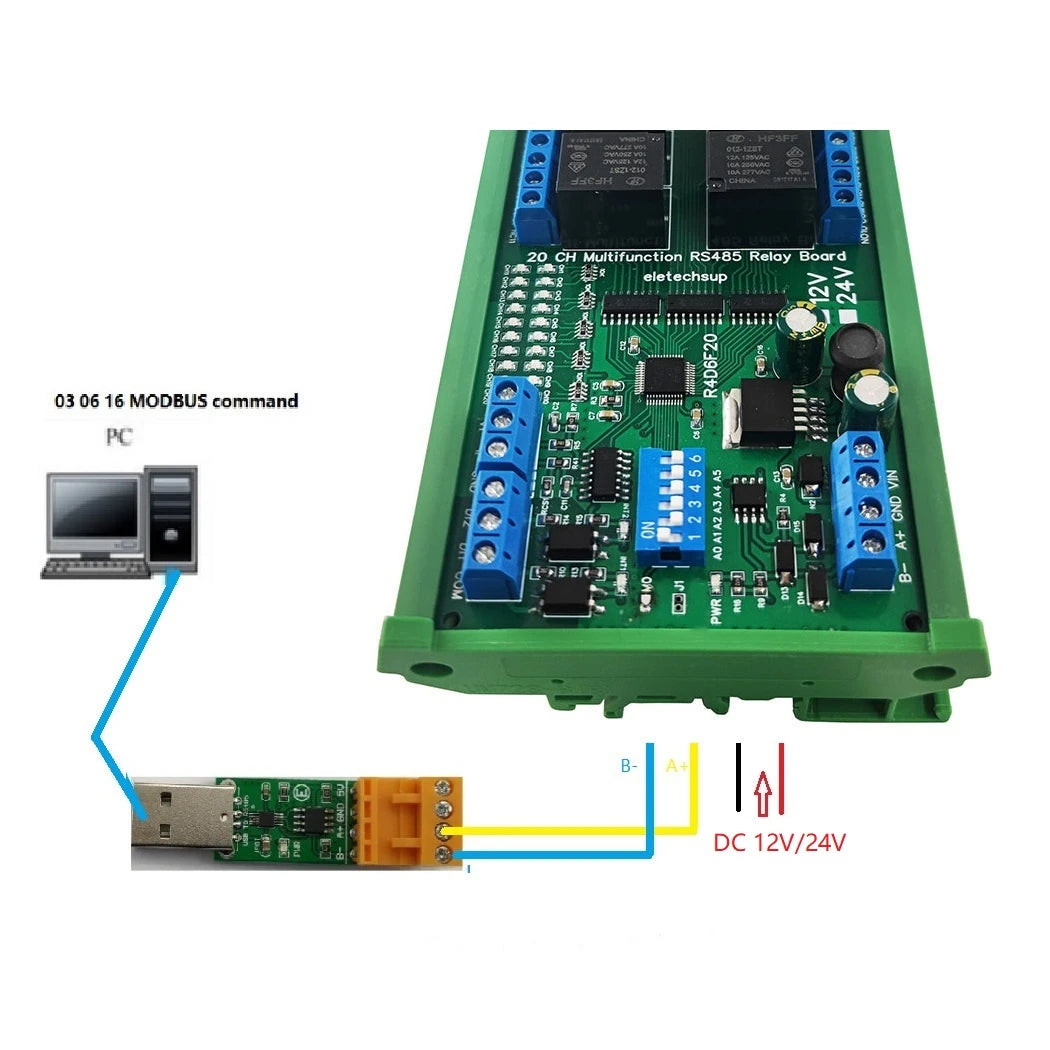

2.MODBUS command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control
