SPECIFICATIONS

Brand Name: NONE

COM: 2 x RS-232/422/485

CPU: Intel N200

Certification: FCC ce

DC IN: DC 12V

Display: 1*HDMII+1*LVDS/eDP

Frame Material: None

General Use: Commercial Furniture

High-concerned chemical: none

Installation Method: self-contained

LAN: 1*Gigabit LAN

Memory: 1*DDR5L SODIMM

Origin: Mainland China

Size: 100mm*72mm ,2.5"

Storage: 1*M.2 + 1*SATA

Type: Laboratory Furniture

USB: 2*USB3.2 +2*USB 2.0 PIN

place of origin: Guangdong, China

product status: STOCK

type: Embedded industrial main board

My friend, welcome to our store, if you need other models of this product, please contact me, I will send you the product link to buy! Sometimes, shipping costs are inaccurate. Due to the complicated calculation of international logistics freight, we can not set each country one by one, thank you very much for your understanding! Please contact us for details.



Product Description

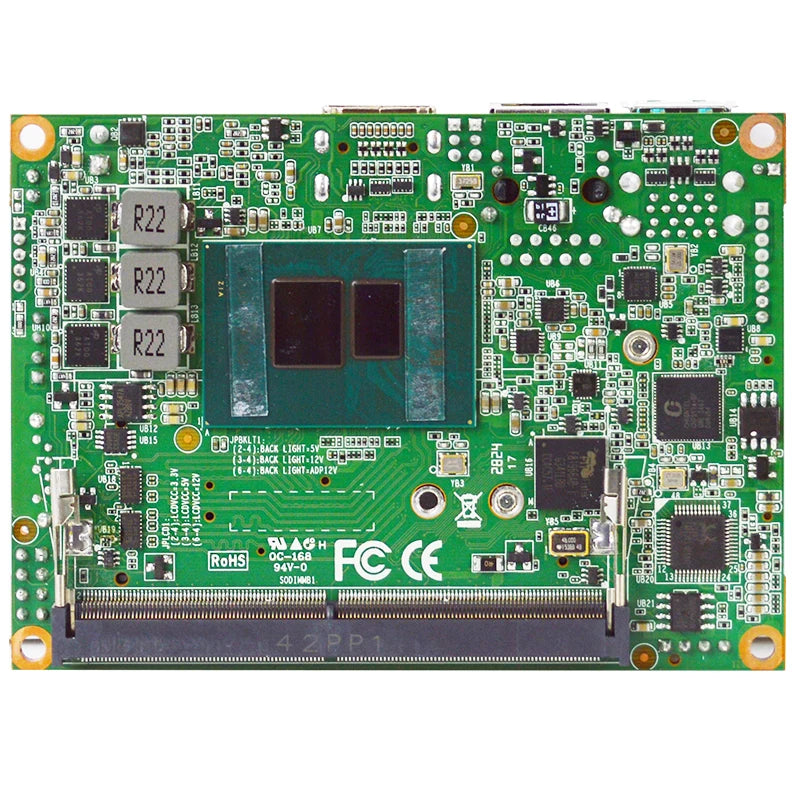

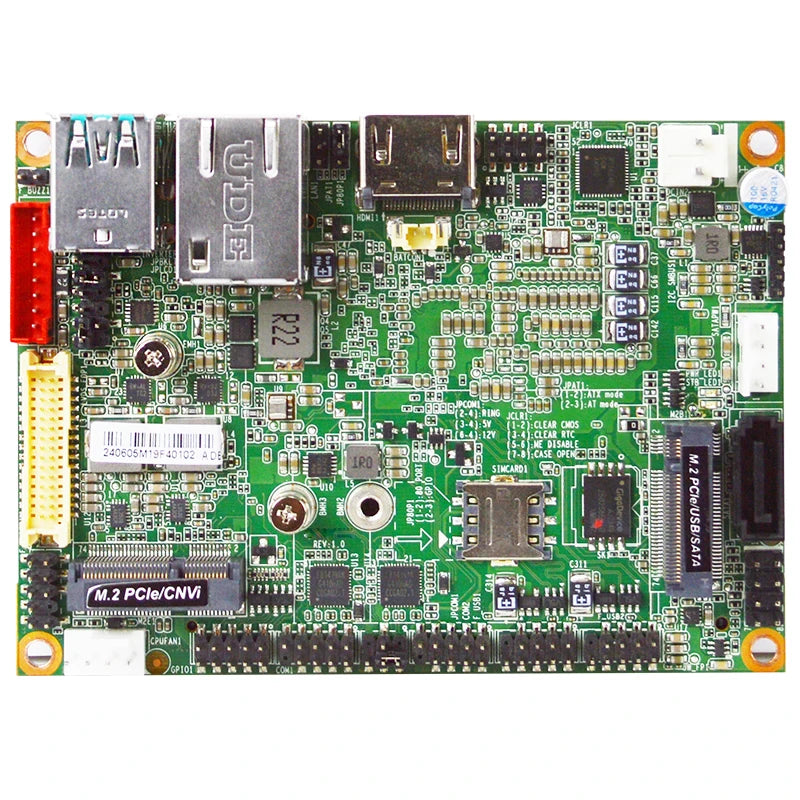

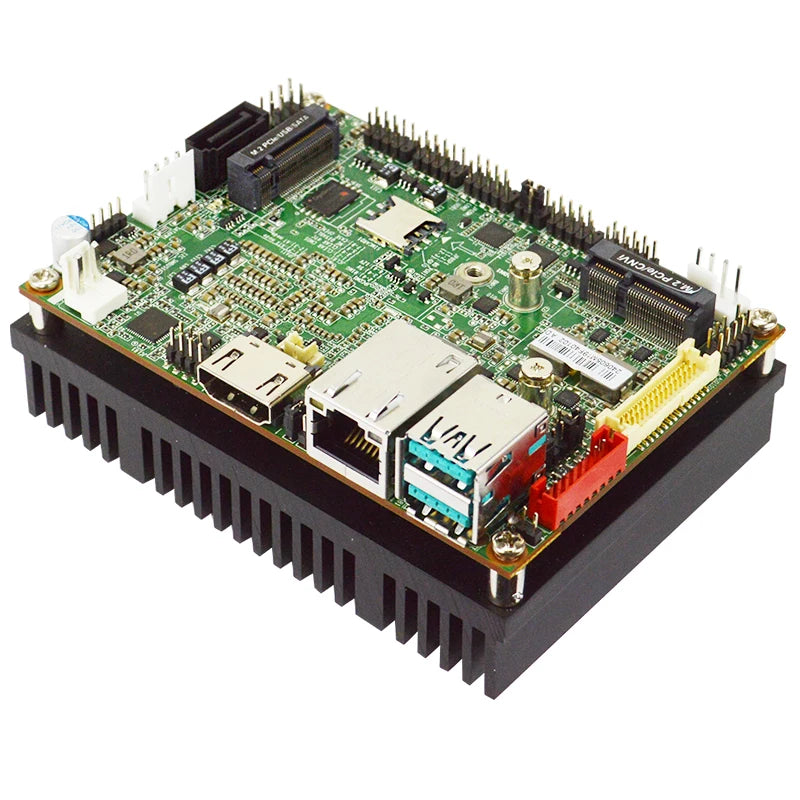

Product Name	PICO-ITX / 2.5"  industrial motherboard
CPU	Intel N200 CPU
Memory	DDR5L SODIMM

Form Factor	– 2.5” (100 * 72mm)
Processor System	– Intel® Processor N97 (Formerly Alder Lake-N, TDP 12W)
		– Onboard Intel® Processor N200 (Formerly Alder Lake-N, TDP 6W)
		– For additional compatible CPUs, please contact regional sales
CHIPSET	– Intel® SoC
Memory	– 1* DDR5 4800MHz， Single Channel SO-DIMM up to 32GB
BIOS	– UEFI
Graphics	– Intel® HD Graphics
		– 1* 24-bit Dual Channel LVDS
		(Max. Resolution: 1920 x 1080 @60Hz / Co-Lay eDP)
		– 1* HDMI 2.0b (Max Resolution: 4096×2160@60Hz)
		– Support 2 Displays
Ethernet	– 1* Realtek RTL8111H GbE
Audio	–HD audio: Realtek ALC897
Storage	– 1* SATAIII (6.0Gb/s)
		– 1 x B+M-Key 2242/3042/3052 (USB3/SATA/PCIe Gen3 x2)
		– 64GB eMMC on board (Optional)

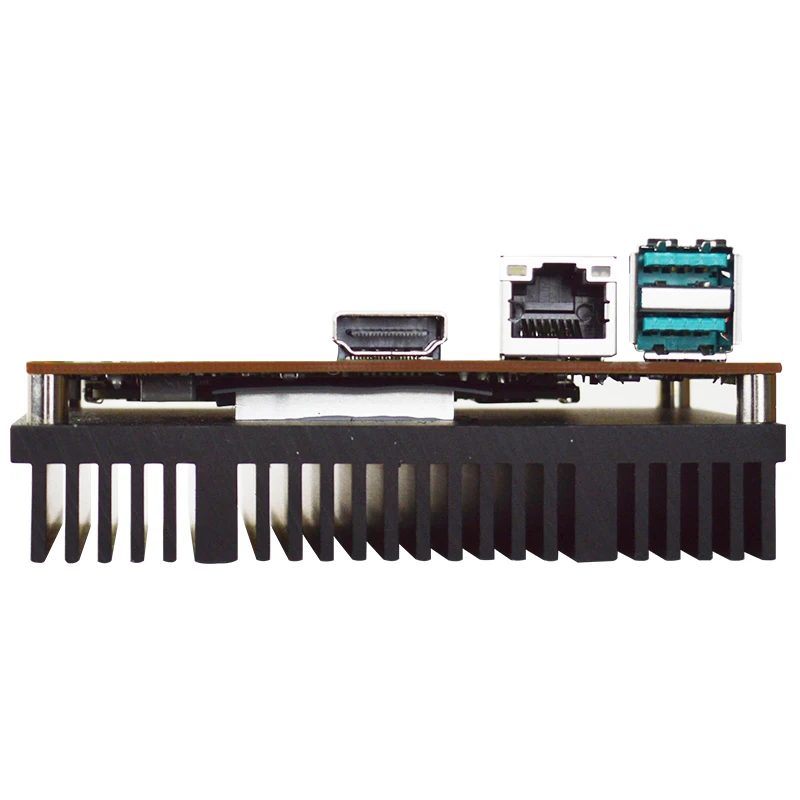

Rear I/O	– 1* HDMI
		– 1* RJ45 Ethernet
		– 2* USB3.2

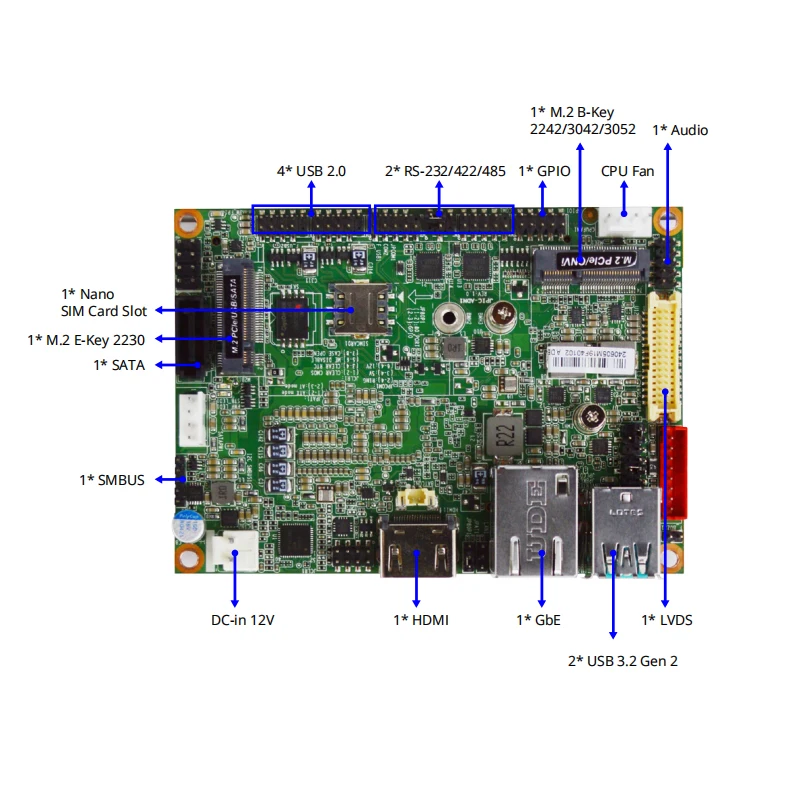

Internal Connector	– 4* USB 2.0
		– 1* LVDS or eDP
		– 2 x RS-232/422/485
		– 1* SATA
		– 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1)
		– 1 x Nano SIM Card Slot
		– 1 x B+M-Key 2242/3042/3052 (USB3/SATA/PCIe Gen3 x2)
		– 1* GPIO (8 bit)
		– 1* Audio Header
		– 1* SMBUS
		– 1* DC IN
Watchdog Timer	– From Super I/O to drag RESETCON#
		– 255 segments
Power	DC-IN 12V
		AT/ATX mode Supported
		– AT: Directly PWR on as Power input ready
		– ATX: Press Button to PWR on after Power input ready
Compliance	– CE, FCC, LVD
Temperature	– Operating: 0°C ~ 60°C
		– Storage: -20°C ~ 85°C
		– Humidity: 10% ~ 90% RH @40°C (non-condensing)
Warranty	– 2 Years Limited Warranty
