SPECIFICATIONS

Application: Industrial / Commercial

Brand Name: NONE

Connection Type: Bolts/Terminal Blocks/Copper Busbars

ESD protection: Yes

Leakage Current: ≤ 3-50mA

Line Frequency: 50/60Hz

Max operating voltage: 250-480VAC

Model: DF2

Origin: Mainland China

Package/Enclosure: Nickel-plated iron shell

Packaging: Surface Mount

Phase: Three-phase

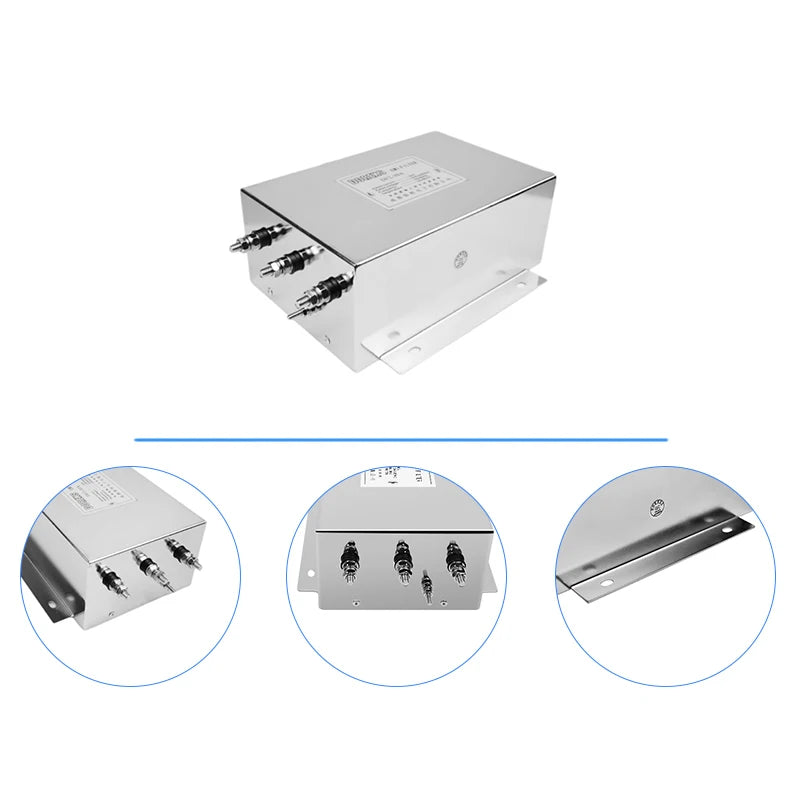

Product name: EMI Filter for VFD

Rated Current: 6A - 800A

Size/dimension: 250 * 170 * 80

Specifications: 15-50A

Withstand voltage level: 2250VAC

Working environment temperature: -25°C ~ +85°C

application: CNC machine tools Industrial robots Solar inverter

country of origin: Sichuan, China

describe: EMI solutions

feature: Three-phase Delta EMI power filter

filter type: Three stages (Delta), power cord

process: LC

series: DF2 inverter EMI filter

Hello my friend, first of all, i'm glad you like my product Sometimes l can't reply toyou in a timely manner because we have a time difference with you. You can let meknow what model you need. If you have any questions about the price or need to purchase in large quantities, you can contact me and I will offer you the most favorable pricewhat requirements you have for this product, or if youhave any questions, you can also let me know. When l see it, l will solve it for youas soon as possible.This is my contact inforation: WhatsApp:+86 19324702953 Emai:1393566120@qq.com



1. DOREXS provides a wide range of EMI/EMC filter selections and multi-industry EMI solutions, and supports customization to meet the needs of different customers. 2. DOREXS's EMI filter products have obtained cUL, CQC, CE, ROSH, and ISO certifications to help your products comply with international regulations. 3. DOREXS has an experienced team and advanced equipment. And provide EMC testing for free. 4. Four production lines, sufficient production capacity, guaranteed quality, favorable prices, good service and fast delivery. 5. DOREXS pays attention to product after-sales, promising replacement within six months and lifetime warranty. Looking forward to our cooperation!

Products Description

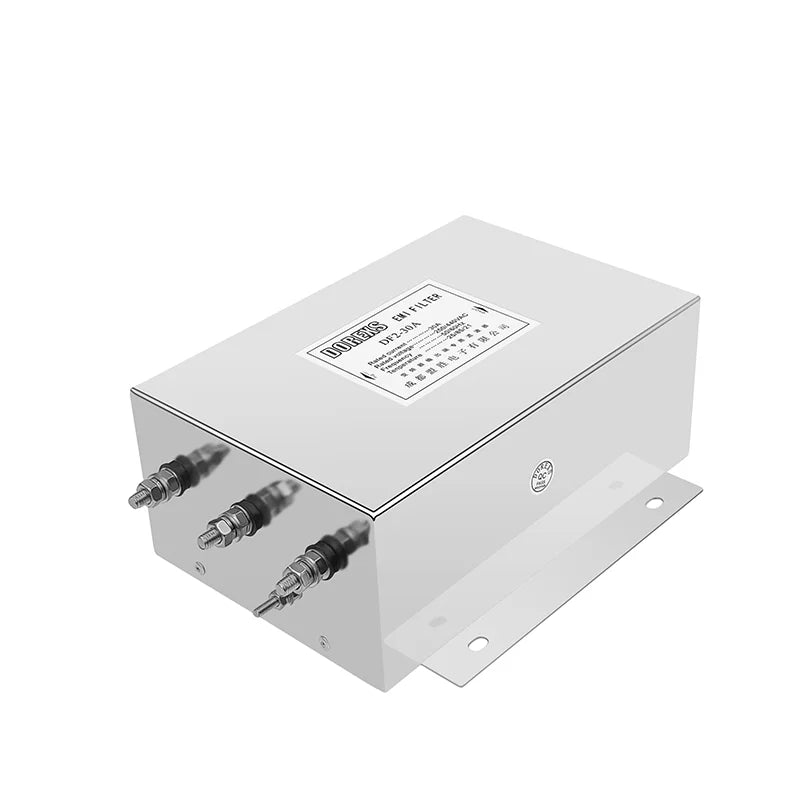

Product name:	DF2 3 Phase EMI Filter for VFD
Rated voltage:	250-480VAC
Line Frequency:	50/60Hz
Test Voltage:	1500VDC (line/line)
	2250VAC (line/ground)
Insulation Resistance:	>50MΩ@500VDC
Climatic category:	25/085/21

This parameter is only a specification product, we support parameter customization

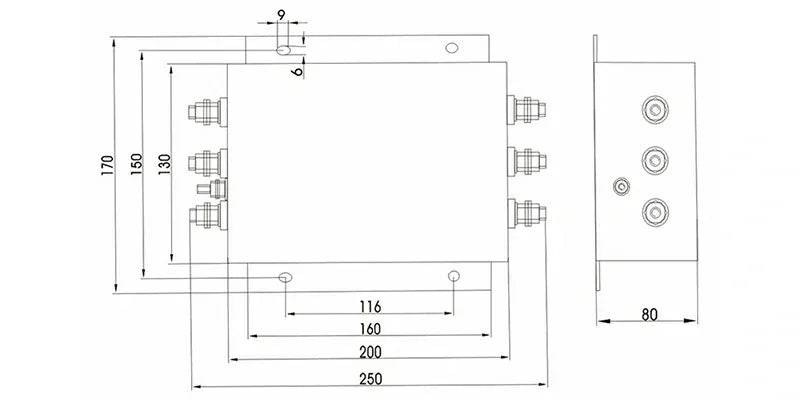

Outline Drawings and Dinemsions.

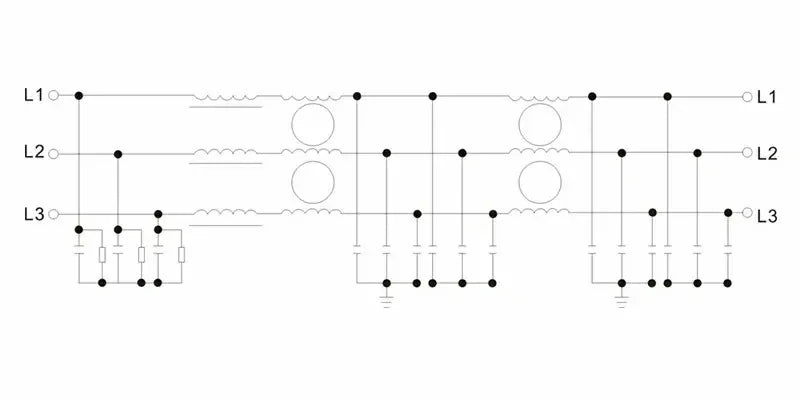

Electrical Schematic

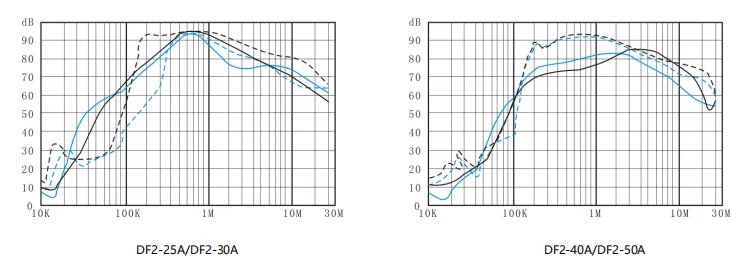

Insertion Loss

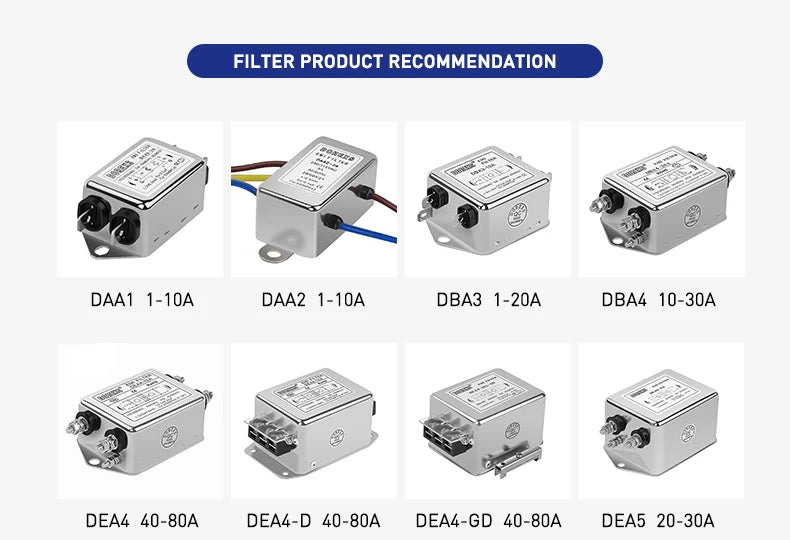

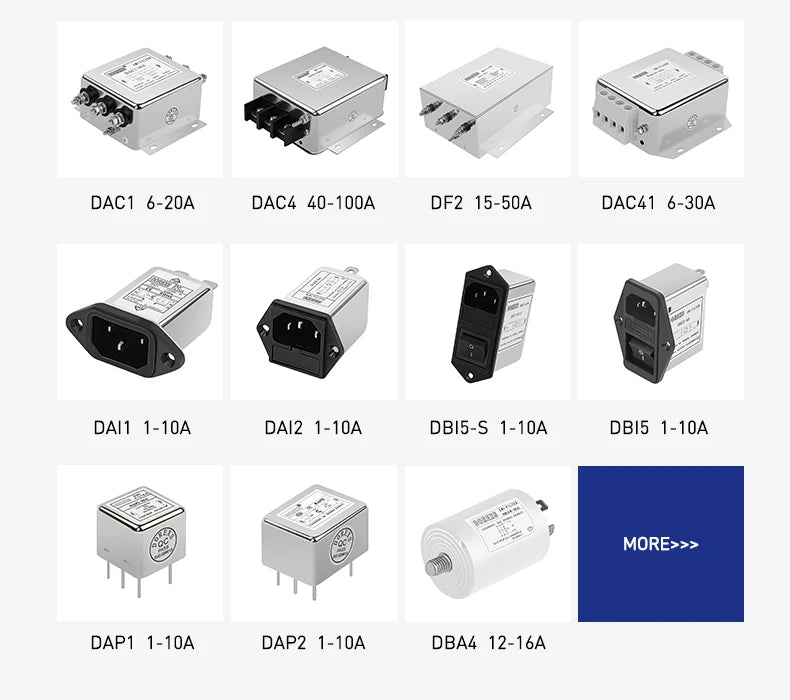

Other series of filters
