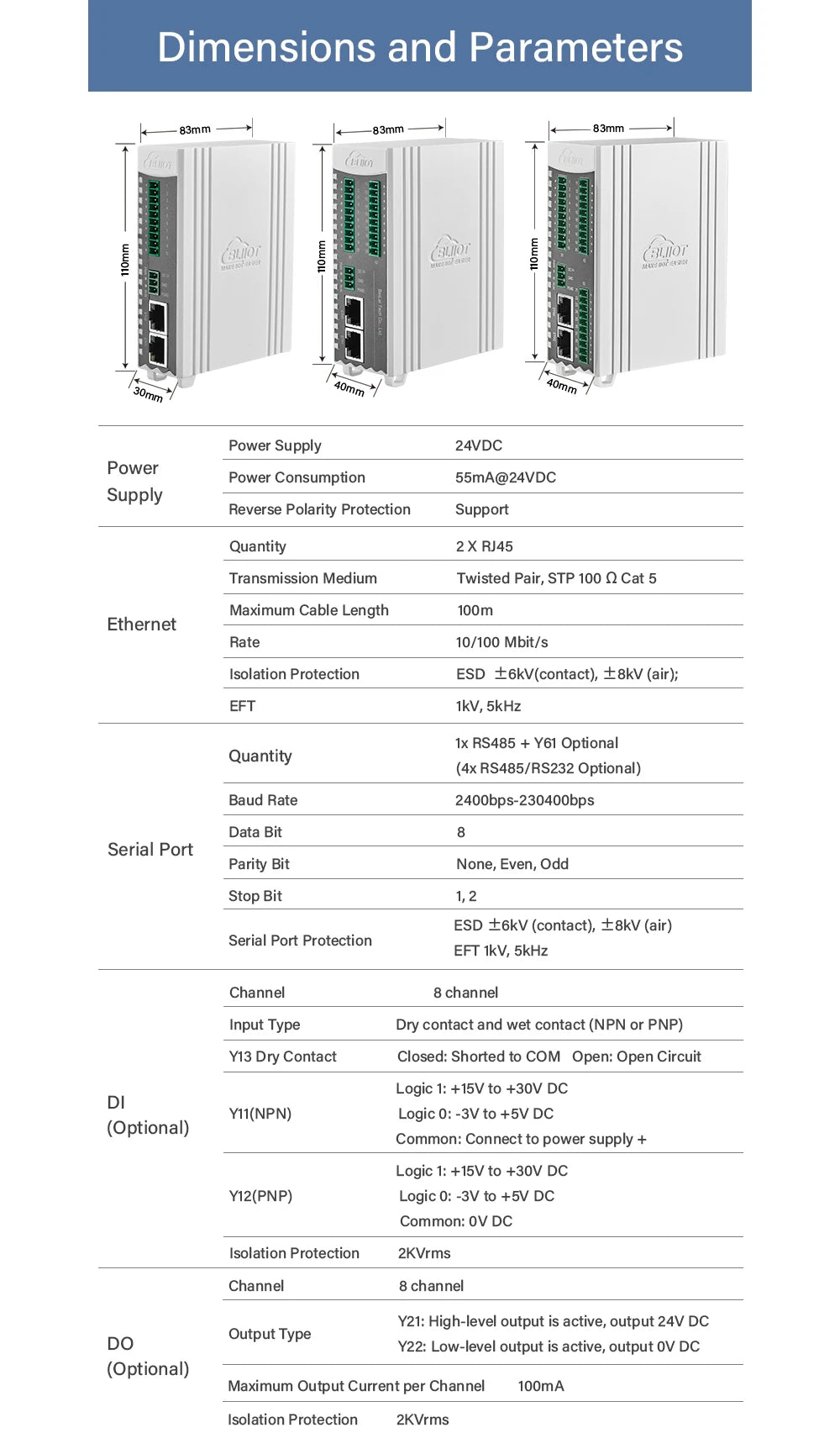

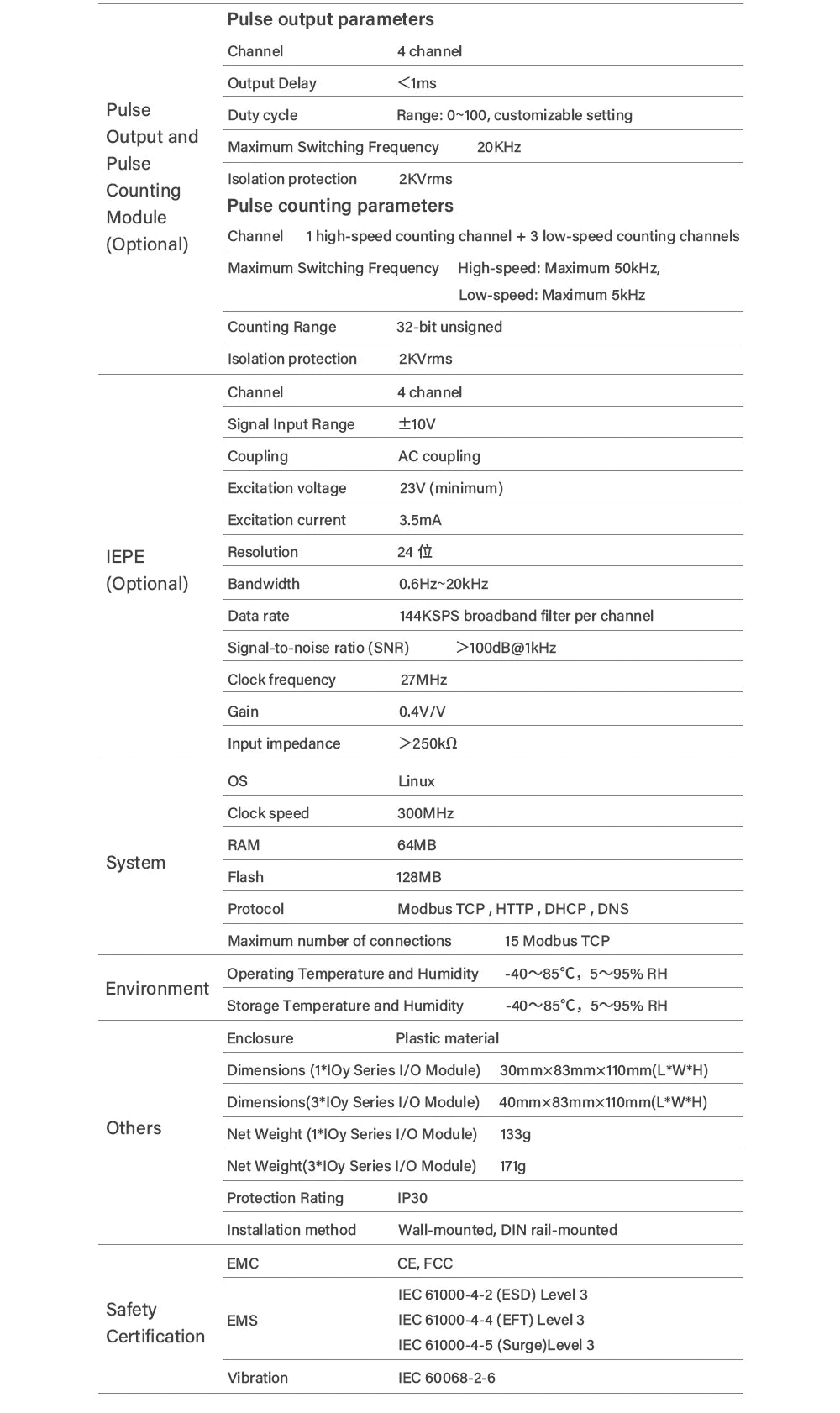

SPECIFICATIONS

Application: Computer

Brand Name: NONE

Clock speed: 300MHz

Condition: New

Dissipation Power: 1.32W

Enclosure: Plastic material

Ethernet: 2 X RJ45 10/100 Mbit/s

Flash: 128MB

High-concerned chemical: none

OS: Linux

Operating Temperature: -40-85℃

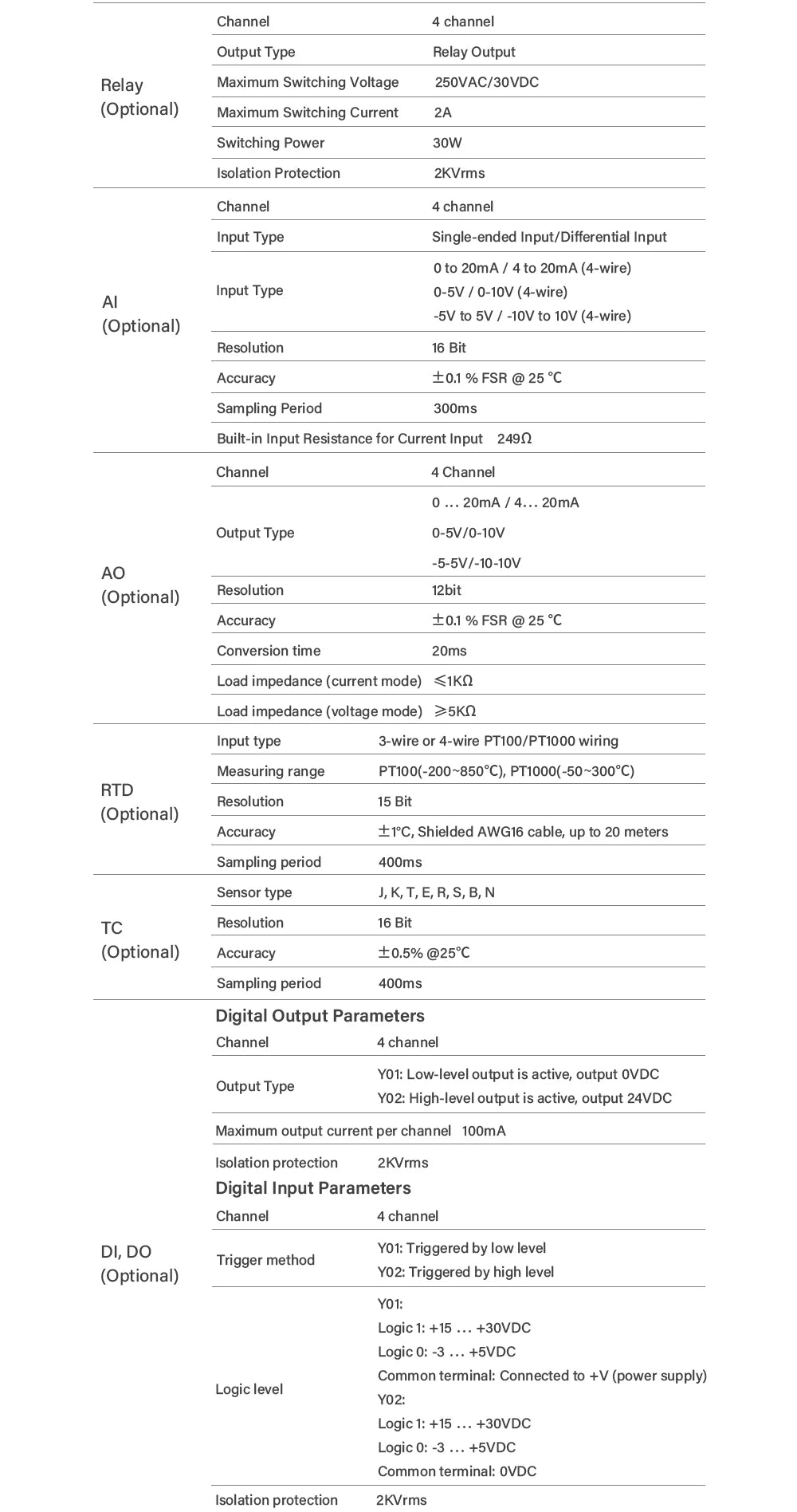

Optional: RS485/DI/DO/AI/AO/RTD/TC etc.

Origin: Mainland China

Package: SOP

Power Consumption: 55mA@24VDC

Power Supply: 24VDC

Protection Rating: IP30

Protocol: MQTT, HTTP, DHCP, DNS BL192Pro support Modbus TCP, OPC UA, MQTT

Quantity: 600

RAM: 64MB

Reverse Polarity Protection: Support

Safety Certification: CE, FCC,IEC

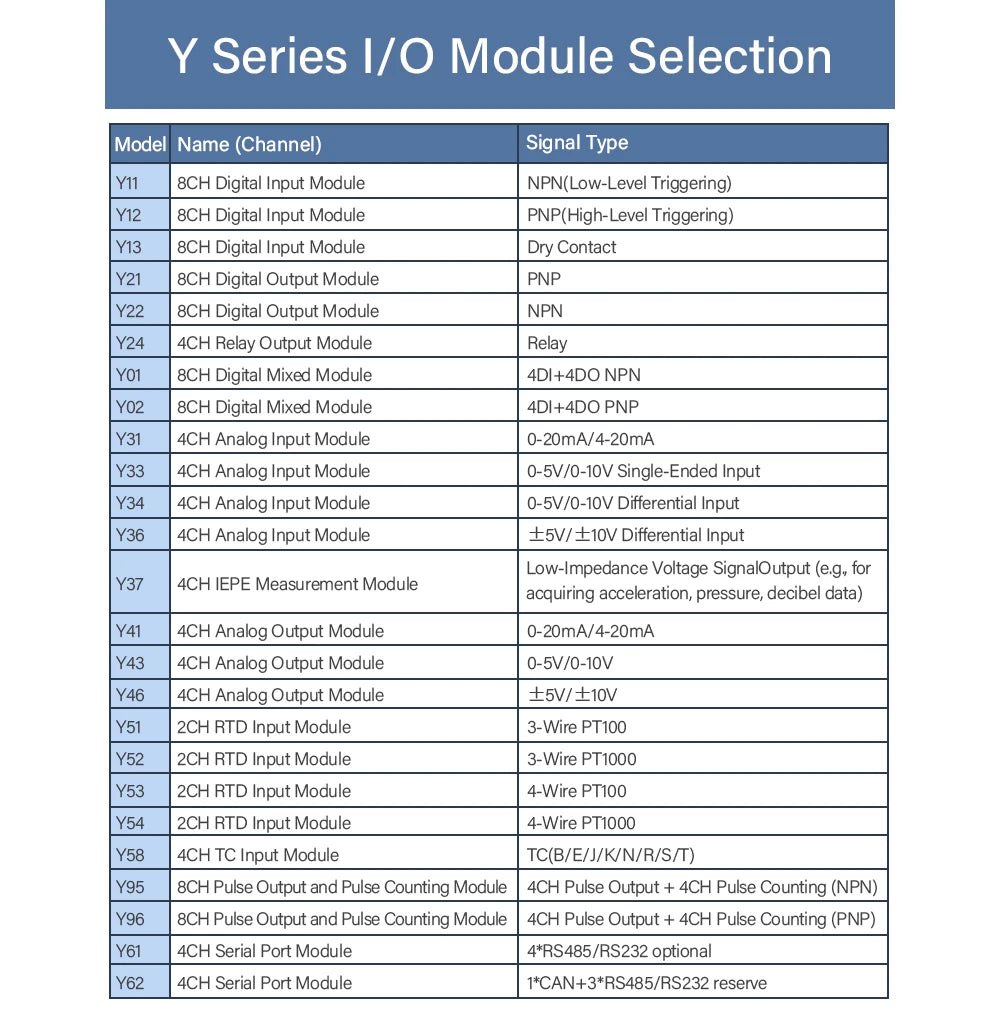

Serial Port: 1x RS485 + Y61 Optional (4x RS485/RS232 Optional)

Supply Voltage: 24V

Type: Module

is_customized: Yes

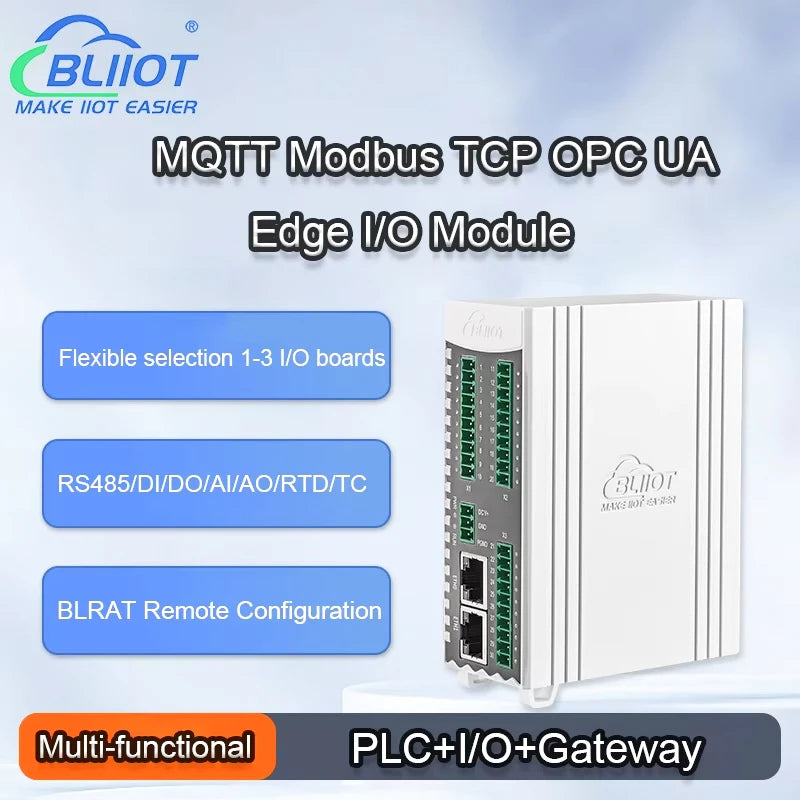

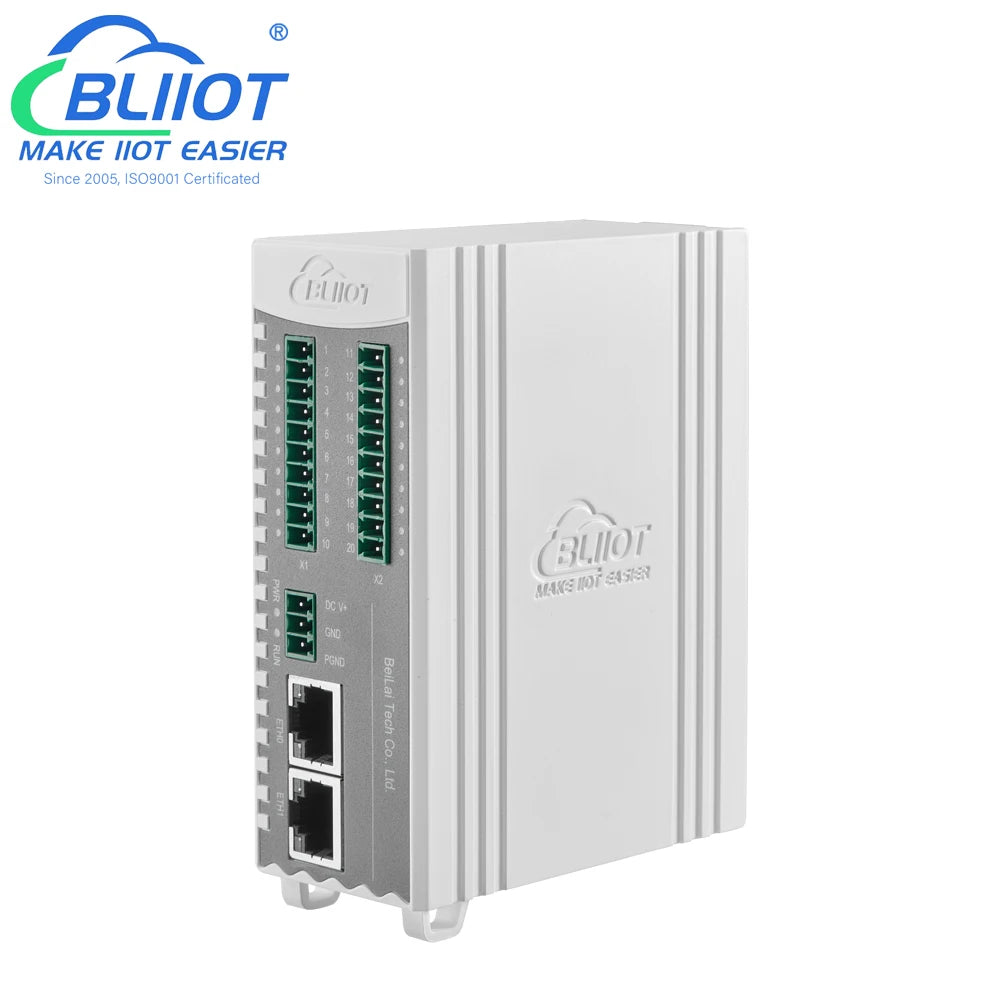

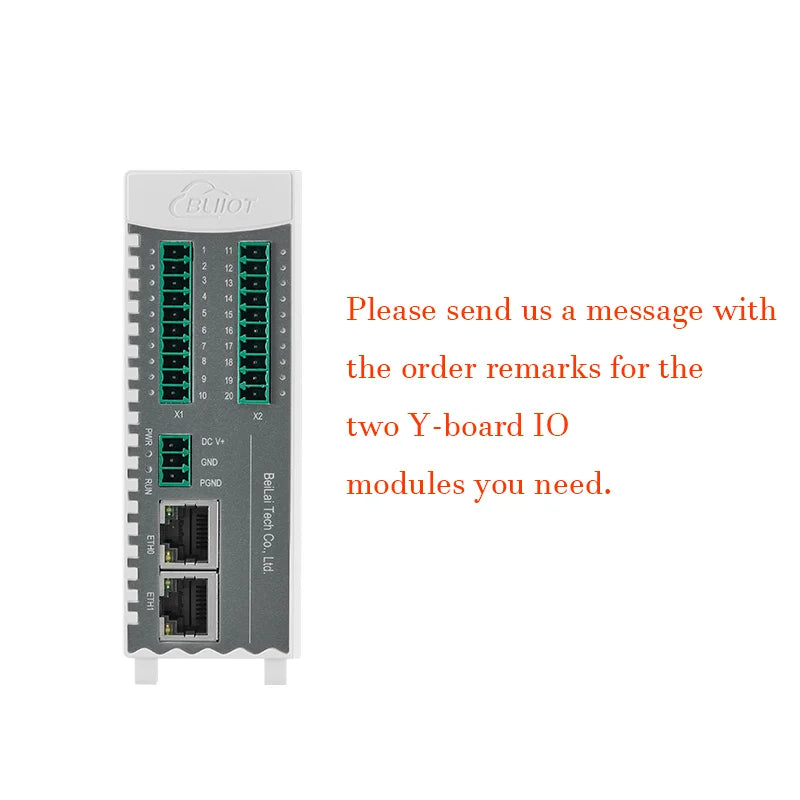

MQTT/Modbus TCP/OPC UA Edge I/O RS485/DI/DO/AI/AO/RTD/TC Remote I/O Modules BL192Pro

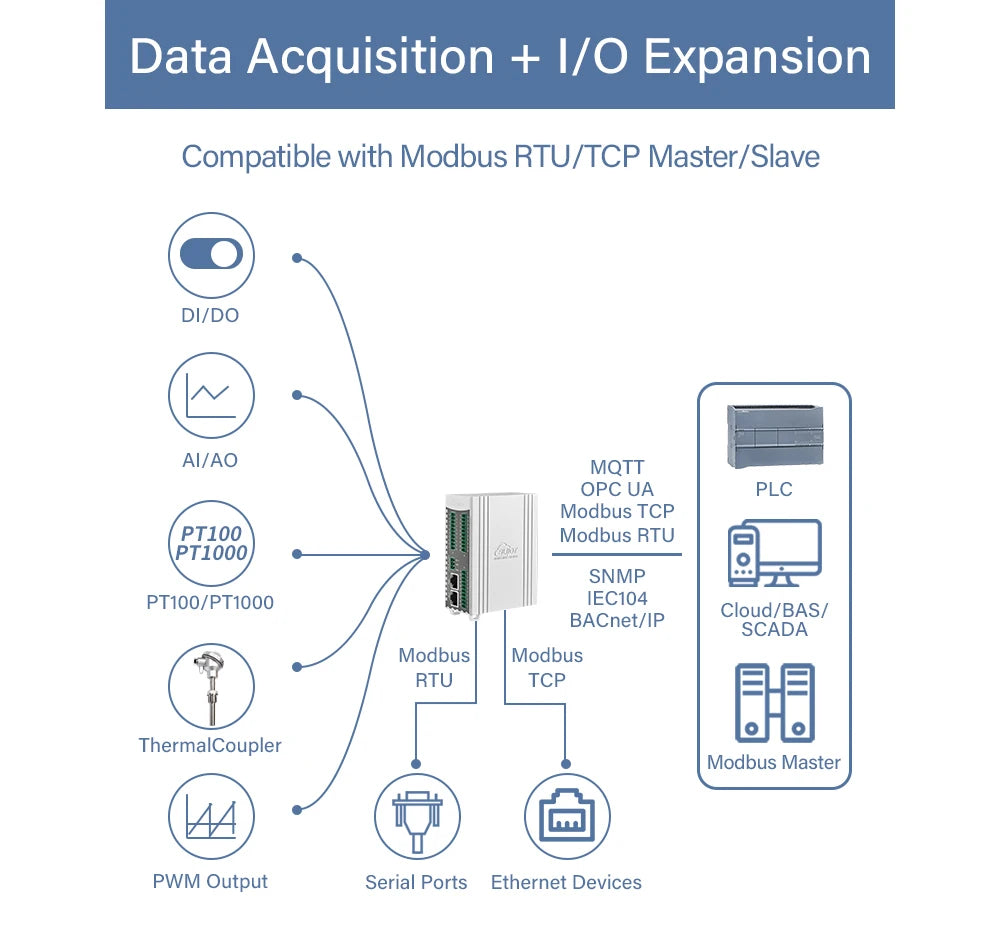

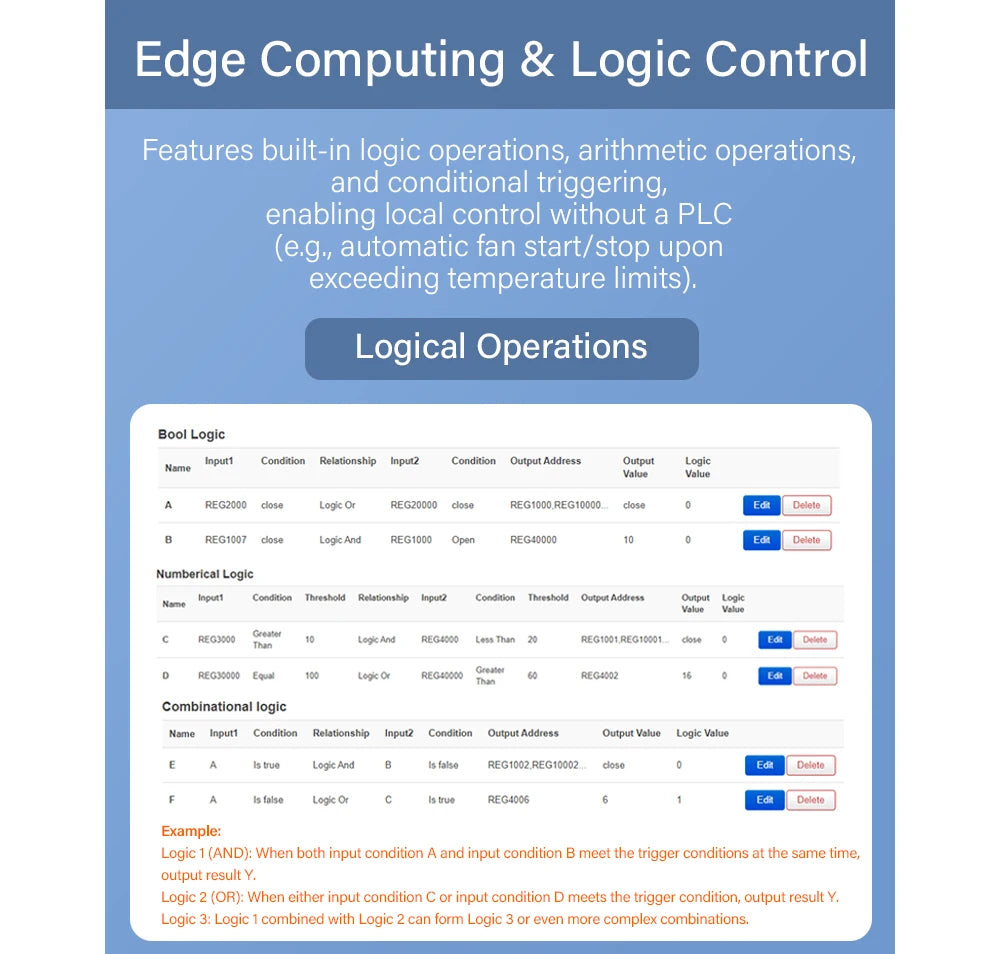

The IOy BL192Pro I/O module integrates PLC, I/O, and protocol gateway functions in one compact device. With native support for MQTT, Modbus TCP, and OPC UA, it ensures seamless, real-time data exchange across cloud platforms, industrial controllers, and enterprise systems. Its modular design, high-precision data acquisition, and built-in edge computing make it a powerful solution for scalable, interoperable IIoT and Industry 4.0 deployments.

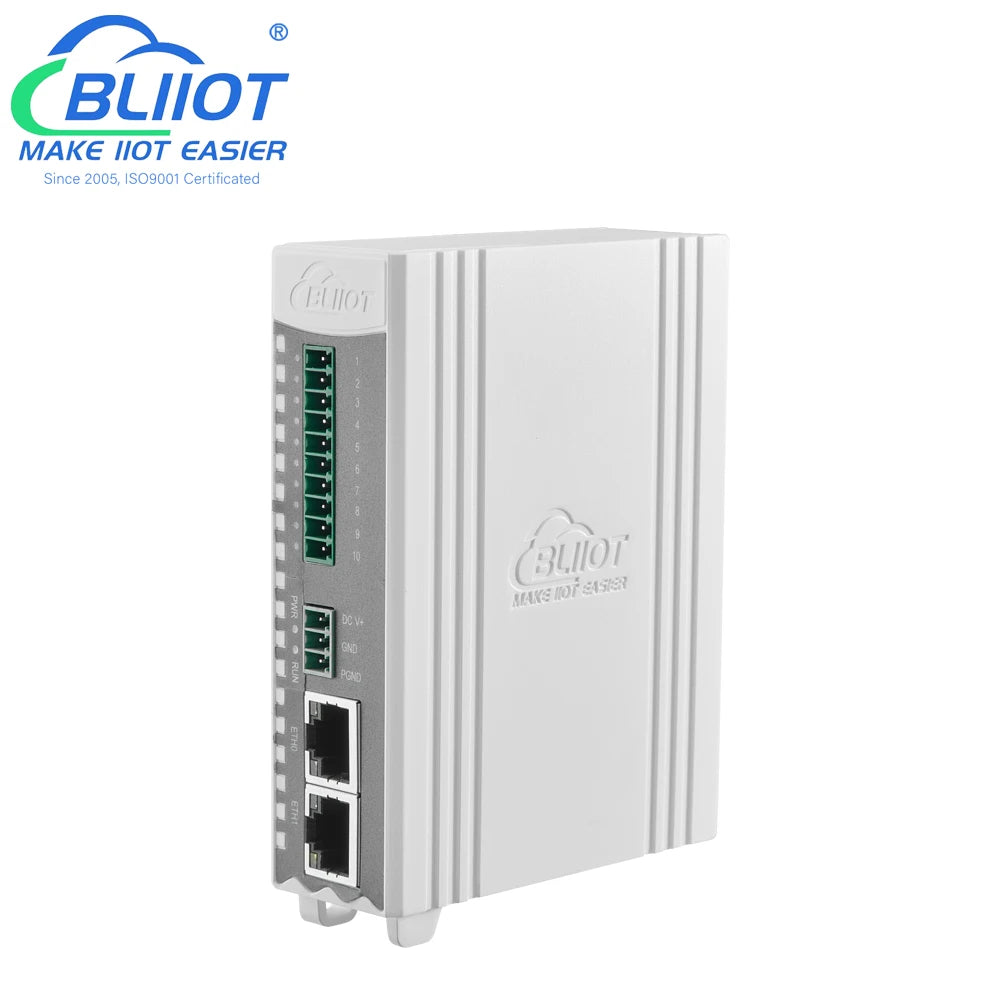

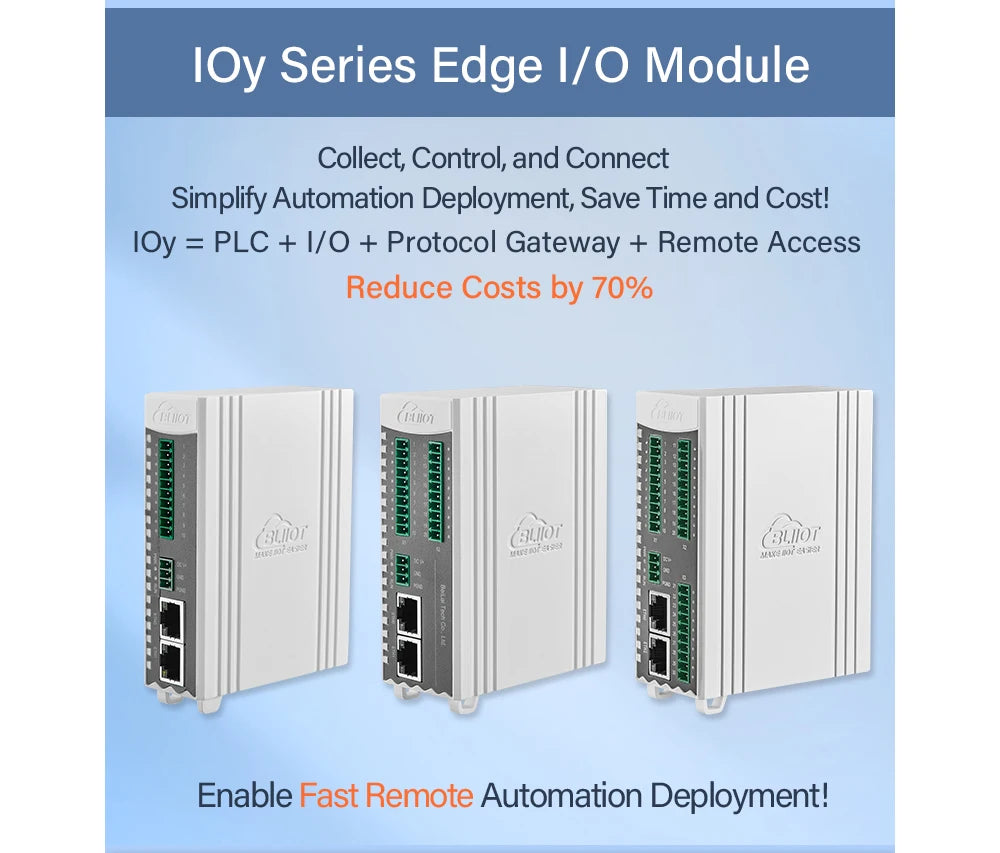

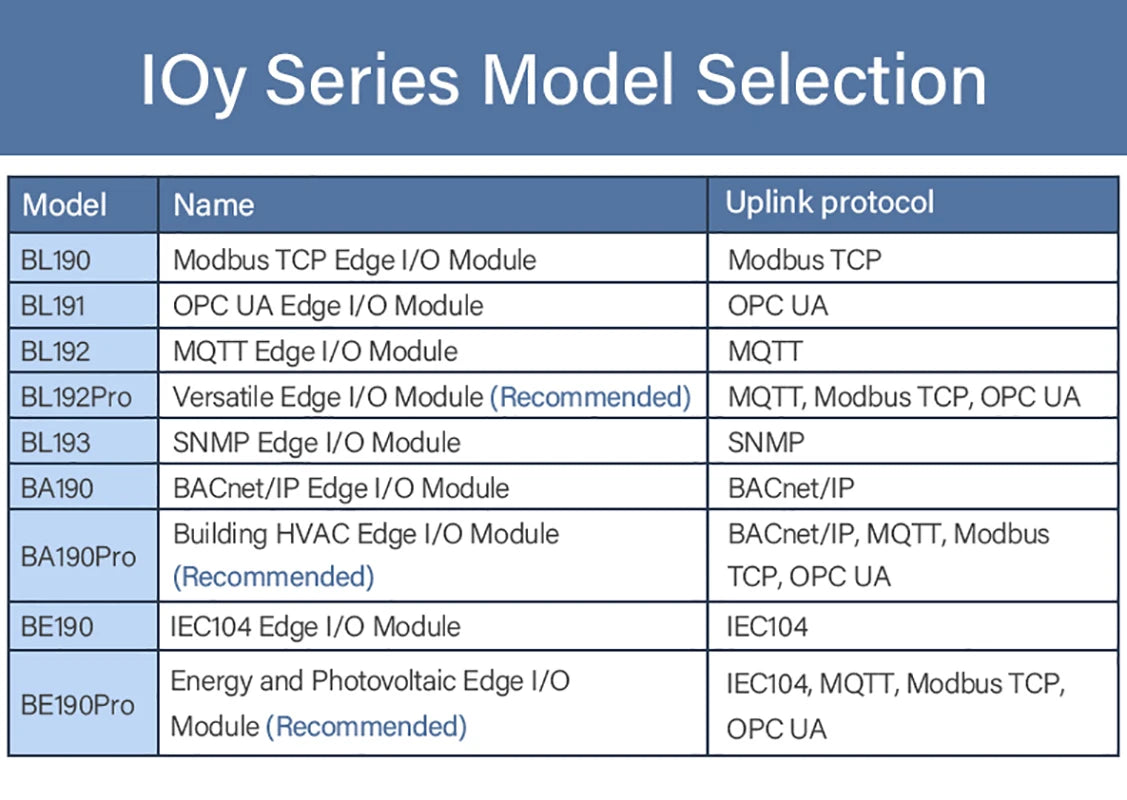

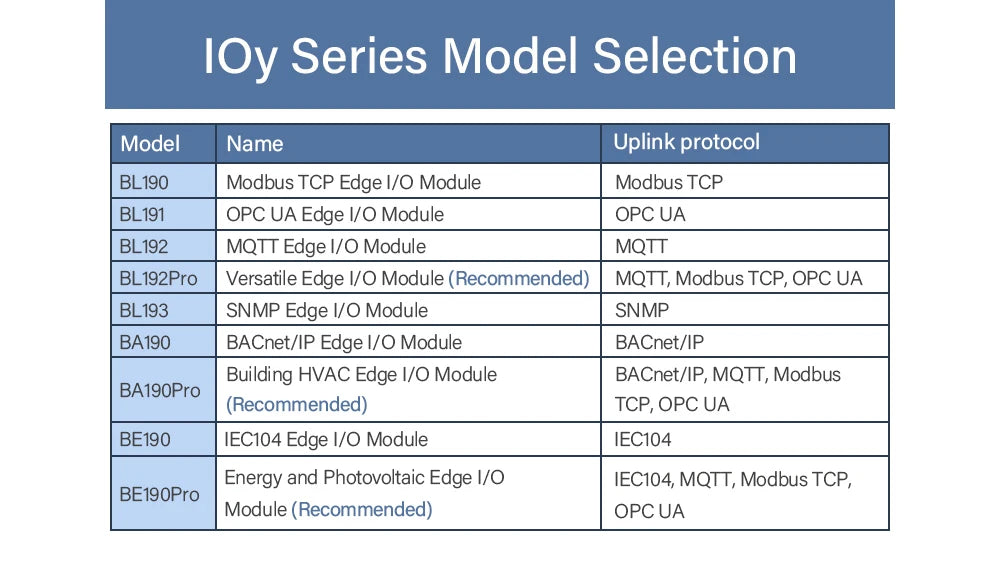

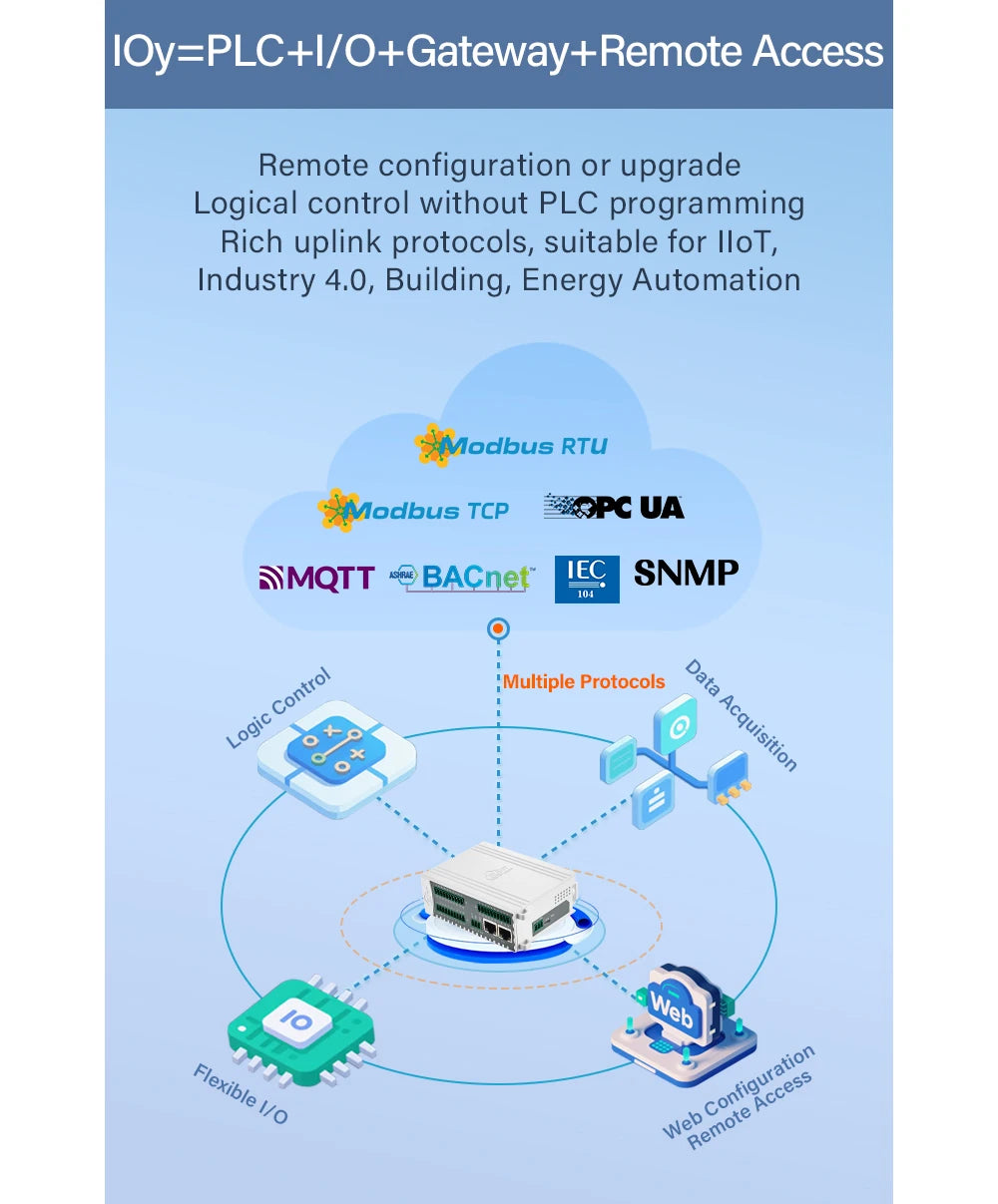

The BL192Pro is an industrial-grade, multifunction programmable remote I/O module from the IOy series, integrating MQTT, Modbus TCP, and OPC UA protocols.

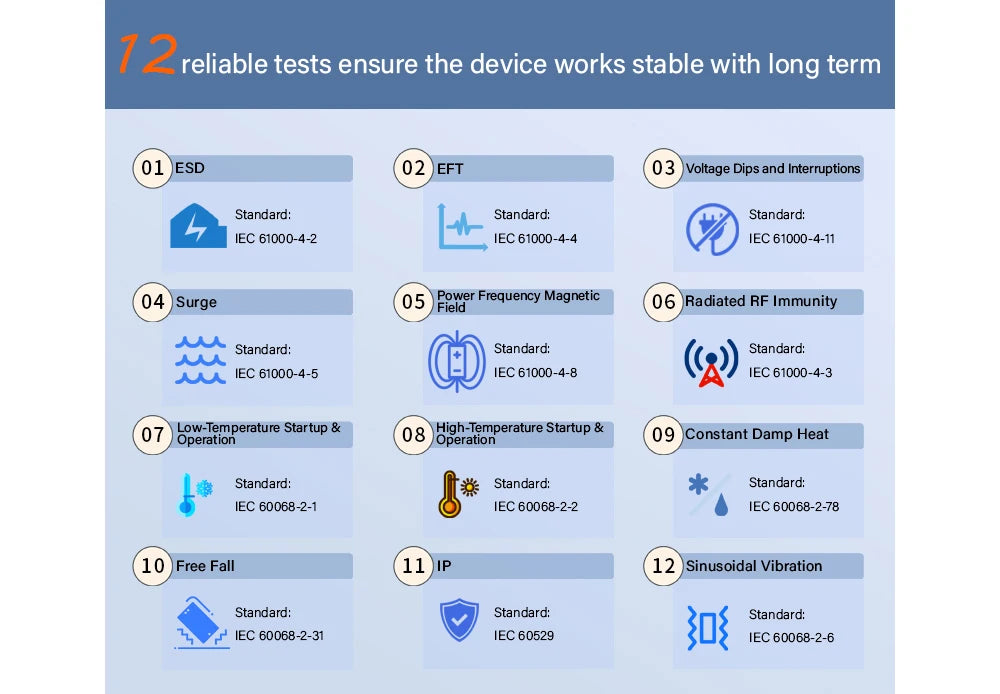

Built to meet the demands of modern IIoT systems, it features electrical isolation, has passed rigorous EMC/EMI testing, and operates reliably in extreme environments from -45°C to +80°C. A built-in hardware watchdog ensures long-term stability even under harsh conditions.

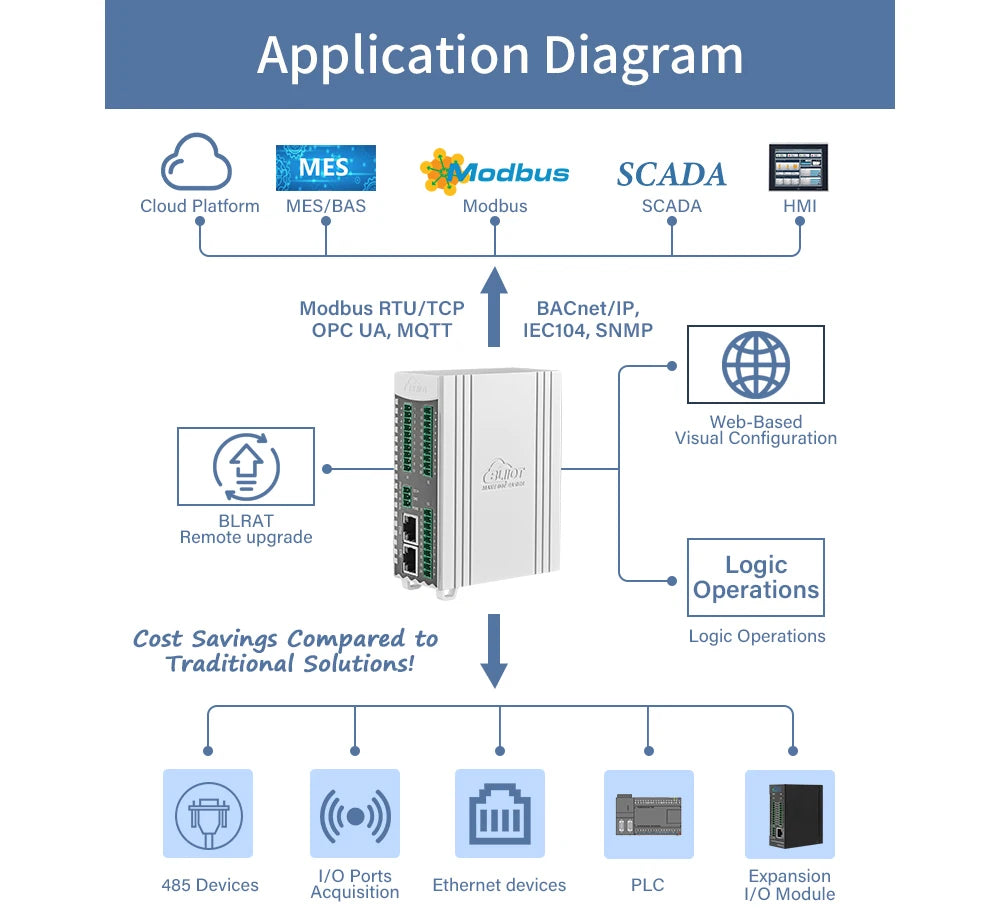

With its native support for MQTT, Modbus TCP, and OPC UA, the BL192Pro enables seamless, real-time communication from edge devices to cloud platforms and enterprise SCADA systems. Ideal for smart factories, energy automation, infrastructure, transportation, agriculture, and other distributed control applications, it simplifies integration, enhances interoperability, and accelerates digital transformation in the field.
