SPECIFICATIONS

Brand Name: eletechsup

Certification: NONE

Choice: yes

Contact Load: High Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Load current: AC 250V / 10A, DC 30V / 10A

Model Number: IO25A01

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Size: Miniature

Standby current: 1uA

Theory: Time Relay

Trigger mode: Low pulse trigger

Use: General Purpose

Voltage: 5V

Working Voltage: DC 5V

Working current: 70mA

is_customized: Yes

semi_Choice: yes

Product Name:mini 5V Flip-Flop Latch Relay Module Bistable Self-locking Switch Low pulse trigger Board for Arduiuo Smart home LED  Motor

Packing list:

1 pcs1 Channel DC 5V Self-locking Relay Module

Description:



If you need 6-24V version, click here



Working voltage: DC 5V

Working current: 70MA

Standby current: 1UA

Load current: AC 250V / 10A, DC 30V / 10A

Trigger mode: Low pulse trigger

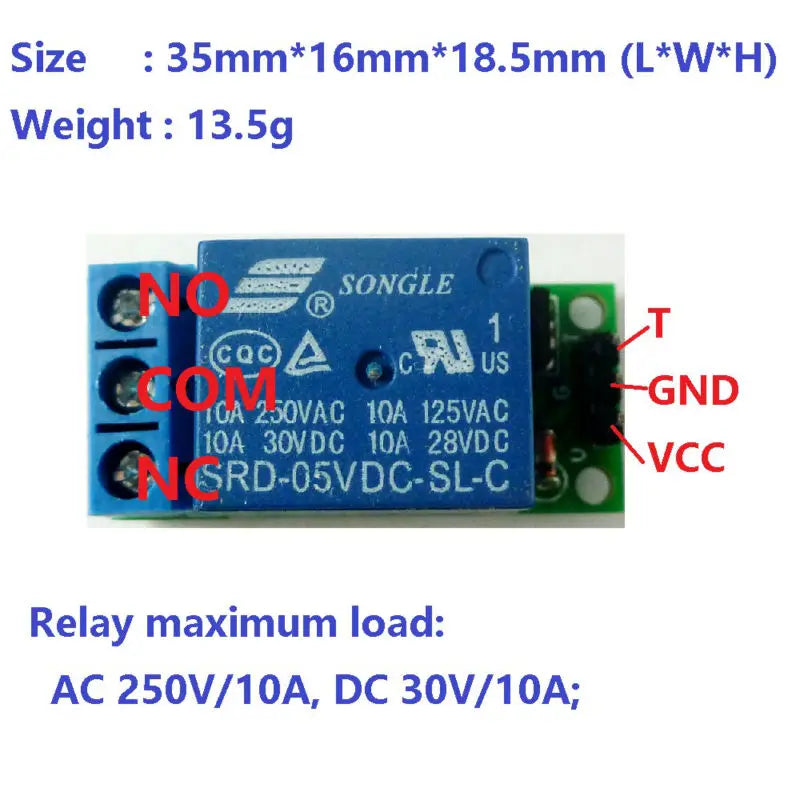

Size: 35mm * 16mm  * 18.5mm (L * W * H),Very small size

Weight: 13.5 g



This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)

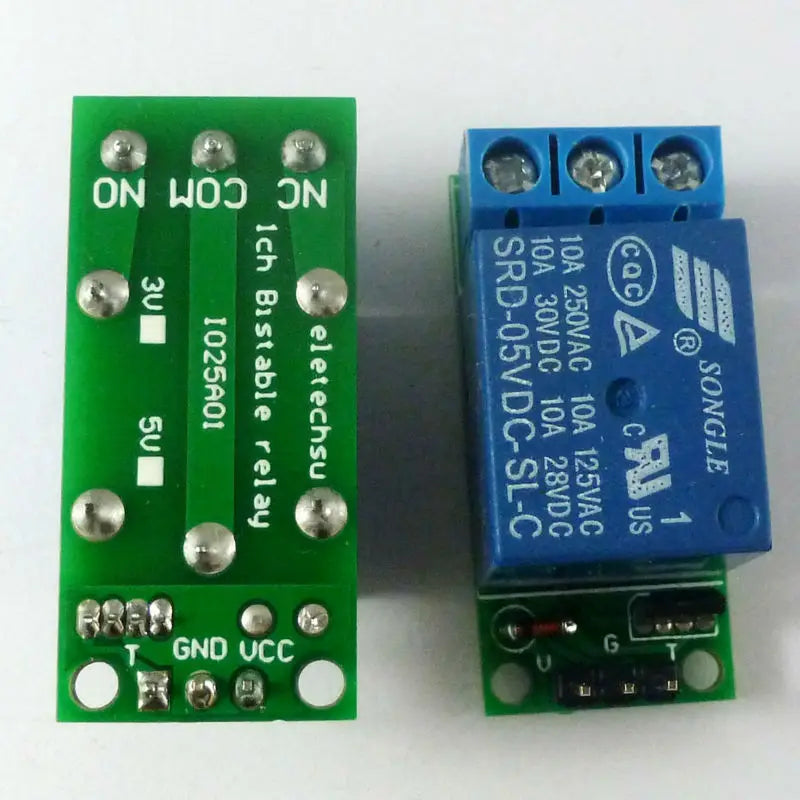

Module interface:

1. VCC: positive power supply (VCC)

2. GND: negative power supply (GND)

3. T  : Low pulse trigger



Relay outputs:

1. NO: normally open relay interface

2. COM: Common Interface Relays

3. NC: normally closed relay interface

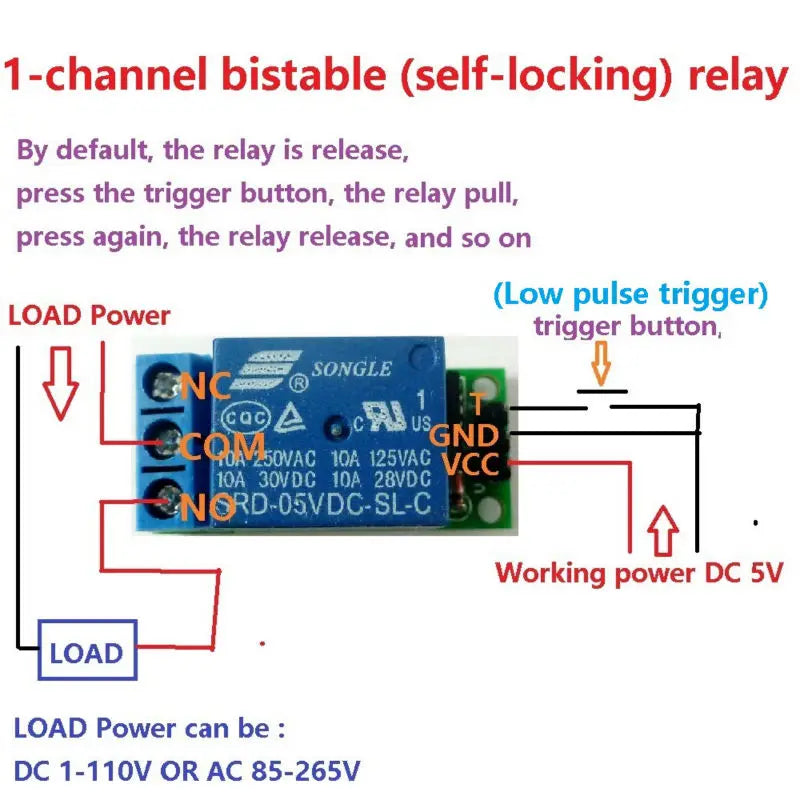

USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on



Typical applications:

Automotive electronics

Motor

LED

Smart Home

Emergency lighting

MCU development board

Toy car
