Description

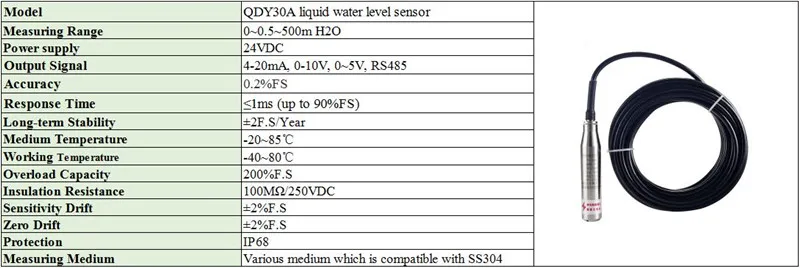

SPECIFICATIONS

Battery Included: no

Brand Name: NONE

Cable lengh: can be customized

Certification: CE,FCC,RoHS

High-concerned chemical: none

Max Measuring Range: 400 Bar & Above

Measuring range: 0-0.5-500m H2O

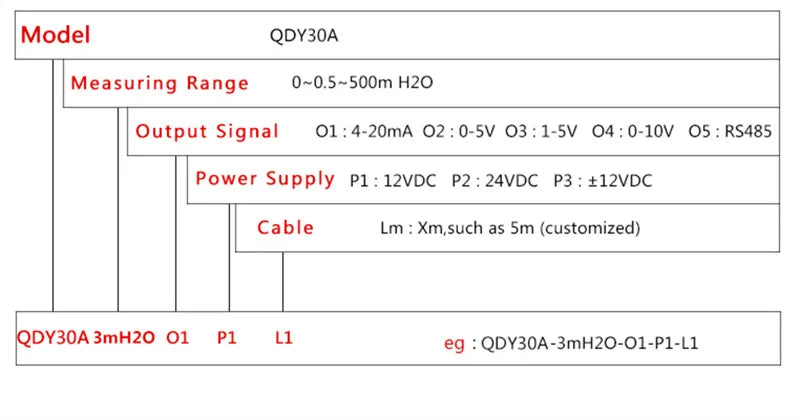

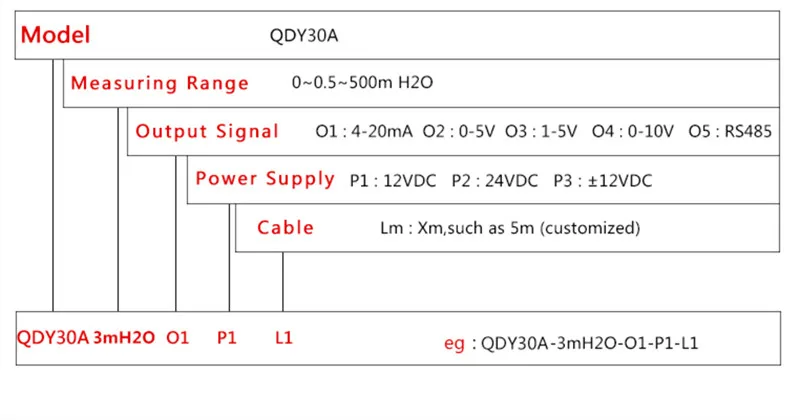

Model Number: QDY30A

Origin: Mainland China

Output signal: 4-20mA,0-10V,0-5V,1-5V,RS485

Power supply: DC24V,DC12V,

Probe material: SS304

Product name: Water level sensor

Semi-finishedproduct: No

NOTES!!

Default DC24V power supply (DC10-30V can be used ,wide range of voltage supply )

OEM ODM is acceptable

If you need other specification: measuring range,output signal,cable lengh,power supply, pls contact us for a customization!!! TKS

Note

1.Not recommended to cut or connect cables without permission.

2. If cables must be cut in special cases, it is recommended to use a waterproof junction box, or the wires should be bent vertically downwards at 90° to ensure that water vapor does not condense into the guide pipe

Introduction:

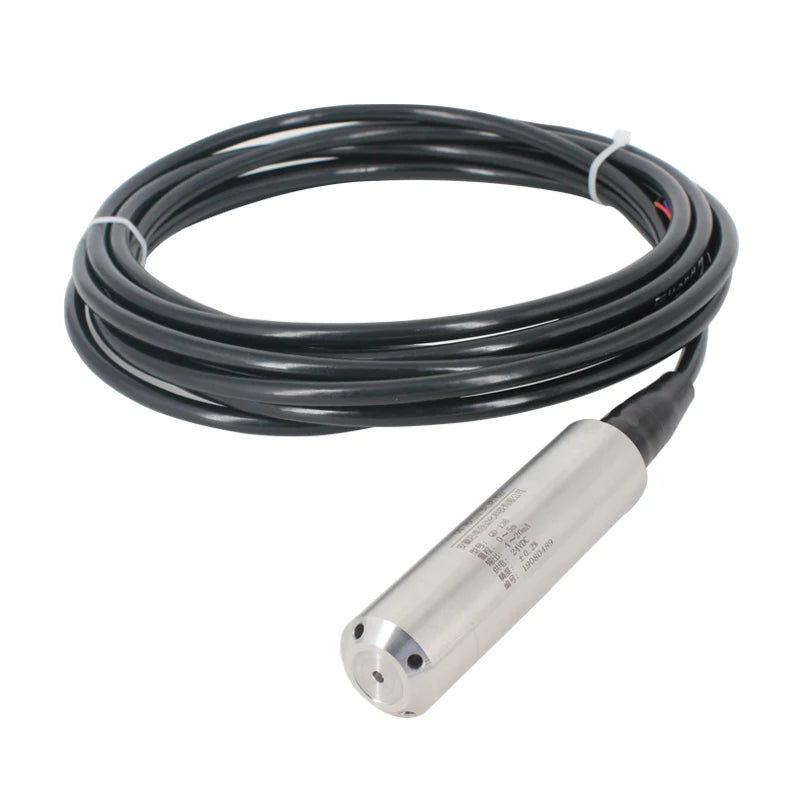

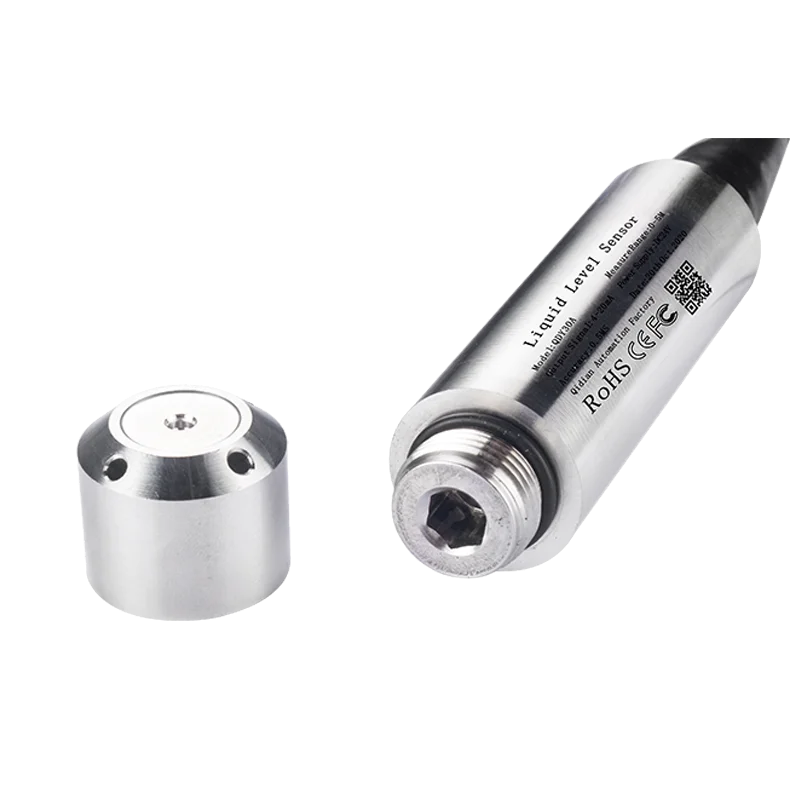

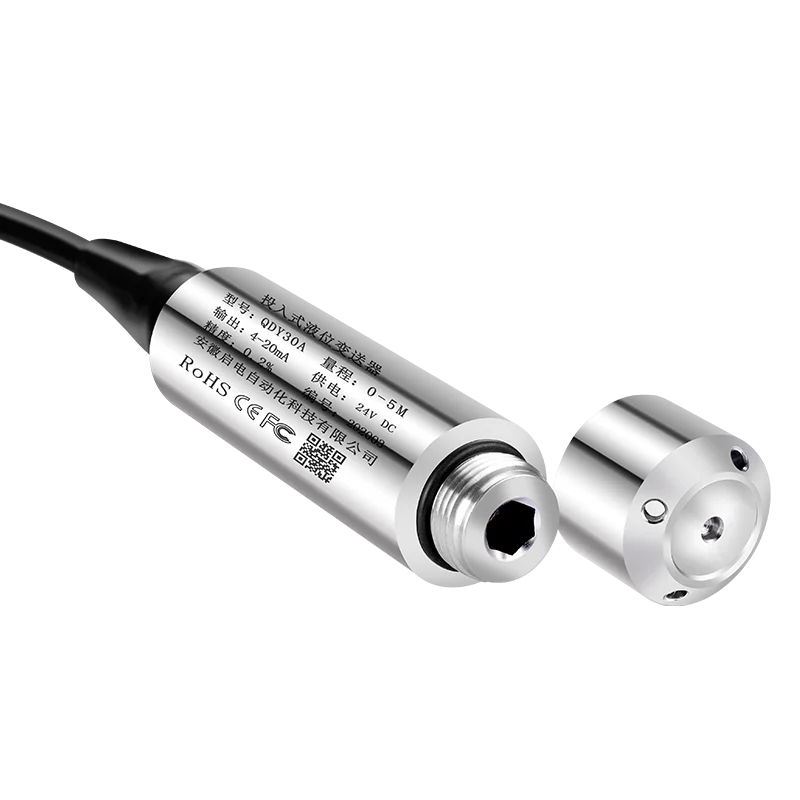

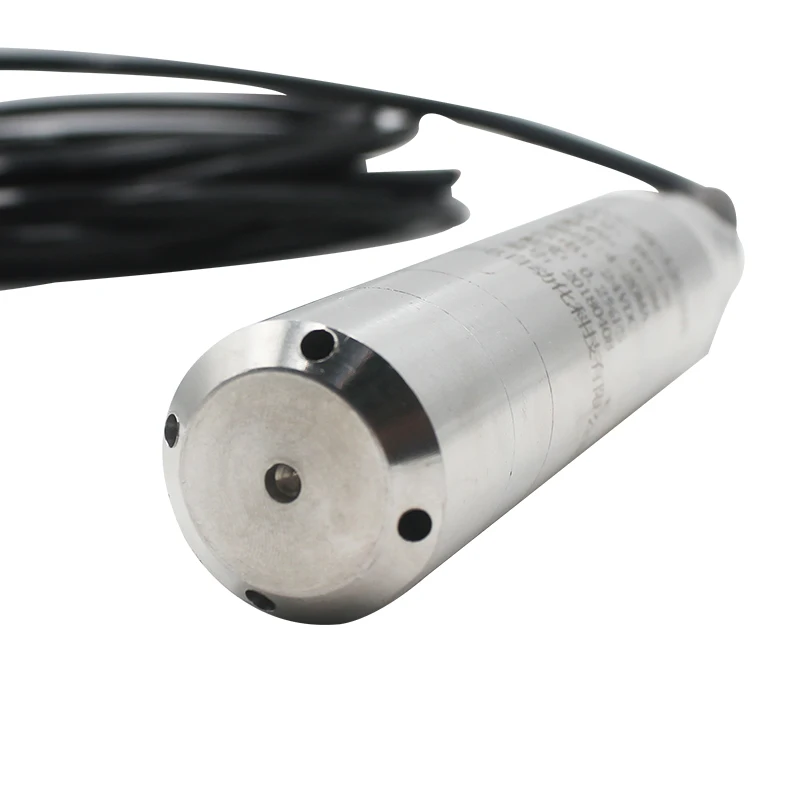

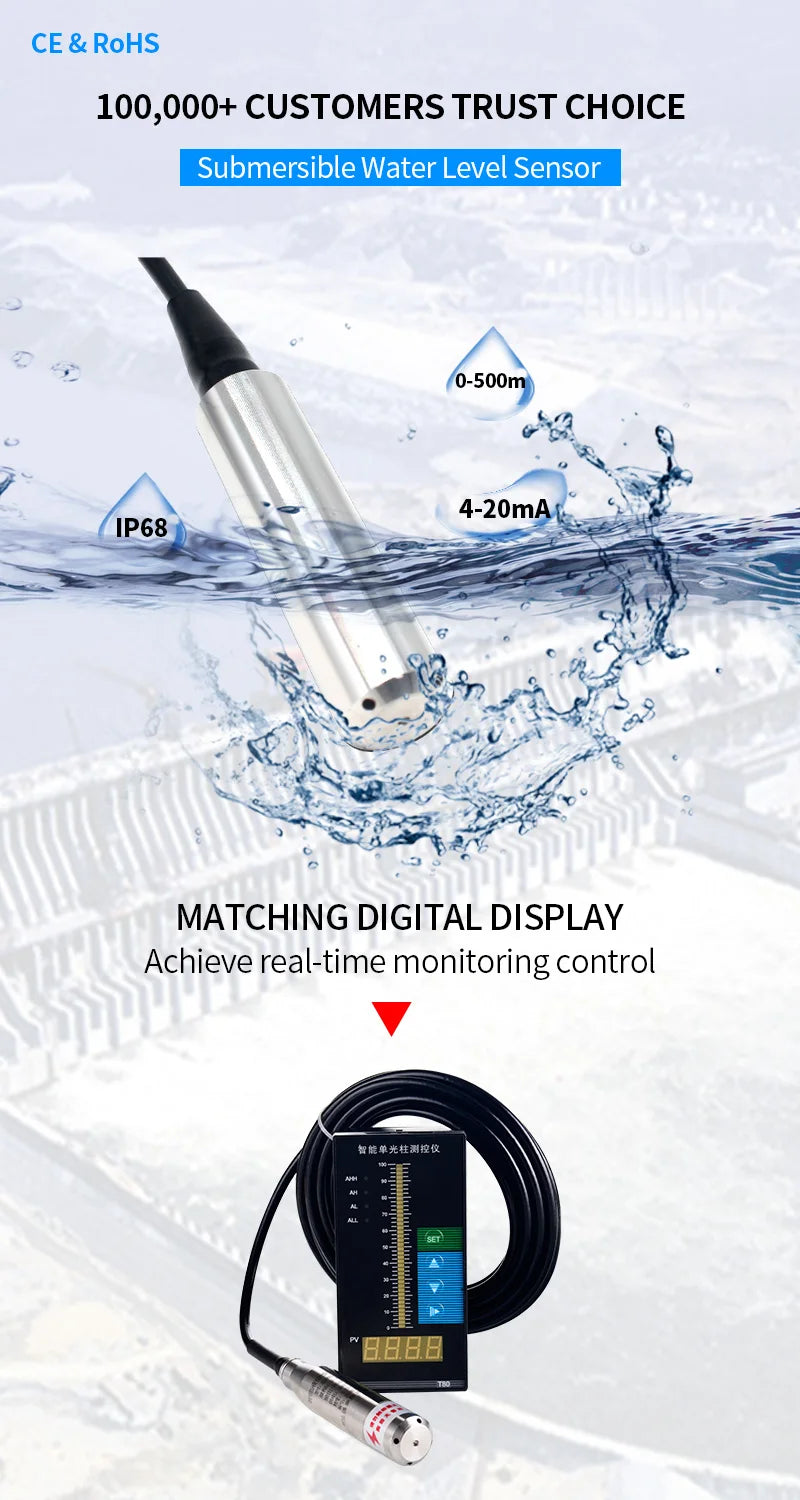

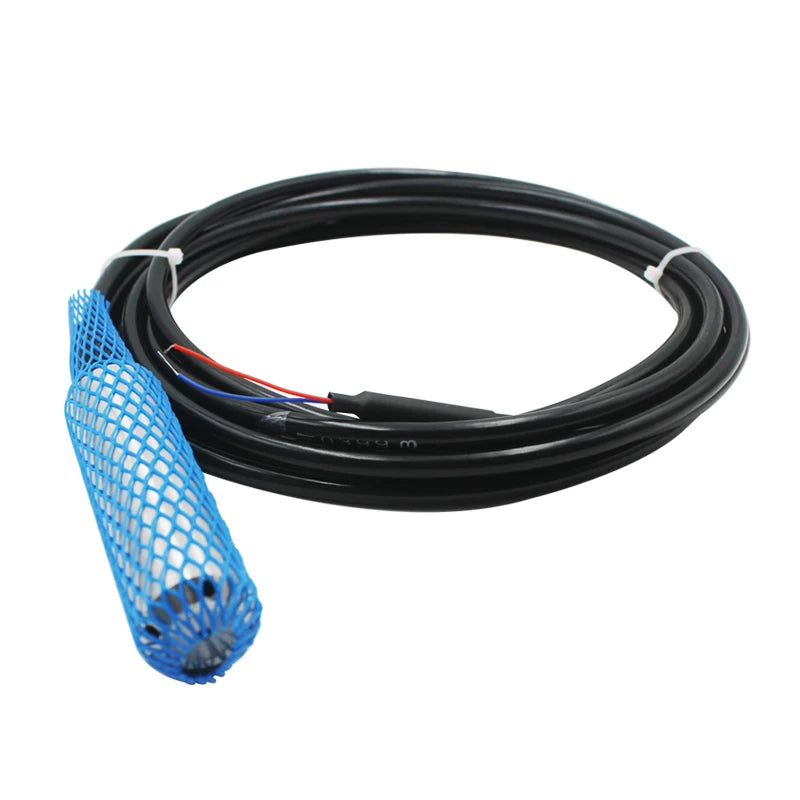

<1>. QDY30A submersible Water Level Sensor, its 304 &316 stainless steel and hermetically sealed housing make it suitable for most industrial liquids and oils.

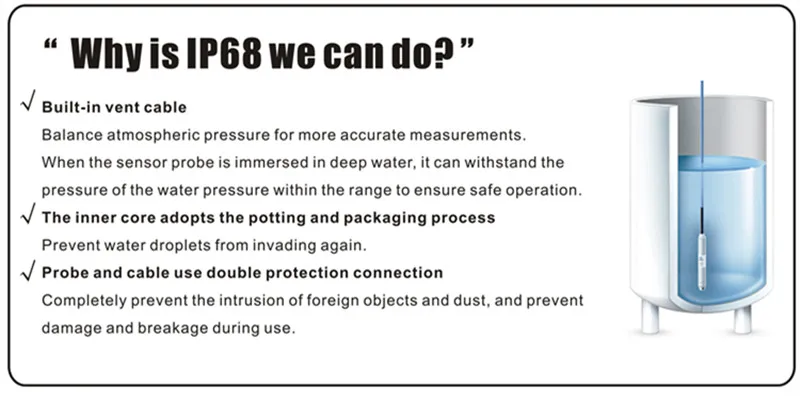

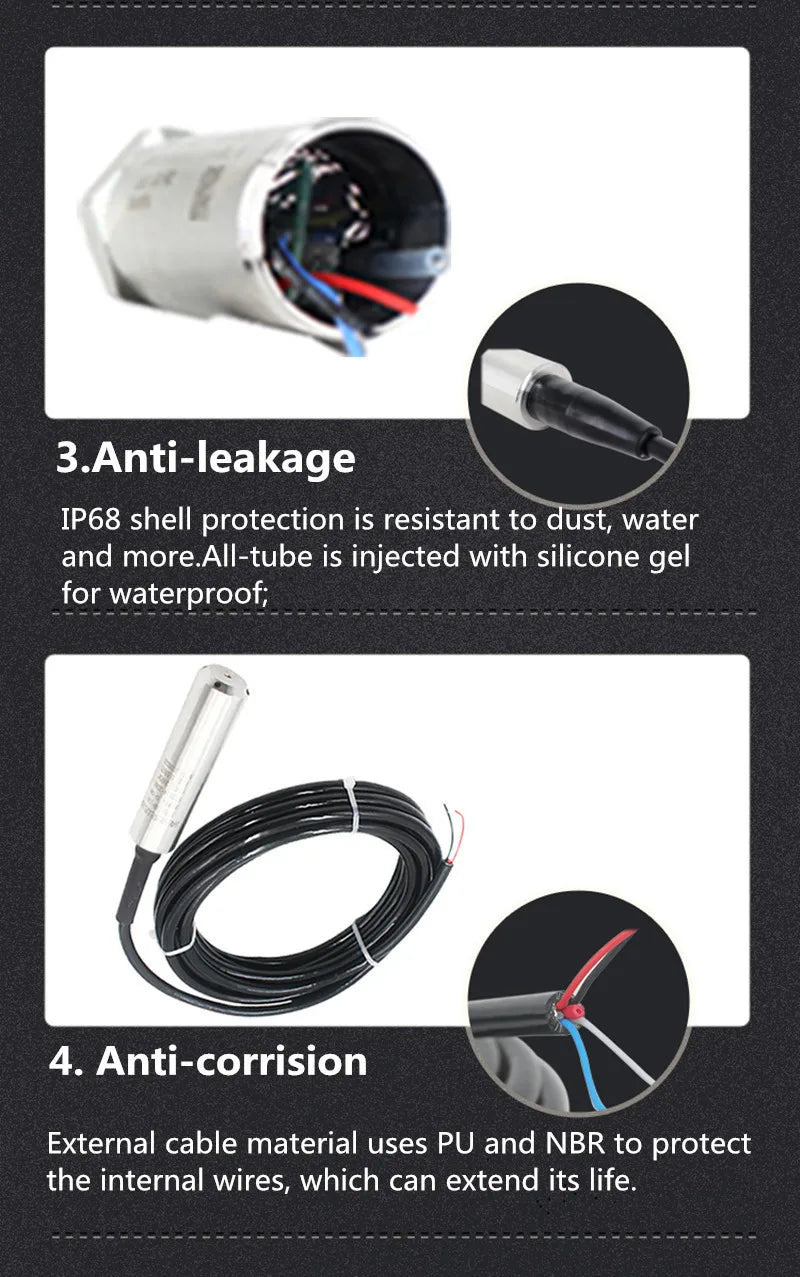

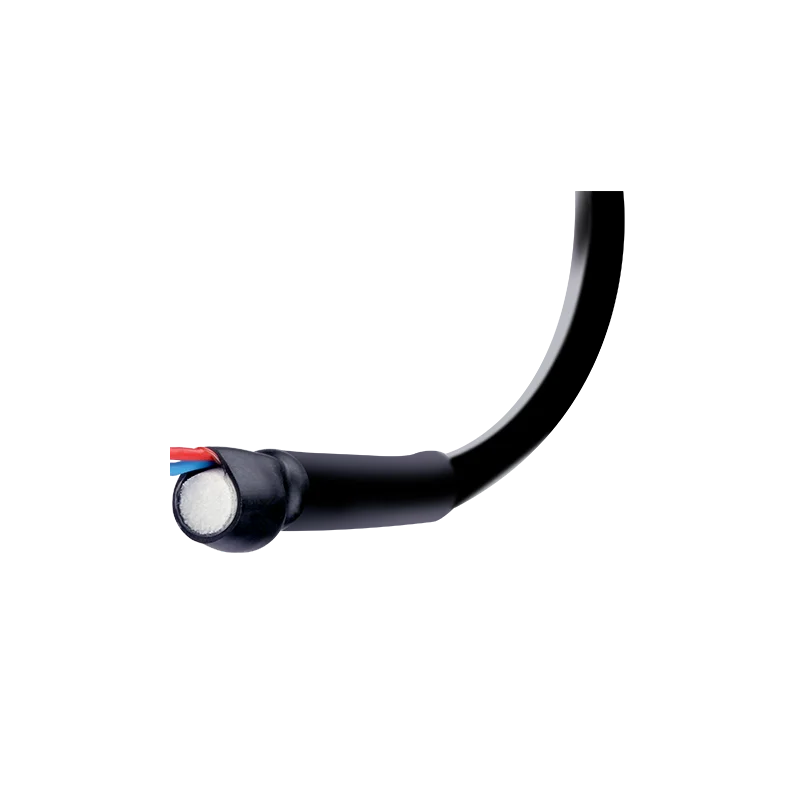

<2>. The welded housing is tested in-house via a helium leak tester to ensure proper protection. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The conductors of the cable are also isolated from the outside environment to keep the level sensor operational for long-term use.

FEATURES:
