SPECIFICATIONS

Brand Name: VaneAims

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Feature 1: IP68 Waterproof Connector

Feature 2: Aviation Plug Socket

Feature 3: Panel Mount Connector

Feature 4: Male Plug Female Socket

Feature 5: Cable Connector

High-concerned chemical: none

Origin: Mainland China

Voltage: 220 V

Product Functions & Features

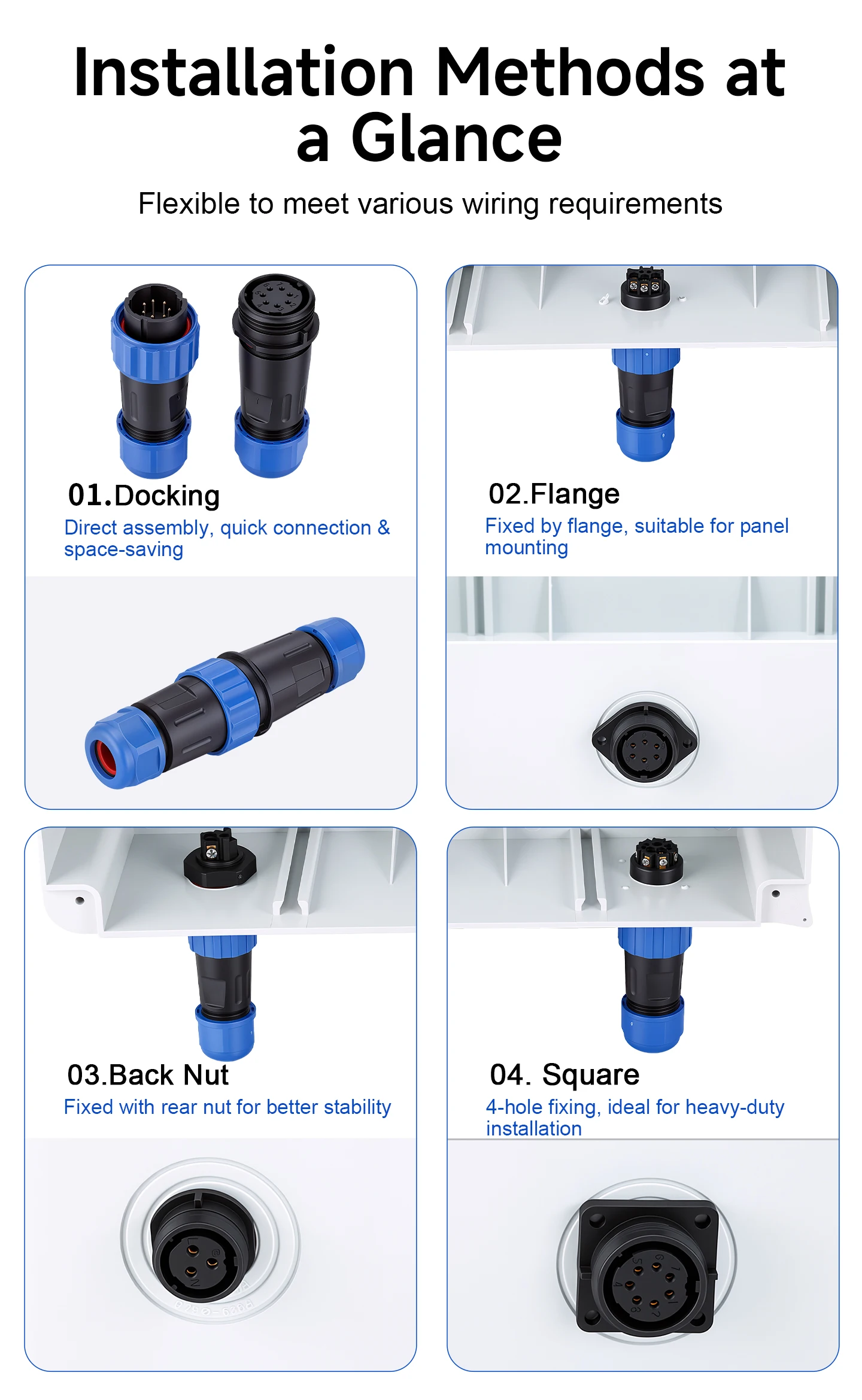

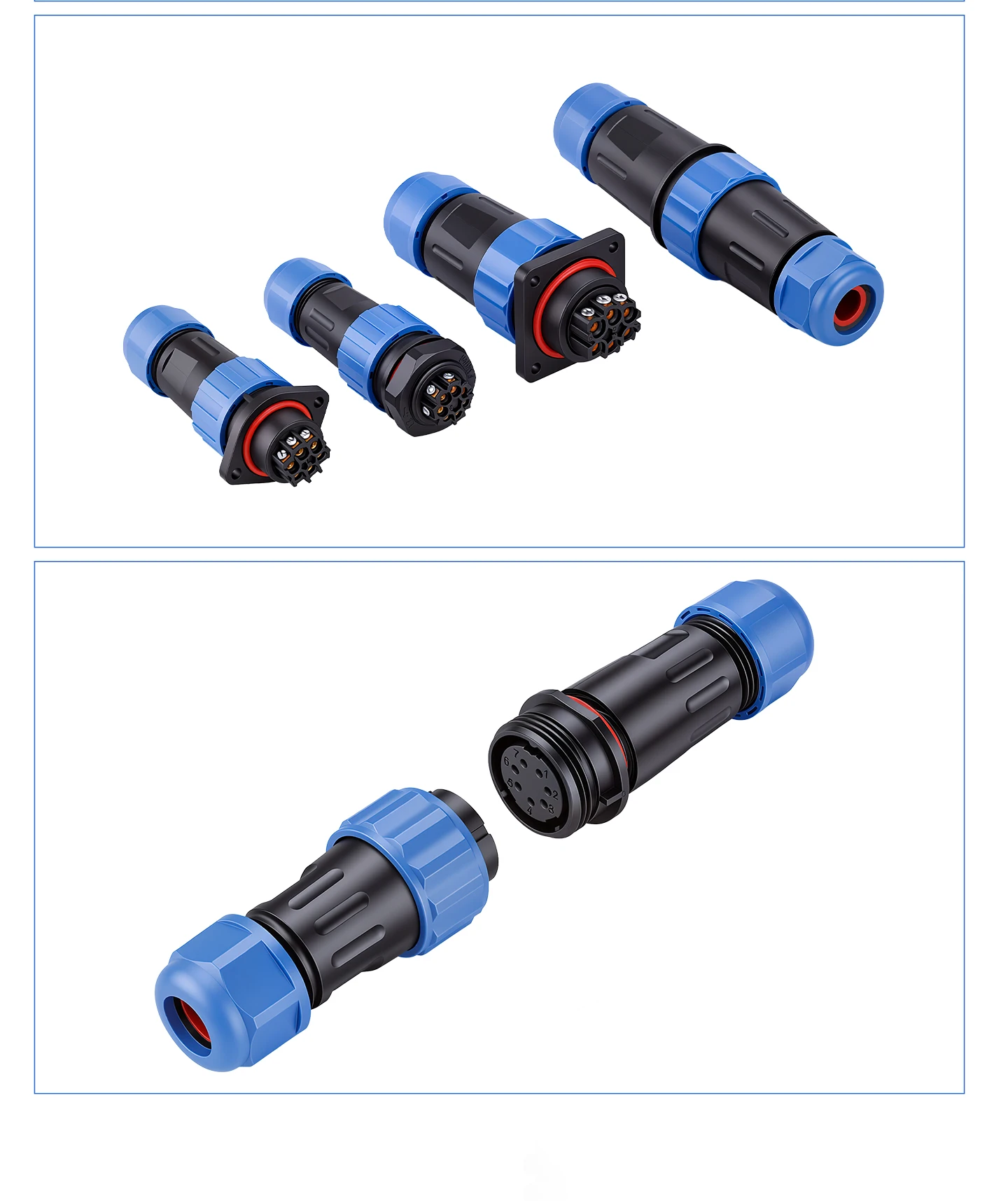

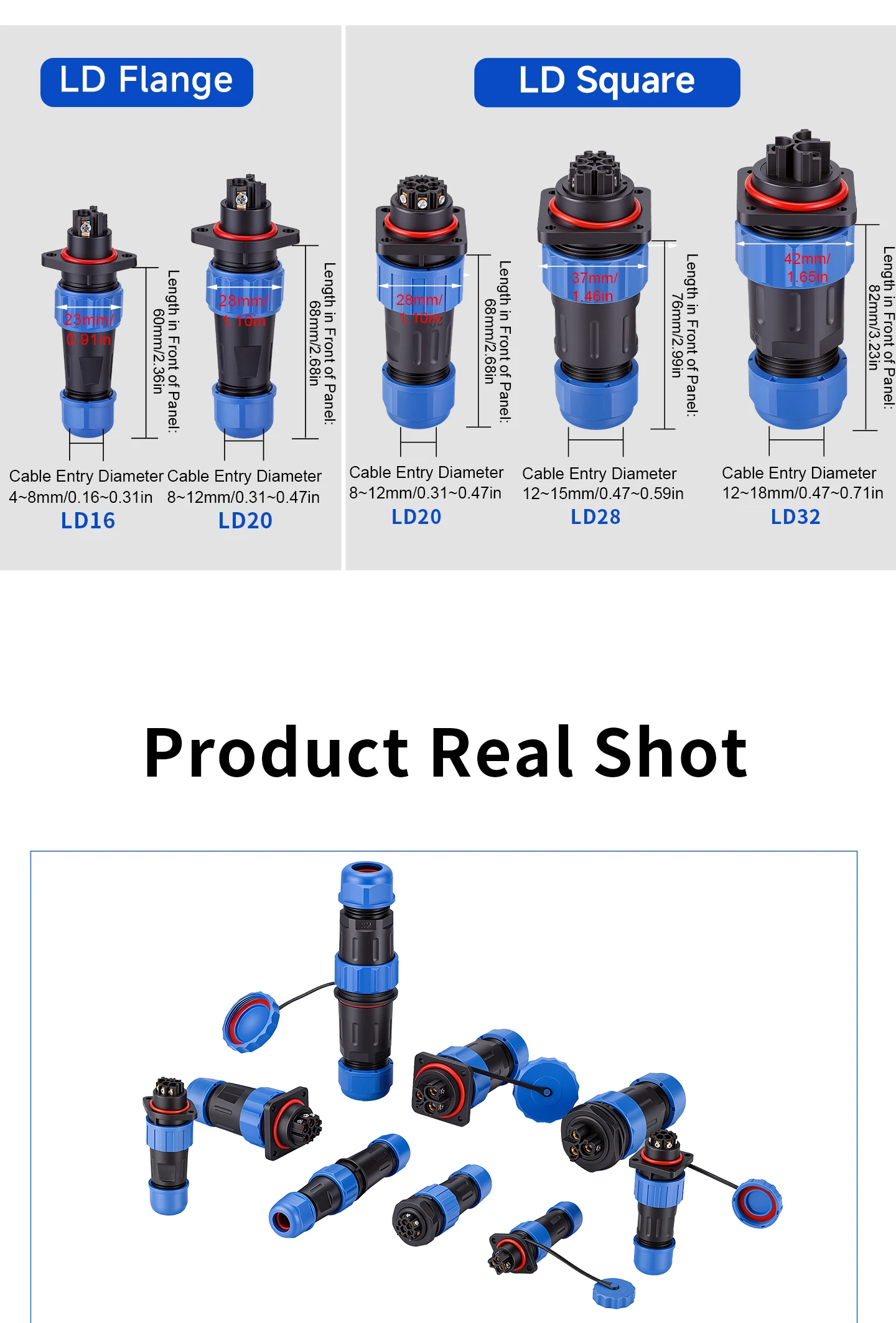

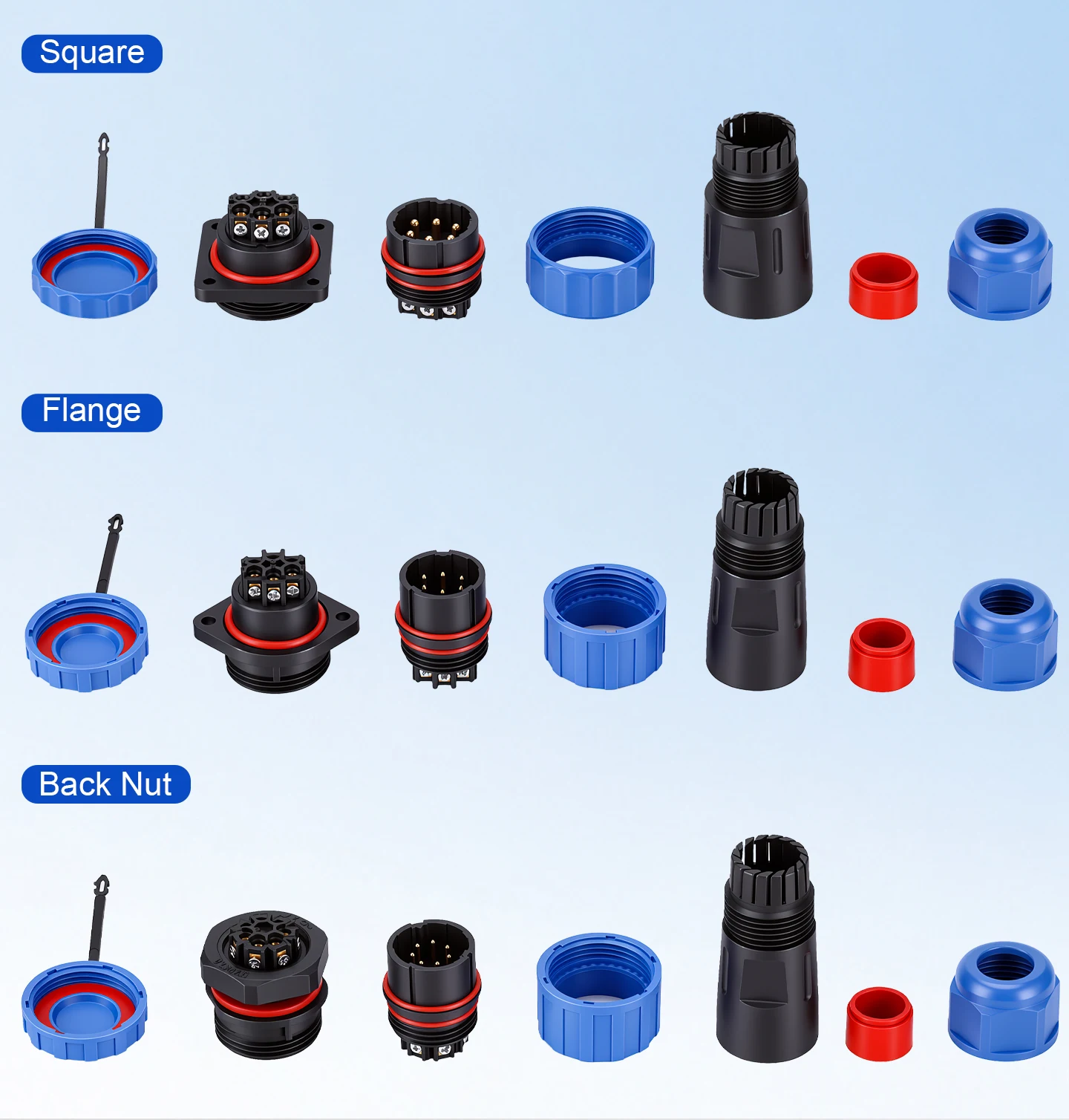

1. Available in 4 mounting styles: Docking, Square, Flange, Back Nut for diverse installation requirements

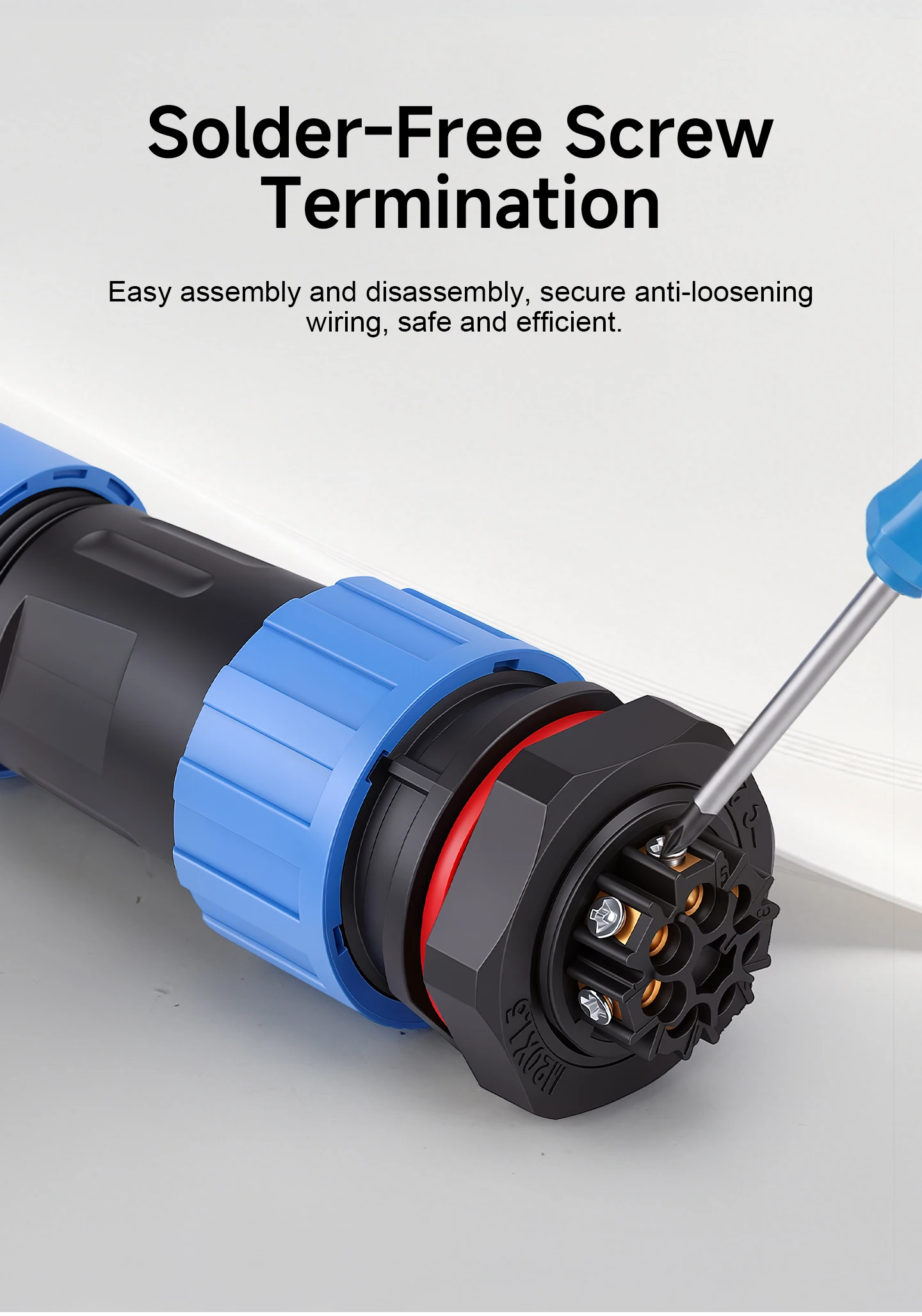

2. Solder‑free screw termination design, supporting easy assembly & disassembly, anti‑loosening wiring, safe and efficient connection

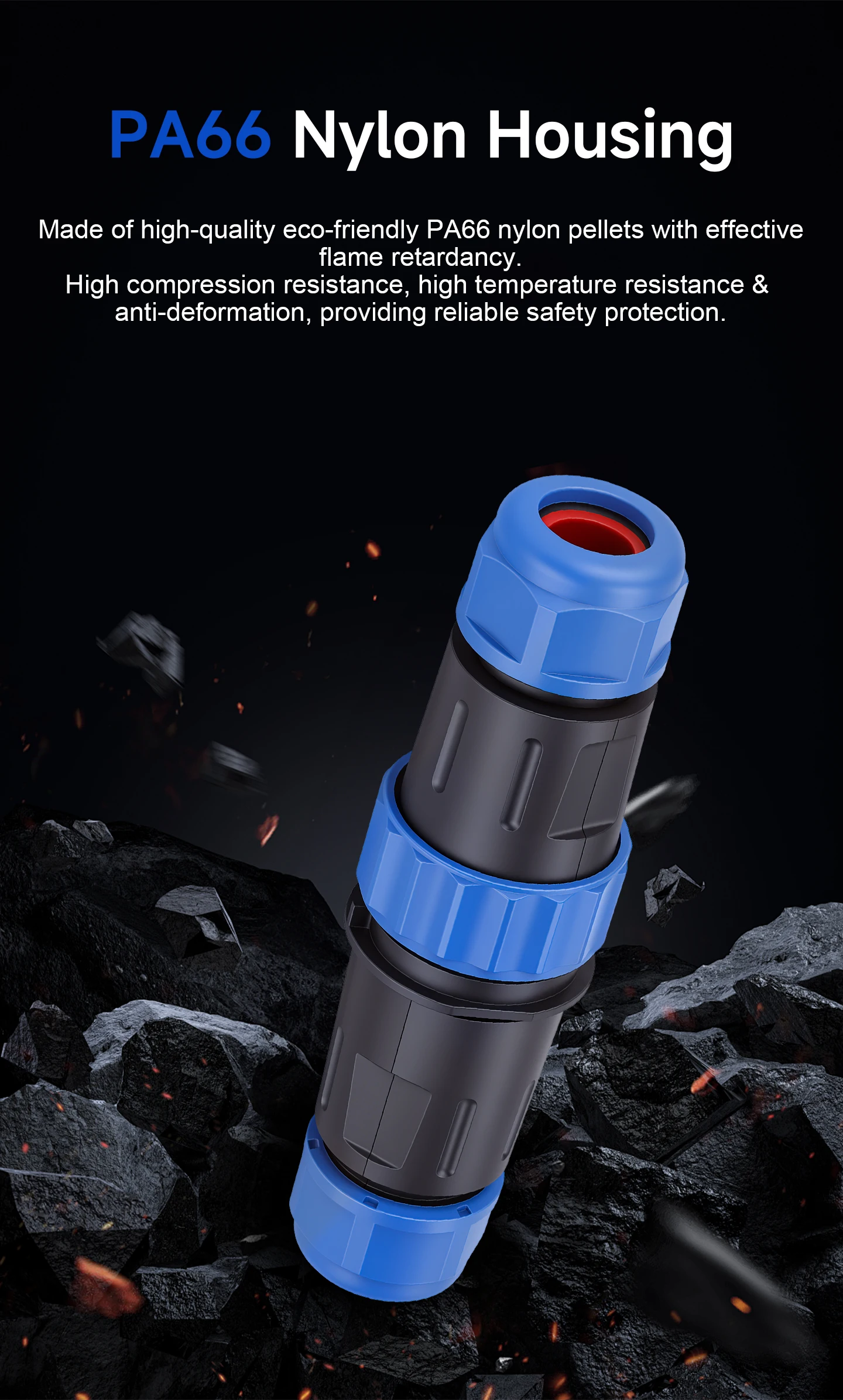

3. PA66 nylon housing with flame retardancy, high compression‑resistance, high‑temperature resistance and anti‑deformation performance

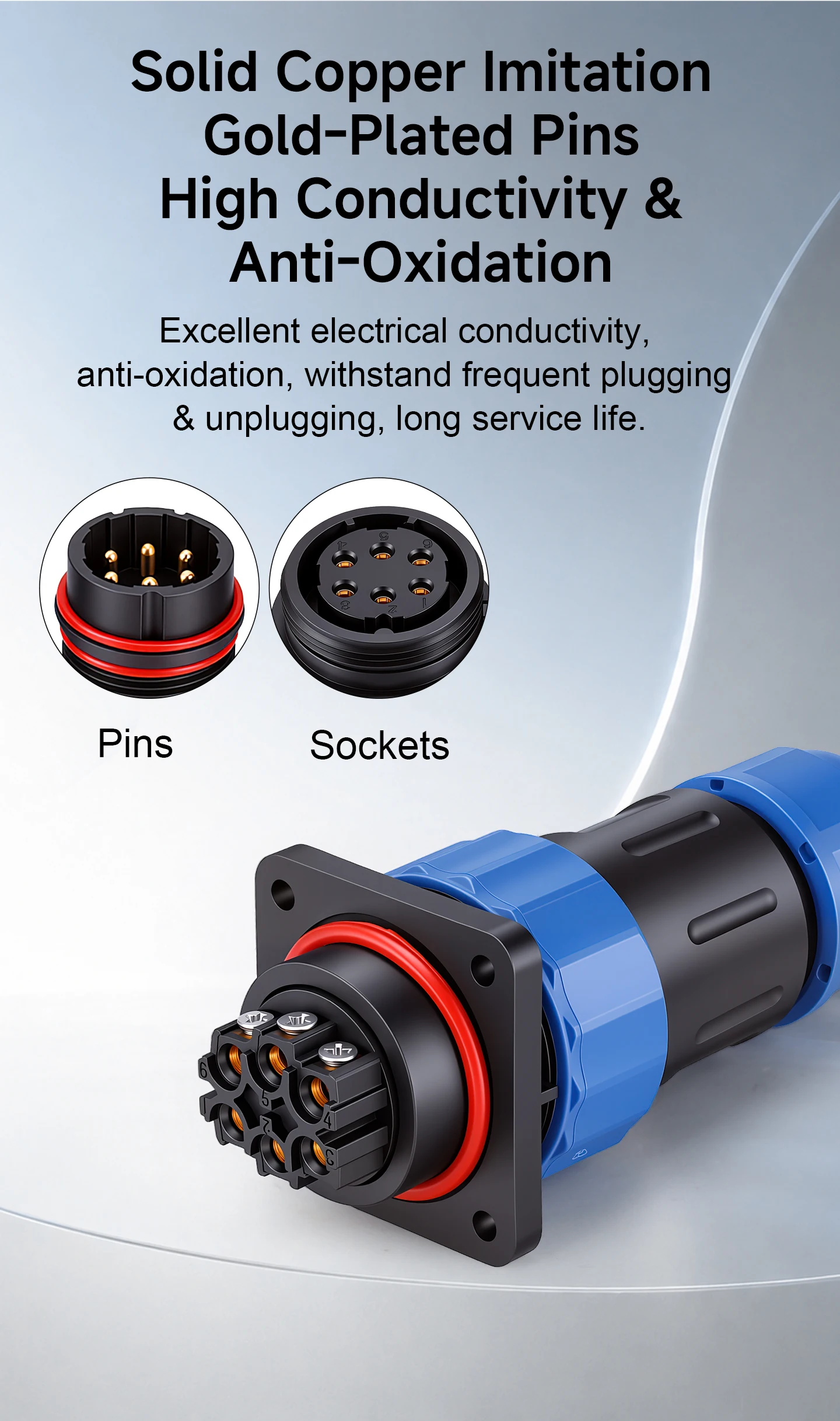

4. Solid copper imitation gold‑plated pins deliver high conductivity and anti‑oxidation capacity, withstand frequent plug‑and‑unplug, long service life

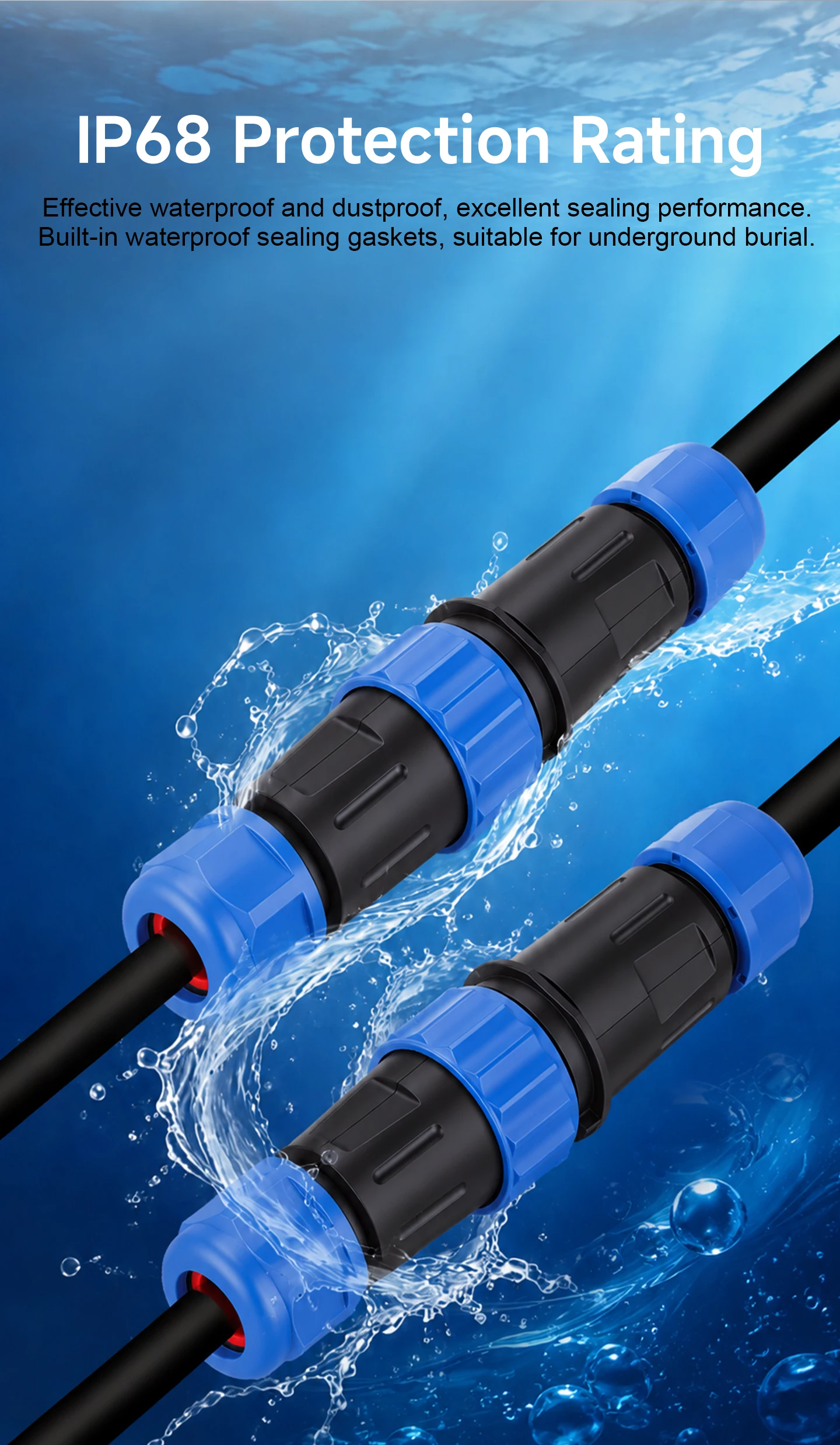

5. IP68 protection rating, excellent waterproof and dustproof performance, suitable for underground burial

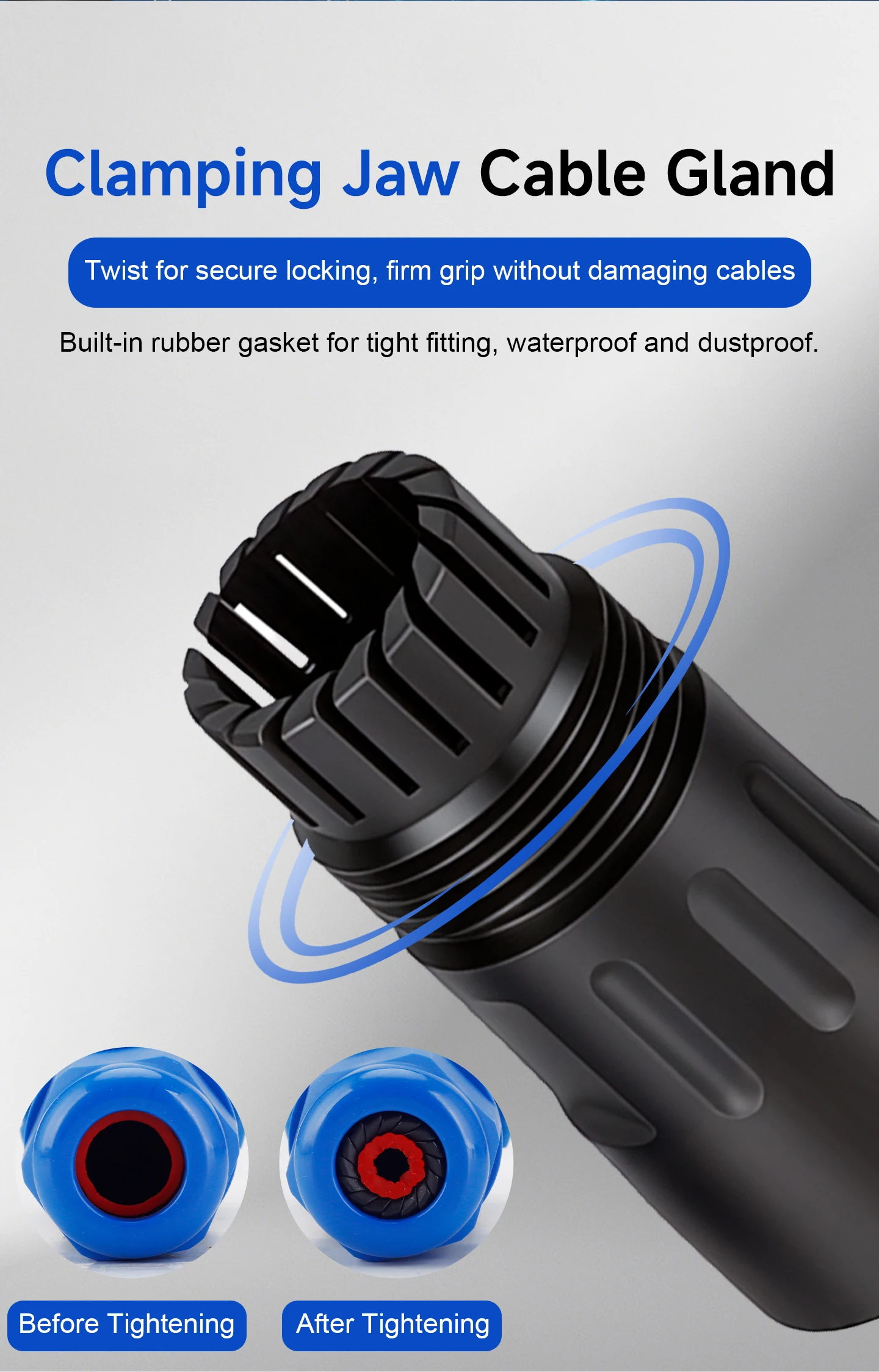

6. Clamping jaw cable gland: twist‑to‑lock structure, firmly grips cables without damage; built‑in rubber gasket realizes tight sealing

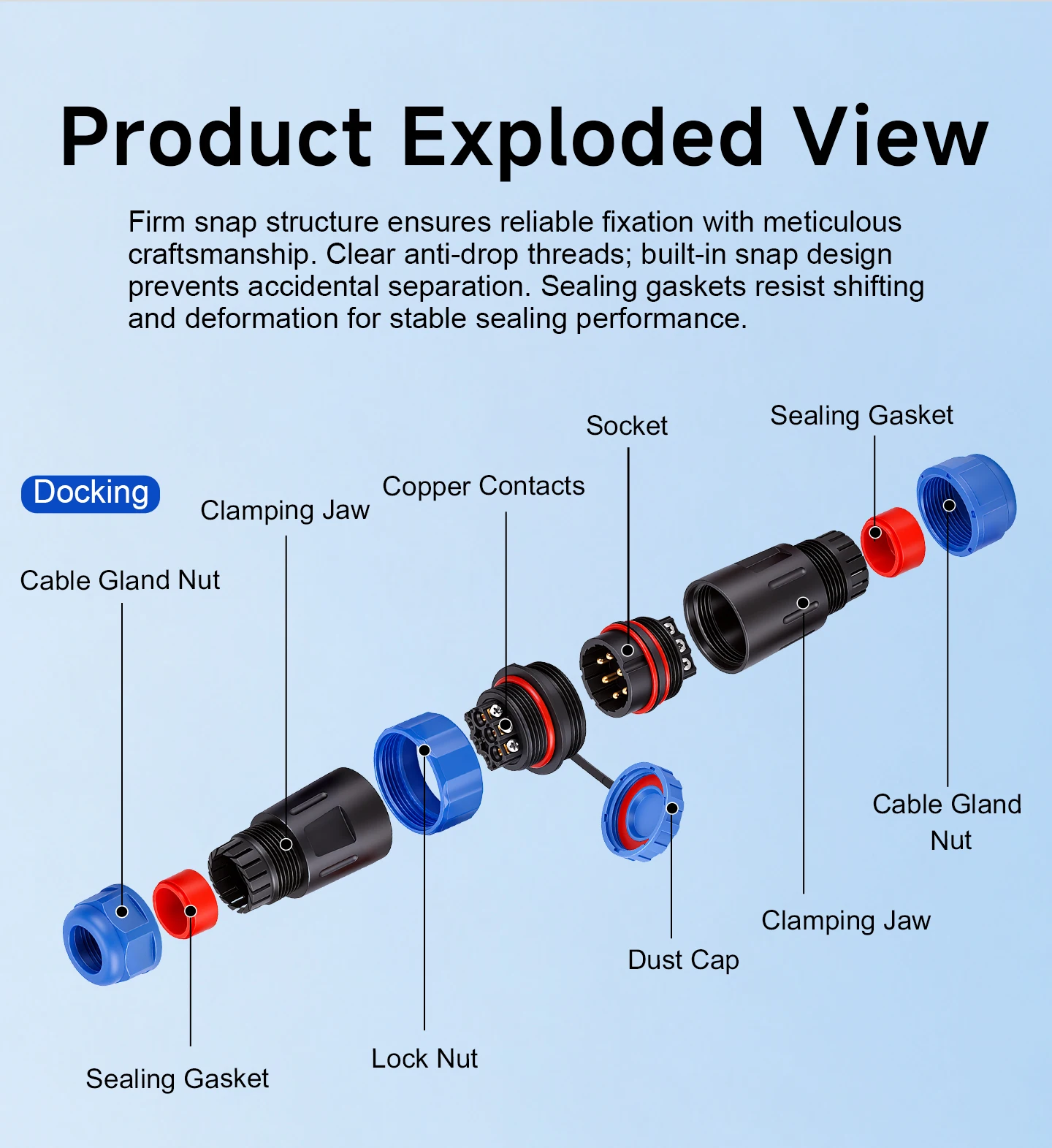

7. Firm snap‑in structure and anti‑drop threads prevent accidental separation; sealing gaskets resist shifting and deformation for stable sealing performance

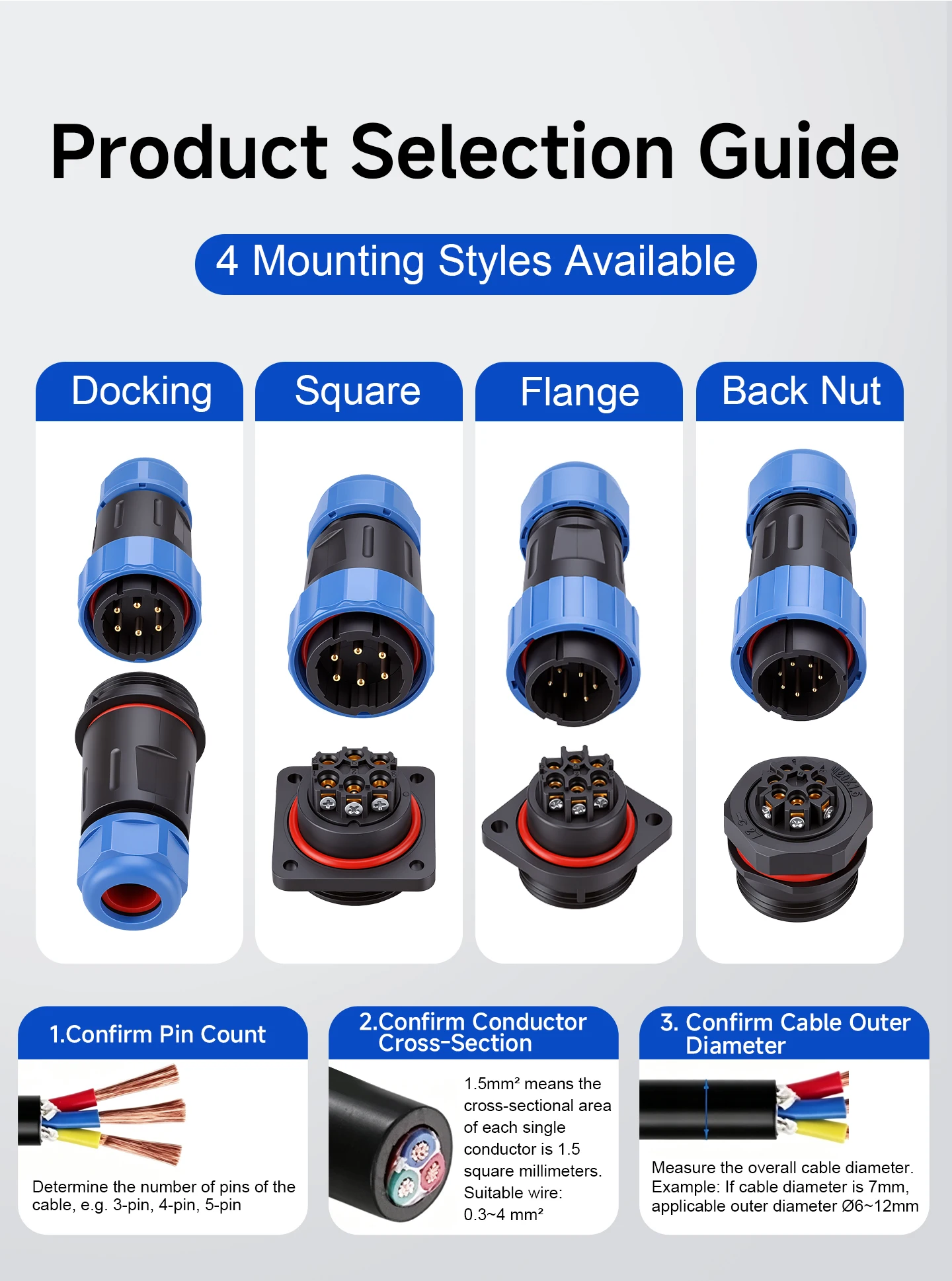

8. Selection guidance: support custom pin count, fit conductor cross‑section of 0.3‑4 mm² and cable outer diameter Ø6‑12 mm

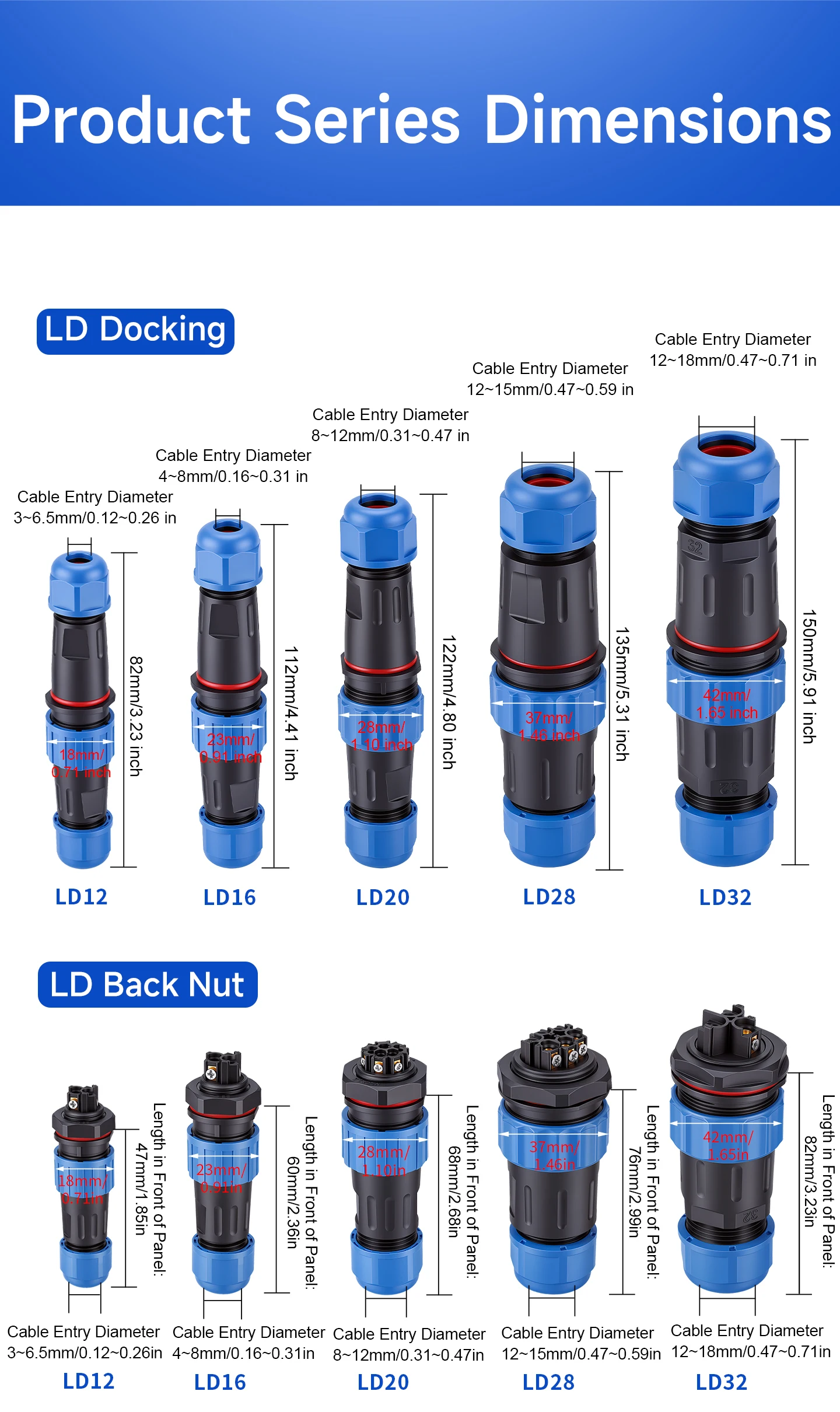

Technical Parameters

LD12 Series Connector: Plug /Docking Socket/Back Nut Socket

Pin Options: 2Pin

2Pin: Ø1mm Contact, Rated Current 5A, Cable ≤2mm²(AWG14)

Operating Voltage: AC 250V

Withstand Voltage: AC 1500V

Contact Resistance: ≤1Ω

Insulation Resistance: ≥2000MΩ

LD16 Series Connector: Plug / Docking Socket / Back Nut Socket / Flange Socket

Pin Options: 2Pin / 3Pin / 4Pin

2Pin: Ø2.8mm Contact, Rated Current 20A, Cable ≤3mm²(AWG12)

3Pin: Ø1.8mm Contact, Rated Current 10A, Cable ≤2.5mm²(AWG13)

4Pin: Ø1mm Contact, Rated Current 5A, Cable ≤2mm²(AWG14)

Operating Voltage: AC 250V

Withstand Voltage: AC 1500V

Contact Resistance: ≤1Ω

Insulation Resistance: ≥2000MΩ

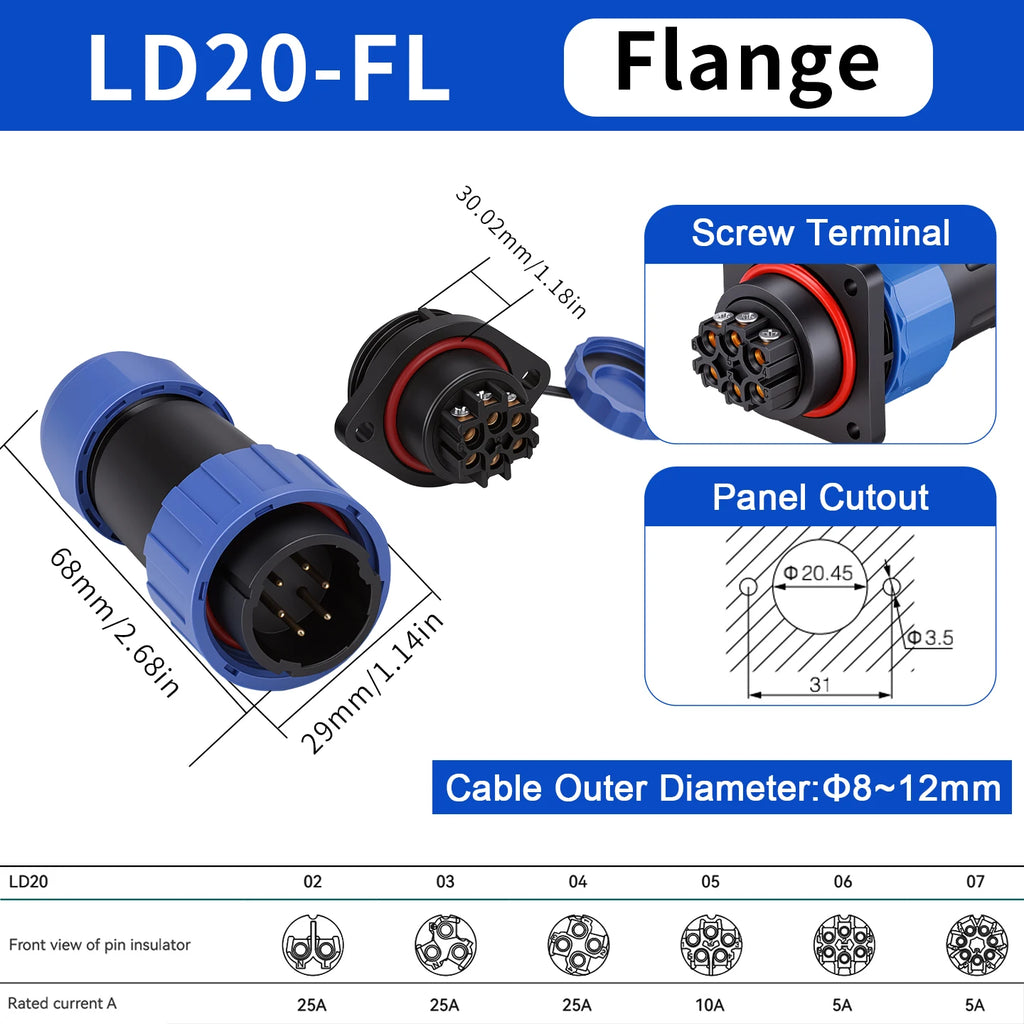

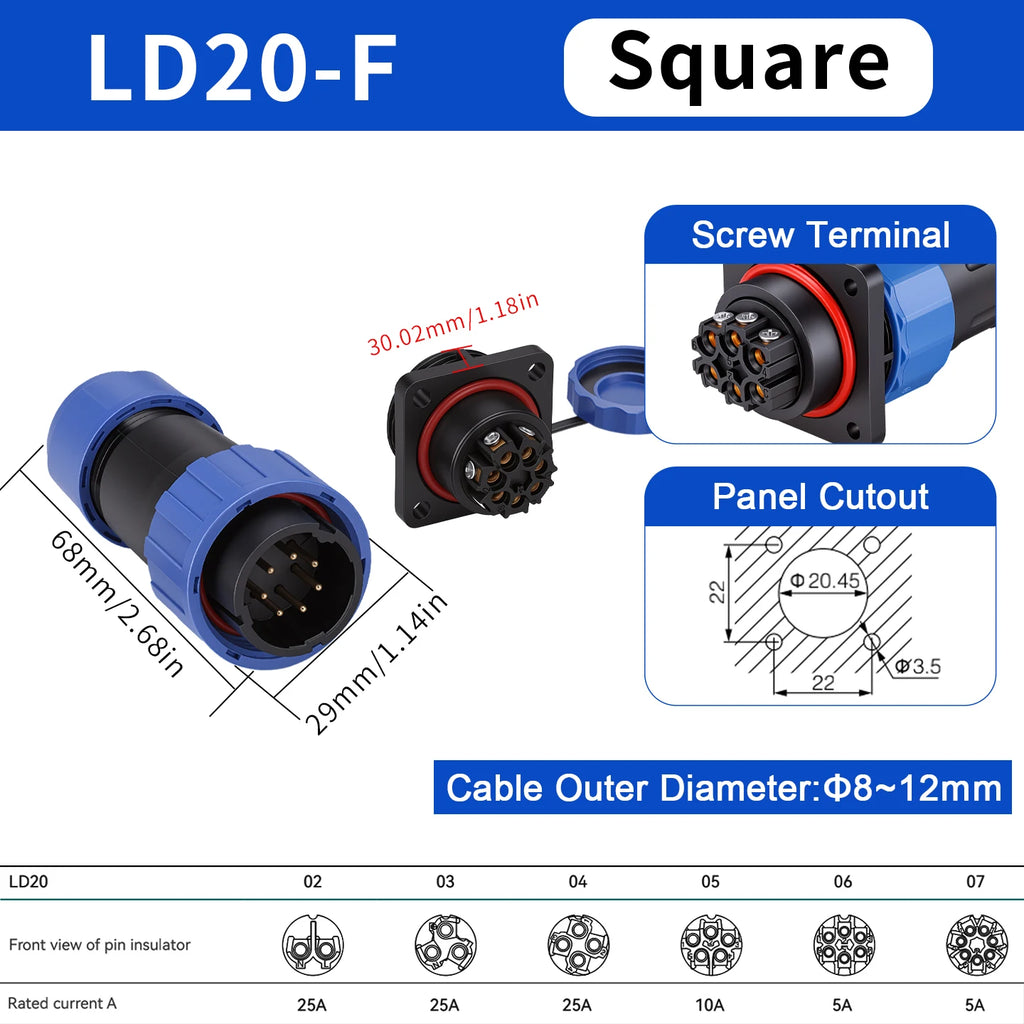

LD20 Series Connector: Plug/DockingSocket/Back NutSocket/FlangeSocket/SquareSocket

Pin Options: 2Pin / 3Pin / 4Pin/5pin/6pin/7pin

2Pin: Ø2.8mm Contact, Rated Current 25A, Cable ≤4mm²(AWG12)

3Pin: Ø2.8mm Contact, Rated Current 25A, Cable ≤4mm²(AWG12)

4Pin: Ø2.8mm Contact, Rated Current 25A, Cable ≤4mm²(AWG12)

5pin: Ø1.8mm Contact, Rated Current 10A, Cable ≤2.5mm²(AWG13)

6pin: Ø1mm Contact, Rated Current 5A, Cable ≤1.5mm²(AWG14)

7pin: Ø1mm Contact, Rated Current 5A, Cable ≤1.5mm²(AWG14)

Operating Voltage: AC 250V

Withstand Voltage: AC 1500V

Contact Resistance: ≤1Ω

Insulation Resistance: ≥2000MΩ

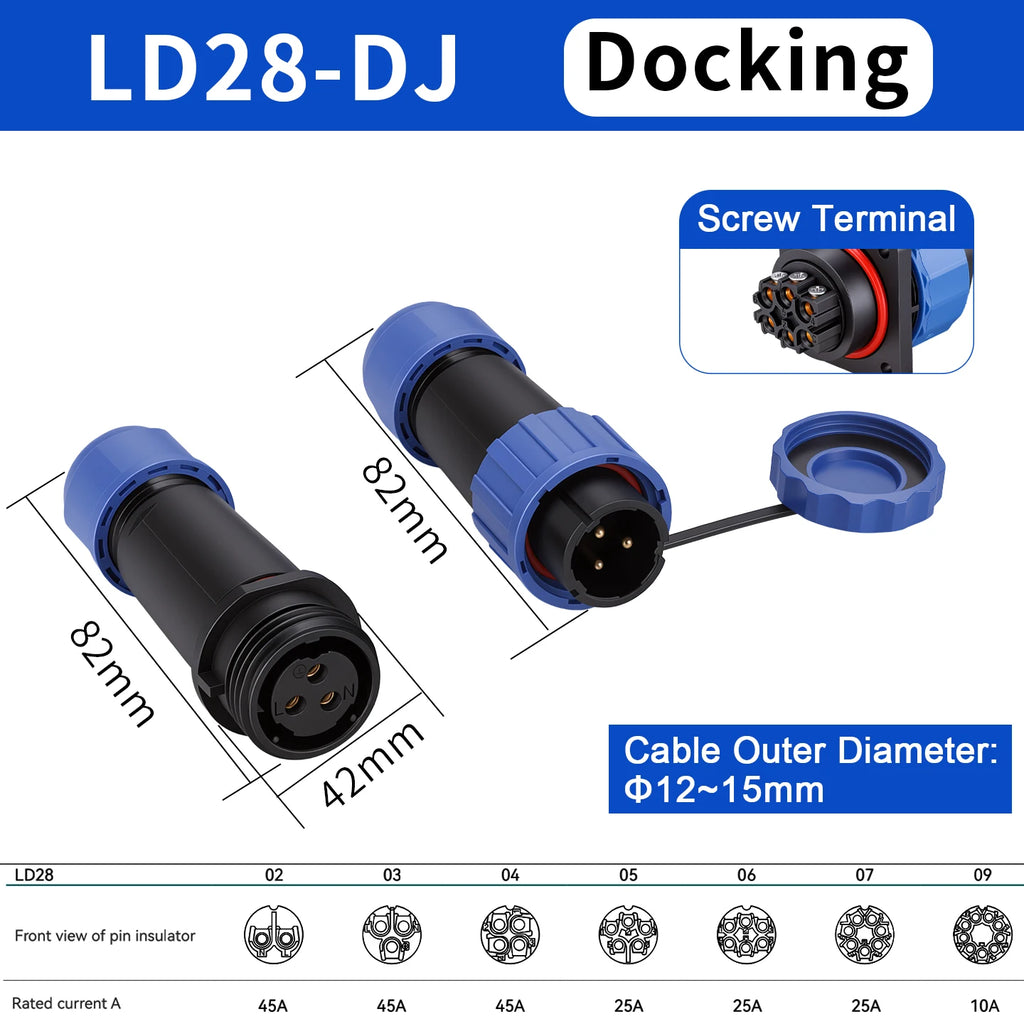

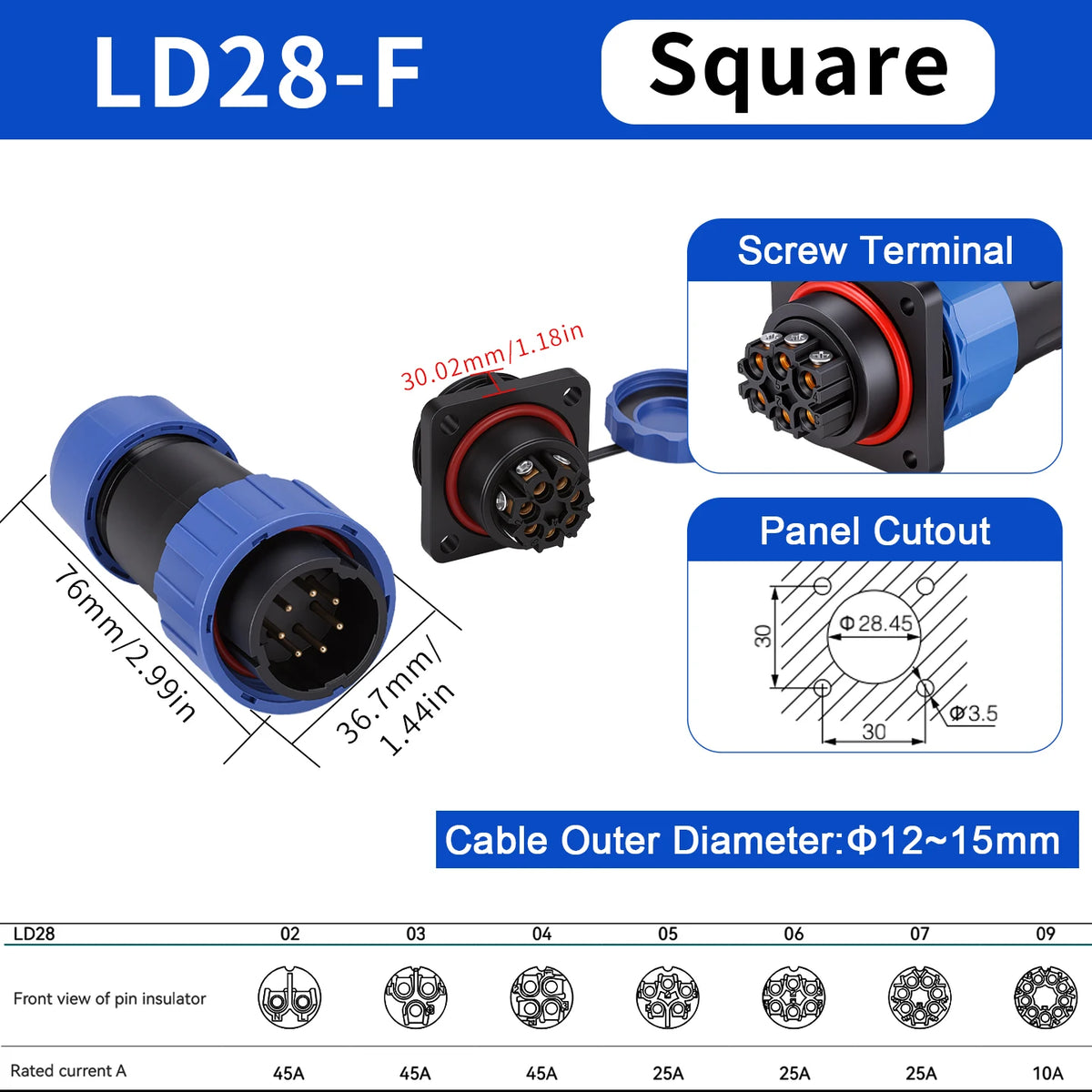

LD28 Series Connector: Plug/DockingSocket/Back NutSocket/SquareSocket

Pin Options: 2Pin / 3Pin / 4Pin/5pin/6pin/7pin/9pin

2Pin: Ø3.6mm Contact, Rated Current 45A, Cable ≤6mm²(AWG10)

3Pin: Ø3.6mm Contact, Rated Current 45A, Cable ≤6mm²(AWG10)

4Pin: Ø3.6mm Contact, Rated Current 45A, Cable ≤6mm²(AWG10)

5pin: Ø2.8mm Contact, Rated Current 25A, Cable ≤4mm²(AWG12)

6pin: Ø2.8mm Contact, Rated Current 25A, Cable ≤4mm²(AWG12)

7pin: Ø2.8mm Contact, Rated Current 25A, Cable ≤4mm²(AWG12)

9pin: Ø1.8mm Contact, Rated Current 10A, Cable ≤2.5mm²(AWG13)

Operating Voltage: AC 250V

Withstand Voltage: AC 1500V

Contact Resistance: ≤1Ω

Insulation Resistance: ≥2000MΩ
