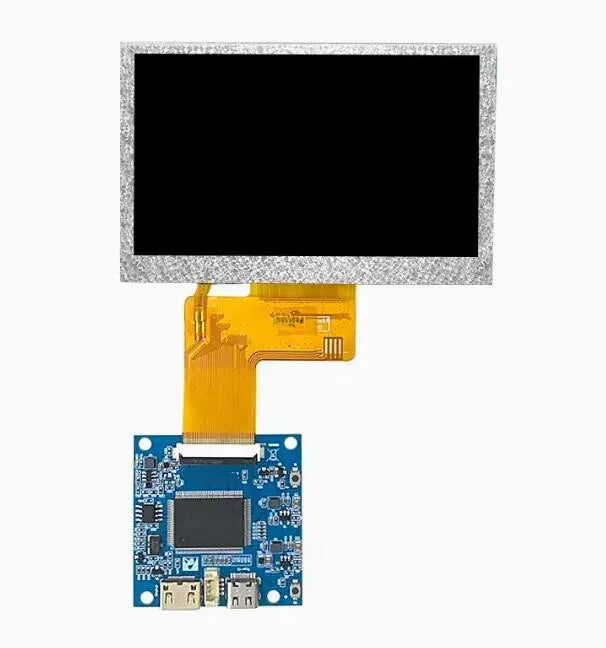

IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board

IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board

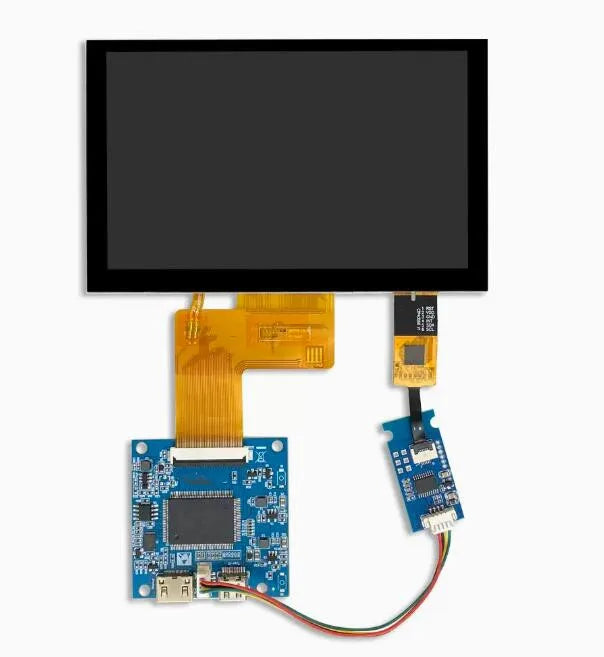

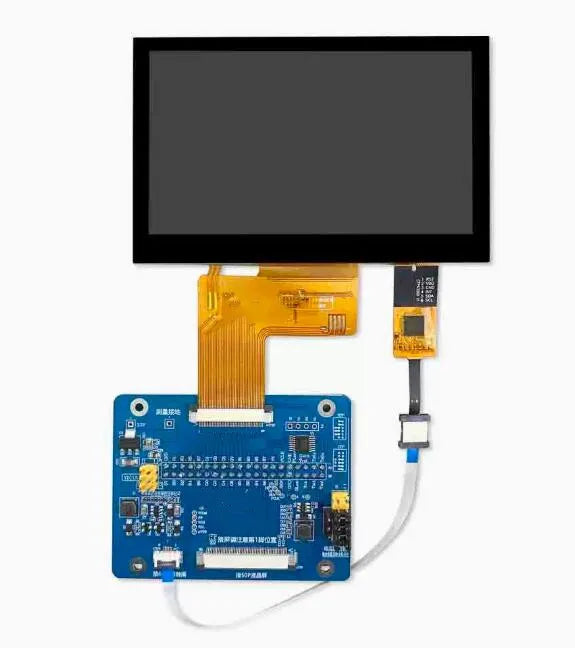

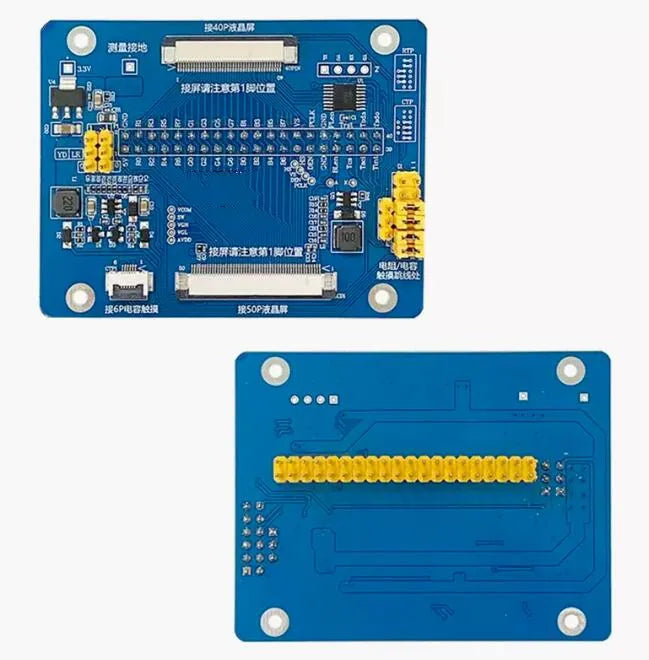

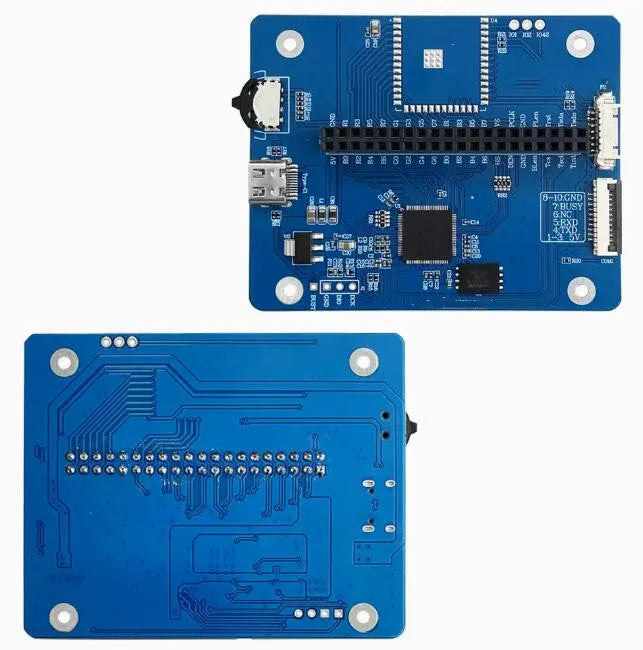

Adapter Board
$19.26
$19.26 $0.00
Skip to product information
IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board
  • IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board
  • IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board
  • IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board
  • IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board
  • IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board
  • IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board
  • IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board
  • IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board
  • IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board
  • IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board
IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board
IPS 4.3 inch 40PIN HD TFT LCD Capacitive Touch Screen Module NV3047 GT911 IC 800*480 RGB 24Bit Interface HDMI-compatible Board
$19.26
$19.26 $0.00
Color
Description

SPECIFICATIONS

Brand Name: maithoga

Display Mode: /

High-concerned chemical: none

Model Number: /

Origin: Mainland China

Resolution: 800x480

Type: TFT

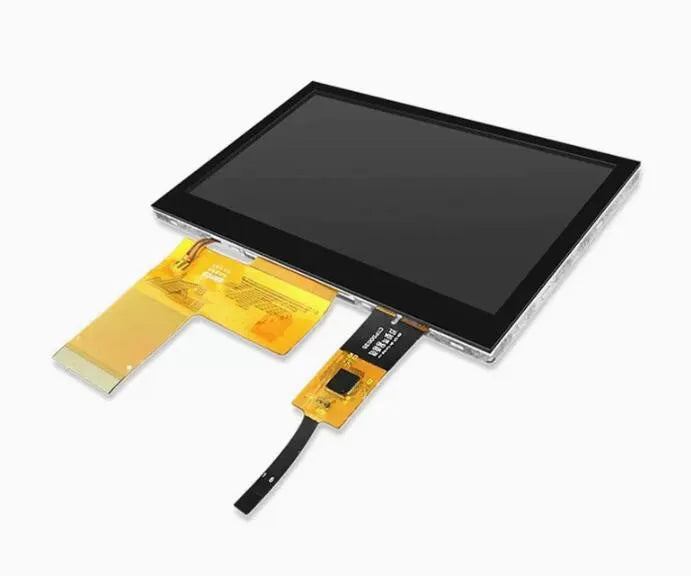

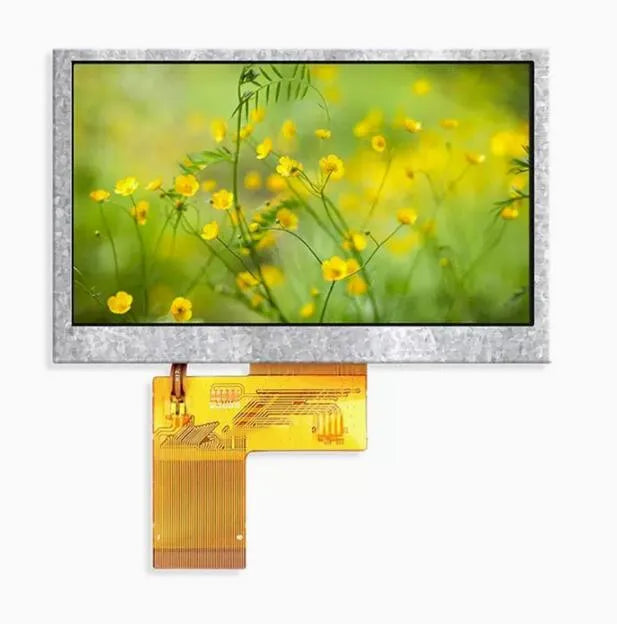

IPS 4.3 inch HD TFT LCD Capacitive Touch Screen


Size: 4.3 inch

LCD Type: TFT

Outline Dimensions: 105.46*67.11*3.0mm

Outline Dimensions (Touch): 105.46*67.11*4.2mm

Active Area: 95.04*53.86mm

Pixel Pitch: 118.8*112.2um

Number of Dots: 800(RGB)*480

Controller: NV3047

LCD PIN NO.: 40P

LCD Pin Pitch: 0.5mm

CTP PIN NO.: 6P

Display Color: RGB565/RGB666/RGB888

Backlight: White LED

Polarizer Mode: Transmissive

Data Interface: RGB 24Bit interface

Input Voltage:

Operating Temp.: -30 ~ 70 degree

Storage Temp.: -40 ~ 85 degree

Viewing Direction: Full View

Structure Type: COG+FPC+BL (note)
