SPECIFICATIONS

Brand Name: ICGOICIC

Choice: yes

Material: Mixture

Model Number: IR Infrared Obstacle Avoidance S

Origin: Mainland China

Output: Analog Sensor

Theory: Optical Sensor

Type: Optical-Electronics Sensor

Use: Ray Sensor

is_customized: Yes

semi_Choice: yes

Description

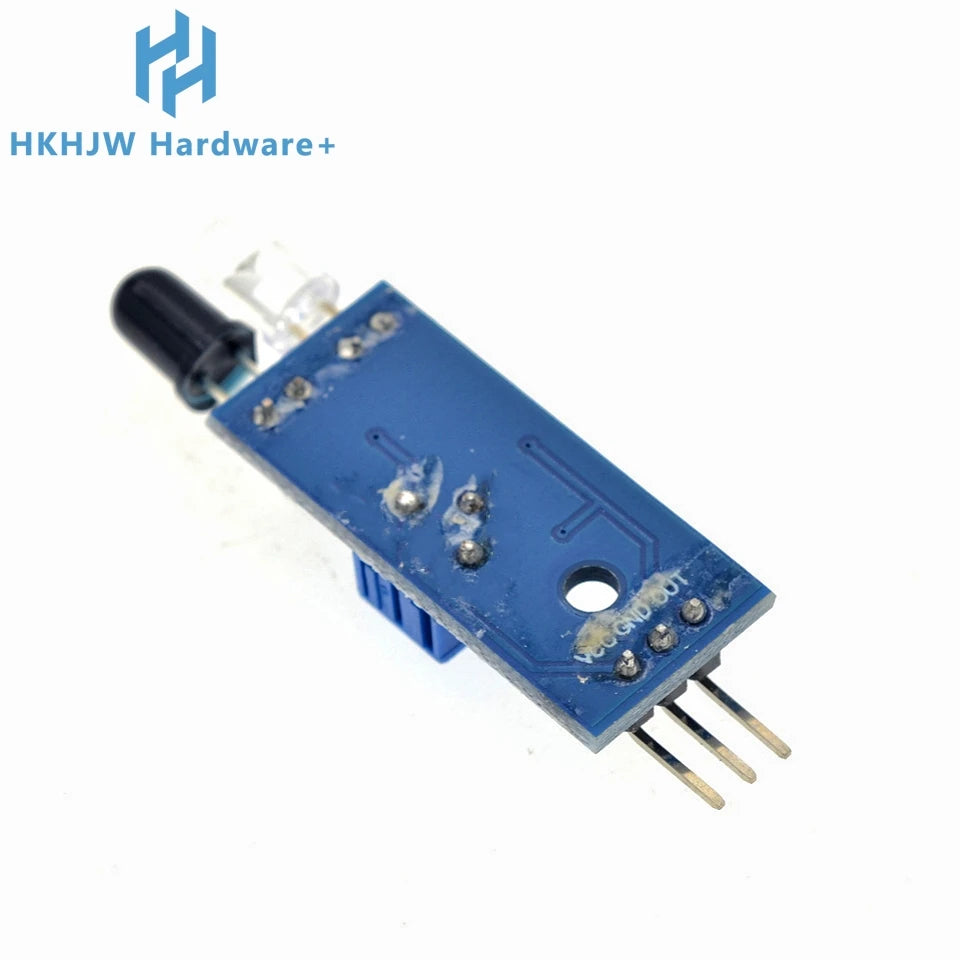

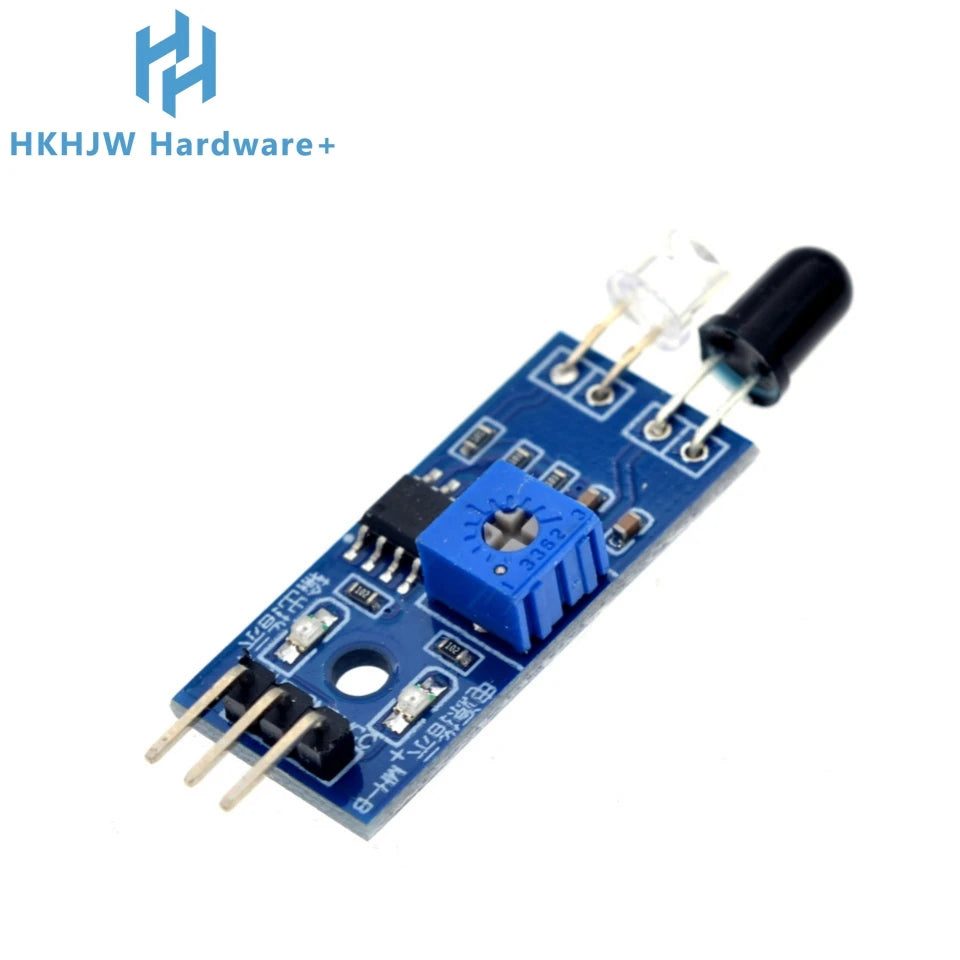

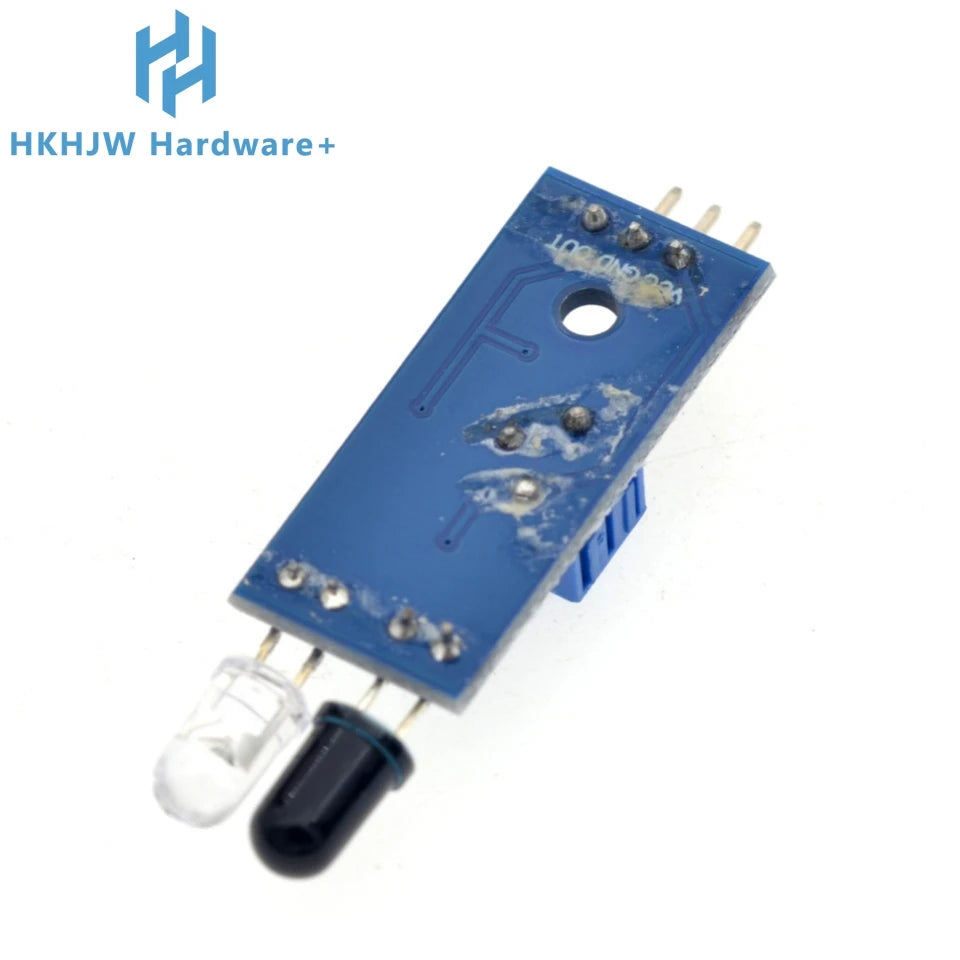

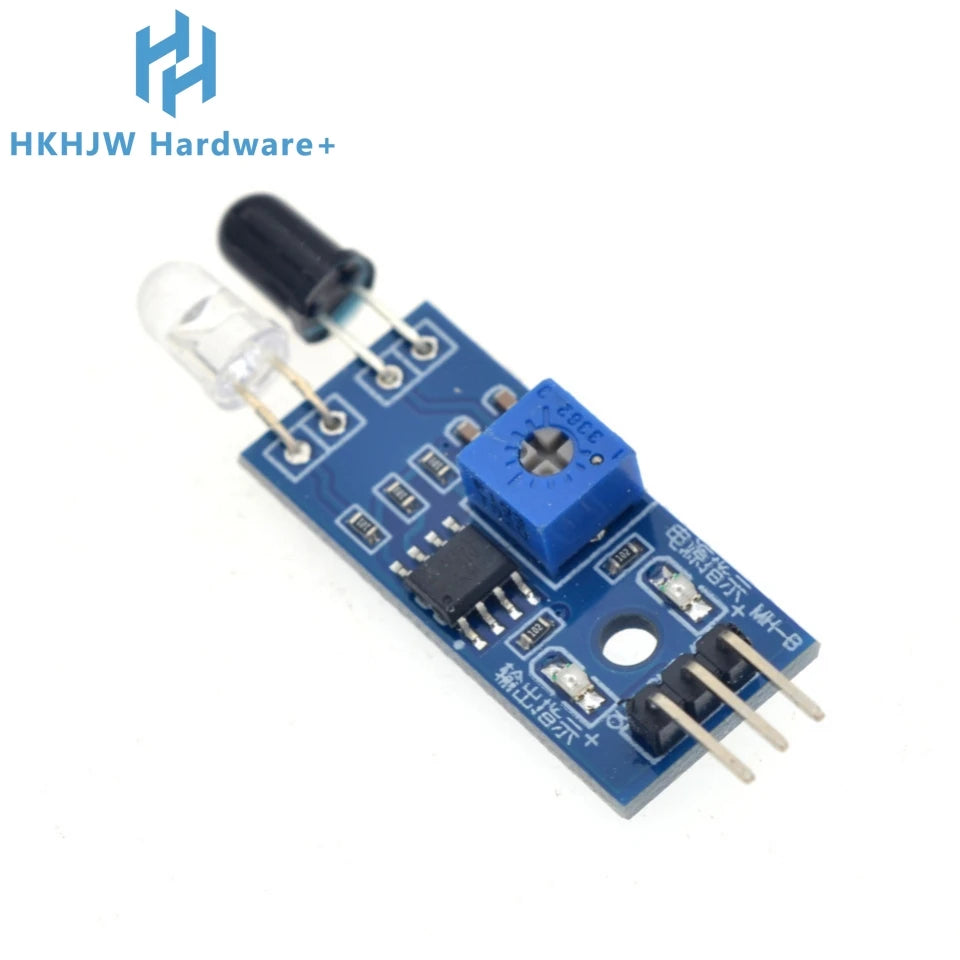

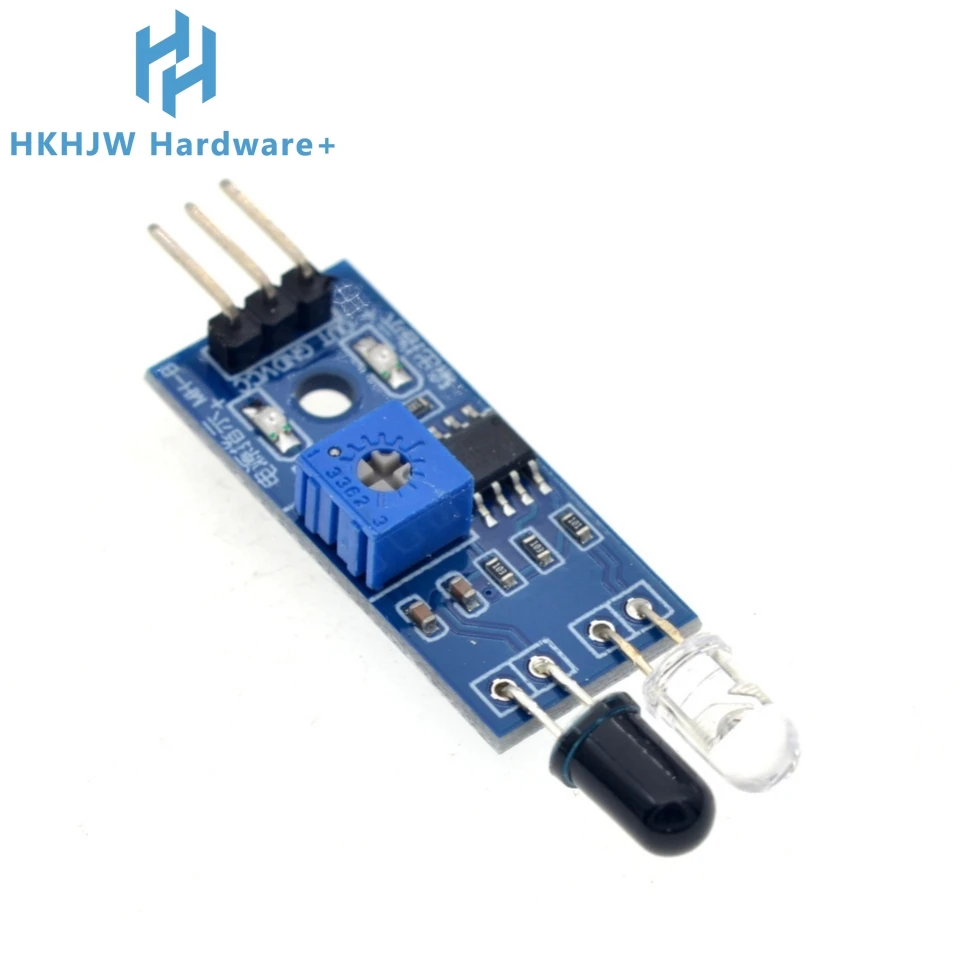

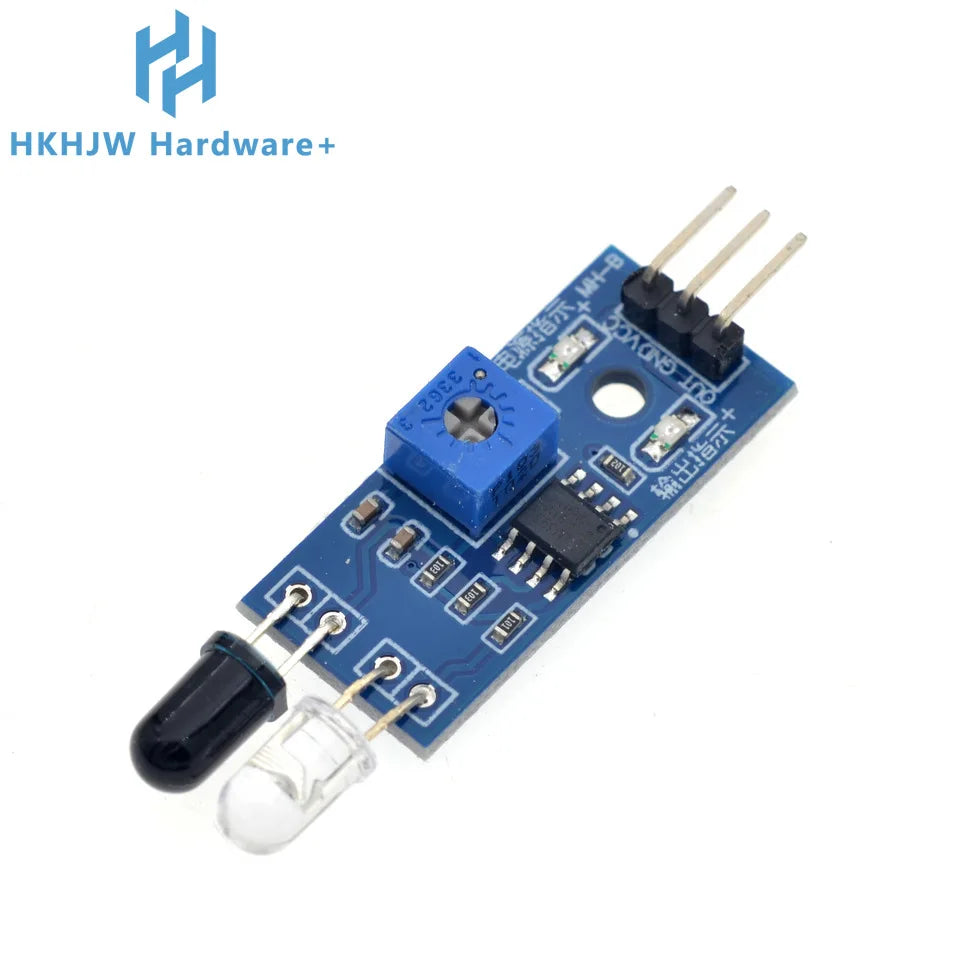

IR Infrared Obstacle Avoidance Sensor Module can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and black and white line tracking and so on. the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted The output port OUT sensor module can be directly connected to the microcontroller IO port, you can directly drive a 5V relay. It has a pair of infrared transmitting and receiving tube, tube infrared emit a certain frequency, when detecting direction meet with obstacles (reflecting surface), reflected infrared receiving tube, after the comparator circuit processing, green indicator will light up, at the same time signal output interface to output digital signal (a low level signal). Can be used for 3-5V DC power supply modules. It has red power indicator.

Specification The output port OUT sensor module can be directly connected to the microcontroller IO port , you can directly drive a 5V relay ; the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted Can be used for 3-5V DC power supply modules When the power is turned on, the red power indicator light Using the comparator LM393

Interface :

1. VCC: External 3.3V-5V voltage (can be directly connected to 5v MCU and 3.3v MCU)

2. GND: GND External

3. OUT: Small board digital output interfaces (0 and 1)

Connection : VCC-VCC; GND-GND; OUT-IO With the screw holes of 3mm , easy fixed installation Board Size : 3.1CM * 1.5CM / 1.22 * 0.59
