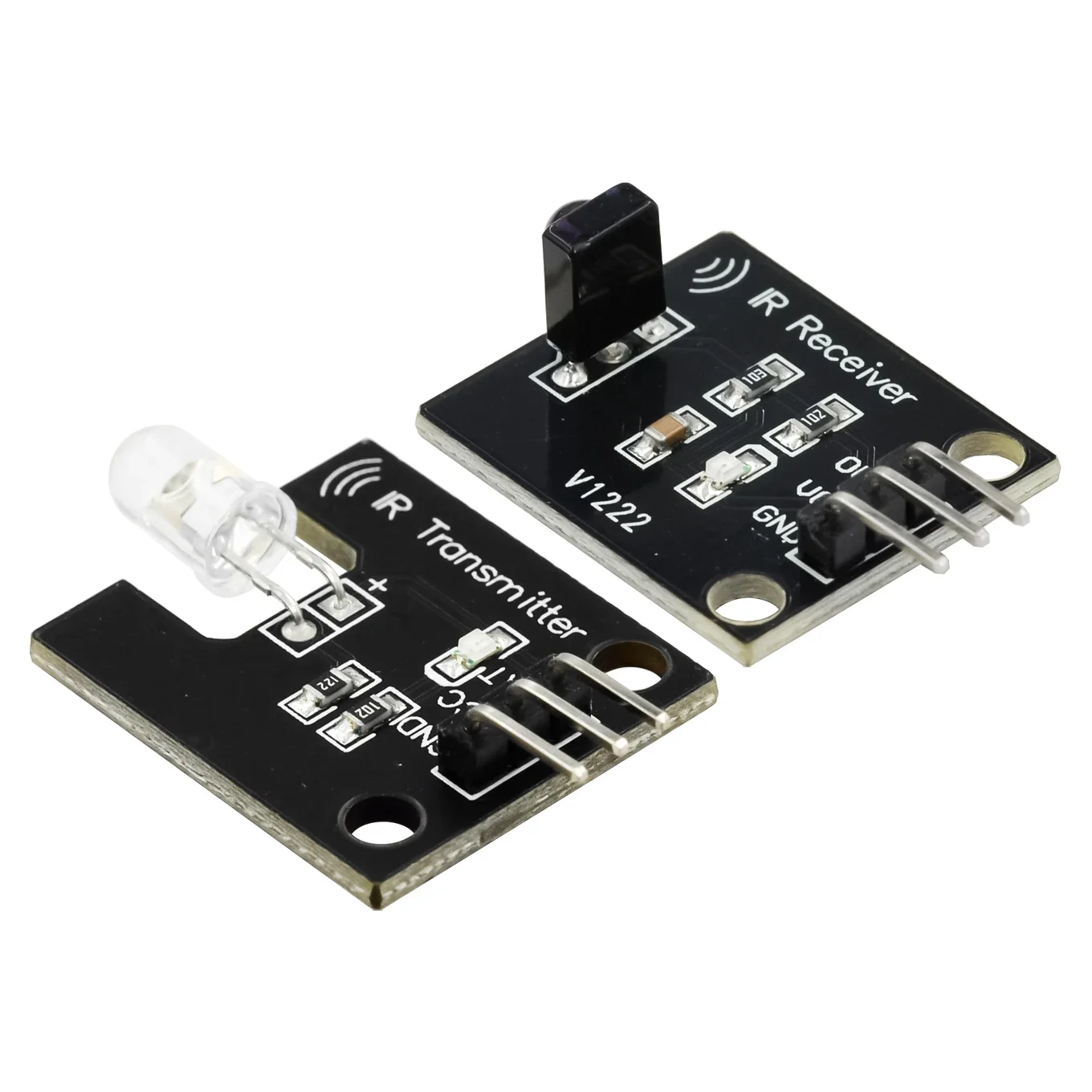

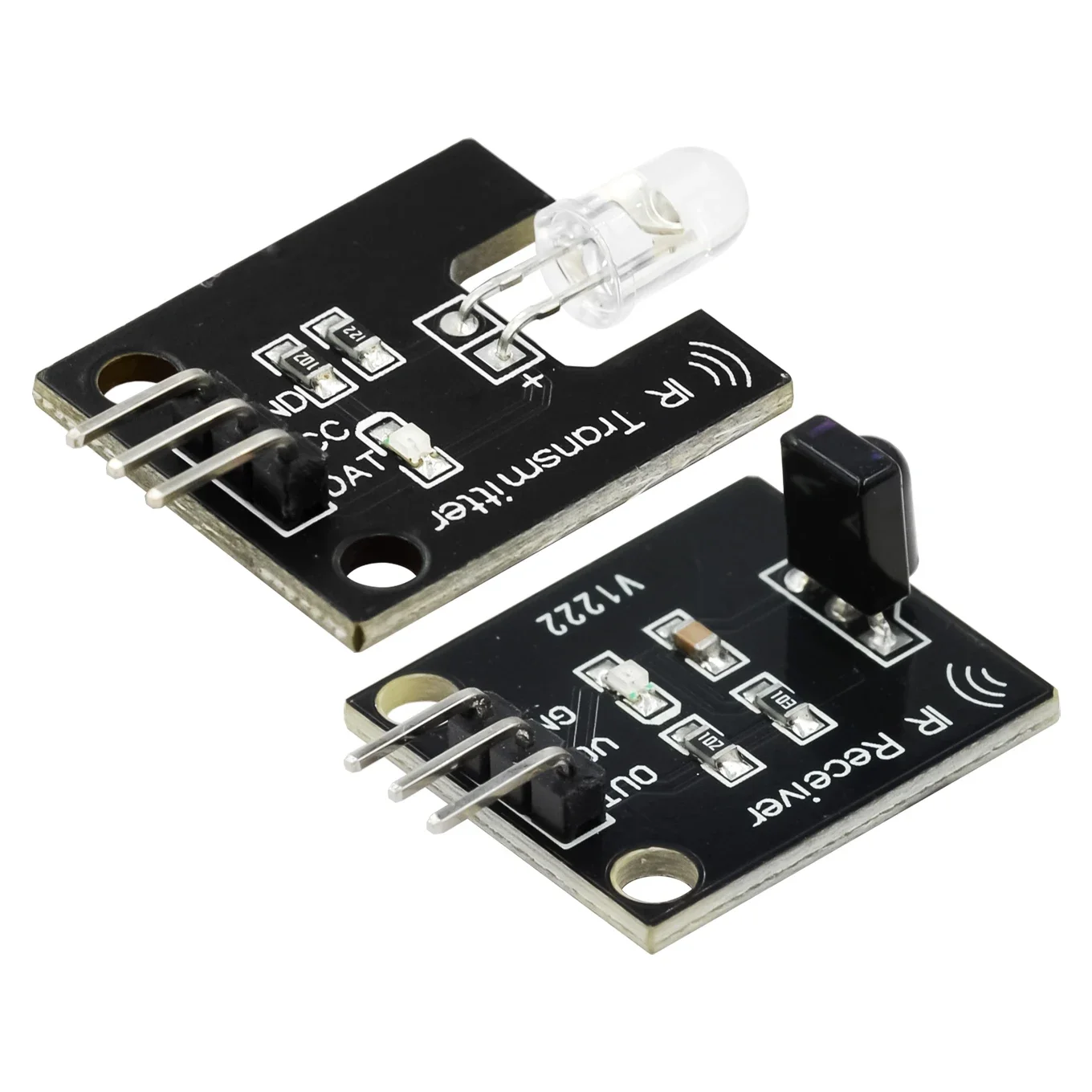

IR Infrared Transmitter Module Ir Digital 38khz Infrared Receiver Sensor Module For Arduino Electronic Building Block
receive 10pcs
$21.51
Sale price
$21.51
Regular price
$0.00
Skip to product information
IR Infrared Transmitter Module Ir Digital 38khz Infrared Receiver Sensor Module For Arduino Electronic Building Block
$21.51
Sale price
$21.51
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module
semi_Choice: yes

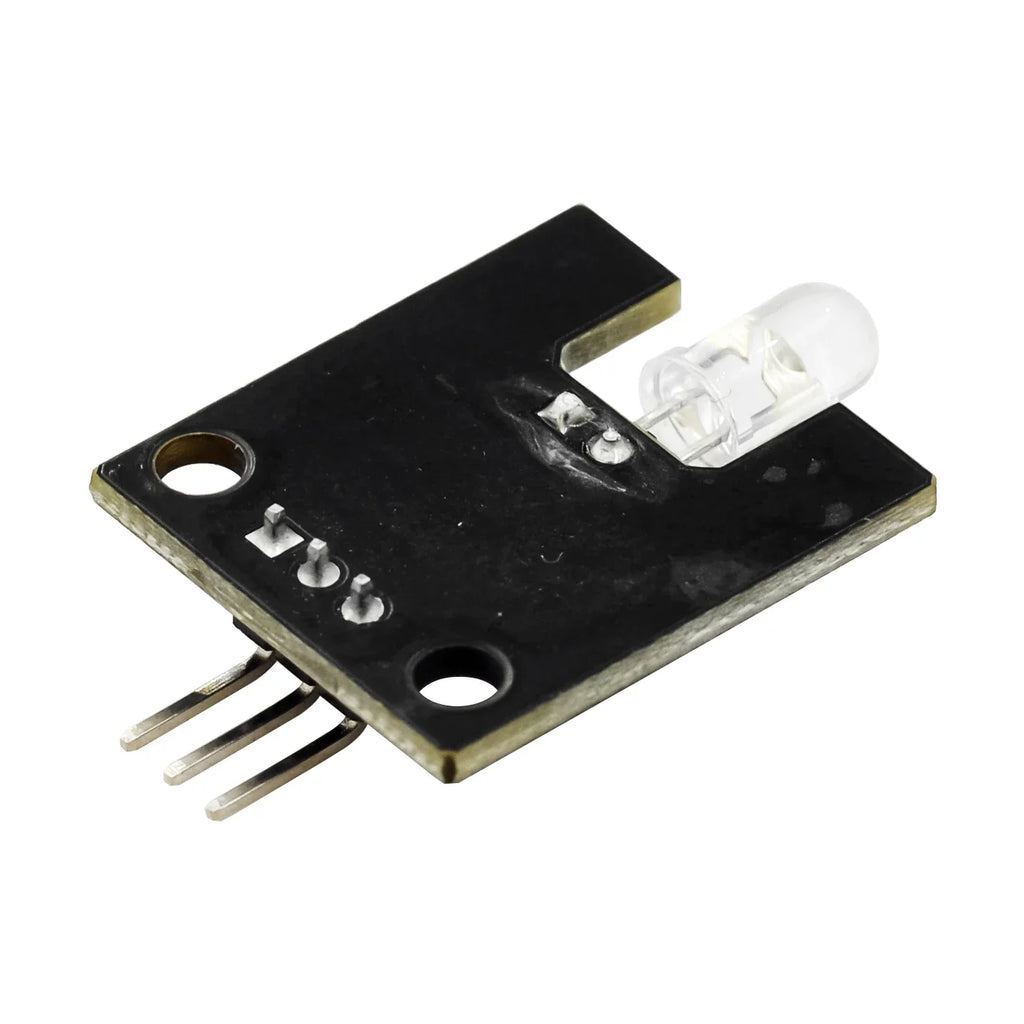

Infrared emission module:
Supply voltage: 5V
Working environment: -25~+85C
Storage temperature: -30! 100C
Wavelength: 940mm
Signal type: Digital signal
Infrared central wavelength: about 850nm-940nm
Infrared transmitting distance: approx. 1.3 m (5V 38khz)
Infrared emission Angle: about 20 degrees
Module weight: 2g

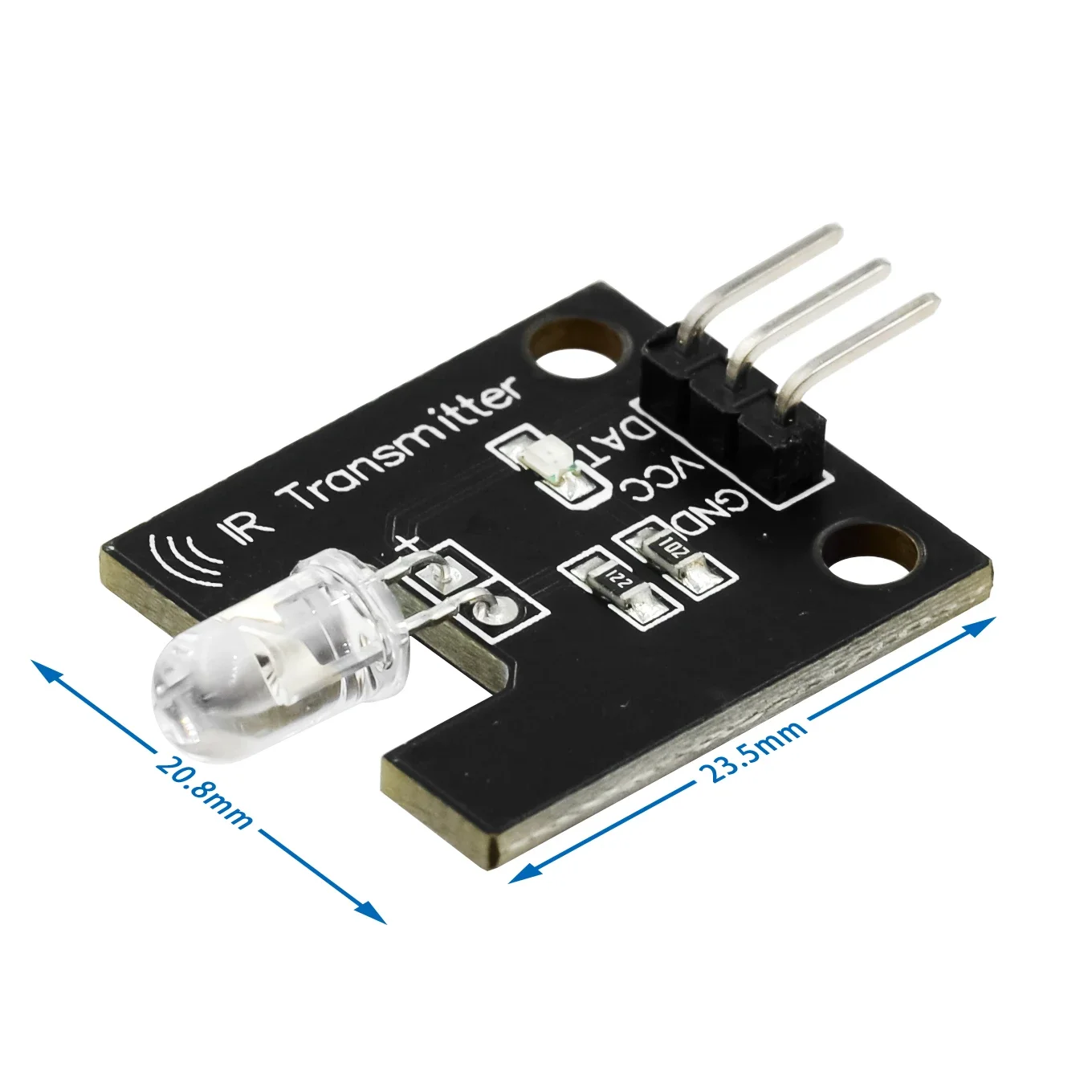

Module only: 23.5 x 20.8mm
Positioning hole size: 3mm
Wiring instructions:
DAT: indicates the digital output interface
VCC: positive terminal of the 5VDC power supply
GND: negative terminal of the 5VDC power supply

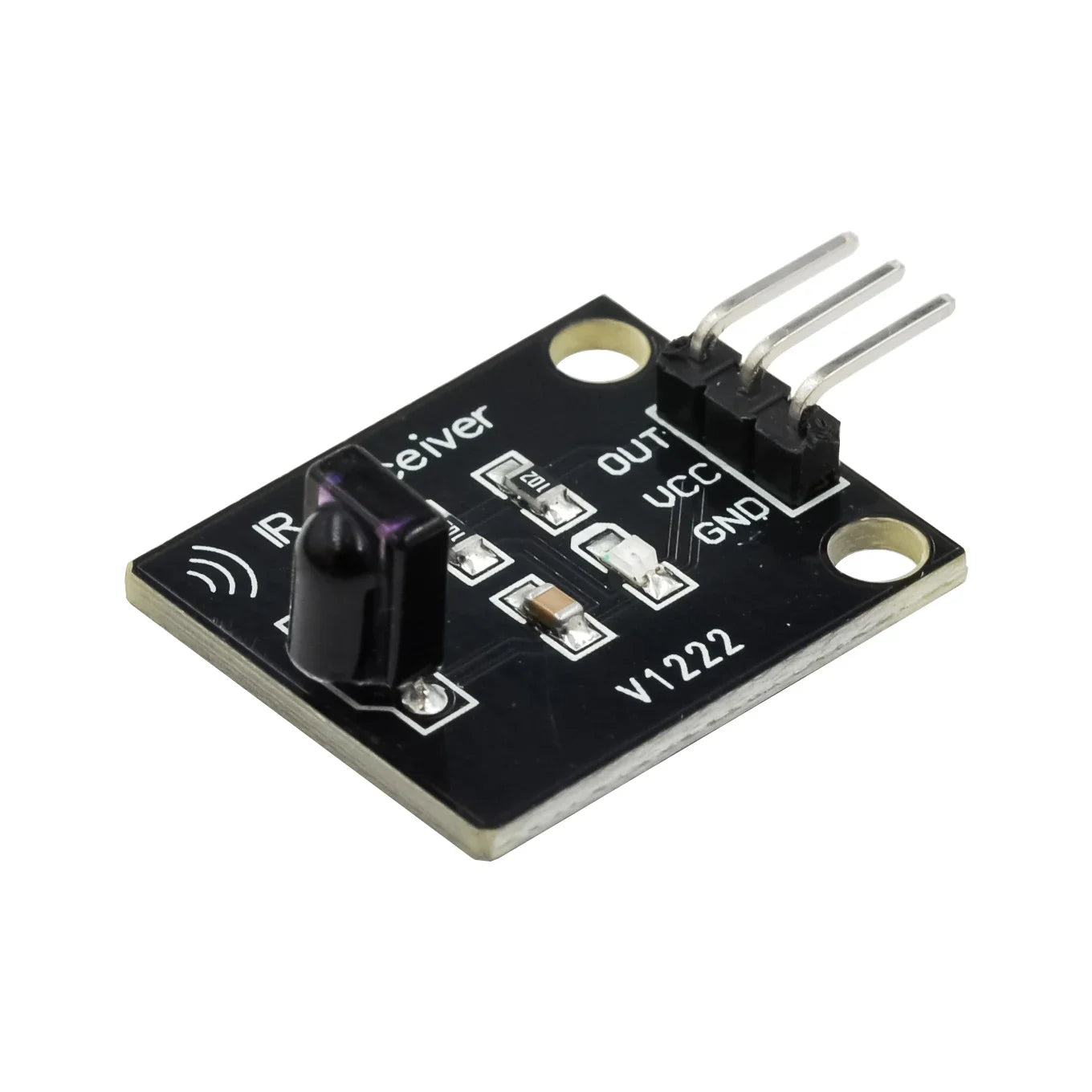

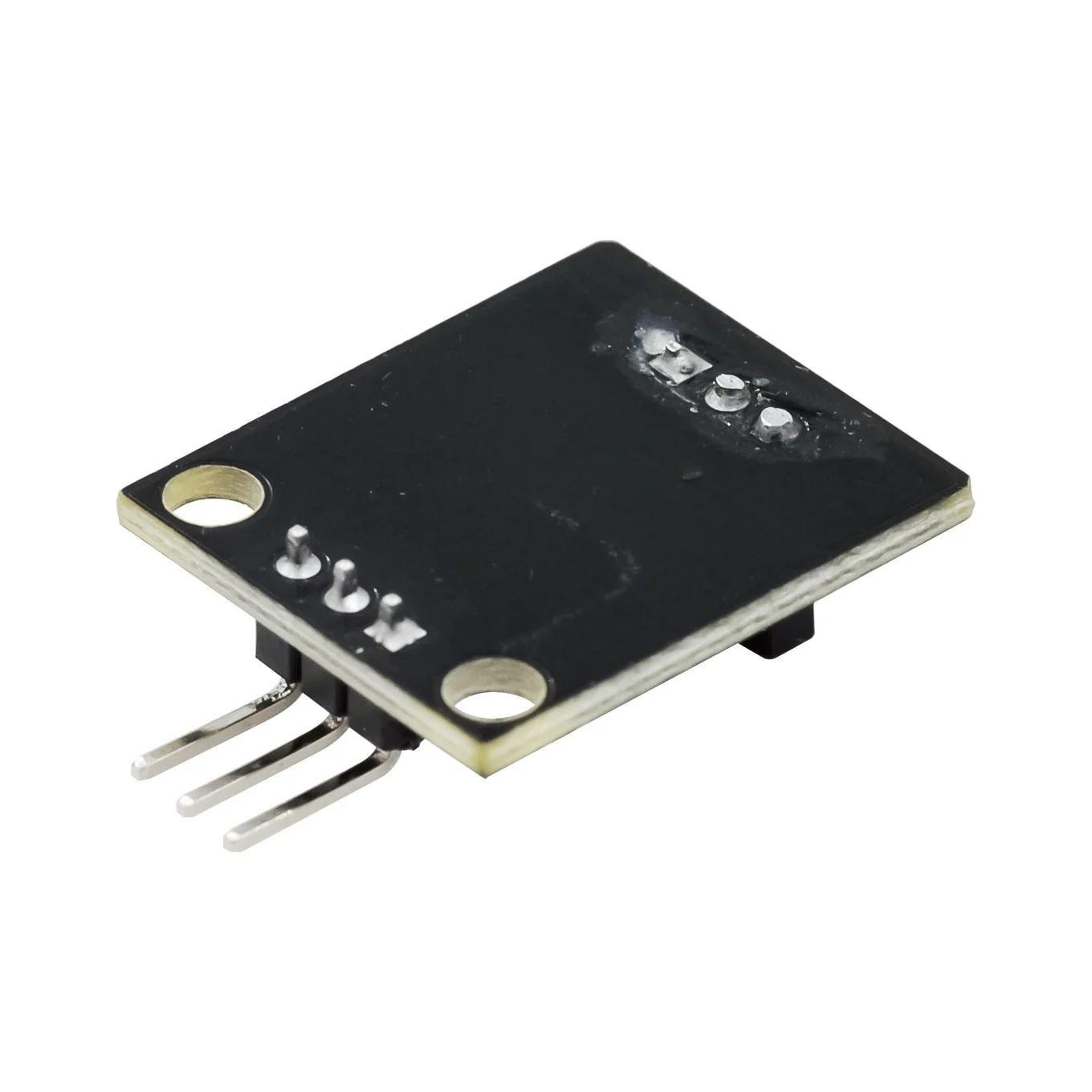

Infrared receiving module:
Supply voltage: 5V
Working environment: -25~+85C
Storage temperature: -30! 100C
Carrier frequency: 940mm
Signal type: Digital signal
Infrared emission distance: about 10 meters
Outer red emission Angle: about 35 degrees
Module weight: 2g

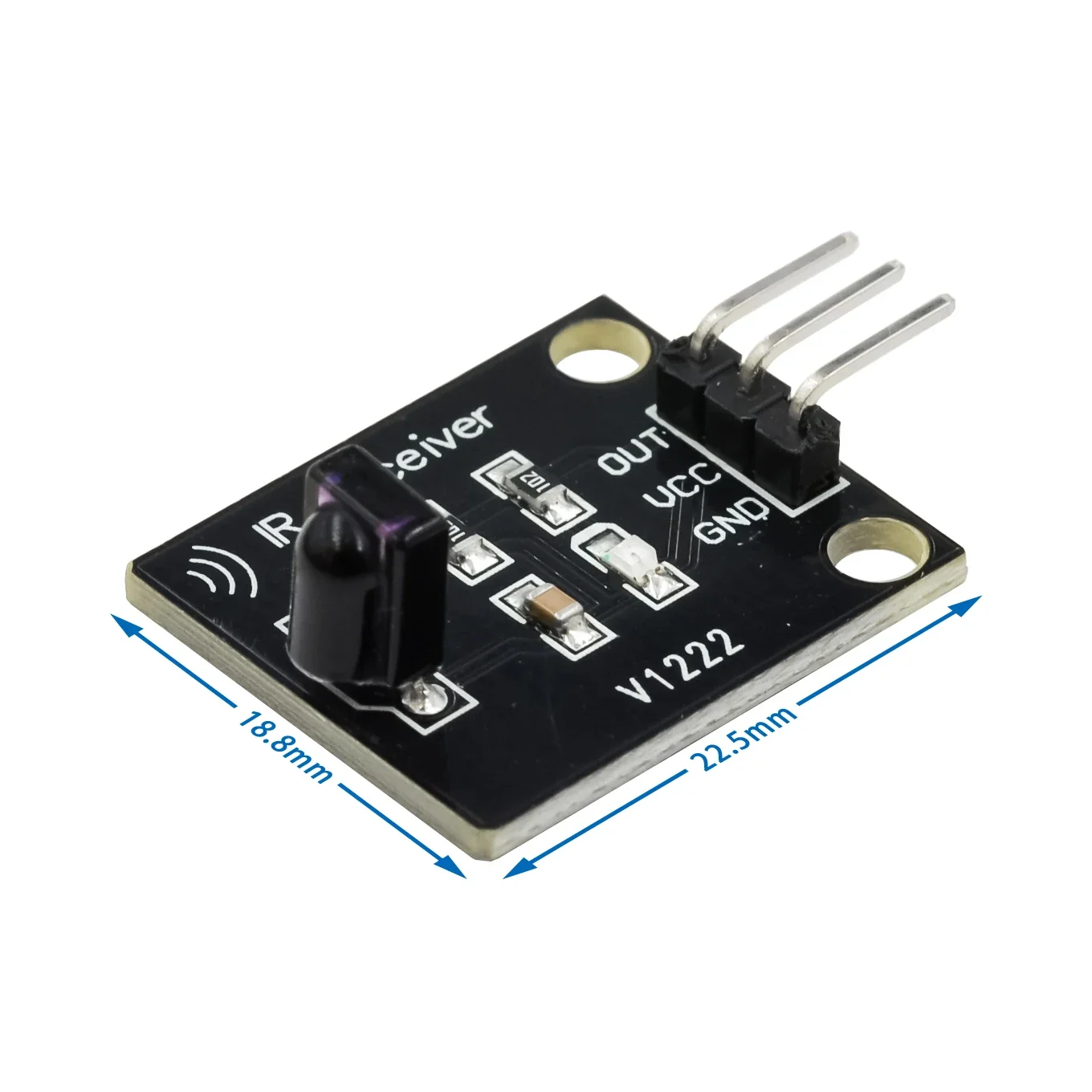

Modules only store: 22.5 x 18.8mm
Positioning hole size: 3mm
Wiring instructions:
DAT: indicates the digital output interface
VCC: positive terminal of the 5VDC power supply
GND: negative terminal of the 5VDC power supply
