SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: SMD

Type: Module

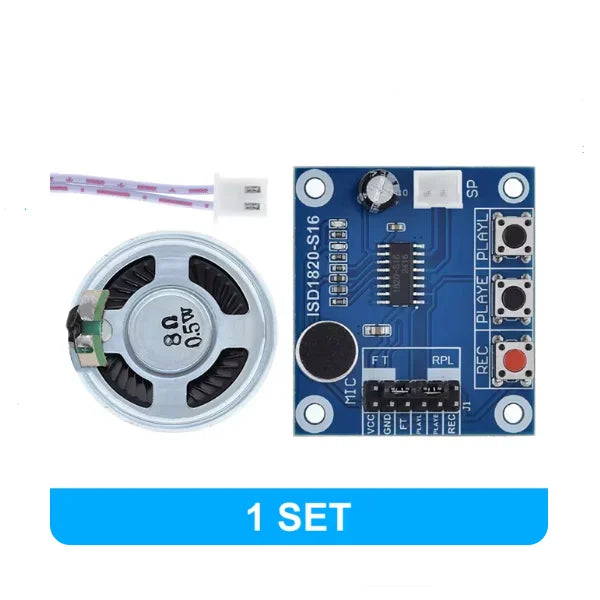

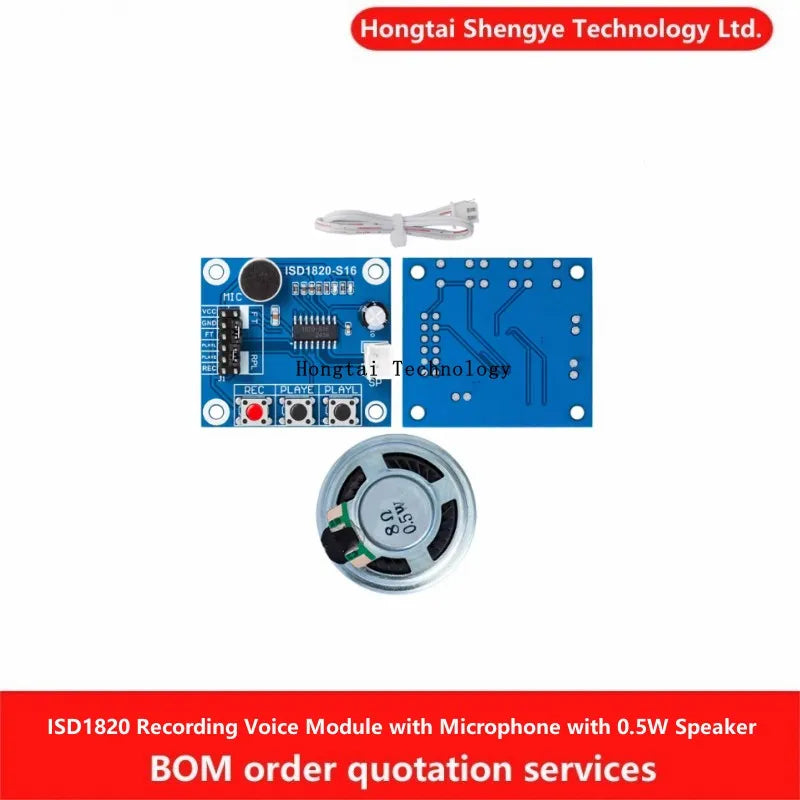

ISD1820 Voice Recording Recorder Module DC 3-5V Audio Recording Playback Board with Mic Sound Audio Loudspeaker
Feature:
1. Easy to Use: This ISD1820 recording voice module has a 10-second voice recording feature, allowing for high-quality and natural voice reproduction.
2. Versatile Use: This module can also be used as a loudspeaker module.
3. Multiple Playback Functions: The module comes with multiple playback functions, including loop, jog, and single-pass playback.
4. Controllable by Microcontroller: This module can be directly controlled by a microcontroller.

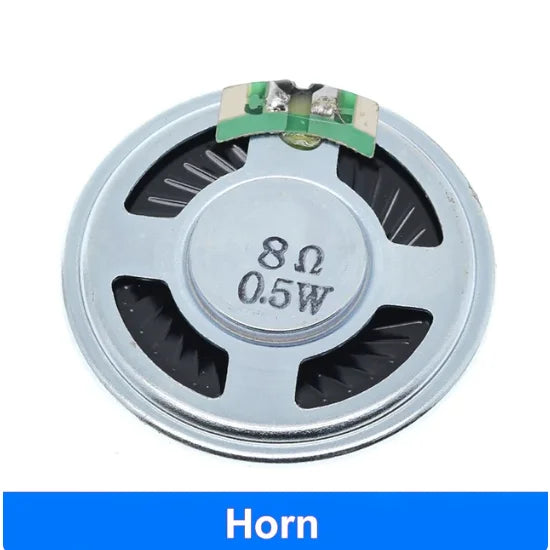

5. Practical: This module can directly drive the 8 Ω 0.5W small speaker.


Specification:
Main chip: ISD1820
Working voltage: DC 3-5 V
Size: 42.5 * 38 * 4mm/1.67 * 1.49 * 0.15inch
Power supply: 3-5 V, can be connected to the row pin for power on
Recording and playback control method: button control or microcontroller, control line IO has been led out

Button control recording and playback operation method:
REC key: Record button, press and hold to record, release the button to stop recording;
RLAYE key: Trigger mode playback, press once to play the current entire voice segment;
PLAYL key: Jog mode playback, press and hold to play, release to stop playing;
RPL jumper: loop playback mode control, can loop playback;
FT jumper: direct control, which allows microphone voice to be directly connected to the speaker for playback.

Note:
Due to the low output power of the module, the sound is also low. It is recommended to use a 3W speaker in conjunction with our mini digital audio amplifier board to achieve a larger sound effect.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
