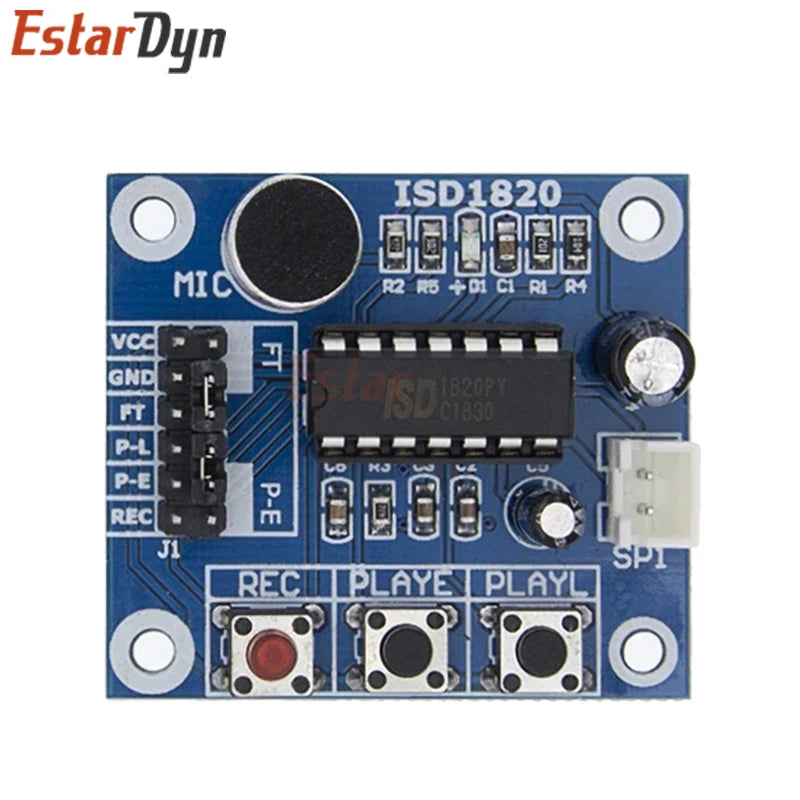

ISD1820 Voice Recording Recorder Module With Mic Sound Audio Loudspeaker
1 set
$12.04
Sale price
$12.04
Regular price
$0.00
Skip to product information
Feature:
ISD1820 Voice Recording Recorder Module With Mic Sound Audio Loudspeaker
$12.04
Sale price
$12.04
Regular price
$0.00
Description
SPECIFICATIONS
Application: Speaker
Brand Name: Estardyn
Choice: yes
Condition: New
Dissipation Power: 1
High-concerned chemical: none
Operating Temperature: -45-+85
Origin: Mainland China
Package: SMD
Supply Voltage: DC3-5V
Type: Voltage Regulator
is_customized: Yes
Feature:
With looping, jog playback, single-pass play function
Available single-chip control
This module can directly drive a small speaker 8 ohm 0.5W
Working voltage: DC 3 to 5V
Loudspeaker: 8Ω, 0.5W
Power supply: 3 - 5V
Size: 3.7 x 4.1cm / 1.45 x 1.61 inch
Package included:

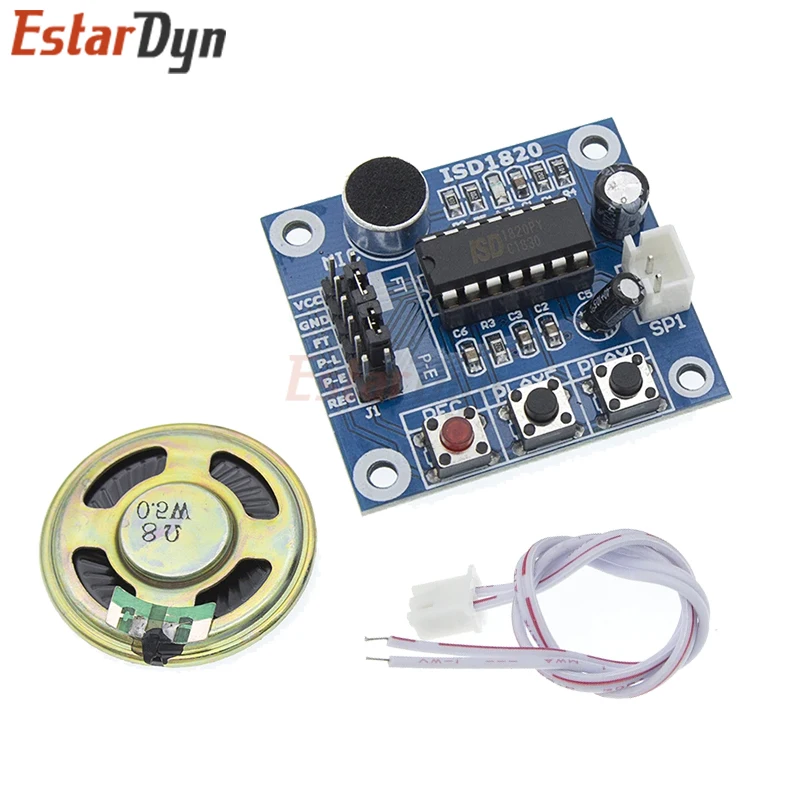

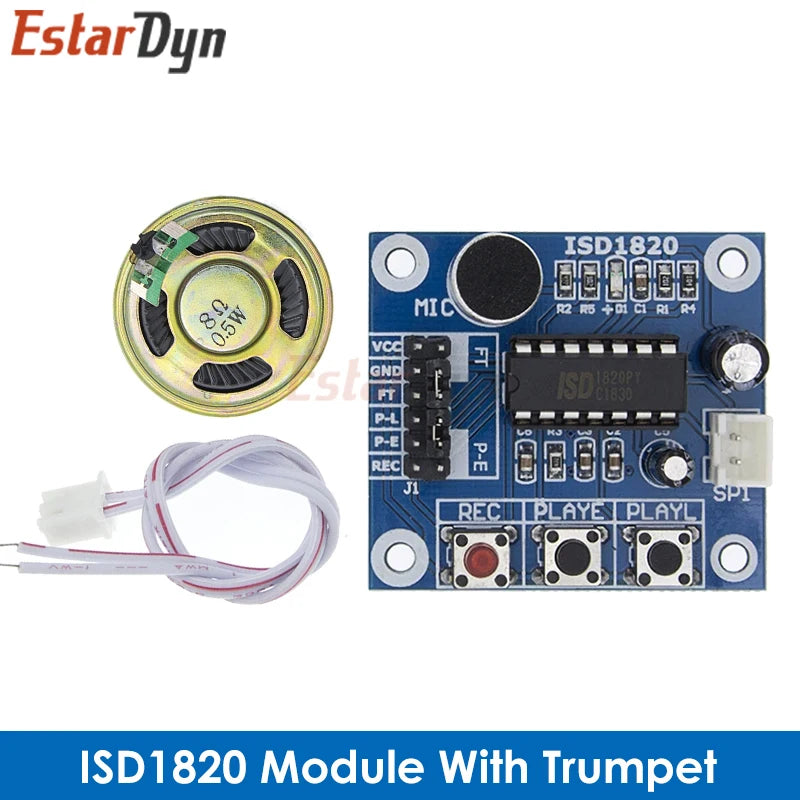

1 x SD1820 Sound Voice Module with speaker
the main chip: ISD1820
size: 38mm * 42.5mm
the working voltage: DC 3 ~ 5V
Loudspeaker: 8Omega, 0.5W.
features:
1.An easy to use 10 seconds of voice recording
2.high-quality, natural voice restored
3.can be used as propaganda module
4.with looping, jog playback, single-pass play function
5.available single-chip control
6.this module can directly drive a small speaker 8 ohm 0.5W
Power supply :3-5V, which can be accessed pin power;
Audio recording control mode: the key to control or microcontroller, IO has drawn the line of control;
Buttons control audio recording method of operation:
REC button: record button, you can press and hold the recording, release the button to stop recording;
RLAYE key: trigger mode playback, press will play this whole speech;
PLAYL key: jog mode playback, press and hold until playback, release to stop playback;
RPL Jumper: loop mode control, loop playback;
FT Jumper: direct control, microphone voice through the speaker can playback;
