SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Quantity: 1

Type: Module

is_customized: Yes

Product Description:

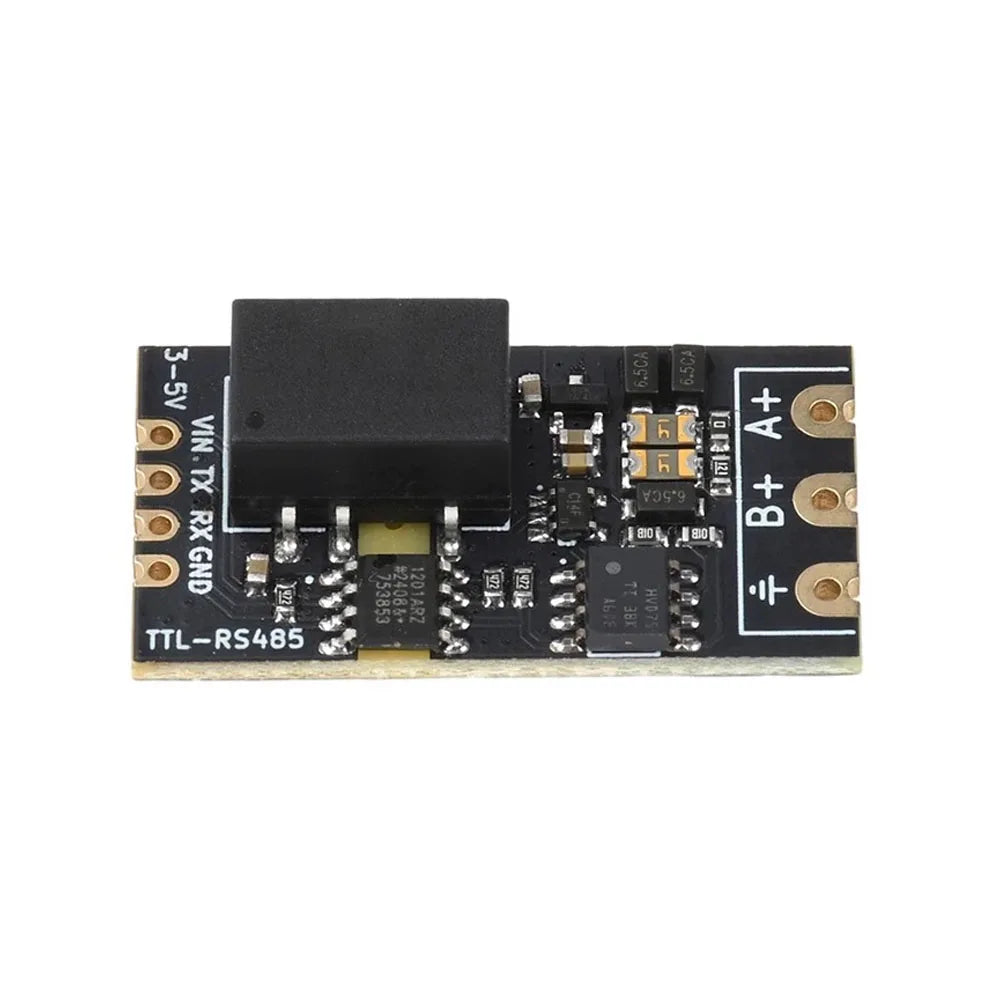

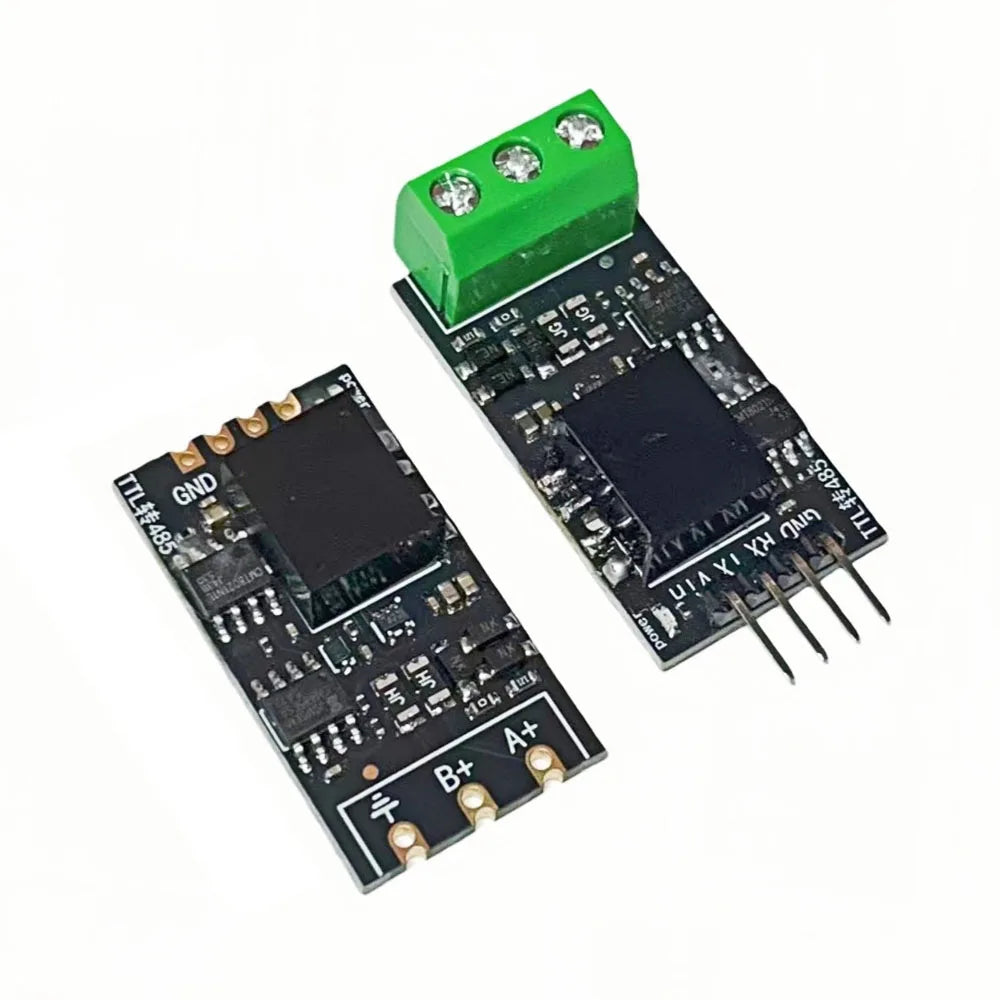

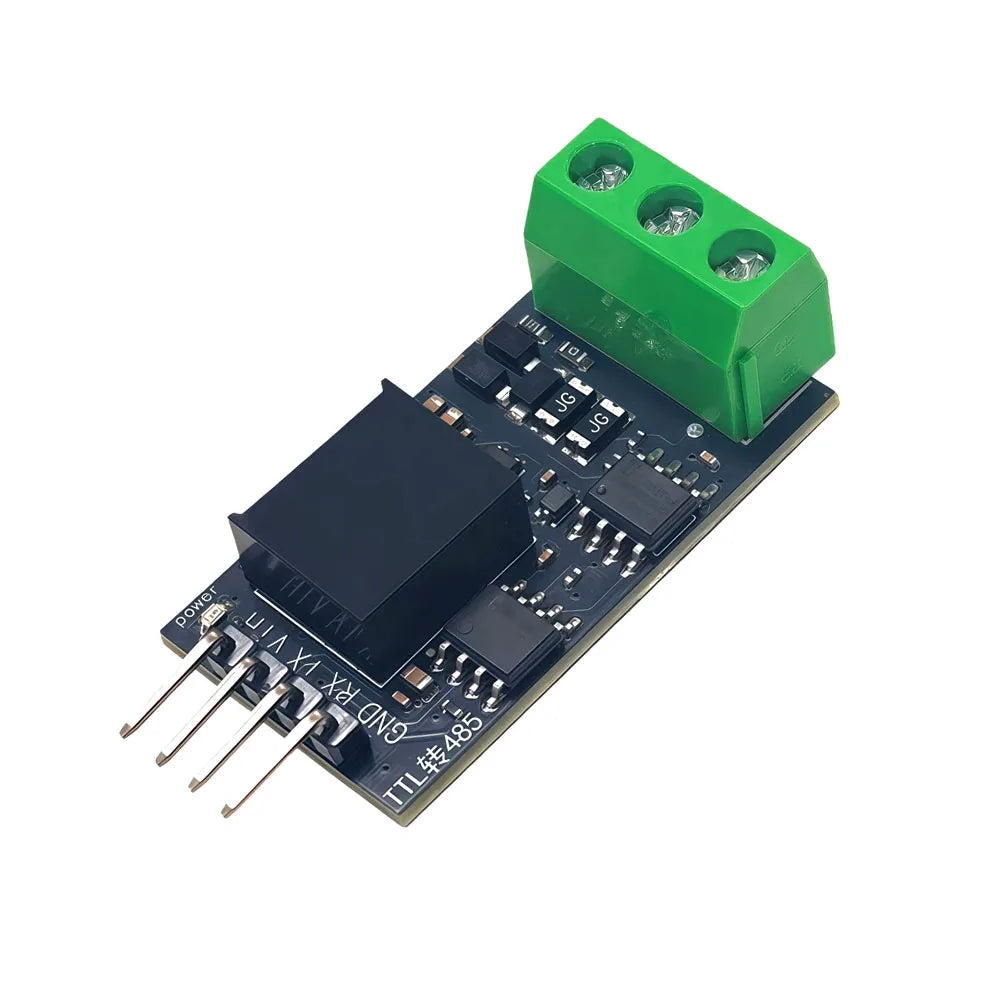

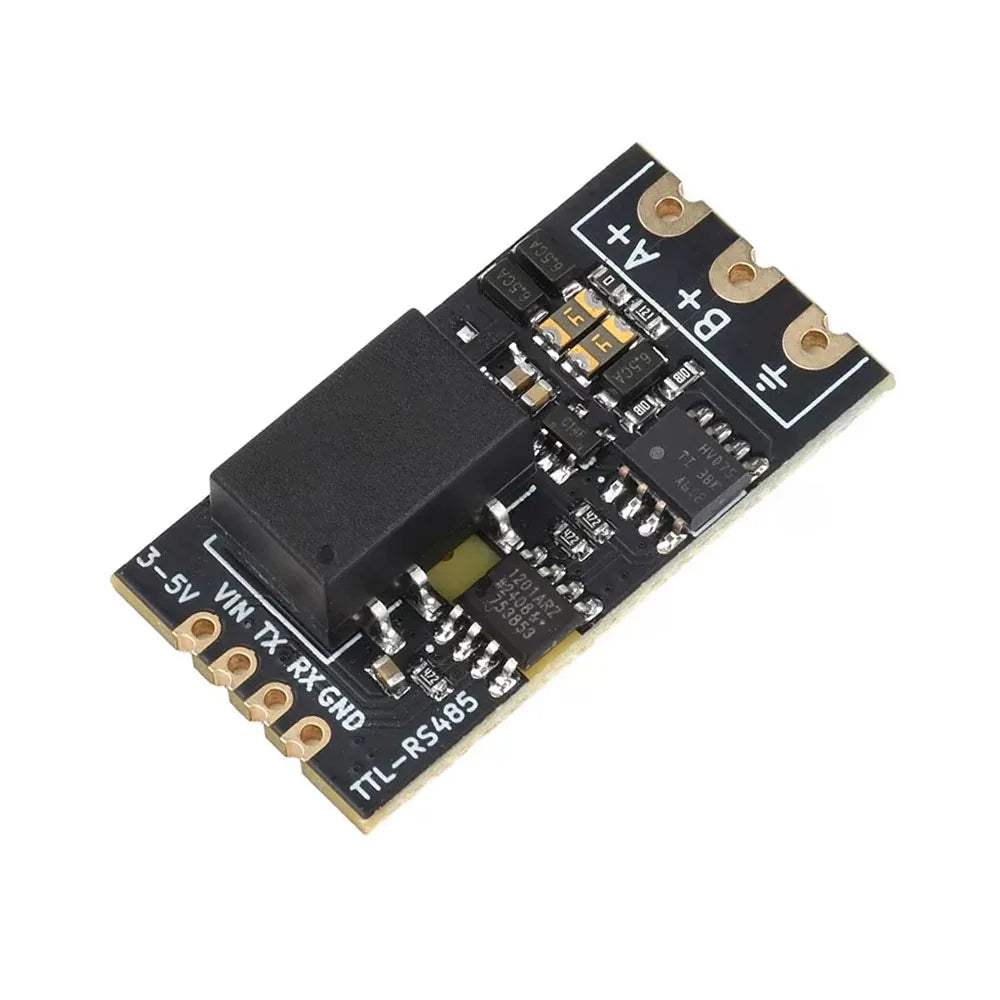

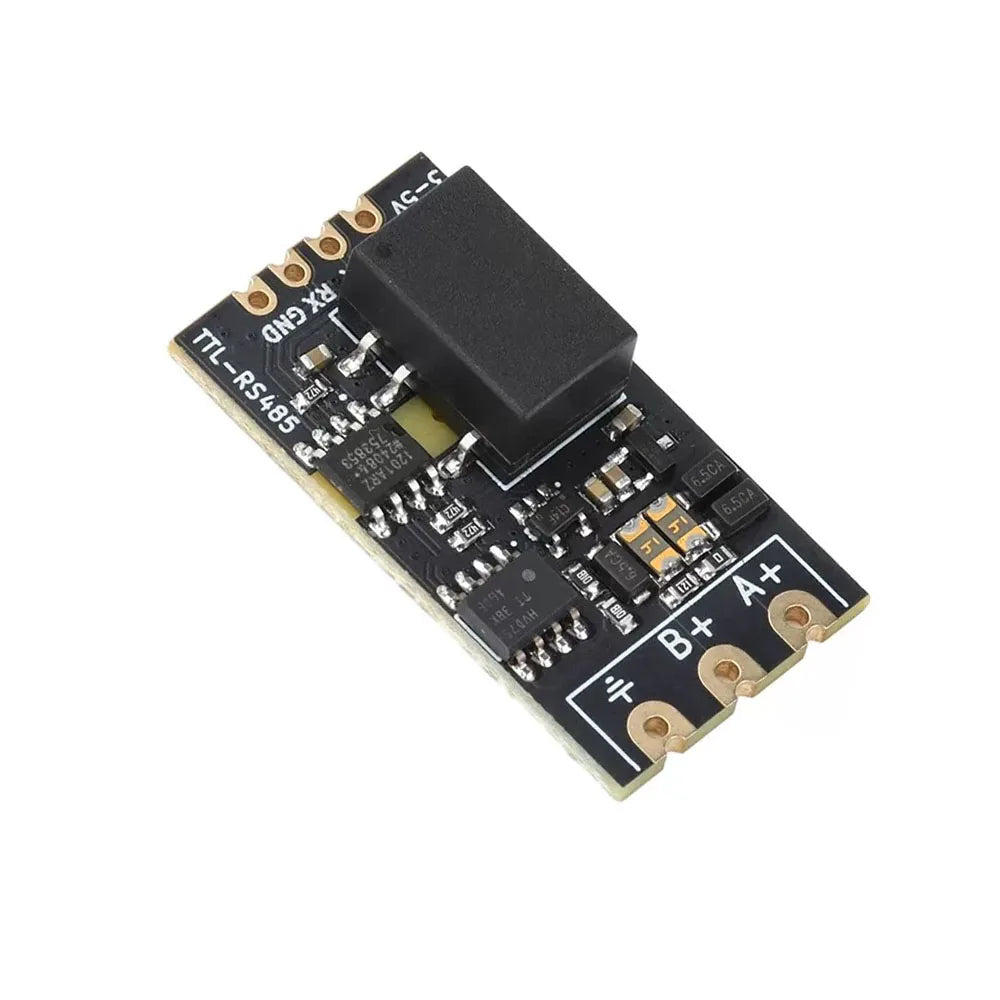

Isolated TTL to RS485 Converter Module 3.3V/5V, Auto Direction Switching, High-Speed 2Mbps for UART Serial Communication

Product Features:

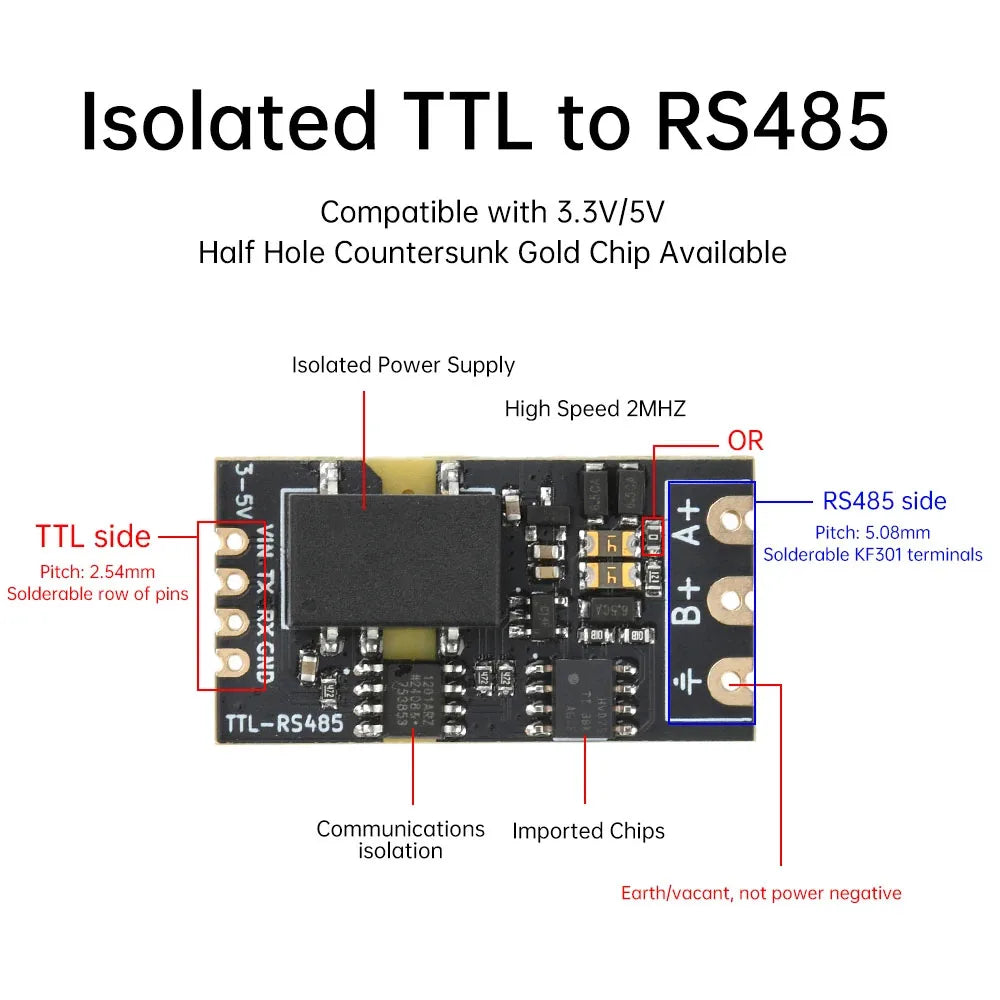

1. Fully isolated design: Utilises a fully isolated TTL-to-RS485 level conversion module to effectively prevent signal interference and enhance communication stability.

2. Compatible with 3.3V/5V power supply and communication: The TTL end supports 3.3V/5V power supply and communication levels, accommodating diverse device requirements.

3. High-speed communication: Maximum communication rate reaches 2Mbps, meeting the demands of high-bandwidth application scenarios.

4. Multiple Protection Measures: On-board TVS diodes and fuse protection safeguard against overvoltage and surges, ensuring reliable operation.

5. Half-Hole Immersion Gold Pads: Utilises half-hole immersion gold pad design for convenient surface-mount assembly, enhancing efficiency and flexibility.

Product Specifications:

Supply Voltage: Compatible with DC 3.3/5V

Communication Rate: 2Mbps

On-board Balancing Resistor: 120Ω

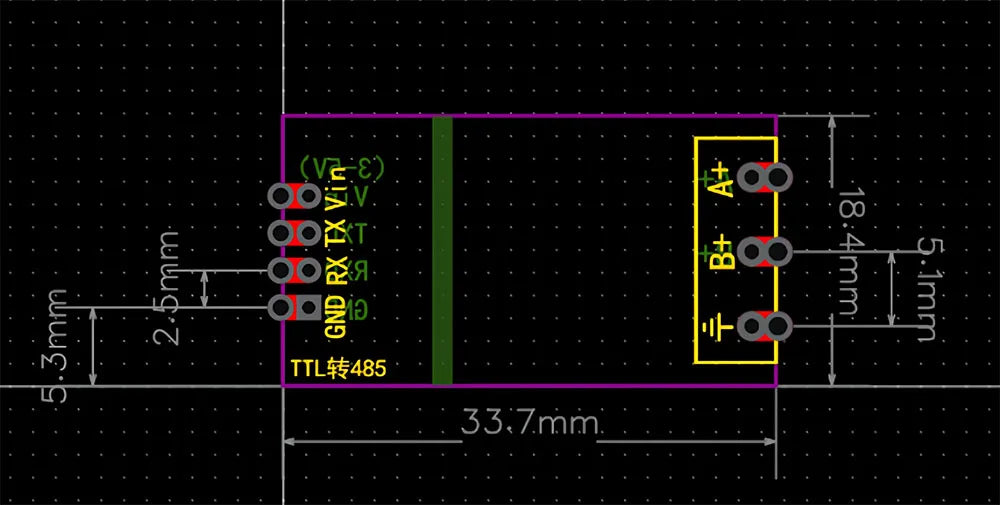

TTL Pin Pitch: 2.54mm (Solderable Pin Header)

RS485 Pin Pitch: 5.08mm (Solderable KF301 Terminal)

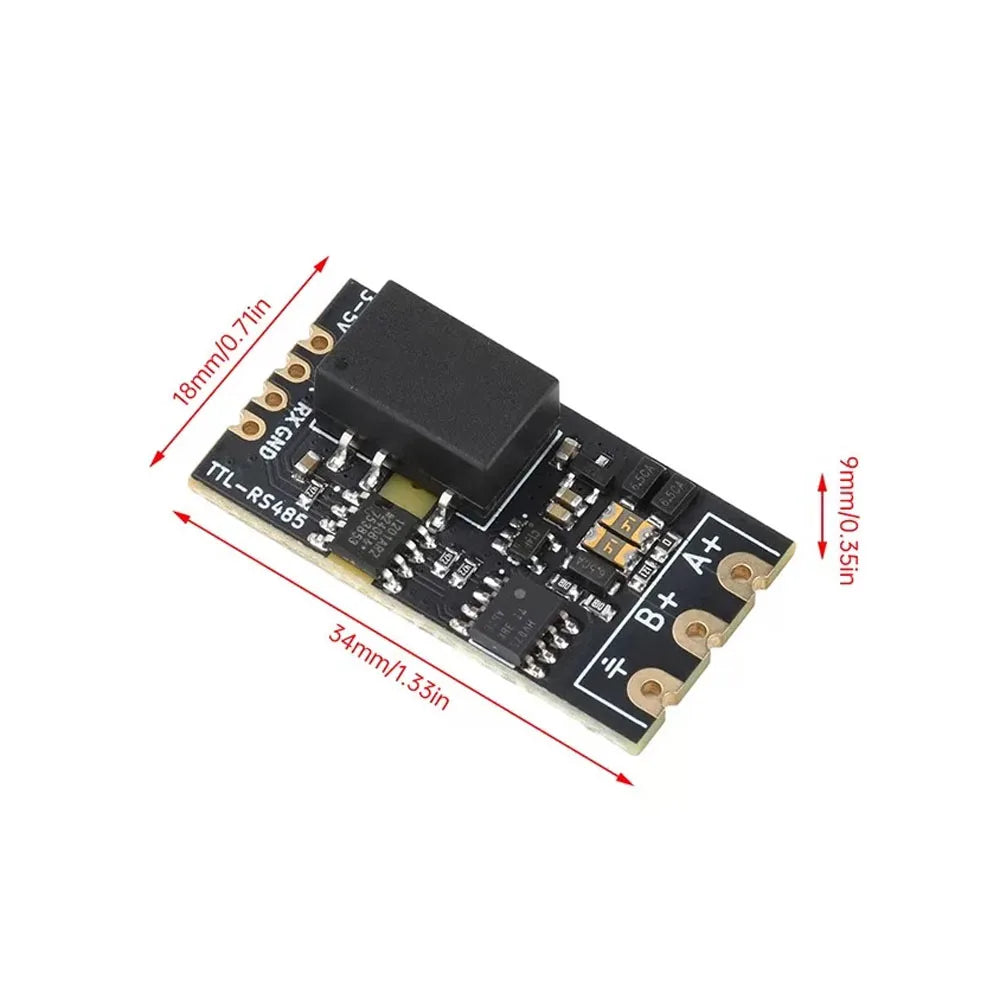

Product Dimensions: 34*18*9mm
