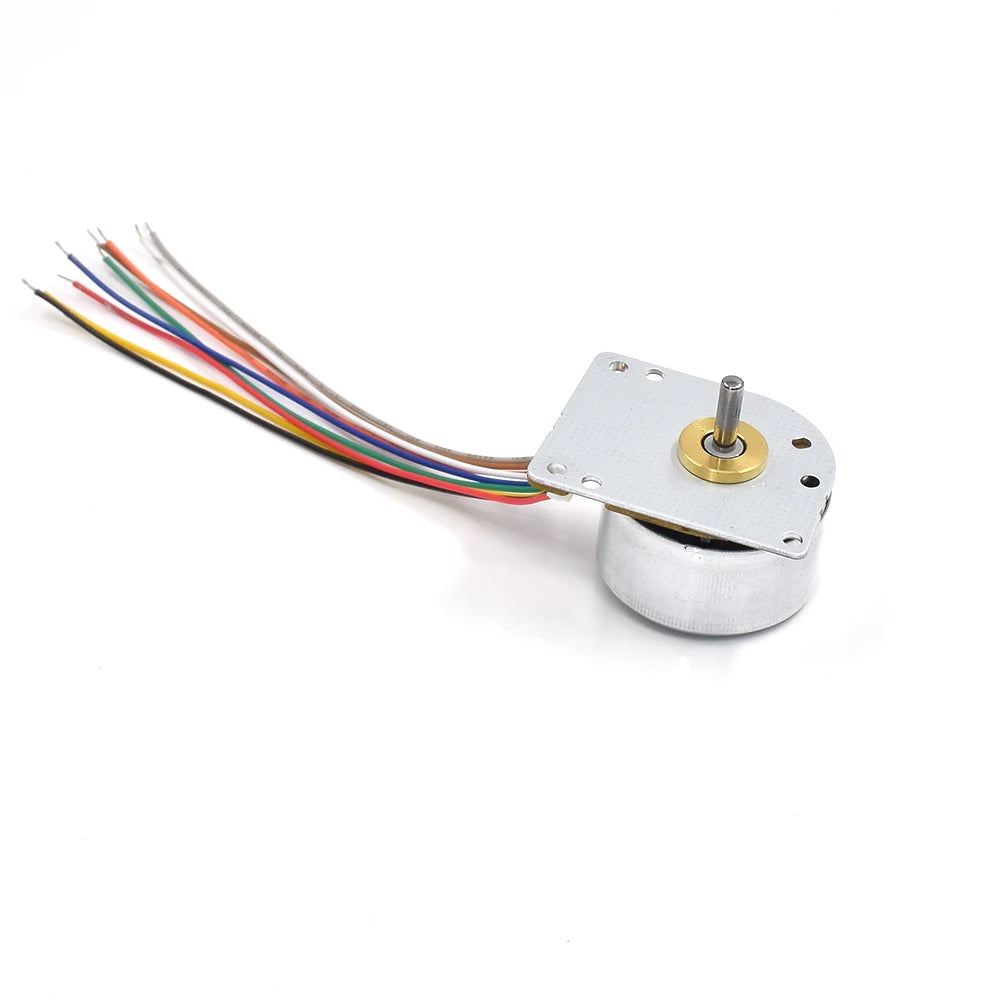

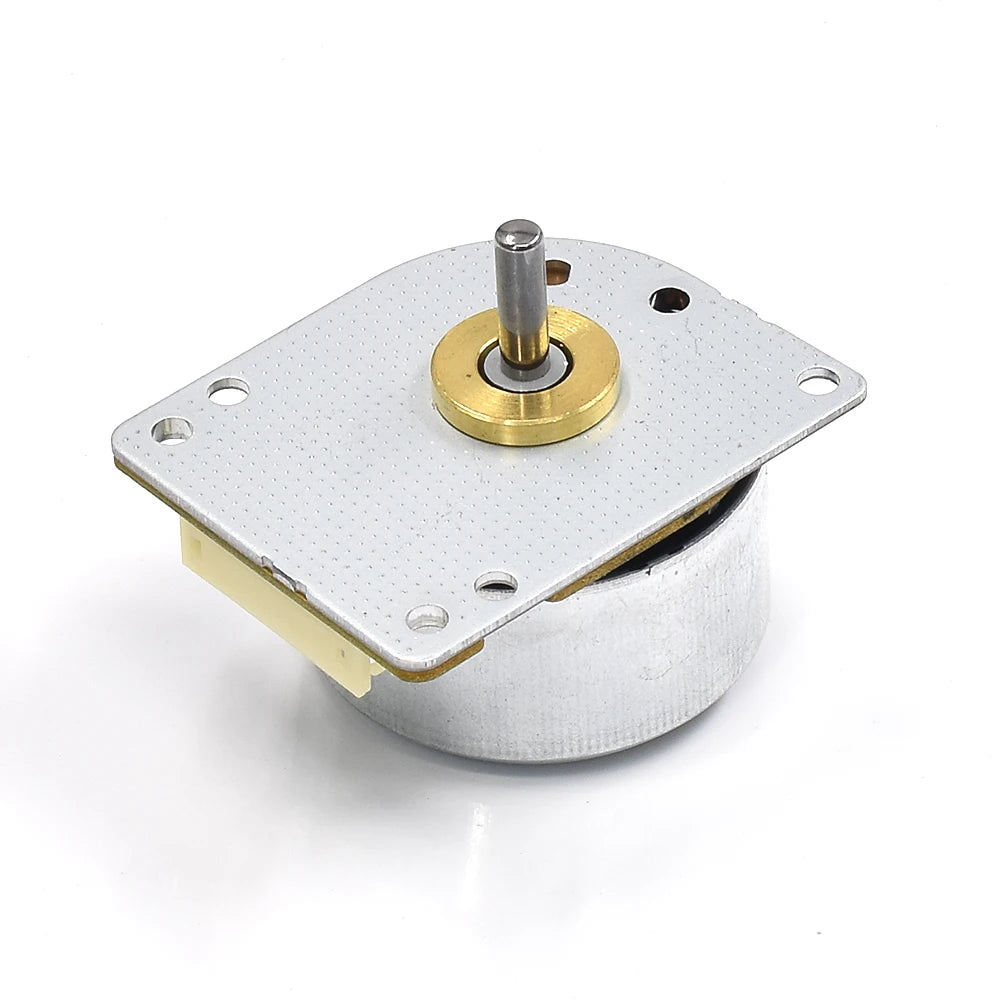

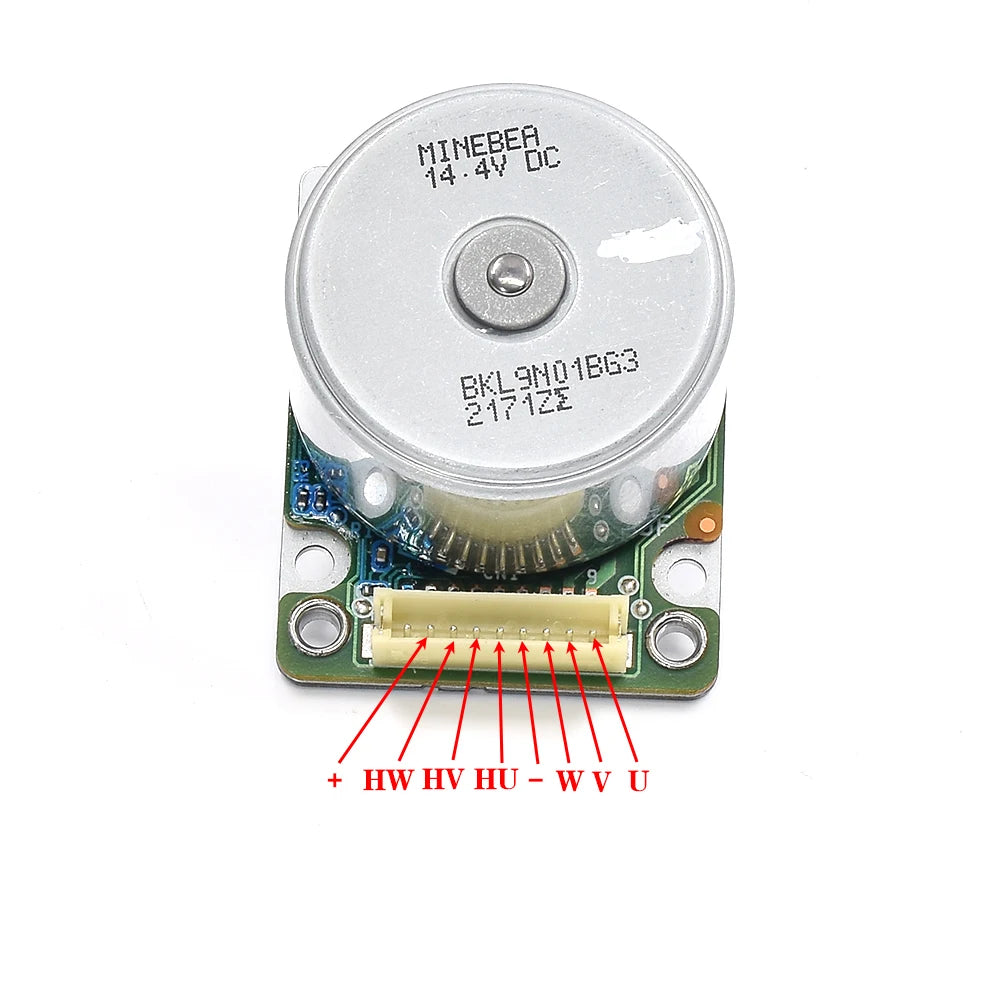

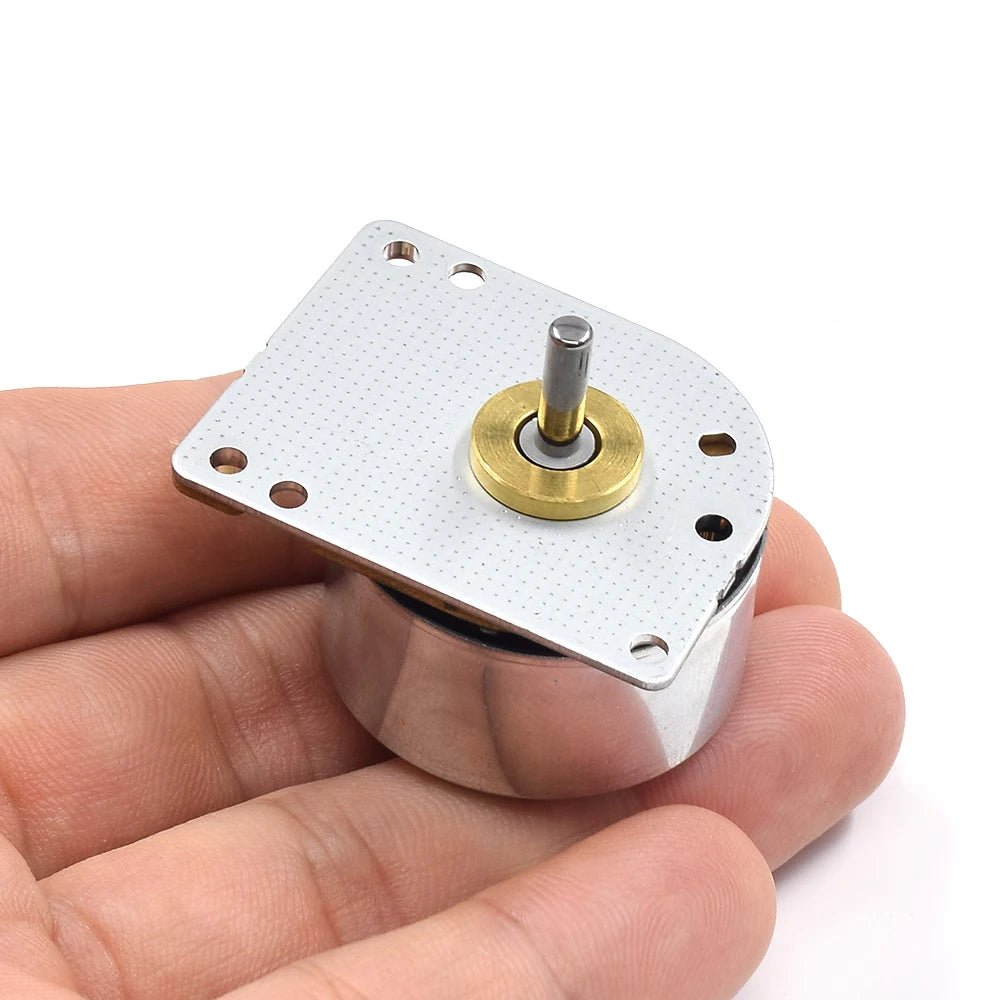

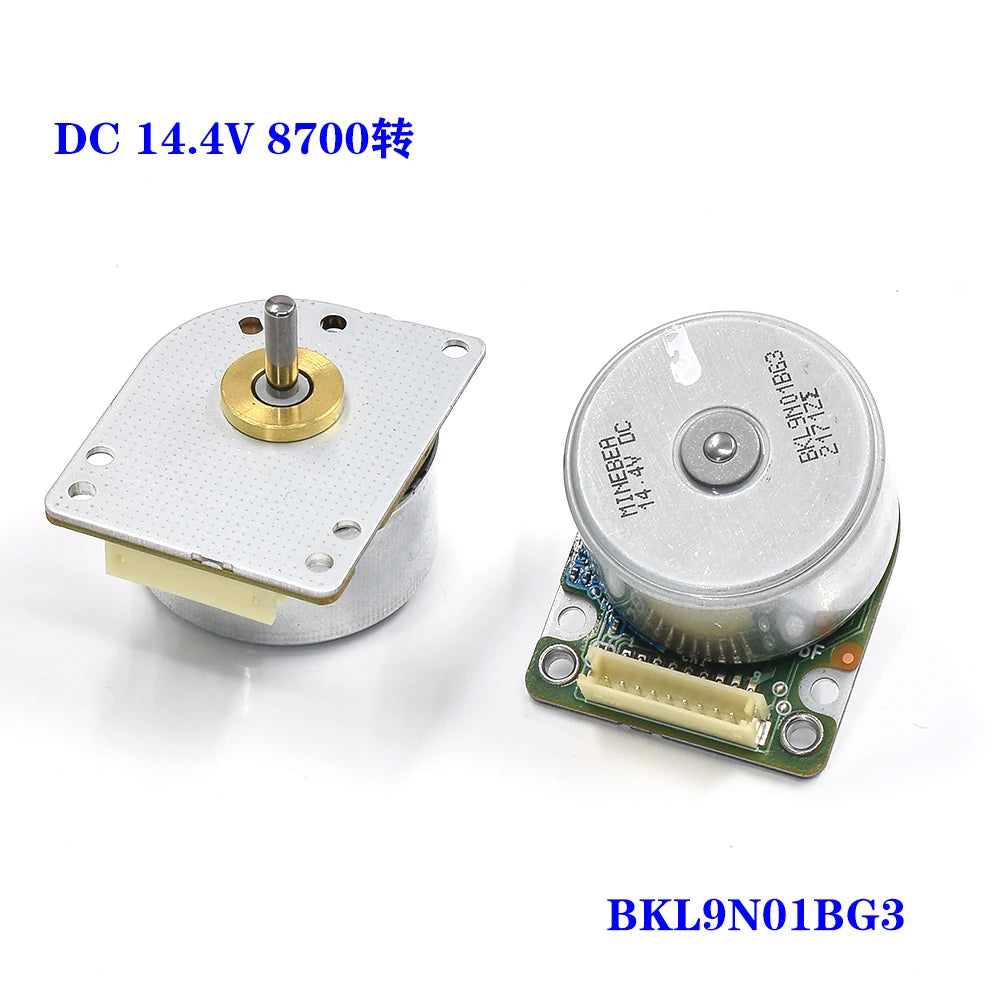

Japan Minebea BKL9N01BG3 three-phase eight-wire external rotor brushless motor 14.4V 8700rpm BLDC with Hall sensor
8700 / 14.4V / 0
$24.57
Sale price
$24.57
Regular price
$0.00
Skip to product information
Rated voltage: DC 14.4V
[No load current] 246mA
[No load speed] 8730 revolutions per minute
[Phase Resistance] 6.6 ohms
Suitable voltage: 9-16.8V

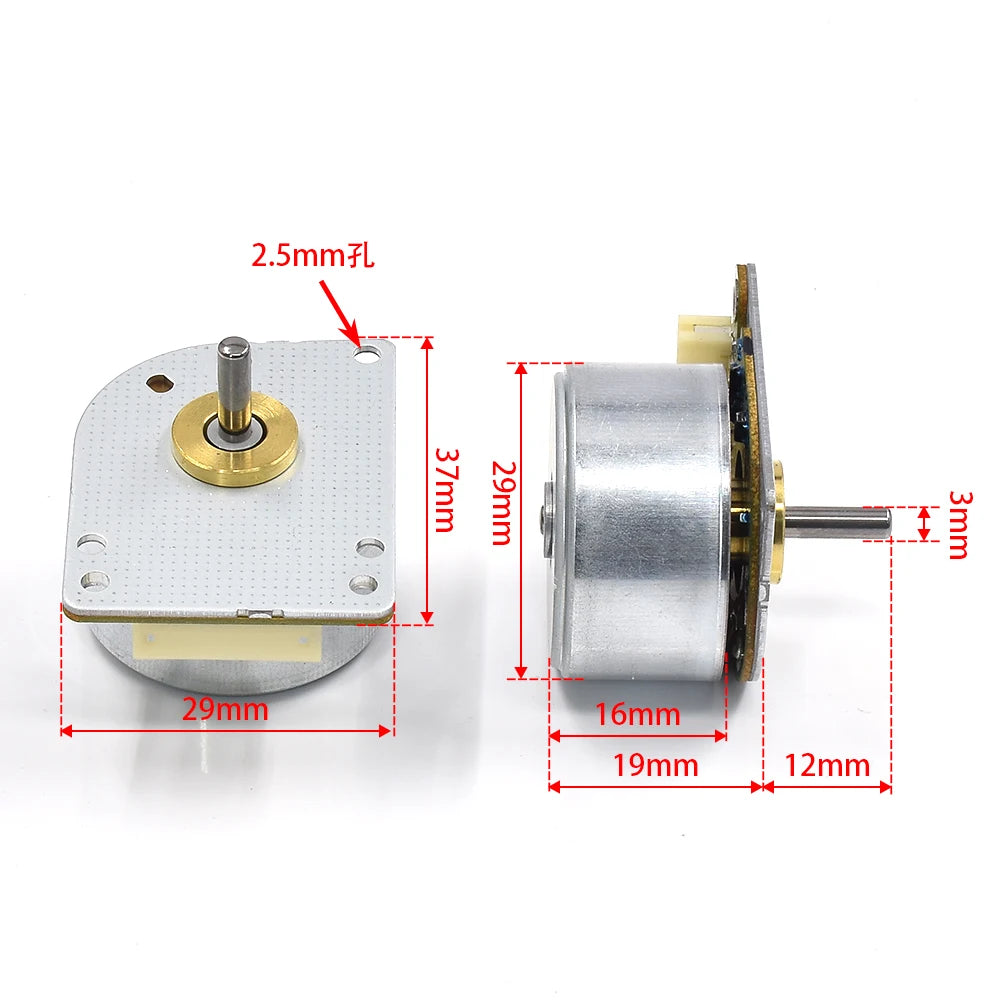

Weight: 52 grams
Actual data:
Voltage, no-load current, no-load speed
9.0V 200mA 5400RPM
12.0V 220mA 7200RPM
14.4V 246mA 8730RPM
16.8V 260mA 10100RPM
Japan Minebea BKL9N01BG3 three-phase eight-wire external rotor brushless motor 14.4V 8700rpm BLDC with Hall sensor
$24.57
Sale price
$24.57
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Choice: yes
High-concerned chemical: none
Model Number: 24H055M020
Origin: Mainland China
Output Power: ＜18.65
Type: Servo Motor
Use: Home Appliance
semi_Choice: yes
Rated voltage: DC 14.4V
[No load current] 246mA
[No load speed] 8730 revolutions per minute
[Phase Resistance] 6.6 ohms
Suitable voltage: 9-16.8V
Weight: 52 grams
Actual data:
Voltage, no-load current, no-load speed
9.0V 200mA 5400RPM
12.0V 220mA 7200RPM
14.4V 246mA 8730RPM
16.8V 260mA 10100RPM
