JC2432W328C ESP32 2.8" inch TFT HMI LCD Display Module WIFI+BT Capacitive Touch Screen 240*320 Development Board ST7789 Driver
display and case
$102.65
Sale price
$102.65
Regular price
$0.00
Skip to product information
JC2432W328C ESP32 2.8" inch TFT HMI LCD Display Module WIFI+BT Capacitive Touch Screen 240*320 Development Board ST7789 Driver
$102.65
Sale price
$102.65
Regular price
$0.00
Description
SPECIFICATIONS
Any question: Contact customer service
Brand Name: DIYmalls
Display Mode: 320x240
High-concerned chemical: none
Model Number: JC2432W328C
Origin: Mainland China
Resolution: 320*240
Type: TFT
is_customized: Yes
ESP32 2.8" TFT HMI LCD Display Module 4M FLASH WIFI+BT Capacitive Touch Screen 240*320 High-definition ST7789 Driver for Arduino
Product Description:
The Human Machine Interface Display Module is a cutting-edge monitor panel display unit tailored for a wide array of applications requiring a vibrant and clear visual interface. Boasting an RGB 65K color display, this module can reproduce a spectrum of colors to enhance user experience and visual engagement. The display is driven by the powerful ST7789 driver chip, ensuring smooth and efficient operation of the TFT screen.
Features:
Supports WiFi and Bluetooth
Support lithium battery power supply
Capacitive touch or Resistance touch
240 x 320 screen resolution
RGB 65K true-to-life colours
IPS glass panel
Onboard 240MHz LX6 MCU
520K Byte RAM
4 MB Flash memory
JST1.25 4 Pins (+5V, TX, RX, GND) TTL serial interface
Package inlcudes:
1 X ESP32 2.8" TFT HMI LCD Display Module
or

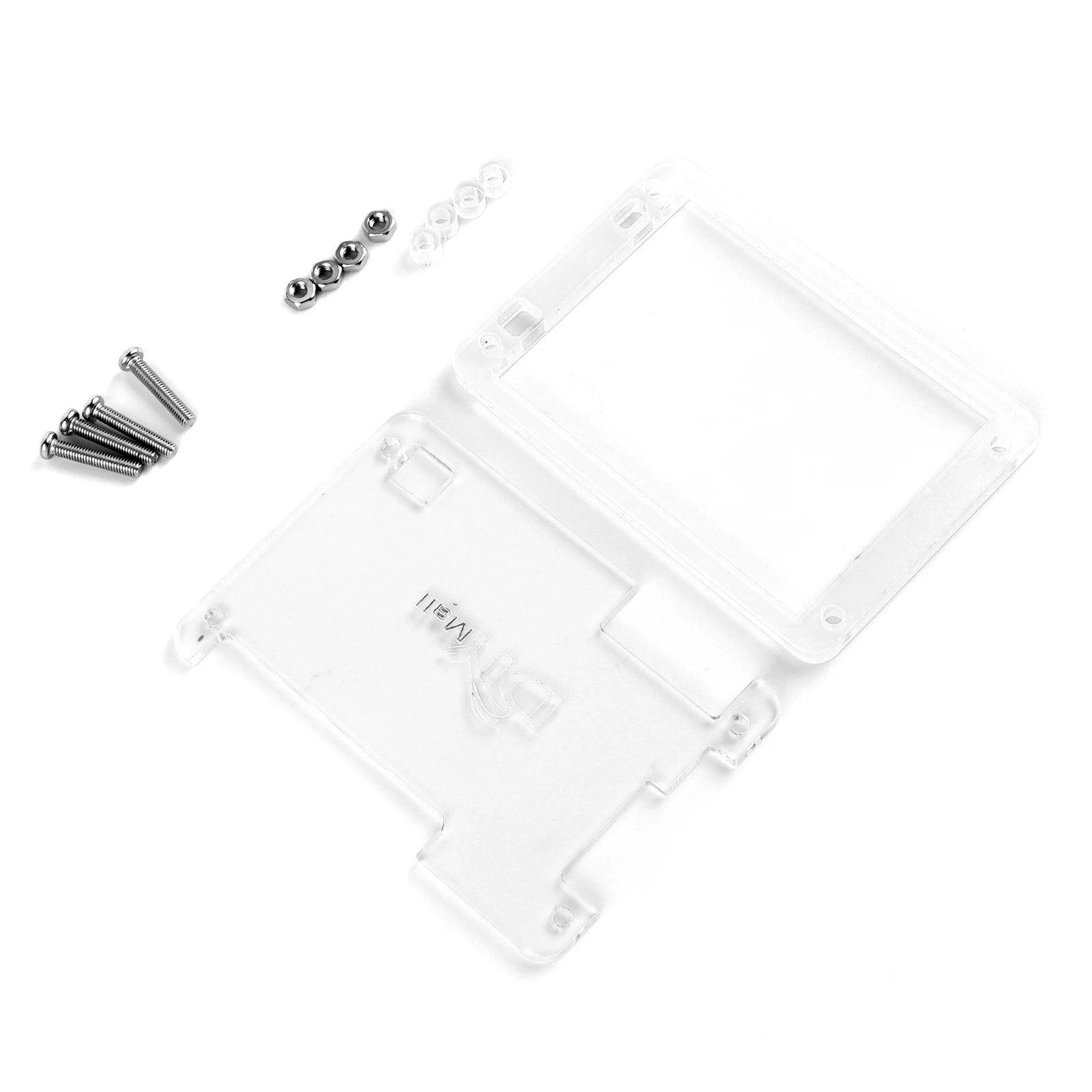

1 X case
or

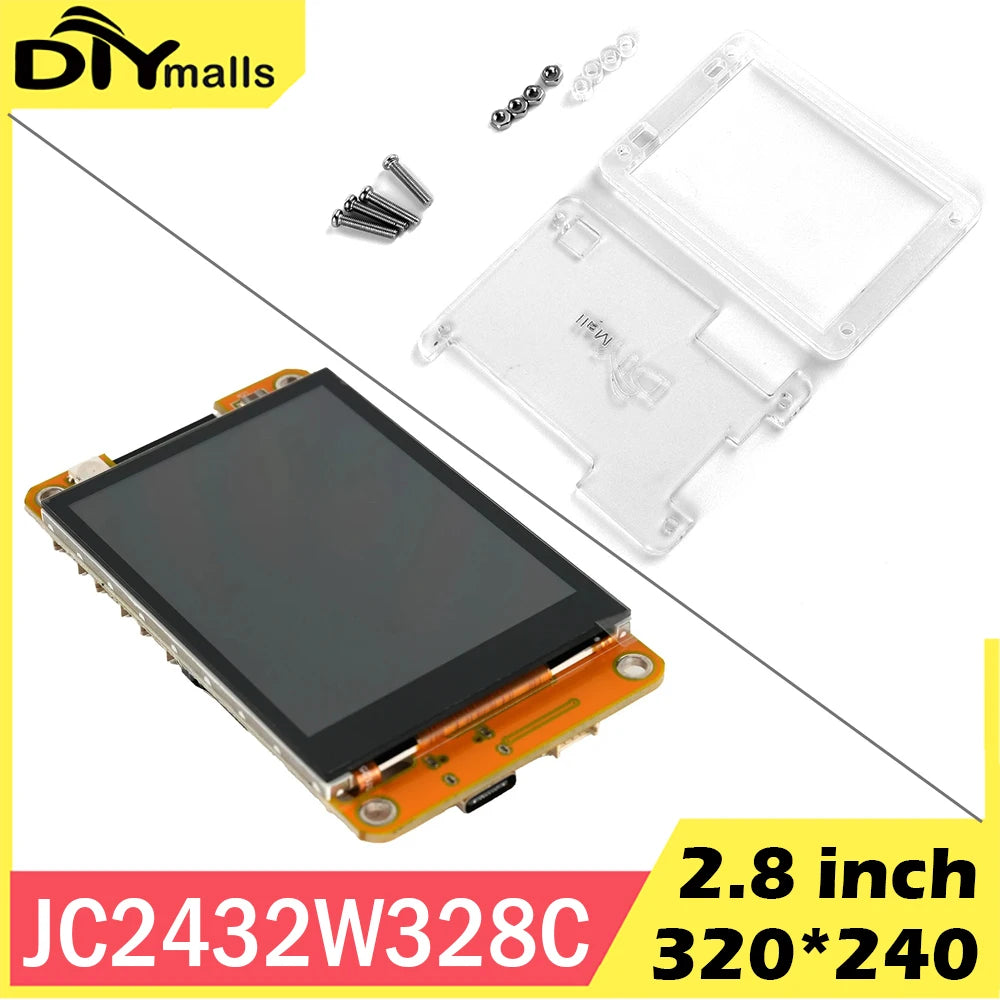

1 X LCD Display Module + 1 X case
