Description

SPECIFICATIONS

Air Volume: 150L/min (max)

Brand Name: JCD

Certification: CE

Electrified: No

Feature: Cool / Hot Air,Temperature Adjustable,Temperature Digital Display

Feature 1: Soldering station

Feature 2: Soldering iron

Feature 3: Soldering hot air gun

High-concerned chemical: none

Hot air gun Power: 750W

Input Voltage: AC100-120V (US PLUG),AC220-230V (EU PLUG)

JCD Model: 8898

Model Number: 8898

No-Load Speed: 3300rpm

Origin: Mainland China

Power Source: Ac

Rated Output Power: 800W

Rated Voltage: 220V

Soldering iron: 200-480℃

Soldering iron power: 80W

Usage: Home DIY

Weight: 0.9KG

is_customized: Yes

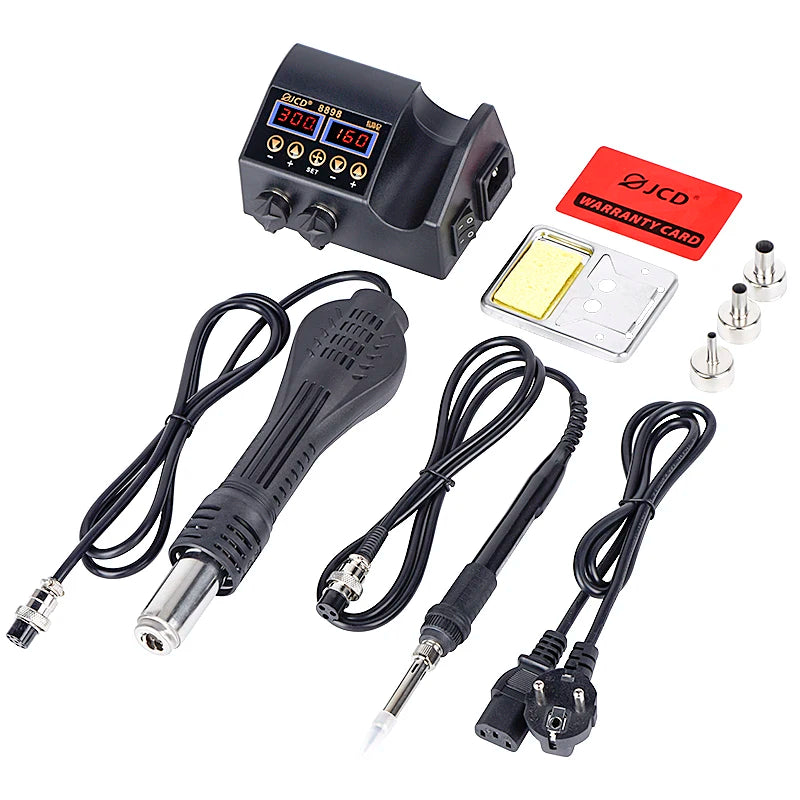

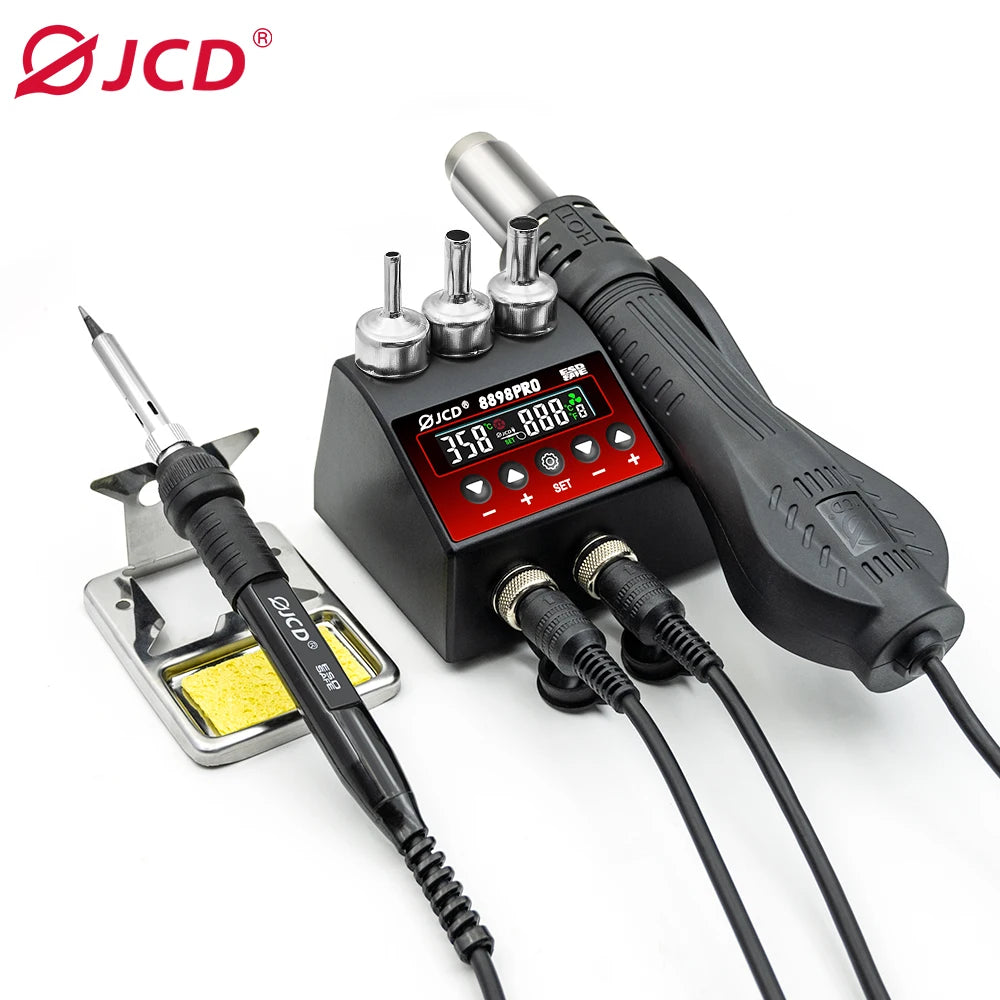

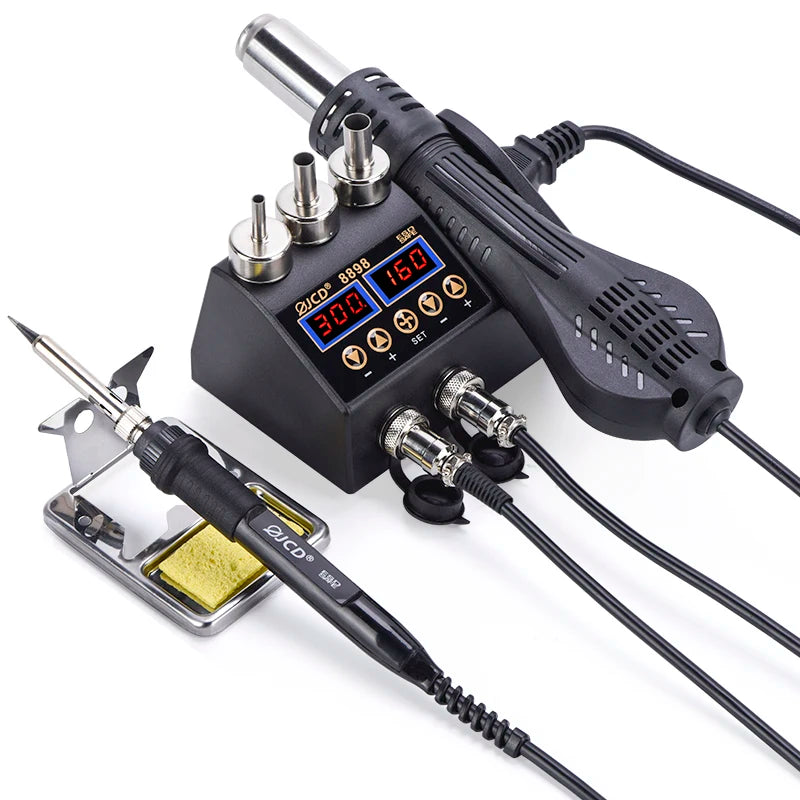

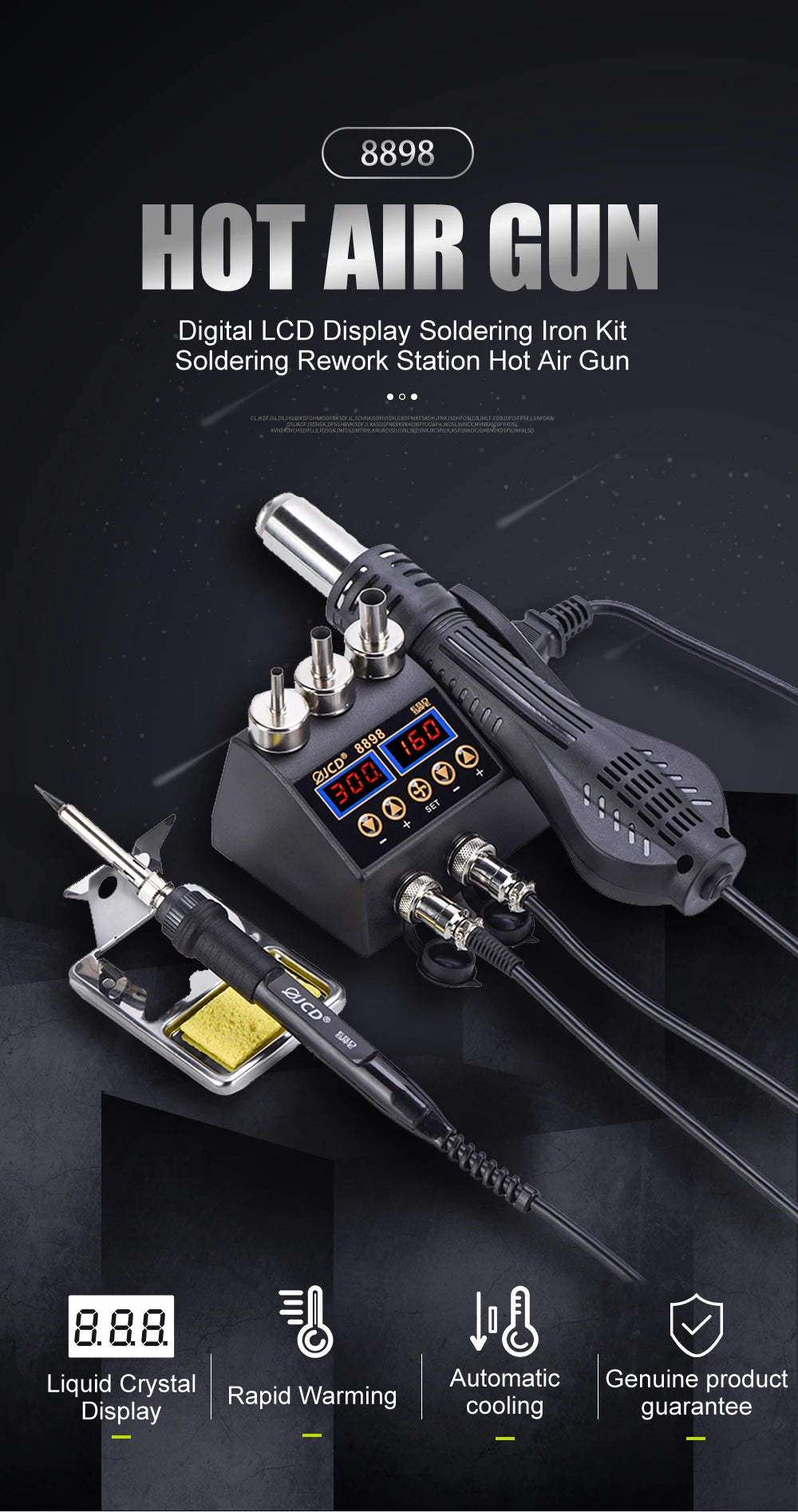

2 in 1 750W hot air gun LCD Digital display welding rework station for cell-phone BGA SMD PCB IC Repair solder iron hairdry tool

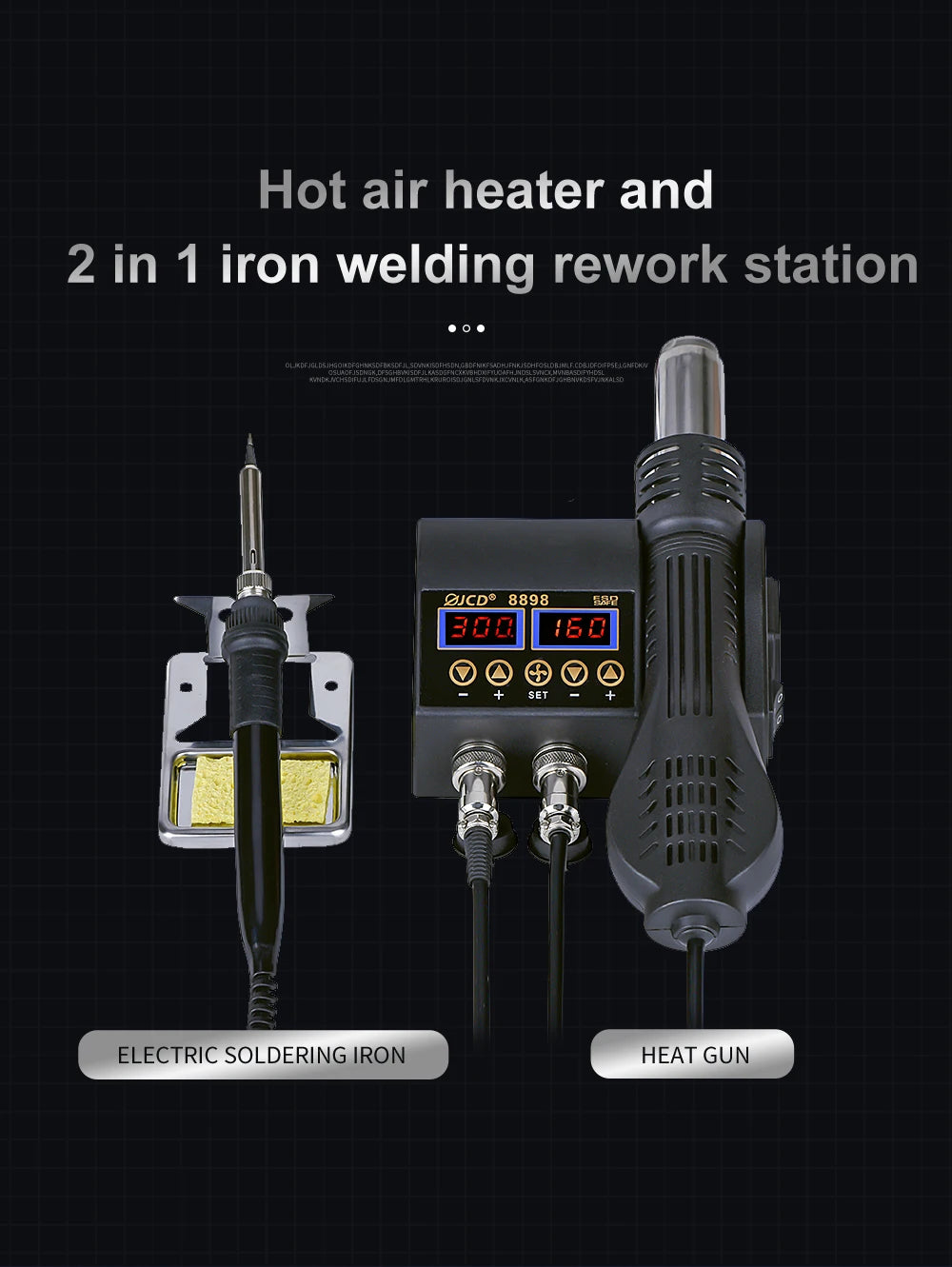

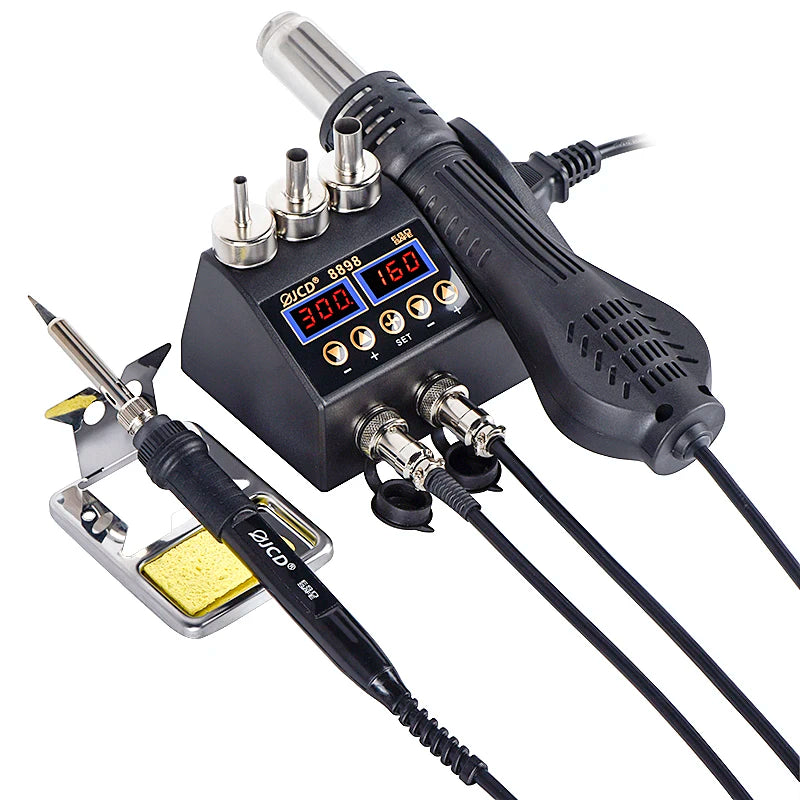

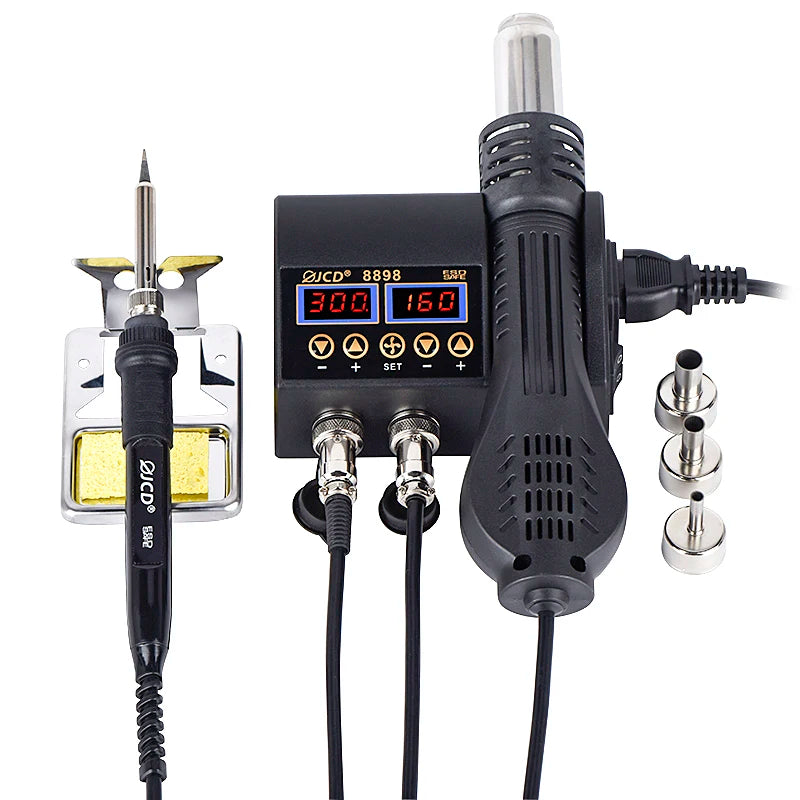

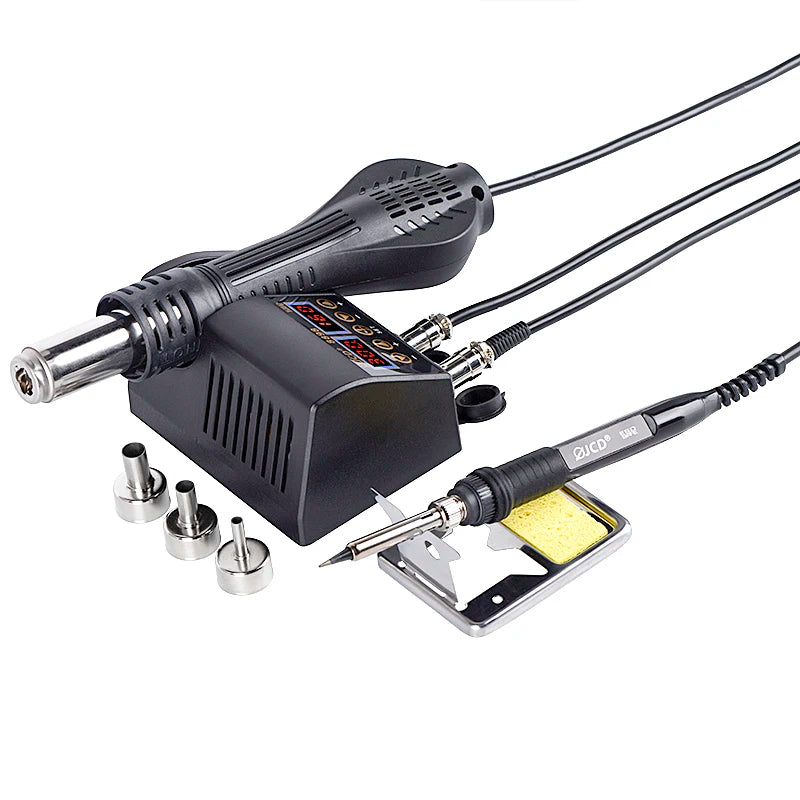

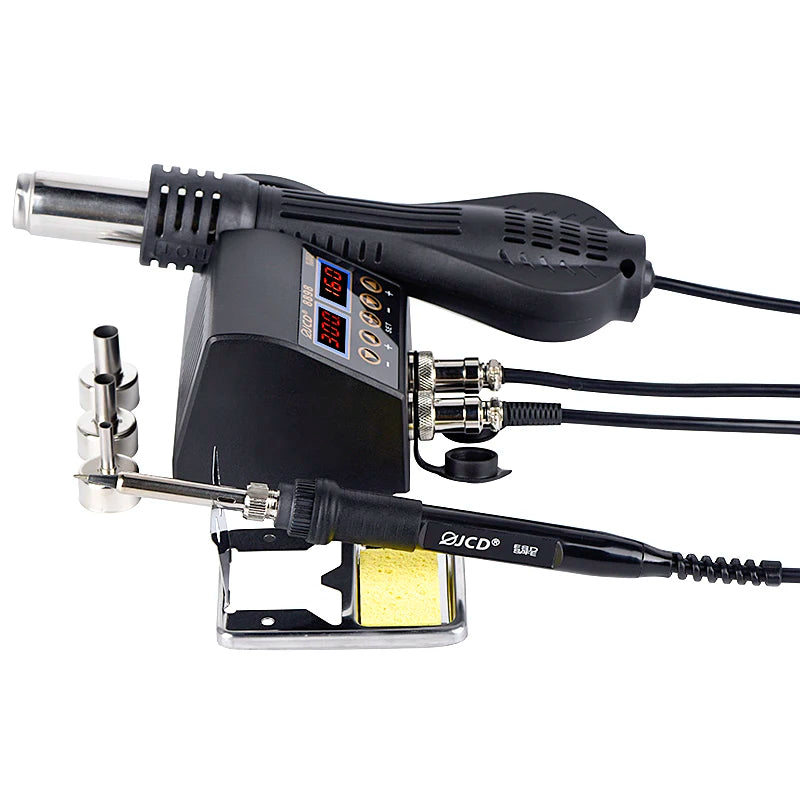

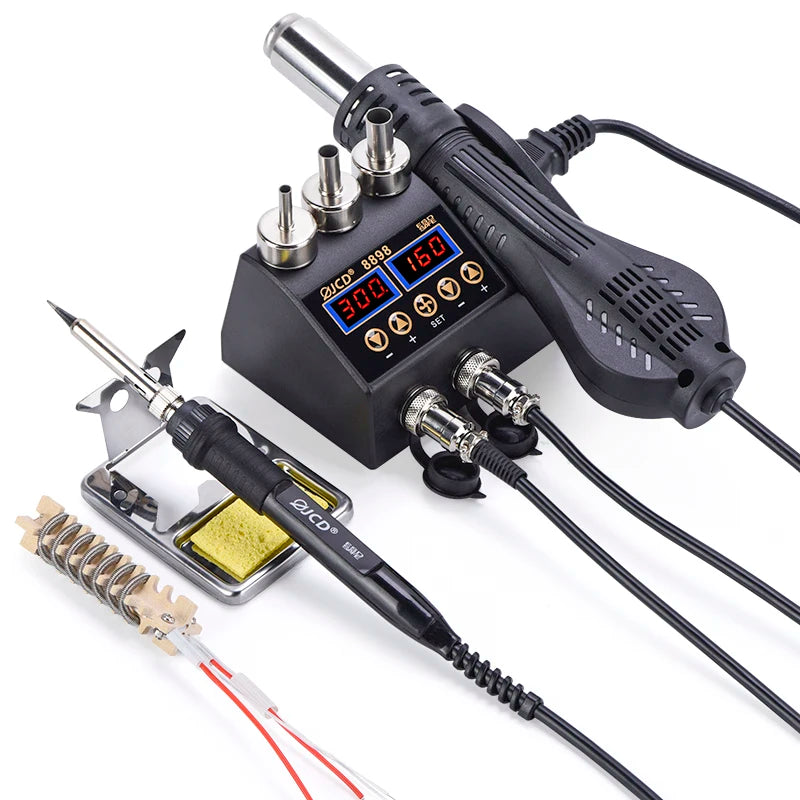

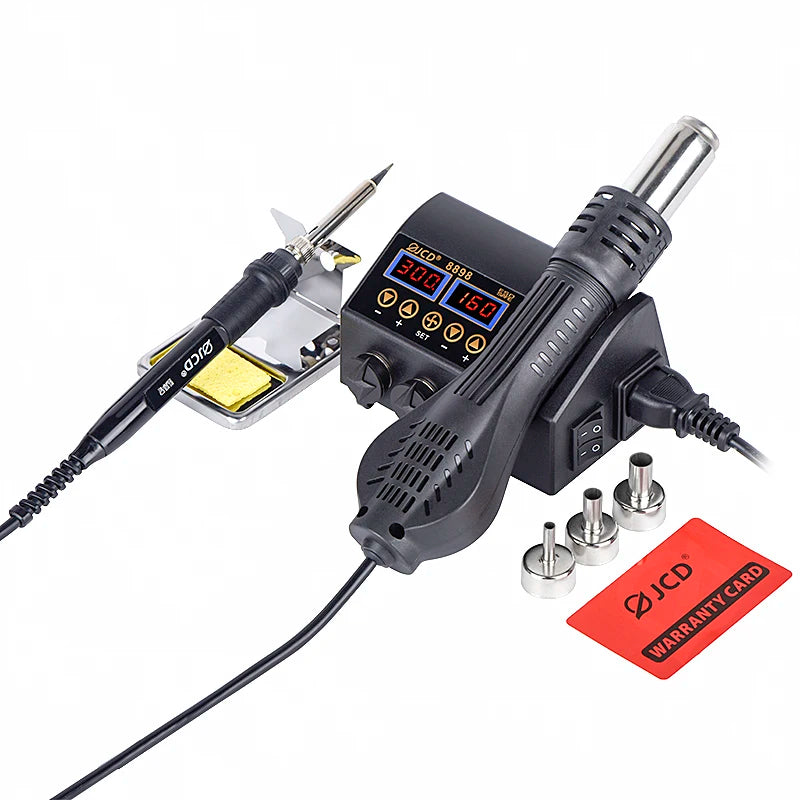

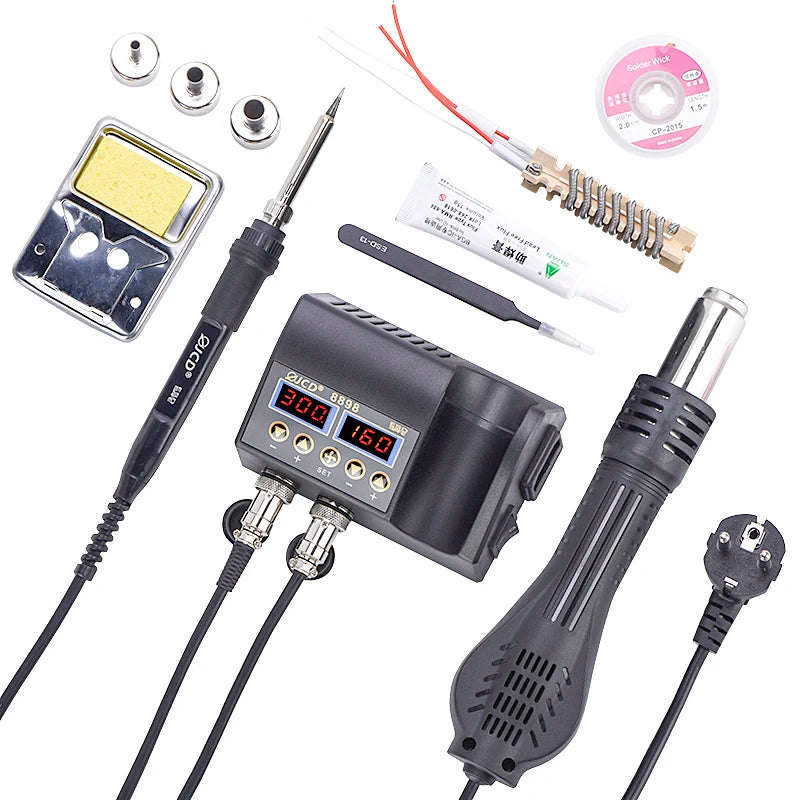

Hot air heater and welding iron 2in1 rework soldering station.

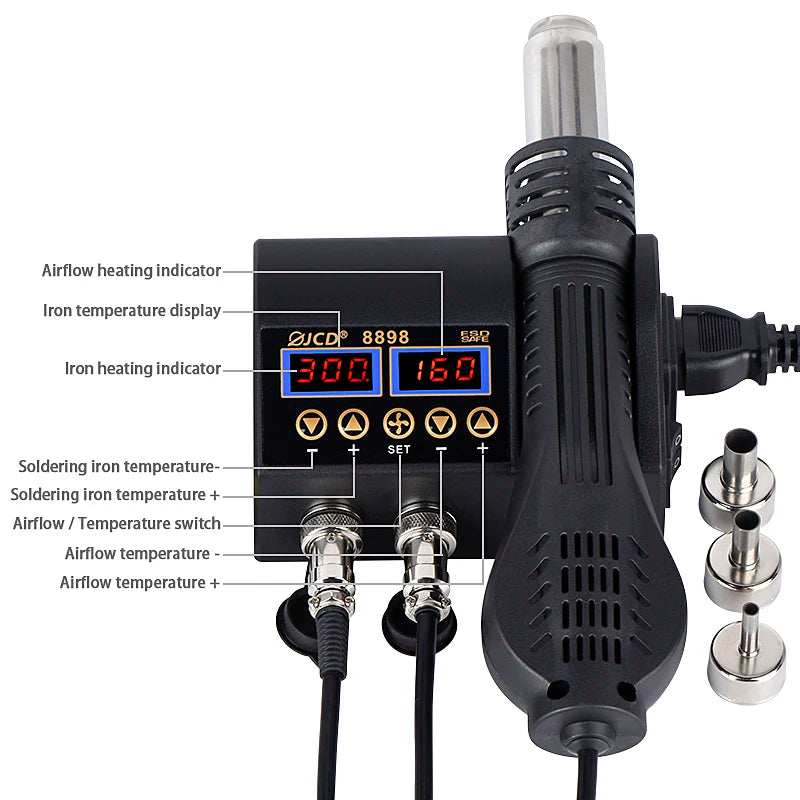

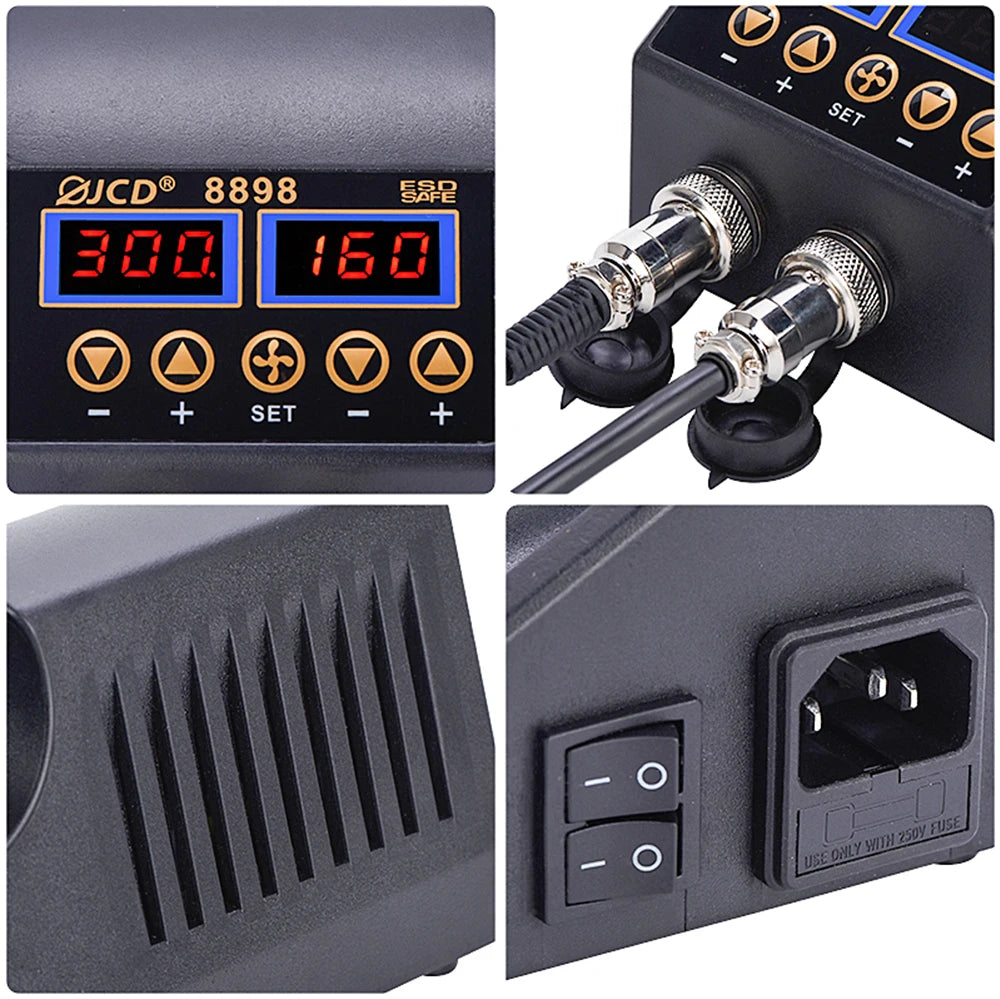

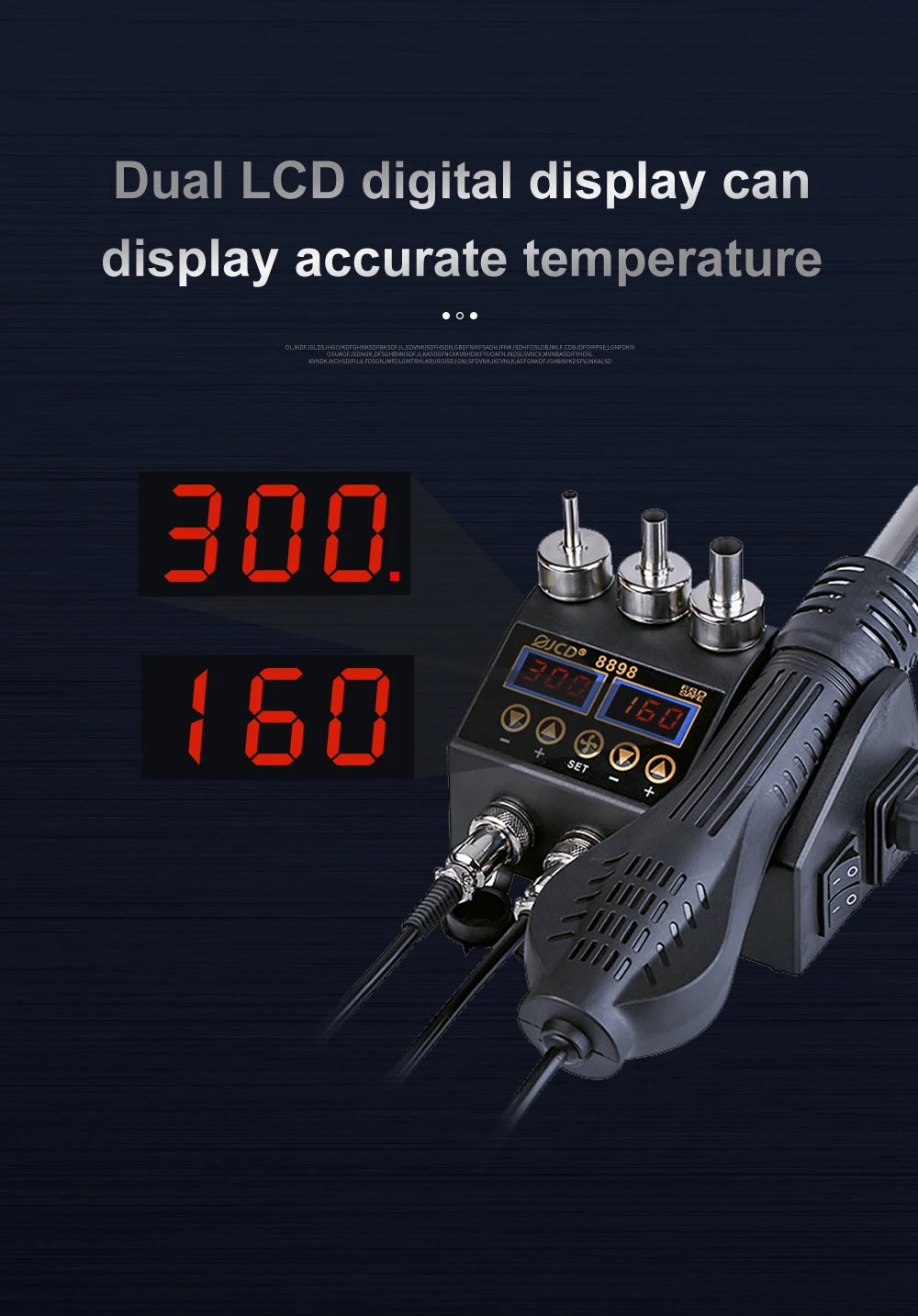

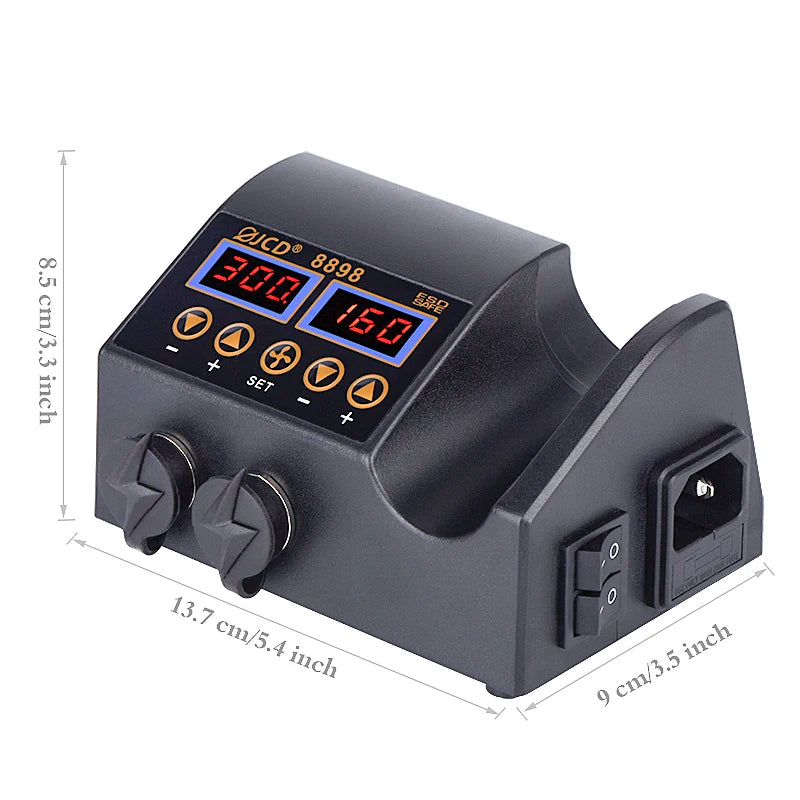

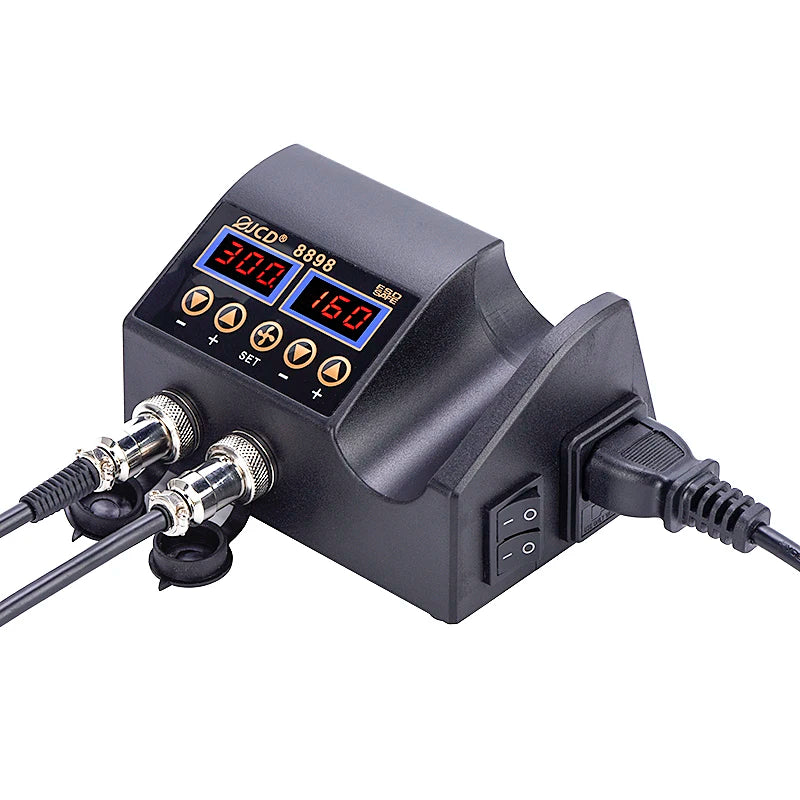

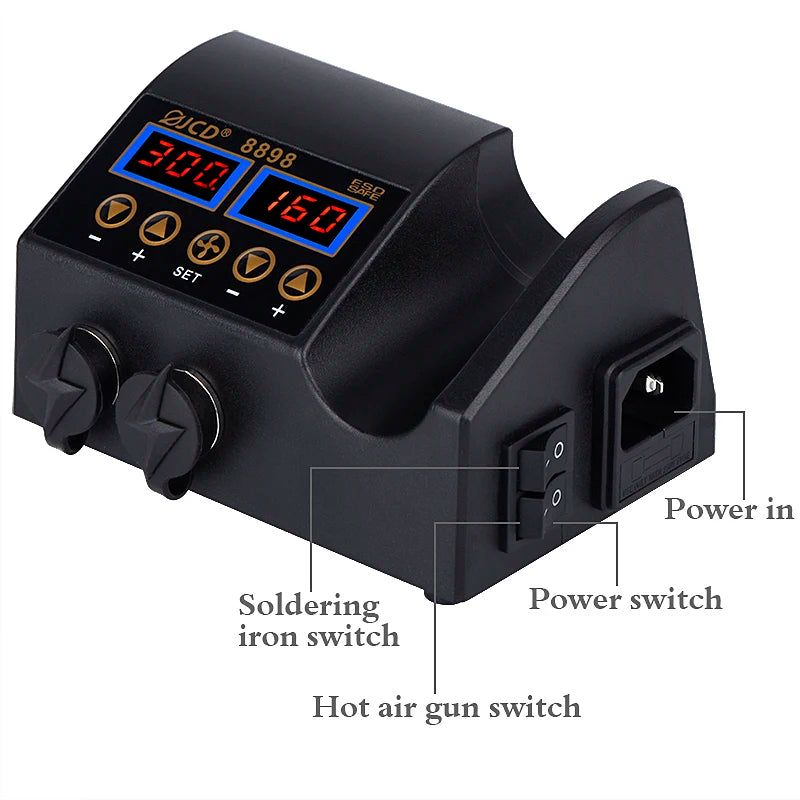

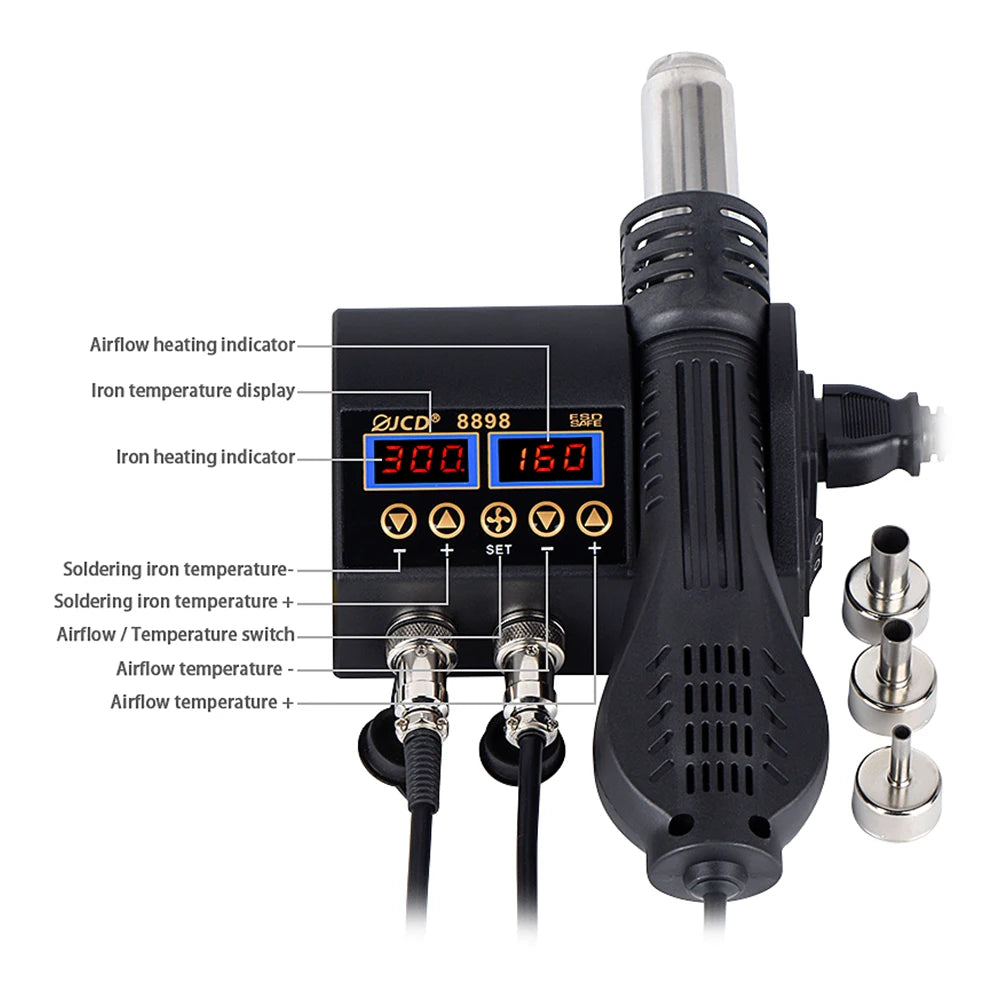

Dual LCD digital displays to show precision temperature.

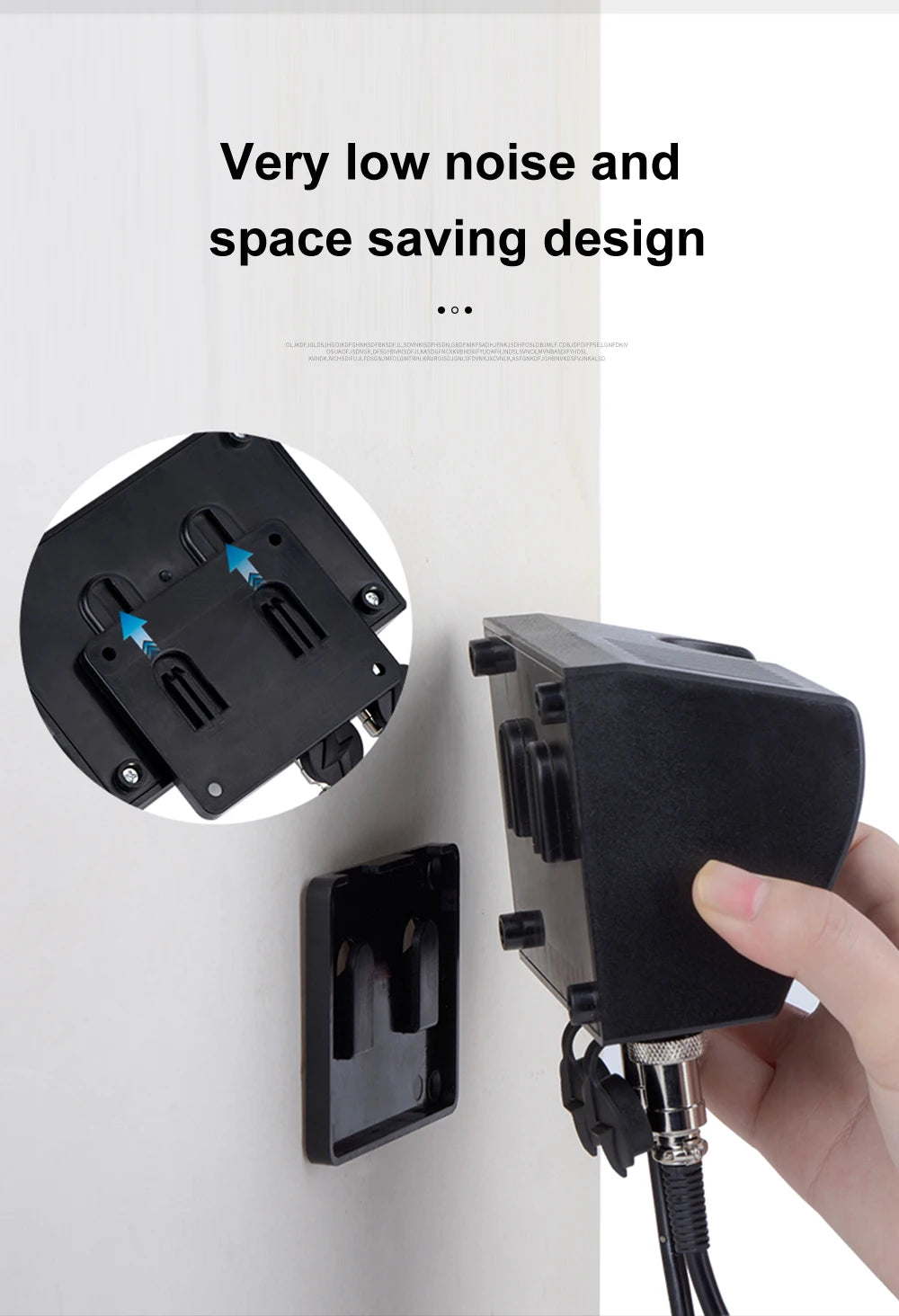

Extremely low noise and space saving design.

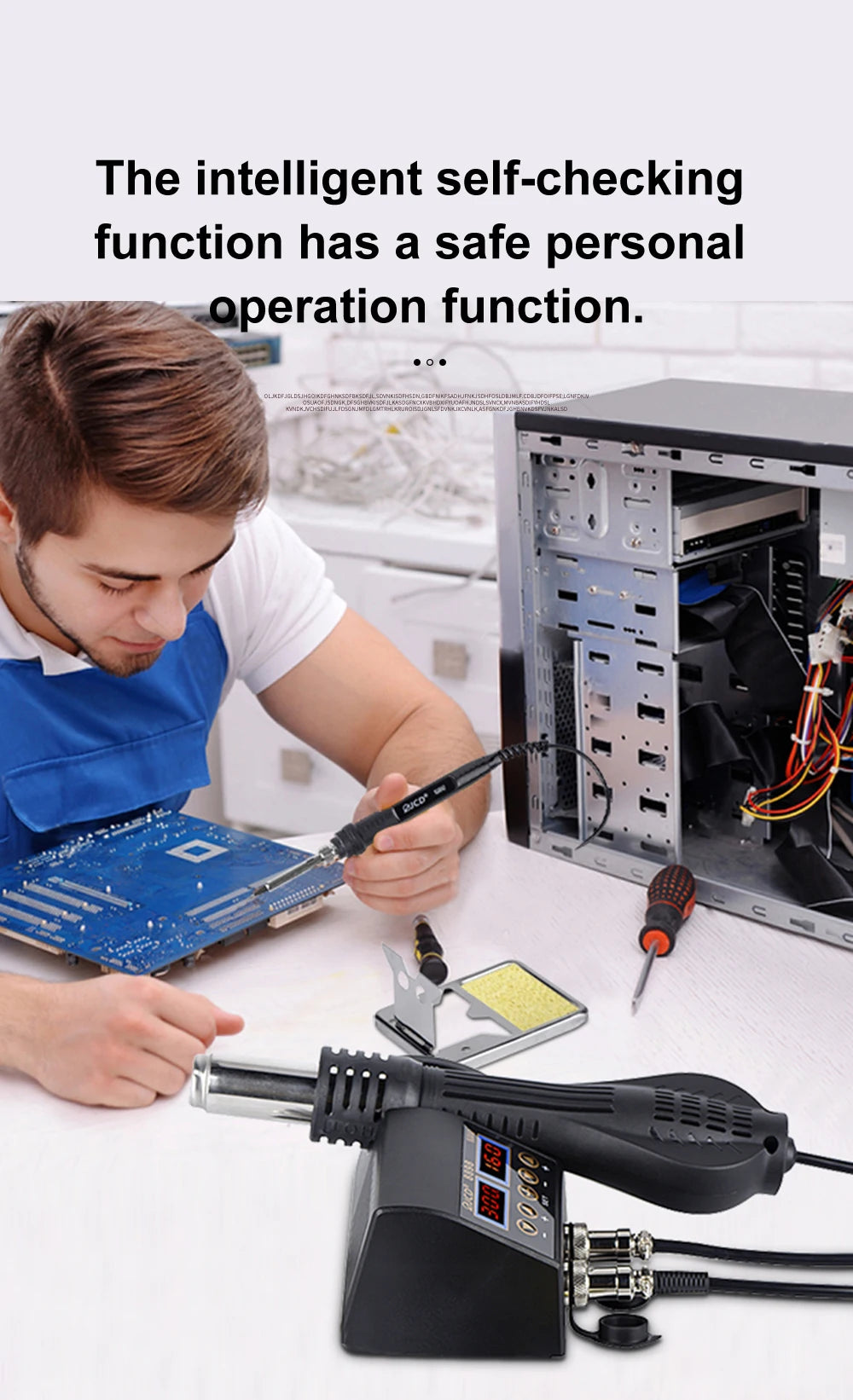

Intelligence self-detection function features safe personal operation.

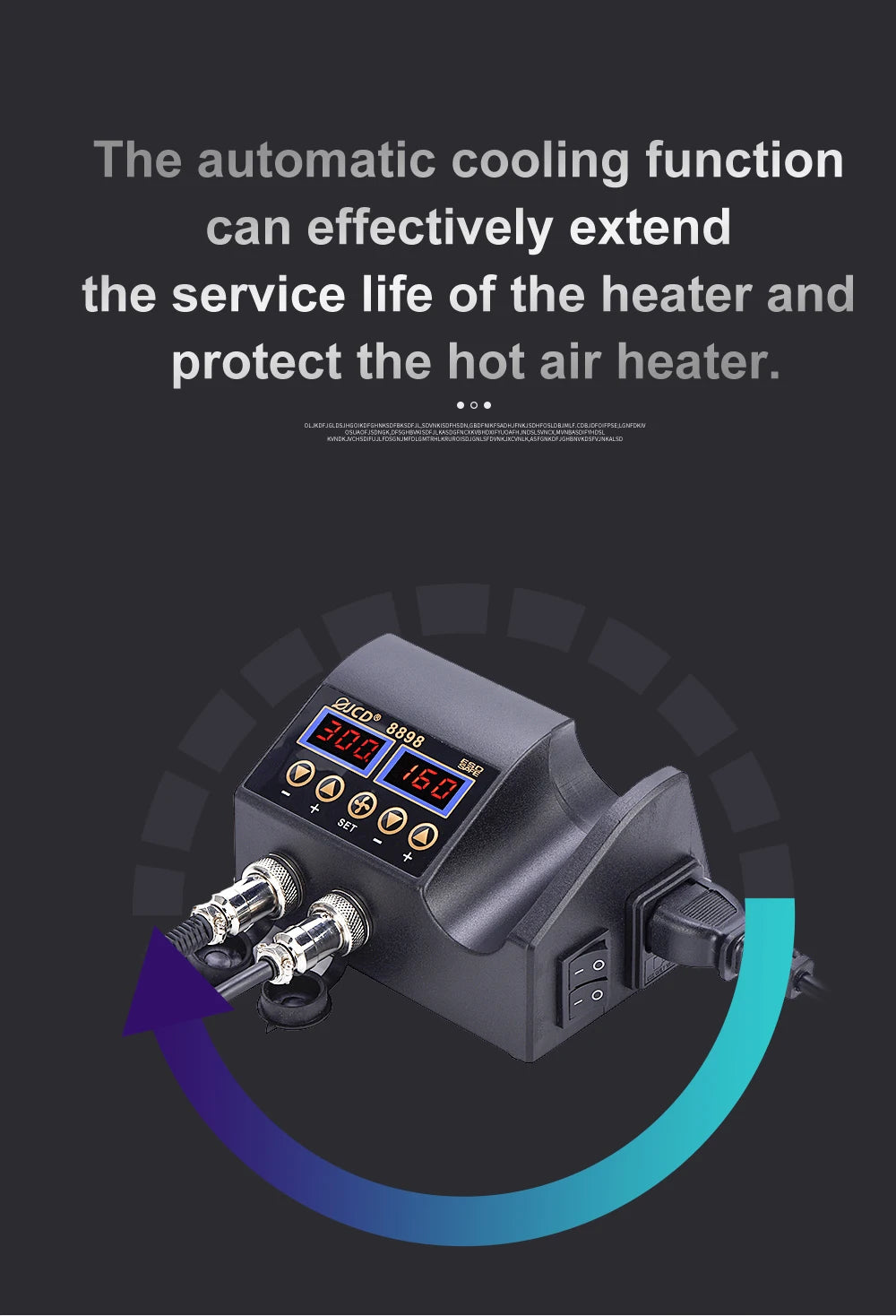

Automatic cooling function for effectively prolonging the heater's life and protecting the hot air heater.

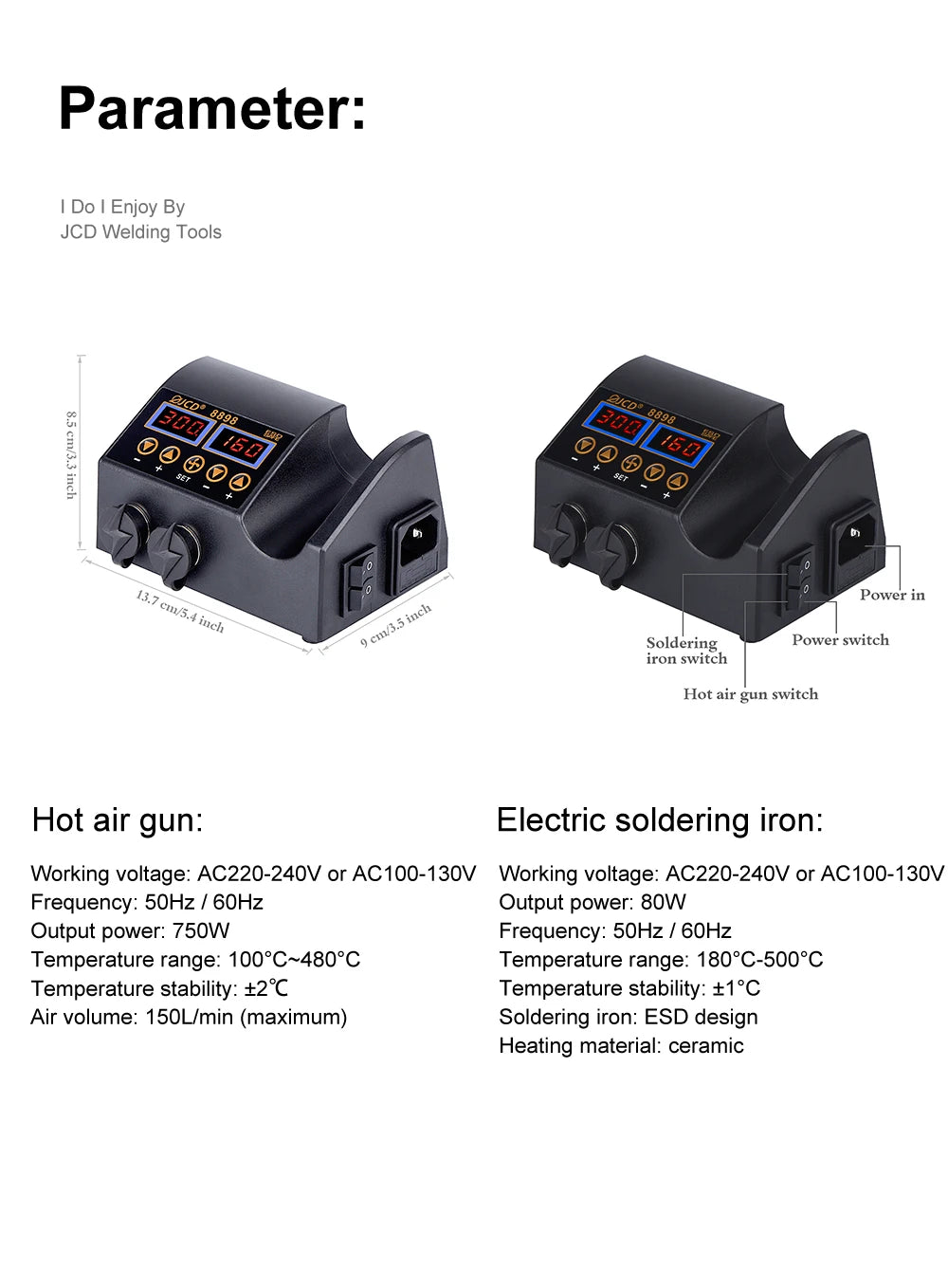

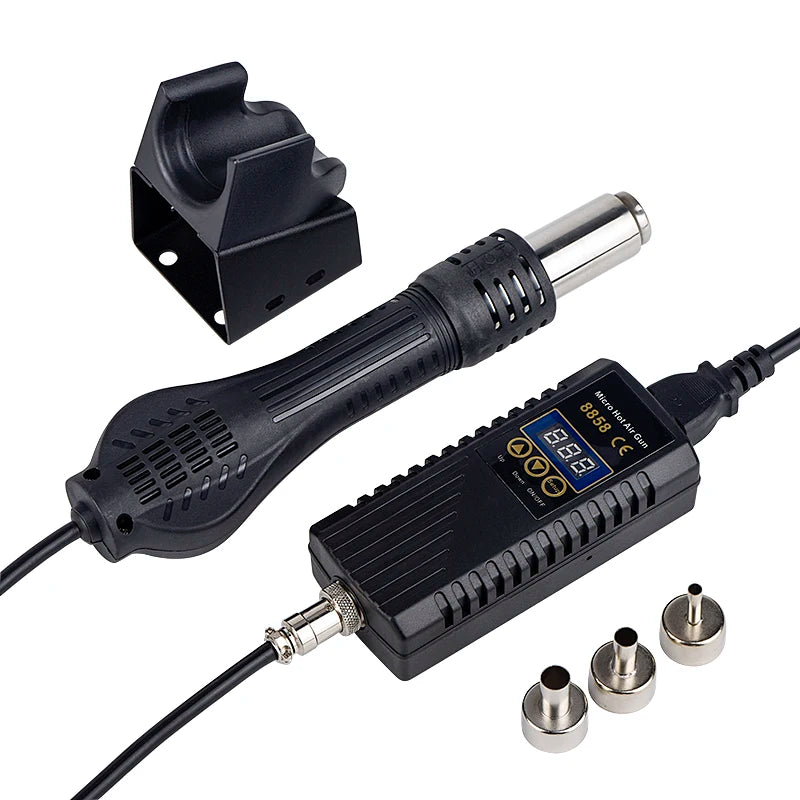

Hot air gun
Working Voltage: AC220-240V OR AC100-130V
Frequency: 50Hz/60Hz
Output Power: 750W
Temperature Range: 100°C~480°C
Temperature Stability:±2℃
Air Flow: 150L/min (max)

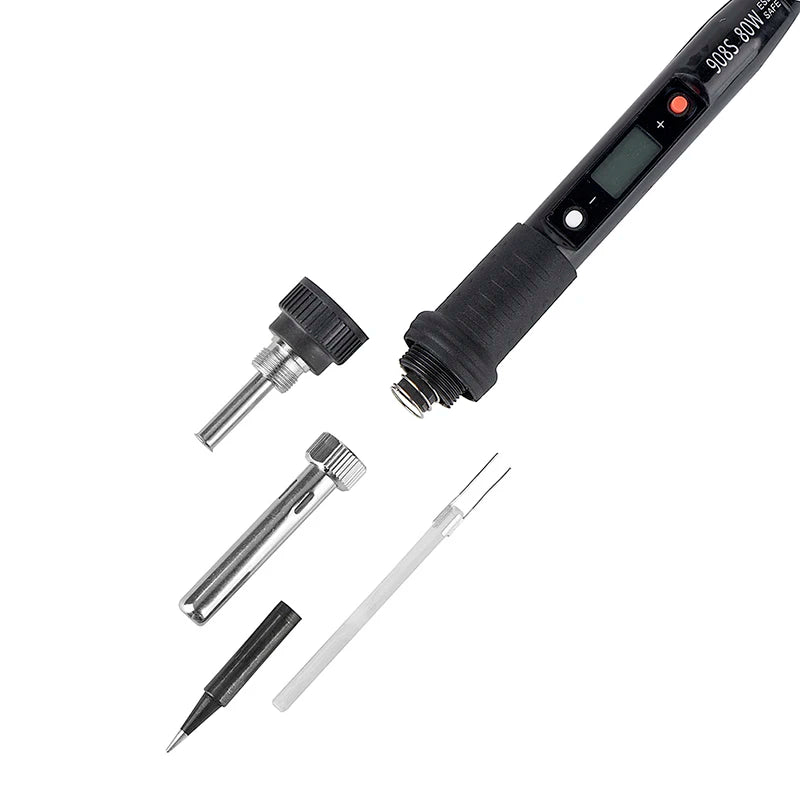

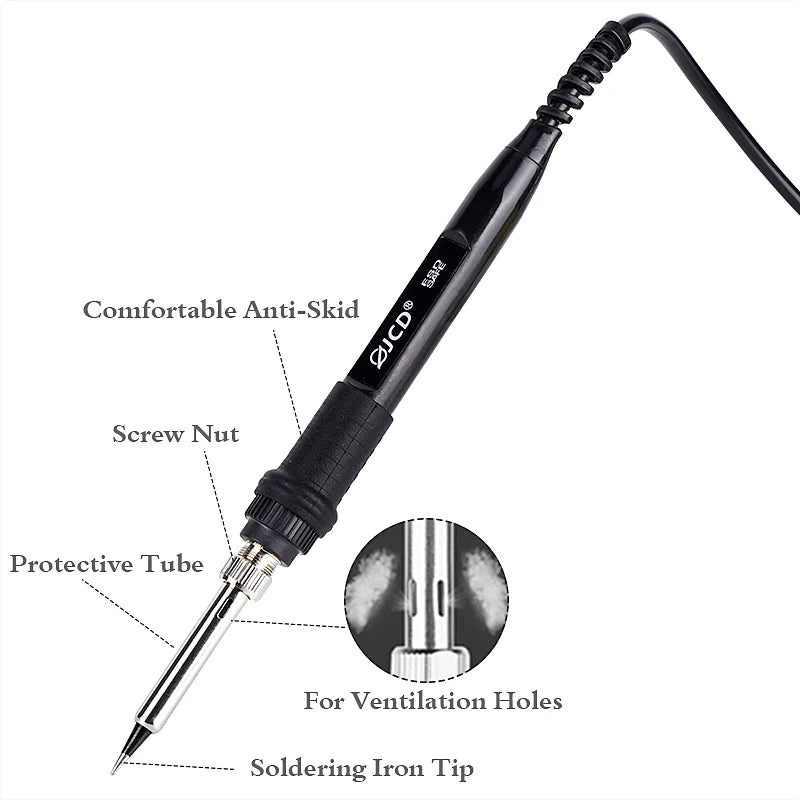

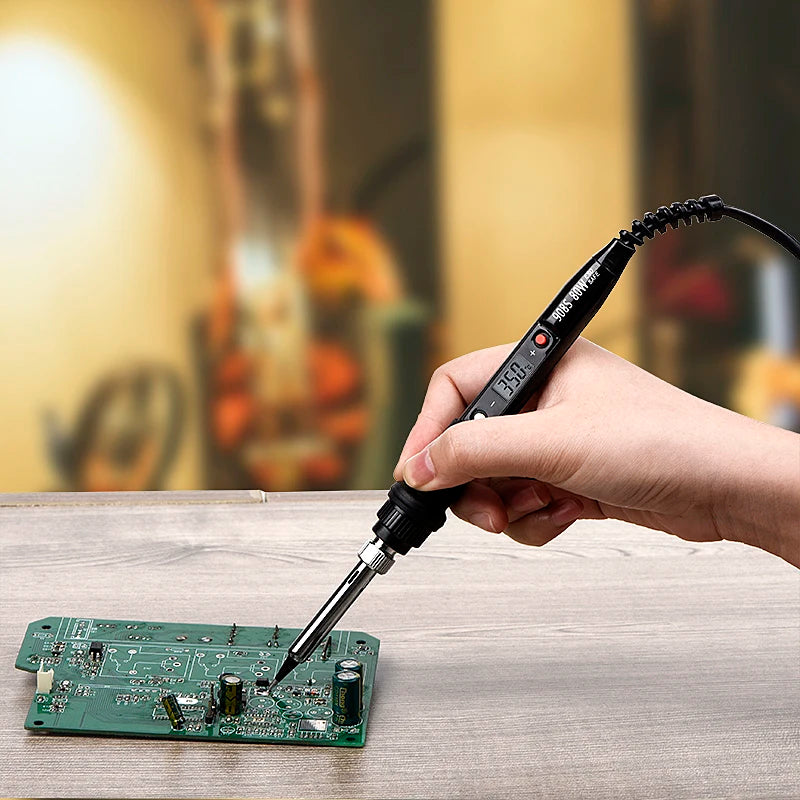

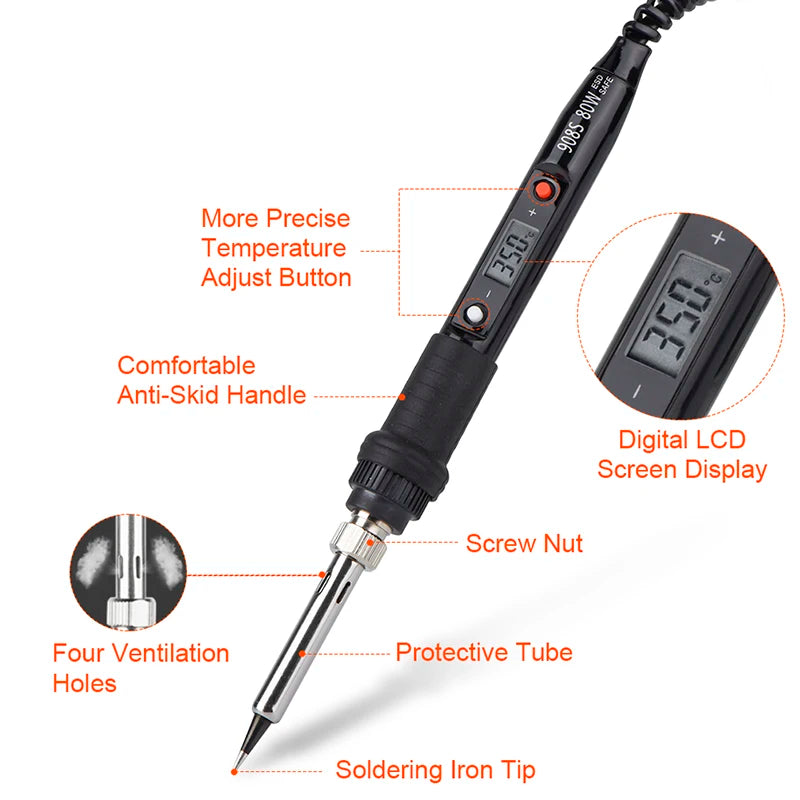

Soldering iron
Working Voltage: AC220-240V OR AC100-130V
Output Power: 80W
Frequency: 50Hz/60Hz
Temperature Range: 180°C-500°C
Temperature Stability: ±1°C

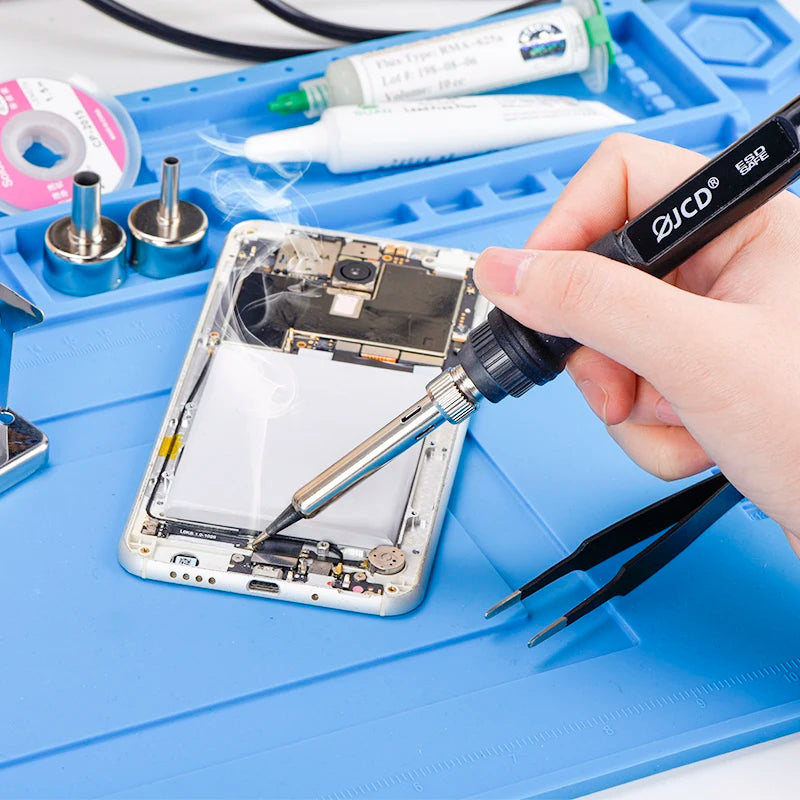

Soldering Iron : ESD design

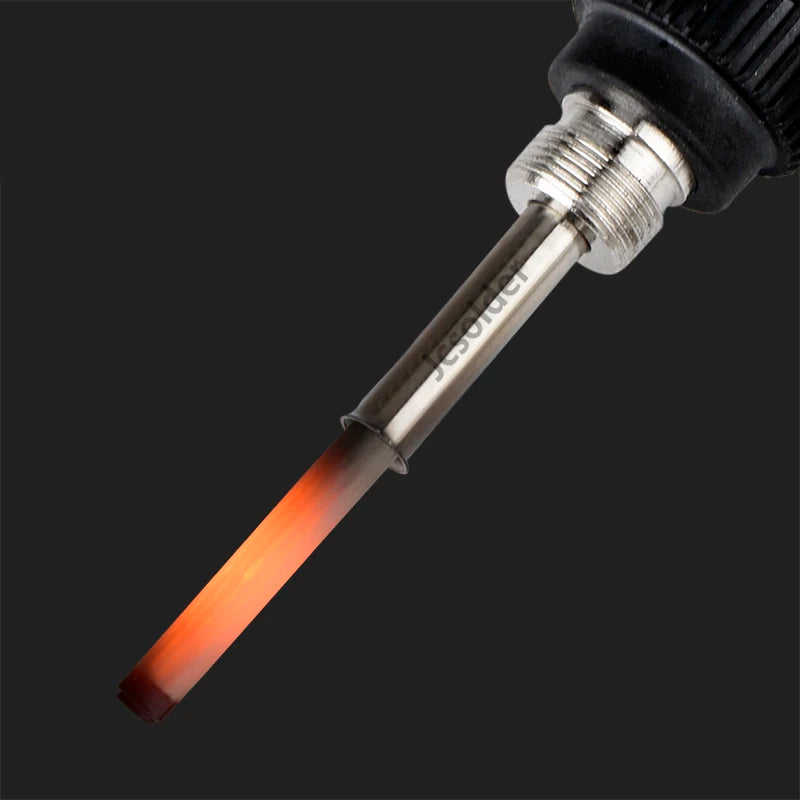

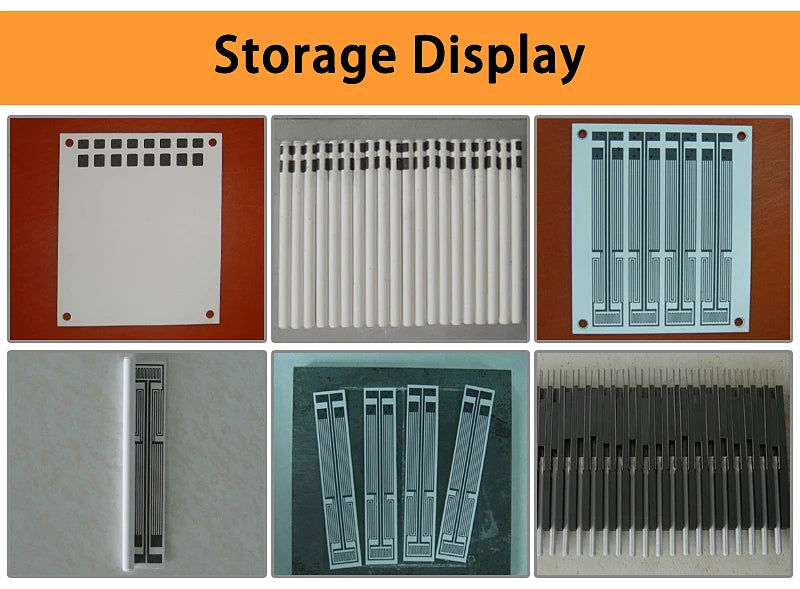

Heater Material : Ceramics
How to use:
1. Clean the electronic components to be soldered.
2. Once iron reaches temperature (not too high, recommend 300-400℃).
3. Apply a little solder to the heated iron tip to prevent oxidation, then rub the iron tip to evenly extend the solder to the surface of the iron tip.
4. Start to solder
