SPECIFICATIONS

Brand Name: JCD

Certification: CE

Feature 1: 8898 Soldering station

Feature 10: Accurate temperature

Feature 2: 110V/220V Soldering Station

Feature 3: Use for BGA SMD PCB IC Cell-phone Repair

Feature 4: Welding tools

Feature 5: Repair welding station

Feature 6: Electronic service tools

Feature 7: Mobile phone maintenance tools

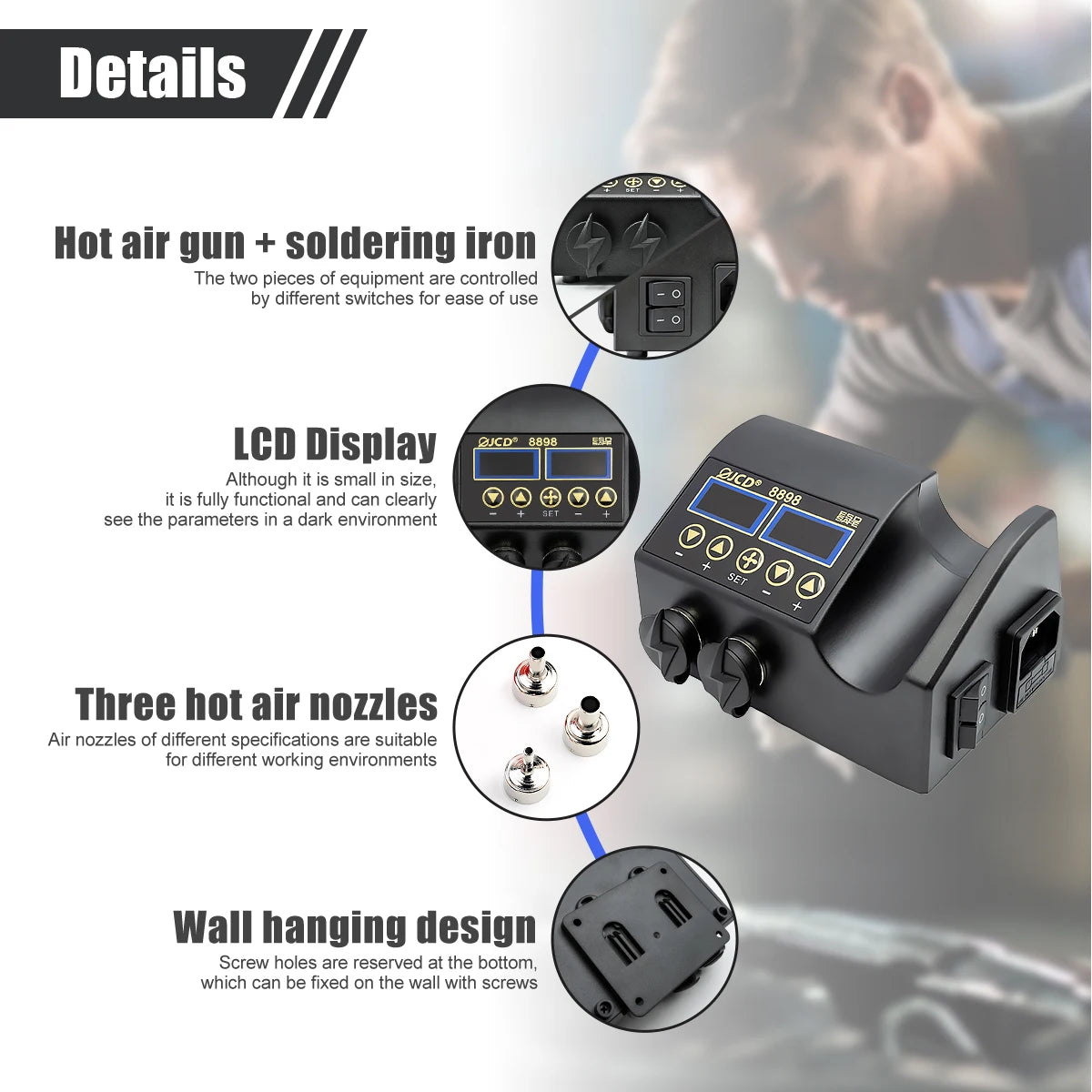

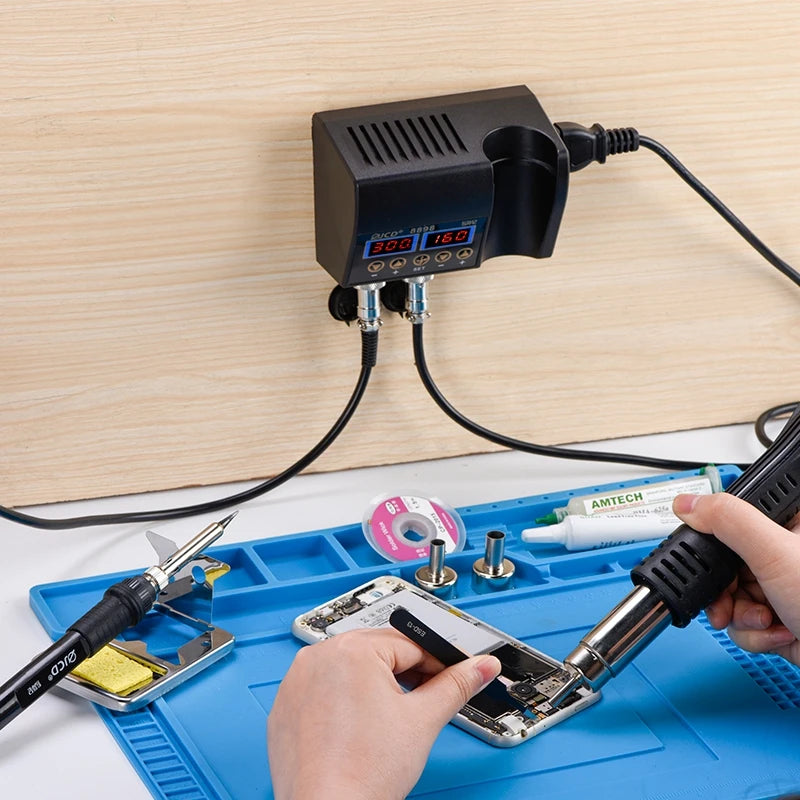

Feature 8: Wall mountable

Feature 9: Rapid warming

High-concerned chemical: none

Hot air gun Power: 750W

Model Number: 8898

Origin: Mainland China

Soldering iron power: 80W

is_customized: Yes

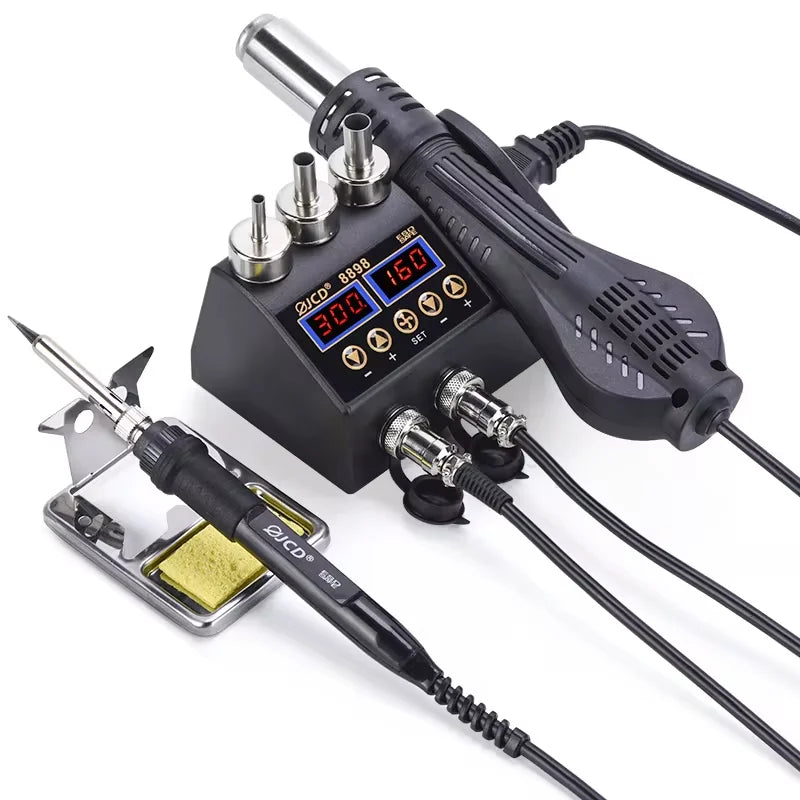

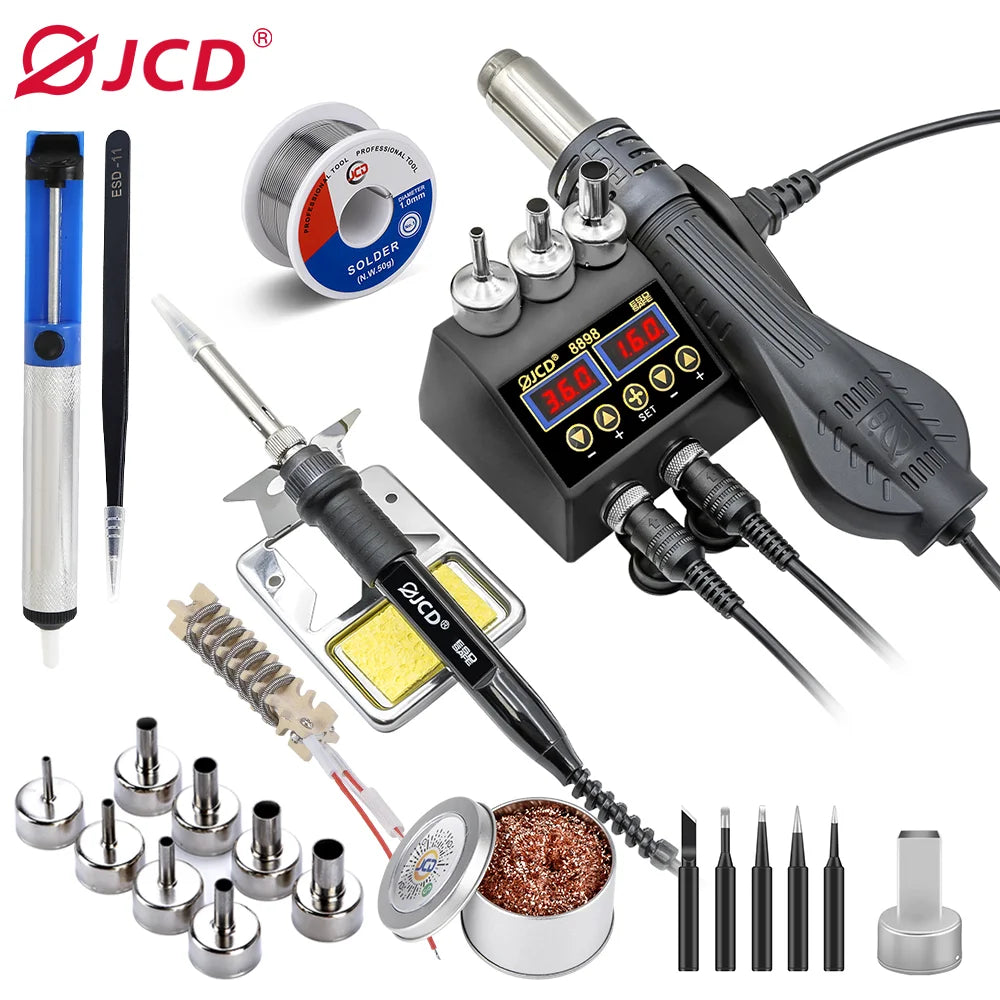

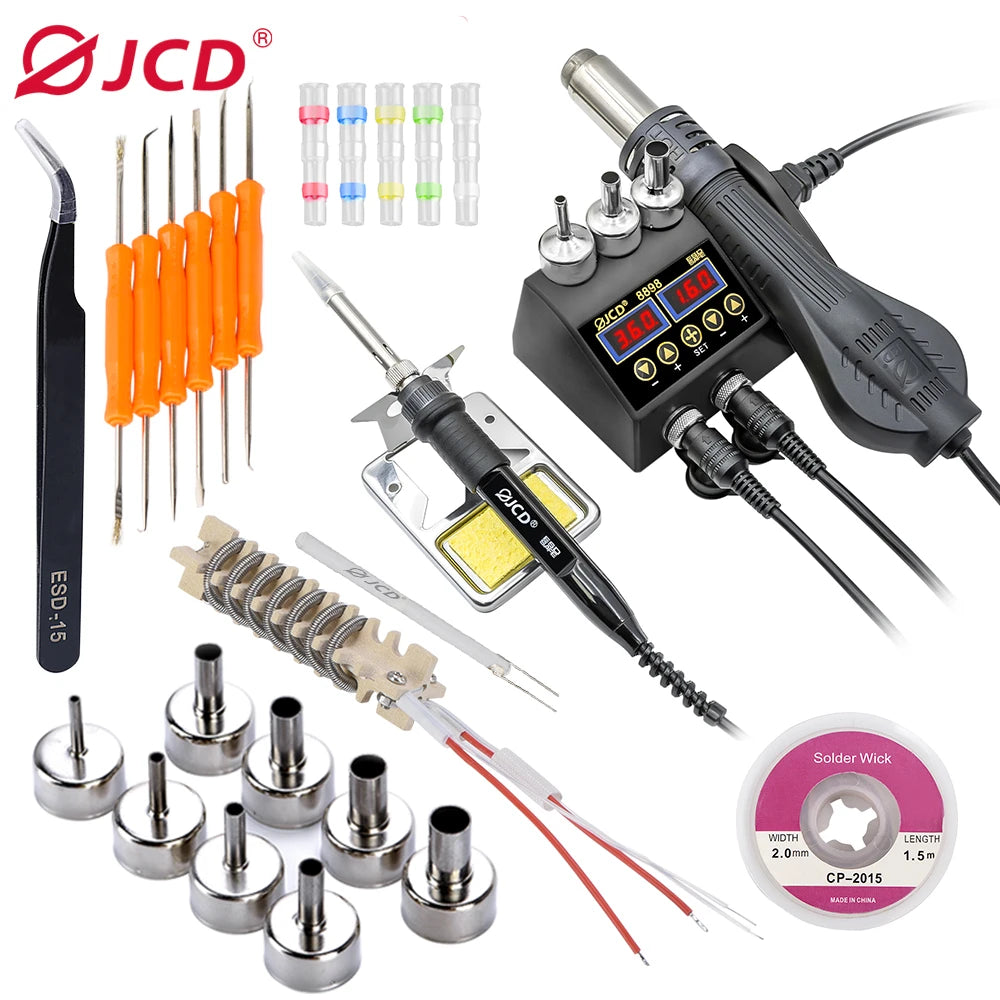

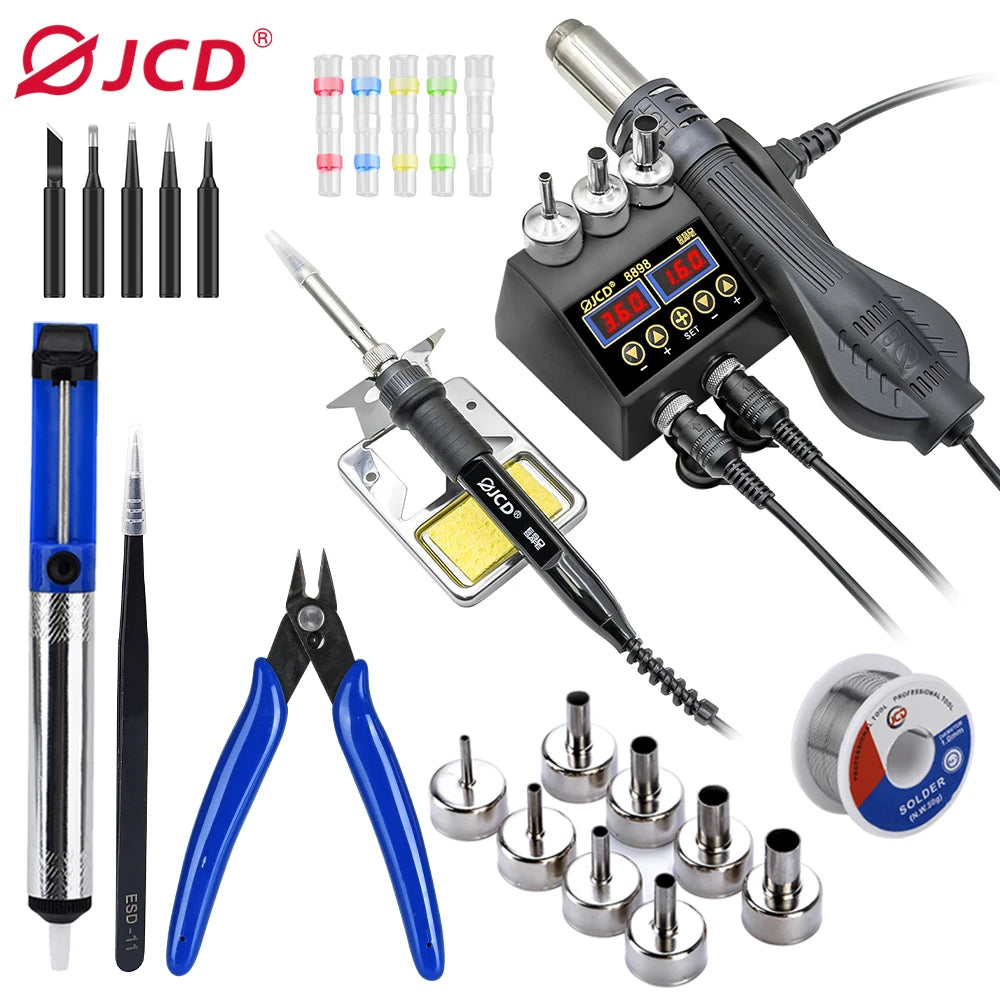

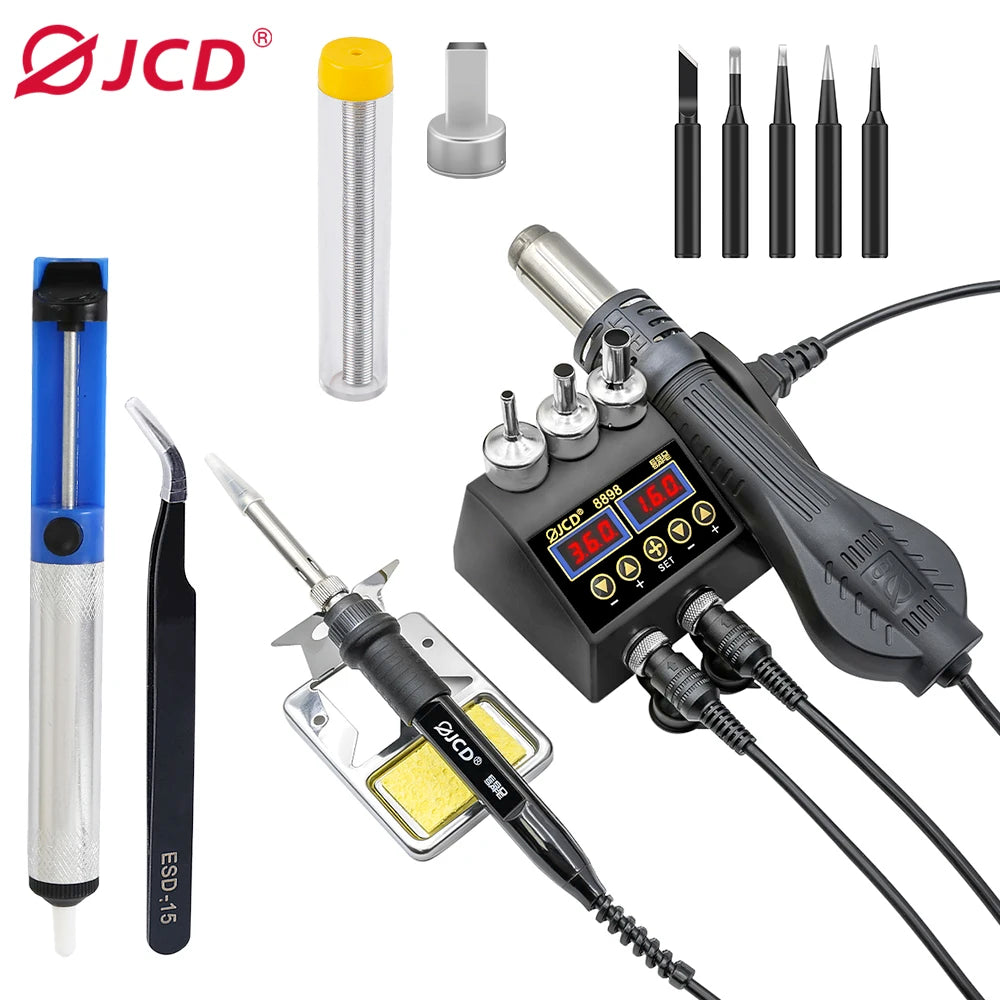

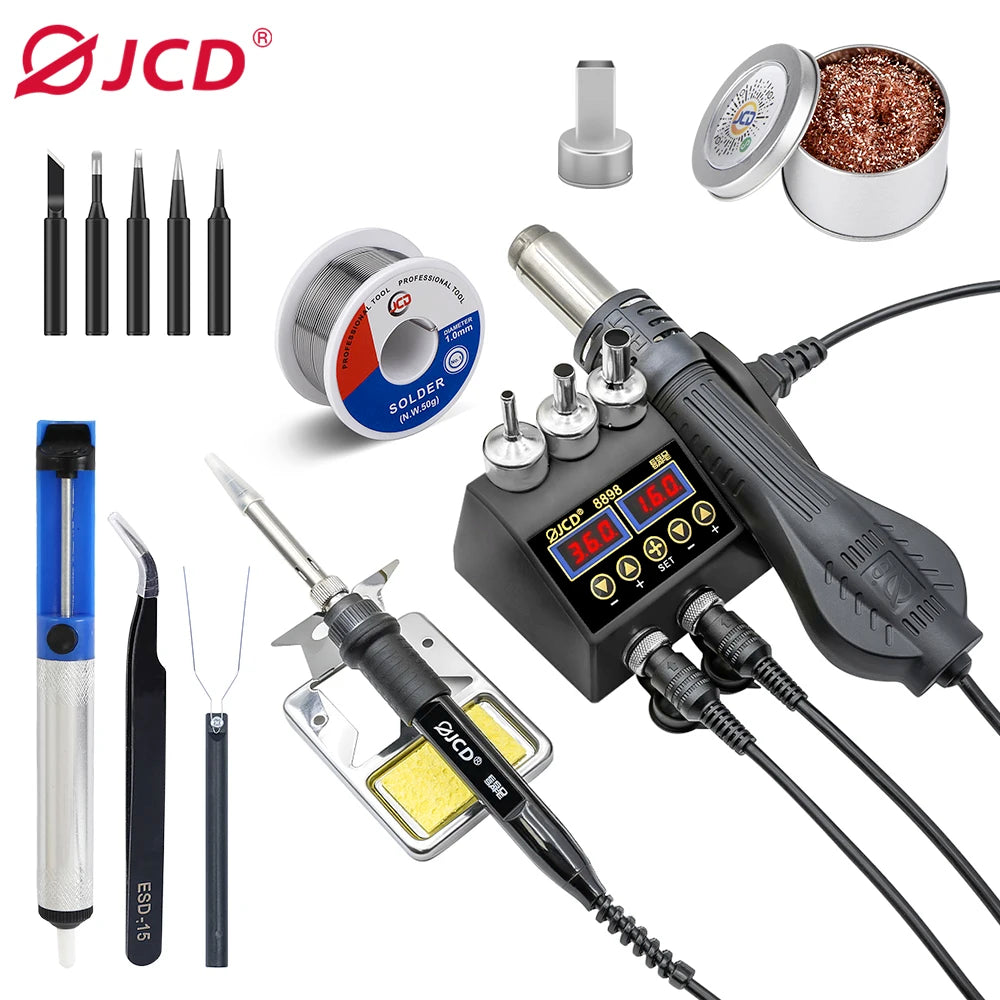

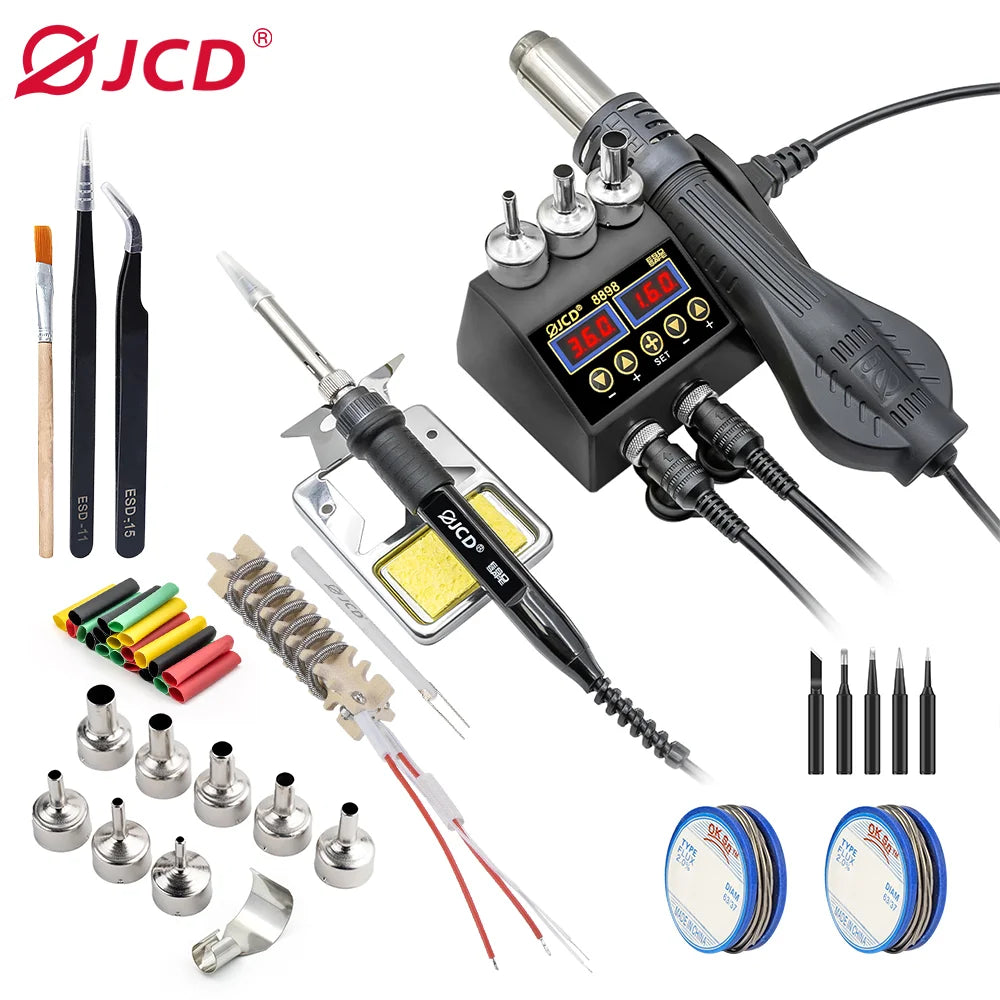

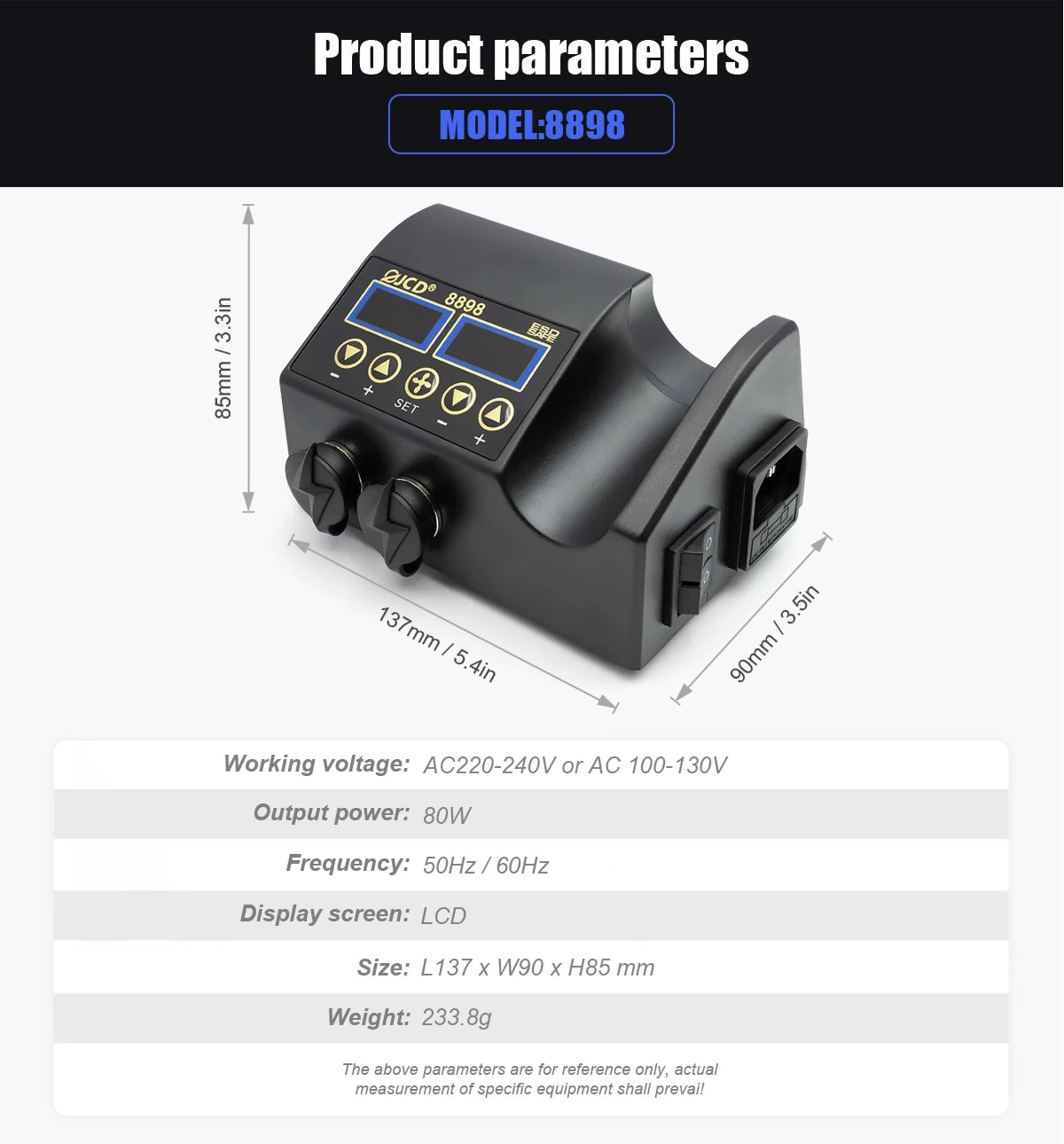

JCD 750W SMD Rework Soldering Station 2 in 1 hot air soldering iron LCD Digital display welding station for BGA PCB IC Repair 8898

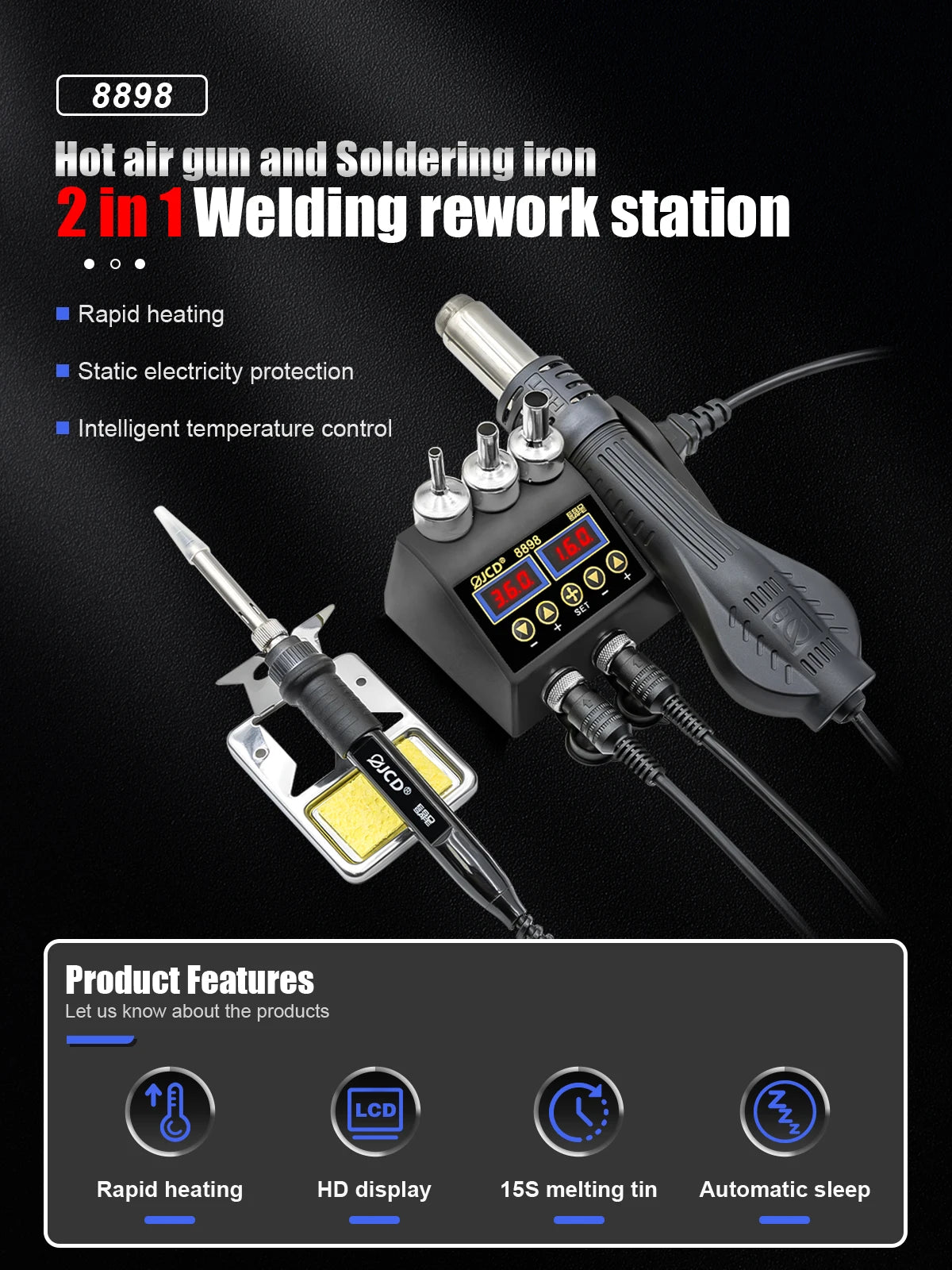

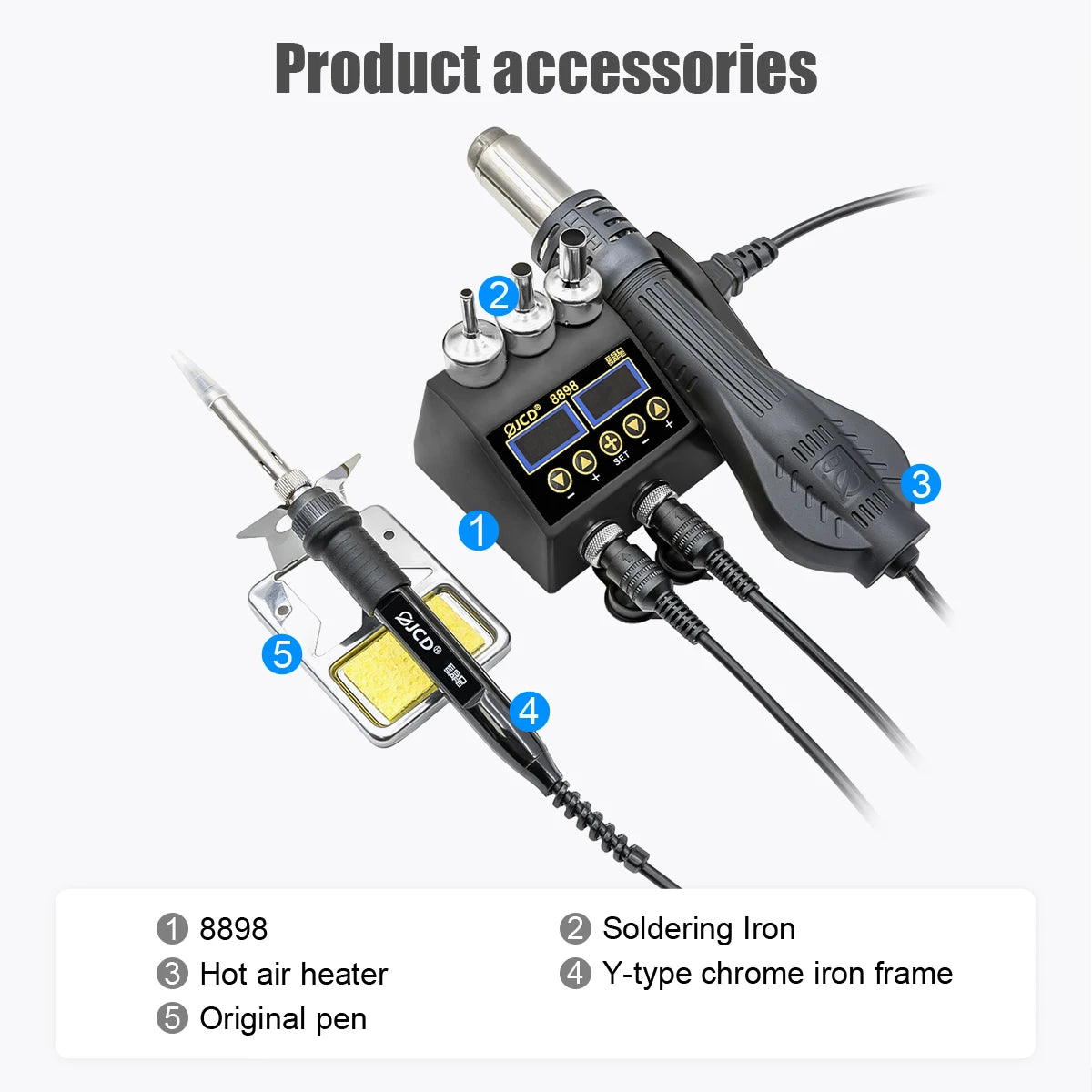

Hot air heater and welding iron 2in1 rework soldering station.

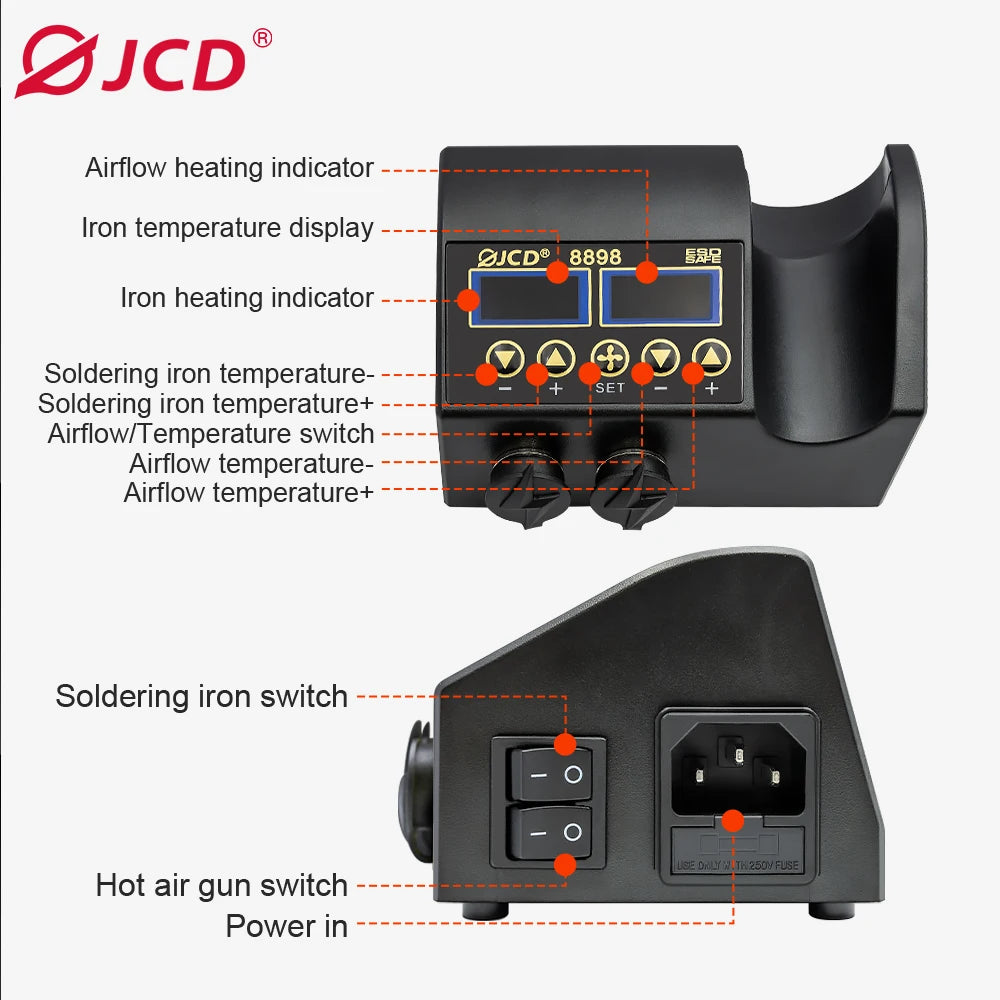

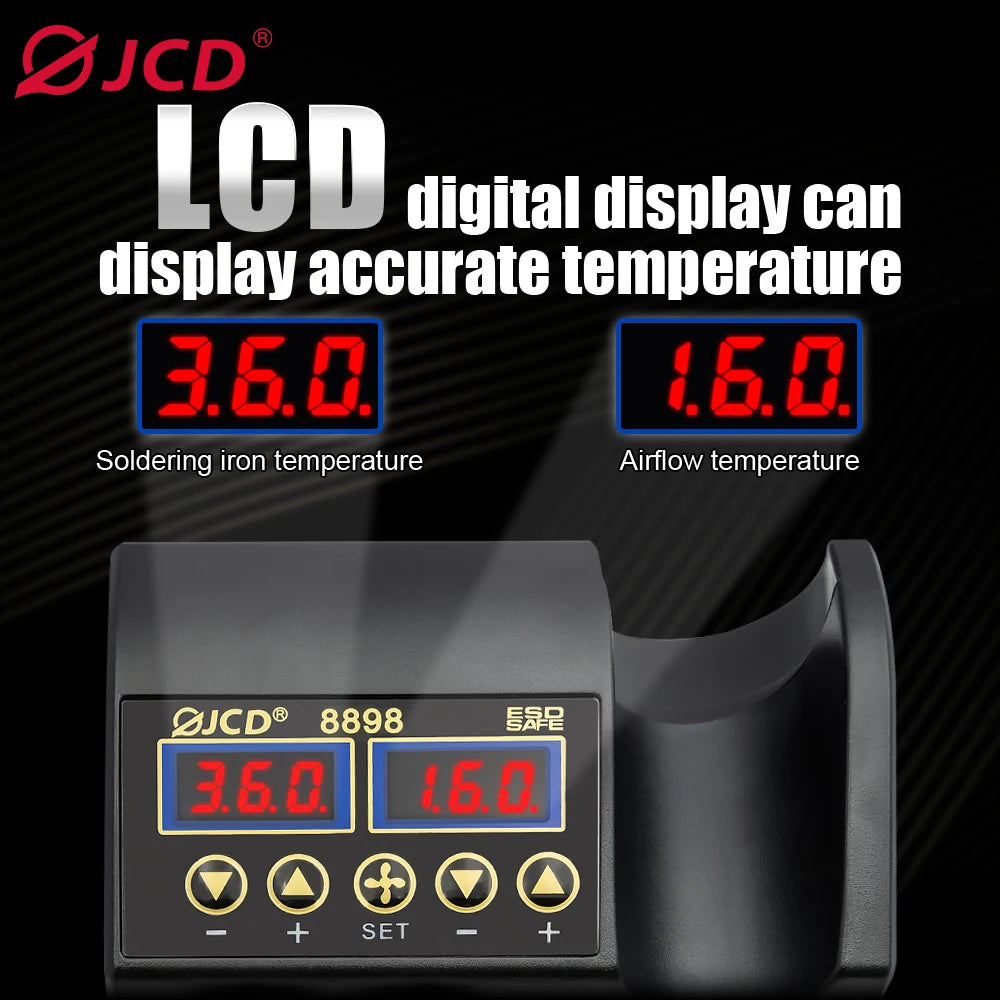

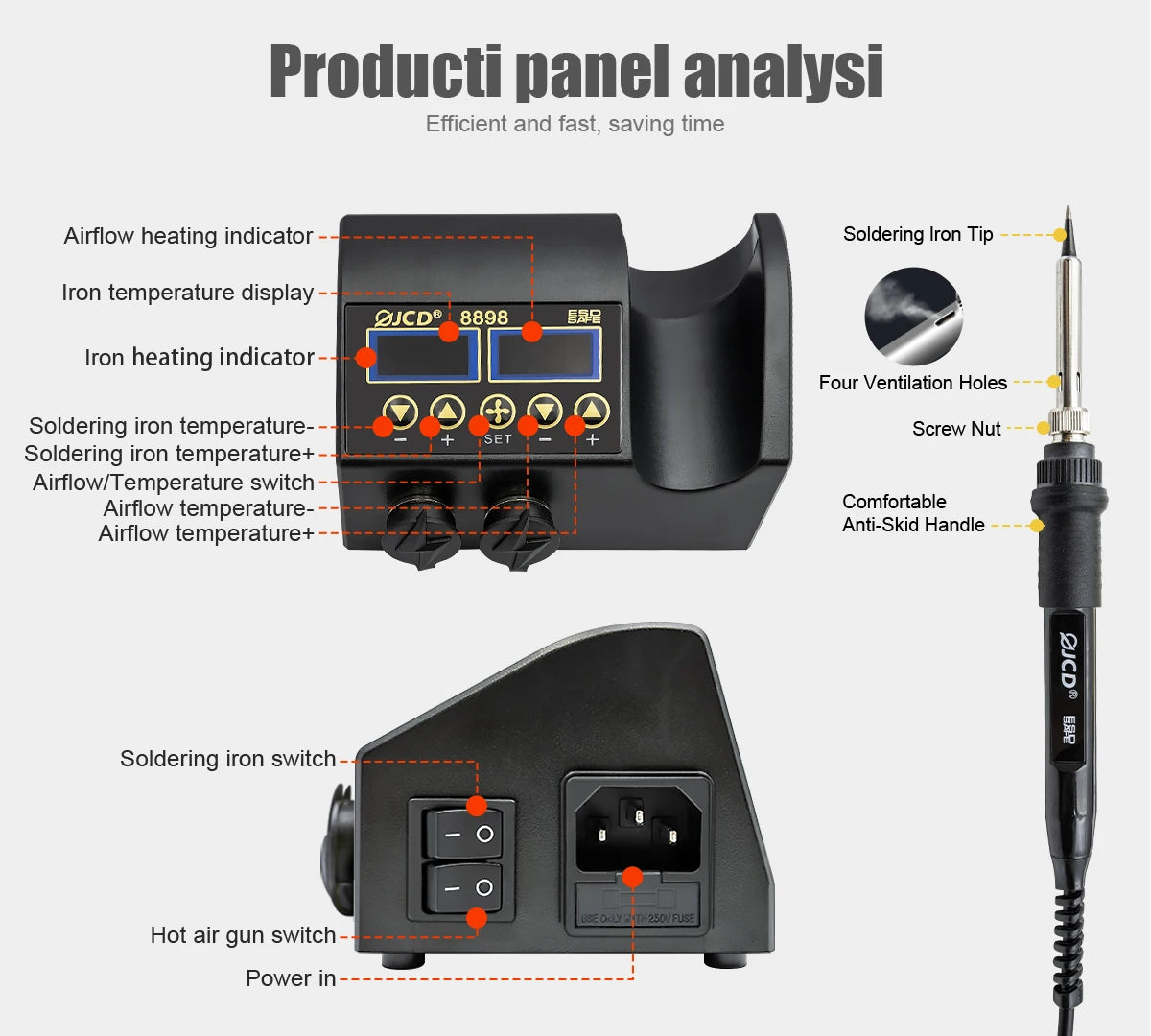

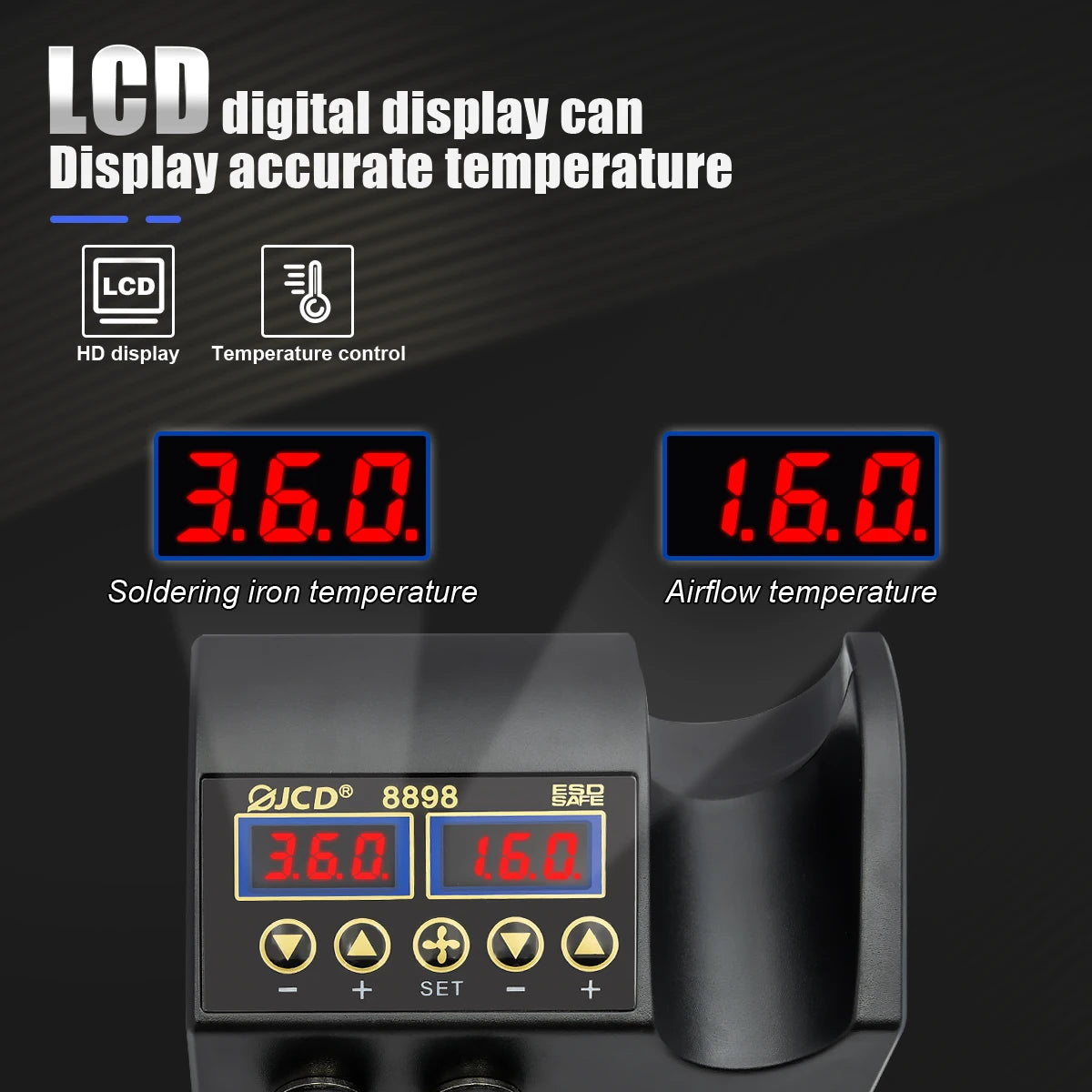

Dual LCD digital displays to show precision temperature.

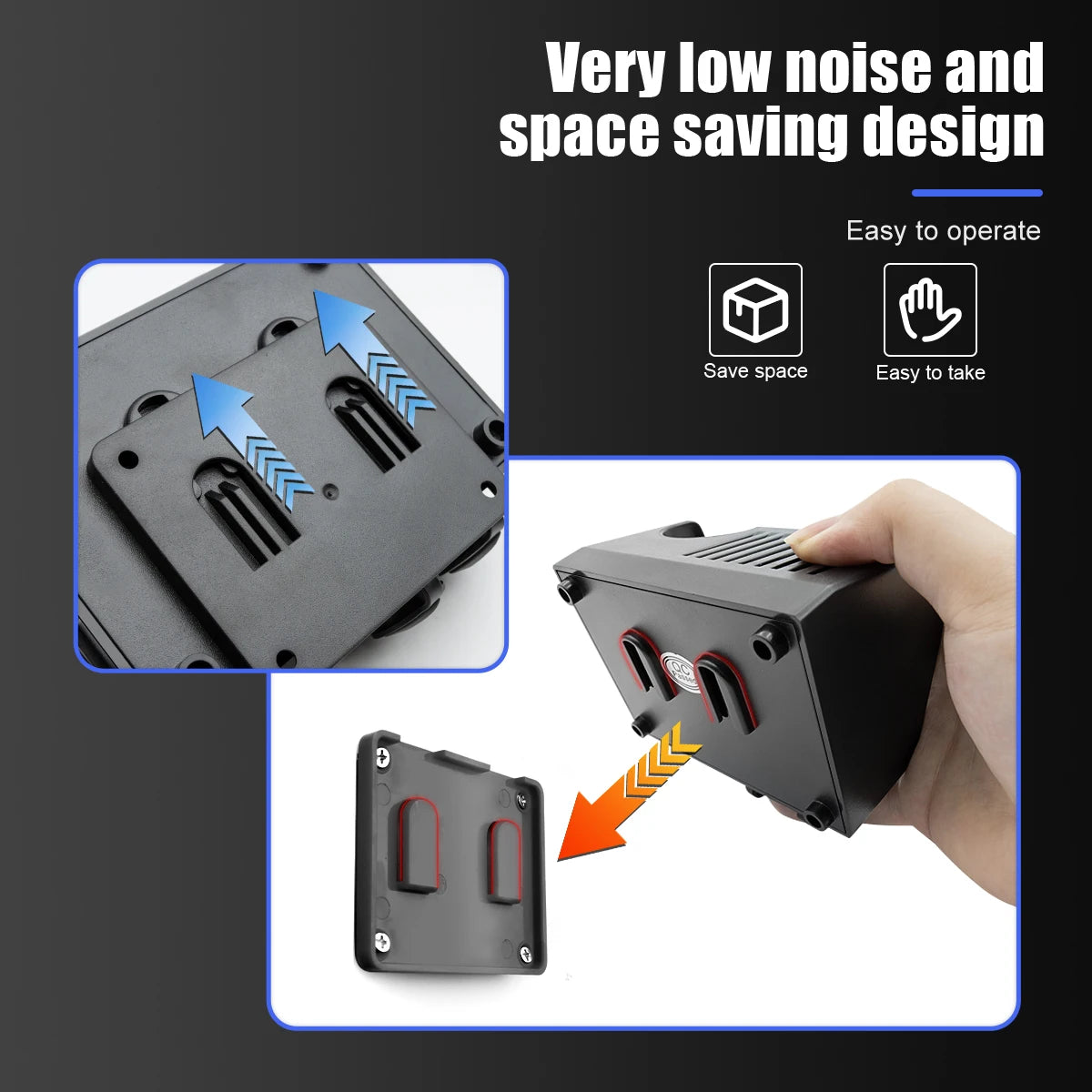

Extremely low noise and space saving design.
Intelligence self-detection function features safe personal operation.

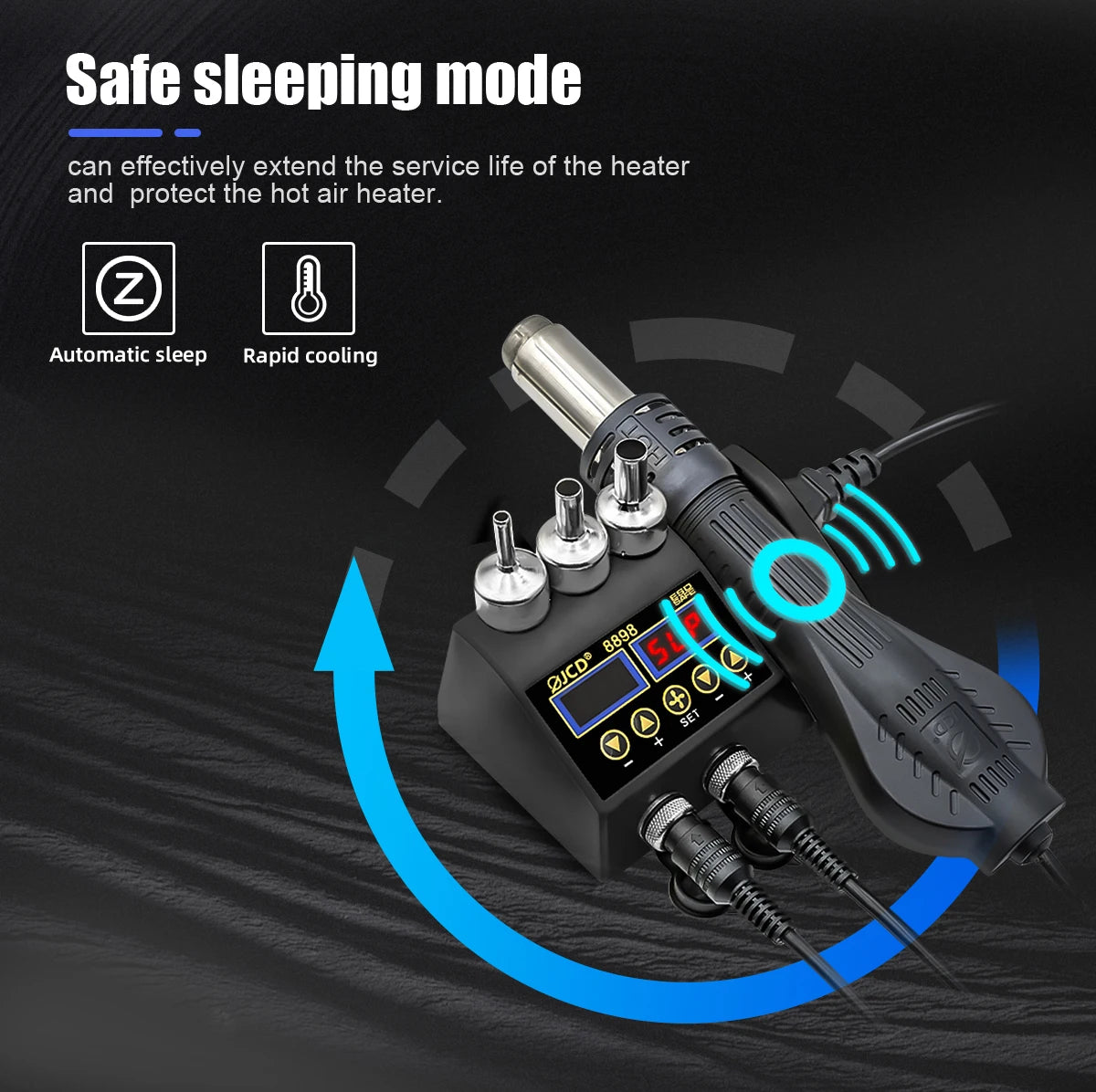

Automatic cooling function for effectively prolonging the heater's life and protecting the hot air heater.

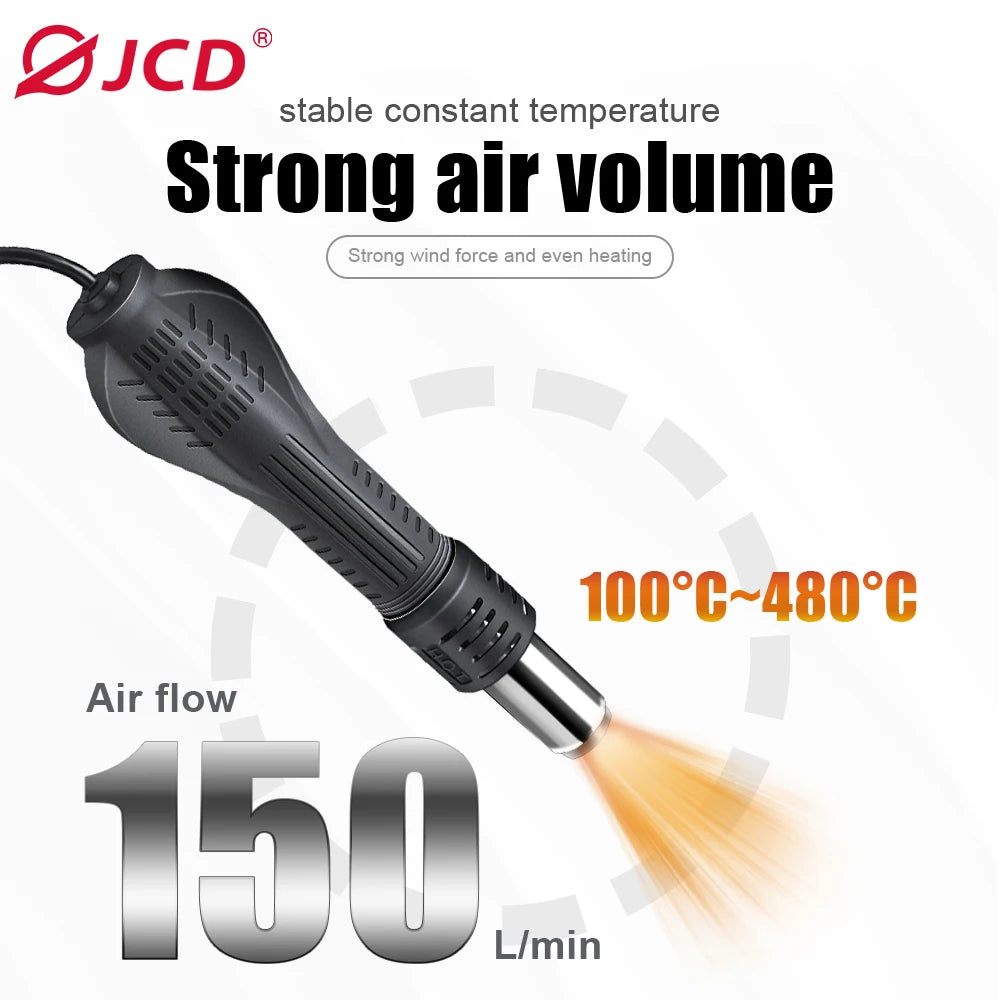

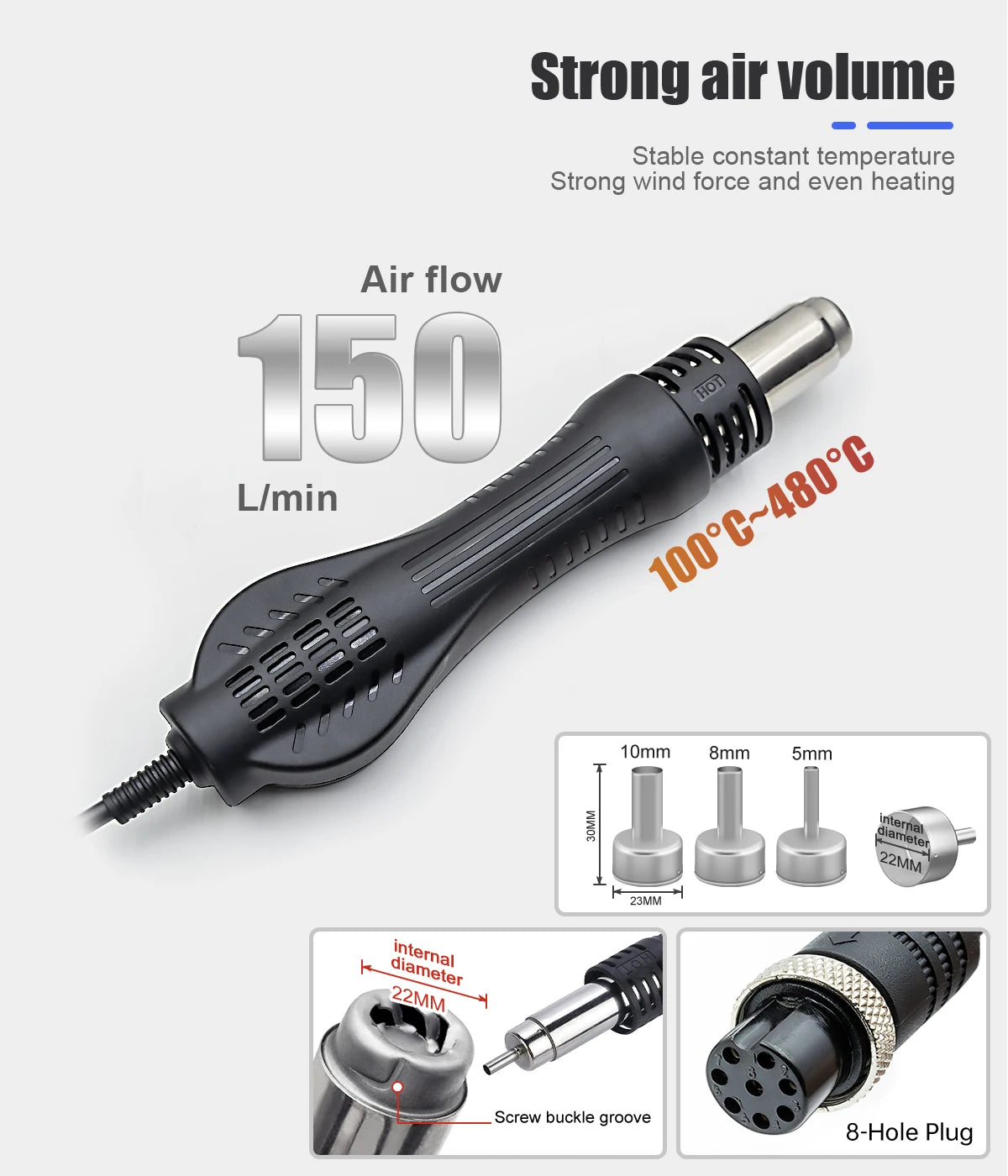

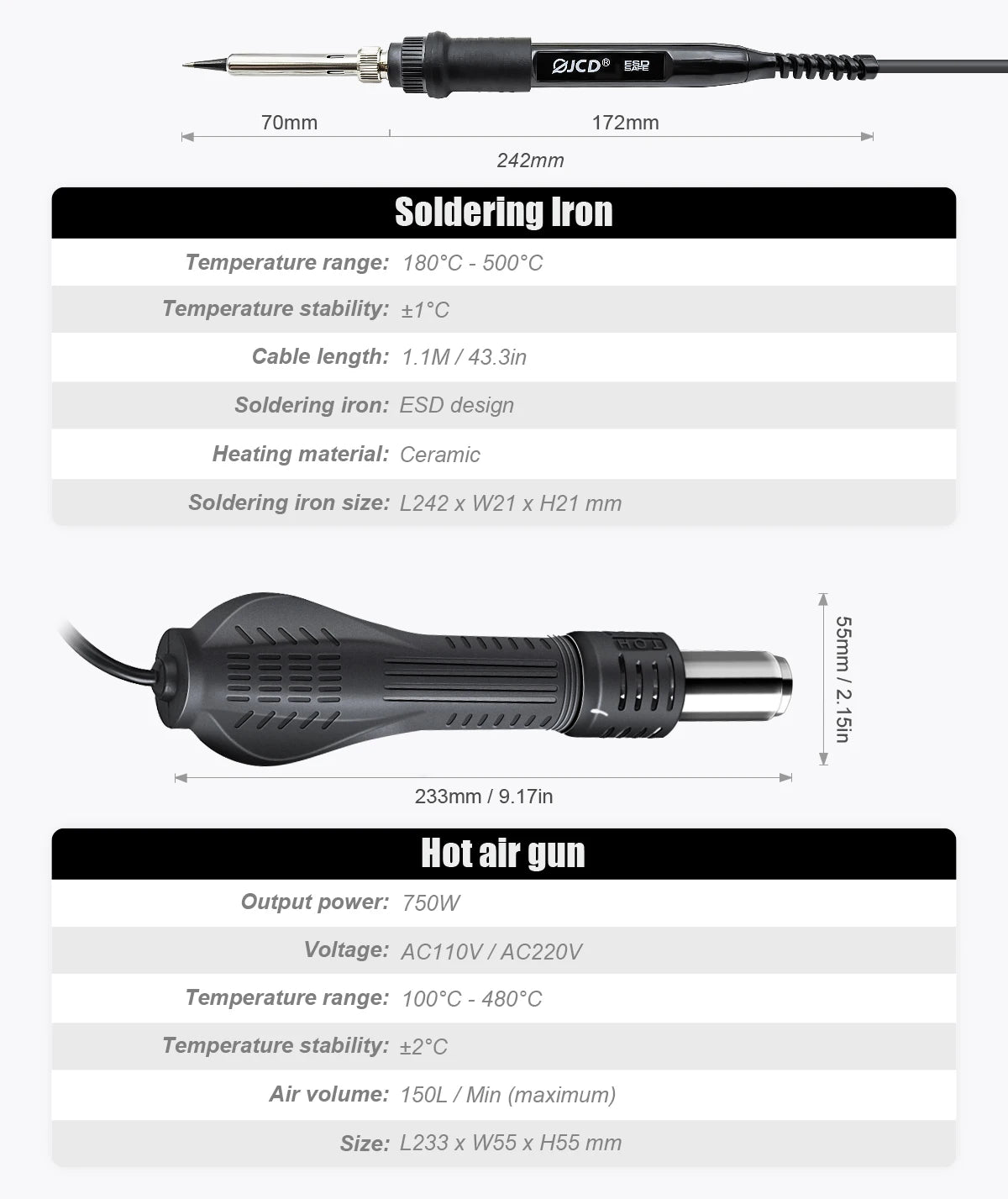

Hot air gun
Working Voltage: AC220-240V OR AC100-130V
Frequency: 50Hz/60Hz
Output Power: 750W
Temperature Range: 100°C~500°C
Temperature Stability:±1℃
Air Flow: 150L/min (max)

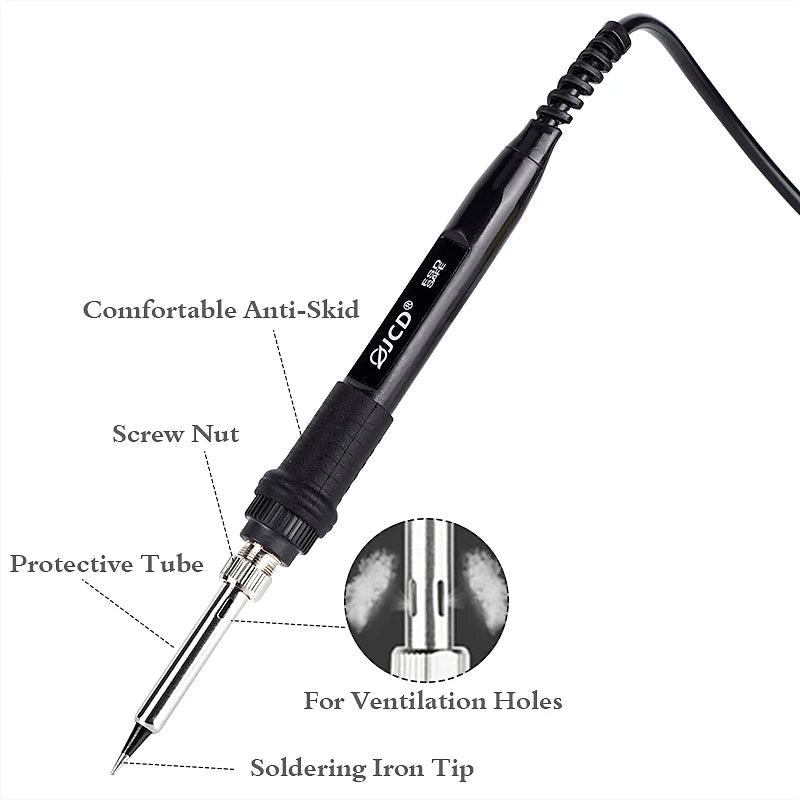

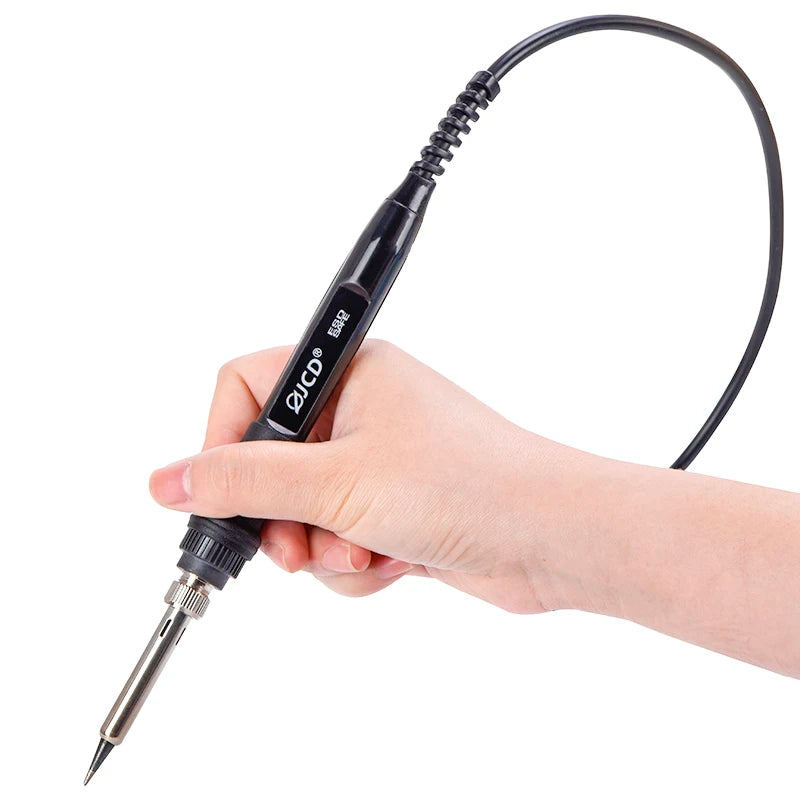

Soldering iron
Working Voltage: AC220-240V OR AC100-130V
Output Power: 80W
Frequency: 50Hz/60Hz
Temperature Range: 180°C-500°C
Temperature Stability: ±1°C

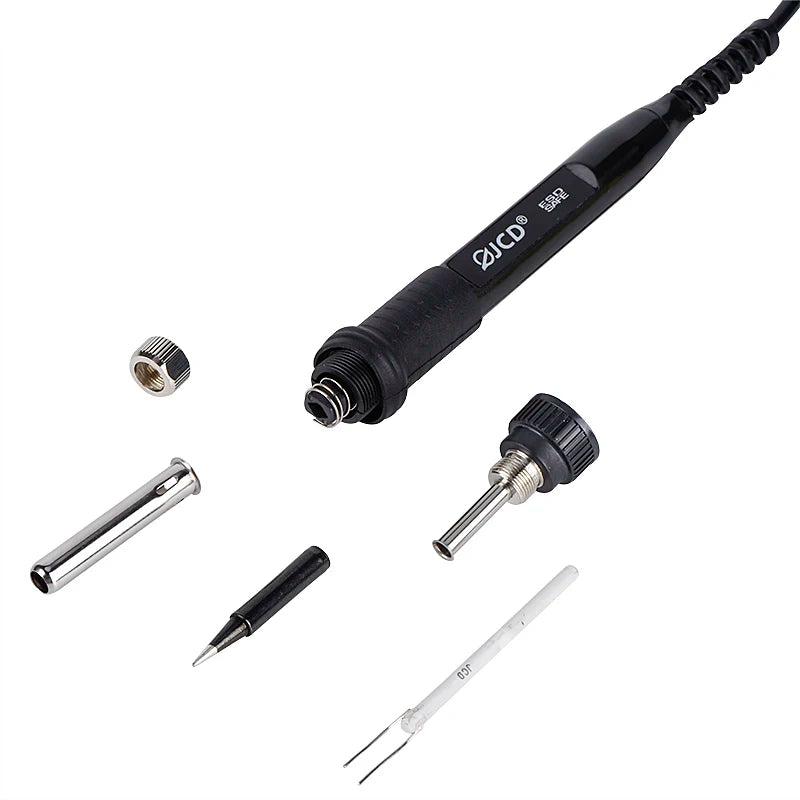

Soldering Iron : ESD design

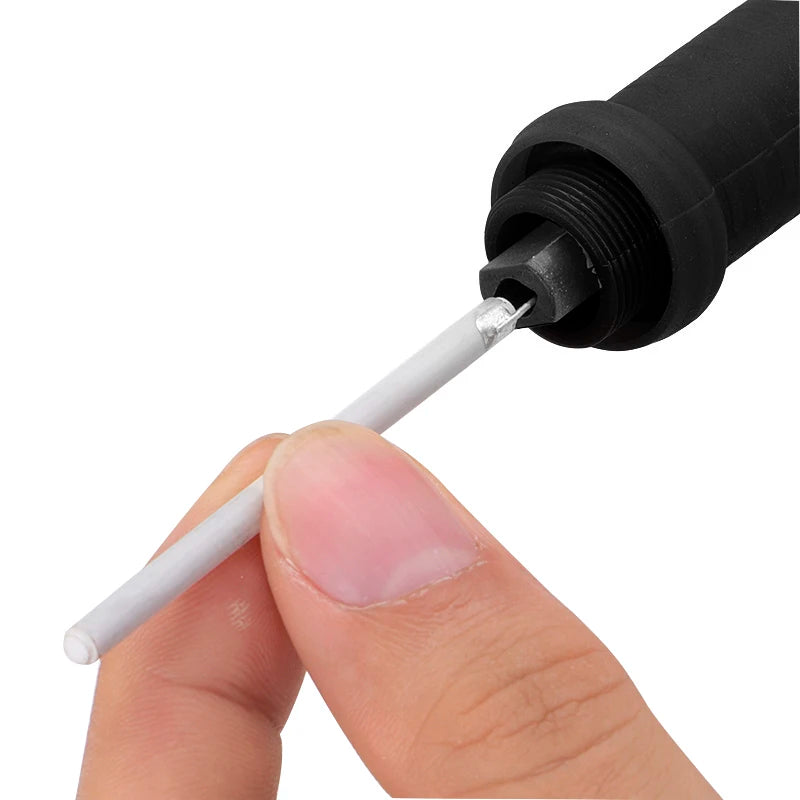

Heater Material : Ceramics

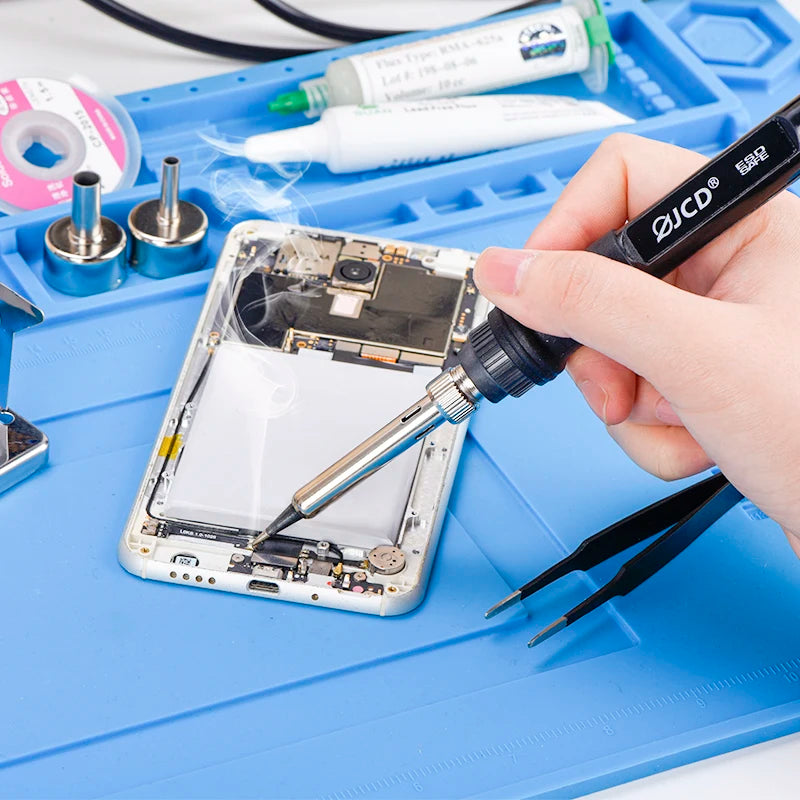

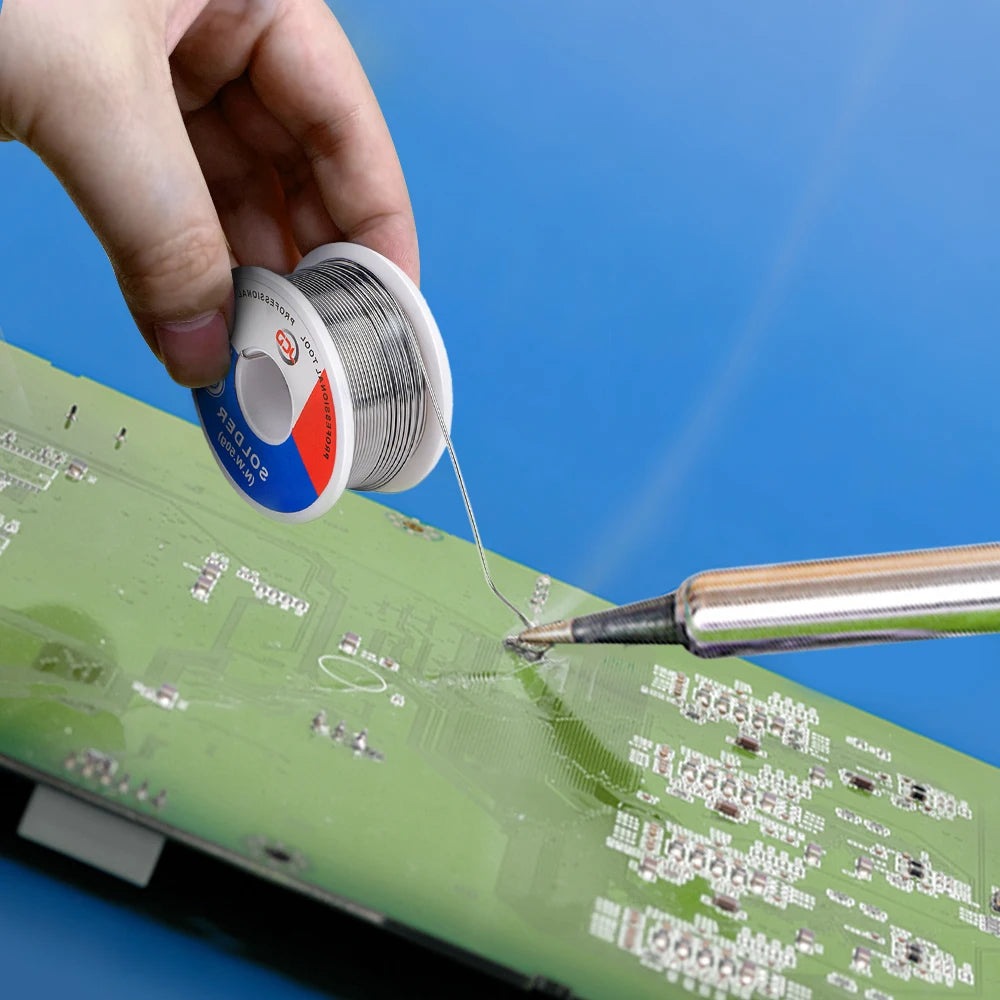

How to use:
1. Clean the electronic components to be soldered.
2. Once iron reaches temperature (not too high, recommend 300-400℃).
3. Apply a little solder to the heated iron tip to prevent oxidation, then rub the iron tip to evenly extend the solder to the surface of the iron tip.
4. Start to solder
