SPECIFICATIONS

1: 8898 Soldering Station

2: Hot air gun

3: Electric soldering iron

4: Soldering rework tool

Brand Name: JCD

Certification: CE

Electric soldering iron: 180-500℃

Feature 1: Local shipment from Brazil

Feature 2: Local shipping in the United States

Feature 3: Local shipment from Spain

High-concerned chemical: none

Hot air gun: 750W

Model Number: 8898

Origin: Mainland China

is_customized: Yes

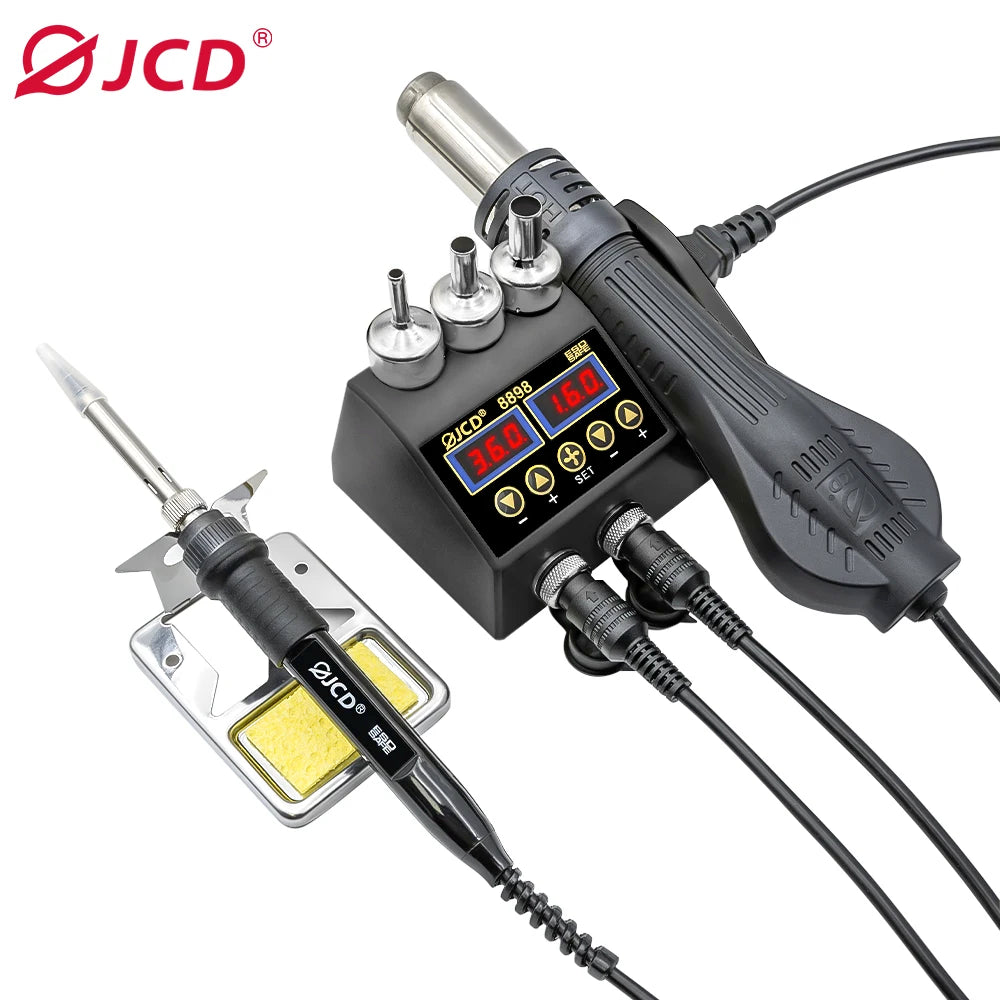

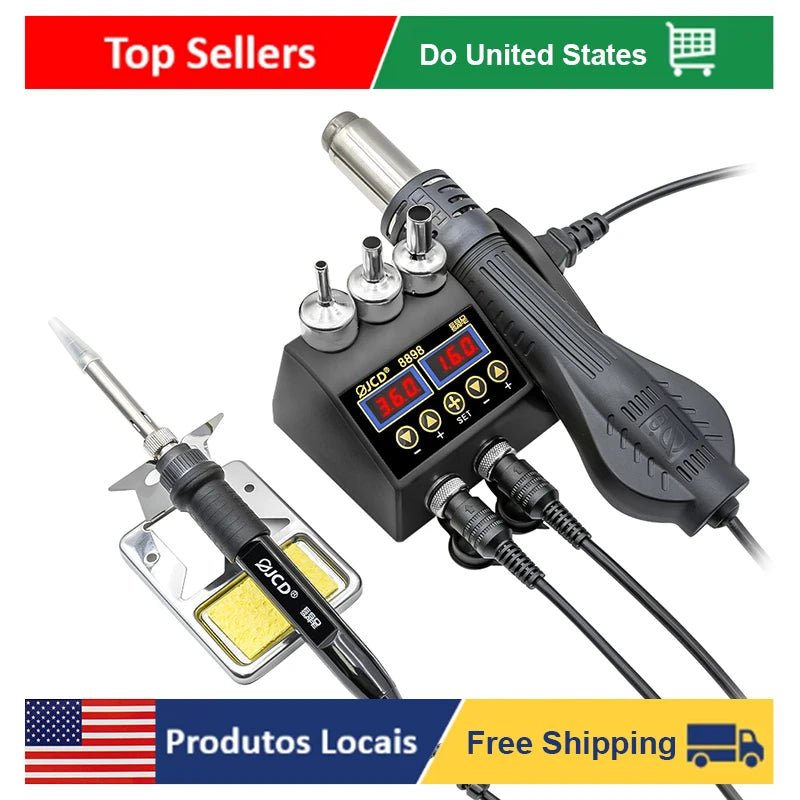

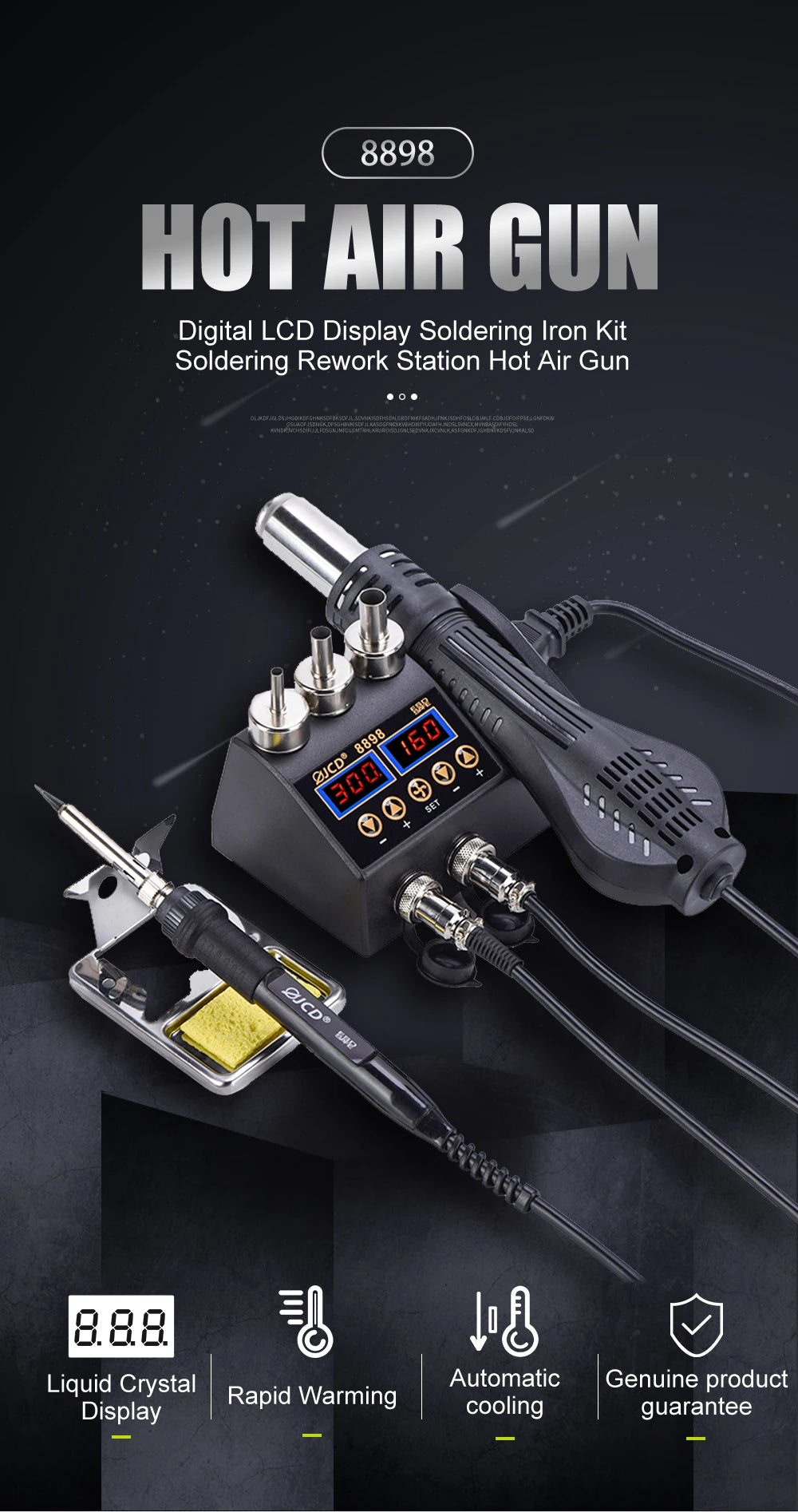

JCD 2 in 1 750W Soldering Station LCD Digital display Rework Welding Station for cell-phone BGA SMD IC Repair Solder tools 8898

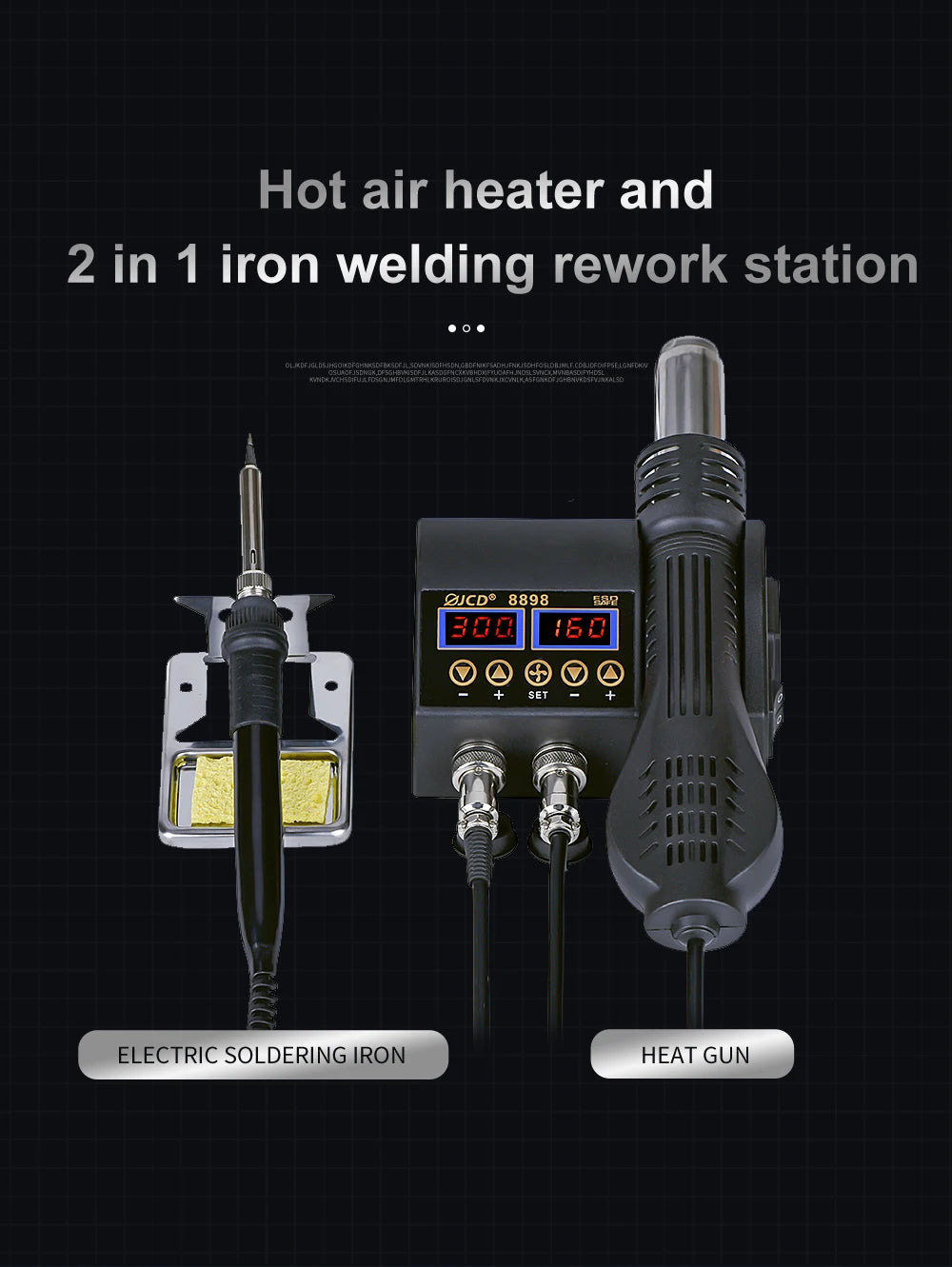

Hot air heater and welding iron 2in1 rework soldering station.

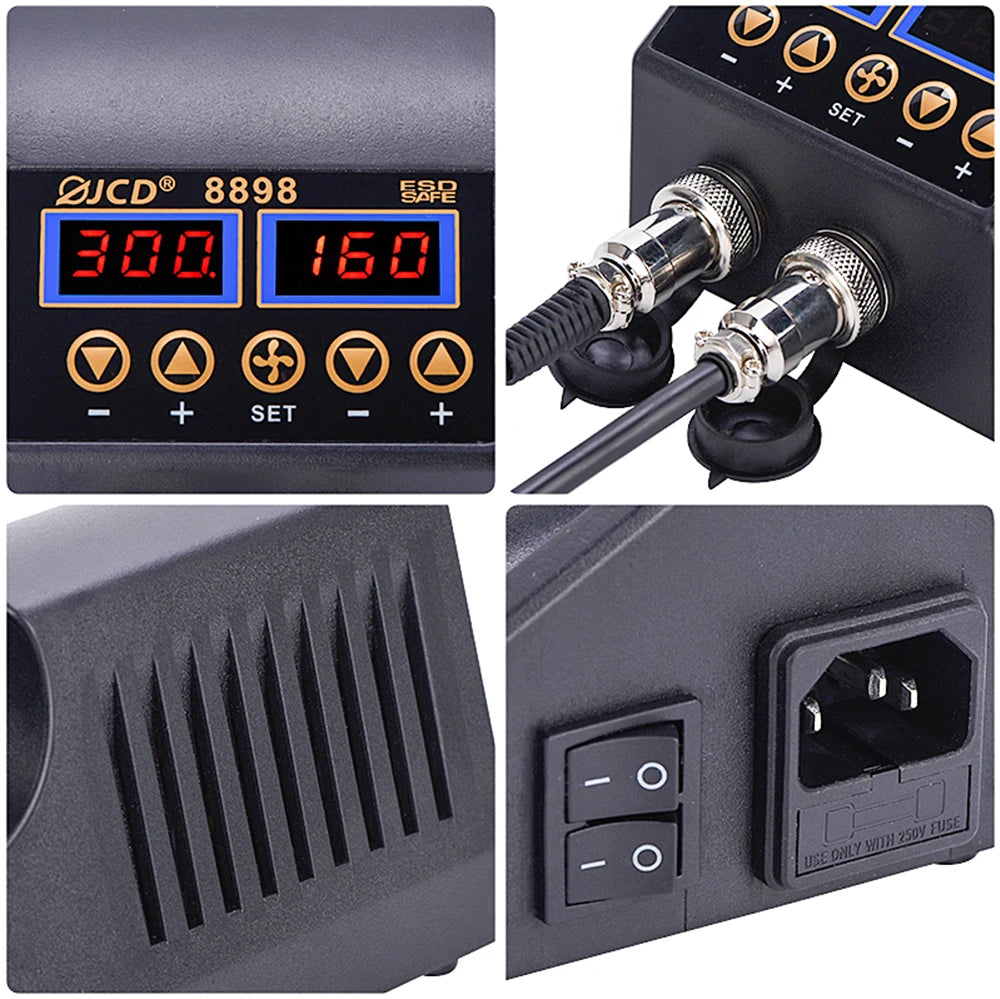

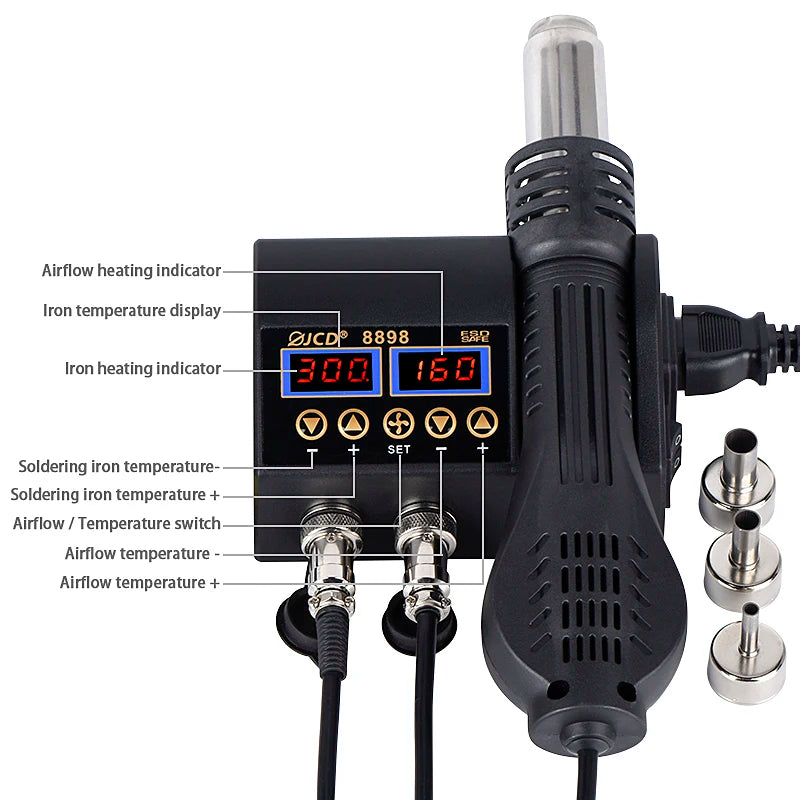

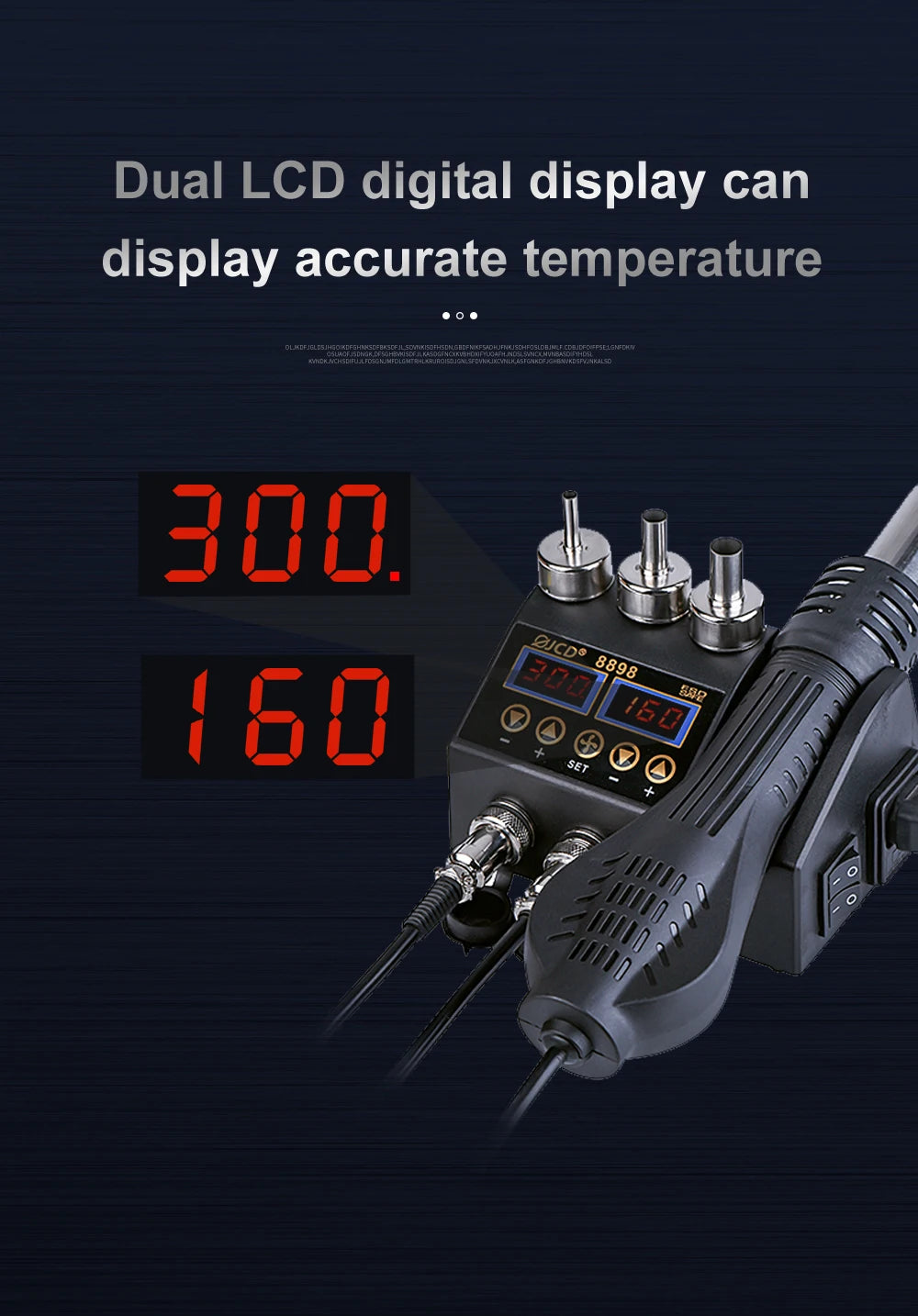

Dual LCD digital displays to show precision temperature.
Extremely low noise and space saving design.
Intelligence self-detection function features safe personal operation.

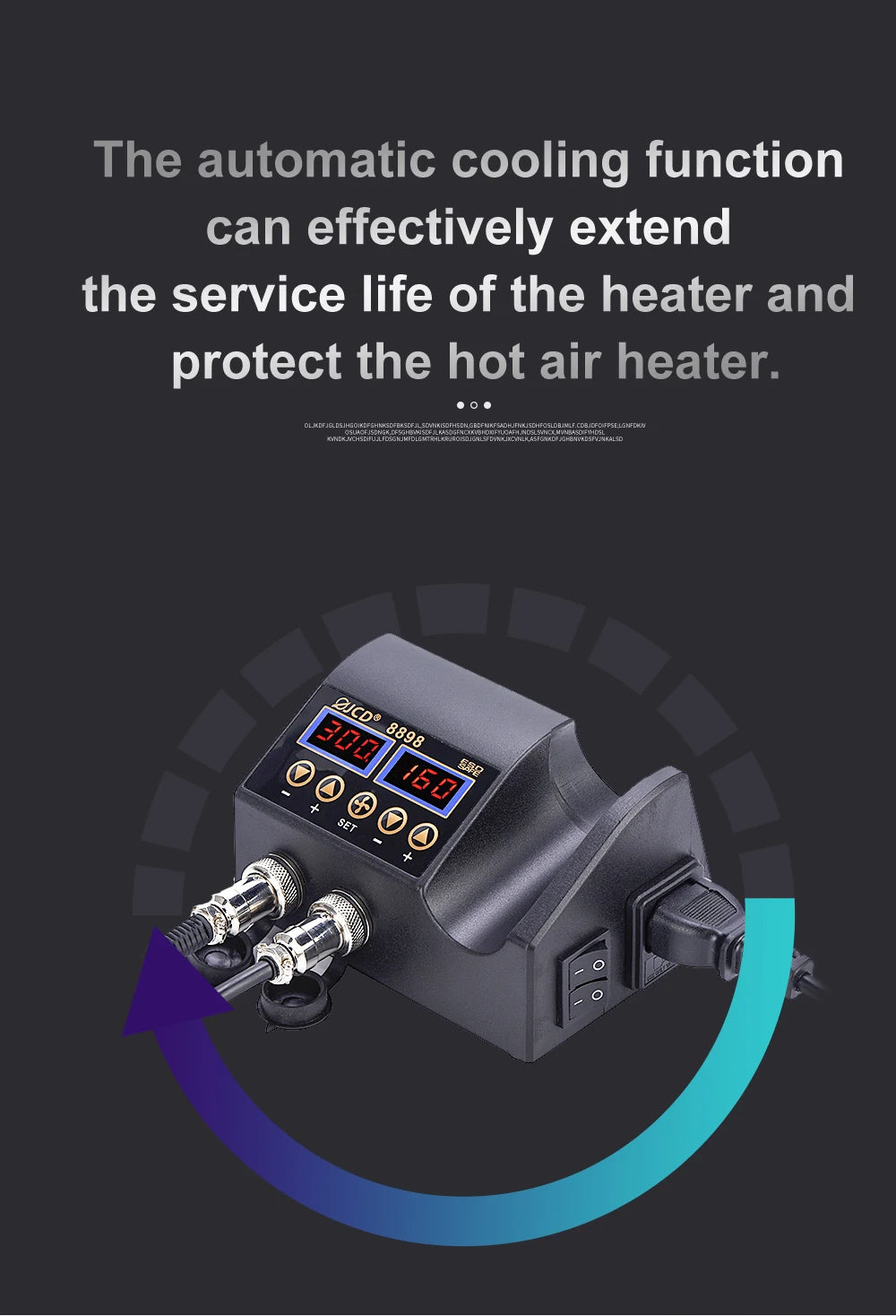

Automatic cooling function for effectively prolonging the heater's life and protecting the hot air heater.

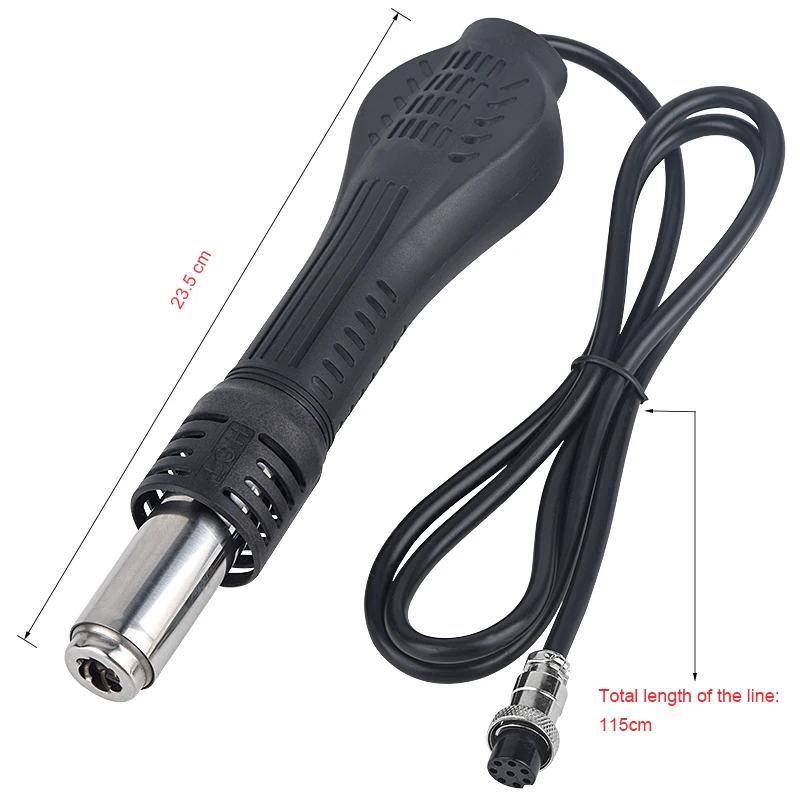

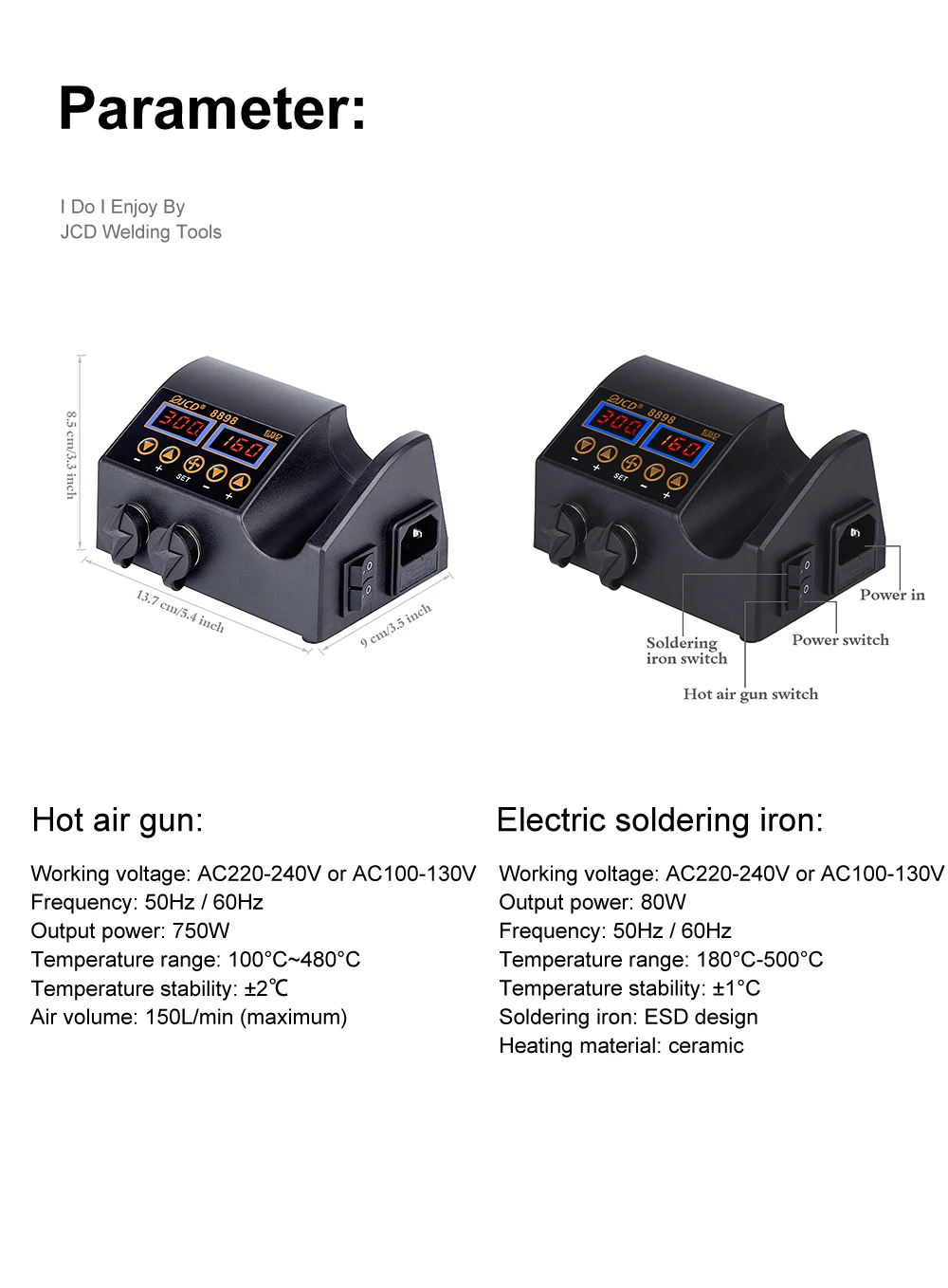

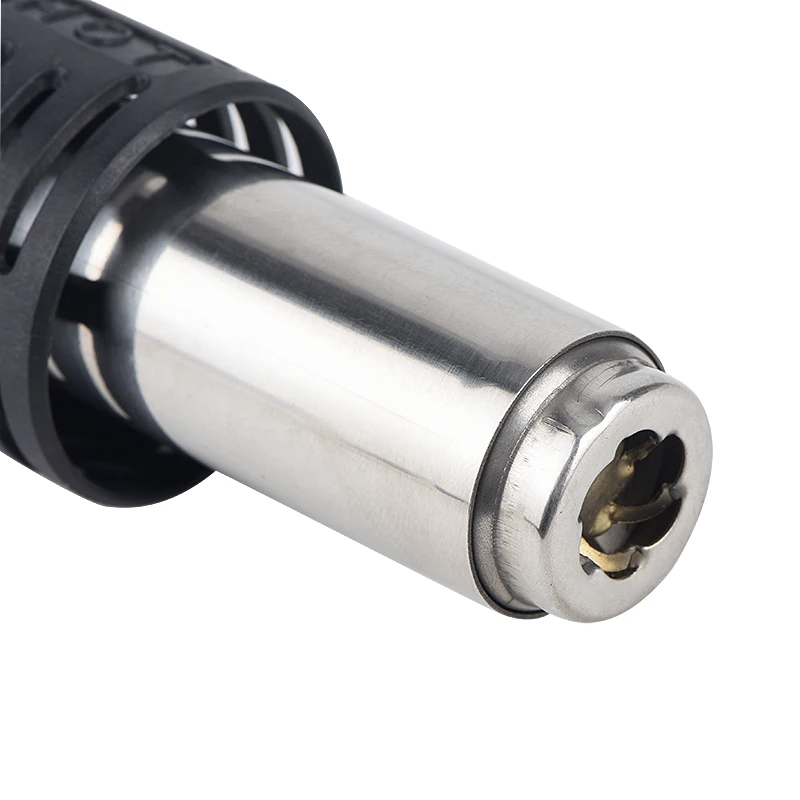

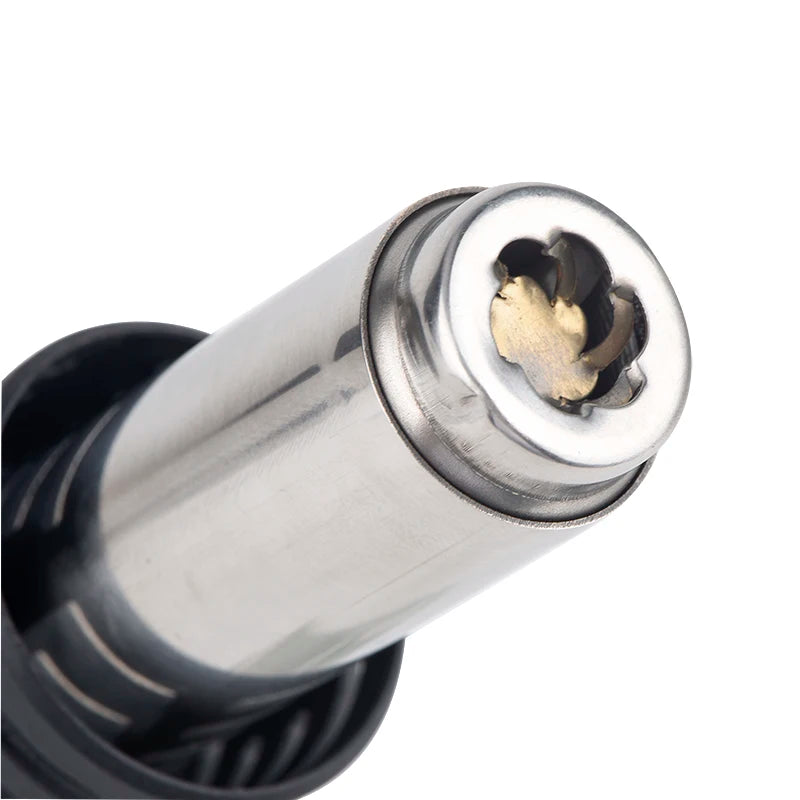

Hot air gun
Working Voltage: AC220-240V OR AC100-130V
Frequency: 50Hz/60Hz
Output Power: 800W
Temperature Range: 100°C~480°C
Temperature Stability:±2℃
Air Flow: 150L/min (max)

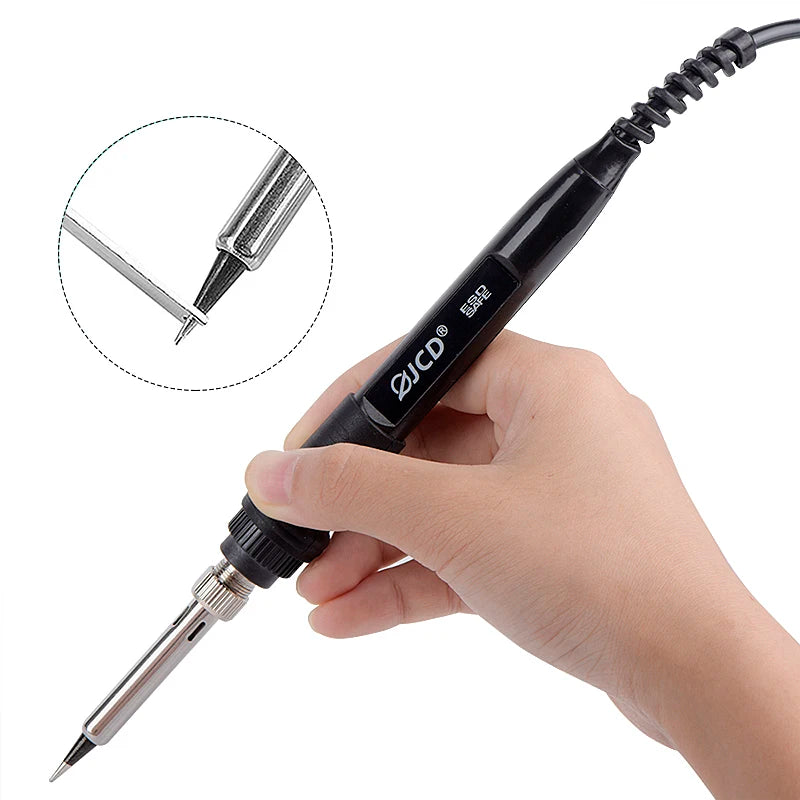

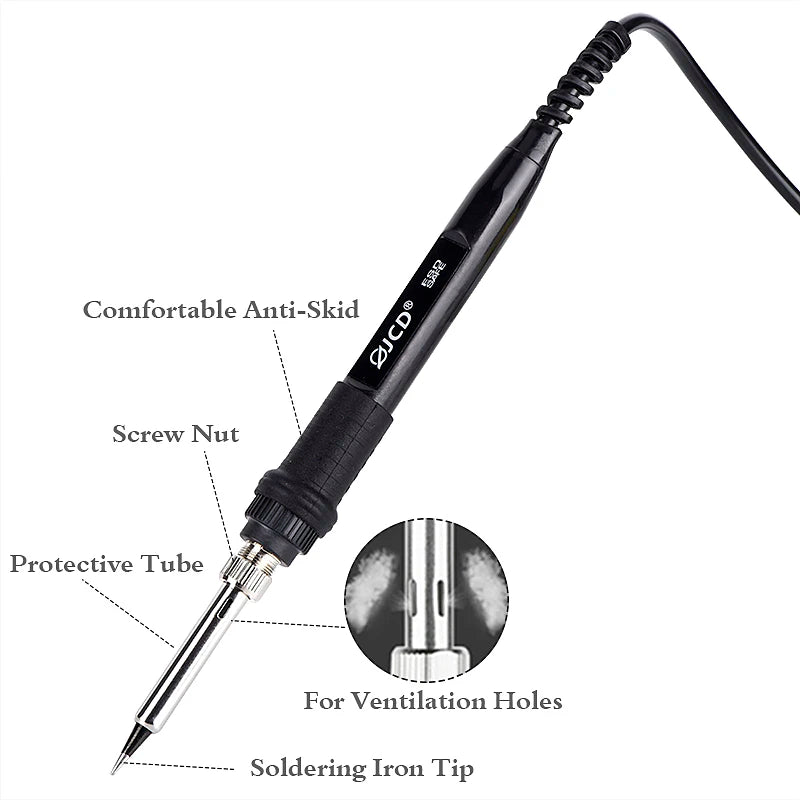

Soldering iron
Working Voltage: AC220-240V OR AC100-130V
Output Power: 80W
Frequency: 50Hz/60Hz
Temperature Range: 180°C-500°C
Temperature Stability: ±1°C
Soldering Iron : ESD design
Heater Material : Ceramics

How to use:
1. Clean the electronic components to be soldered.
2. Once iron reaches temperature (not too high, recommend 300-400℃).
3. Apply a little solder to the heated iron tip to prevent oxidation, then rub the iron tip to evenly extend the solder to the surface of the iron tip.
4. Start to solder

8898 KIT1 Soldering station

Packing list:

1X Station host

1X power cord

1X Hot Air handle

1X soldering iron handle

1X soldering iron stand

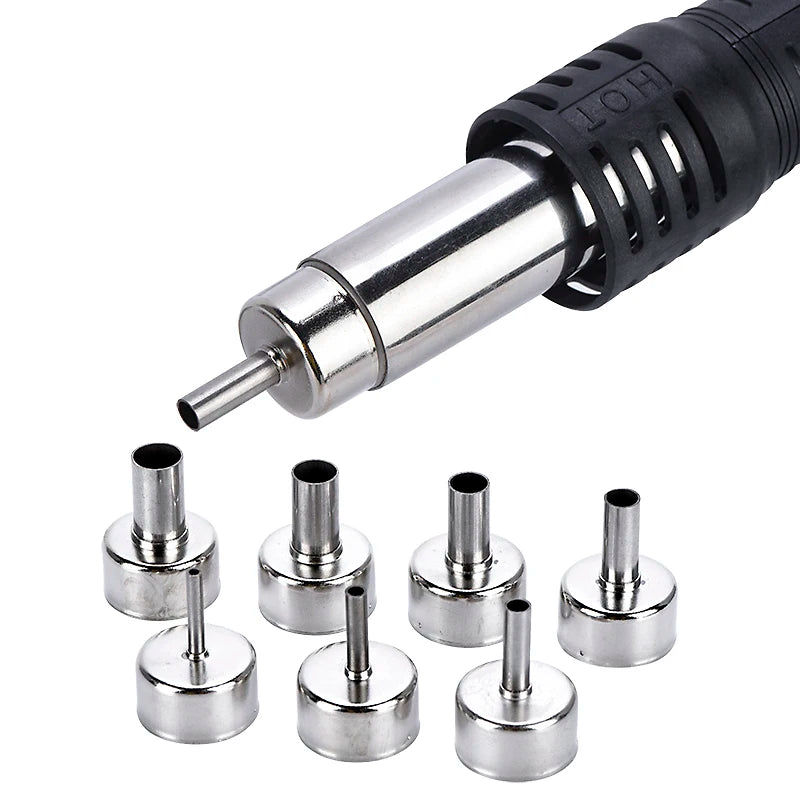

3X nozzle

1X packaging box

+

1X 10CC RMA-223LO Flux

1X Soldering wire 0.8mm 50g

1X Tweezers

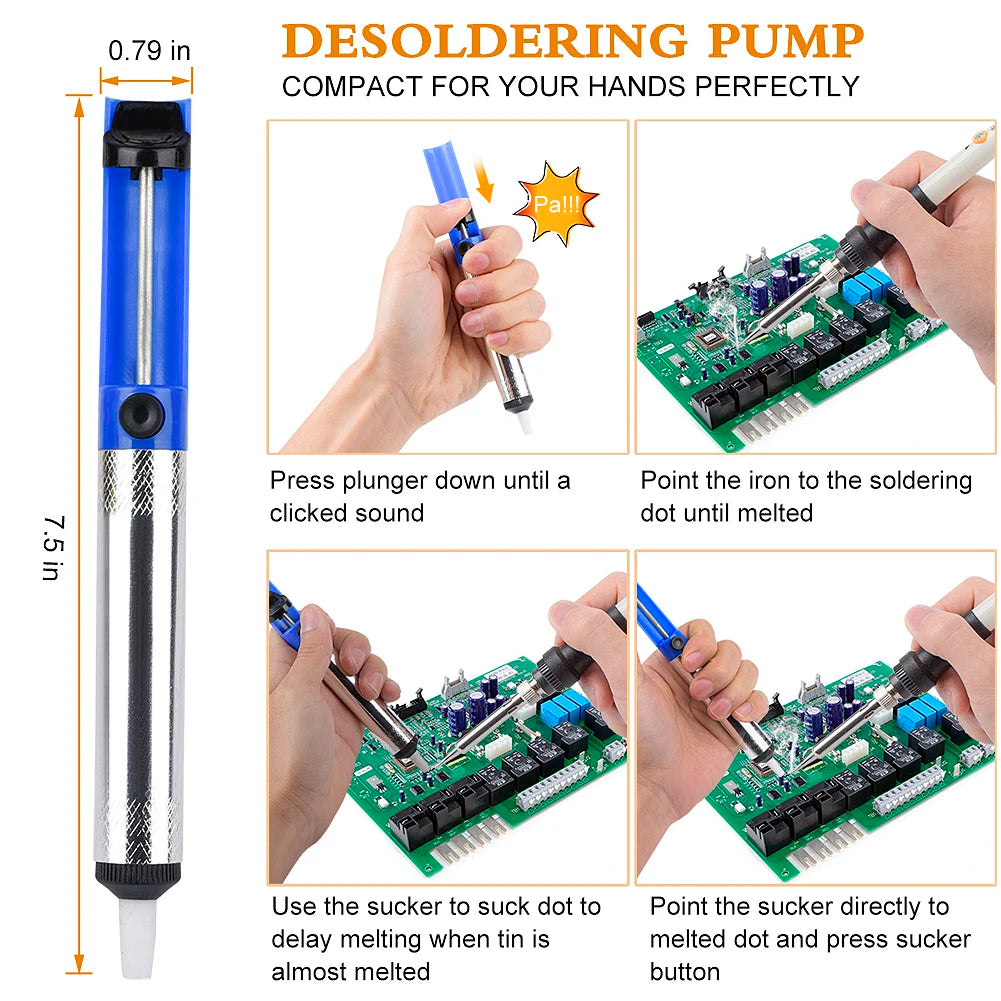

1X Desoldering Pump

1X 30g Solder Paste

5X Soldering iron tips

1X Wire Stripper

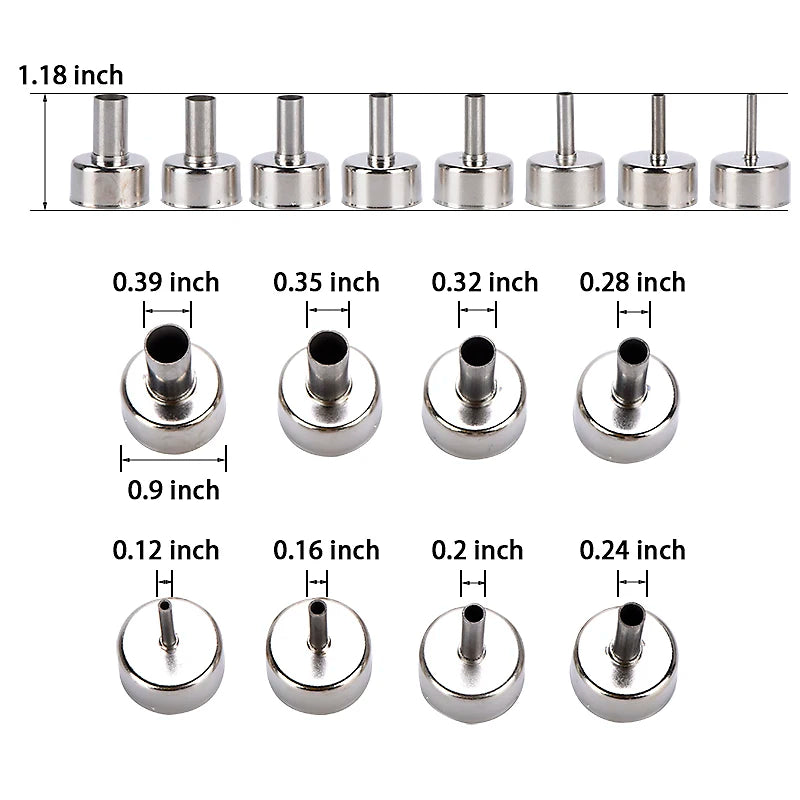

8X nozzle
