SPECIFICATIONS

APERTURE (F): 2.4

Accelerometer: 16-bit,

Accessory Type: Camera Module

Angle of view: 83/73/50 degree (diagonal/horizontal/vertical)

Applications: AI vision applications like depth vision and stereo vision.

Baseline Length: 60mm

Battery Included: no

Brand Name: SHCHV

CMOS size: 1/4inch

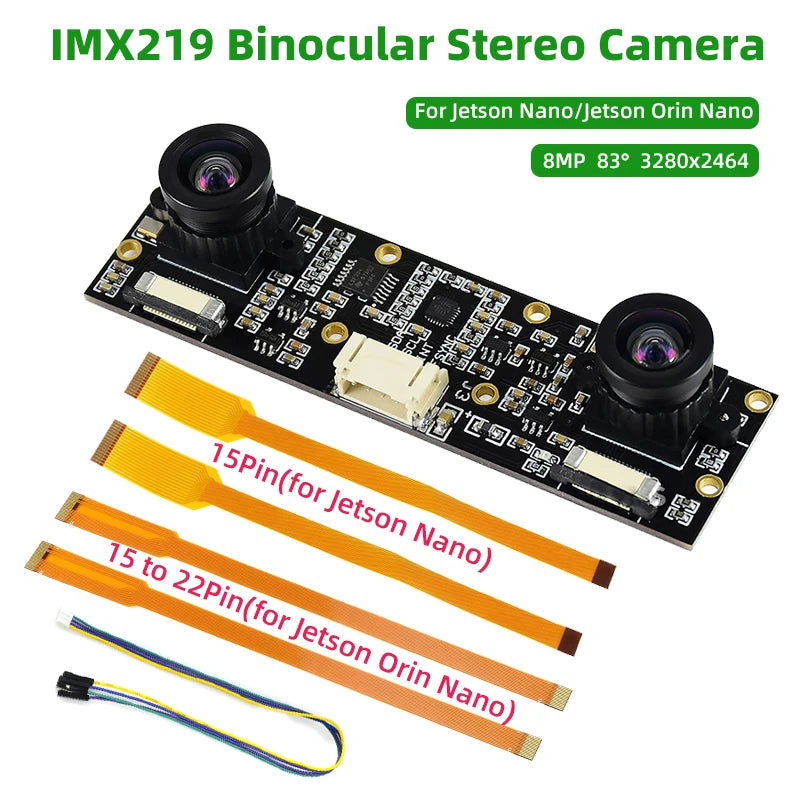

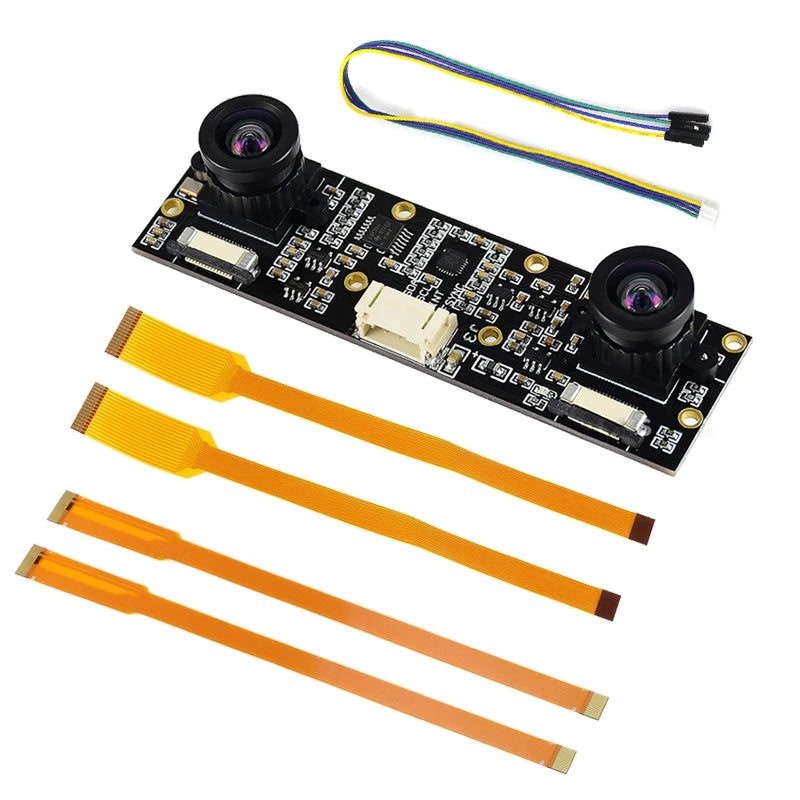

Camera cable: 15Pin + 15pin to 22Pin

Chip: IMX219

Choice: yes

Compatible With: NVIDIA Jetson Nano B01/Jetson Orin Nano,Raspberry Pi 5/CM3/CM4

Dimension: 24 x 85 mm

Distortion: < 1%

Focal Length: 2.6mm

High-concerned chemical: none

Model: IMX219 Binocular Stereo Camera

Origin: Mainland China

Resolution: 3280 * 2464 (per camera)

Typical Application Fields: Edge Computing and AI Applications

semi_Choice: yes

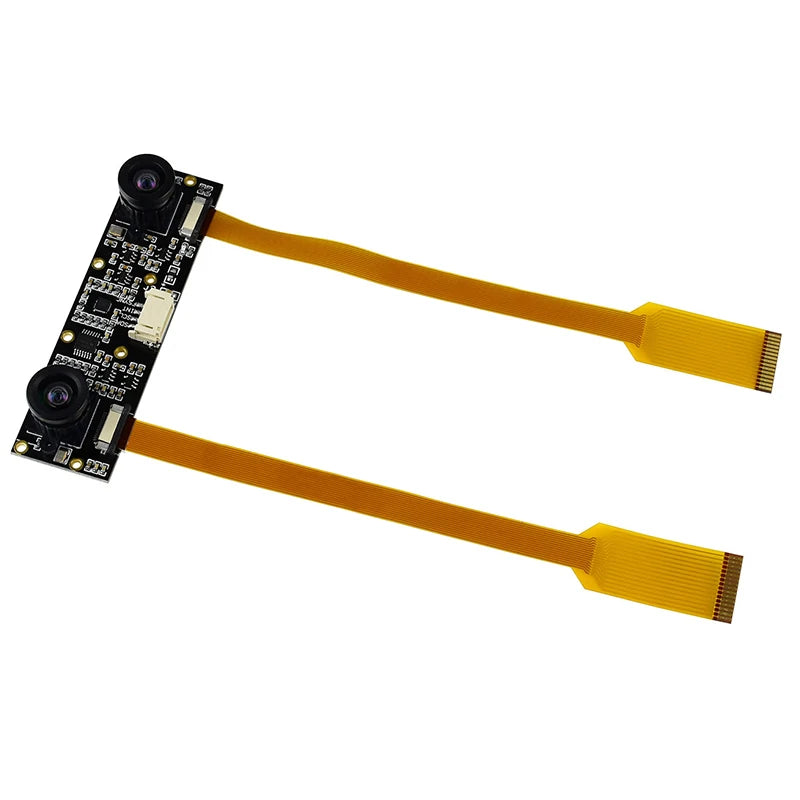

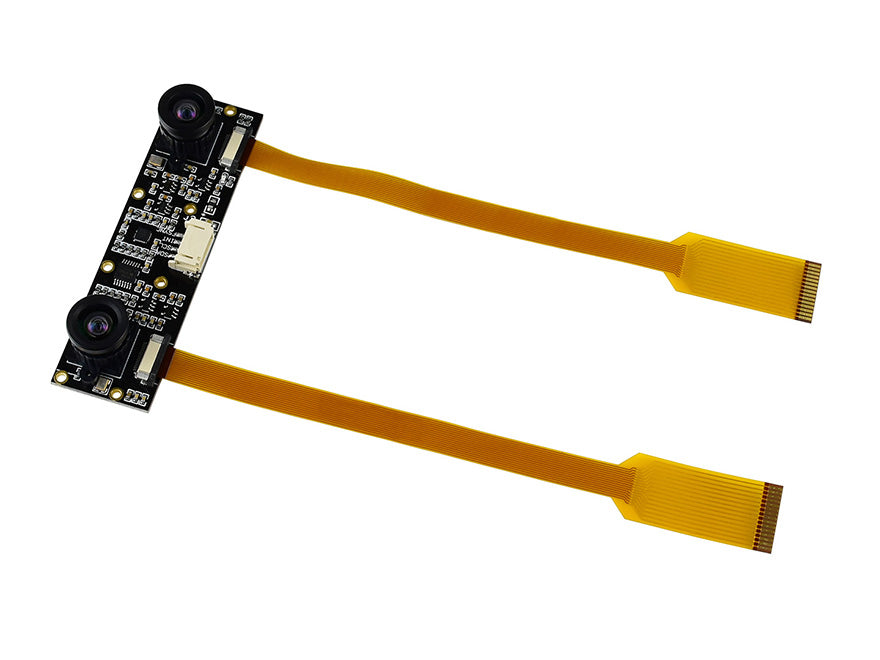

Binocular Camera Module, Dual IMX219, 8 Megapixels, Stereo Vision, Depth Vision

Binocular Stereo Vision Camera Module

IMX219 | 8 Megapixels



Features At A Glance

• Adopts IMX219 chip, onboard dual 8Megapixels cameras

• Suitable for AI vision applications like depth vision and stereo vision

• Supports Jetson Nano Developer Kit (B01) and JETSON-NANO-DEV-KIT Development Kit,also for Jetson Orin Nano

• Supports Raspberry Pi CM3/CM3+/CM4 base boards like Compute Module IO Board Plus, Compute Module POE Board, etc

Specifications

PIXELS	8 Megapixels
SENSOR	IMX219
CAMERAS	CMOS size	1/4inch
	APERTURE (F)	2.4
	Resolution	3280 × 2464 (per camera)
	Focal Length	2.6mm
	FIELD OF VIEW	83°(D) 73°(H) 50°(V)
	DISTORTION	< 1%
	Baseline Length	60mm
ICM20948	Accelerometer	Resolution: 16-bit
		Measuring Range (configurable): ±2, ±4, ±8, ±16g
		Operating Current: 68.9uA
	Gyroscope	Resolution: 16-bit
		Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec
		Operating Current: 1.23mA
	Magnetometer	Resolution: 16-bit
		Measuring Range: ±4900μT
		Operating Current: 90uA
DIMENSIONS	24 × 85mm
APPLICATIONS	AI vision applications like depth vision and stereo vision.

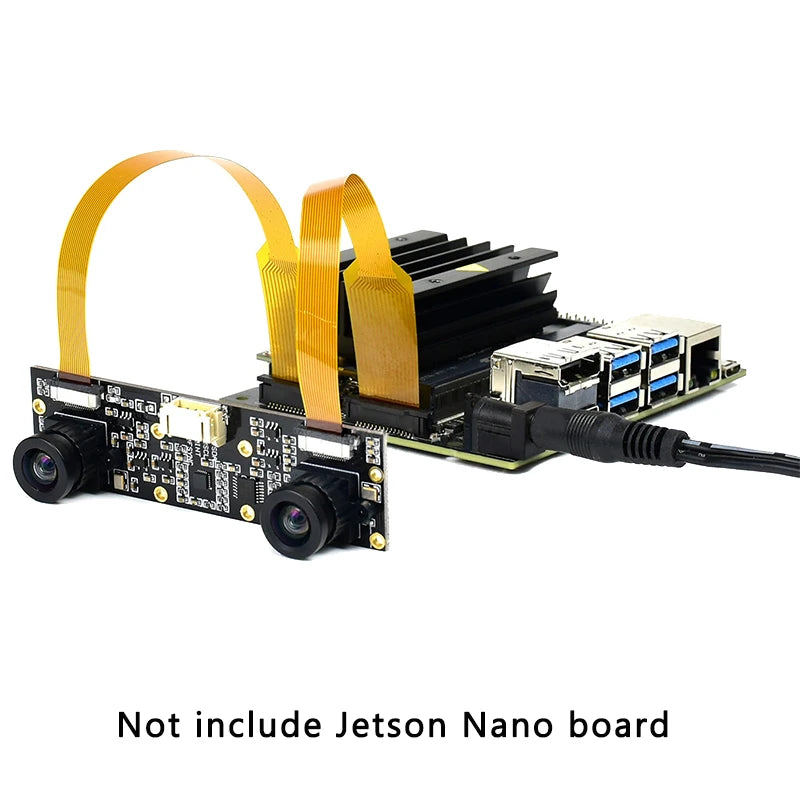

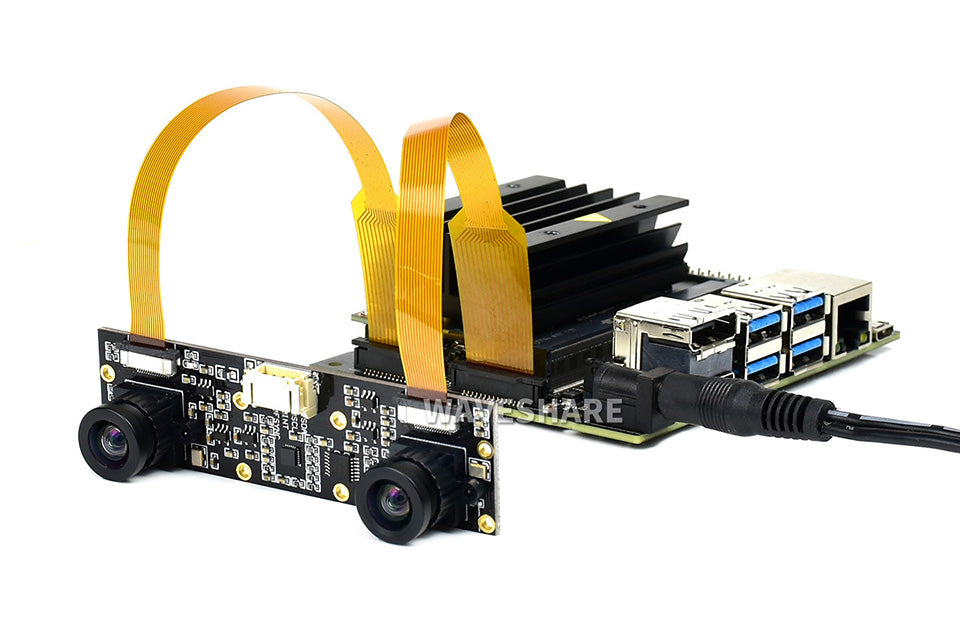

Support Jetson Nano

for reference only, Jetson Nano Developer Kit (B01) is NOT included.

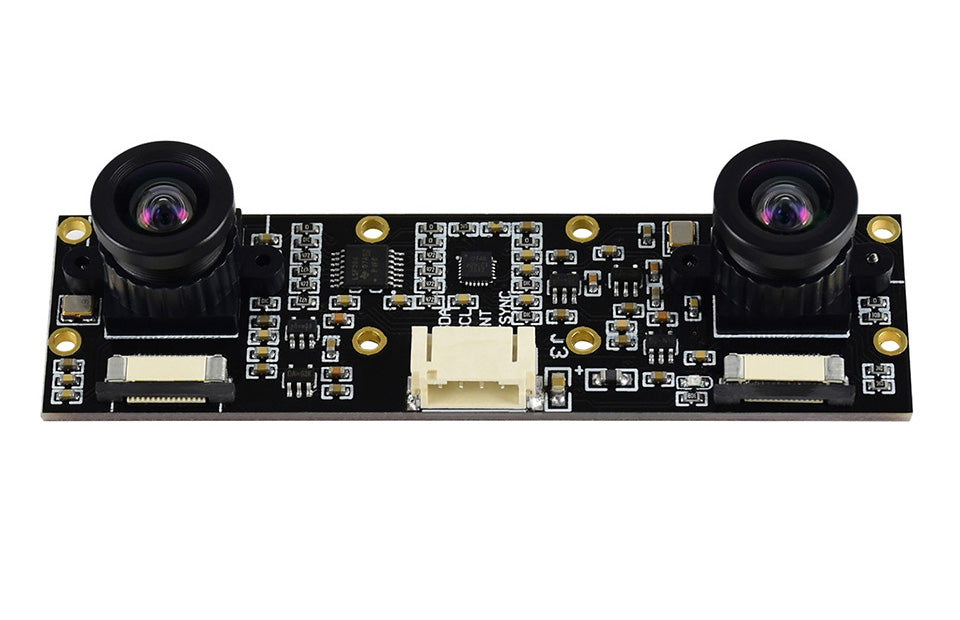

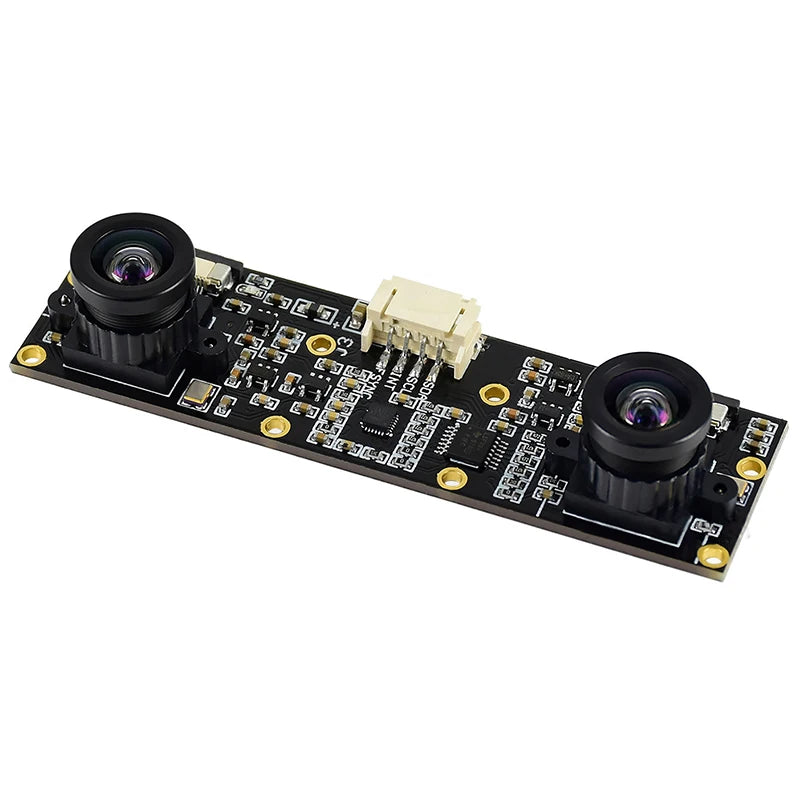

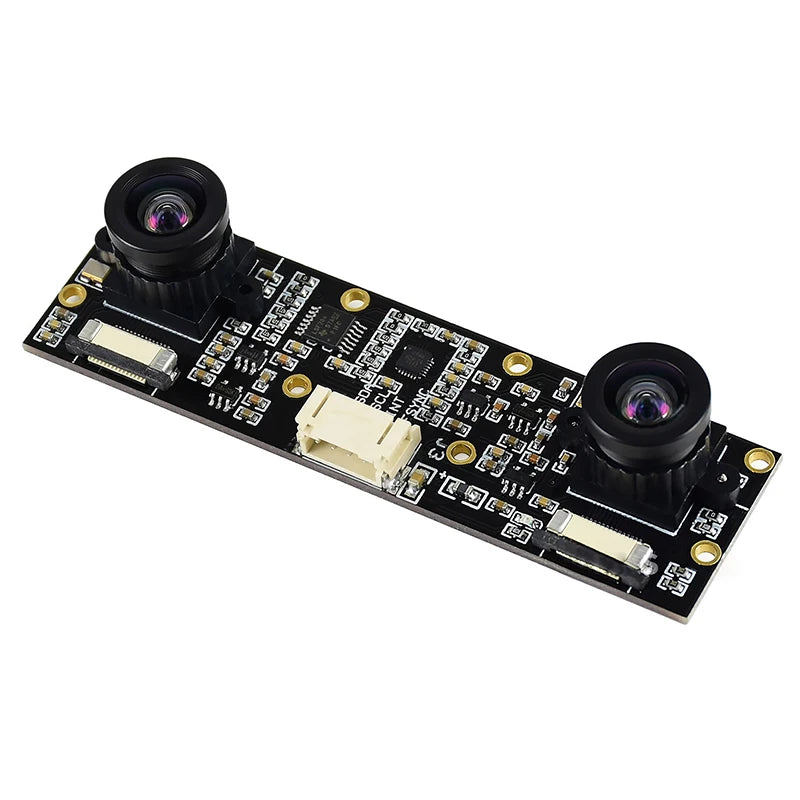

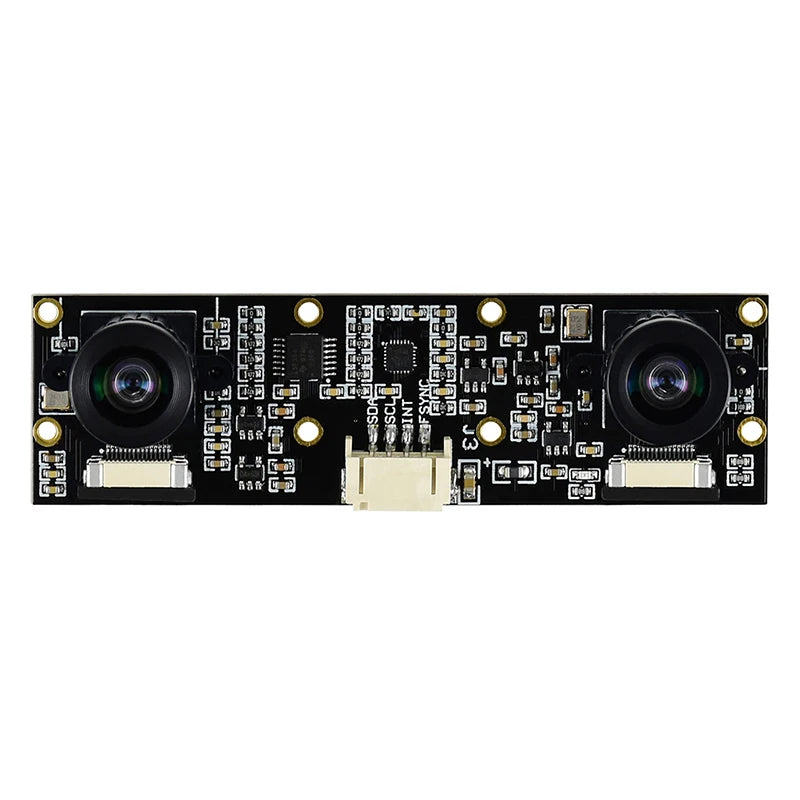

Product Show

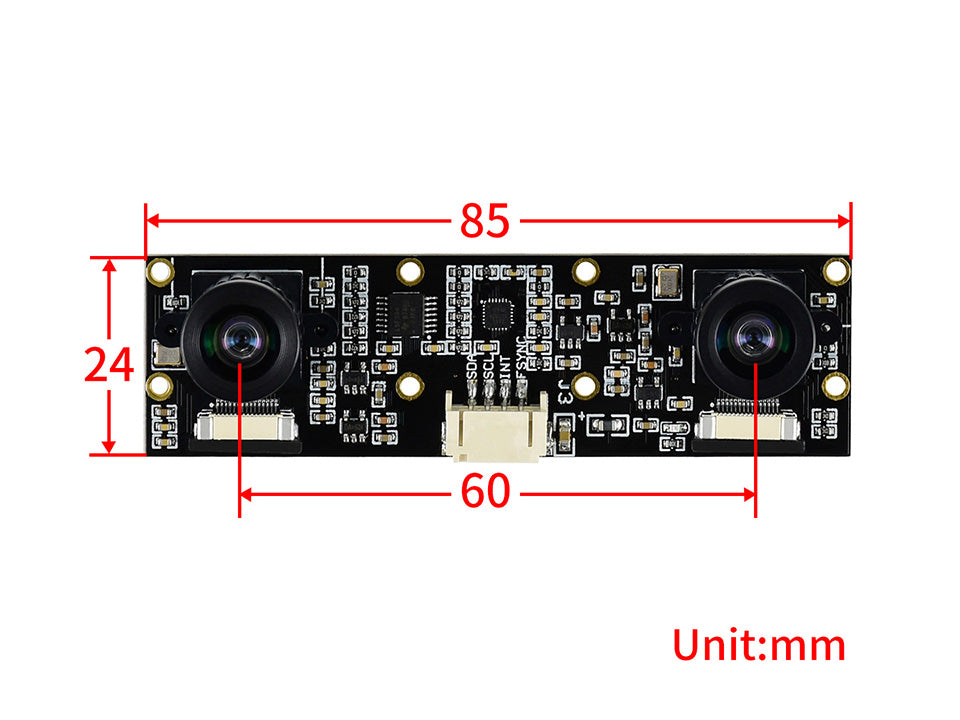

Outline Dimensions

Resources



---

WIKI: www.waveshare.com/wiki/IMX219-83_Stereo_Camera

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
