SPECIFICATIONS

Brand Name: ZENG WHCD

Certification: CCC,ce

Choice: yes

Commutation: Brush

Construction: Permanent Magnet

Continuous Current(A): 0.08A~0.15A

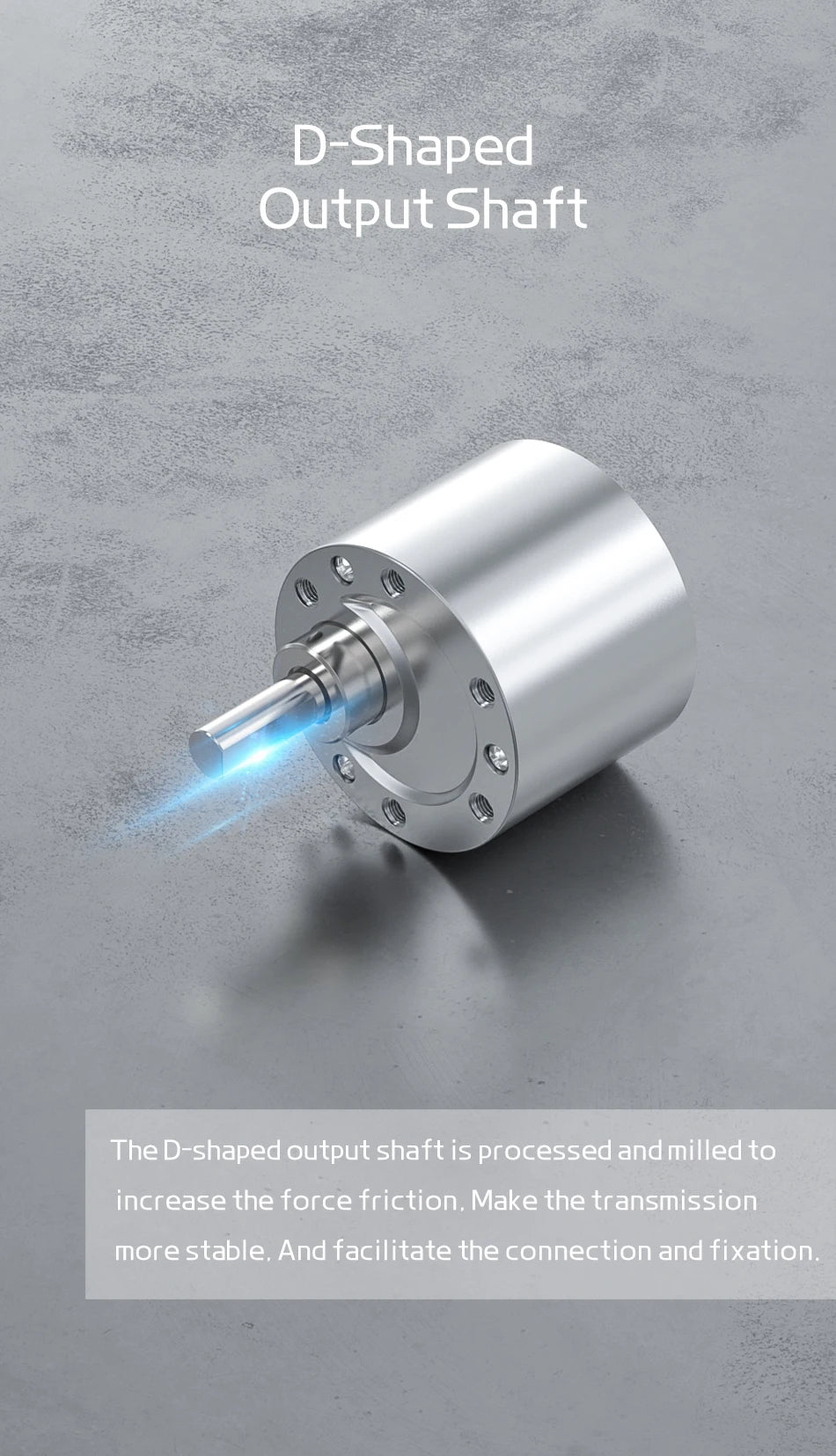

D-Shaped Shaft Output Shaft: The D-Shaped Output Shaft Is Processed And Milled To Increase The Force Friction, Make The Transmission More Stable, And Facilitate Connection And Fixation

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

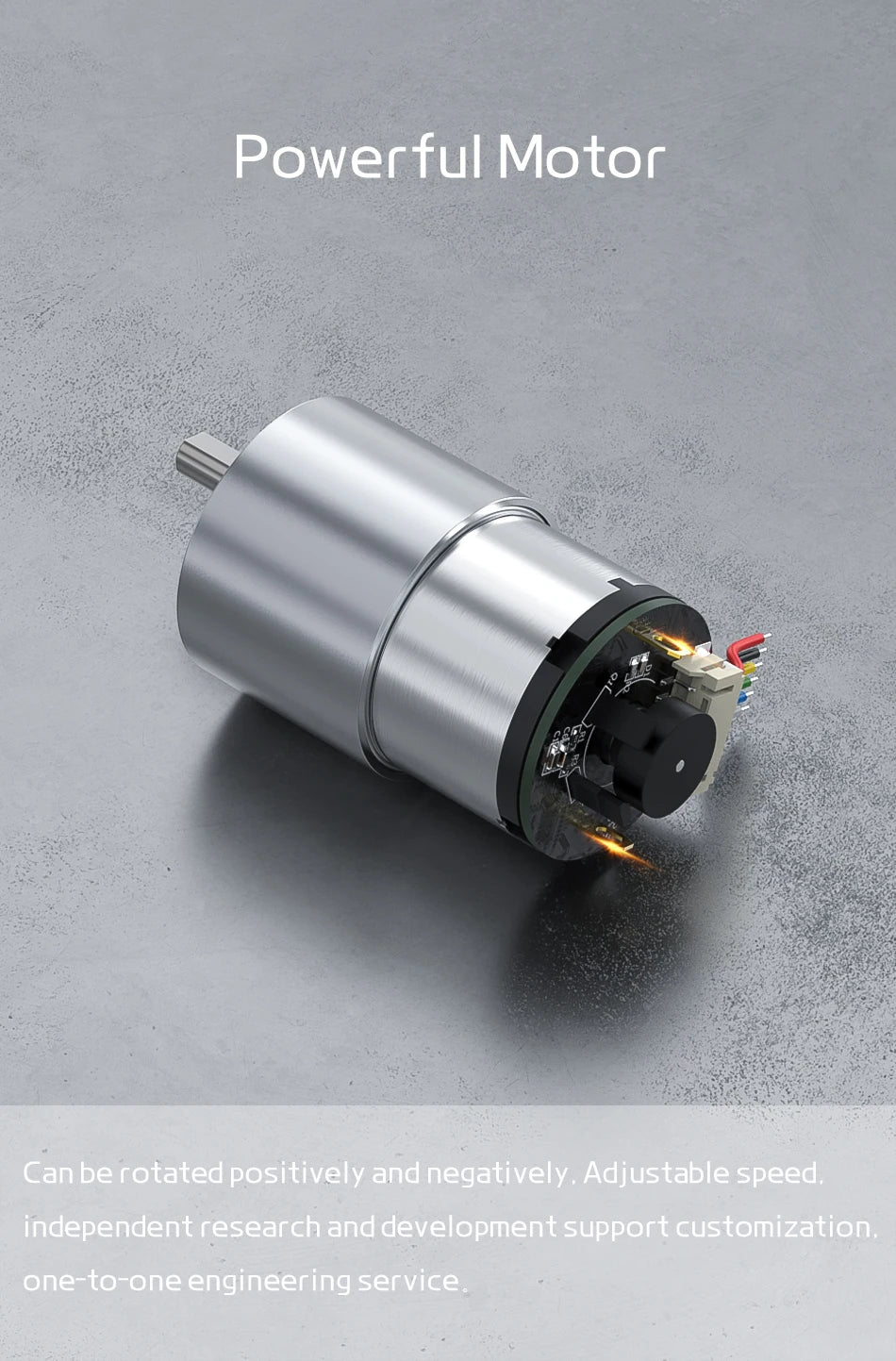

Forward And Reverse Speed Regulation?: Adjustable Speed Can Be Reversed

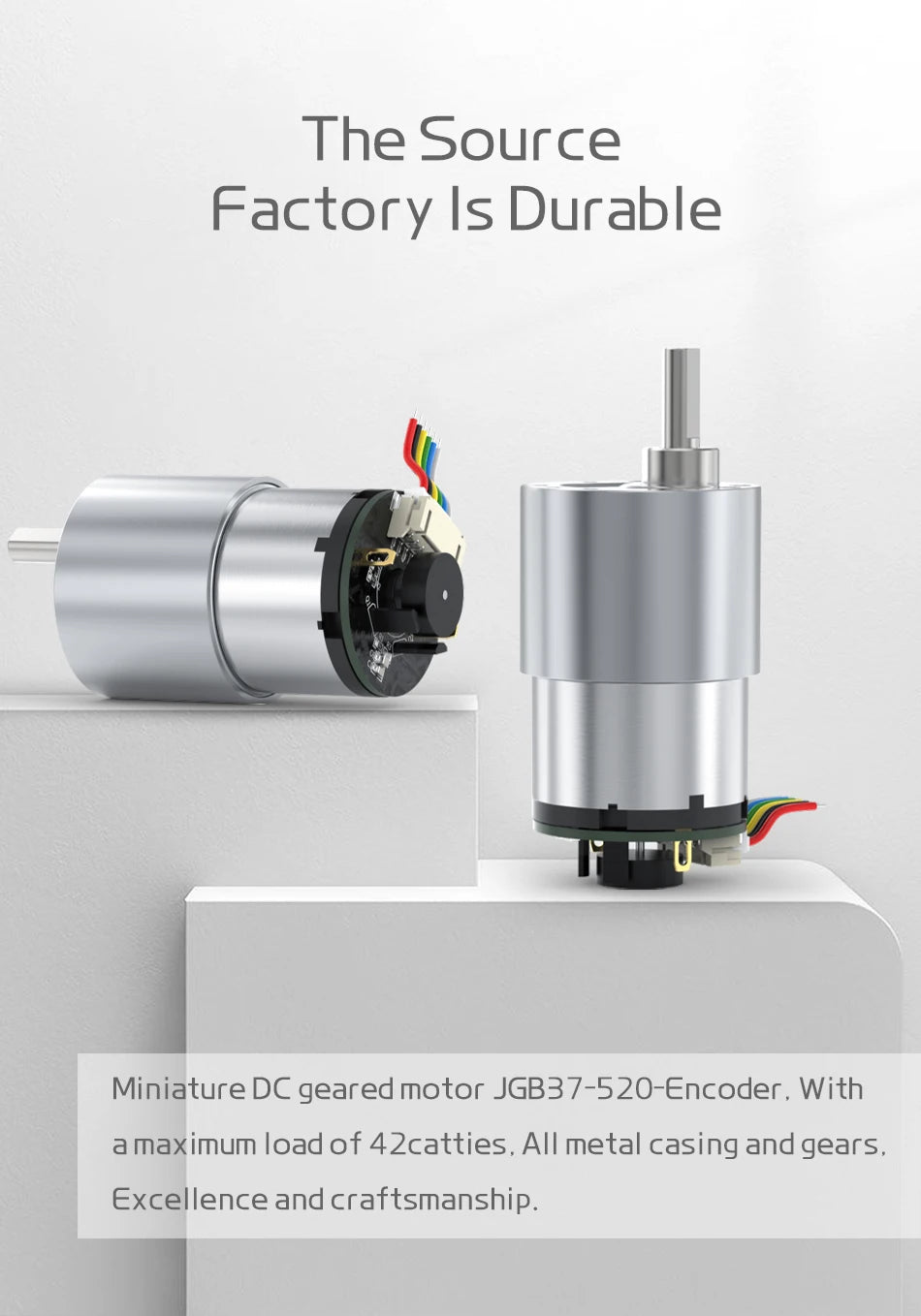

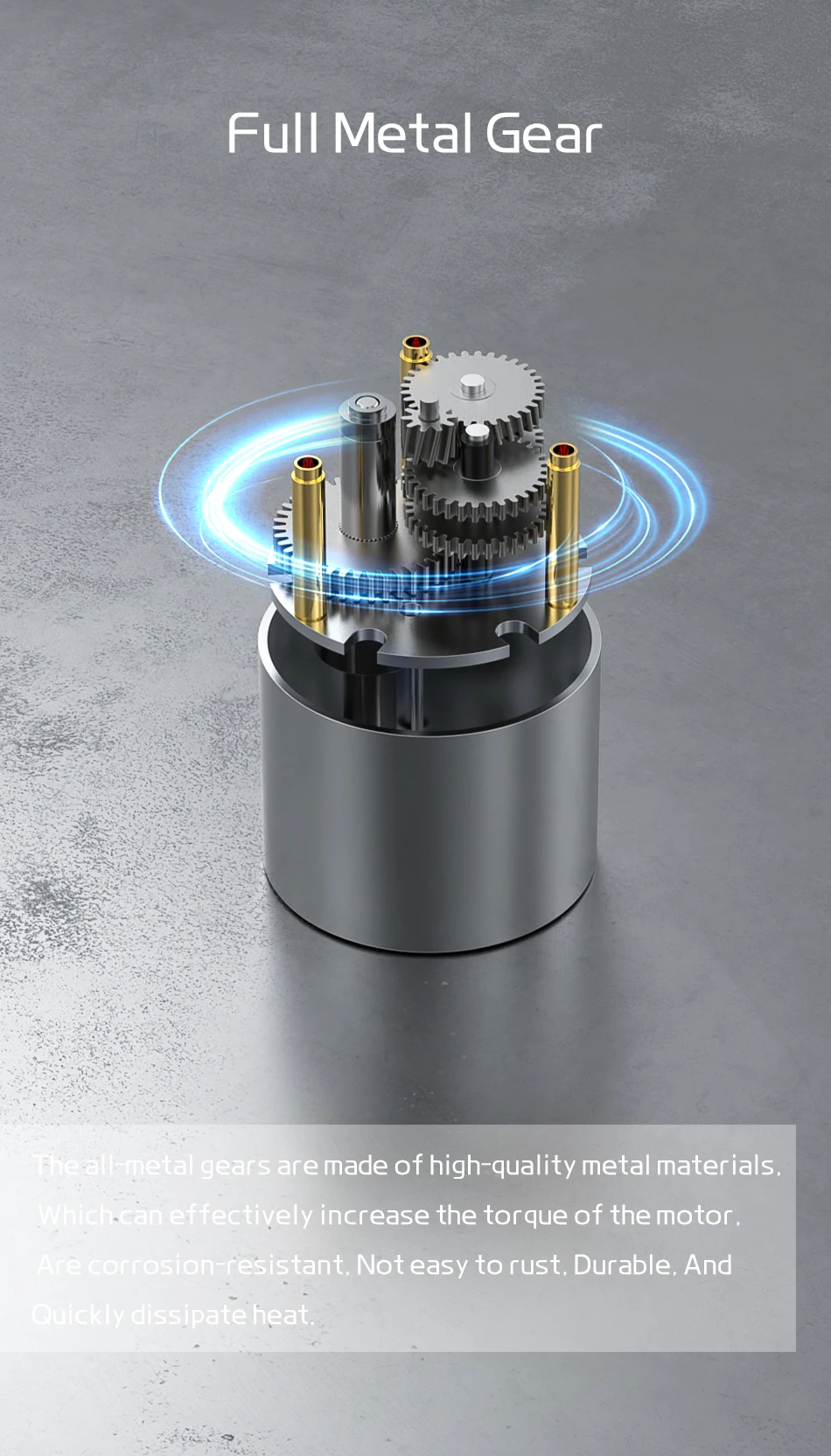

Full Metal Gear: All-Metal Gears Are Made Of High-Quality Metal Materials, Which Can Effectively Increase The Torque Of The Motor, Are Corrosion-Resistant, Not Easy To Rust, Durable, And Quickly Dissipate Heat

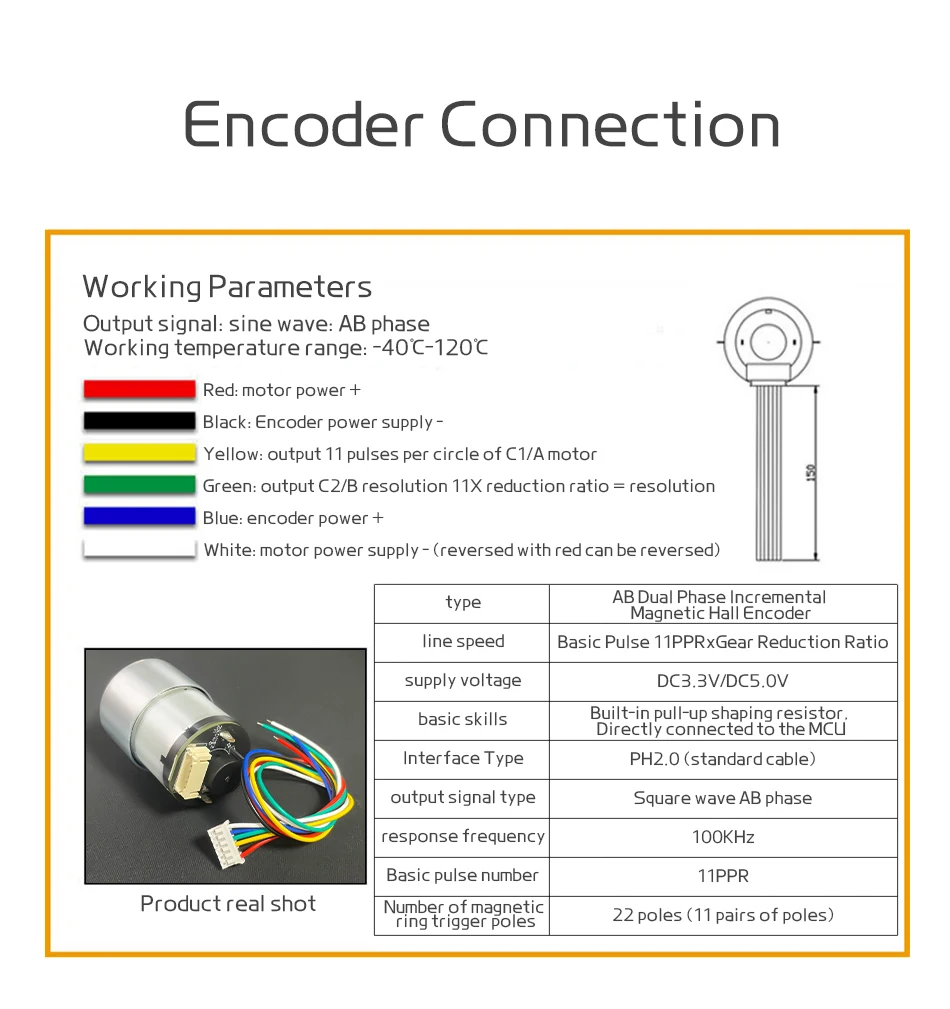

Hall Encoder: Real-Time Feedback Of Speed, A/B Dual-Phase Each Output Basic Signal 11PPR, Accurate And Not Lost Pulse Can Accurately Record Operating Data

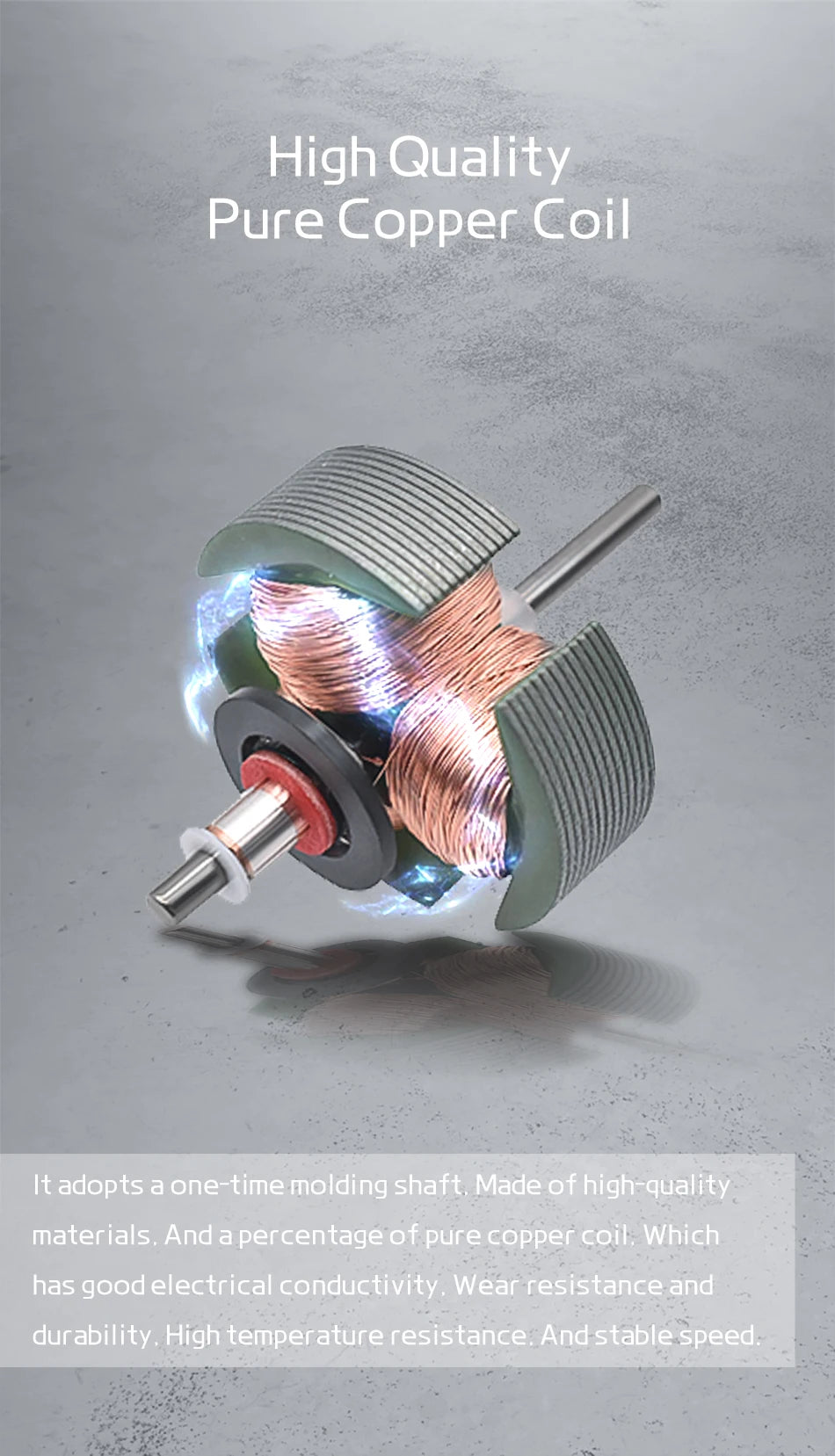

High Quality Pure Copper Wire: Made Of High-Quality Materials For One-Time Forming Rotors, 100% Pure Copper Coils, With Good Electrical Conductivity, Long Wear Life, High Temperature Resistance, And Stable Speed

High-concerned chemical: none

Life Span: 800 Hours

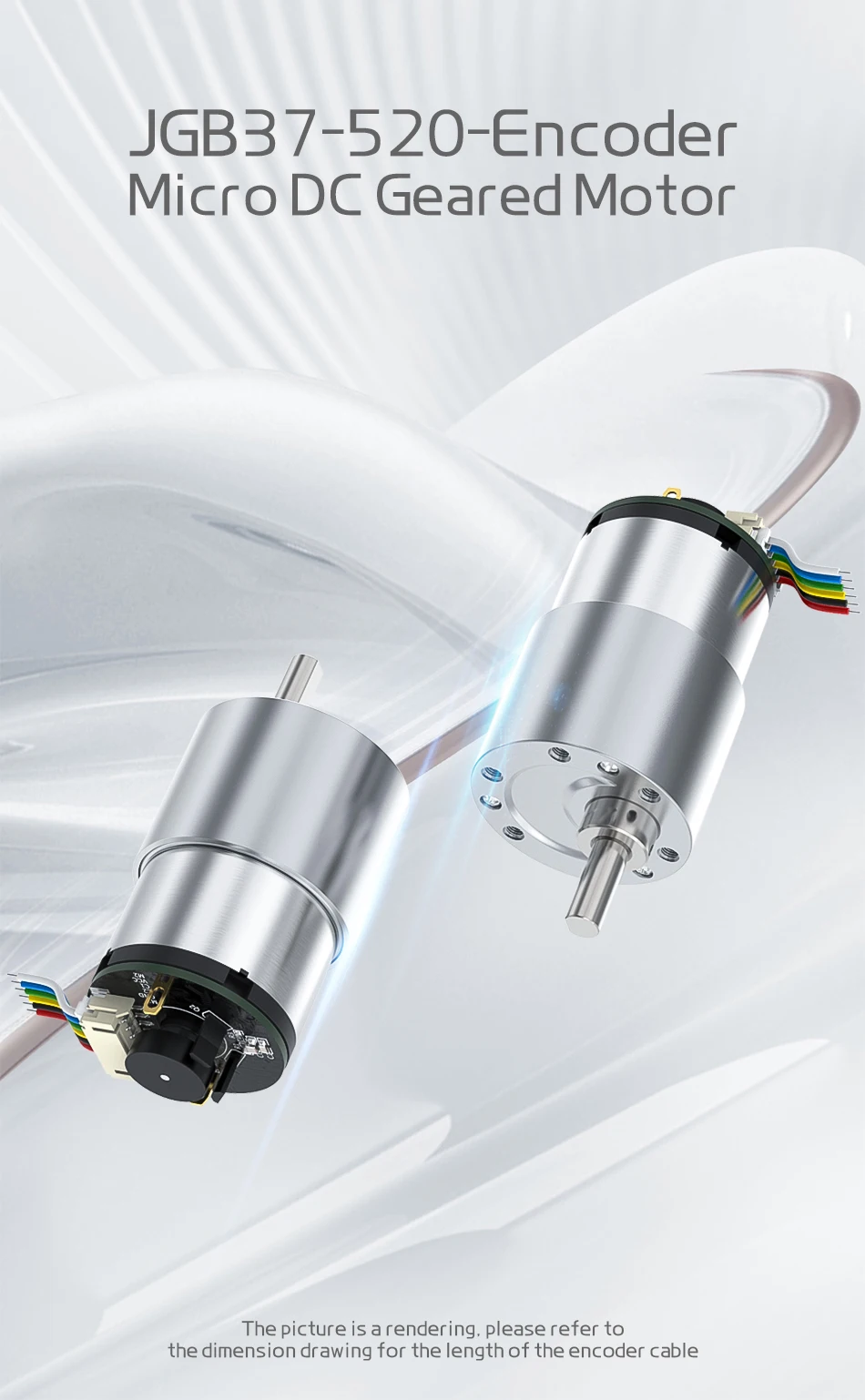

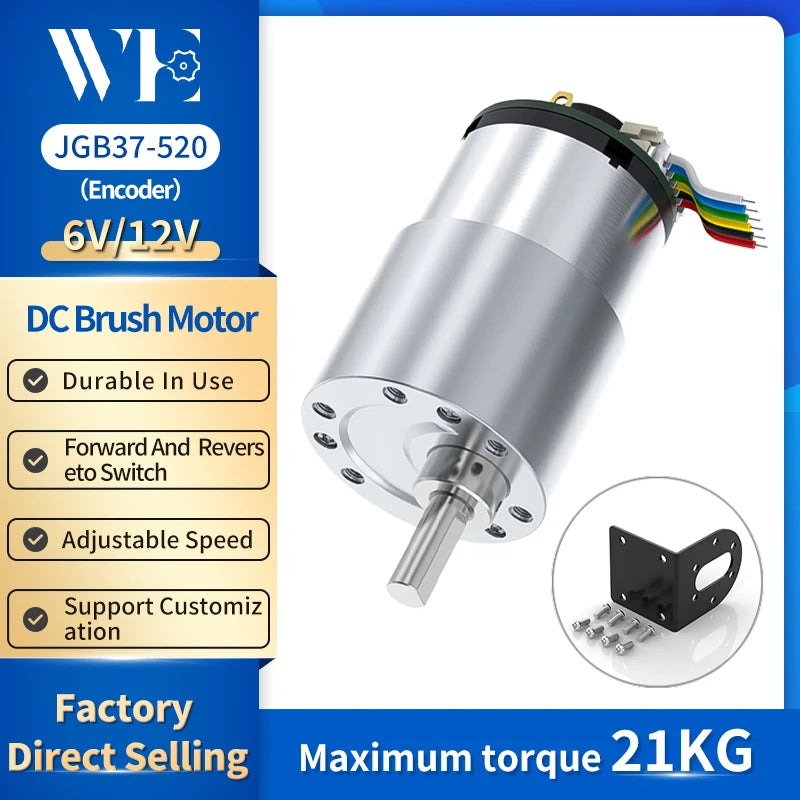

Model Number: JGB37-520

Origin: Mainland China

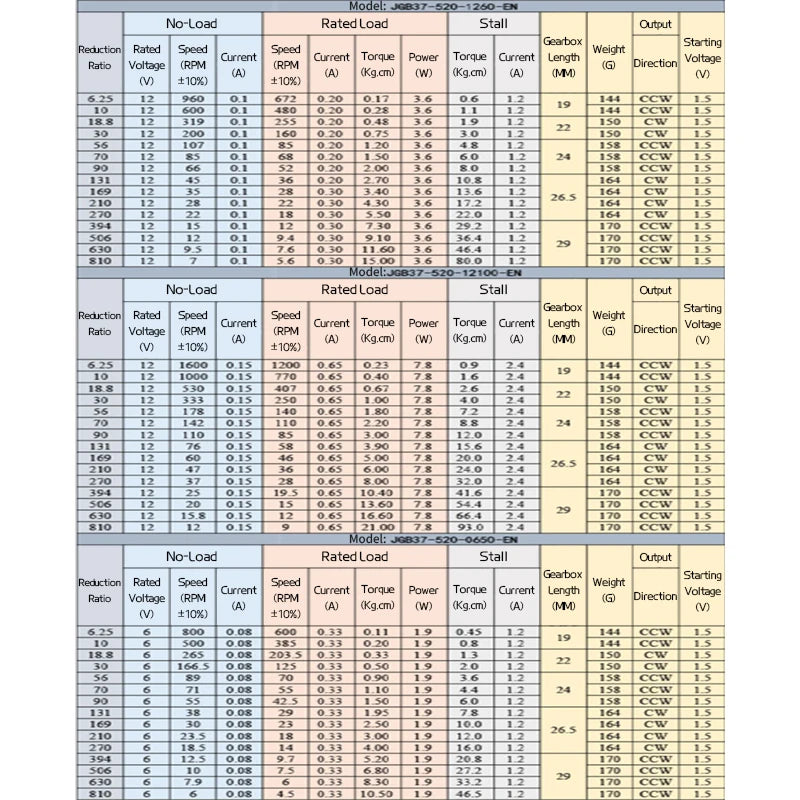

Output Power: ＜18.65,1.9W~7.8w

Protect Feature: Drip-proof

Shaft Can Be Customized: Shaft Can Be Customized

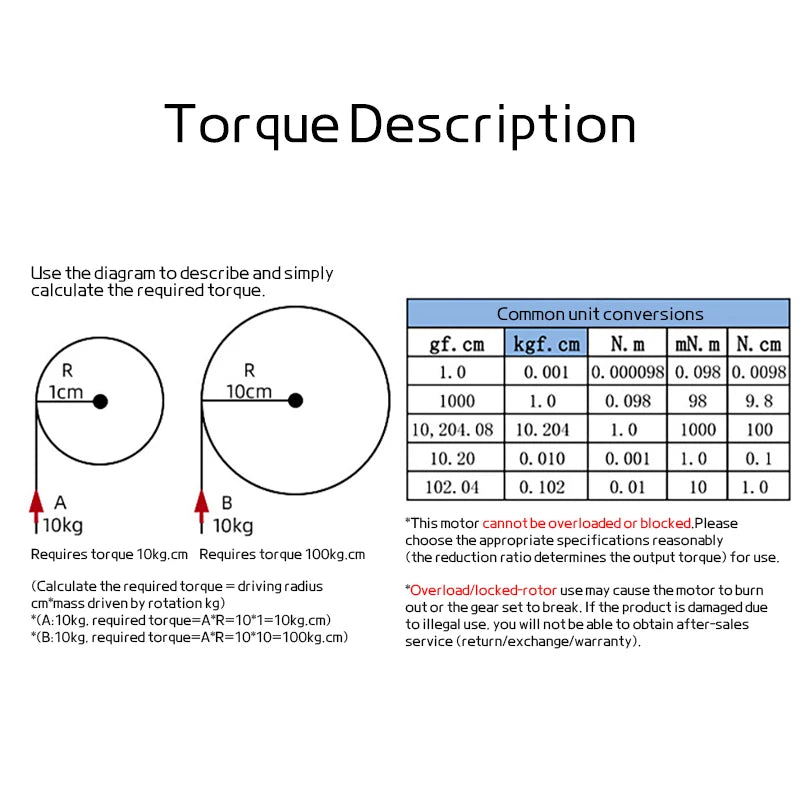

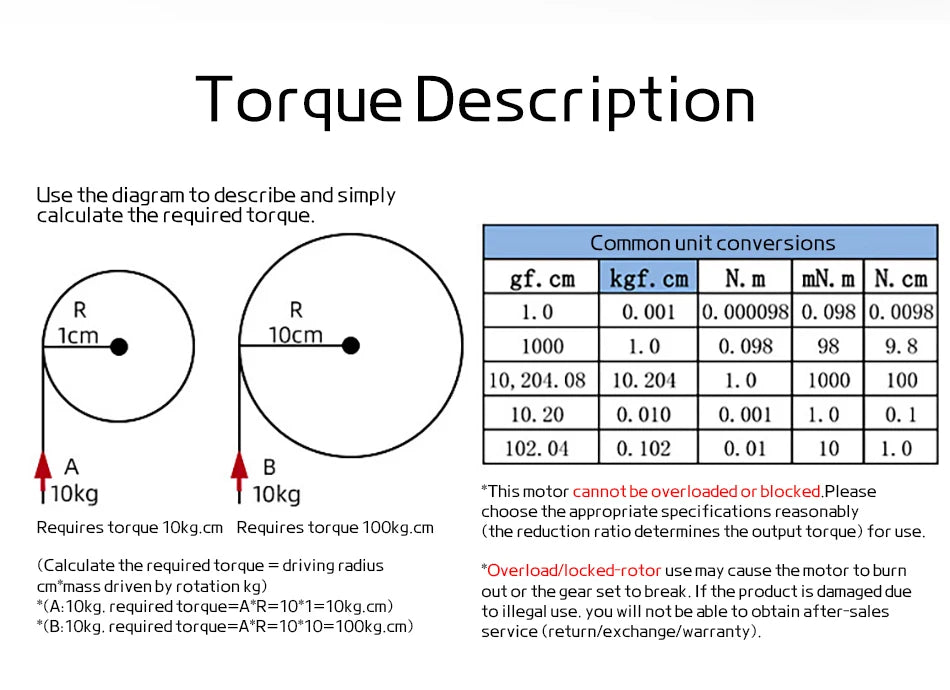

Torque: 21KG

Type: Micro Motor

Usage: Fan,Home Appliance,Car

Use: Car,Fan,Home Appliance

semi_Choice: yes
