JGY370 JGY-370 1-210 RPM 12 V 24V With Encoder Mini Electric 6V 90 Degree Gearbox Right Angle 12v DC Worm Gear Motor
23rpm / 12V / other
$27.18
Sale price
$27.18
Regular price
$0.00
Skip to product information
JGY370 JGY-370 1-210 RPM 12 V 24V With Encoder Mini Electric 6V 90 Degree Gearbox Right Angle 12v DC Worm Gear Motor
$27.18
Sale price
$27.18
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: CE
Color: Silver
Commutation: Brush
Construction: Permanent Magnet
Continuous Current(A): 0.3A
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 3
High-concerned chemical: none
Max-Load Torque: 25kgf.cm
Model Number: JGY370
No-load speed: 6-150rpm
Origin: Mainland China
Output Power: 18.65-37.5（include18.65and37.5）,18W
Output shaft diameter: 6mm
Protect Feature: Drip-proof
Torque: 25kgf.cm
Type: Gear Motor
Usage: BOAT,Fan,Home Appliance
Voltage: 6V/12V/24V
Voltage: 6V/12V/24V
Idle speed: 6rpm/10rpm/18rpm/23rpm/30rpm/40rpm/90rpm/150rpm
Max Load Torque: 25kgf.cm
Output shaft diameter: 6mm

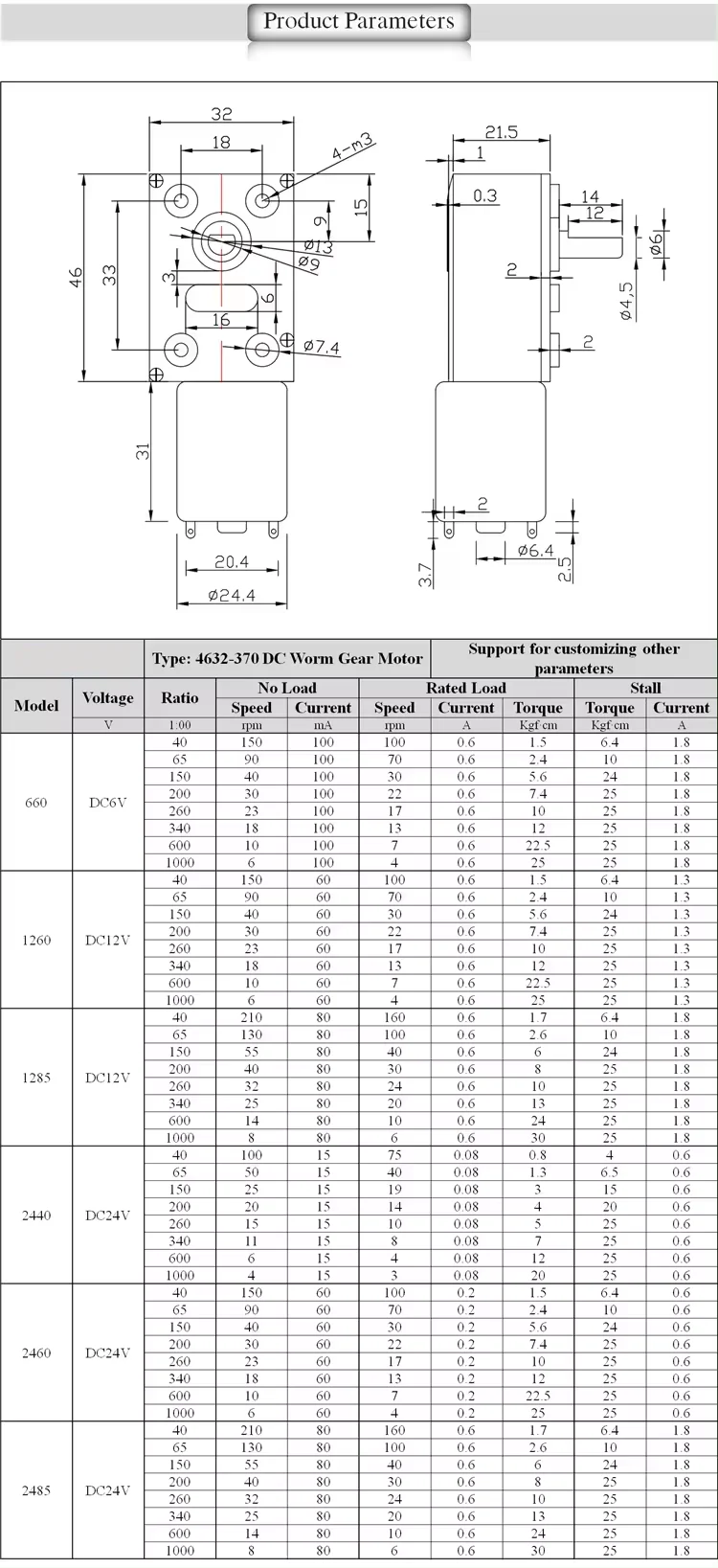

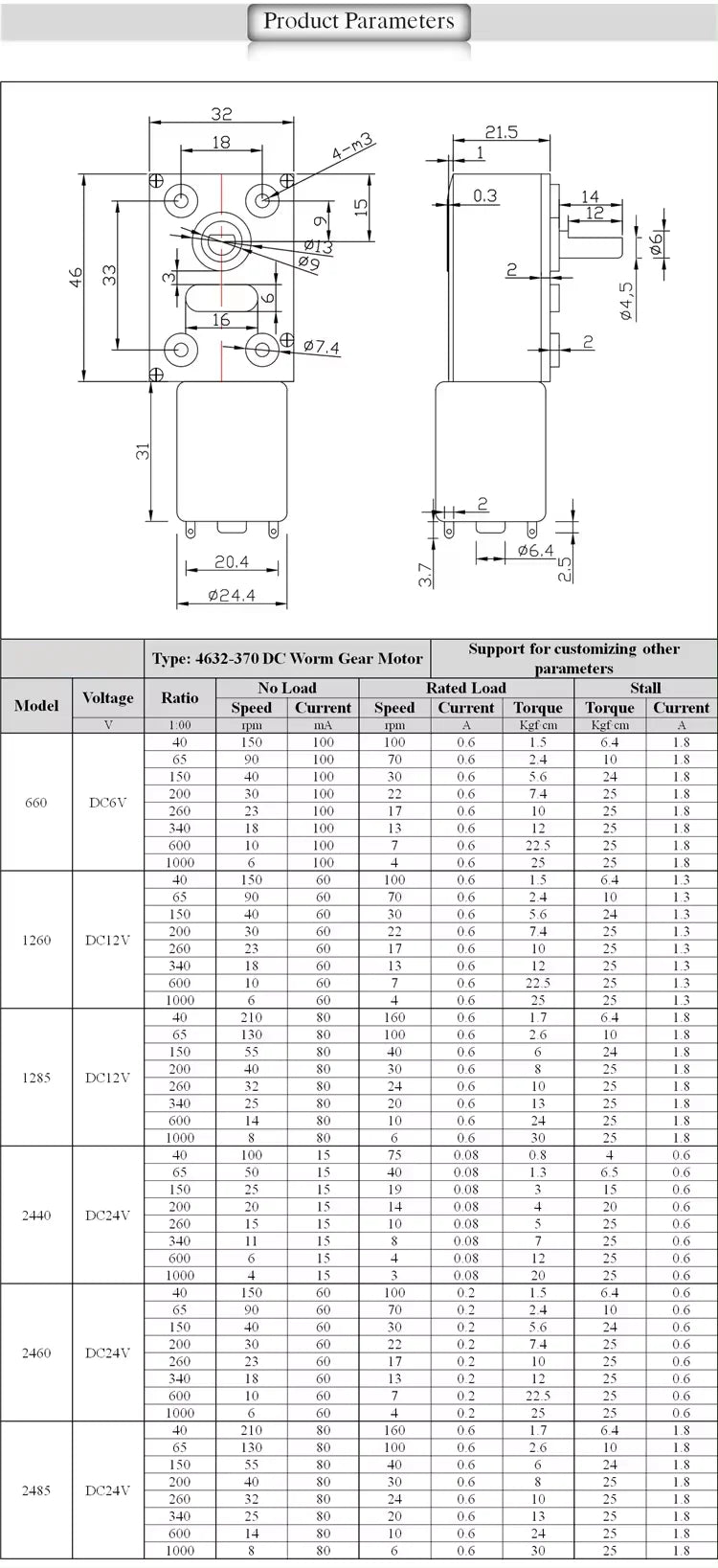

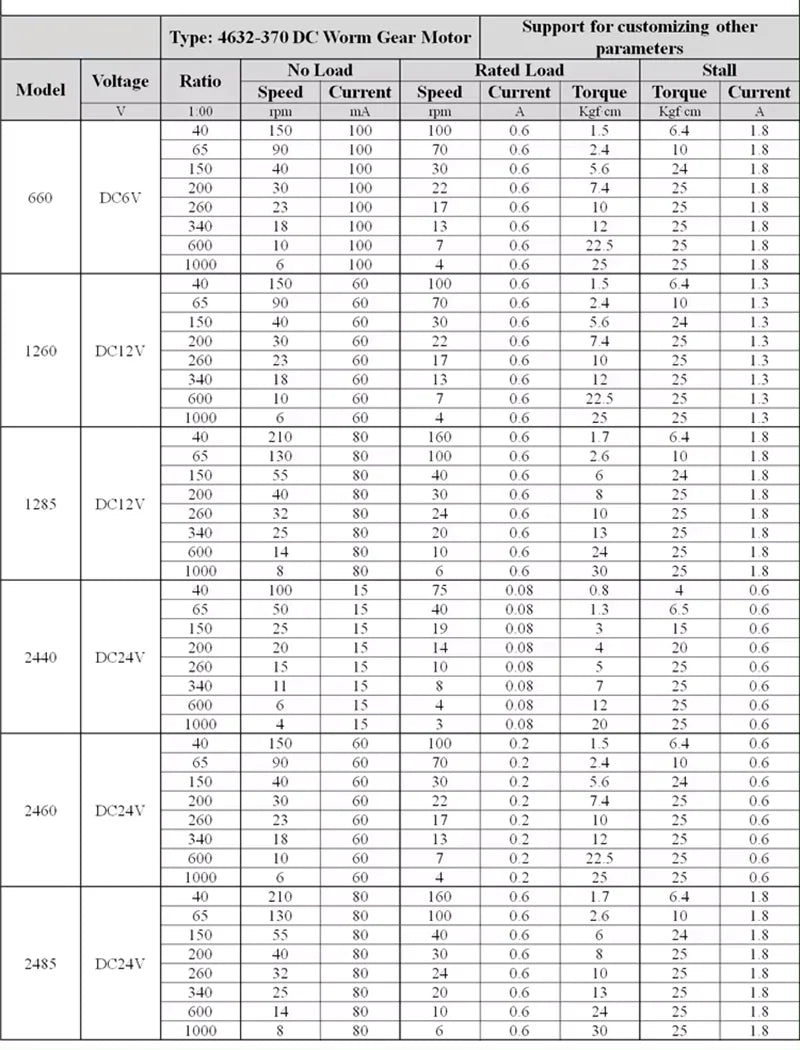

Product Show
