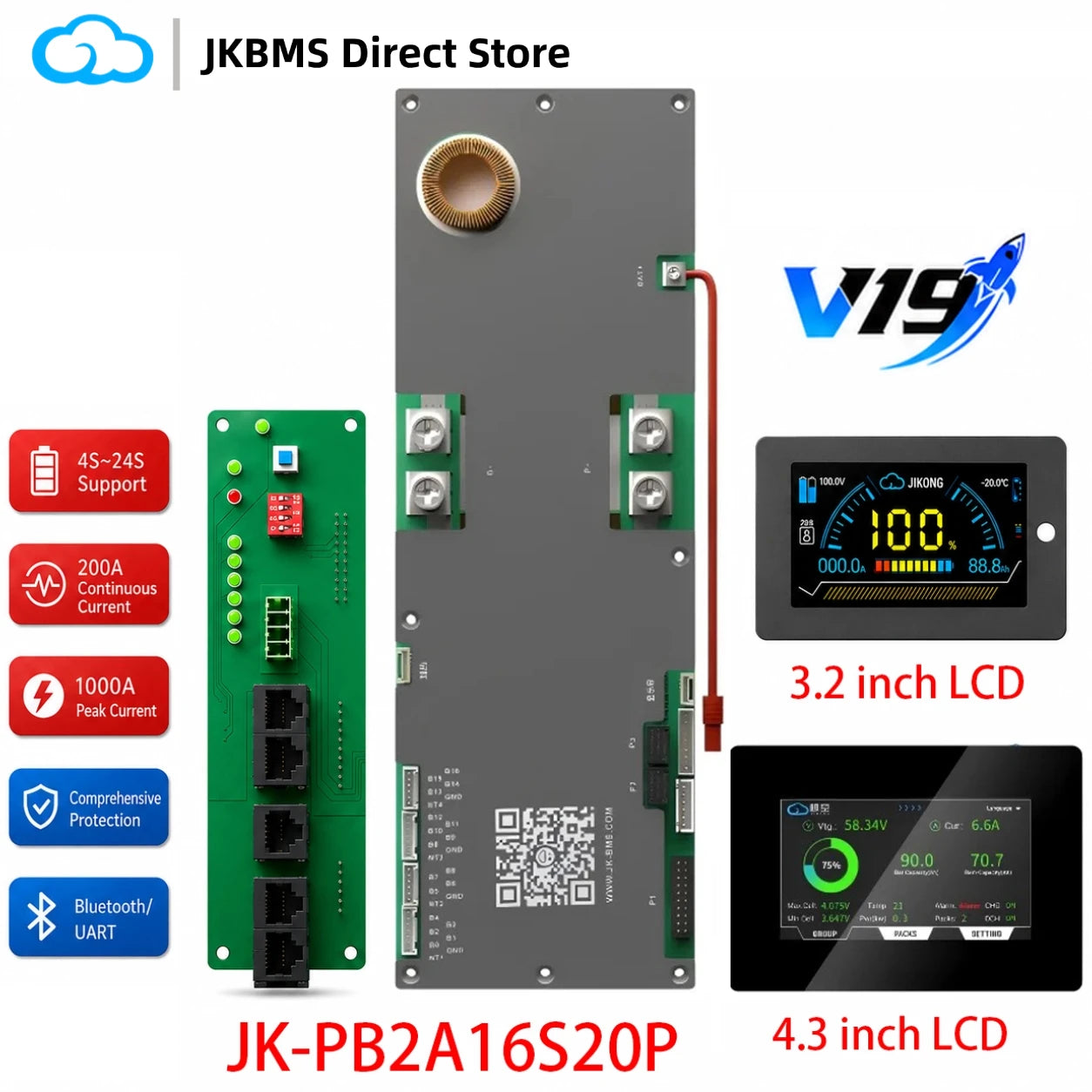

JIKONG PB2A16S20P Smart BMS 200A with 2A Active Balancer 8S 10S 12S 14S 16S 24V 48V LiFePo4 Li-Ion LTO Inverter Battery JK

JIKONG PB2A16S20P Smart BMS 200A with 2A Active Balancer 8S 10S 12S 14S 16S 24V 48V LiFePo4 Li-Ion LTO Inverter Battery JK

$752.63

$752.63 $0.00

Description

SPECIFICATIONS

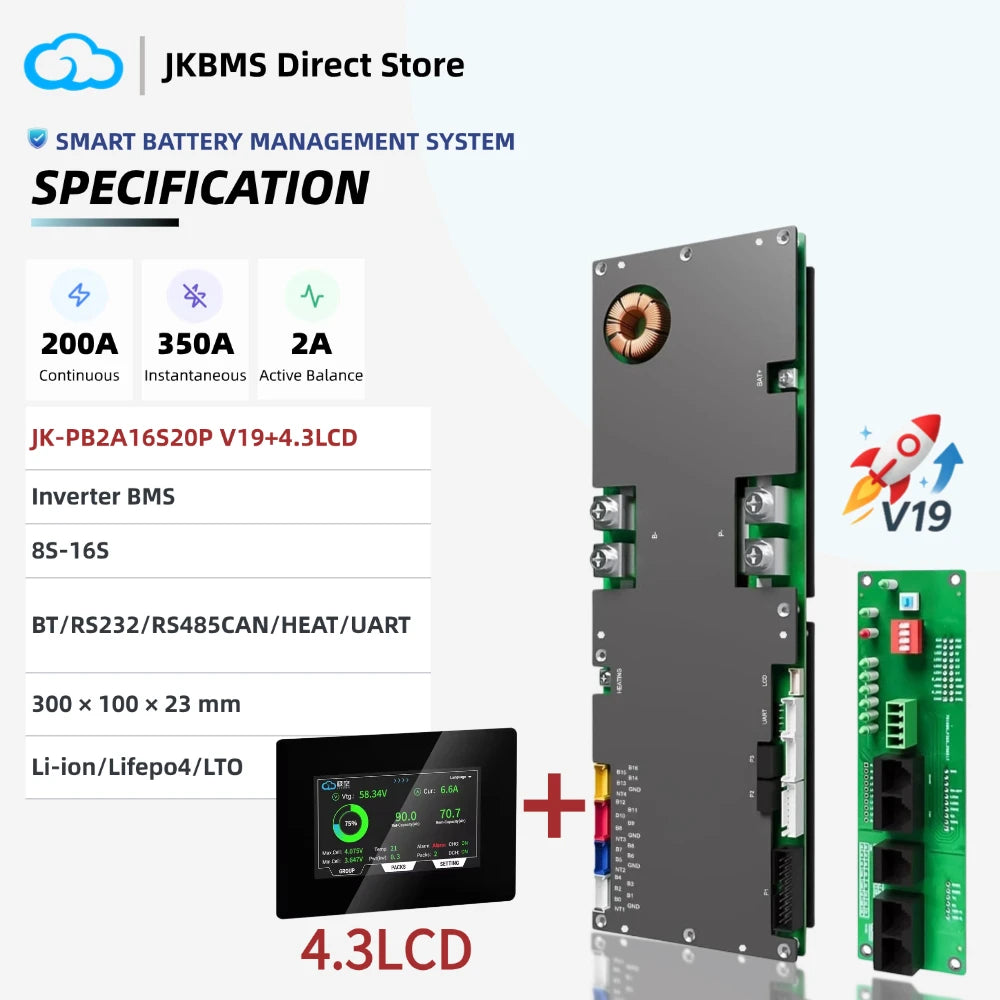

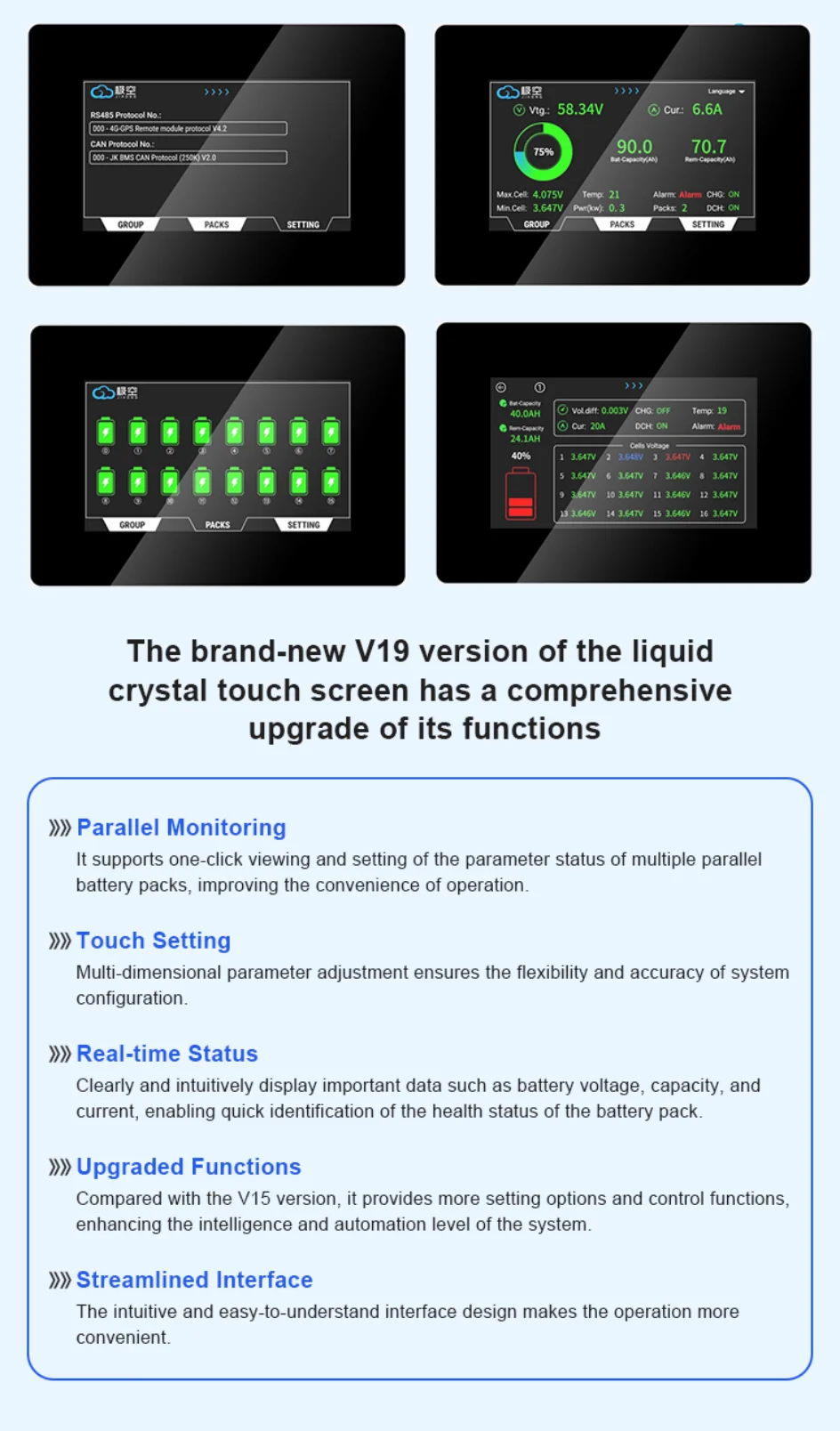

4.3 inches LCD: LCD display can be added

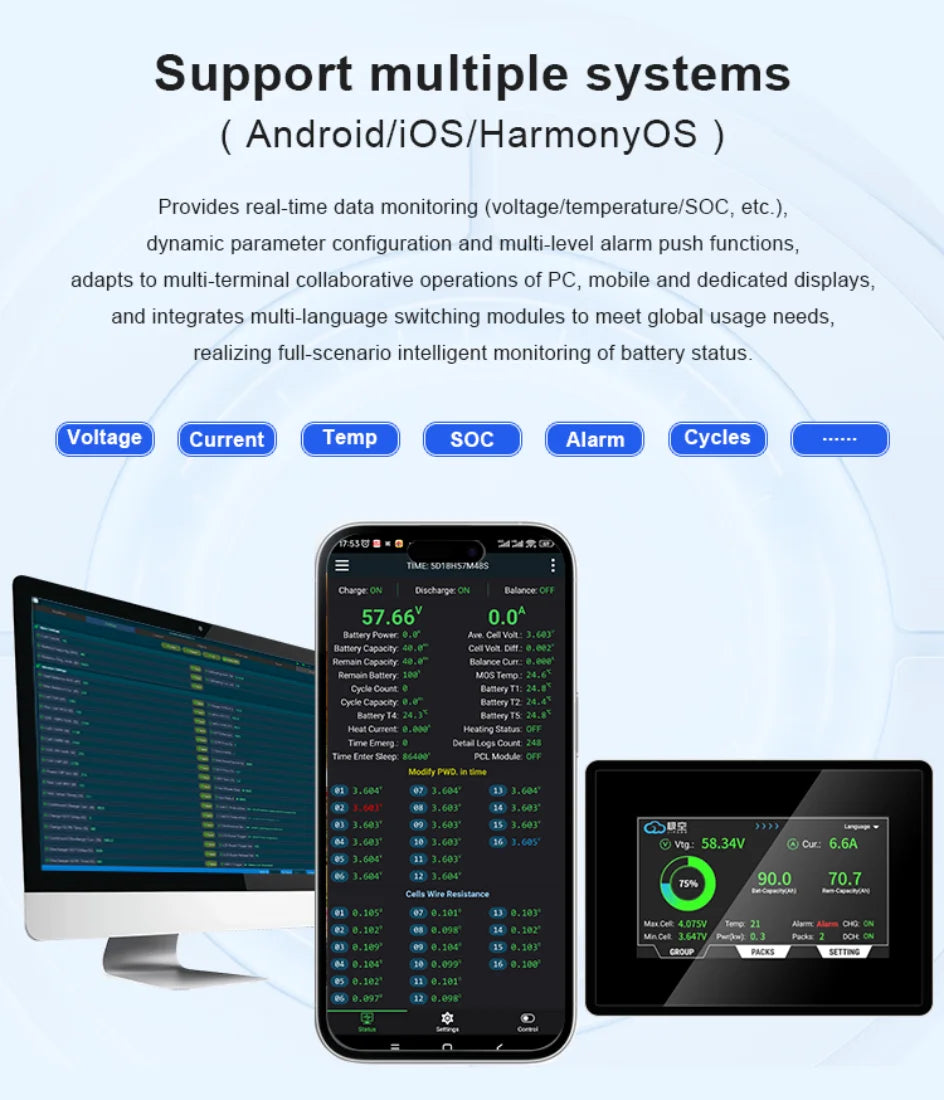

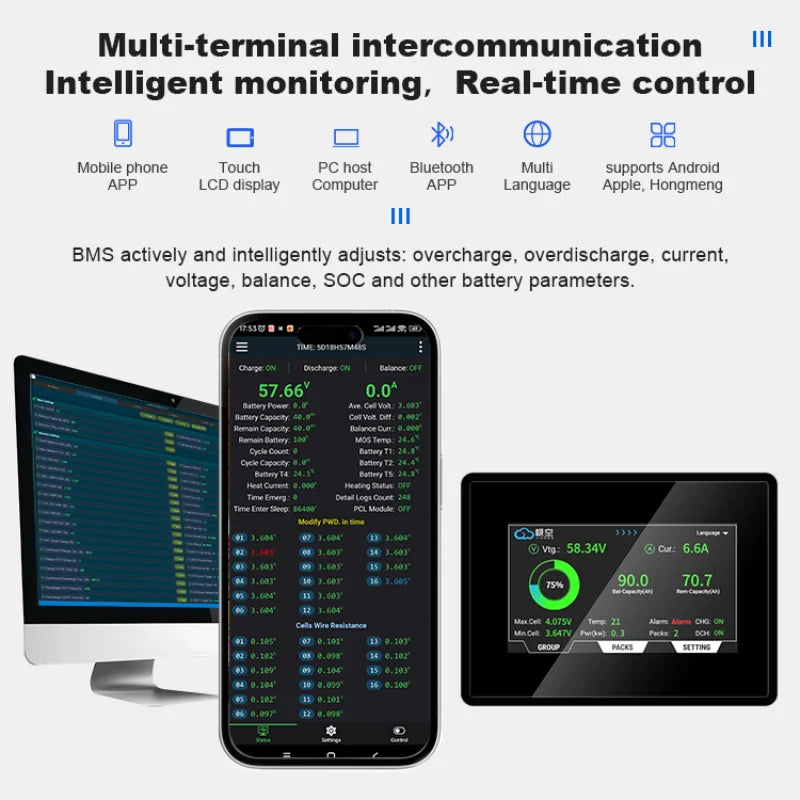

Adapting system: Android or iOS Harmony

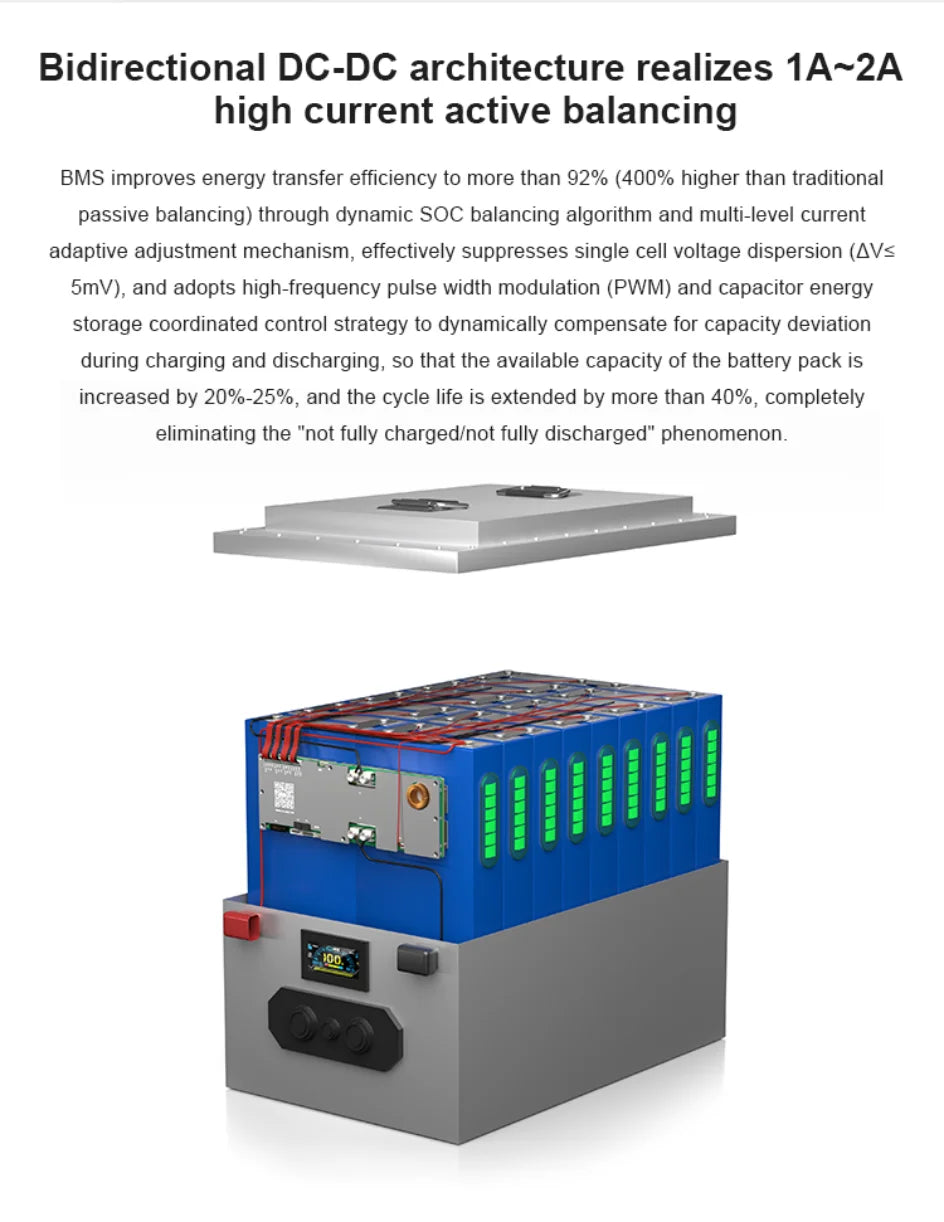

Balance Function: Active Balanced BMS

Battery Strings: 8S ~16S

Brand Name: JIKONG,JIKONG

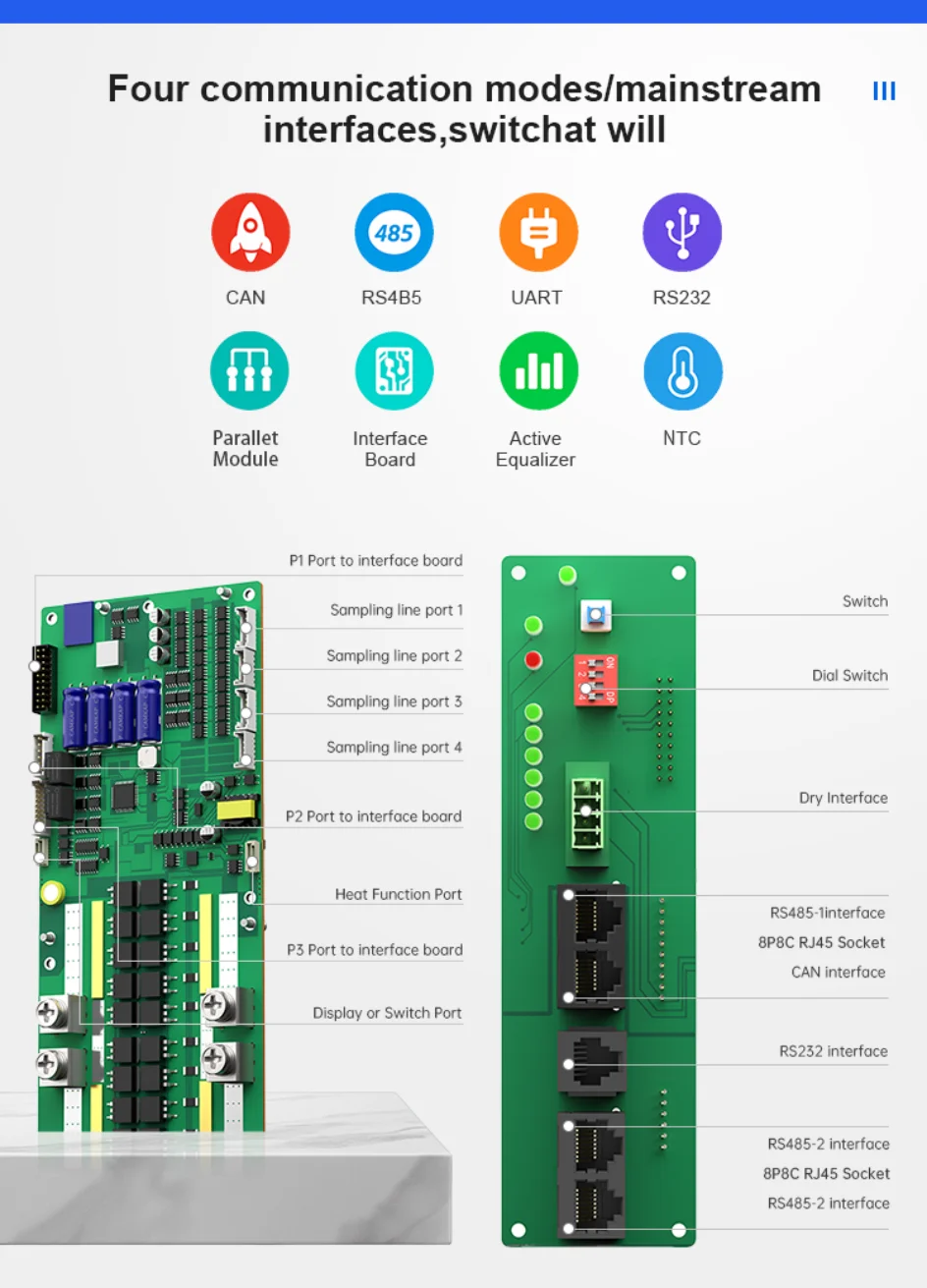

Built-in Interface: BT/RS232/RS485/CAN

Certification: CE,FCC,RoHS

Charge and Discharge Port: Common Port BMS

Charging Current: 100A

Choice: yes

Function: Overcharge Protection,Over Discharge Protection,Overcurrent Protection,Short Circuit Protection

Handware or Smart: SMART BMS

Heating Function: Yes

High-concerned chemical: none

Operation, alarm, and power indication: Support

Origin: Mainland China

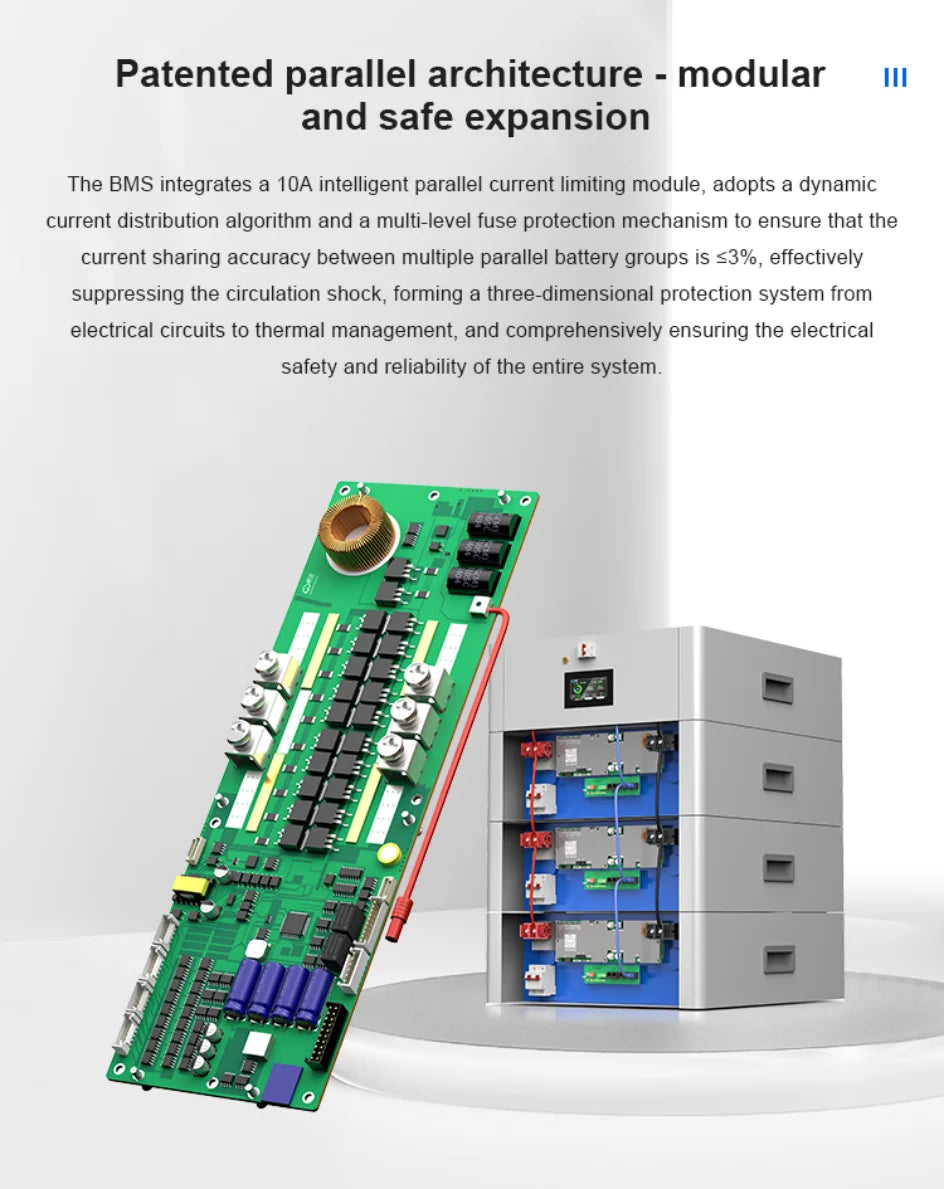

Support Parallel Connection: Yes

Temperature protection: Yes

Type: LI-ION Battery BMS

Usage Scenario: Power BMS,Energy Storage BMS,3C Digital BMS

model 1: JK-PB1A16S10P V19

model2: JK-PB1A16S15P V19

model3: JK-PB2A16S15P V19

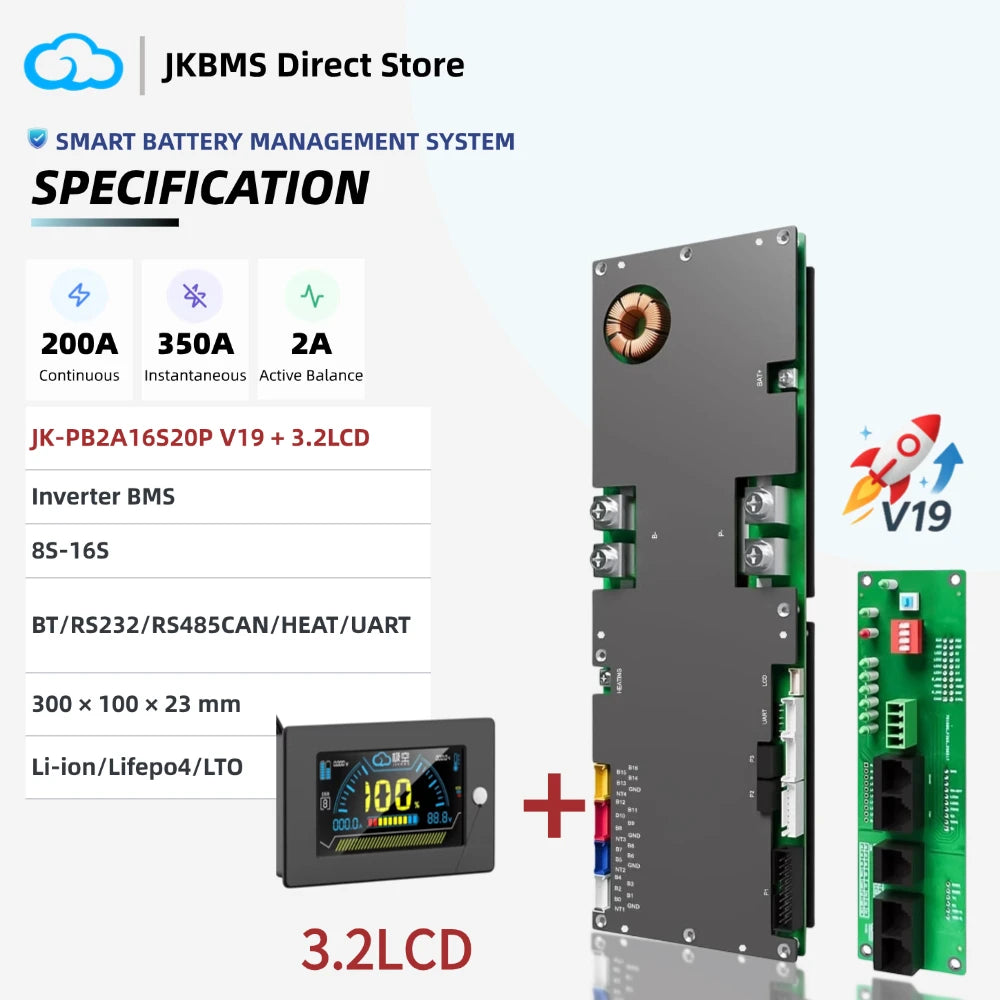

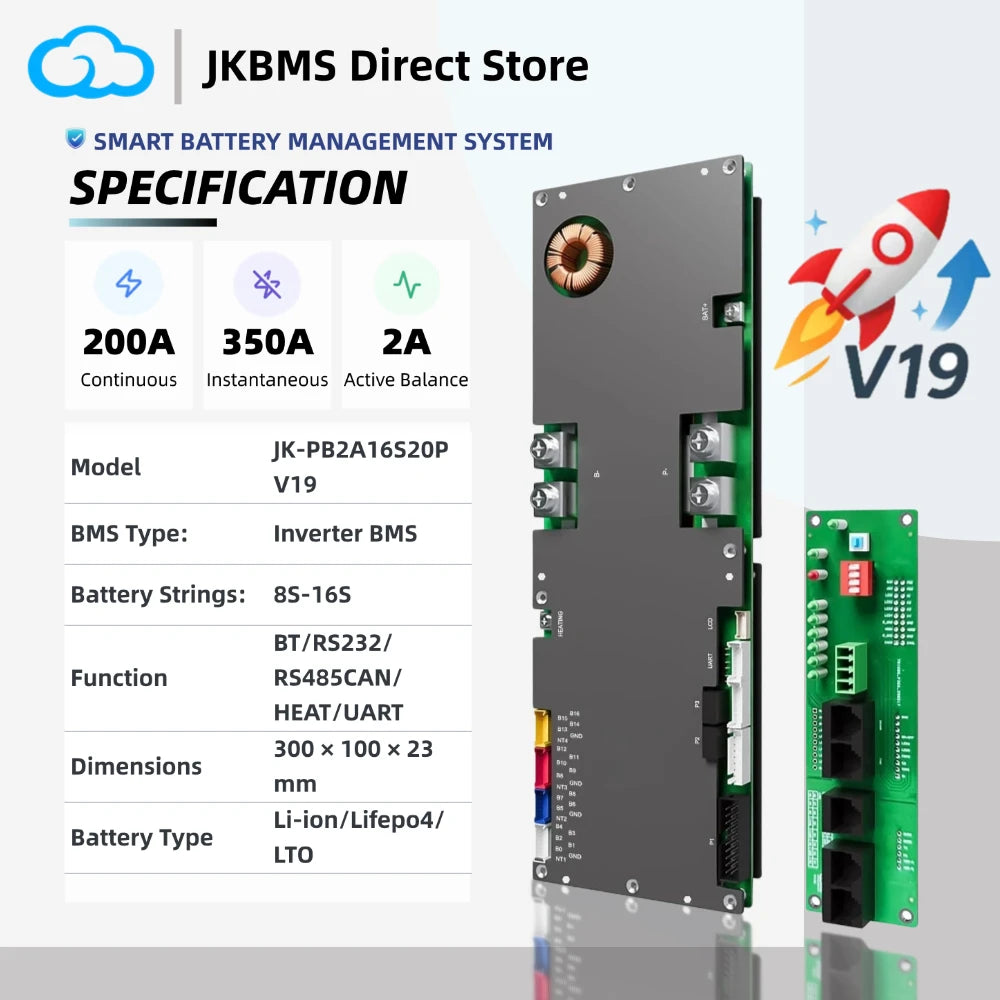

model4: JK-PB2A16S20P V19

optional categories: 100A 150A 200A Optional

semi_Choice: yes

suit for battery: Li-ion / lifepo4 / LTO

version: V19

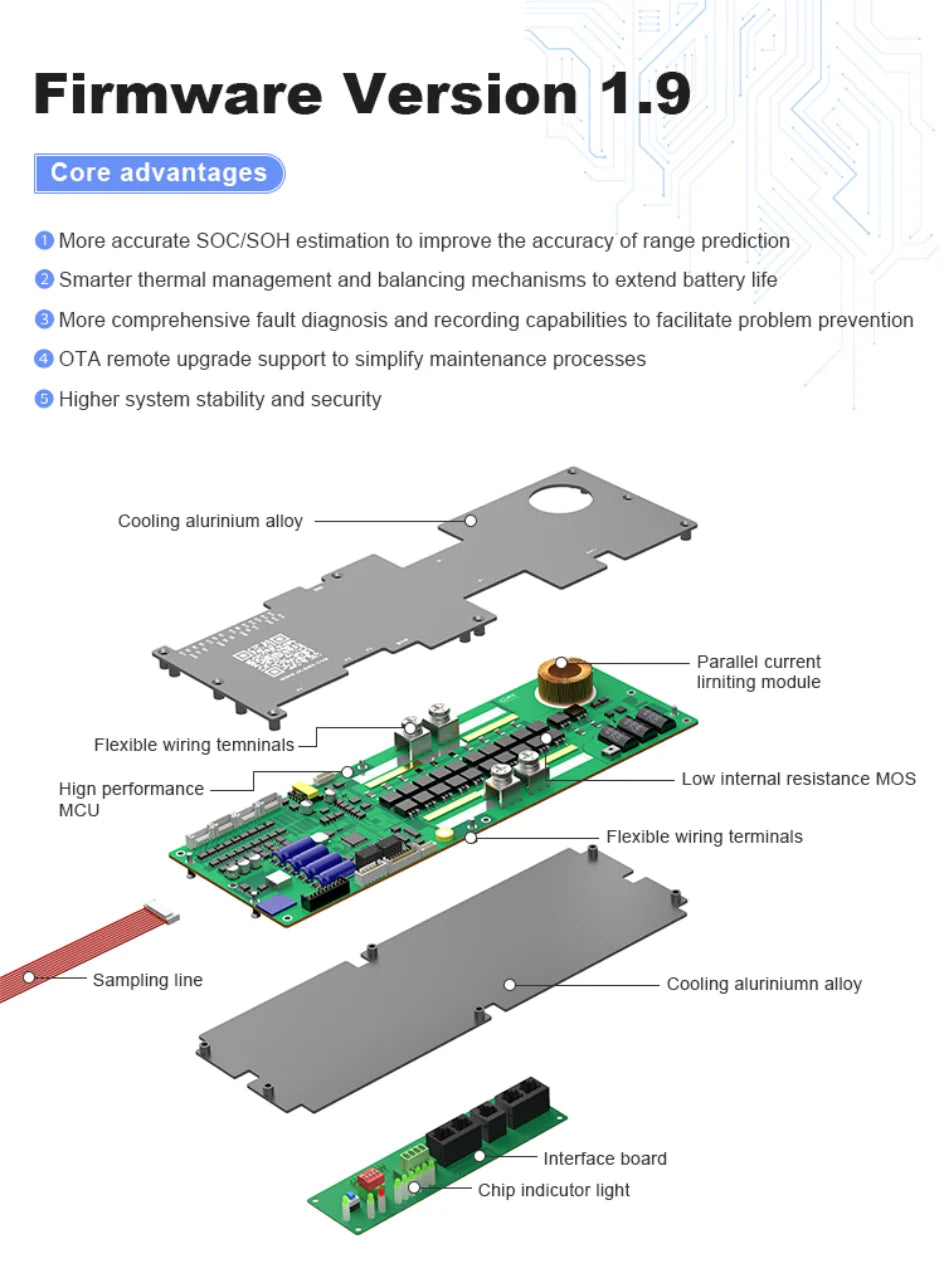

Notice: JIKONG BMS (JKBMS) energy storage inverter BMS, firmware

version fully upgraded to V19

BMS is also perfectly compatible with all old versions of LCD display screens (4.3LCD 3.2LCD), no need to worry!! According to your needs, you can also choose to purchase the latest 4.3LCD display screen V19 version.（Please note when placing an order ！）

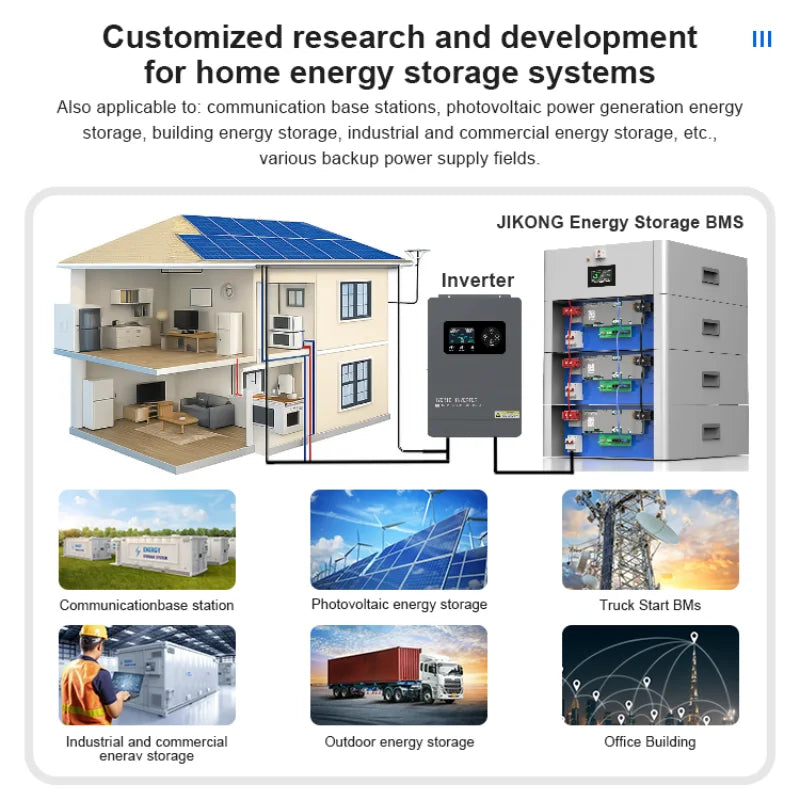

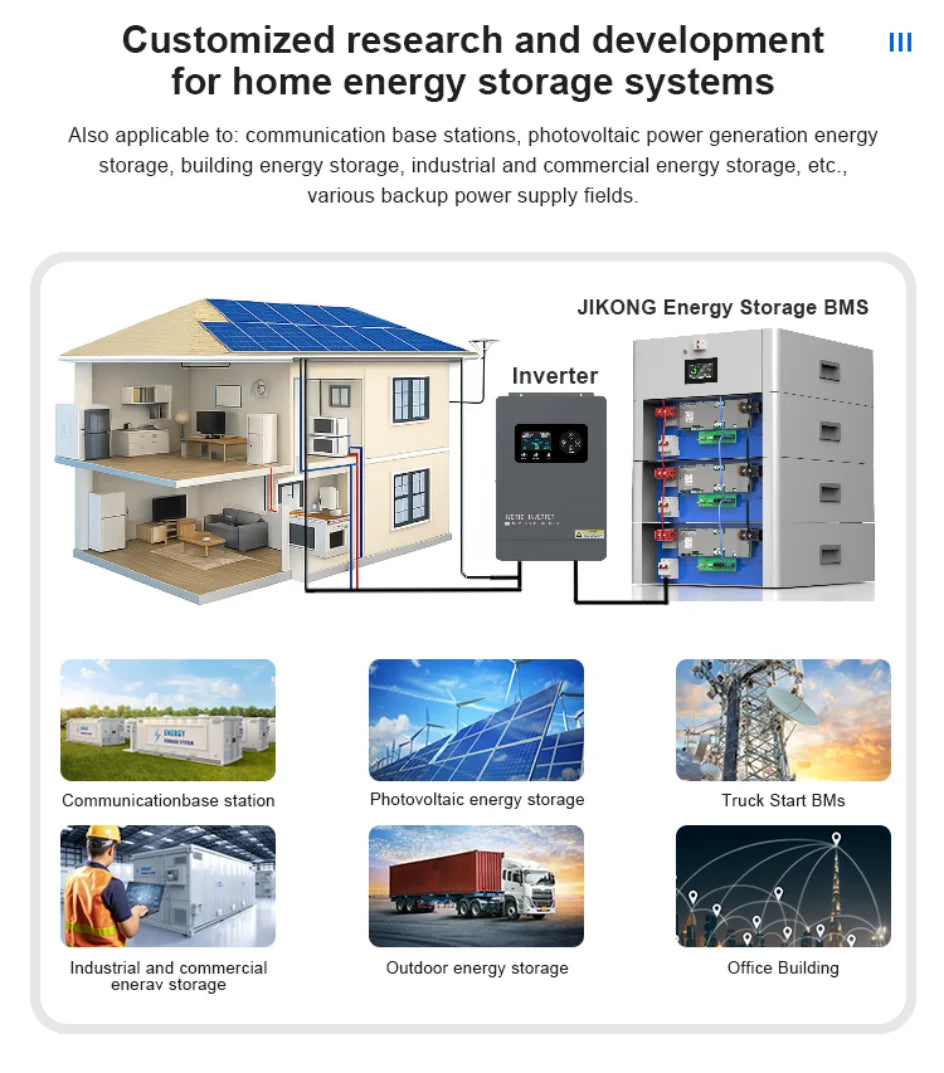

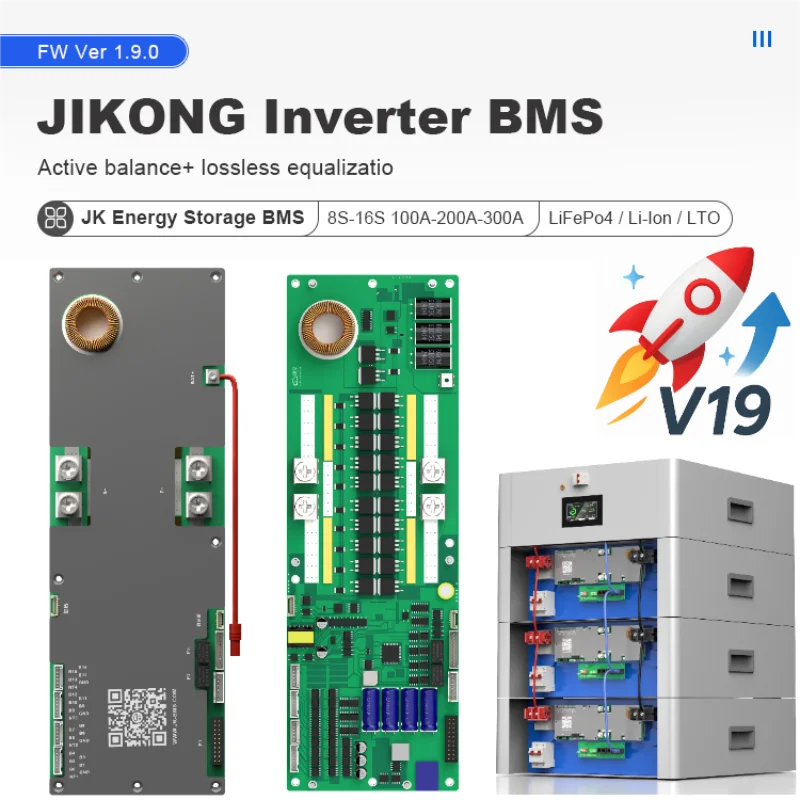

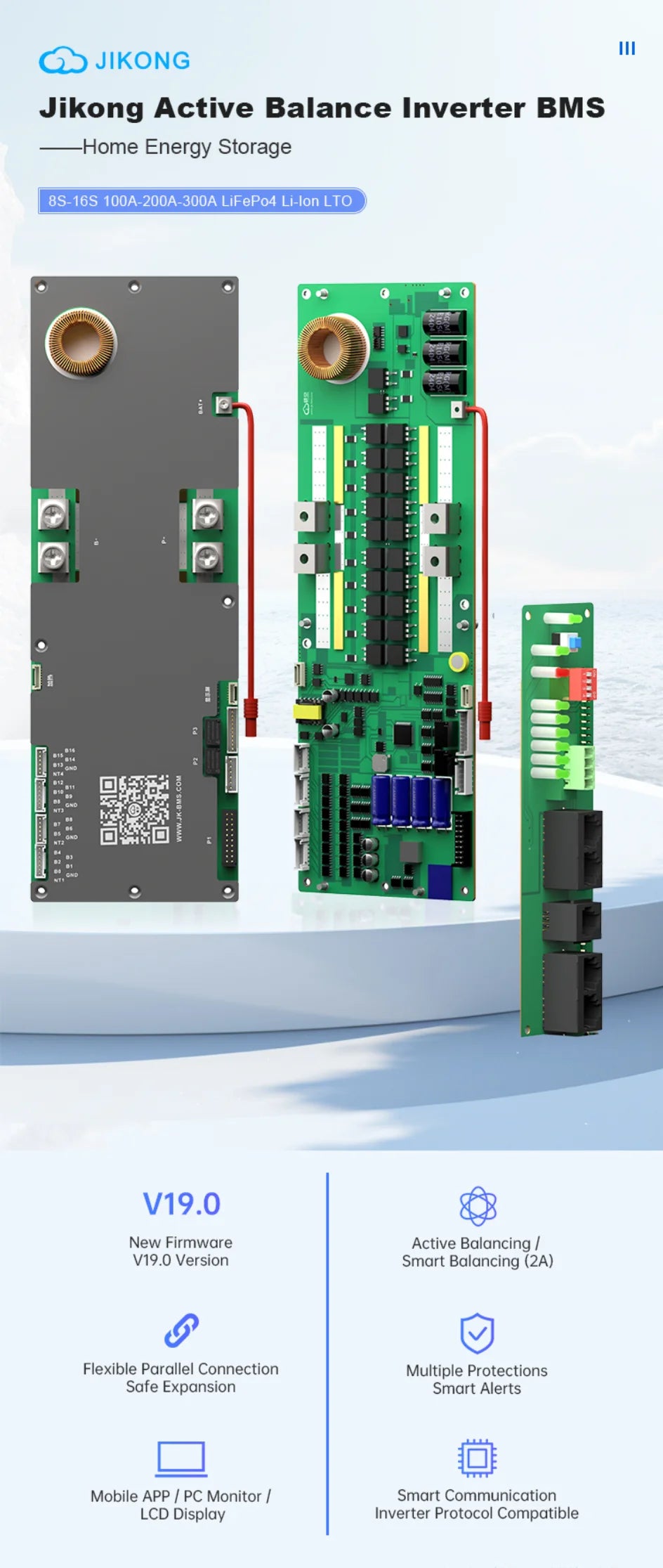

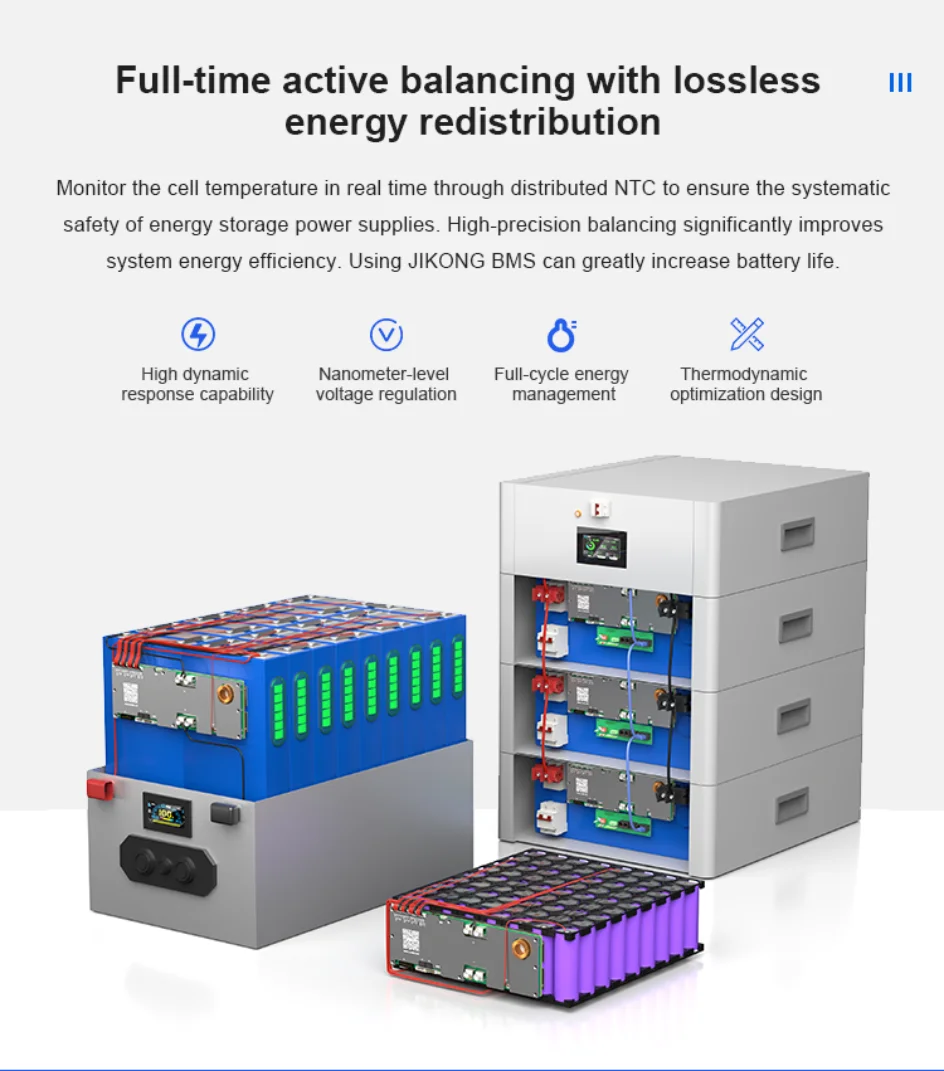

Energy storage BMS, inverter BMS, solar photovoltaic BMS
brand	JKBMS/JIKONG BMS（Direct sales worldwide）
Applicable battery	Lithium-ion/Lifepo4/lo/Lead Acid

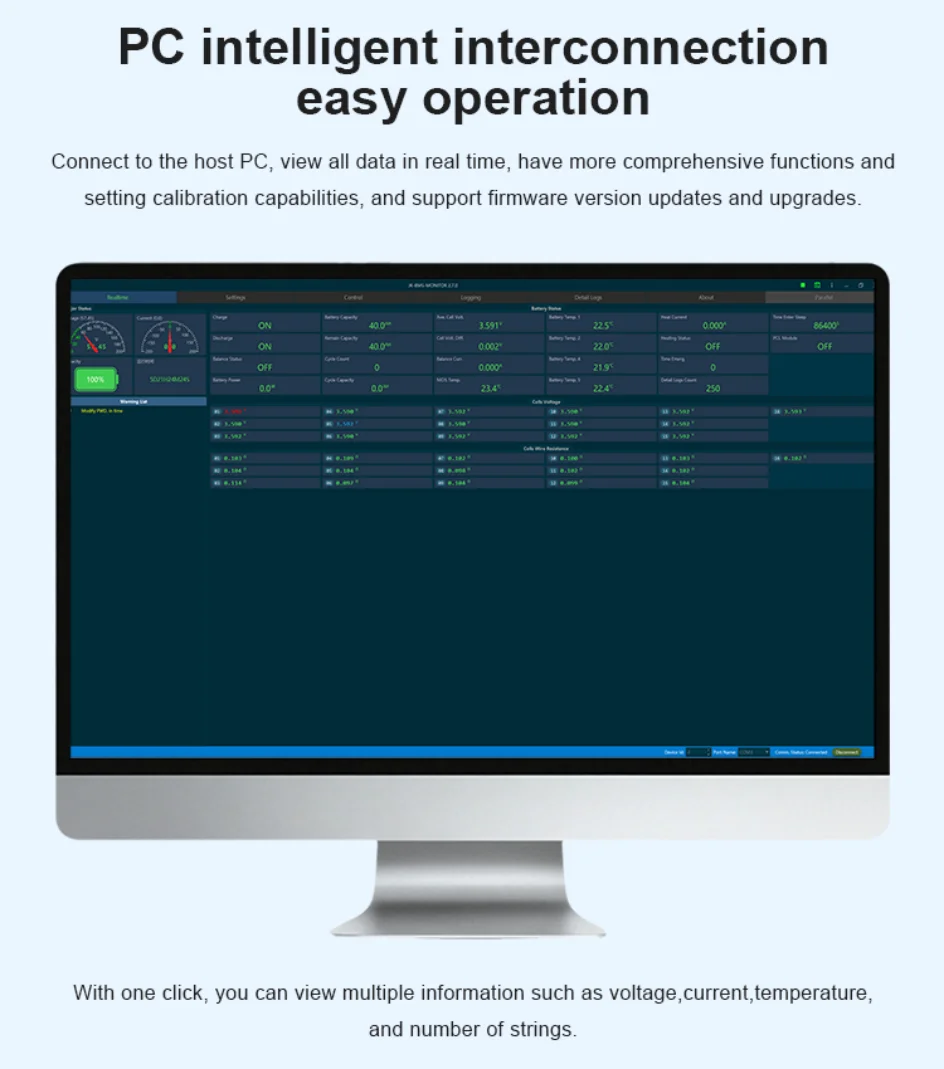

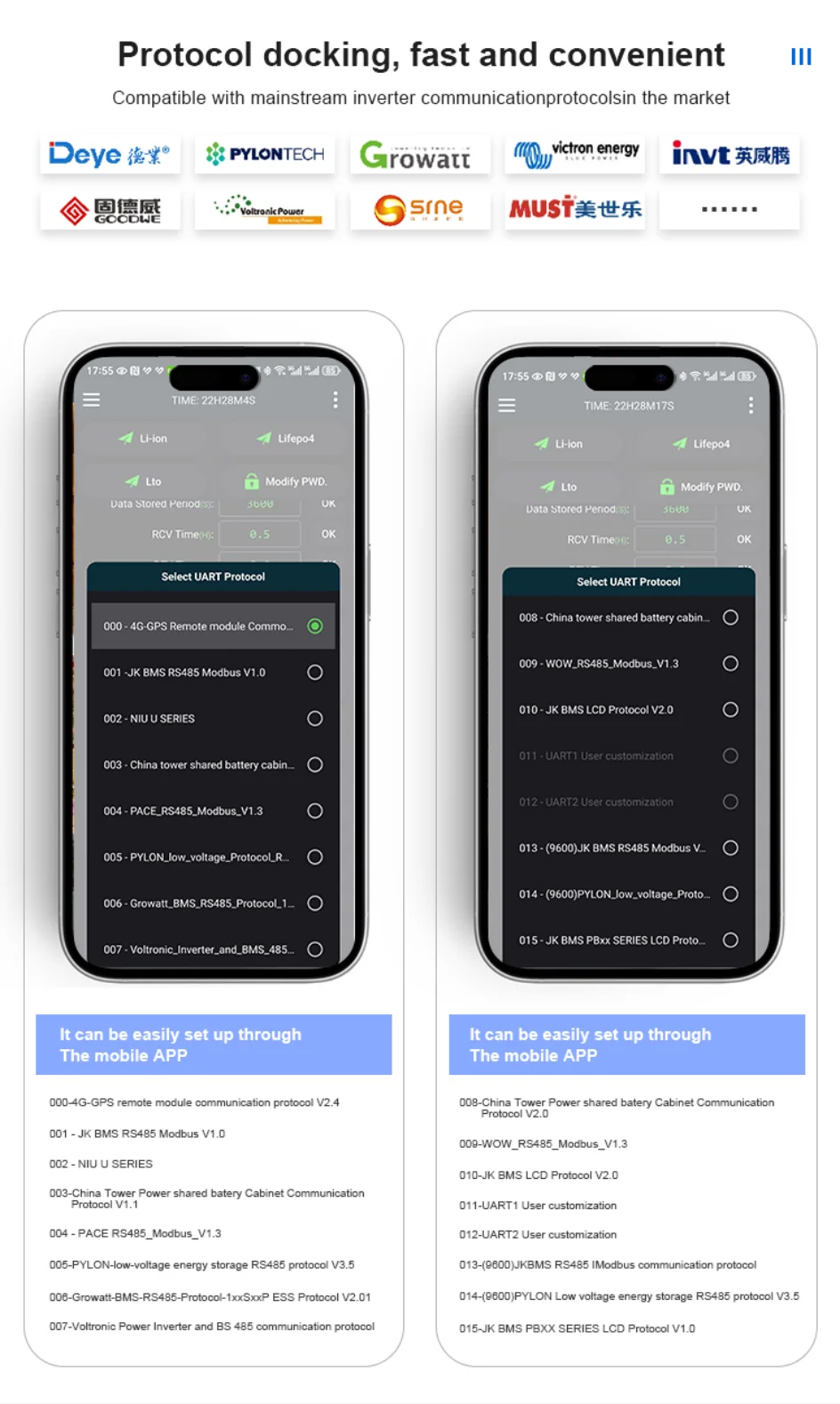

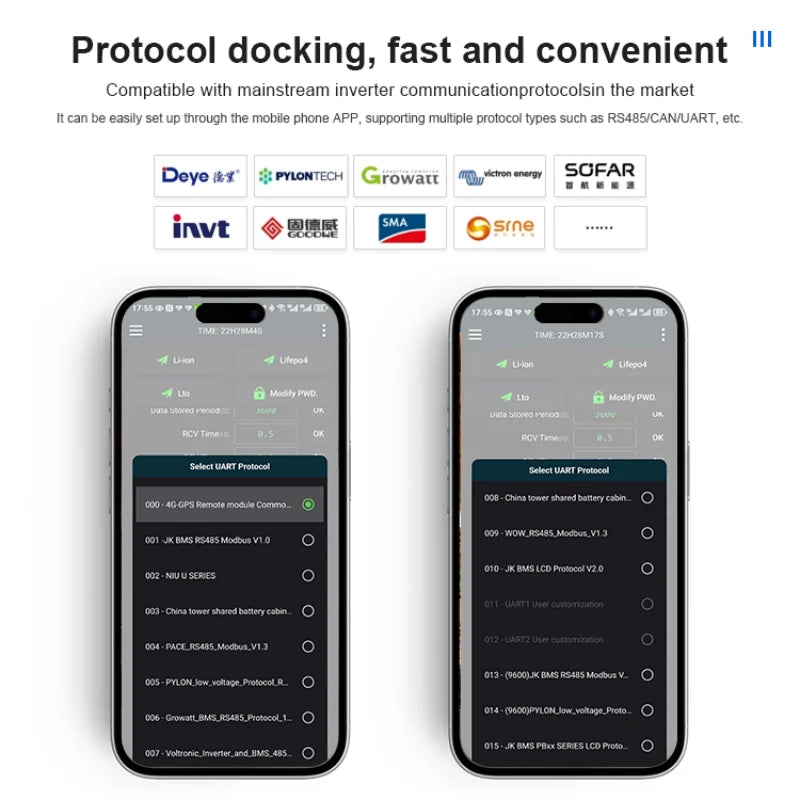

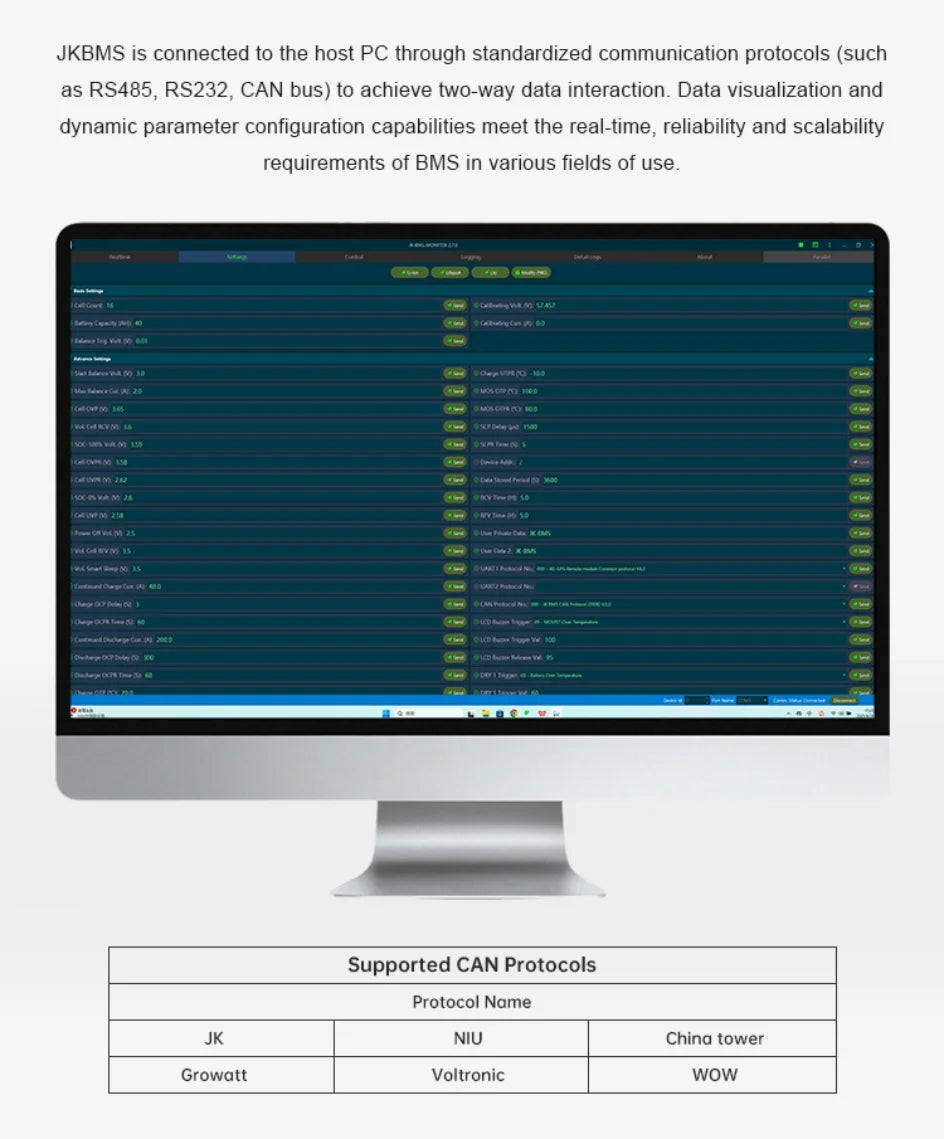

Support functions	RS485/CAN/UART/Bluetooth/heating/Parallel Operation APP/PC Host/LCD Display/Inverter Protocol

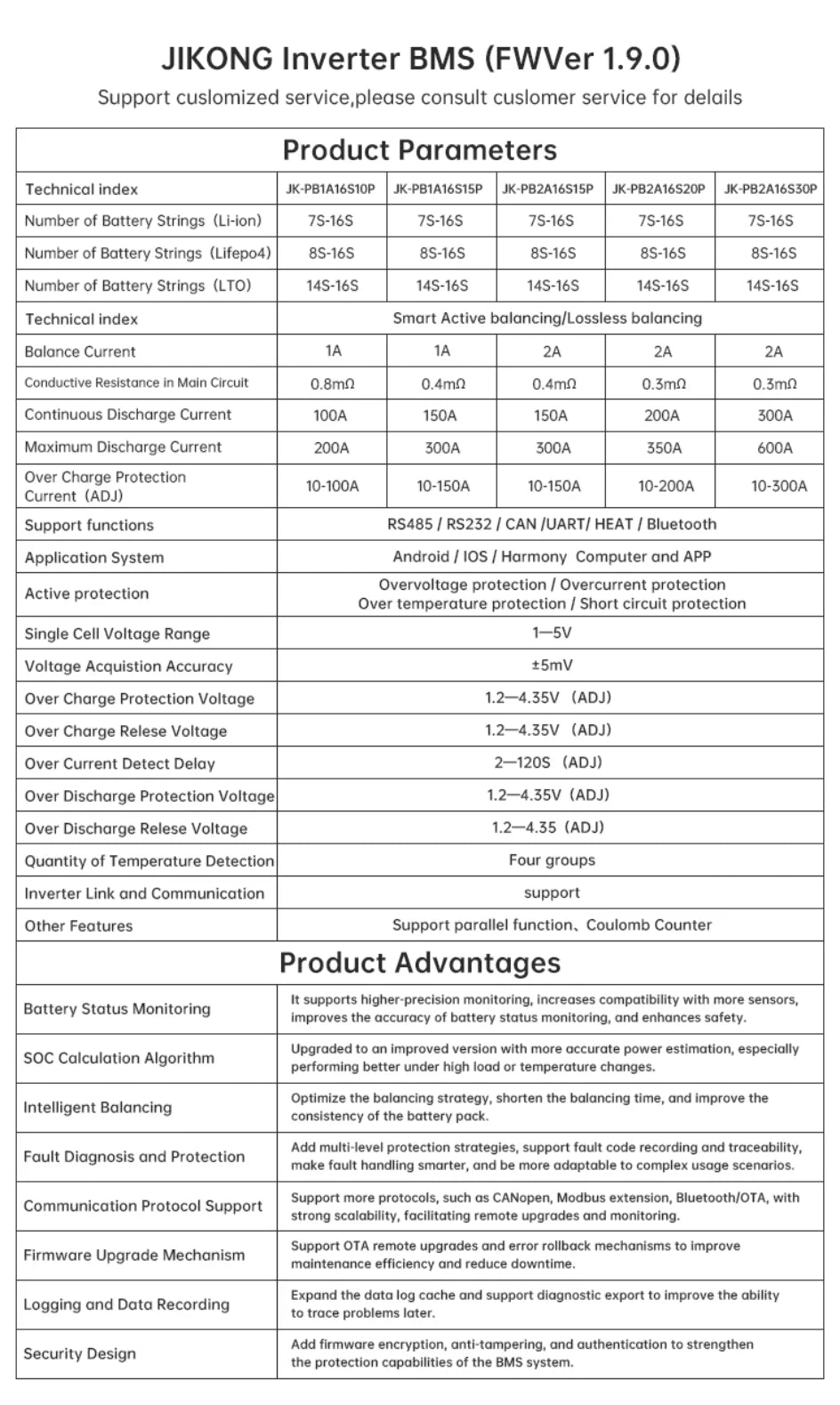

JK-PB1A16S10P	8S~16S Charge and discharge current 100A Active balancing 1A
JK-PB1A16S15P	8S~16S Charge and discharge current 150A Active balancing 1A
JK-PB2A16S15P	8S~16S Charge and discharge current 150A Active balancing 2A
JK-PB2A16S20P	8S~16S Charge and discharge current 200A Active balancing 2A
JK-PB2A16S30P	8S~16S Charge and discharge current 300A Active balancing 2A

Frequently asked questions：

1. Production and customization?

Chengdu Jikong Technology Co., Ltd. is a national high-tech enterprise integrating R&D, production and sales. The company has advanced production equipment, a high-quality team with rich product design experience, supporting ODM, OEM

2. How to guarantee the quality and after-sales service?

There are always pre-production samples before mass production, 100% testing before delivery, and final inspection before shipment.

3. BMS application scenarios and model selection?

Inverter BMS: 8S~16S Active balancing: 1A~2A Charge and discharge current: 100A ~300A

Power BMS:4S~24S Active balancing: 0.4A~2A Charge and discharge current: 40A ~300A

Energy storage BMS:4S~8S Active balancing: 1A~2A Charge and discharge current: 100A ~300A

Truck start BMS: 4S~8S Active balancing: 1A~2A Limit current: 3000A

Active balancer: 4S~24S Active balancing: 1A~15A

4. Transportation channels?

Customers with special requirements can discuss with us in advance to connect with different transportation channels and methods.
5、How long is the lead time for samples and bulk orders?

Sample delivery time: about 15 working days. Bulk order delivery time: about 35 working days.
