SPECIFICATIONS

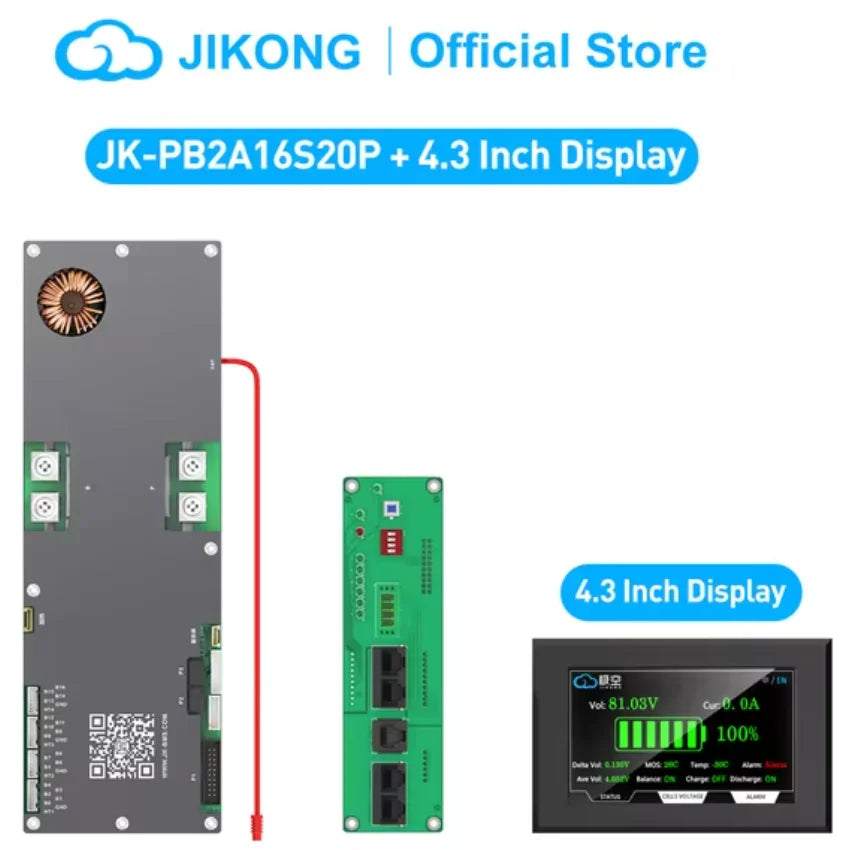

4.3 inches LCD: LCD display can be added

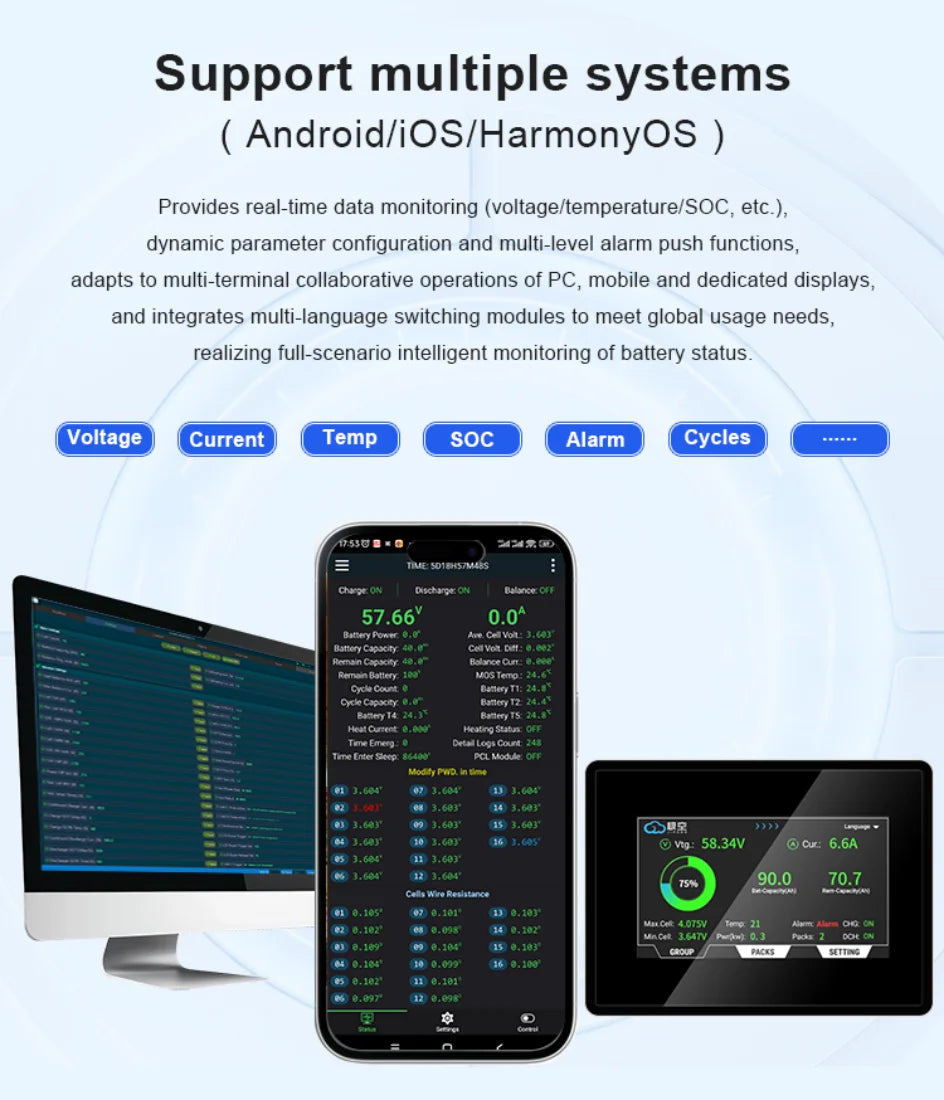

Adapting system: Android or iOS Harmony

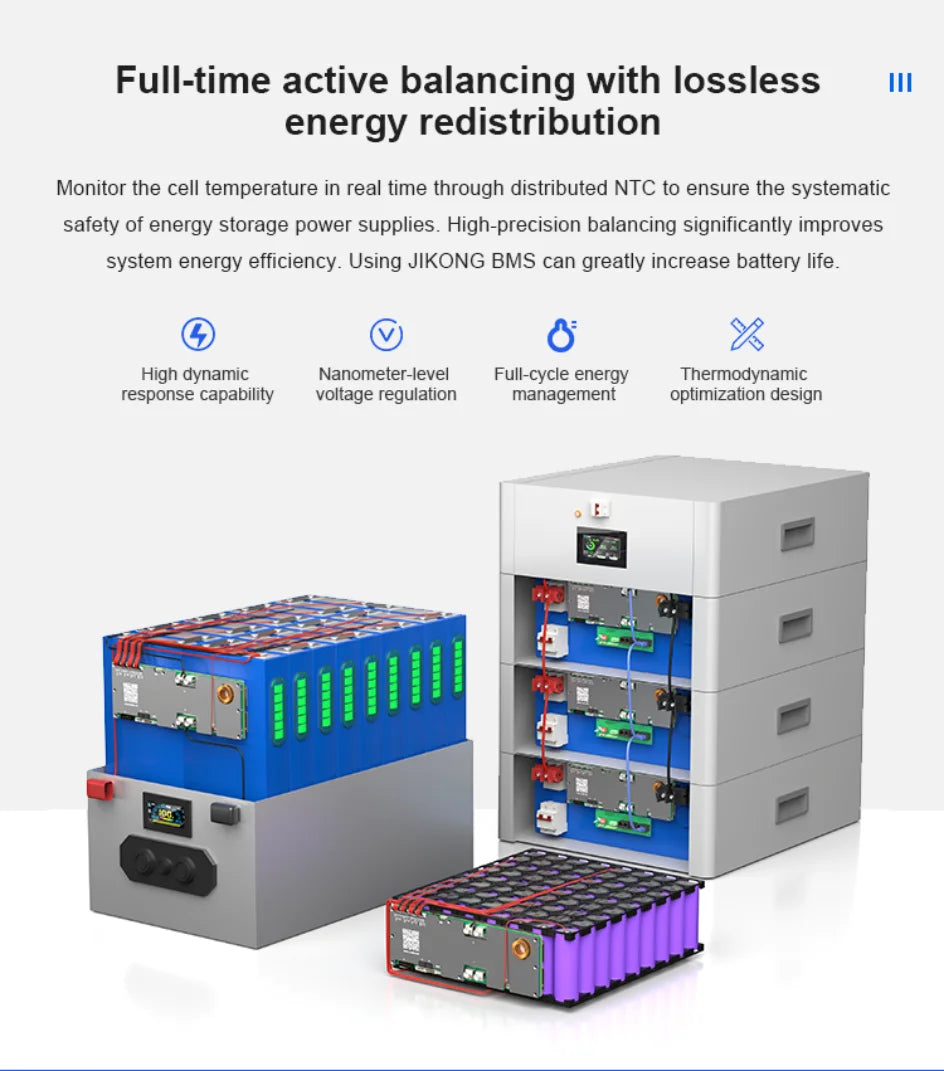

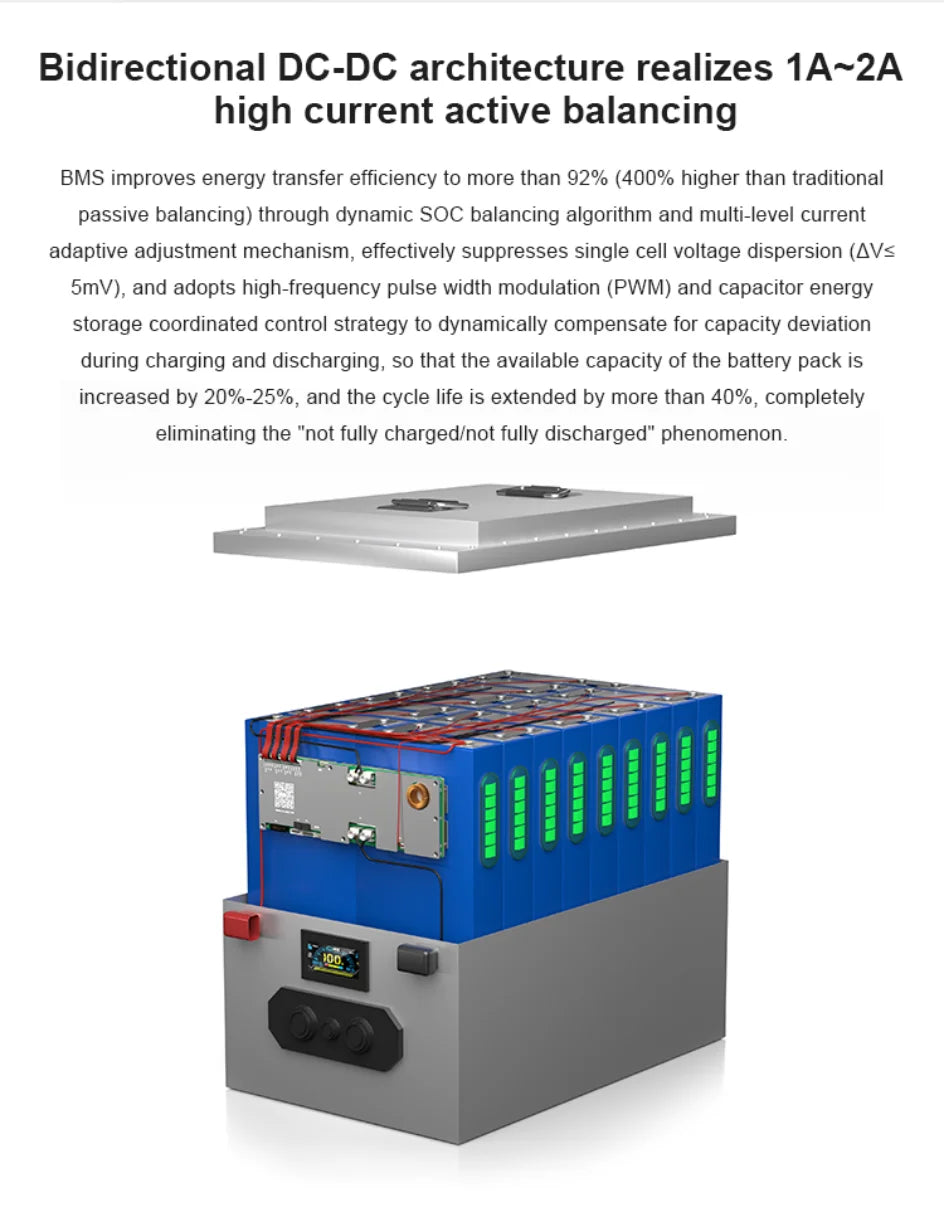

Balance Function: Active Balanced BMS

Battery Strings: 8S ~16S

Brand Name: JIKONG

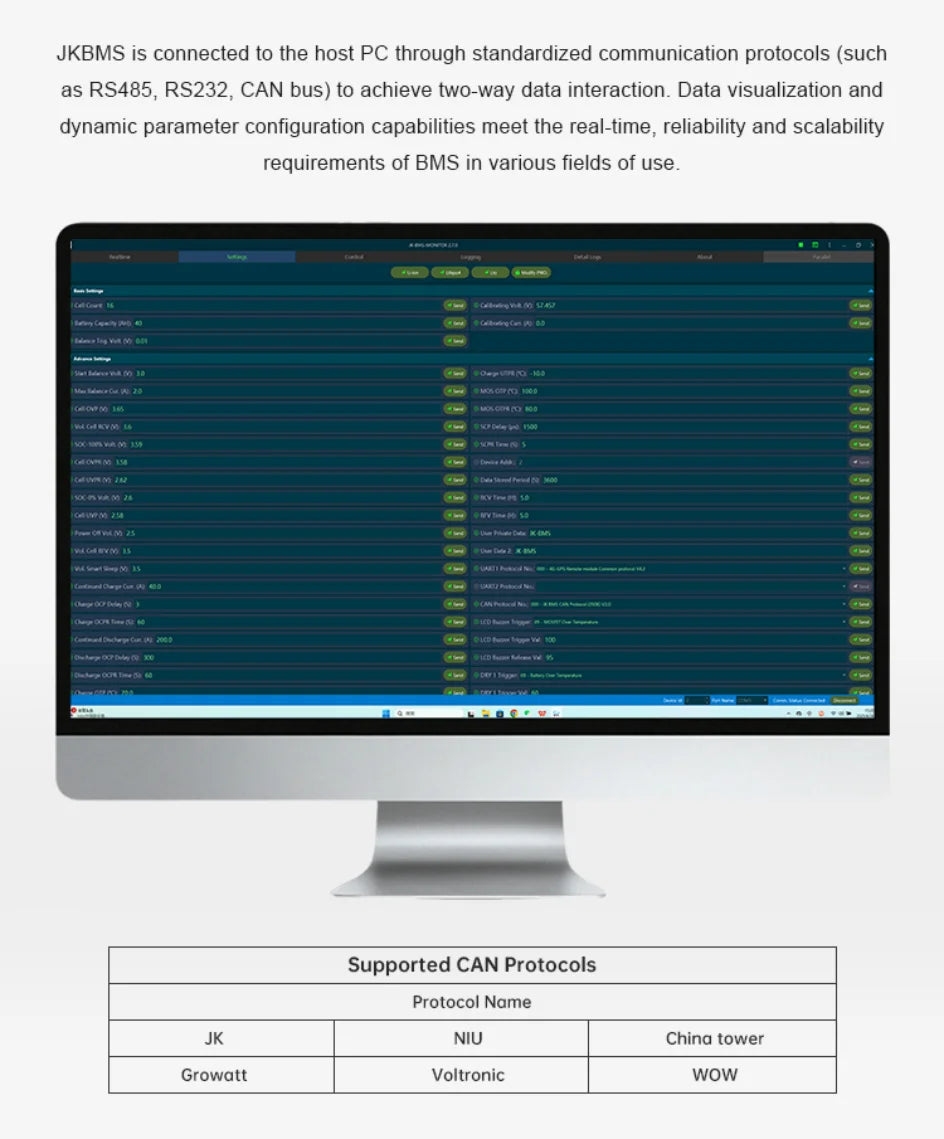

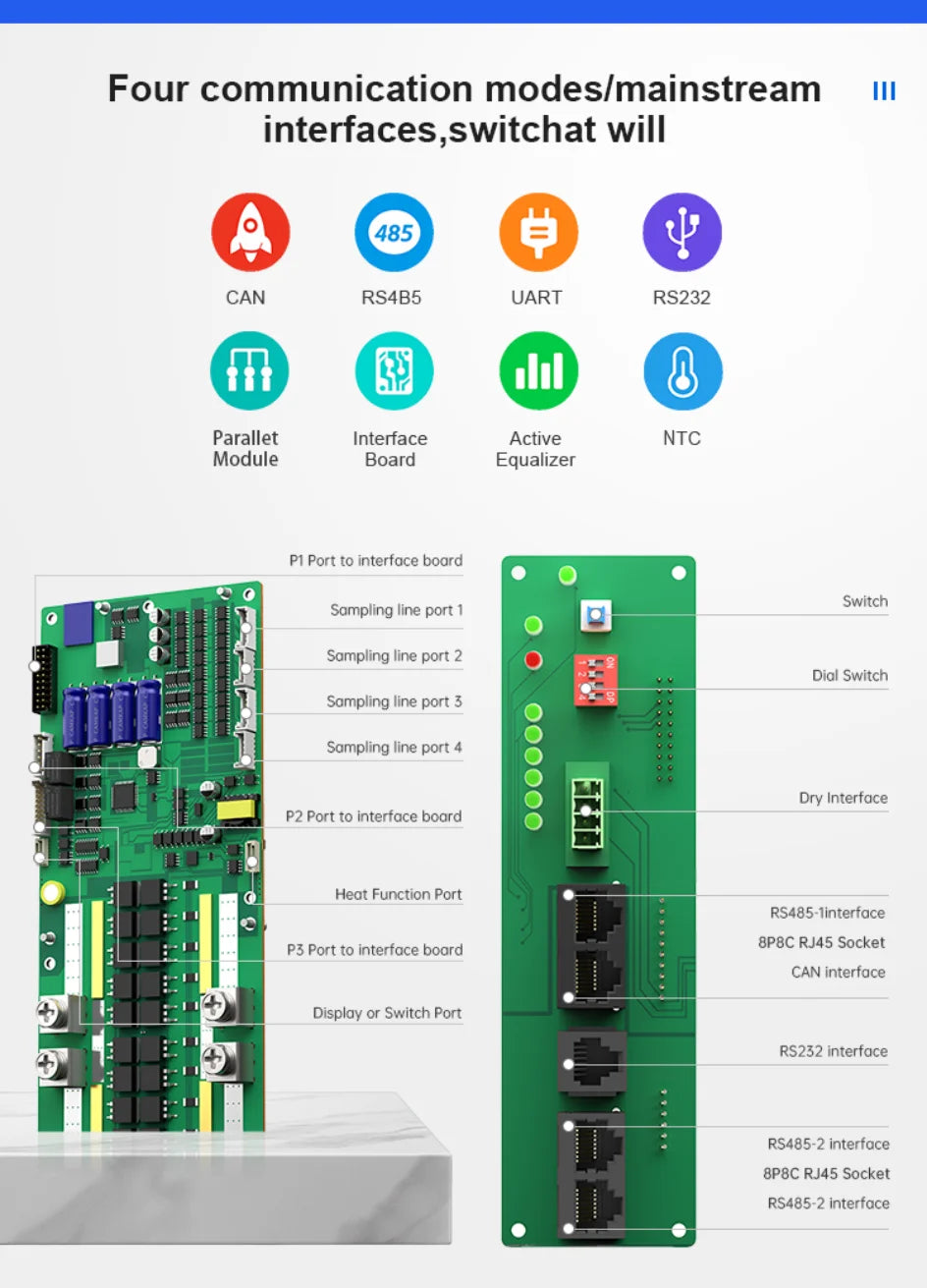

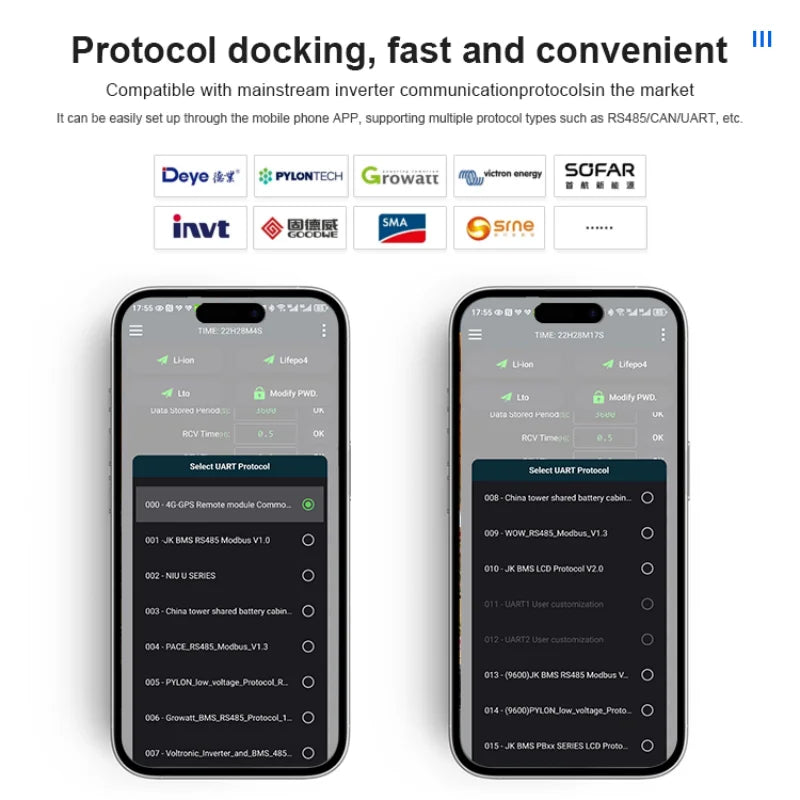

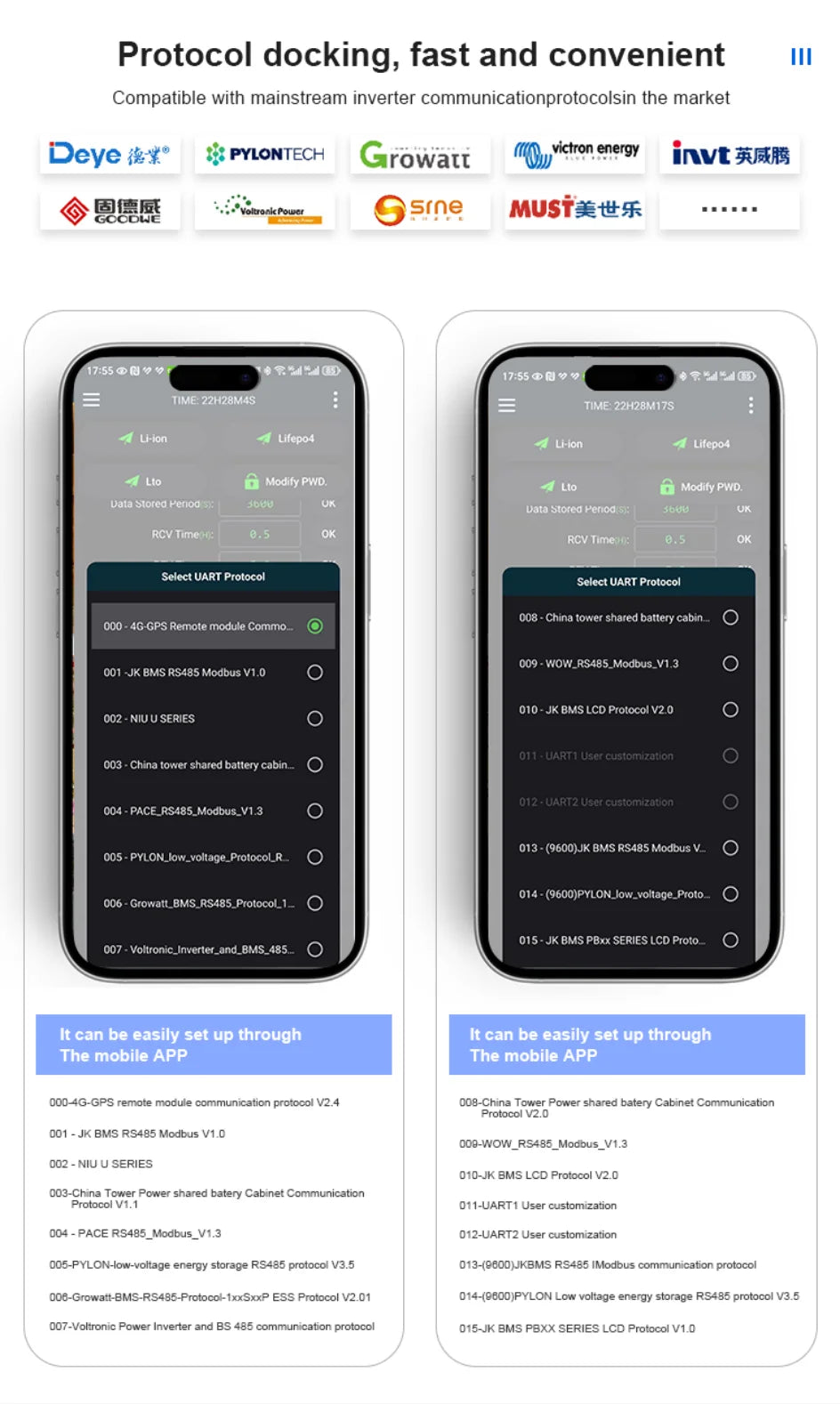

Built-in Interface: BT/RS232/RS485/CAN

Certification: CE,FCC,RoHS

Charge and Discharge Port: Common Port BMS

Charging Current: 100A

Function: Overcharge Protection,Over Discharge Protection,Overcurrent Protection,Short Circuit Protection

Handware or Smart: SMART BMS

Heating Function: Yes

High-concerned chemical: none

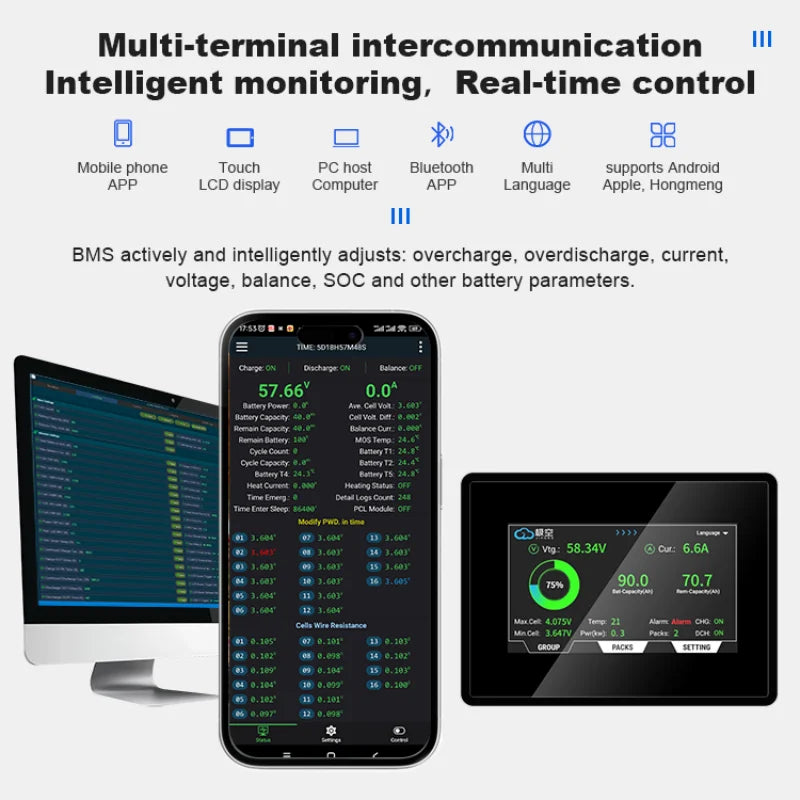

Operation, alarm, and power indication: Support

Origin: Mainland China

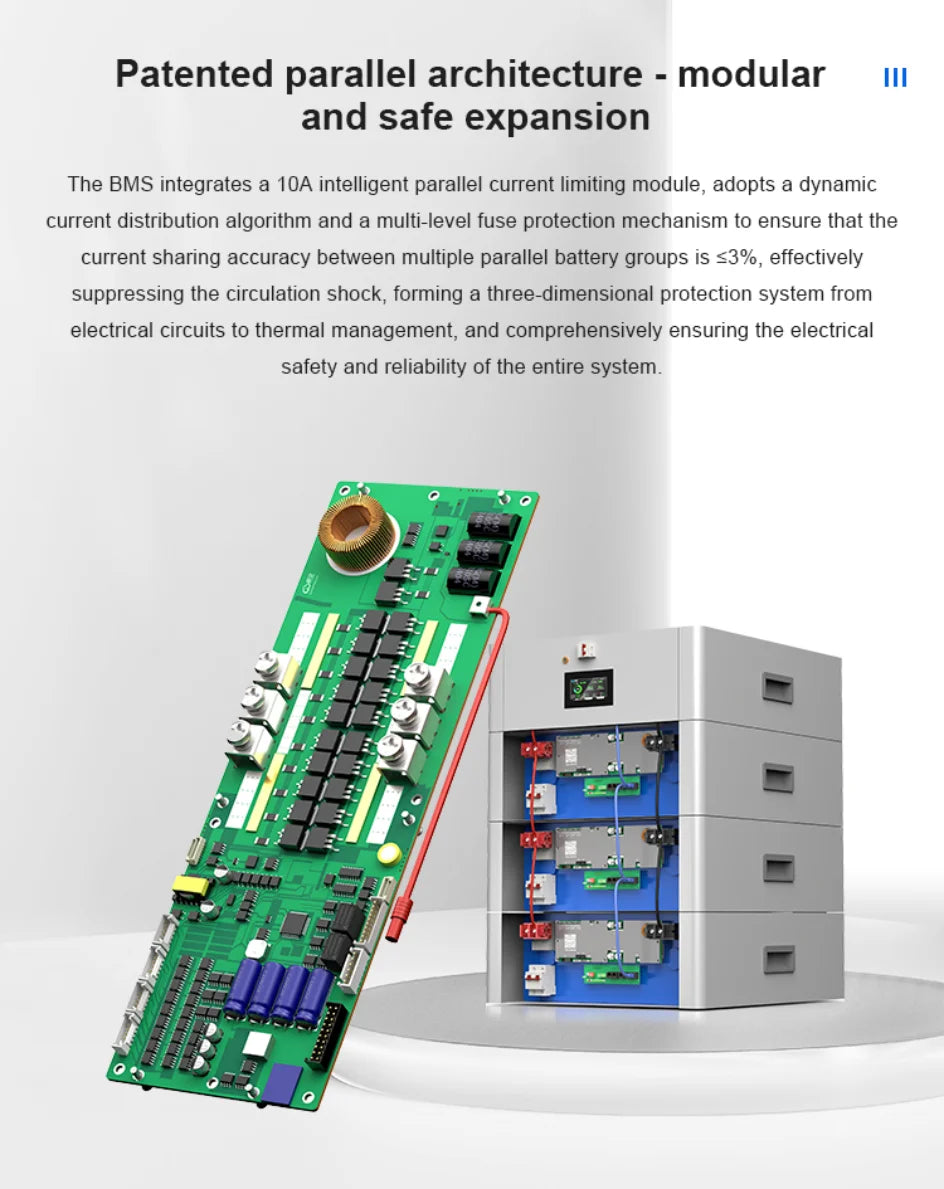

Support Parallel Connection: Yes

Temperature protection: Yes

Type: LI-ION Battery BMS

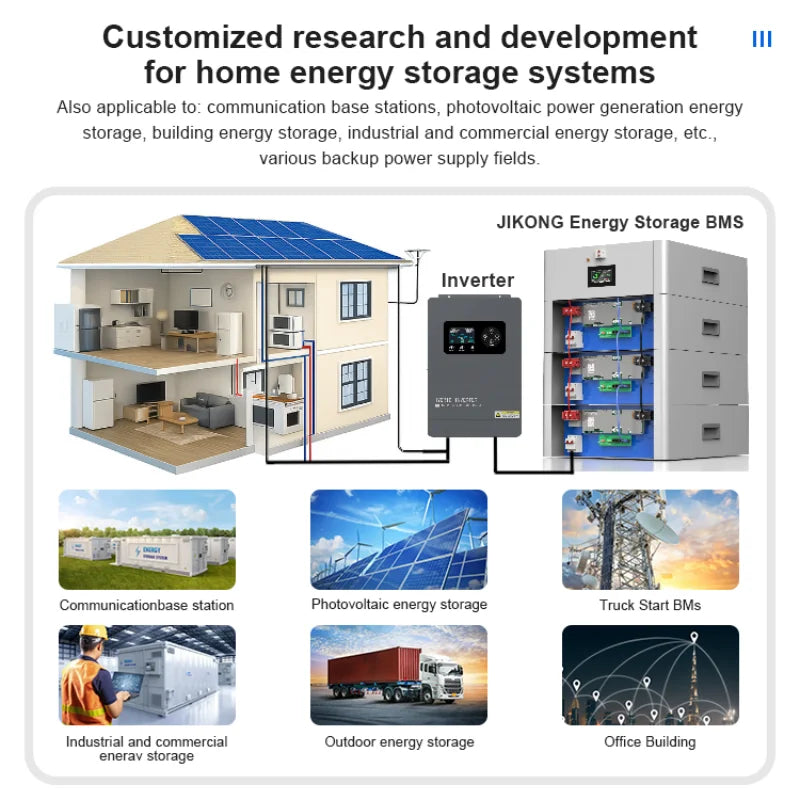

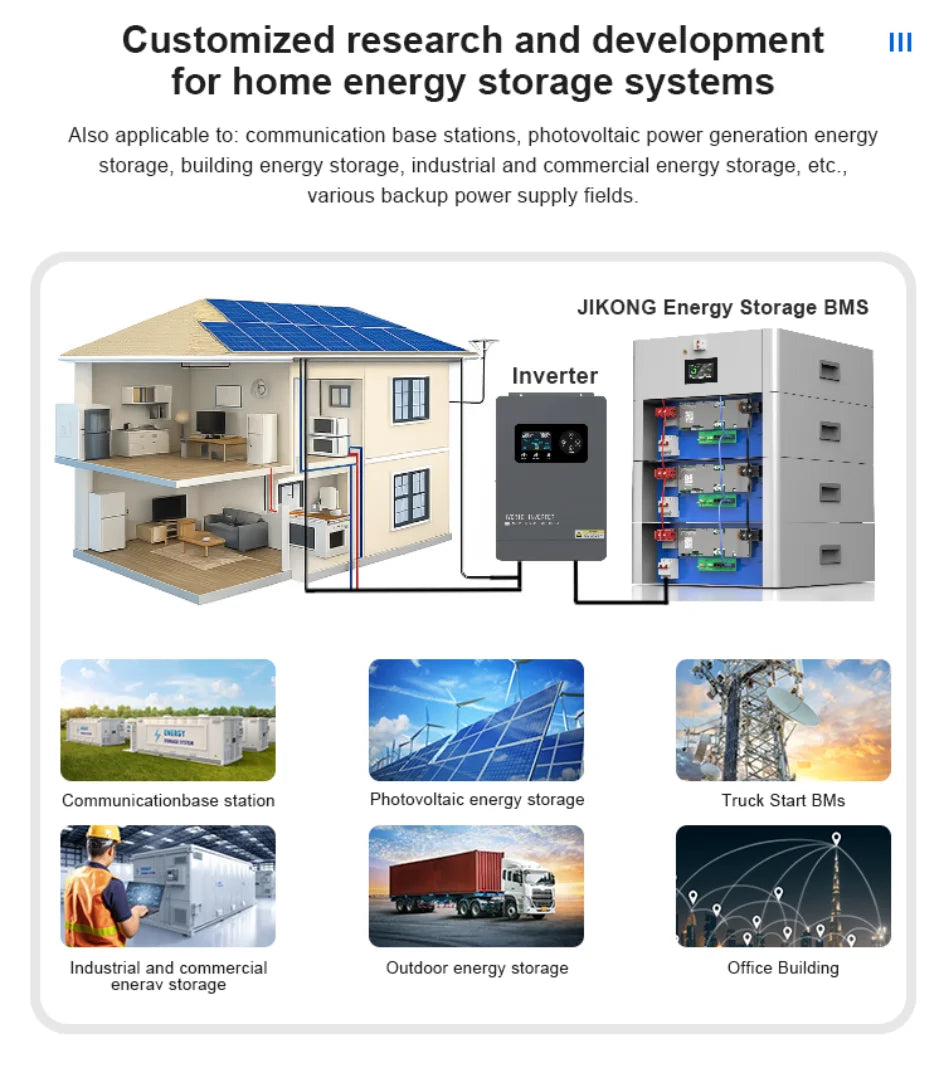

Usage Scenario: Power BMS,Energy Storage BMS,3C Digital BMS

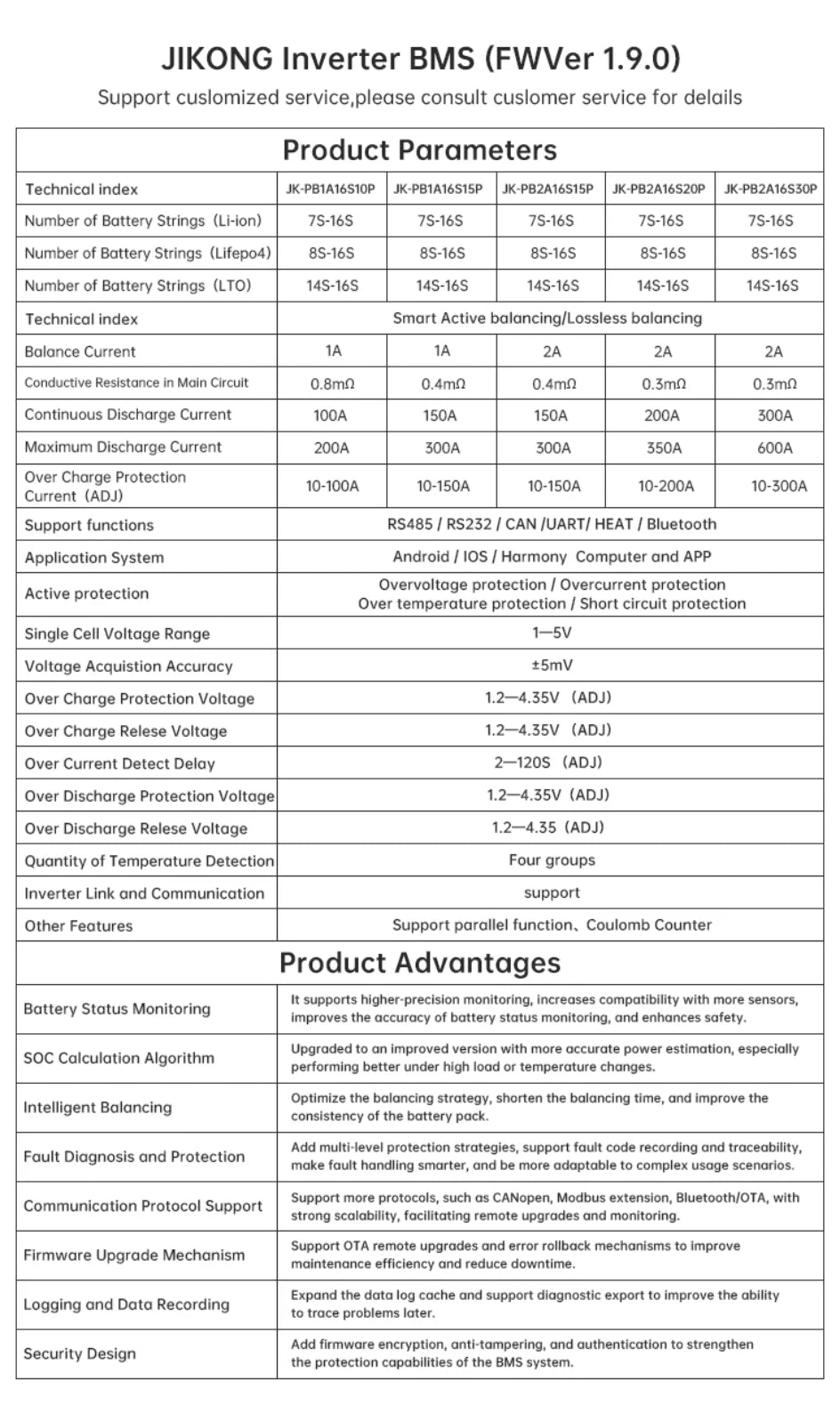

model 1: JK-PB1A16S10P V19

model2: JK-PB1A16S15P V19

model3: JK-PB2A16S15P V19

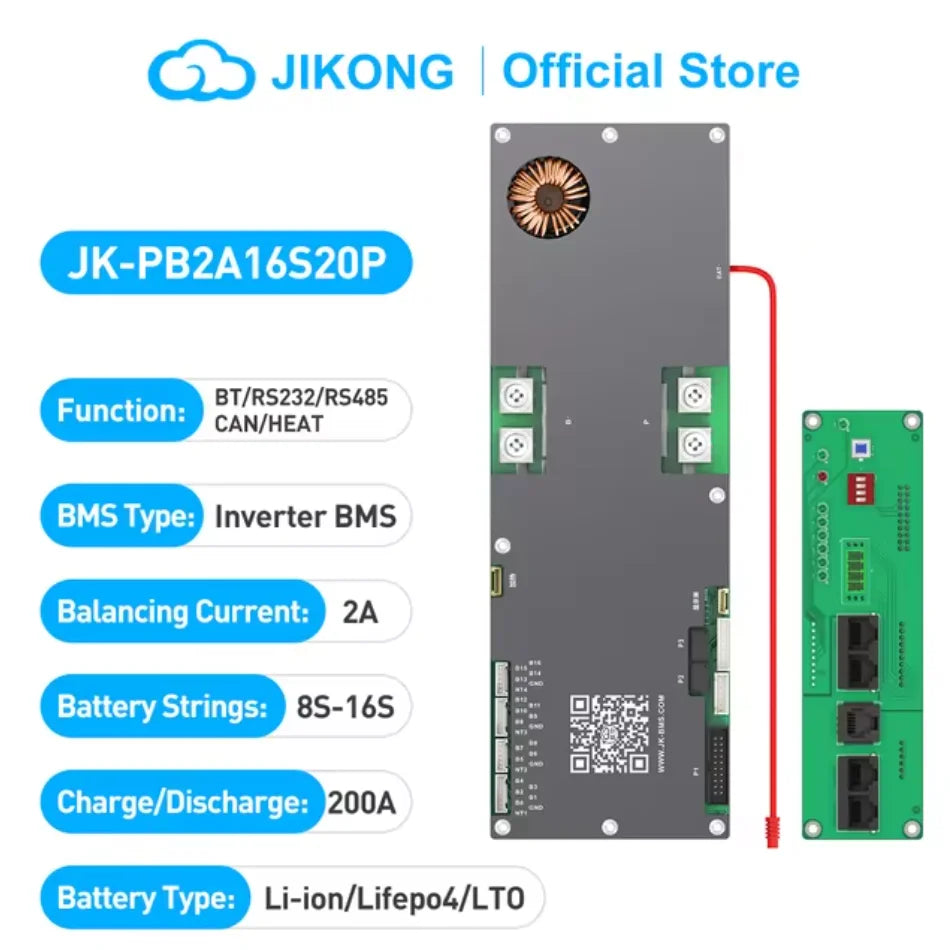

model4: JK-PB2A16S20P V19

optional categories: 100A 150A 200A Optional

suit for battery: Li-ion / lifepo4 / LTO

version: V19

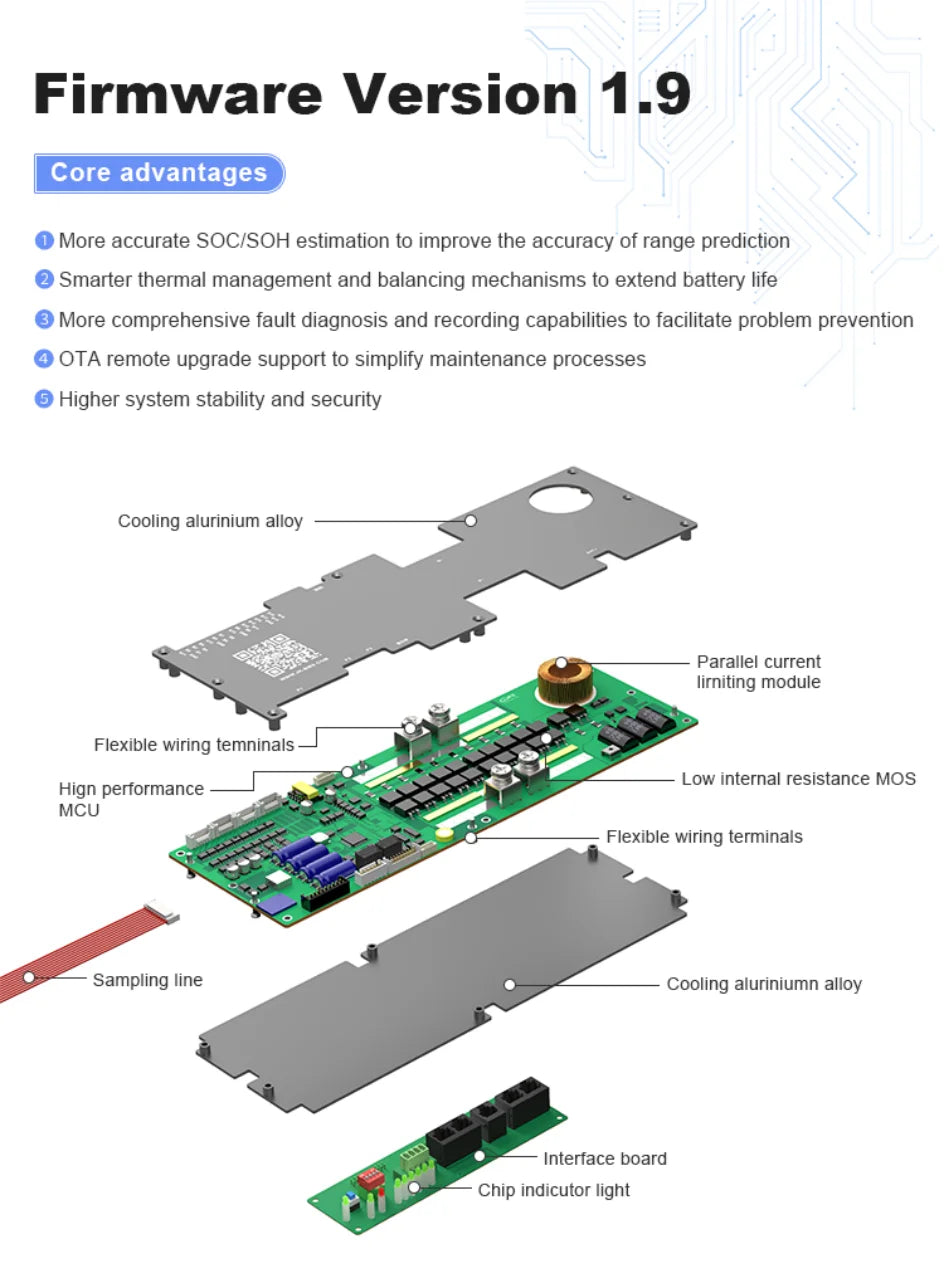

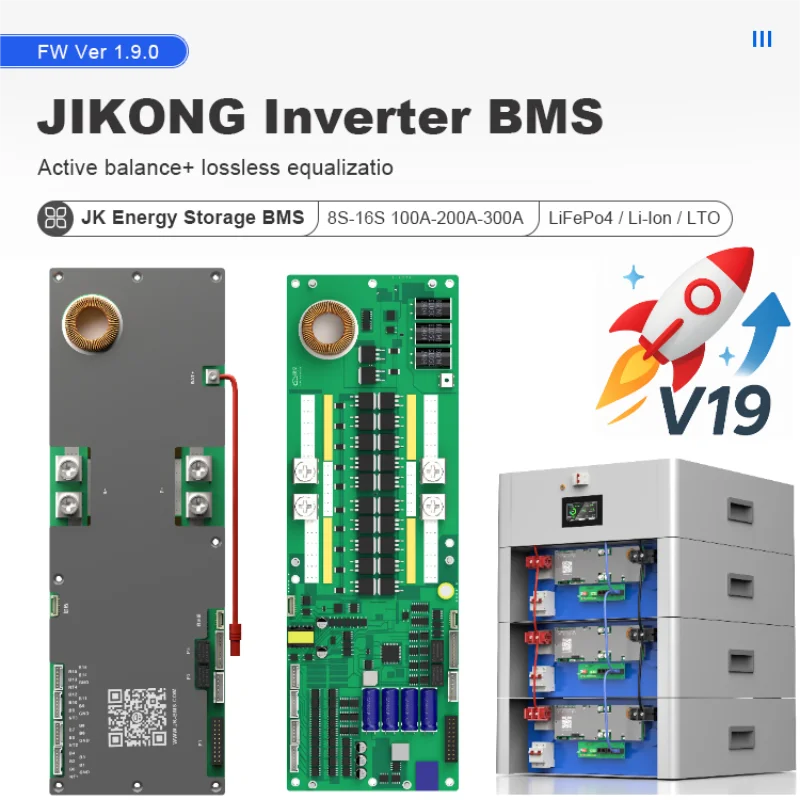

Notice: JIKONG BMS (JKBMS) energy storage inverter BMS, firmware

version fully upgraded to V19

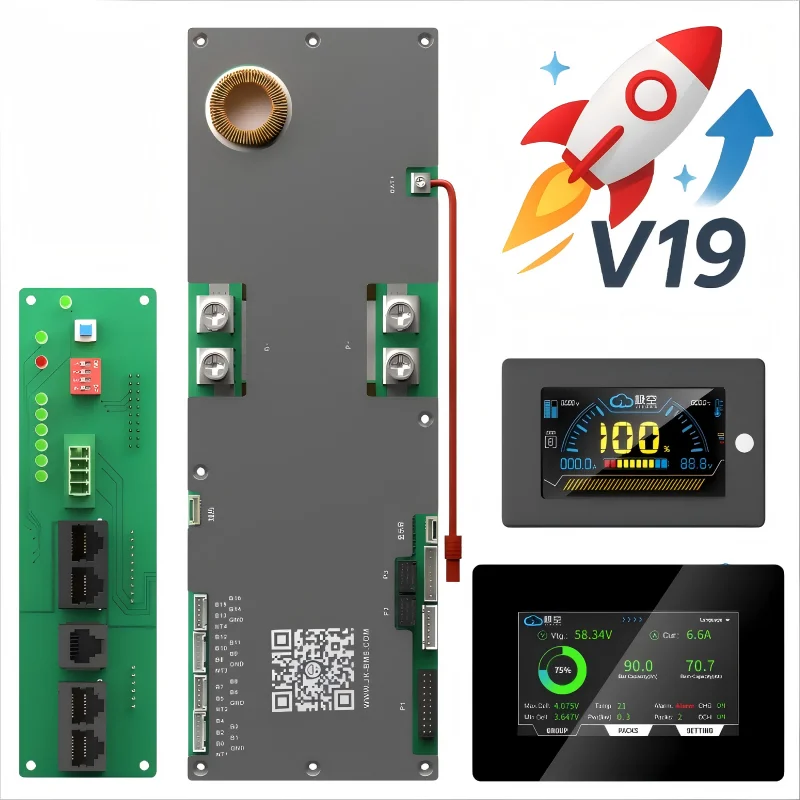

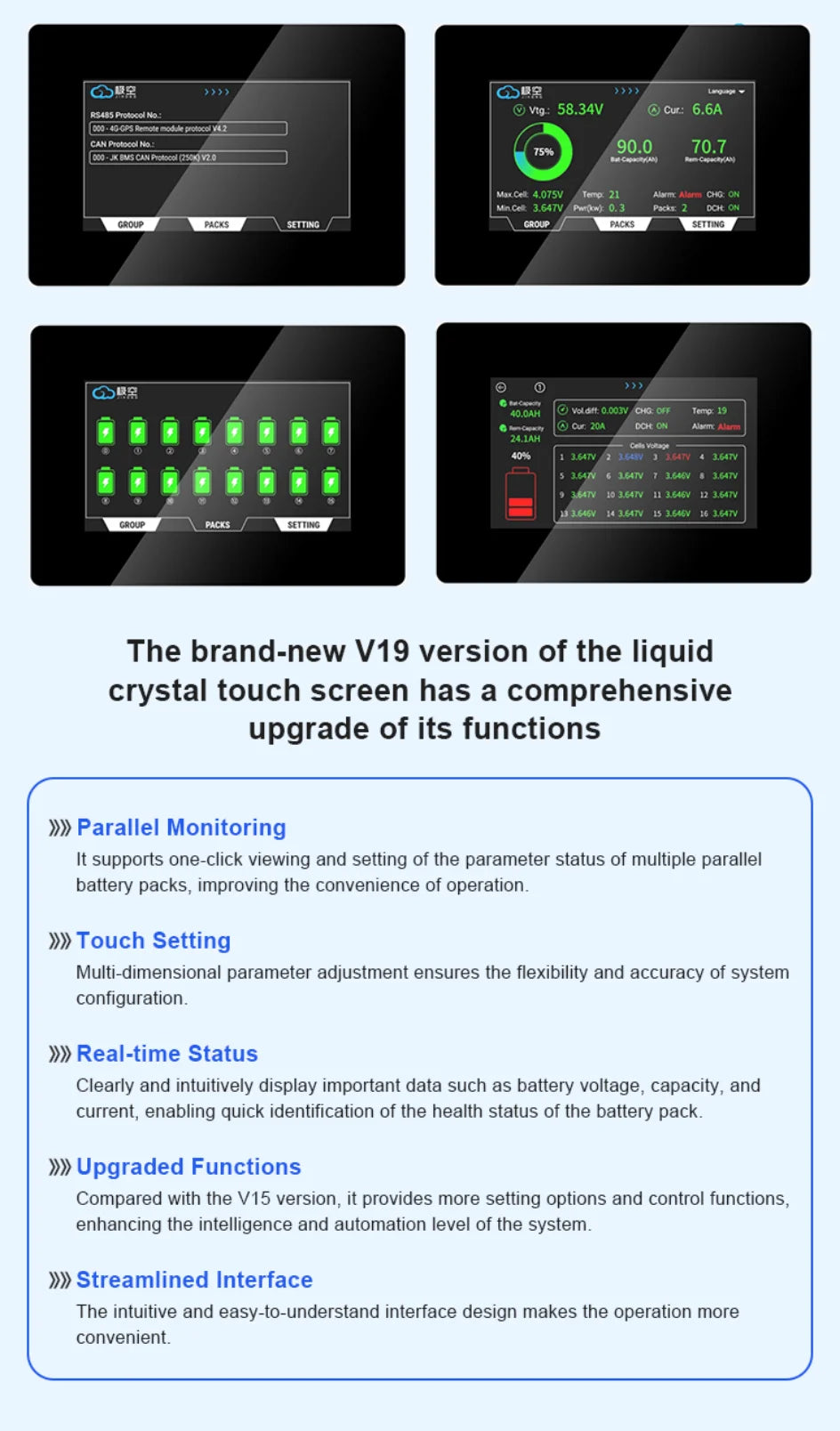

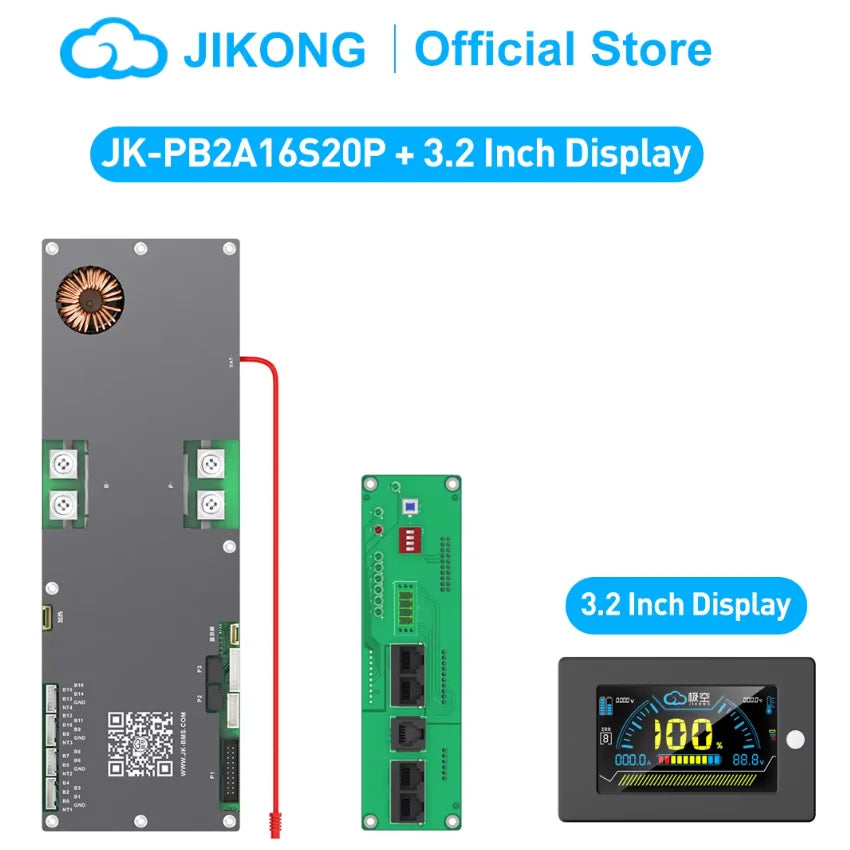

BMS is also perfectly compatible with all old versions of LCD display screens (4.3LCD 3.2LCD), no need to worry!! According to your needs, you can also choose to purchase the latest 4.3LCD display screen V19 version.（Please note when placing an order ！）

Frequently asked questions：

1. Production and customization?

Chengdu Jikong Technology Co., Ltd. is a national high-tech enterprise integrating R&D, production and sales. The company has advanced production equipment, a high-quality team with rich product design experience, supporting ODM, OEM

2. How to guarantee the quality and after-sales service?

There are always pre-production samples before mass production, 100% testing before delivery, and final inspection before shipment.

3. BMS application scenarios and model selection?

Inverter BMS: 8S~16S Active balancing: 1A~2A Charge and discharge current: 100A ~300A

Power BMS:4S~24S Active balancing: 0.4A~2A Charge and discharge current: 40A ~300A

Energy storage BMS:4S~8S Active balancing: 1A~2A Charge and discharge current: 100A ~300A

Truck start BMS: 4S~8S Active balancing: 1A~2A Limit current: 3000A

Active balancer: 4S~24S Active balancing: 1A~15A

4. Transportation channels?

Customers with special requirements can discuss with us in advance to connect with different transportation channels and methods.
5、How long is the lead time for samples and bulk orders?

Sample delivery time: about 15 working days. Bulk order delivery time: about 35 working days.
