SPECIFICATIONS

Notification:

If you choose 24V BLDC motor, pls choose JKBLD70 or JKBLD300.
If you choose 36V BLDC motor, pls choose JKBLD300 driver only, thank you

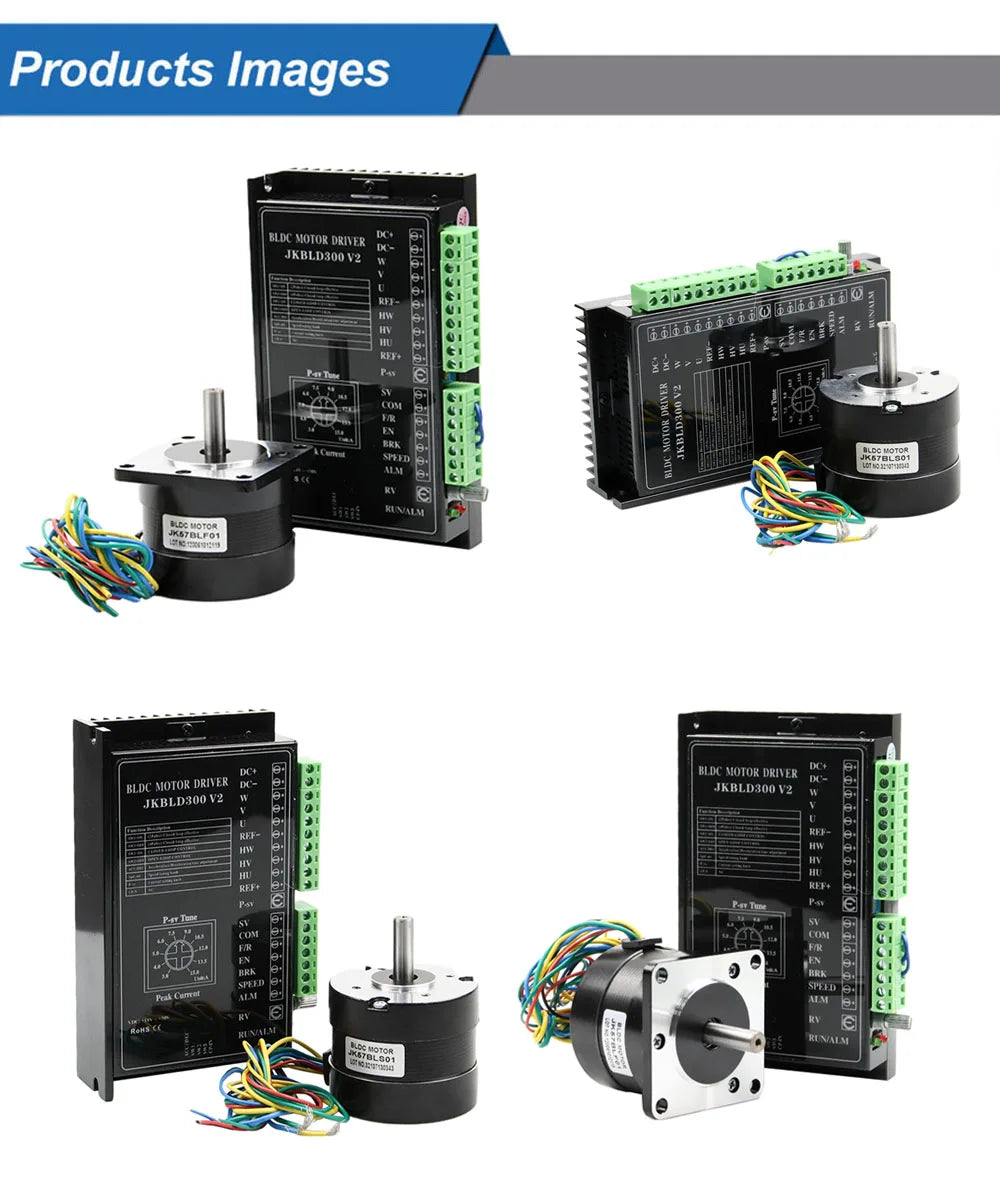

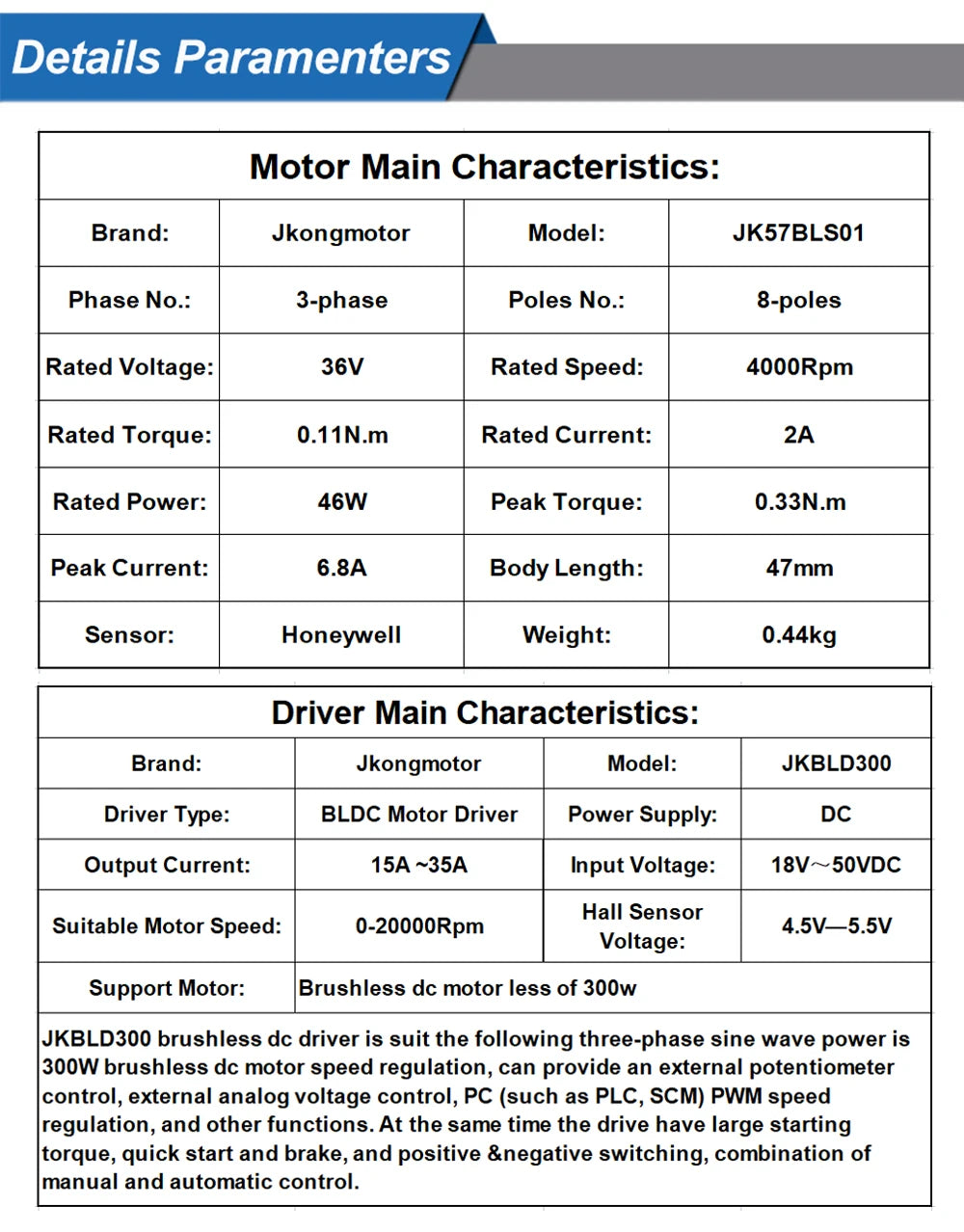

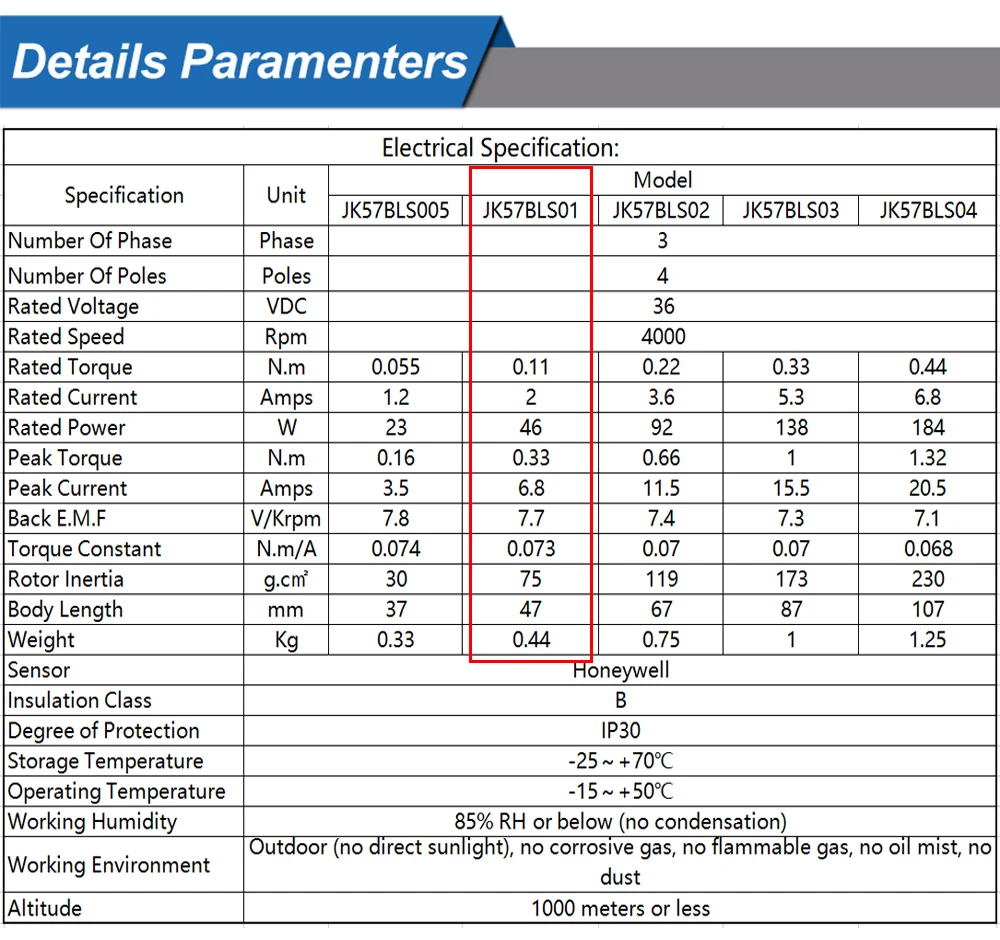

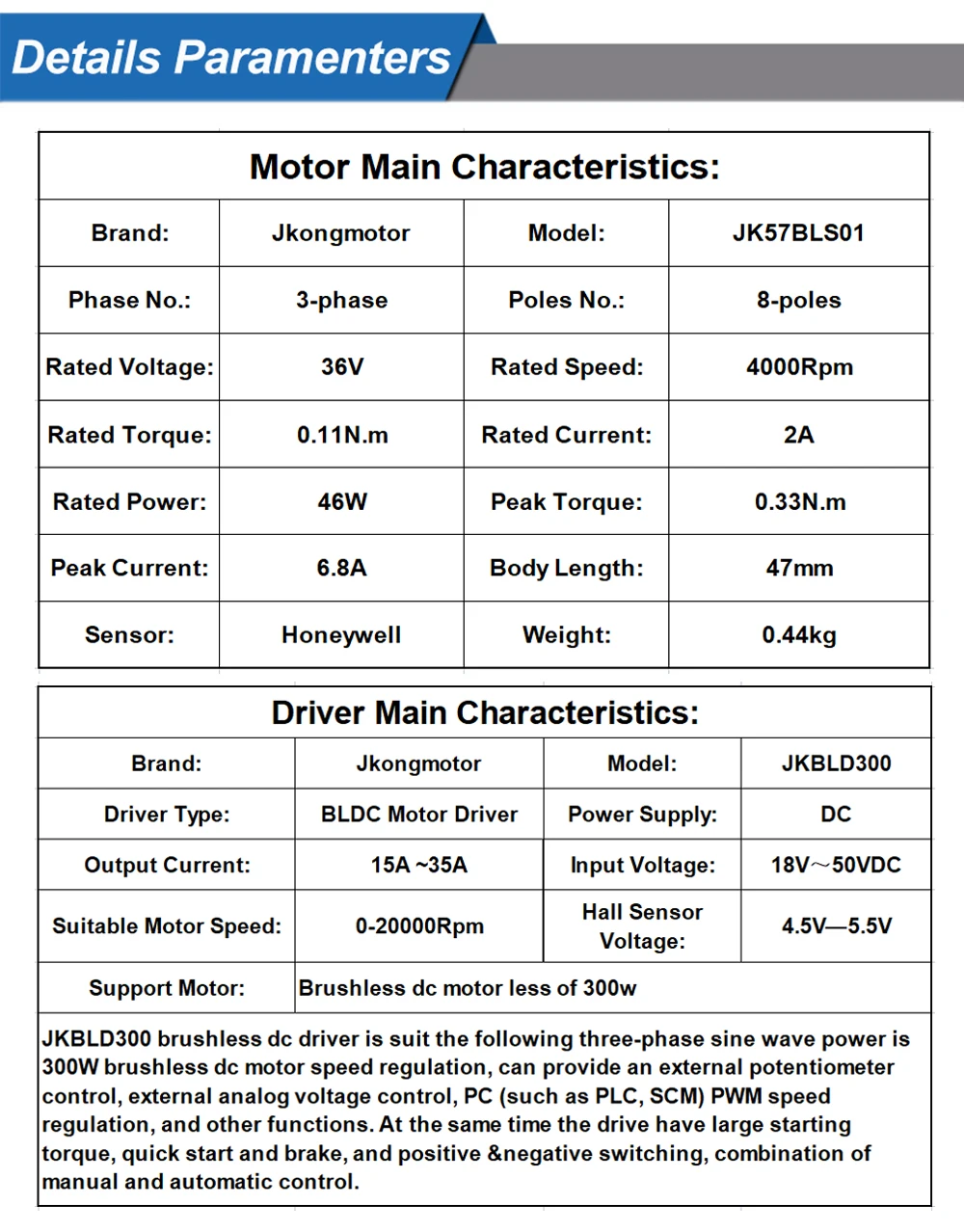

Product Description:

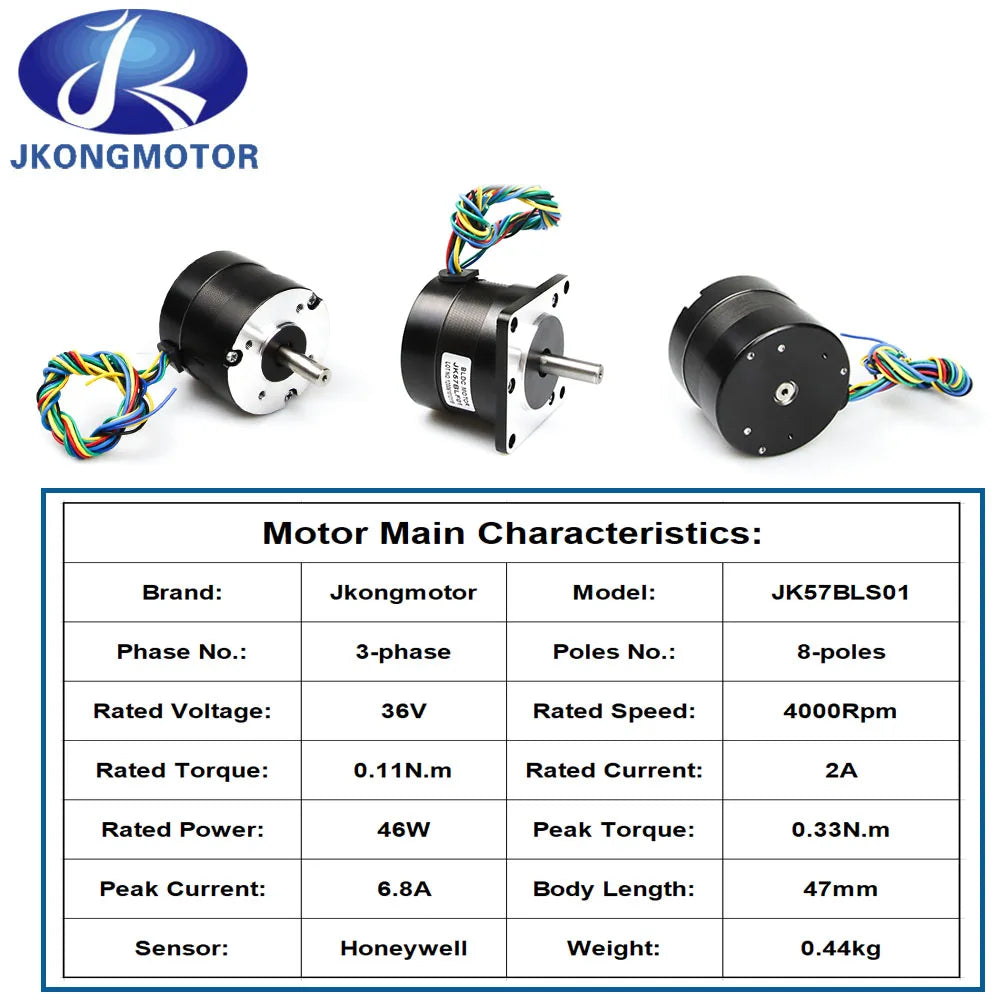

Brand: Jkongmotor

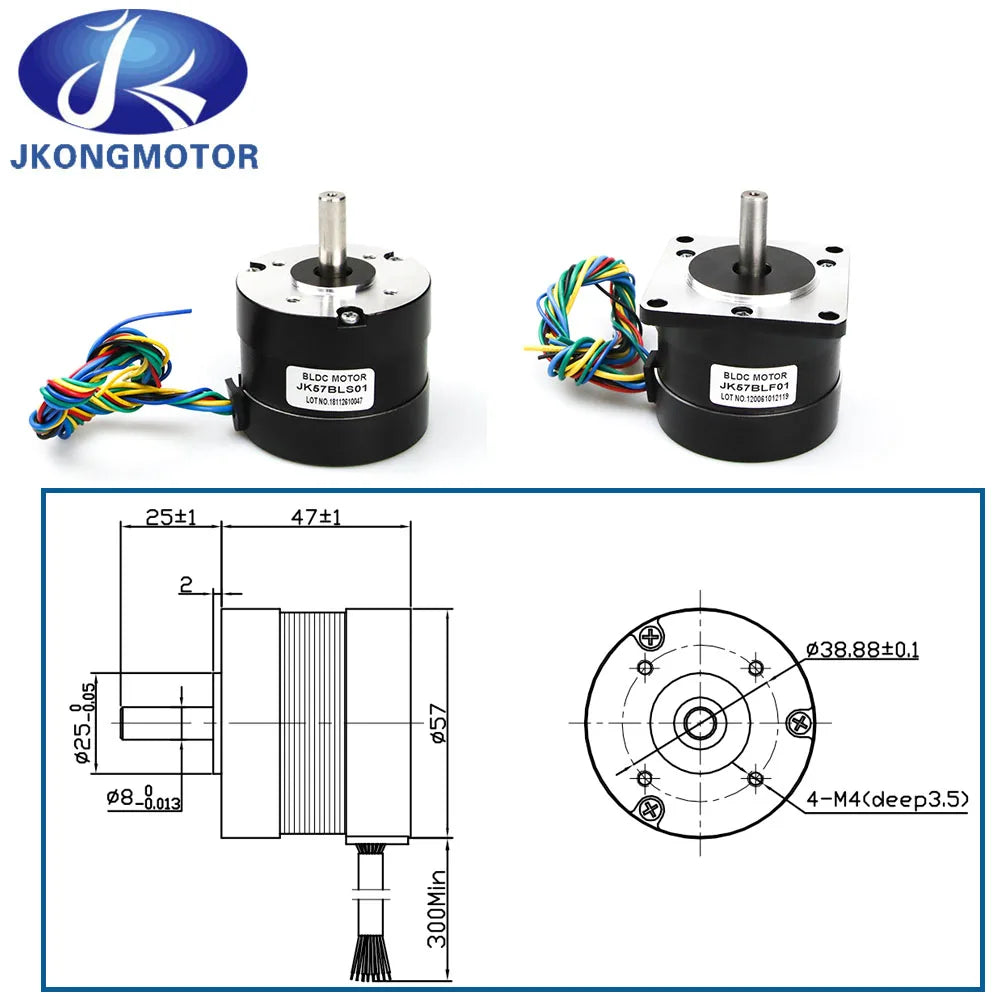

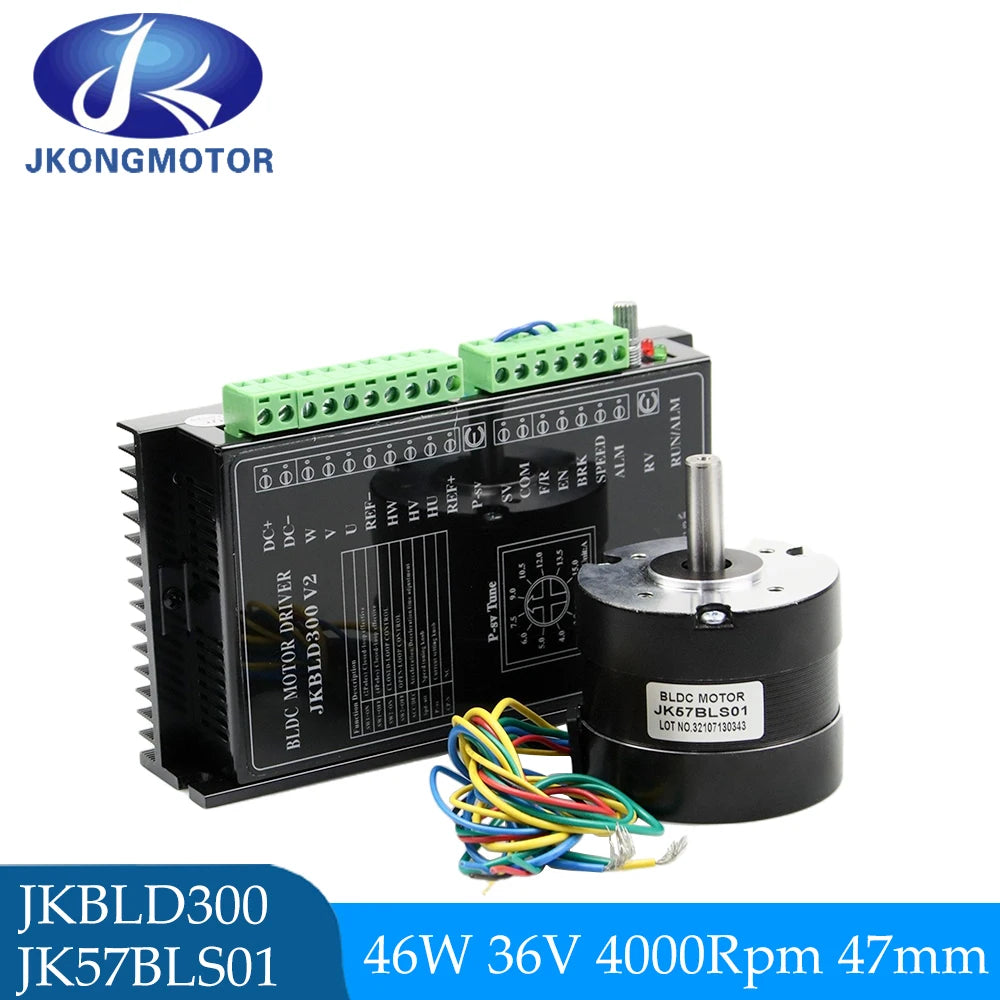

Model No.: JK57BLS01
Number of Phase: 3phase
Number of Poles: 4poles
Rated Voltage: 36V
Rated Speed: 4000Rpm
Rated Torque: 0.11Nm
Rated Current: 2A
Rated Power: 46W
Peak Torque: 0.33Nm
Peak Current: 6.8A
Rotor Interia: 75g.cm3

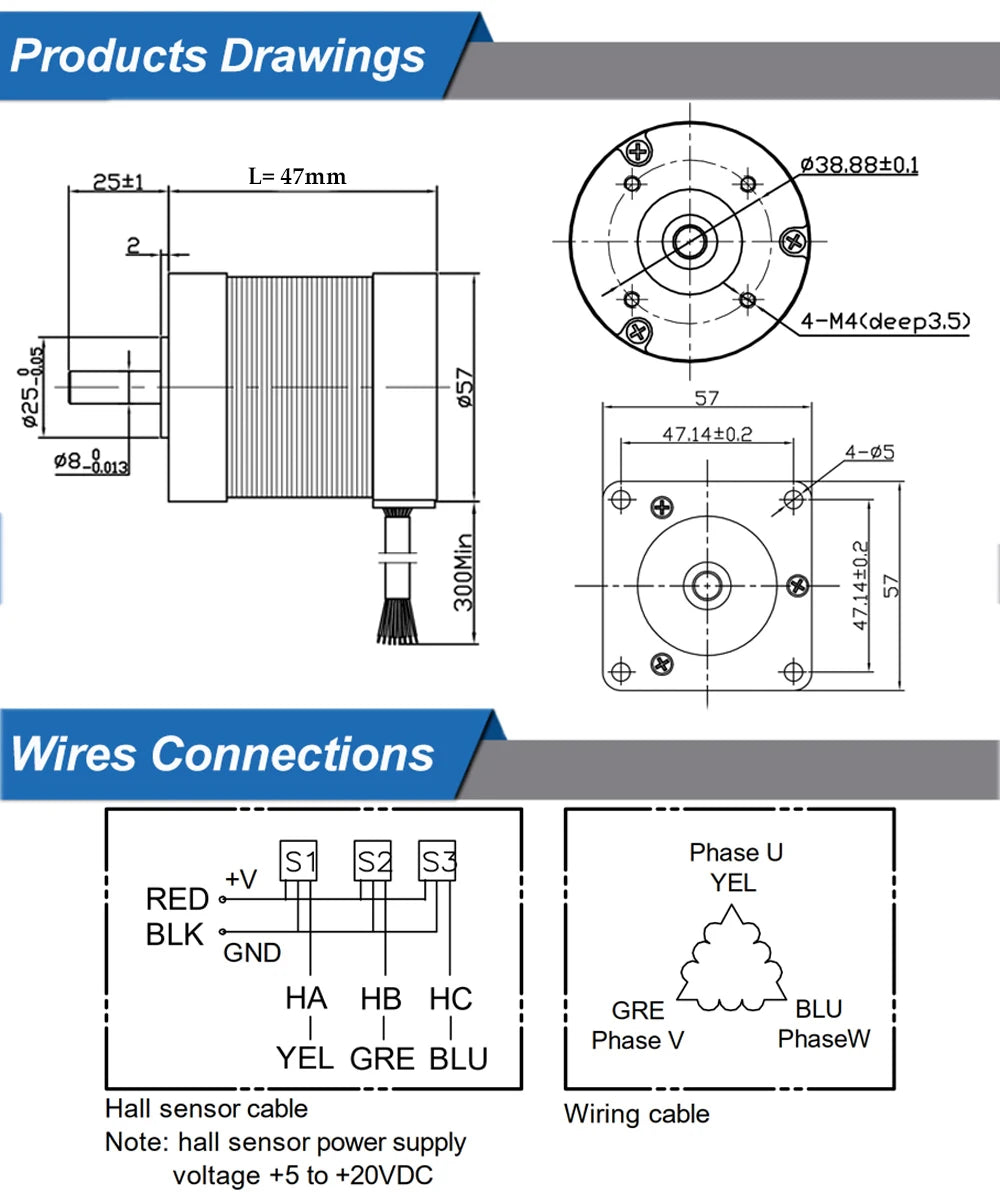

Body Length: 47mm
Senser: Honeywell
Insulation Class: B
Degree of Protection: IP30
Storage Temperature: -15~+70℃
Operation Temperature: -15~50℃

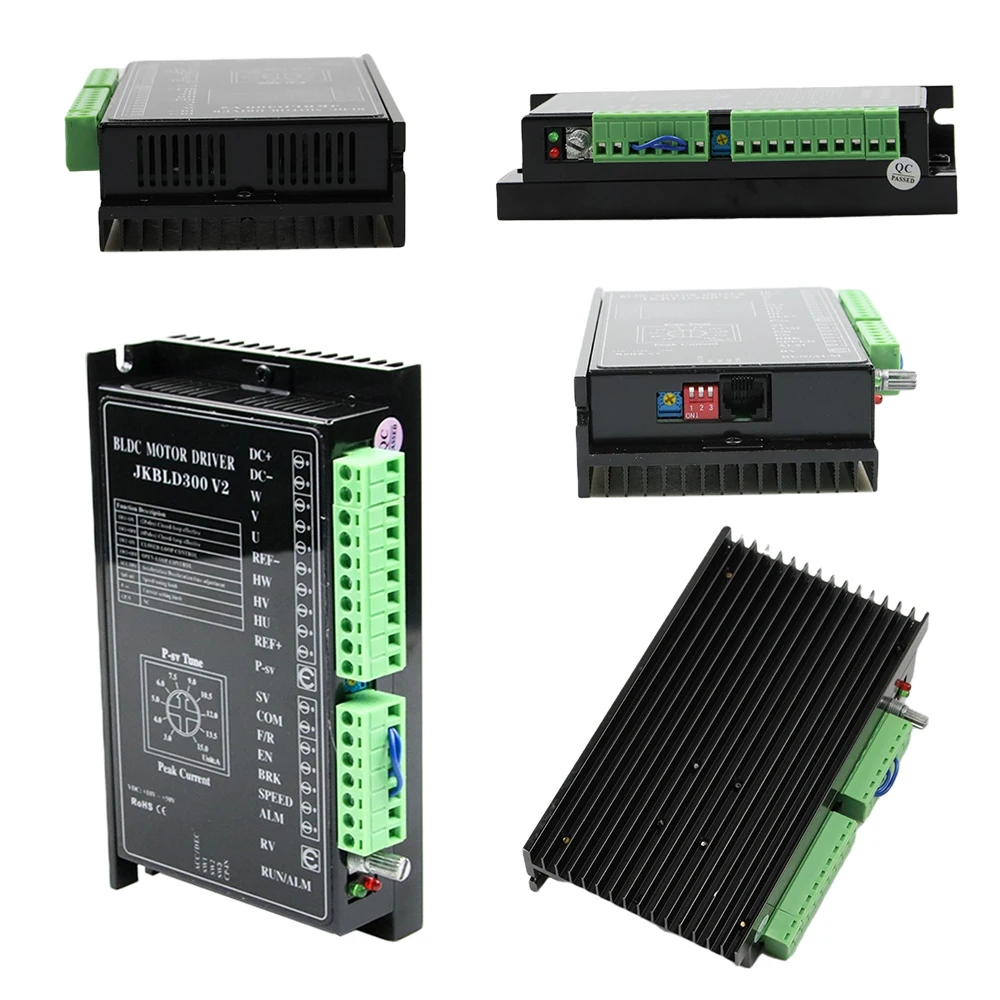

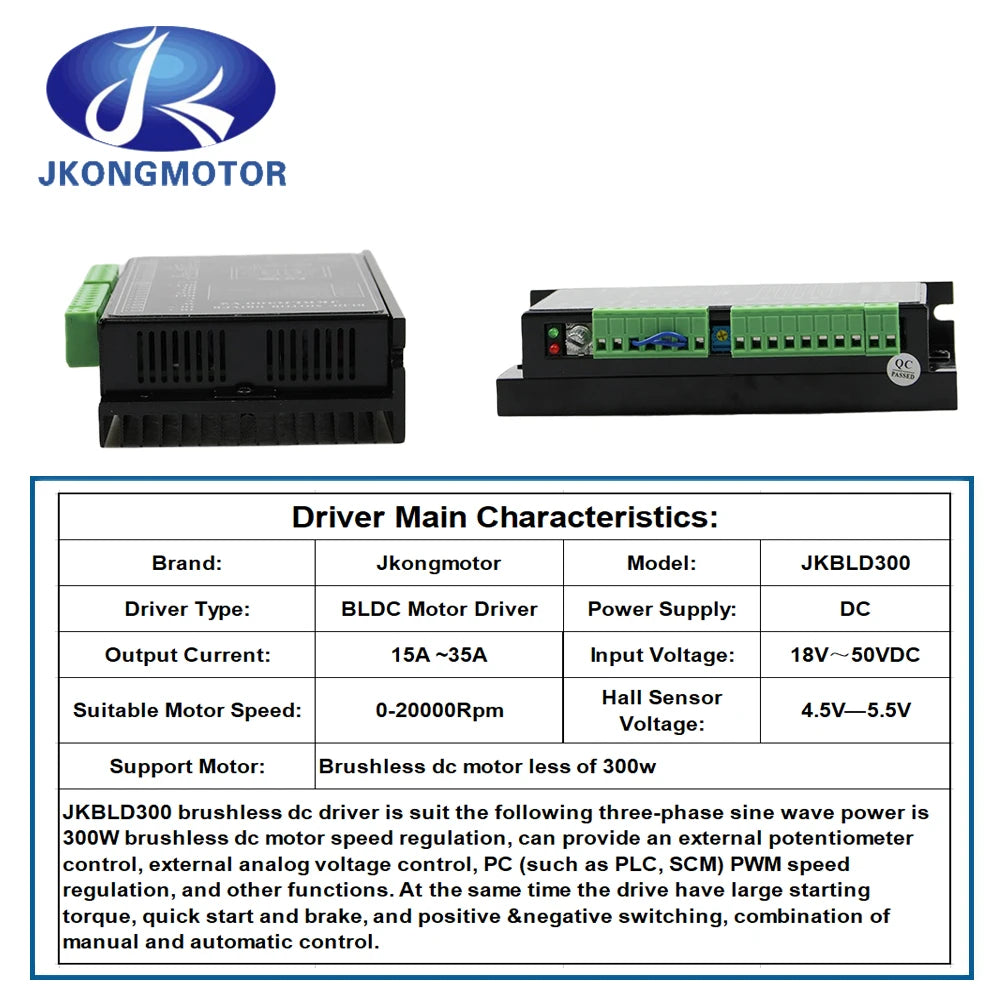

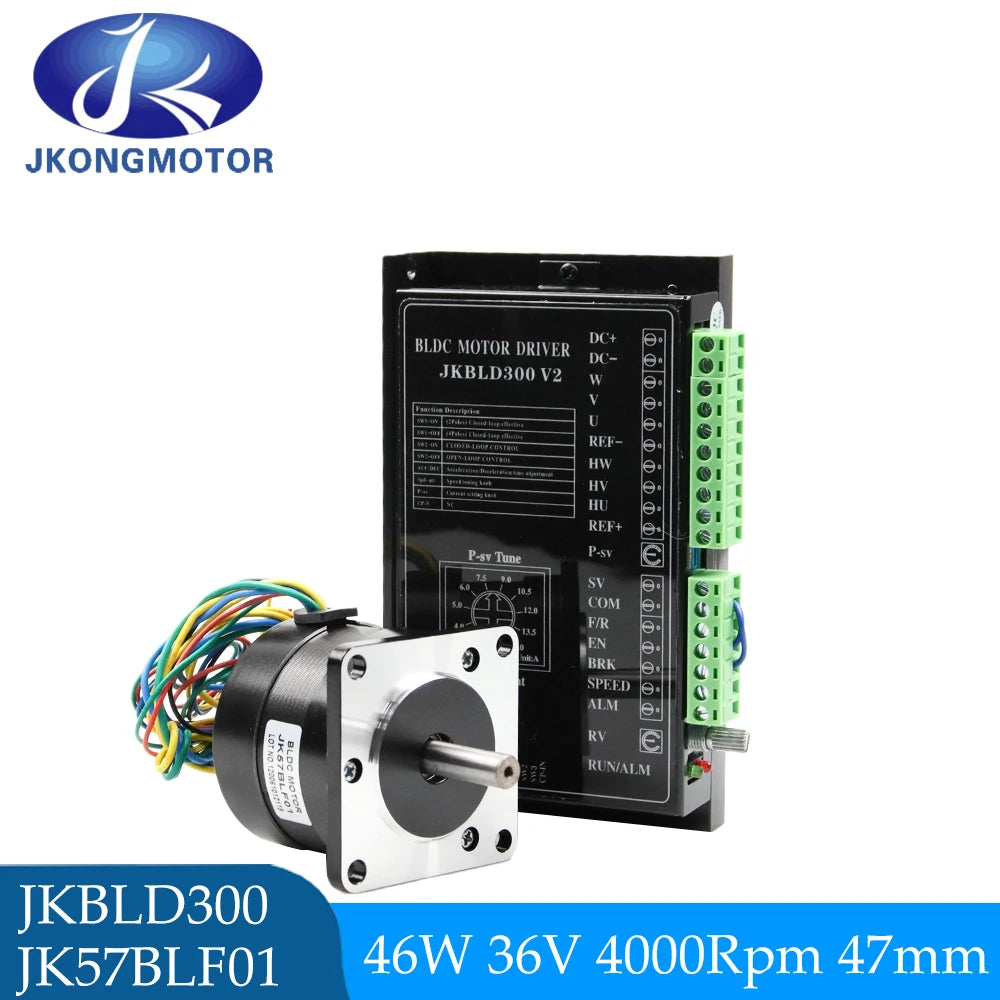

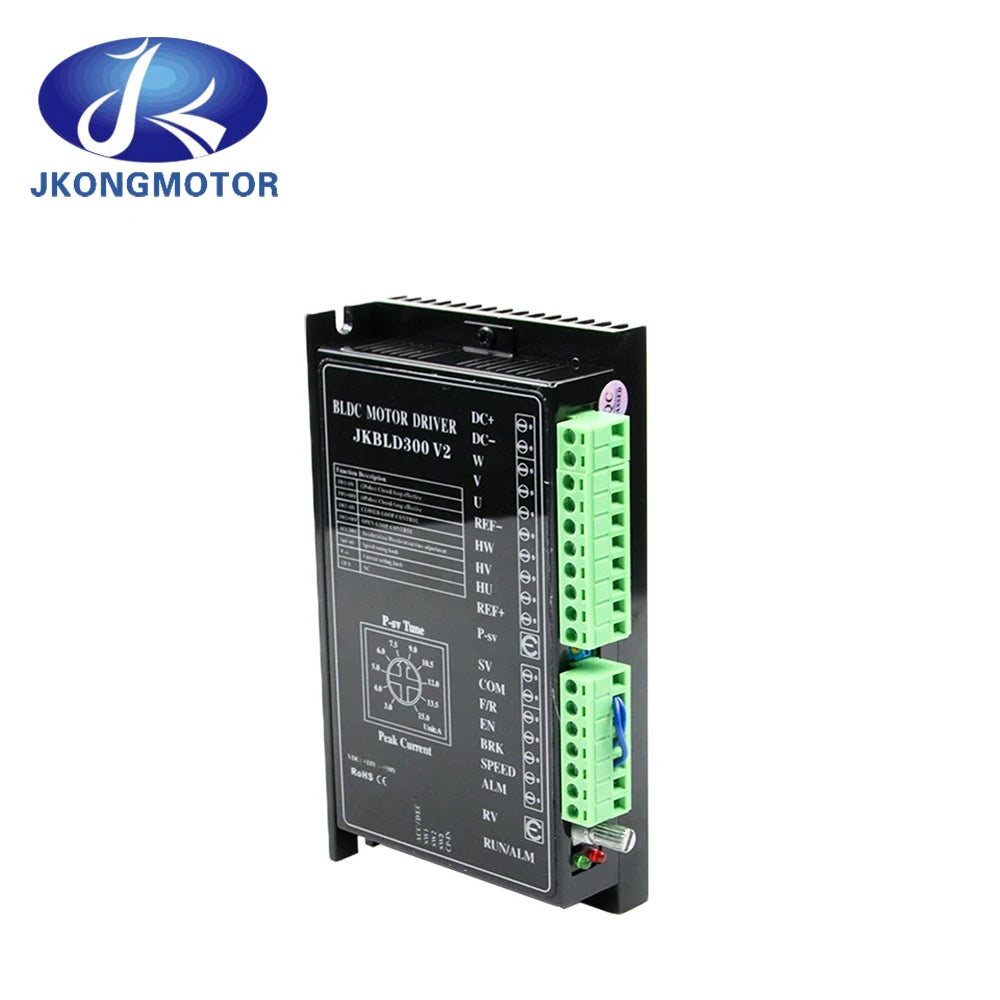

Model Name: JKBLD300
Type: BLDC motor driver
Power: 300W
Environment temperature: -10℃—50℃
Input Voltage: +18—+50VDC
Output Current: 15A—35A
Suitable Motor Speed: 0-20000Rpm
Hall Sensor Voltage: 4.5V—5.5V
External Potentiometer: 10kΩ

JKBLD300 brushless dc driver is suit the following three-phase sine wave power is 300W brushless dc motor speed regulation, can provide an external potentiometer control, external analog voltage control, PC (such as PLC, SCM) PWM speed regulation, and other functions. At the same time the drive have large starting torque, quick start and brake, and positive &negative switching, combination of manual and automatic control.

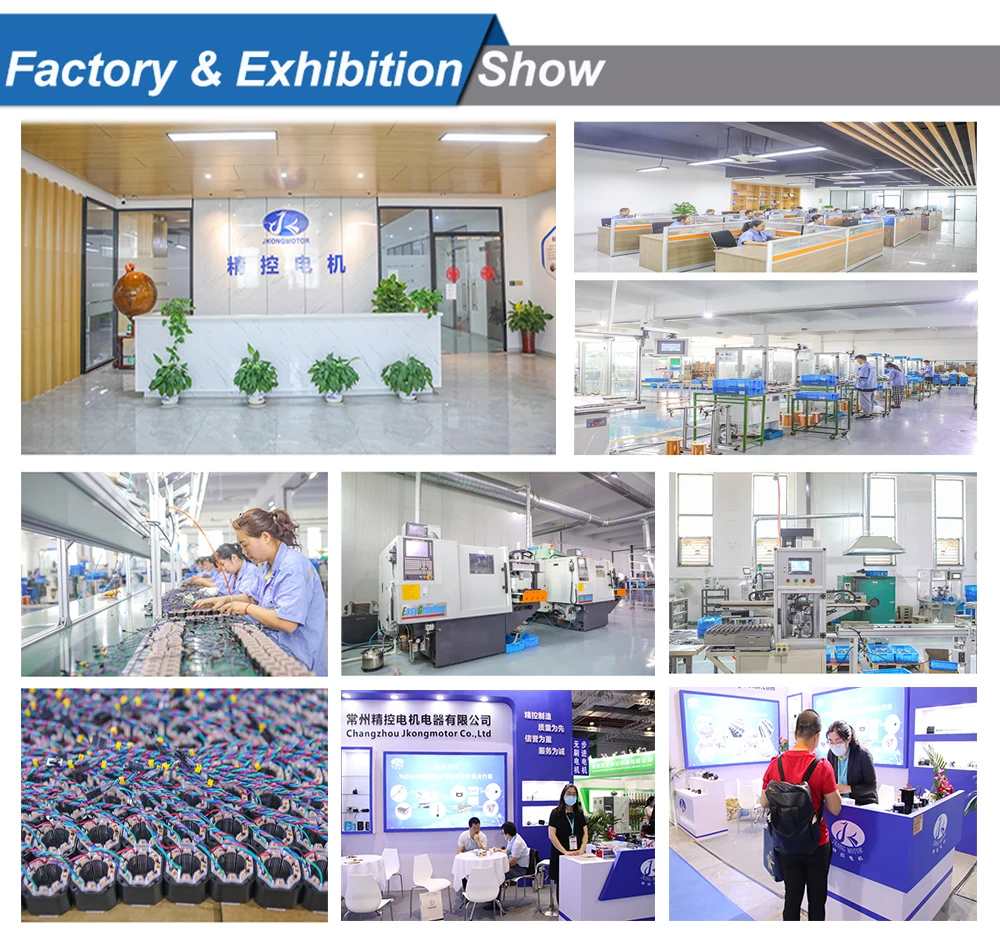

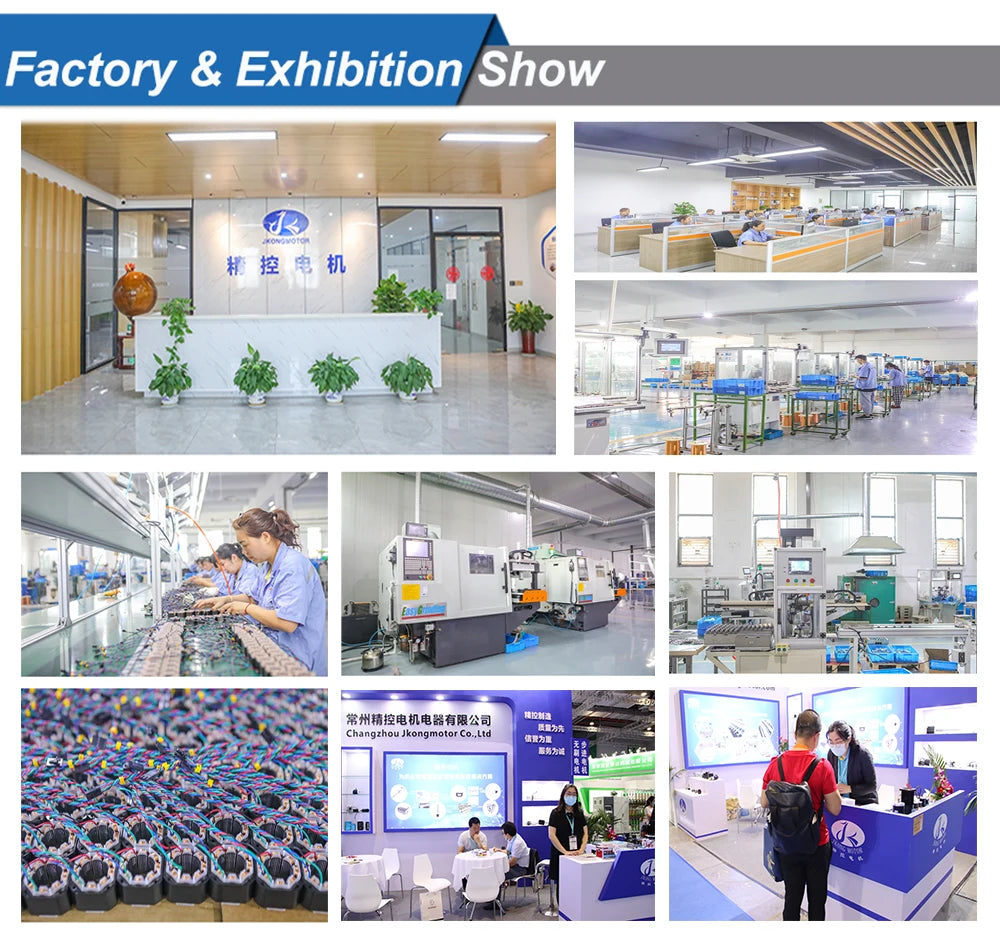

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on. JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us. Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
