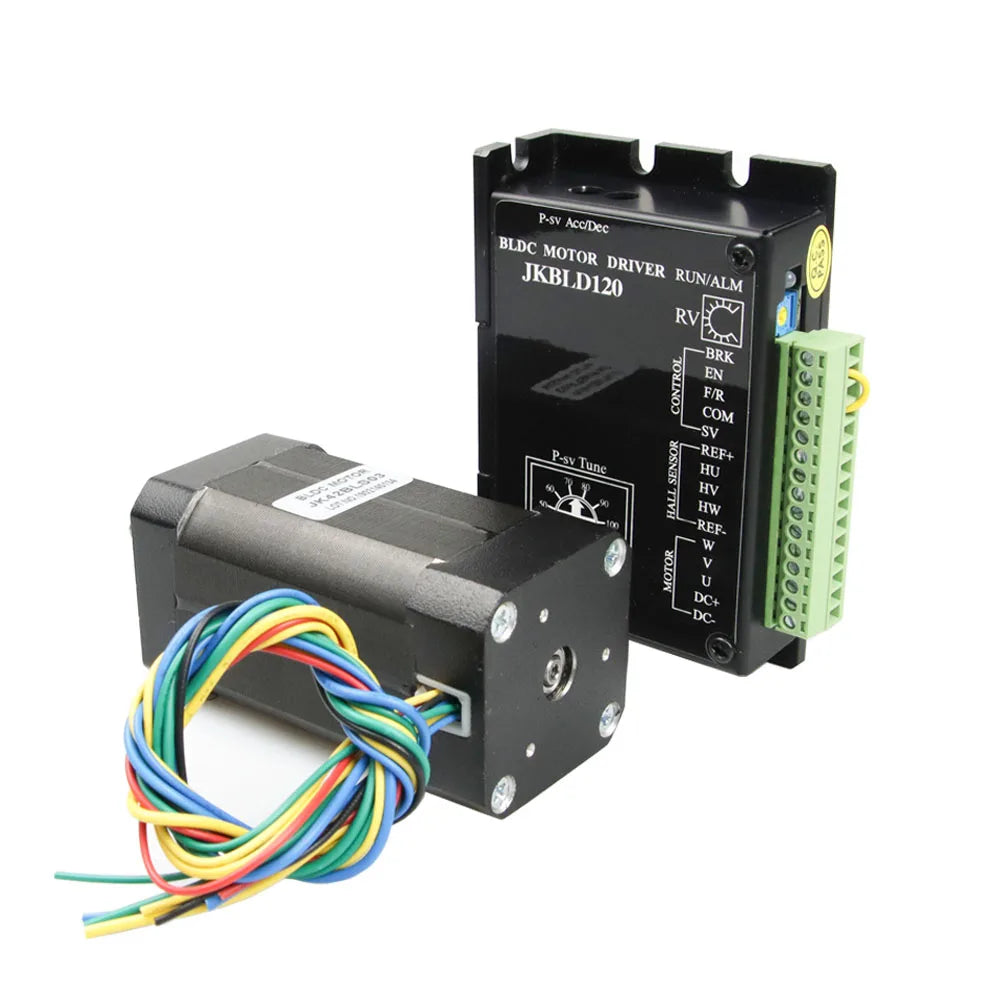

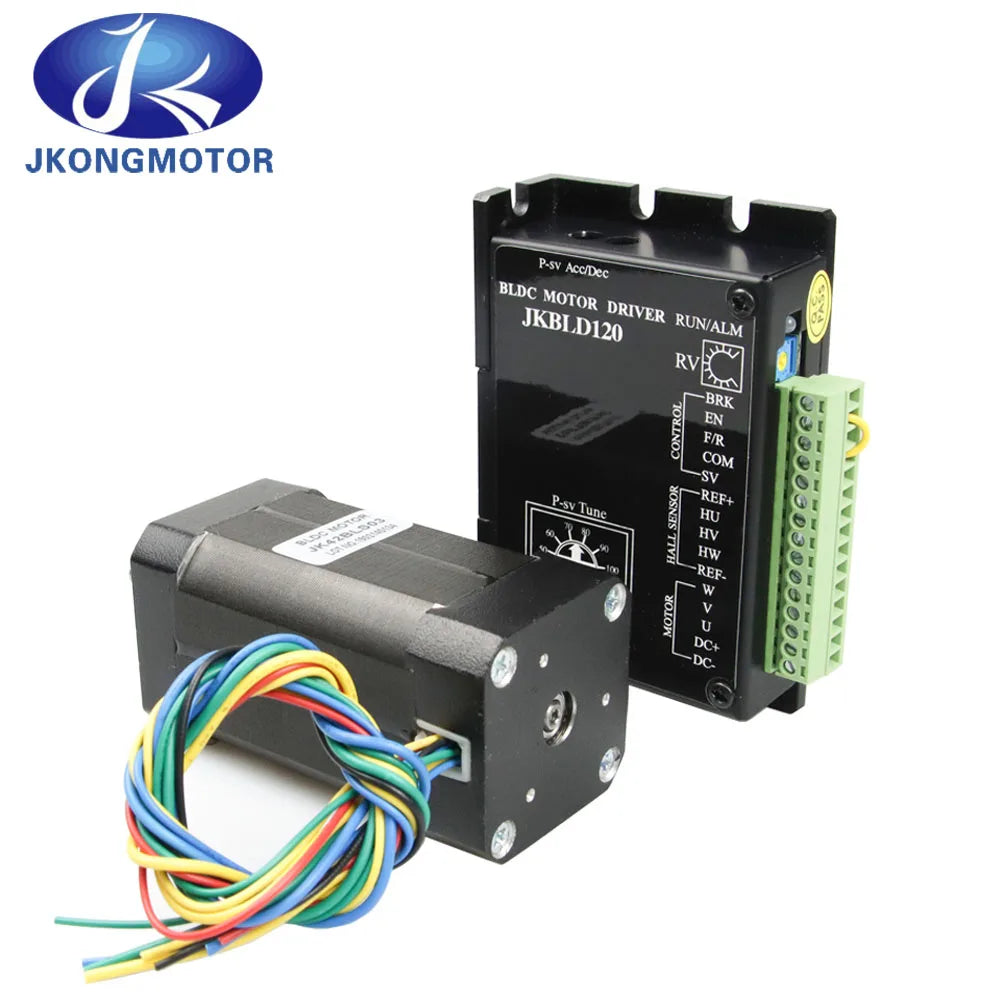

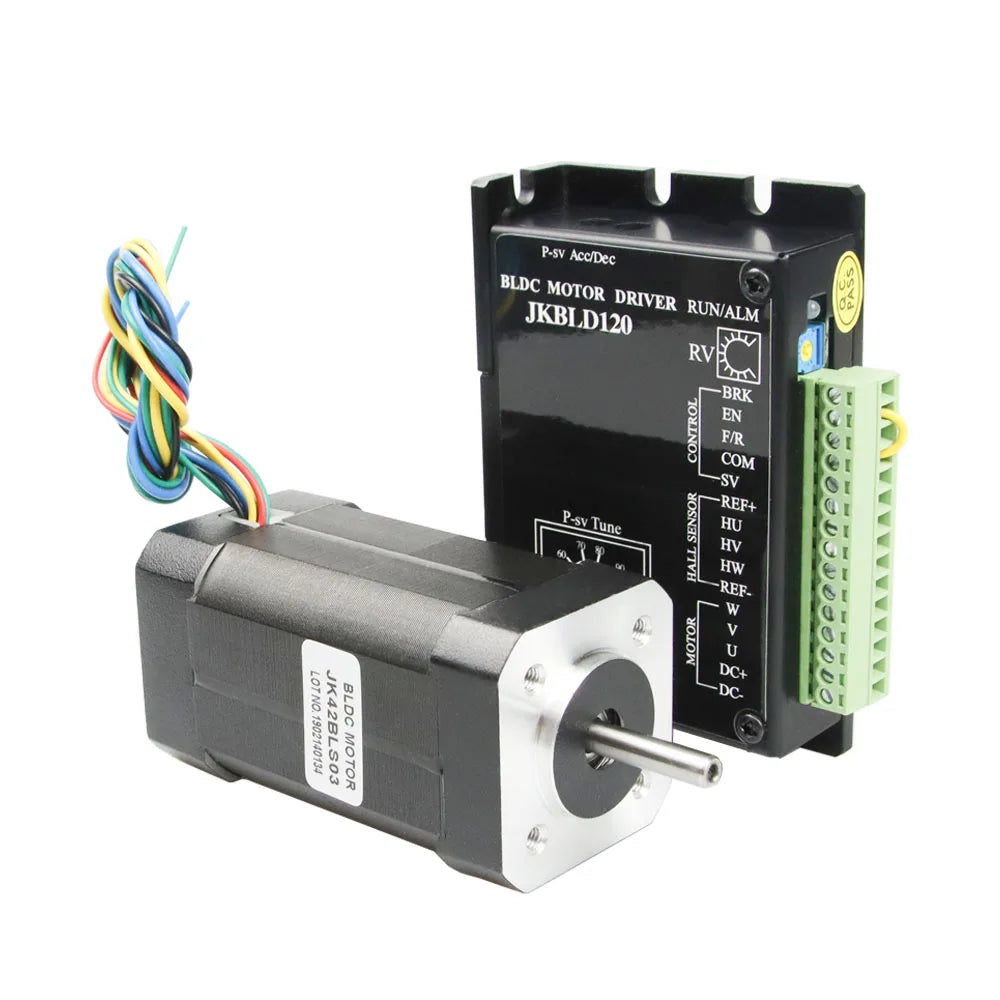

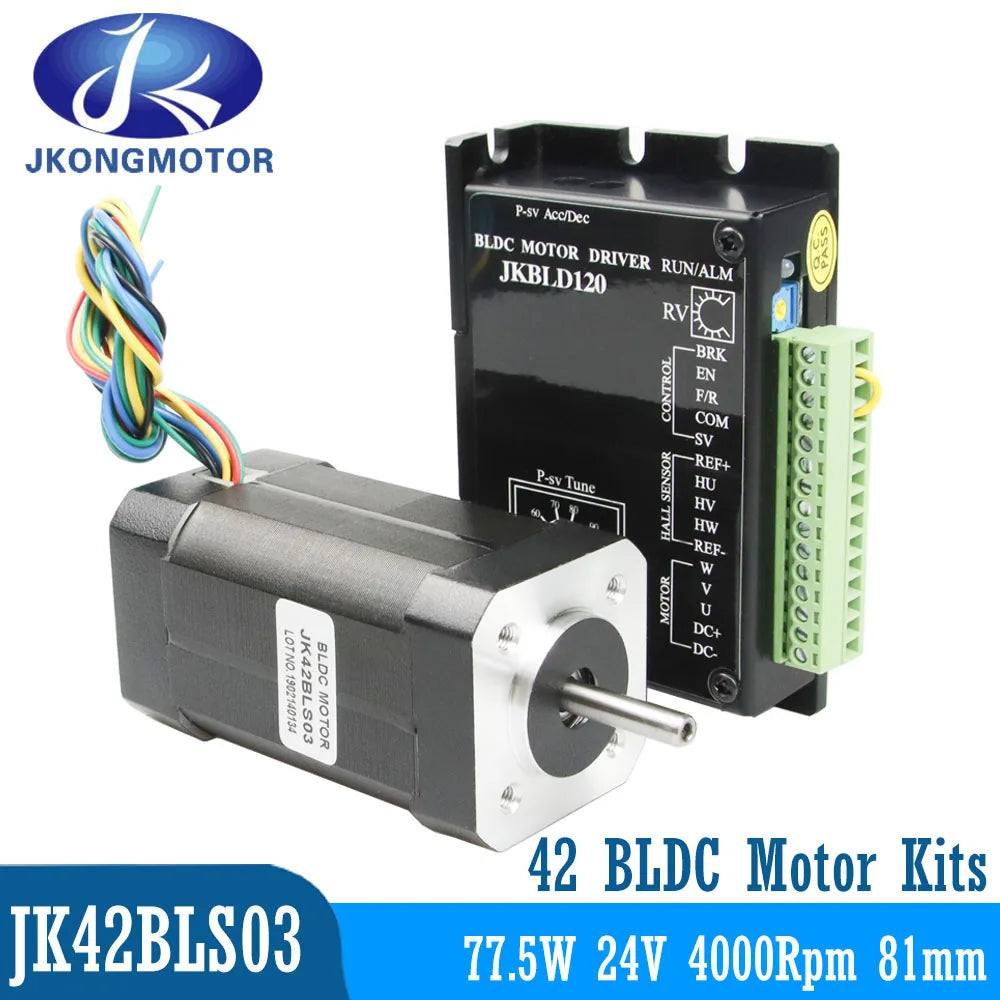

Jkongmotor 42BLS03 BLD120 Brushless DC Motor 4.8A 77.5W 24V 4000rpm 42 BLDC Motor With Hall Sensor for Textile Machinery Robot

Jkongmotor 42BLS03 BLD120 Brushless DC Motor 4.8A 77.5W 24V 4000rpm 42 BLDC Motor With Hall Sensor for Textile Machinery Robot

$320.67

$320.67 $0.00

Description

SPECIFICATIONS

Body length: 81mm

Brand Name: jkongmotor

Certification: ce,ROHS,CE

Commutation: Brushless

Construction: Permanent Magnet

Continuous Current(A): 4.8A

Degree of protection: IP30

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

High-concerned chemical: none

Model Number: JK42BLS03

Number of Poles: 8-Poles

Number of phase: 3-Phase

Origin: Mainland China

Output Power: 74.6-735（include735）,77.5W

Peak Current: 15.5Amps

Protect Feature: Drip-proof

Rated Current: 4.8Amps

Rated Speed: 4000rpm

Rotor inertia: 72g.cm2

Senser: Honeywell

Shaft run out: 0.025mm

Torque: 0.185N.m

Torque constant: 0.041Nm./A

Type: Micro Motor

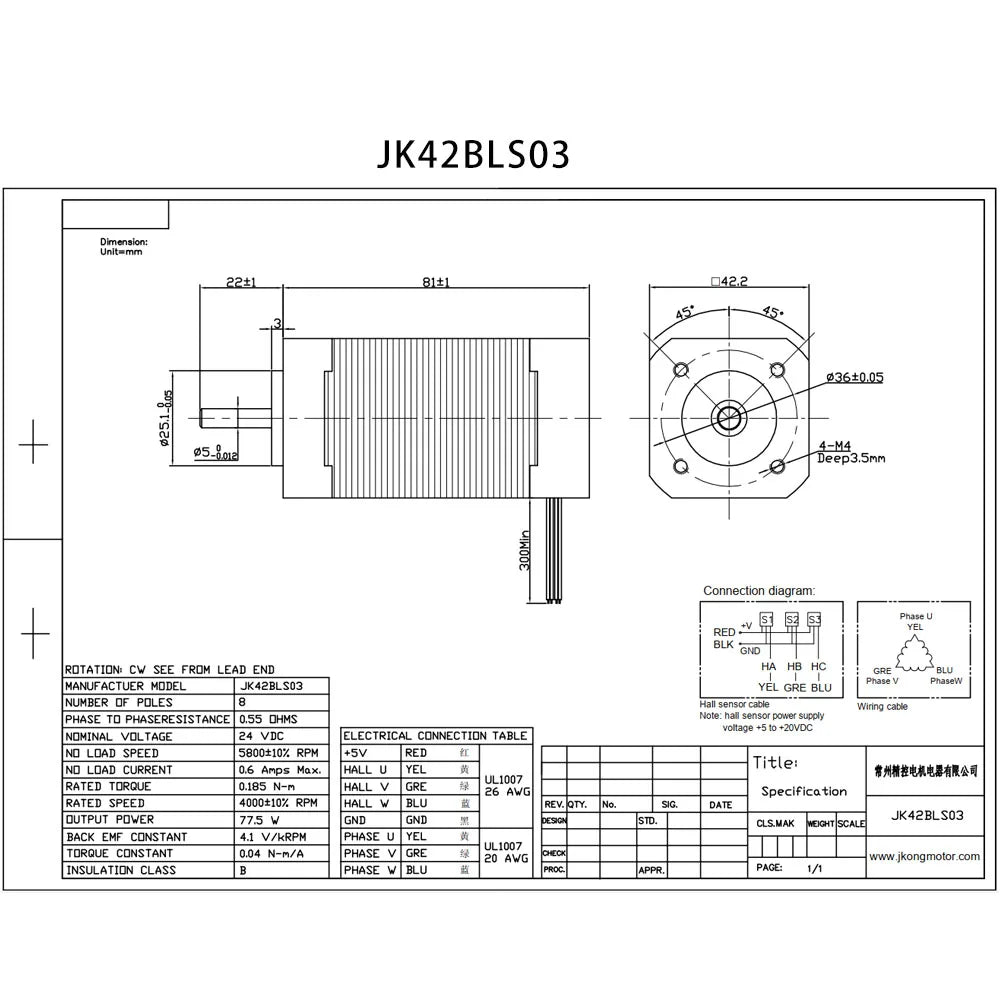

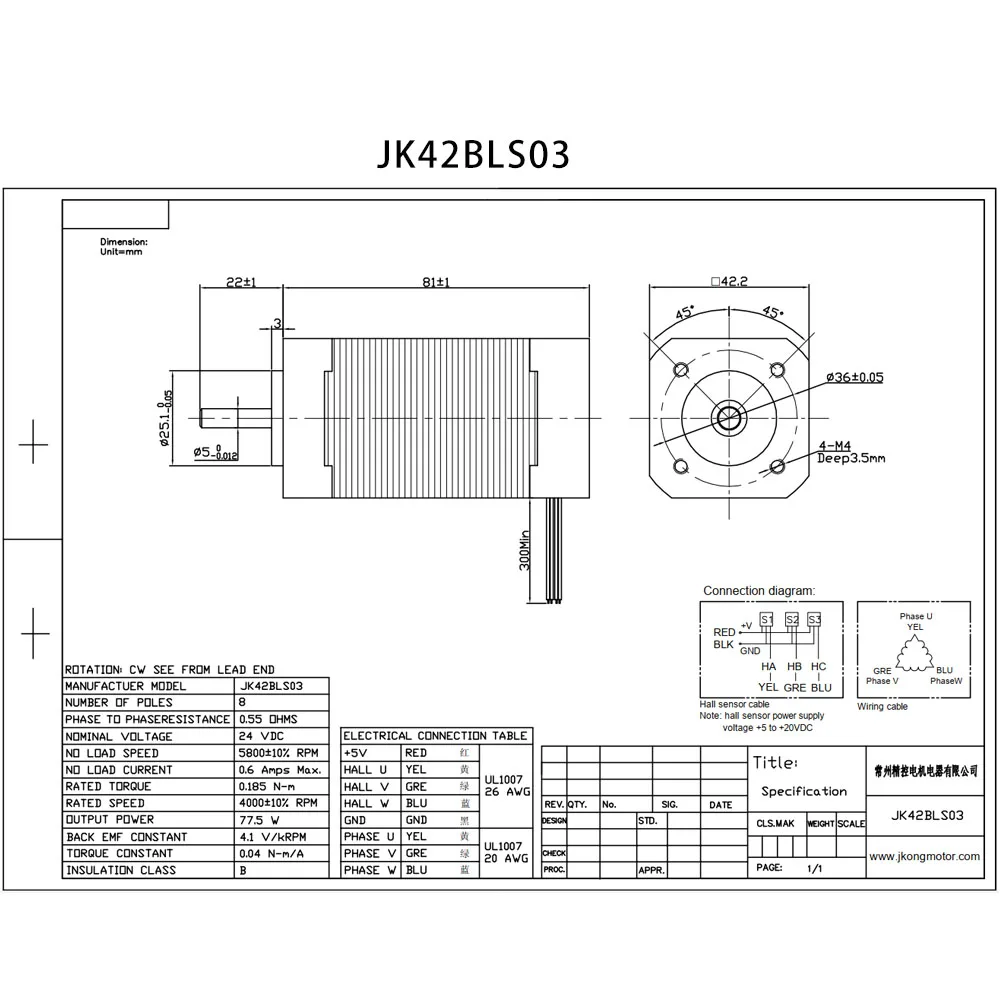

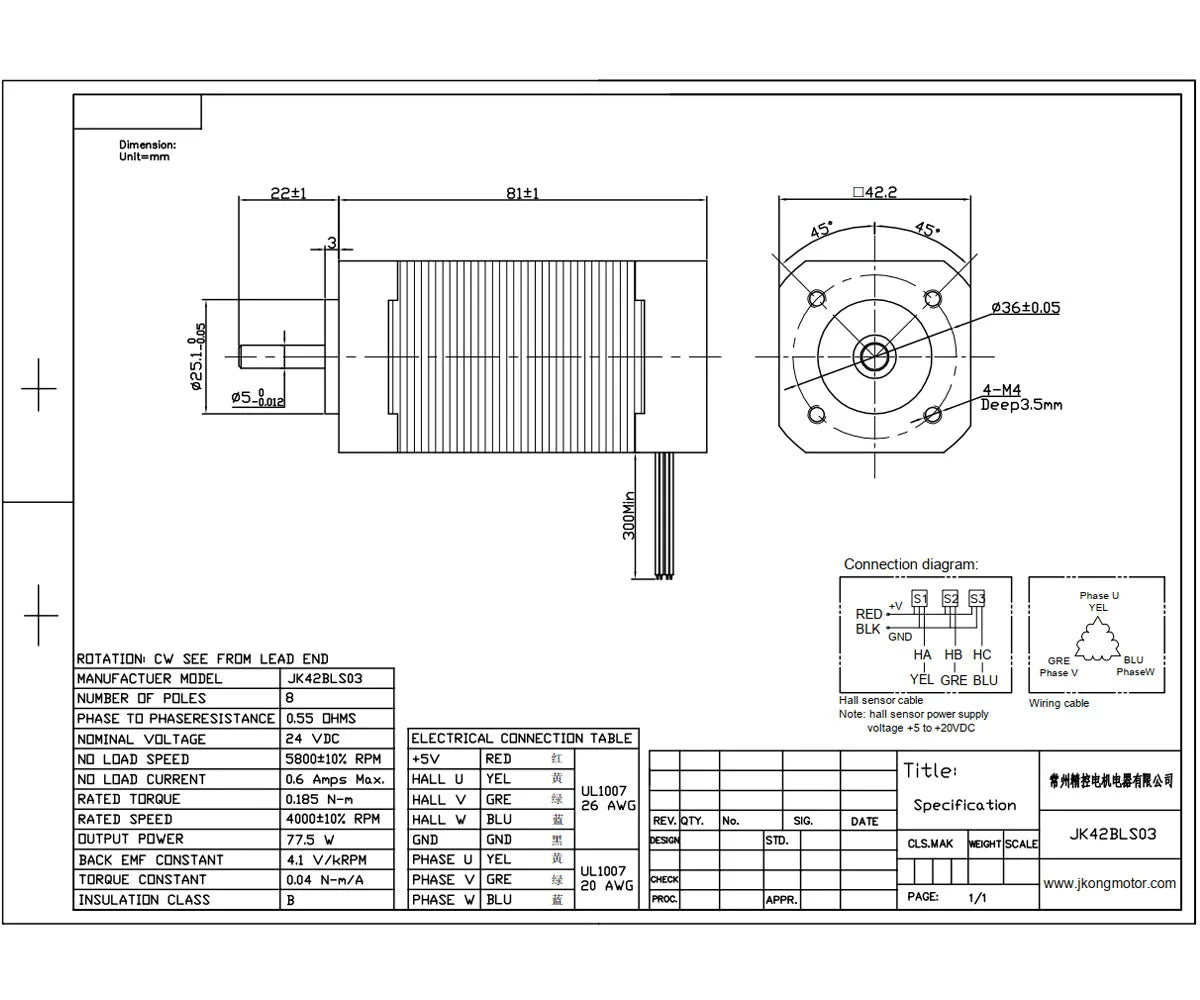

Product Description:

Brand: Jkongmotor
Model No.: JK42BLS03
Number of Phase: 3phase
Number of Poles: 8poles
Rated Voltage: 24V
Rated Speed: 4000Rpm
Rated Torque: 0.185Nm
Rated Current: 4.8A
Rated Power: 77.5W
Peak Torque: 0.56Nm
Peak Current: 15.5A
Rotor Interia: 72g.cm3
Body Length: 81mm
Senser: Honeywell
Insulation Class: B
Degree of Protection: IP30
Storage Temperature: -15~+70℃
Operation Temperature: -15~50℃

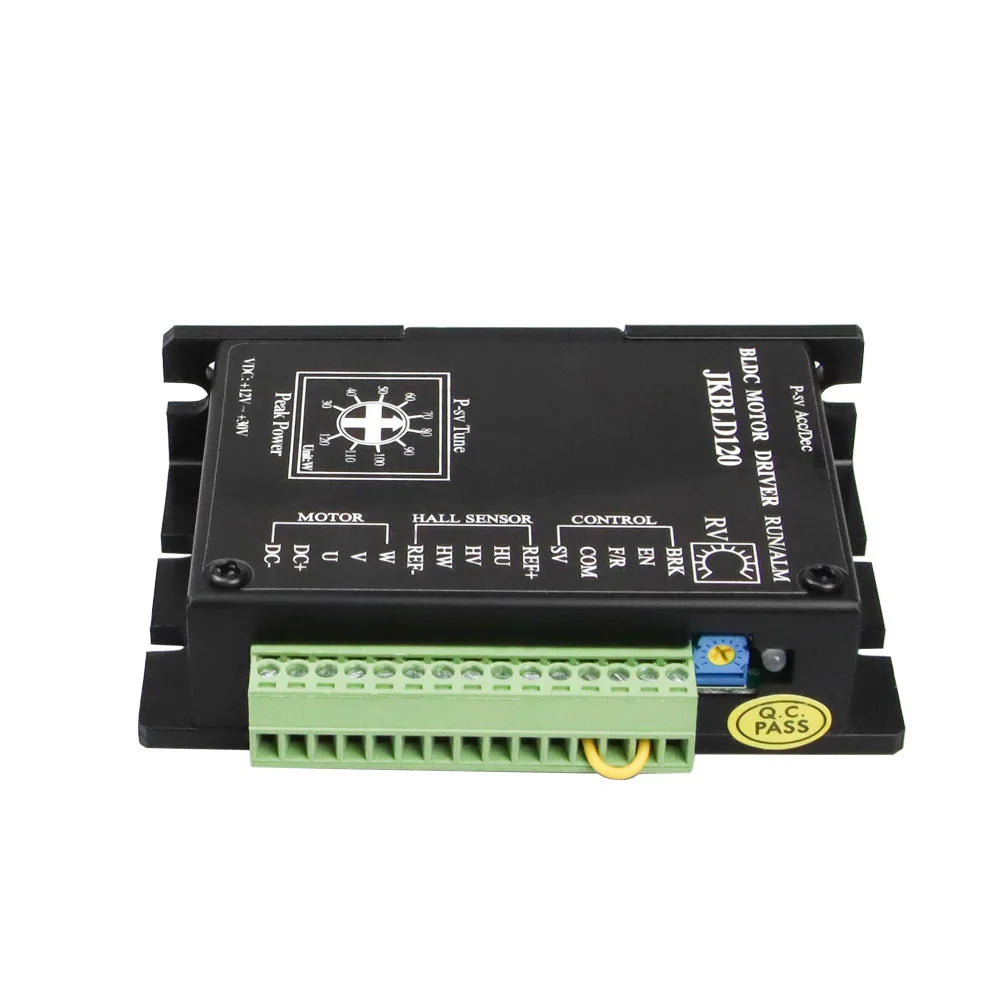

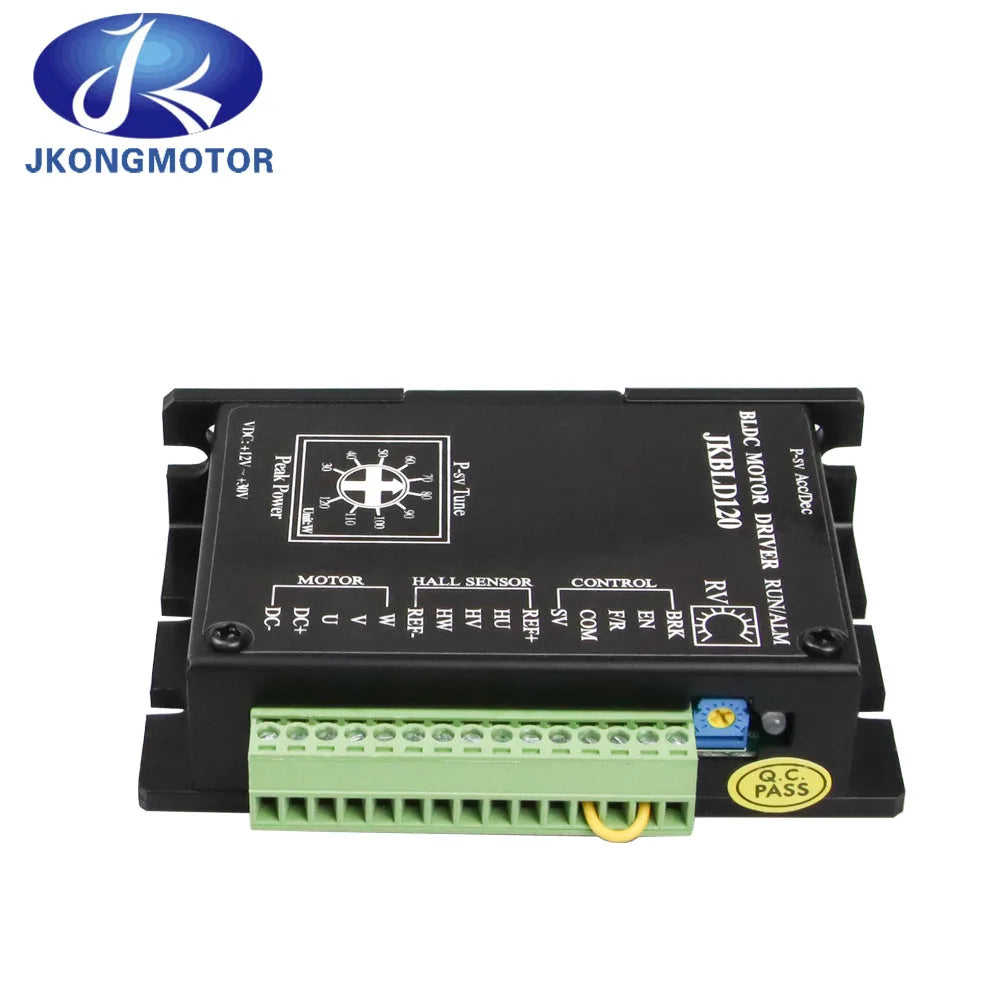

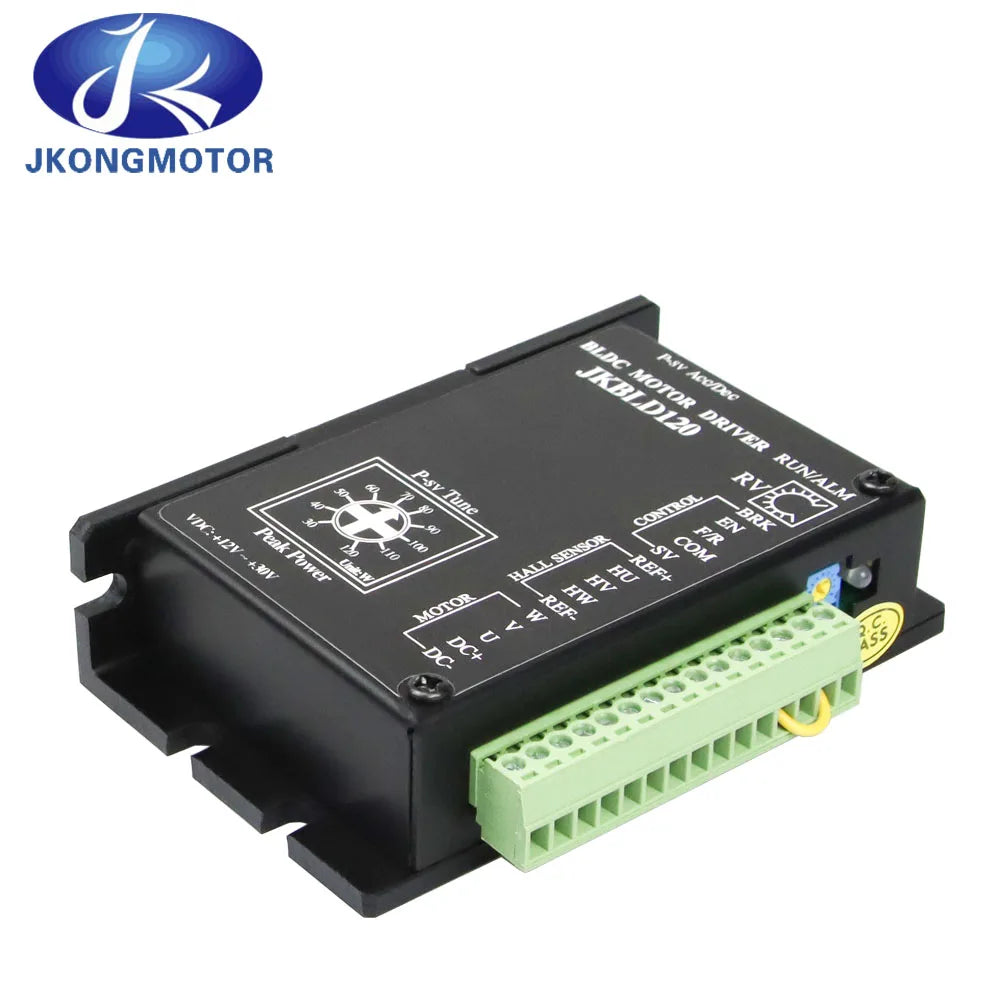

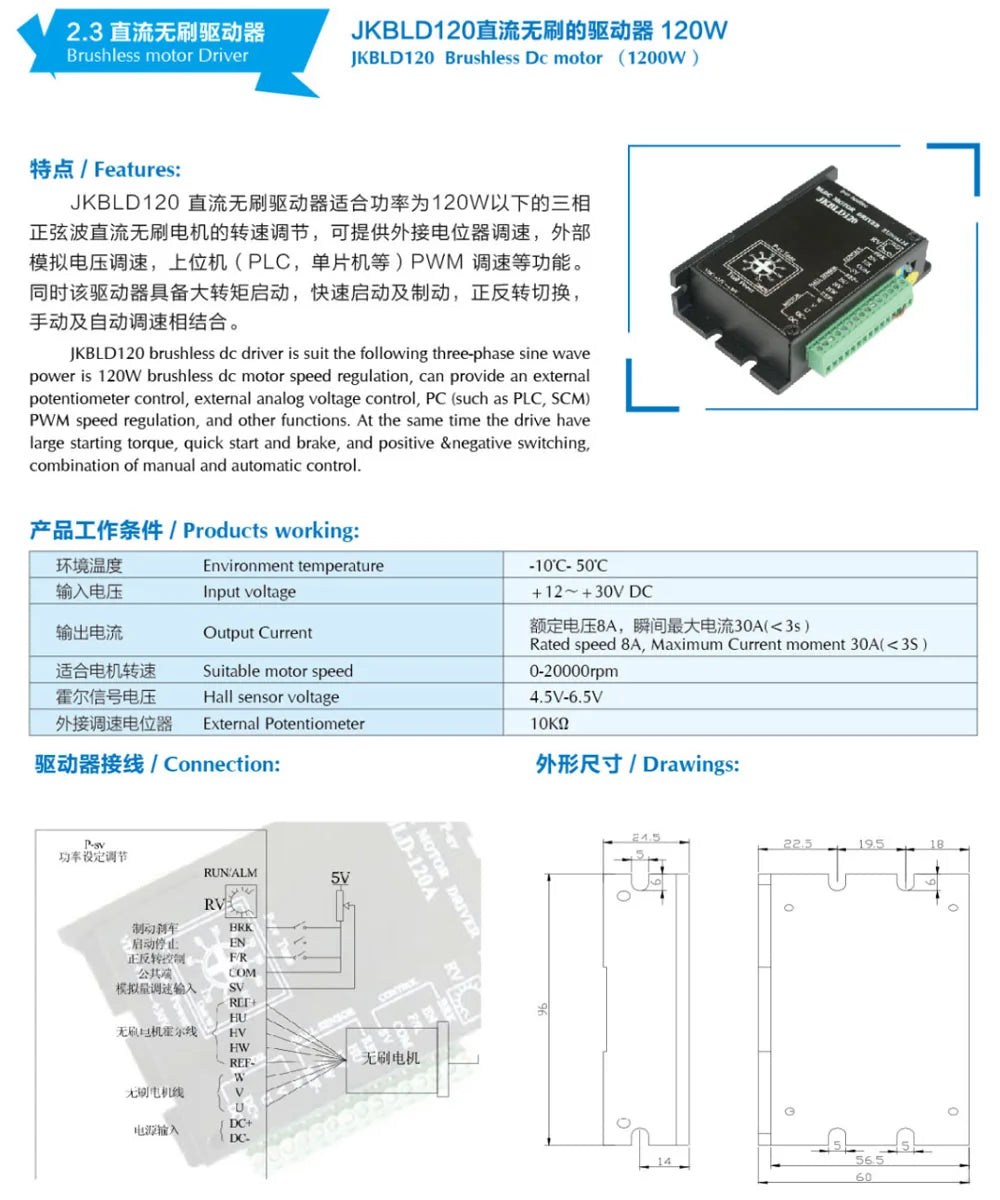

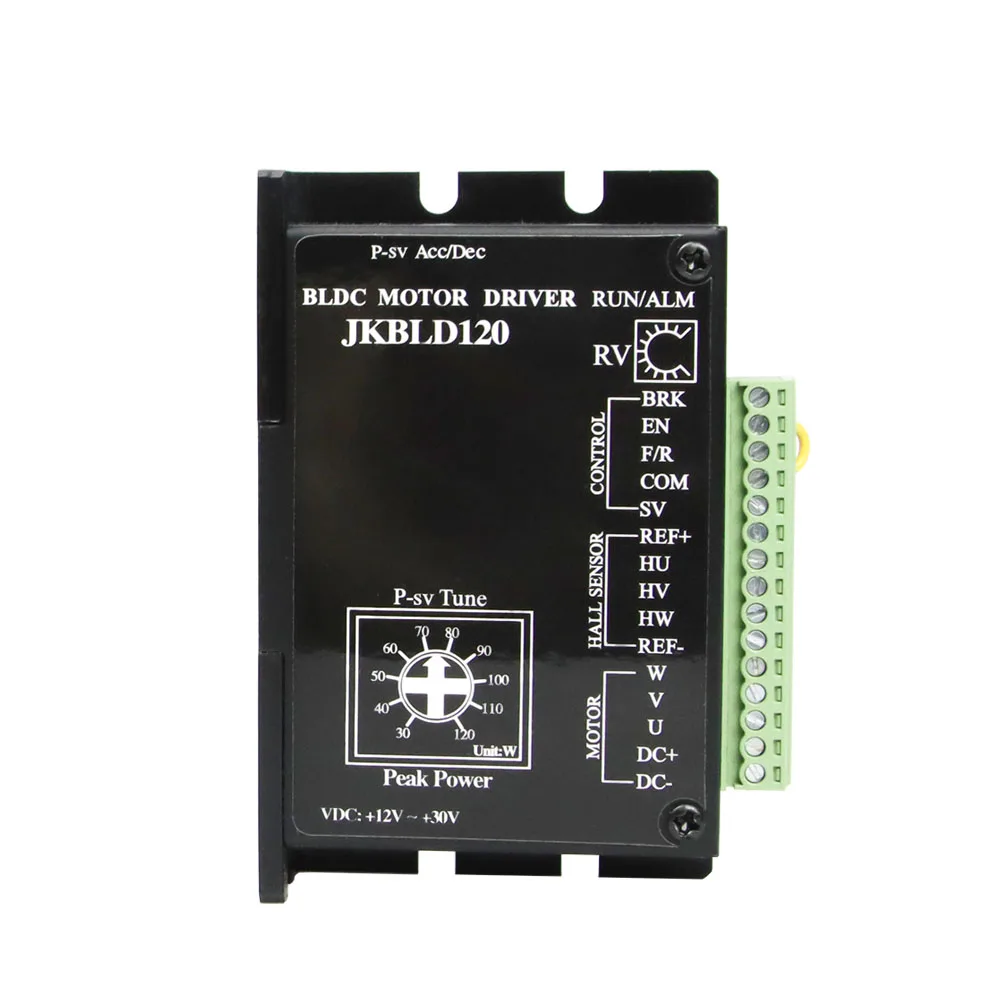

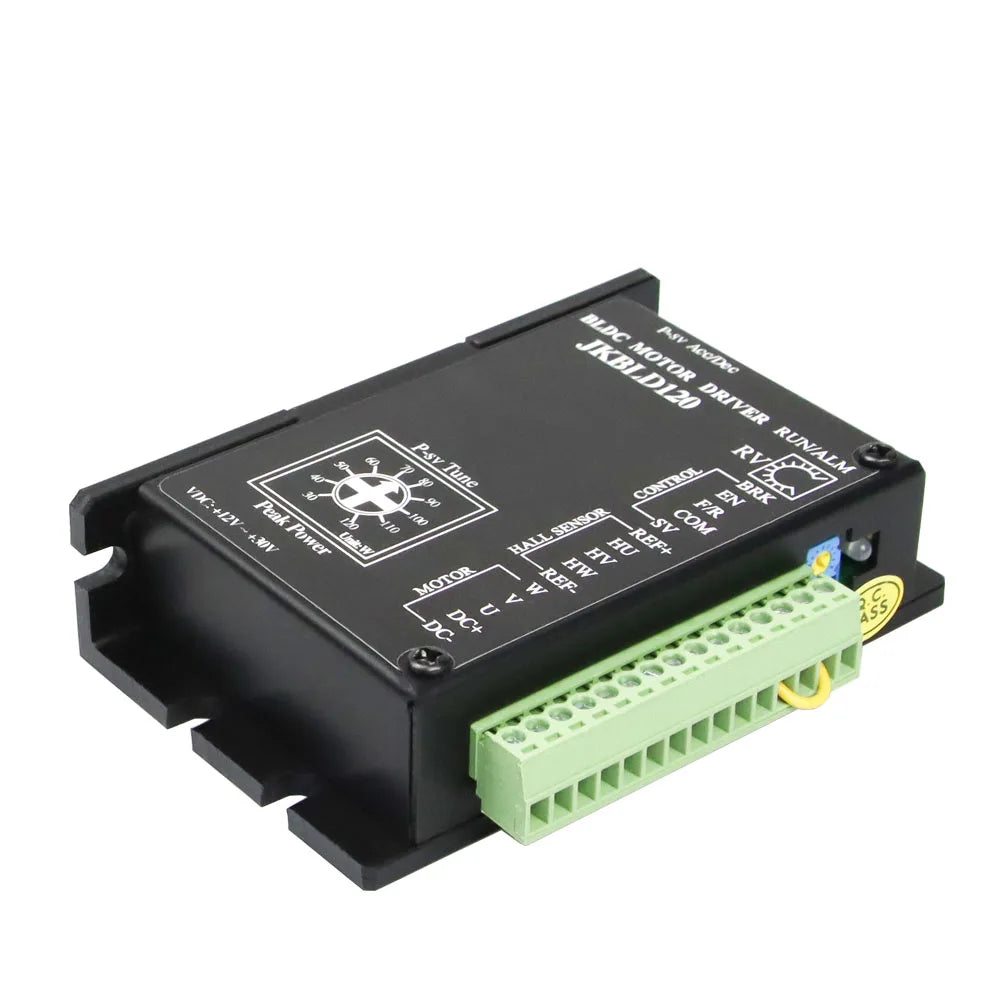

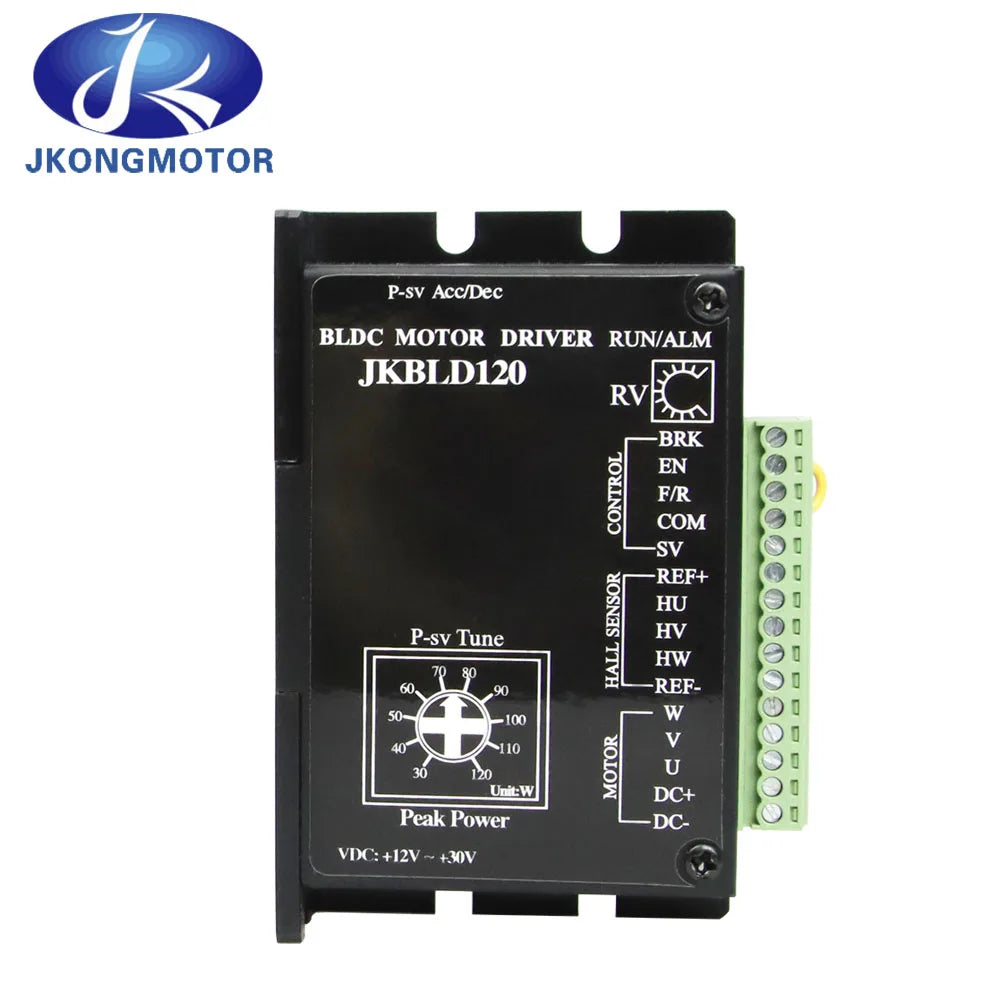

Model Name:JKBLD120
Environment Temperature:-10℃~ 50℃
Input Voltage: +12V~ +30V
Output Current: Rated speed 8A, Maximum current monent 30A(<3s)
Suitable Motor Speed: 0~20000Rpm
Hall Sensor Voltage: 4.5V~ 6.5V
External Potentiometer: 10KΩ

JKBLD120 brushless dc driver is suit the following 3 phase since wavve power is 120W brushless dc motor speed regulation, can provide an external potentiometer control, external analog control, PC (such as PLC, SCM) PWM speed regulation, and other functions. At the same time the driver have large starting torque, quick start and brake, and positive & negative switching, combination of manual and automatic control.
