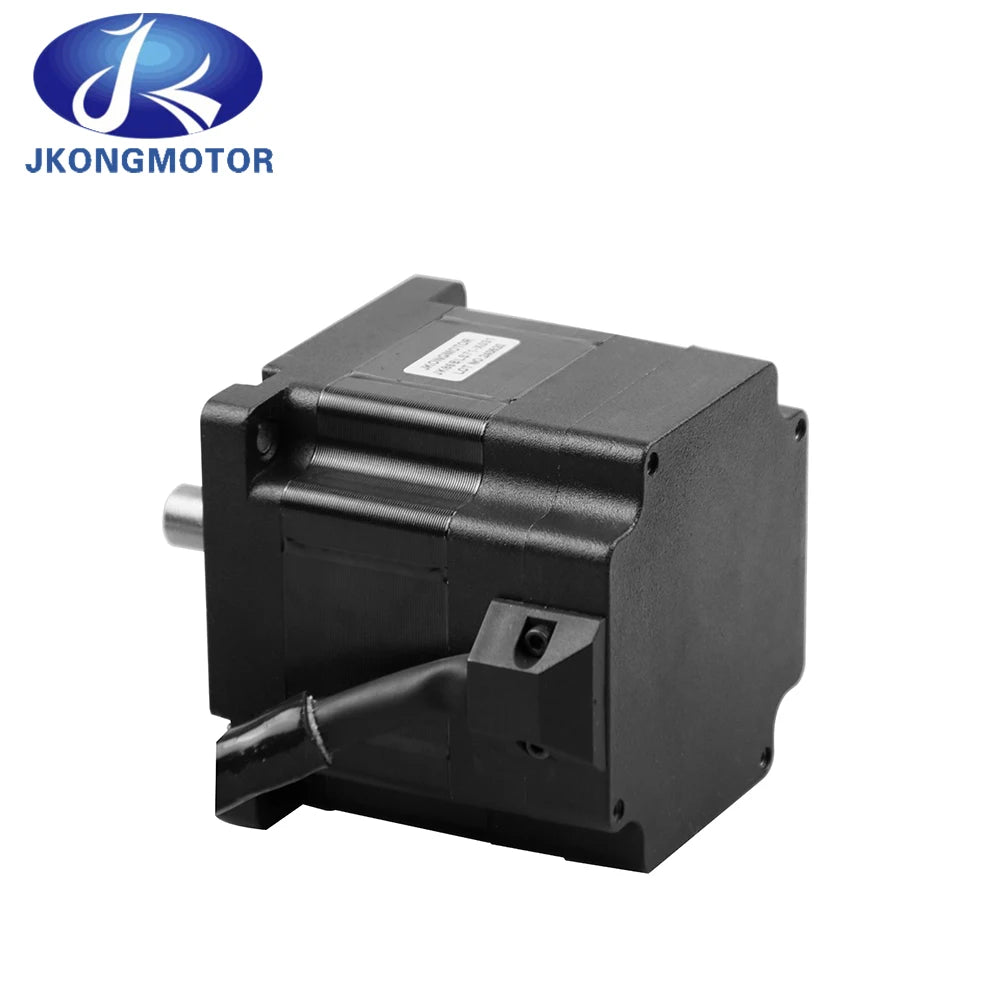

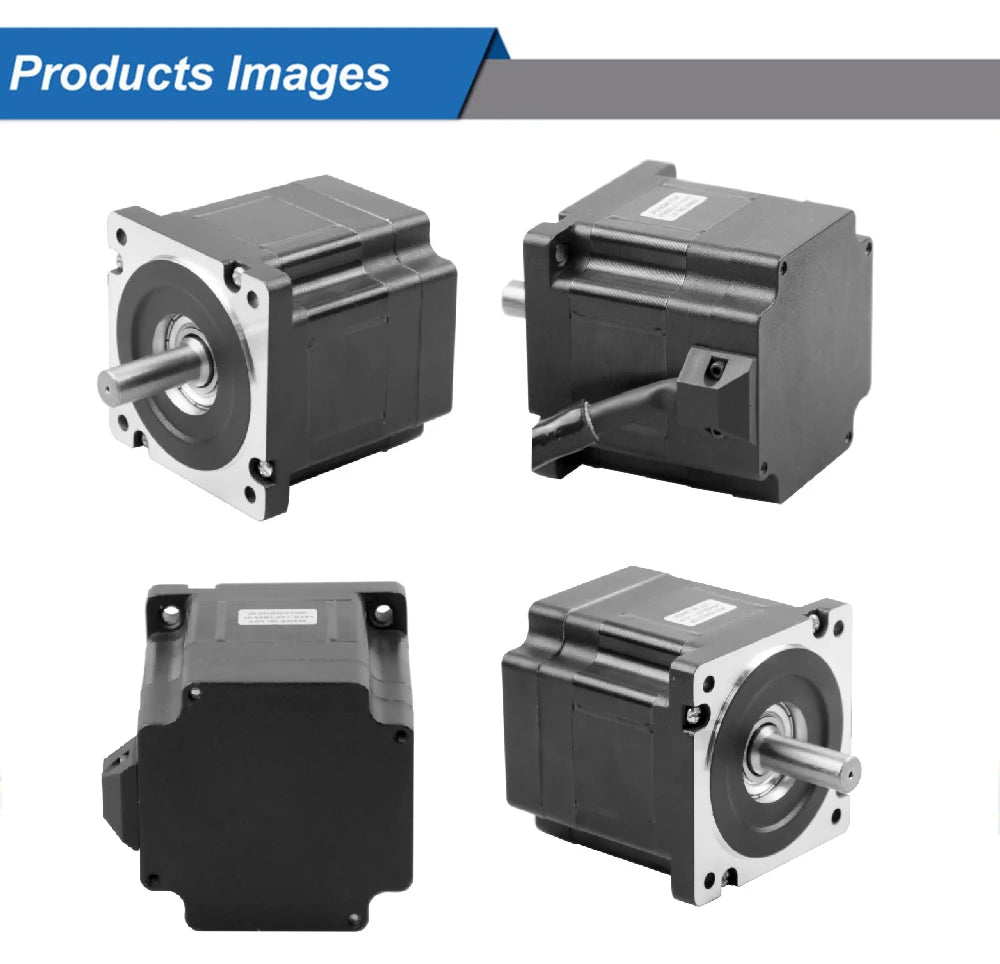

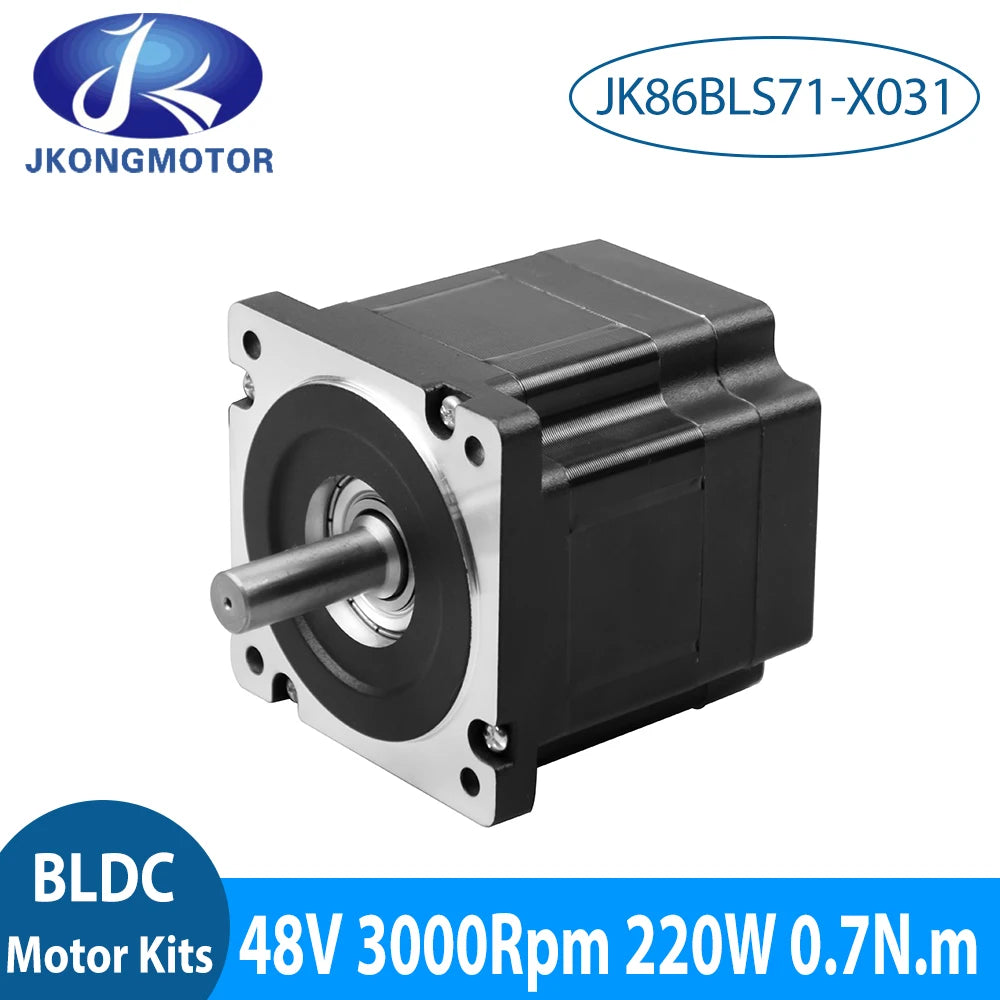

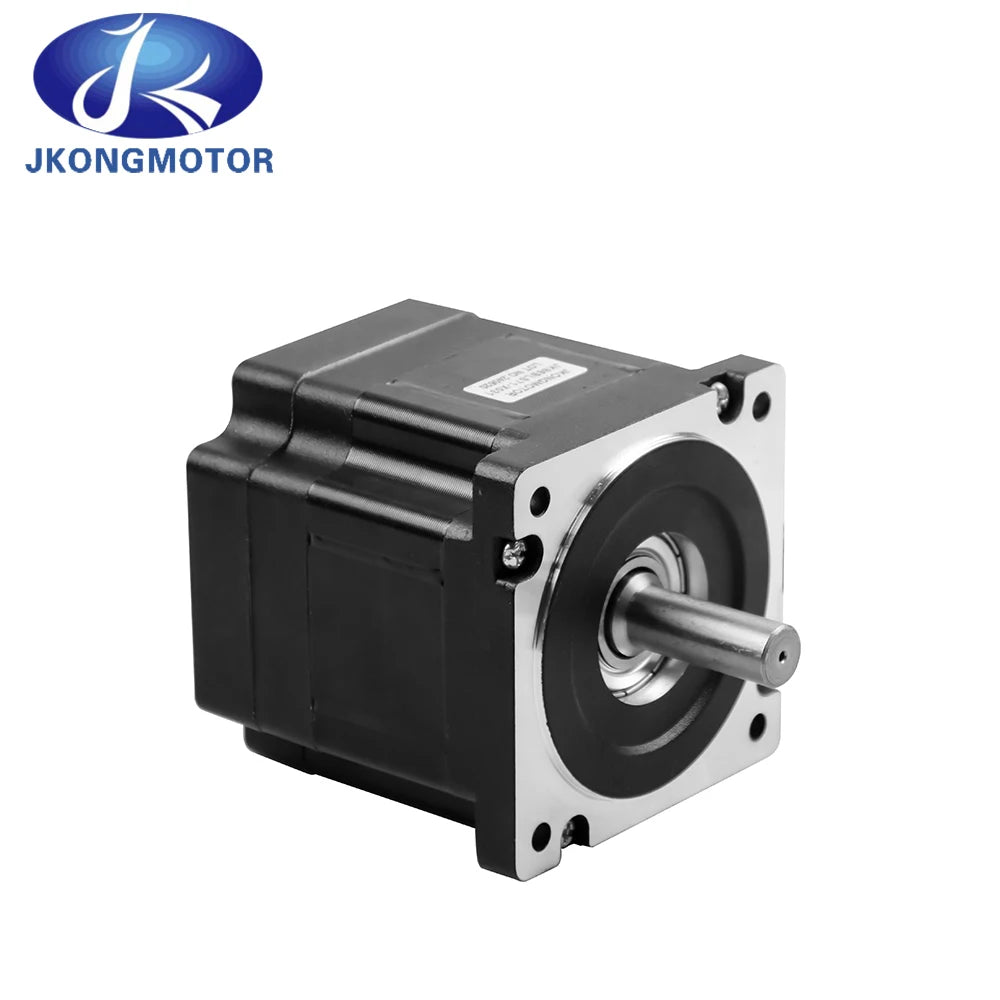

Jkongmotor JK86BLS71-X031 Brushless Dc Motor For Sale 48v BBQ 220W bldc hall sensor Motor 0.7N.m BLDC Motor for Grill Machine
JK86BLS71-X031 / Other
$306.90
Sale price
$306.90
Regular price
$0.00
Skip to product information
Jkongmotor JK86BLS71-X031 Brushless Dc Motor For Sale 48v BBQ 220W bldc hall sensor Motor 0.7N.m BLDC Motor for Grill Machine
$306.90
Sale price
$306.90
Regular price
$0.00
Description
SPECIFICATIONS

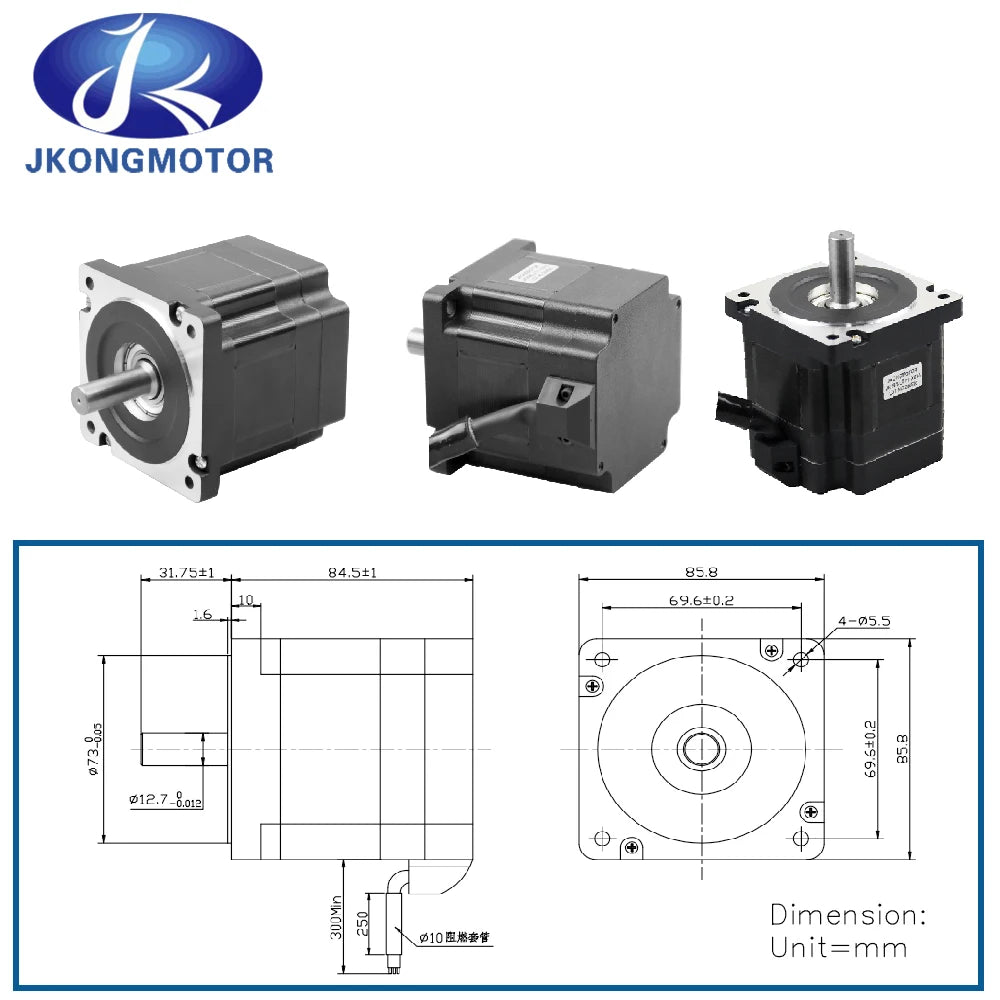

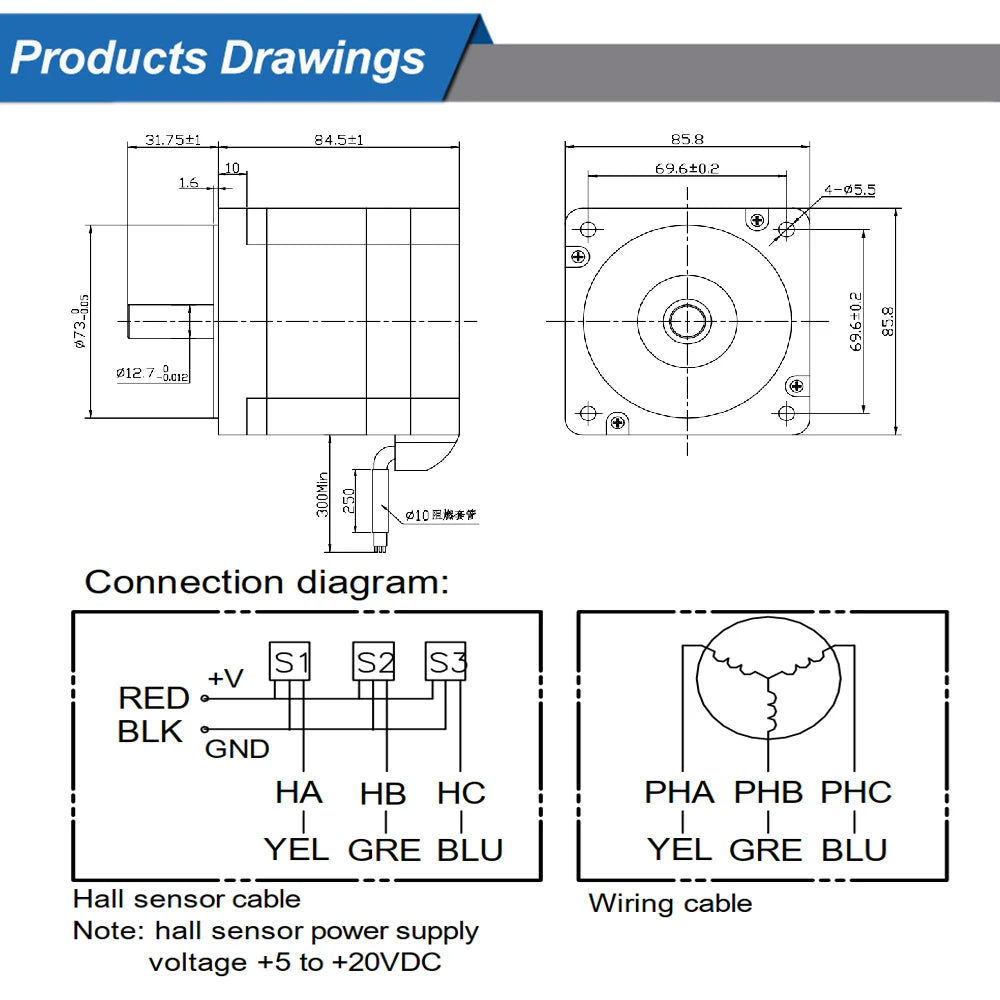

Body length: 84.5mm
Brand Name: jkongmotor
Certification: ce,ROHS,CE
Commutation: Brushless
Continuous Current(A): 1.5A
Degree of protection: IP30
Does it include a Battery?: No
Does it include wireless functionality?: No
Driver: JKBLD750
Driver Type: 750W BLDC Motor Driver
Efficiency: IE 4
High-concerned chemical: none
JKONGMOTOR Model: JK86BLS71-X031
Model Number: JK86BLS71-X031
Motor Type: 86mm 48V Brushless Dc Motor
Number of Poles: 8-Poles
Number of phase: 3-Phase
Origin: Mainland China
Output Power: 74.6-735（include735）
Output Voltage: 220W
Rated Speed: 3000rpm
Rated torque: 0.7Nm
Rotor inertia: 800g.cm2
Senser: Honeywell
Torque: 0.7Nm
Torque constant: 0.124Nm./A
Type: Micro Motor

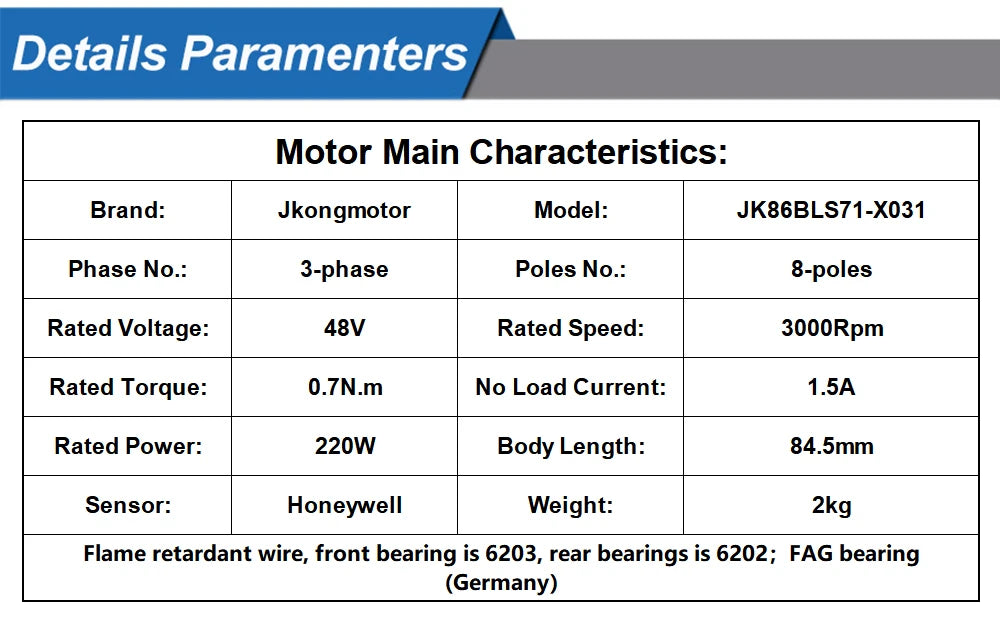

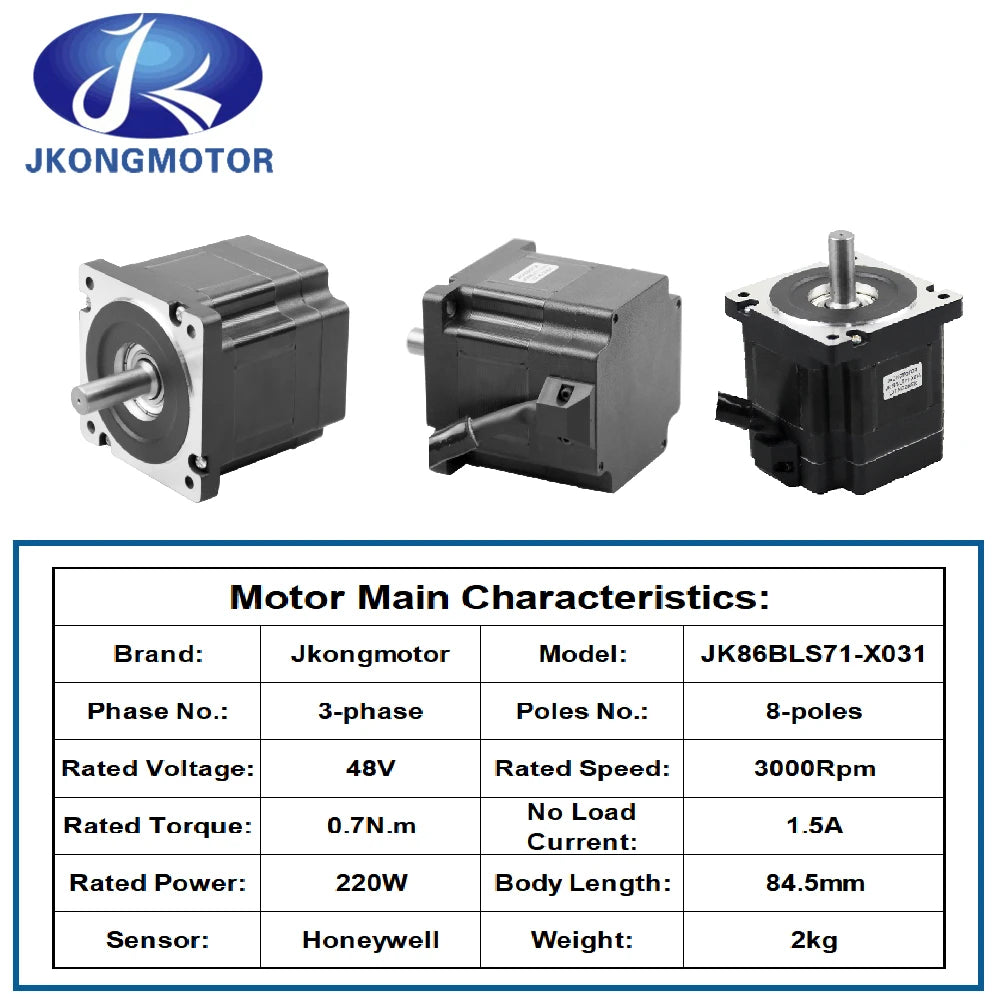

Product Description:
Brand: Jkongmotor
Model No.: JK86BLS71-X031
Number of Phase: 3phase
Number of Poles: 8poles
Rated Voltage: 48V
Rated Speed: 3000Rpm
Rated Torque: 0.7Nm
Rated Current: 1.5A
Rated Power: 220W
Rotor Interia: 800g.cm3

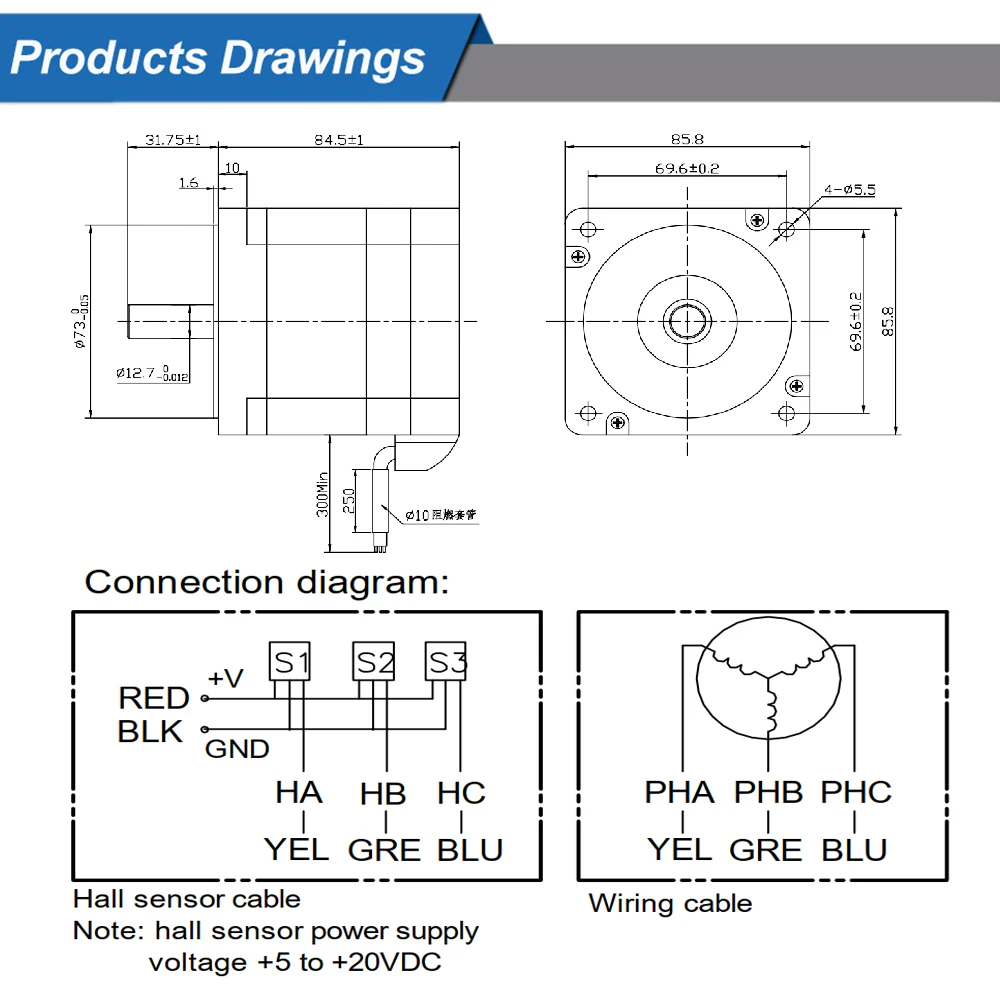

Body Length: 84.5mm
Senser: Honeywell
Insulation Class: B
Degree of Protection: IP30
Storage Temperature: -15~+70℃
Operation Temperature: -15~50℃
Model Name: JKBLD750
Type: BLDC motor driver
Power: 750W
Environment temperature: -10℃—50℃
Input Voltage: +18—+50VDC
Output Current: 25A—45A
Suitable Motor Speed: 0-20000Rpm

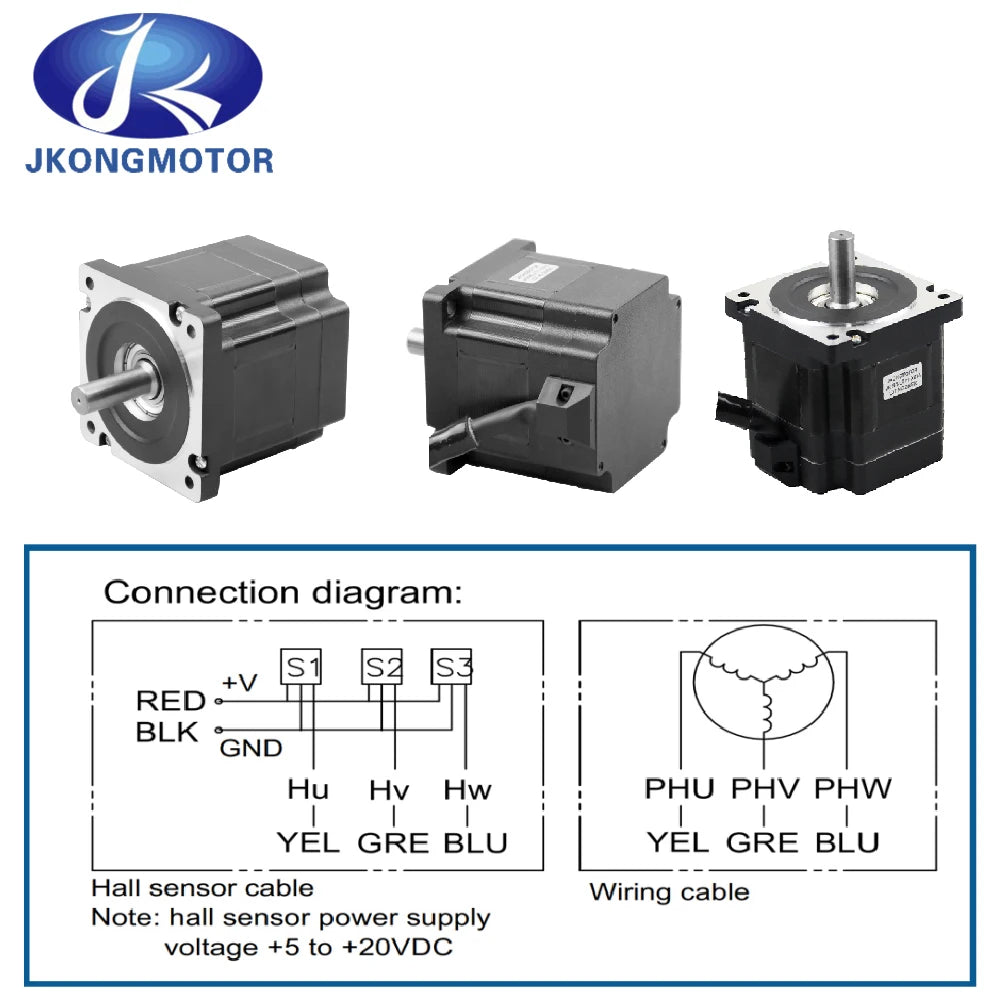

Hall Sensor Voltage: 4.5V—5.5V
External Potentiometer: 10kΩ
JKBLD750 brushless dc driver is suit the following 3 phase sine wave power and 48VDC 750W brushless dc motor speed regulation, can provide an external potentiometer control, external analog voltage control, PC (such as PLC, SCM) PWM speed regulation, and other functions. At the same time the drive have large starting torque, quick start and brake, and positive & negative switching, combination of manual and automatic control.
