Description

SPECIFICATIONS

Bearing: Fluid Bearing

Blade Quantity: 7

Brand Name: NONE

Choice: yes

Fan Size: 120mm

Fan Speed: 700 - 2400

High-concerned chemical: none

Model Number: ZB-120/240/360

Origin: Mainland China

Package: Yes

Power Interface: 4PIN

Used For: Case

Voltage: 12V

ZA/ZB-360 fans require your motherboard or controller to support at least 68 LED chips (some motherboards support adjusting the number of LED chips)

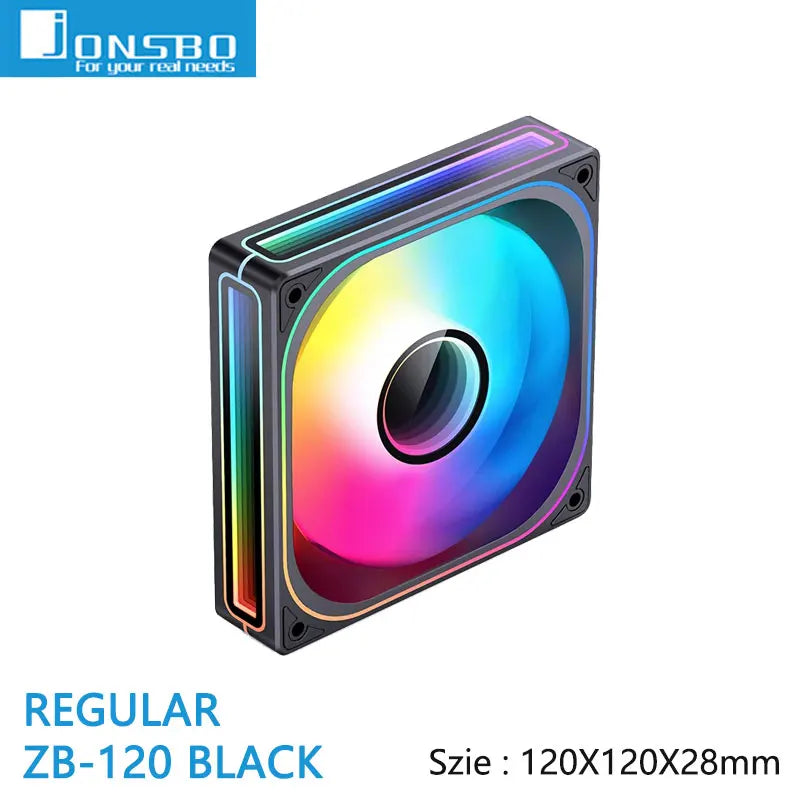

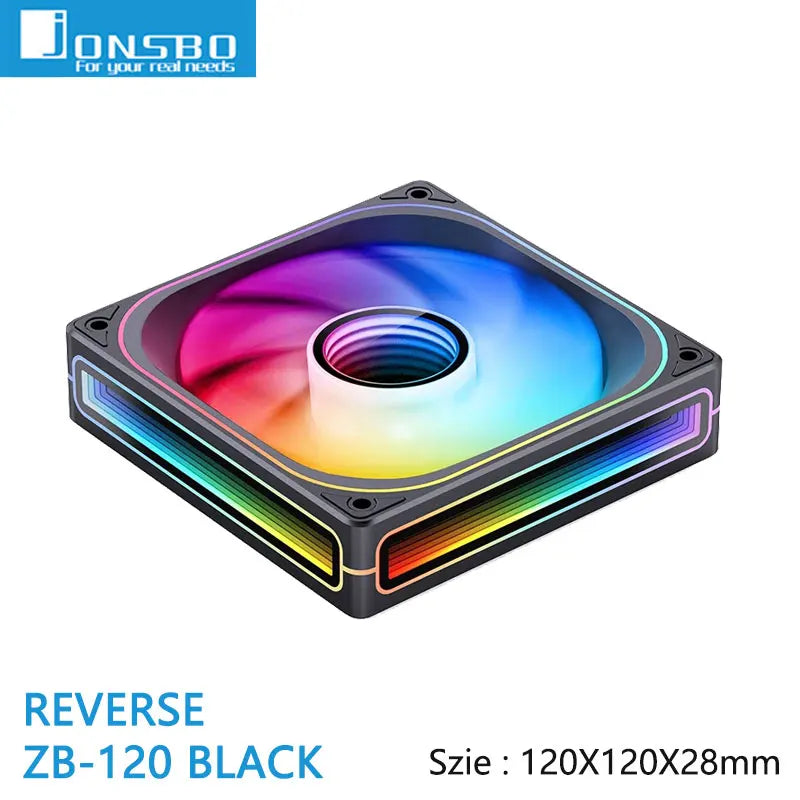

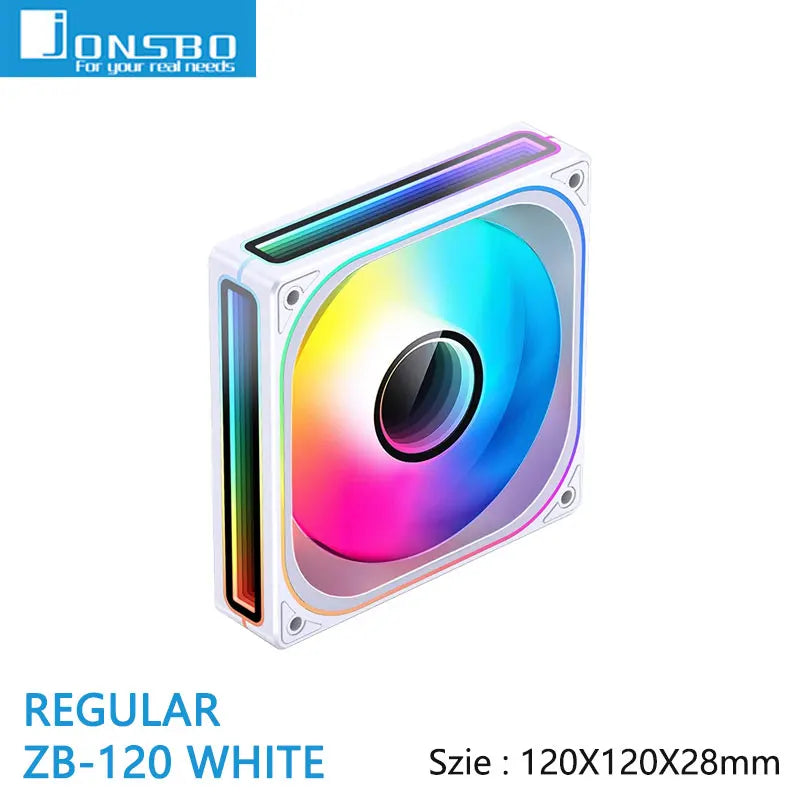

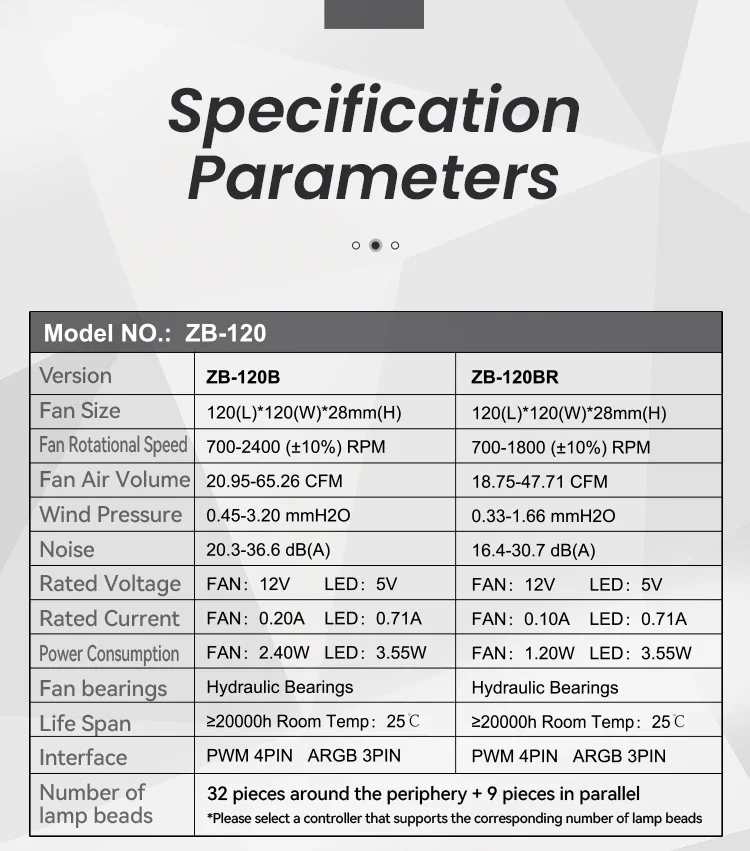

ZB-120

Fan size: 120mm (L) * 120mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 20.95-65.26 CFM
Wind pressure: 0.45-3.20 mmH2O
Noise level: 20.3-36.6 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.20A LED 0.71A
Power: FAN 2.40W LED 3.55W
MTTF：≥ 20000h Room Temp: 25 ℃

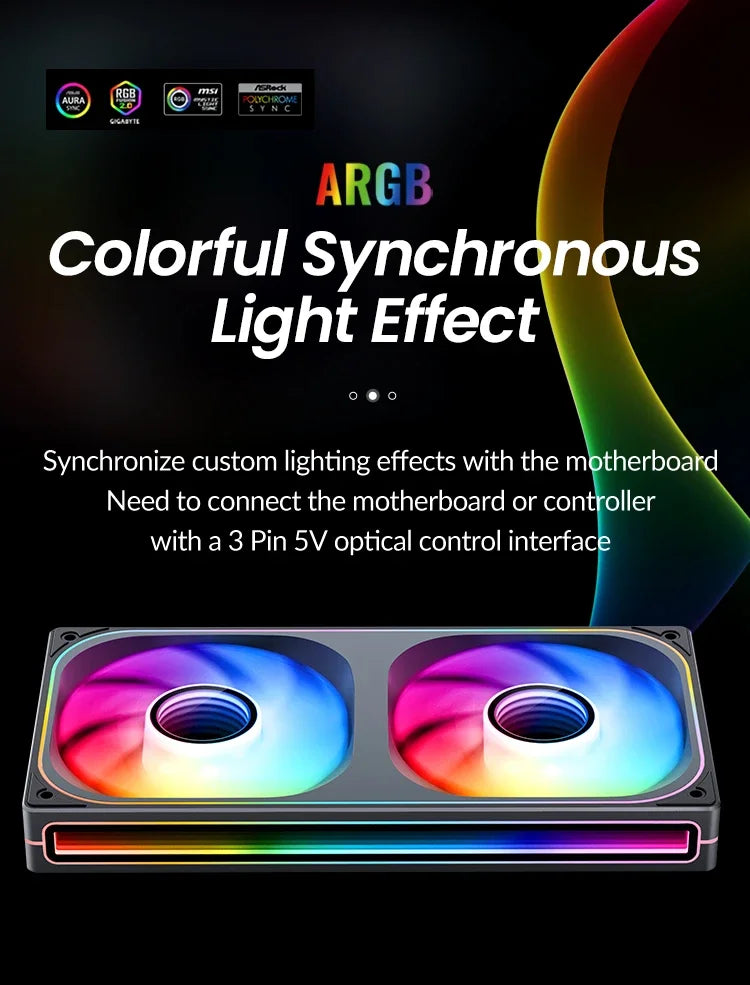

Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 32 around+9 parallel axis
*Please select a motherboard or controller that supports the corresponding number and specifications of LED chips (68 or more).

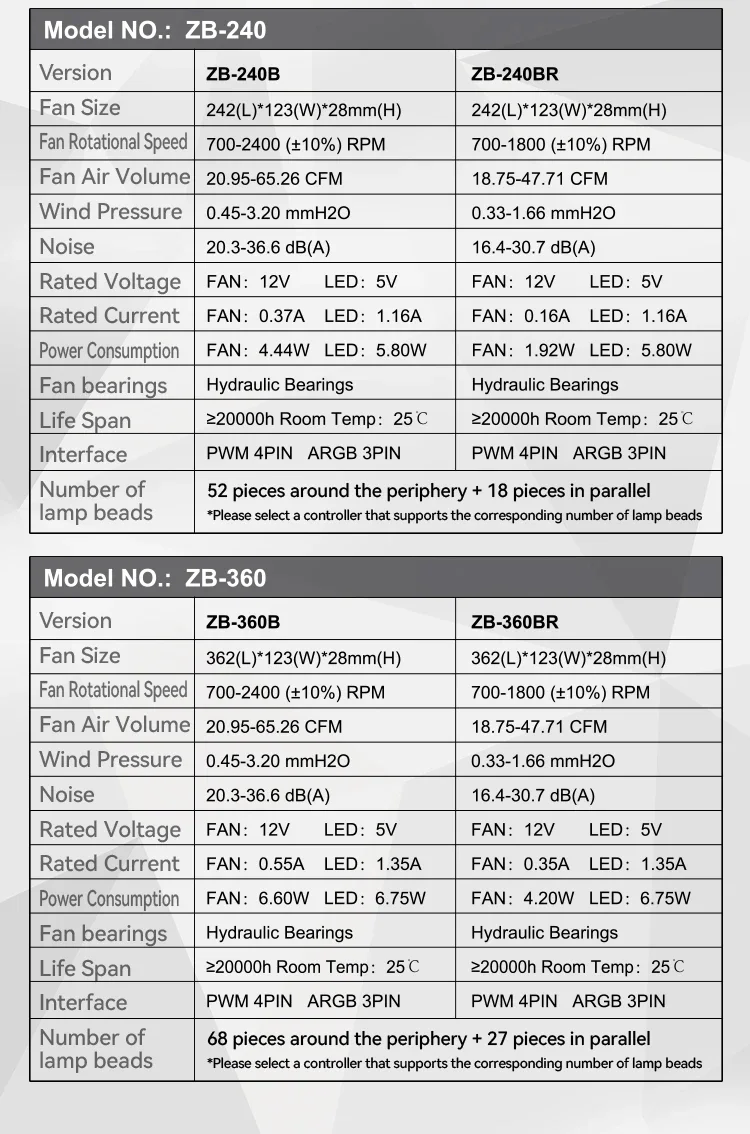

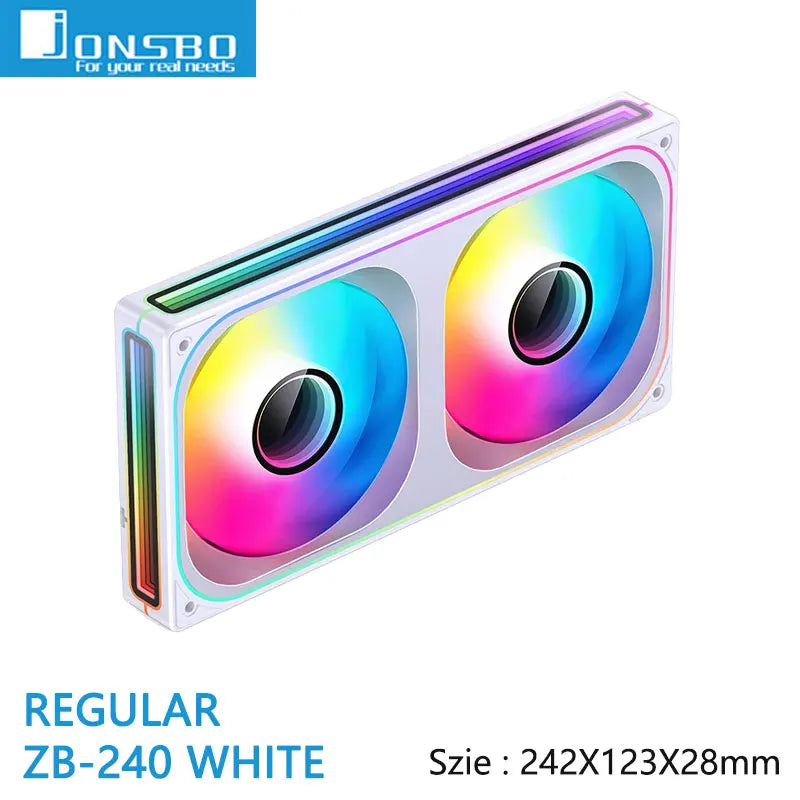

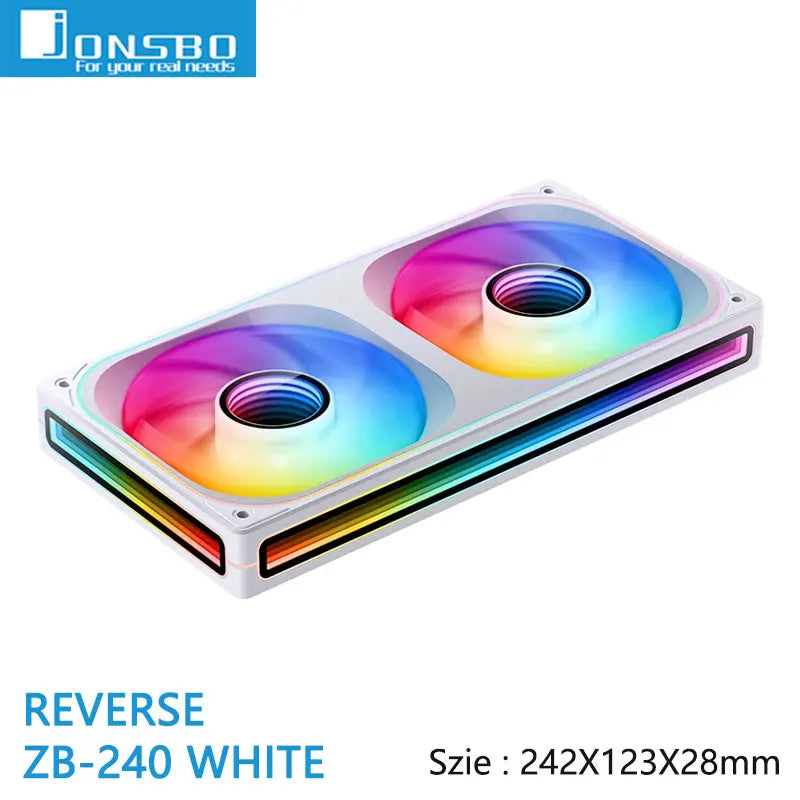

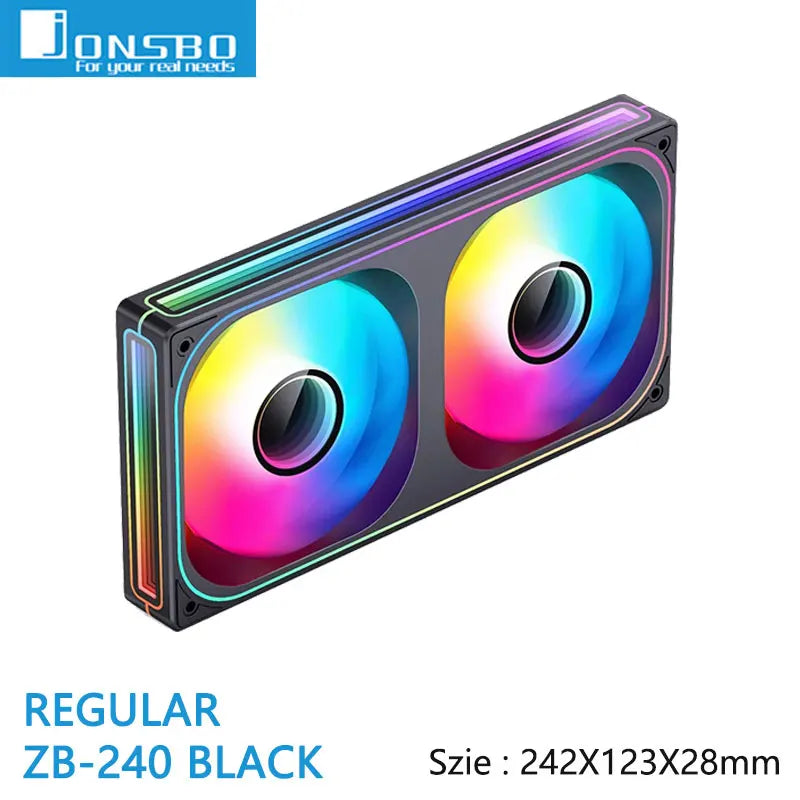

ZB-240

Fan size: 242mm (L) * 123mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 20.95-65.26 CFM
Wind pressure: 0.45-3.20 mmH2O
Noise level: 20.3-36.6 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.37A LED 1.16A
Power: FAN 4.44W LED 5.80W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 32 around+9 parallel axis
*Please select a motherboard or controller that supports the corresponding number and specifications of LED chips (68 or more).

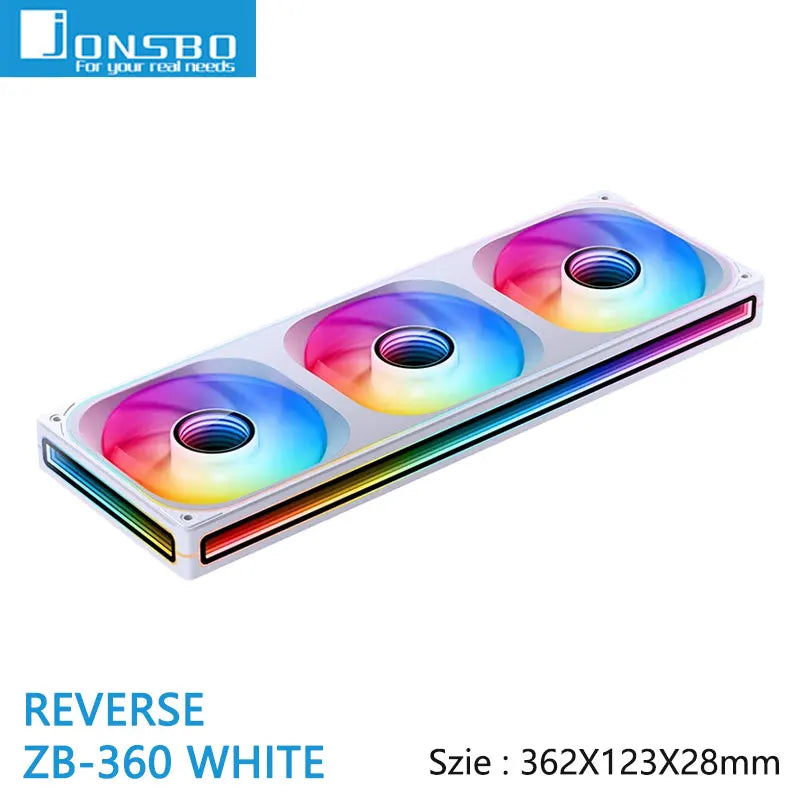

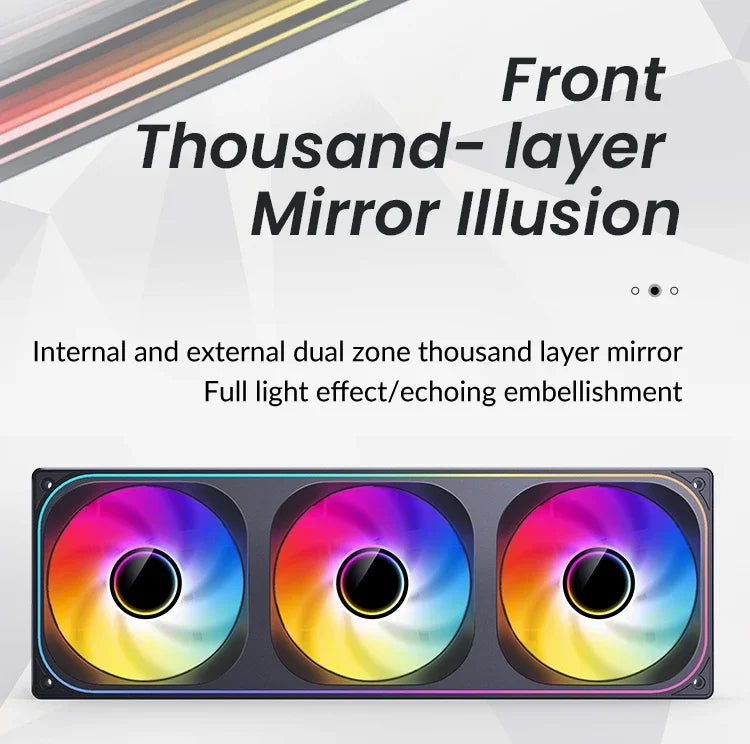

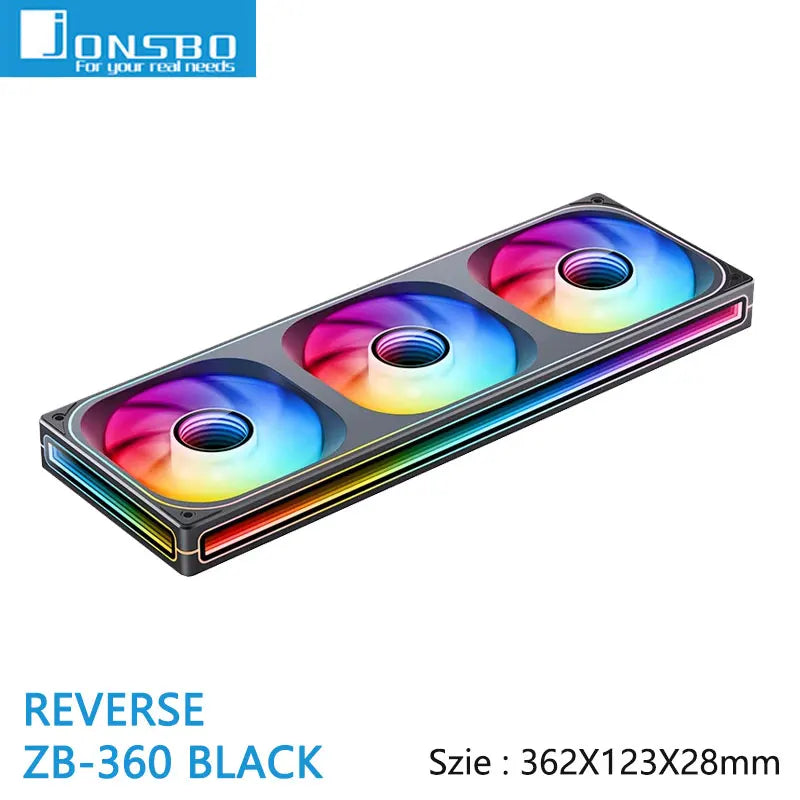

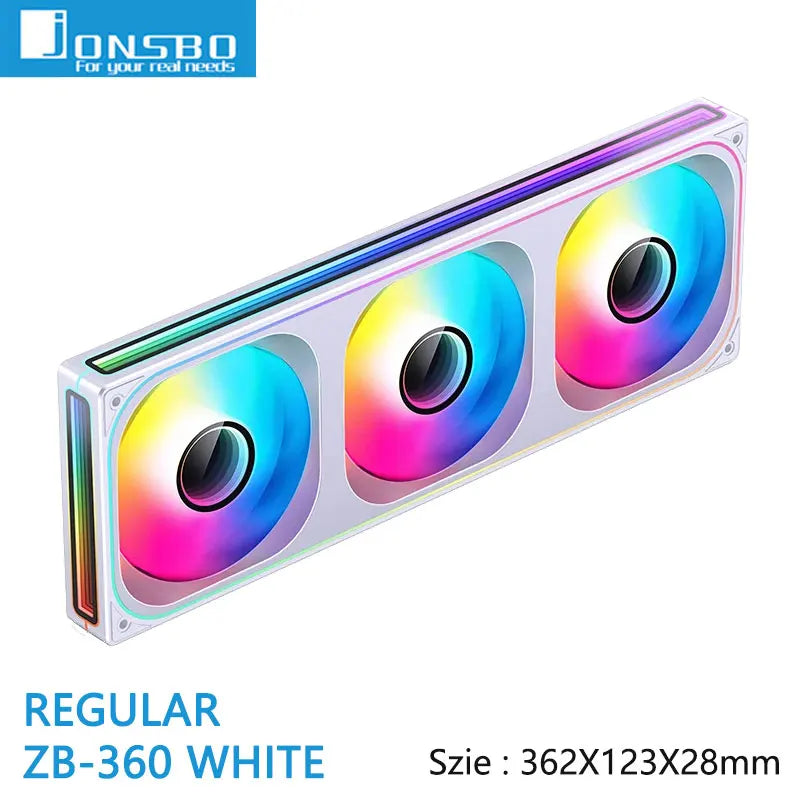

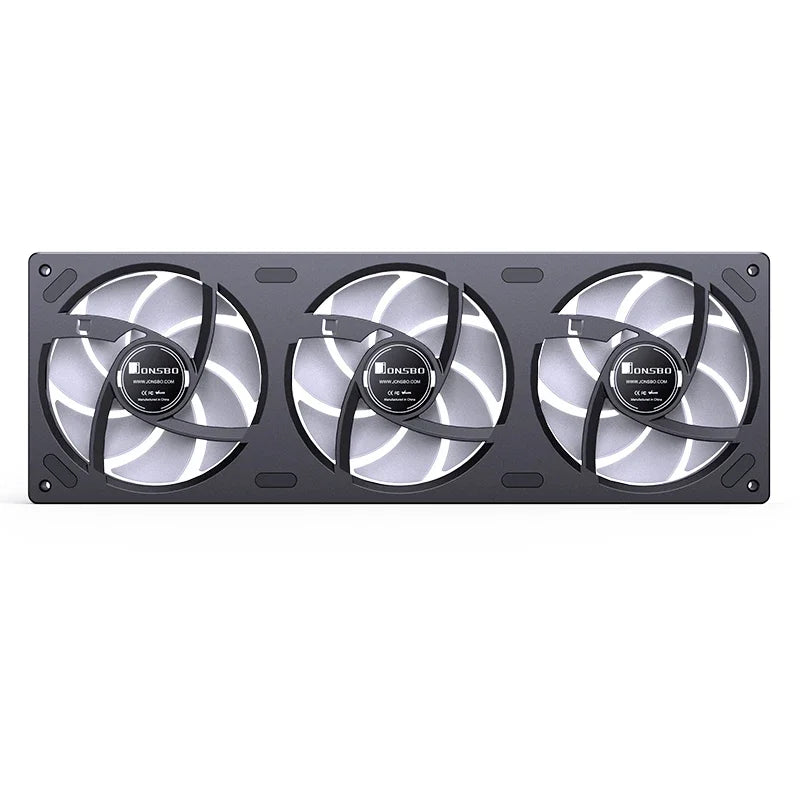

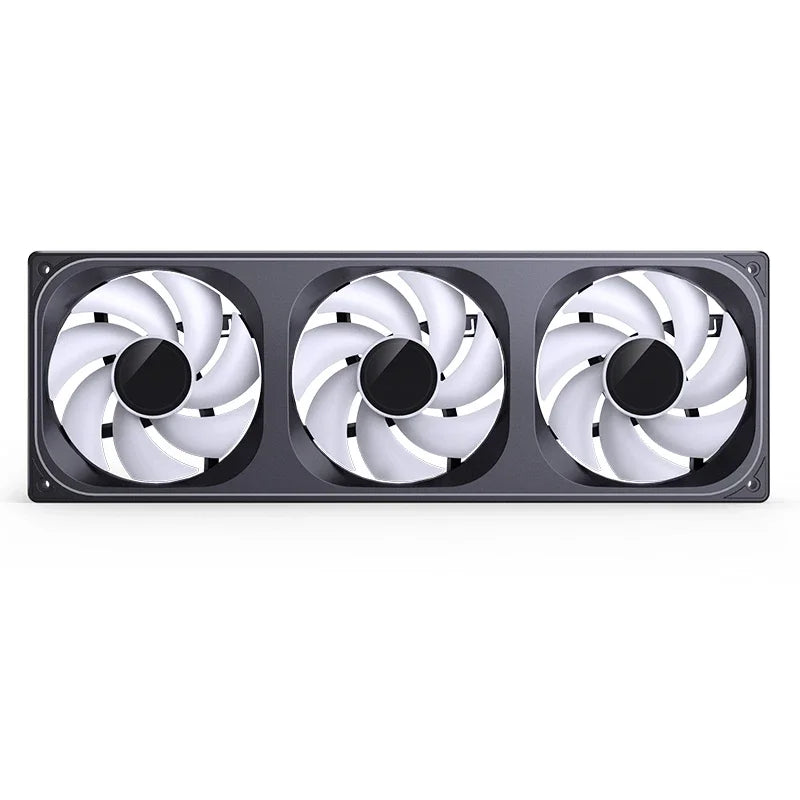

ZB-360

Fan size: 362mm (L) * 123mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 20.95-65.26 CFM
Wind pressure: 0.45-3.20 mmH2O
Noise level: 20.3-36.6 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.55A LED 1.35A
Power: FAN 6.60W LED 6.75W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 32 around+9 parallel axis
*Please select a motherboard or controller that supports the corresponding number and specifications of LED chips (68 or more).
