Description

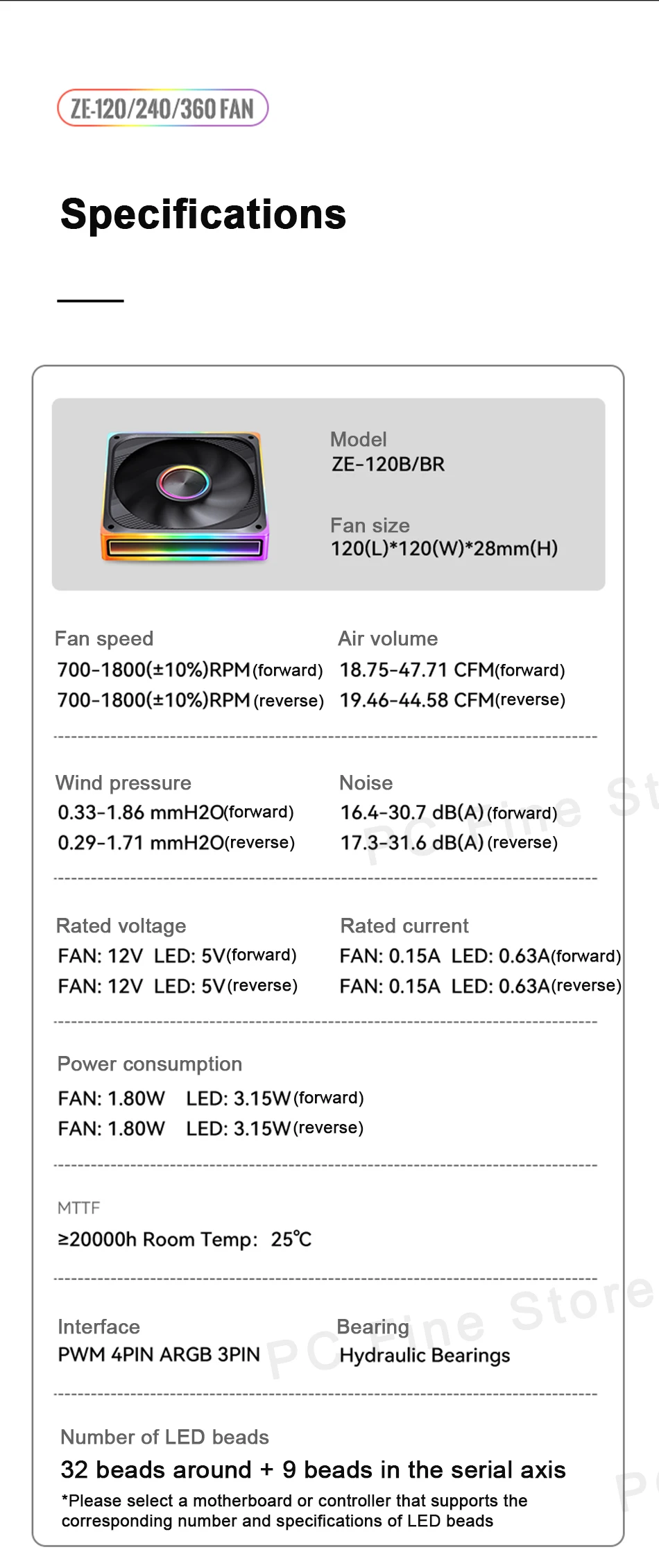

SPECIFICATIONS

Air Volume: 44.58

Bearing: Fluid Bearing

Blade Quantity: 9

Brand Name: Jonsbo

Certification: CE,RoHS

Choice: yes

Fan Life: 100000 hrs

Fan Size: 12cm

Fan Speed: 700 - 1800

High-concerned chemical: none

Lines: 2 lines

Model Number: ZE-120/240/360

Noise: 31.6

Origin: Mainland China

Package: No

Power (W): 4.56

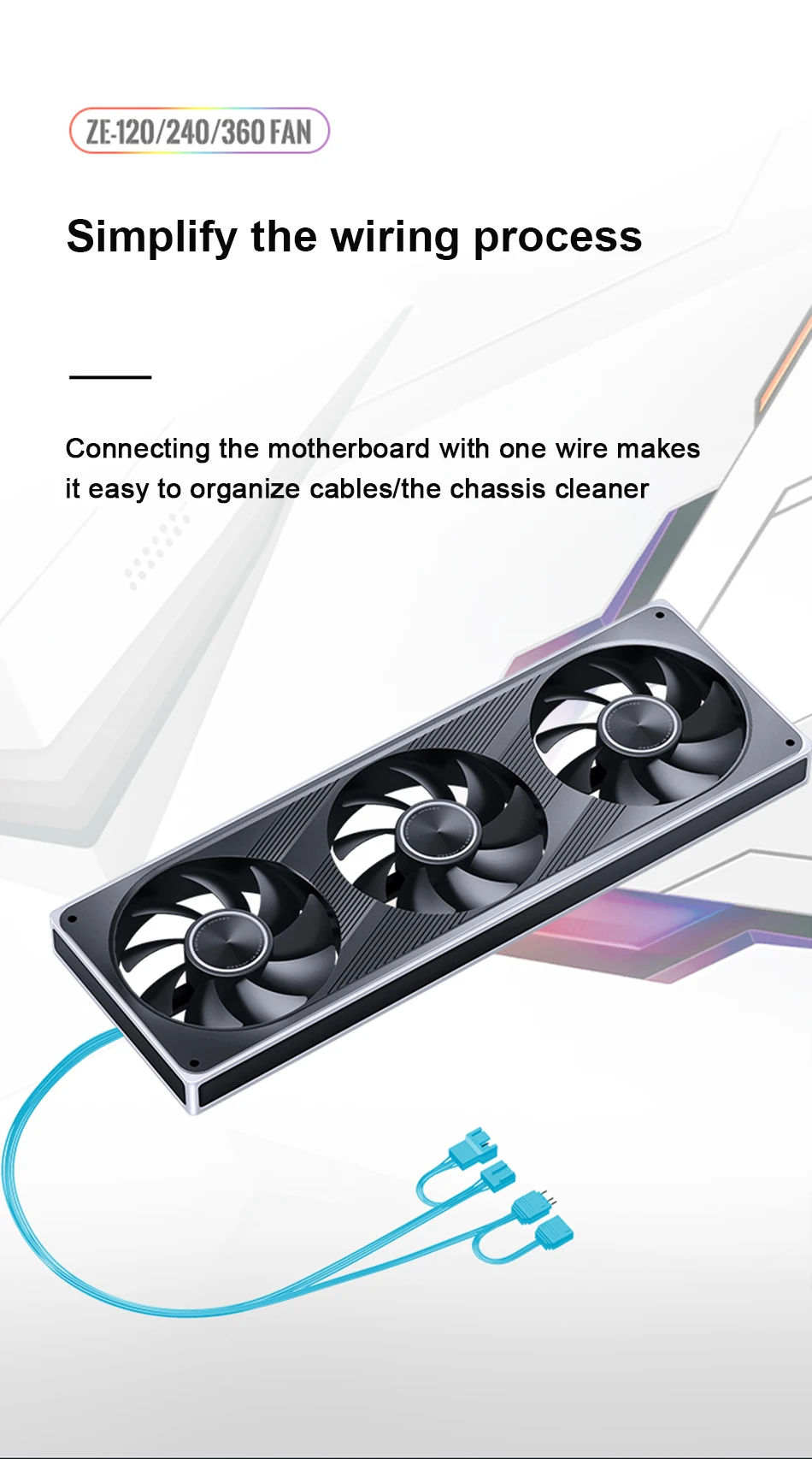

Power Interface: 5v-3pin ARGB,4PIN

Series: ZE-120/240/360

Used For: Case,Radiator

Voltage: 12V

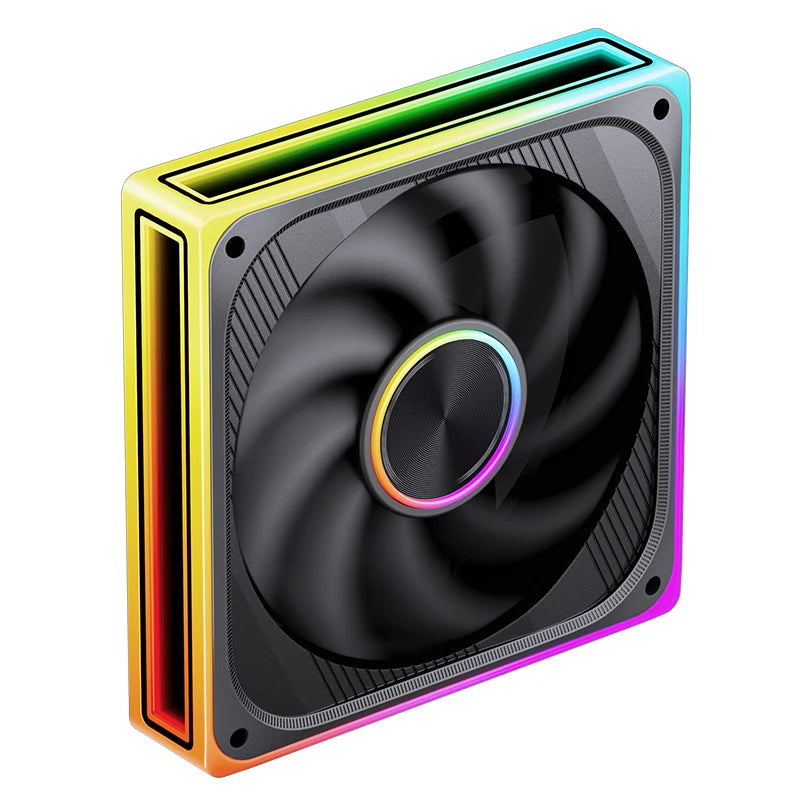

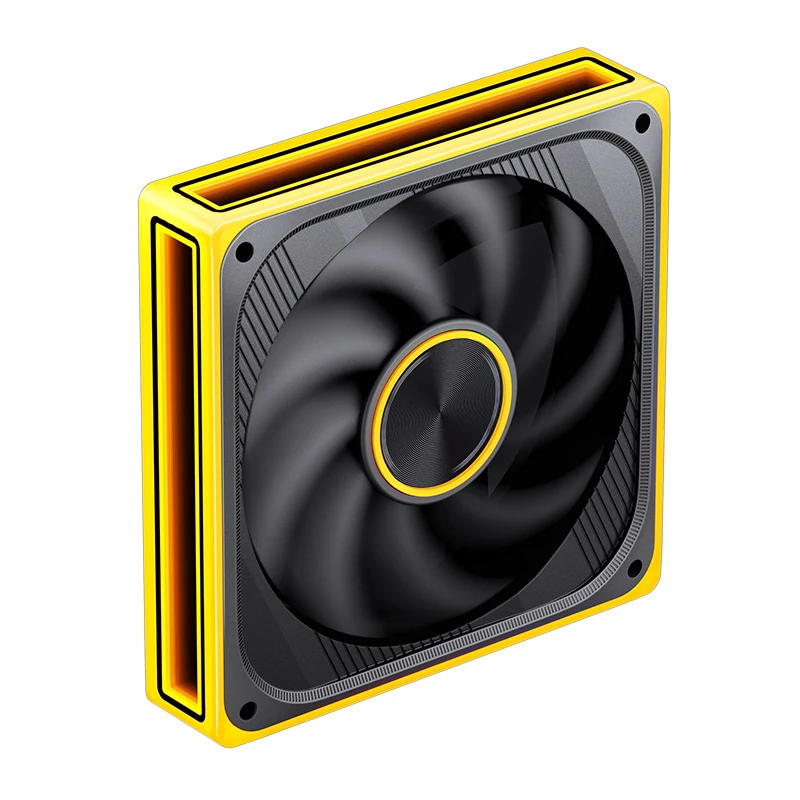

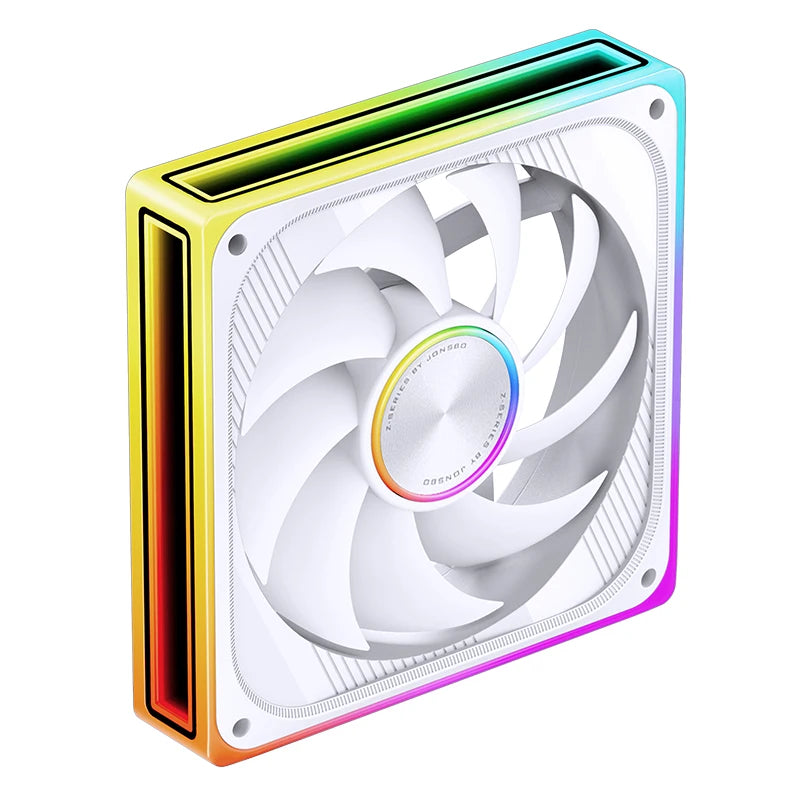

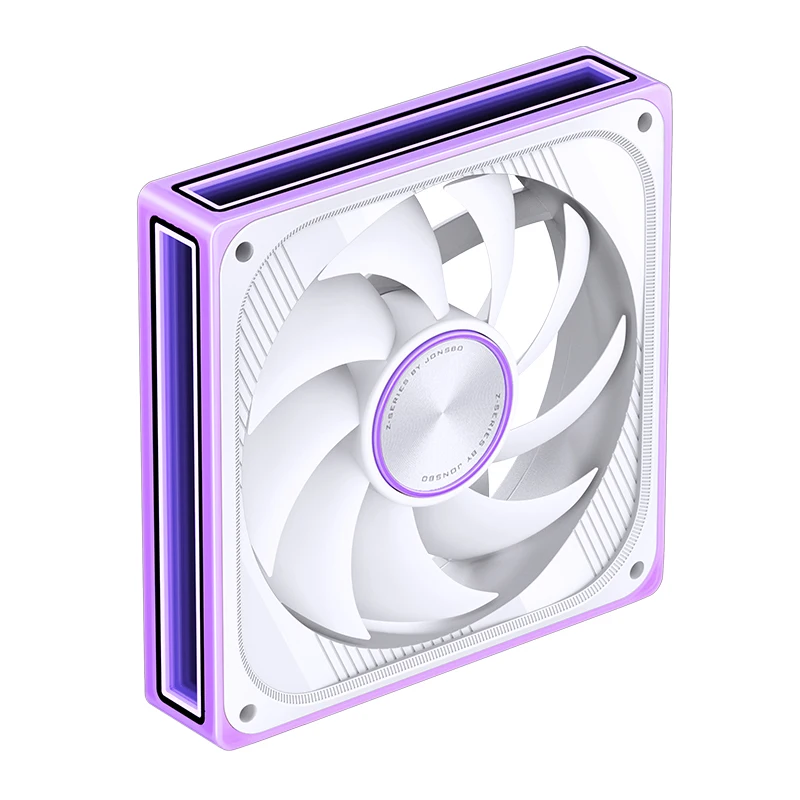

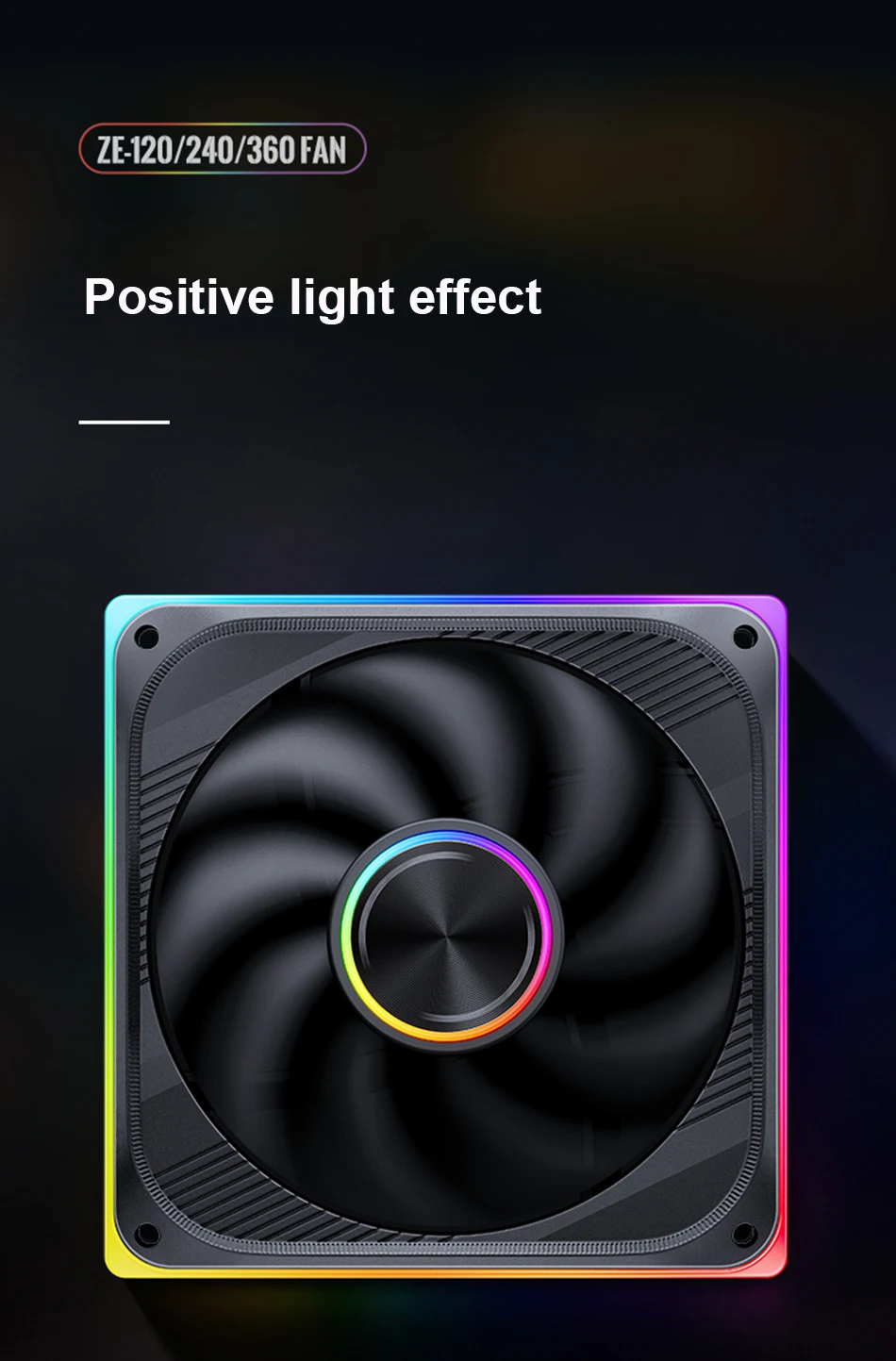

ZE-120

Model: ZE-120
Fan size: 120mm (L) * 120mm (W) * 28mm (H)
Speed: 700-1800rpm (± 10%)
Airflow: 18.75-47.71 CFM
Wind pressure: 0.33-1.86 mmH2O
Noise level: 16.4-30.7 dB（A）
Rated voltage FAN DC12V LED 5V
Rated current FAN 0.15A LED 0.63A
Power: FAN 1.80W LED 3.15W
MTTF：≥ 20000h Room Temp: 25 ℃

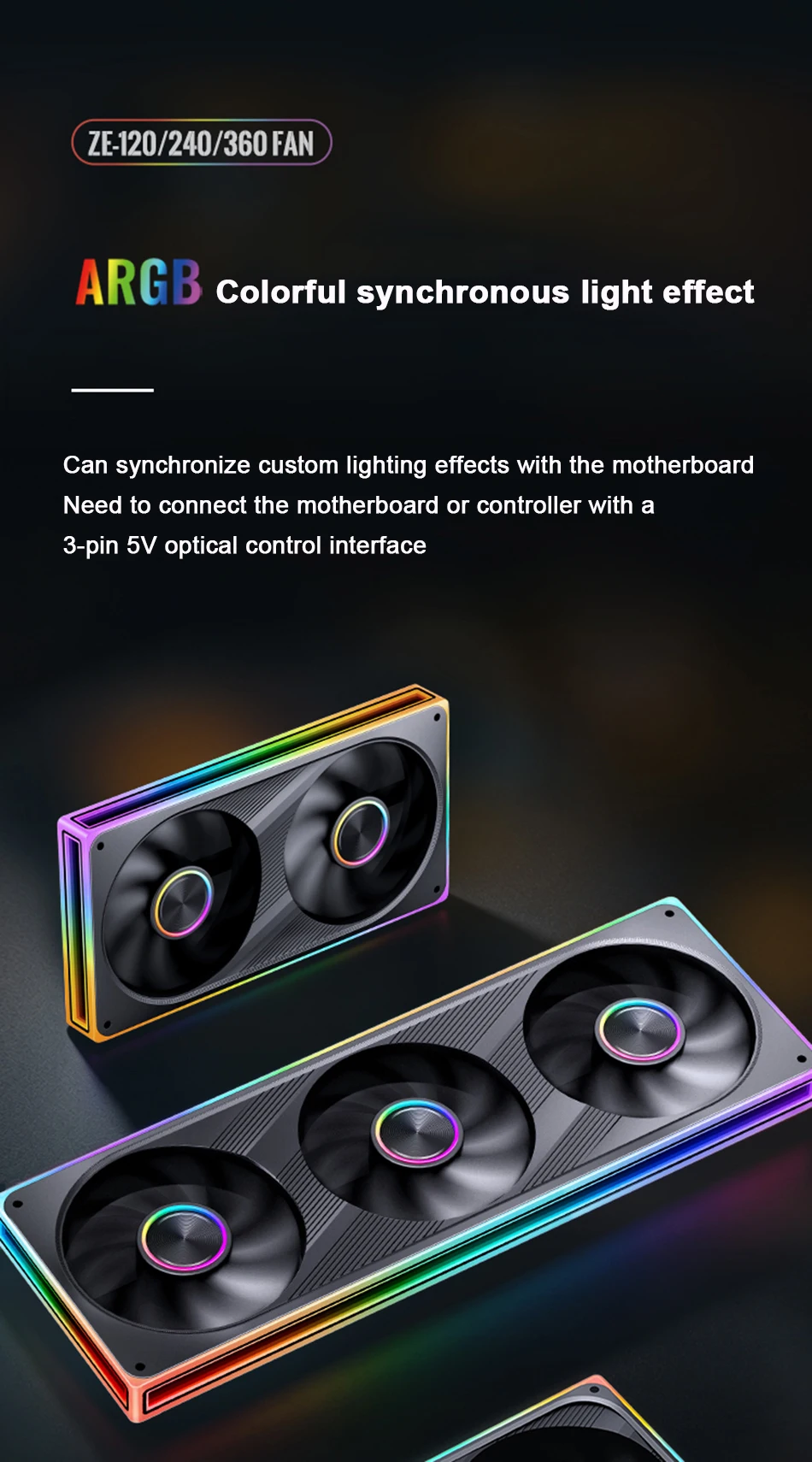

Connector: PWM 4PIN ARGB 3PIN

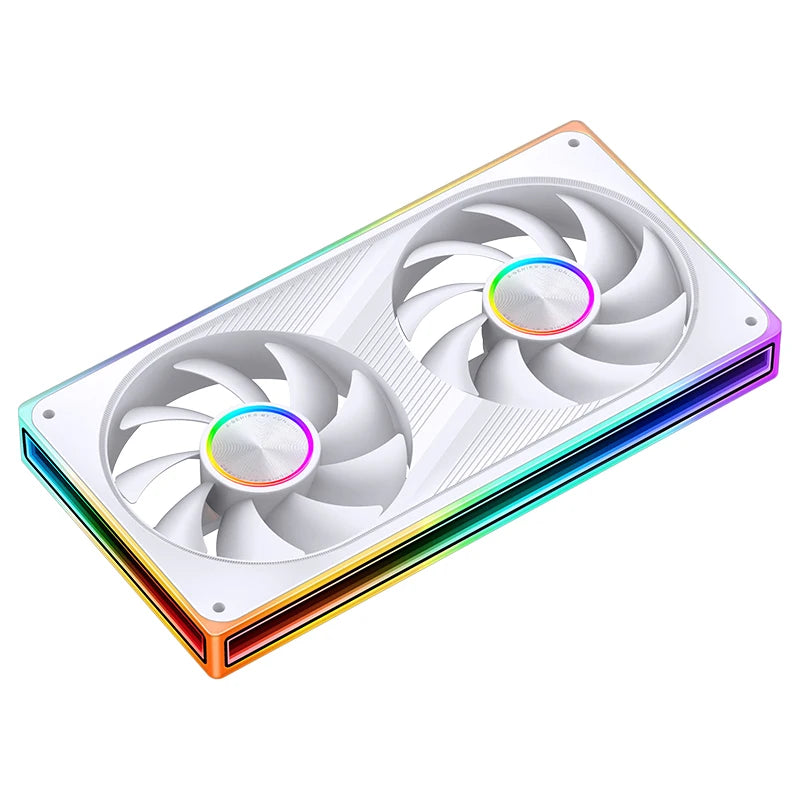

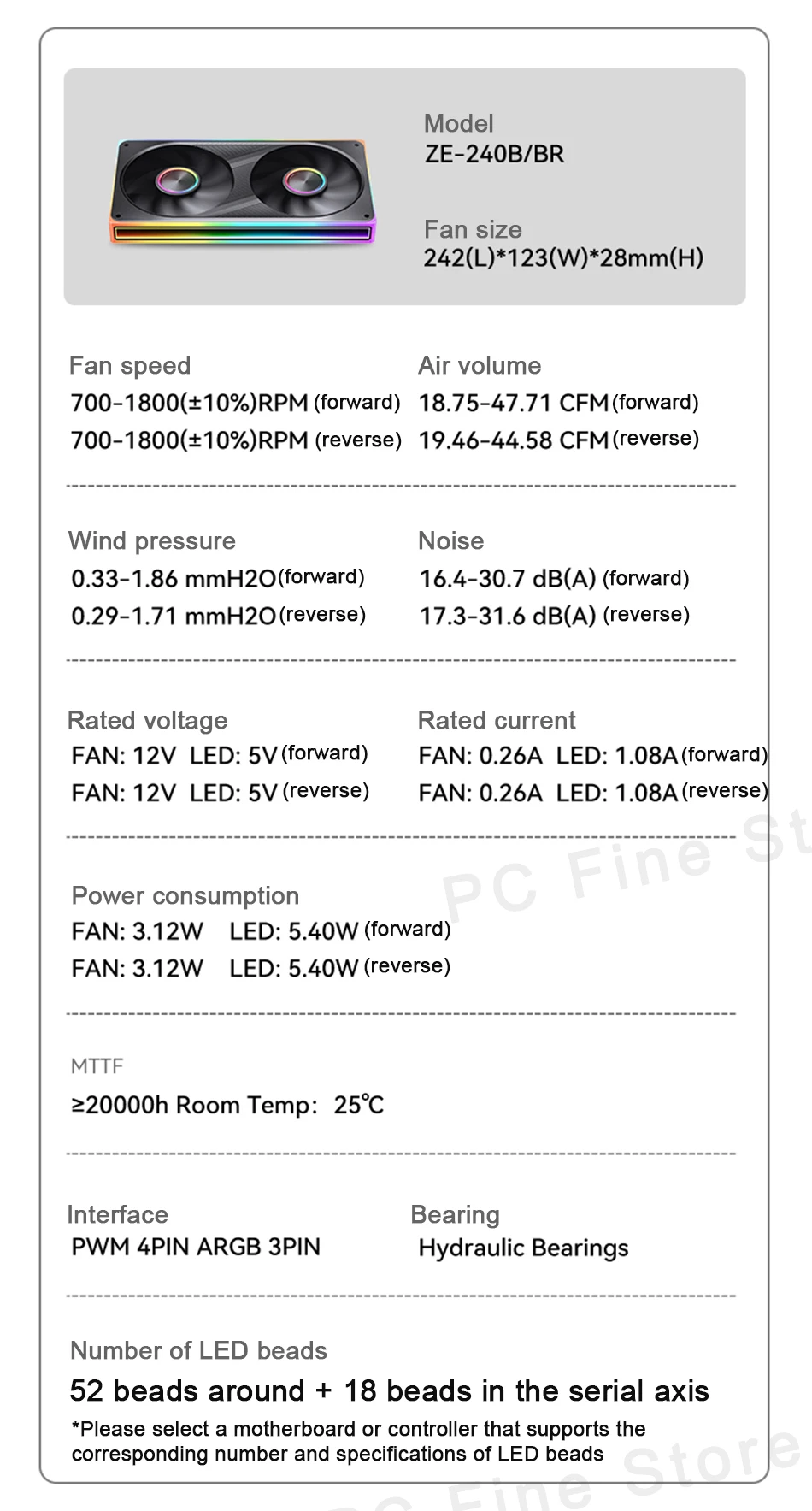

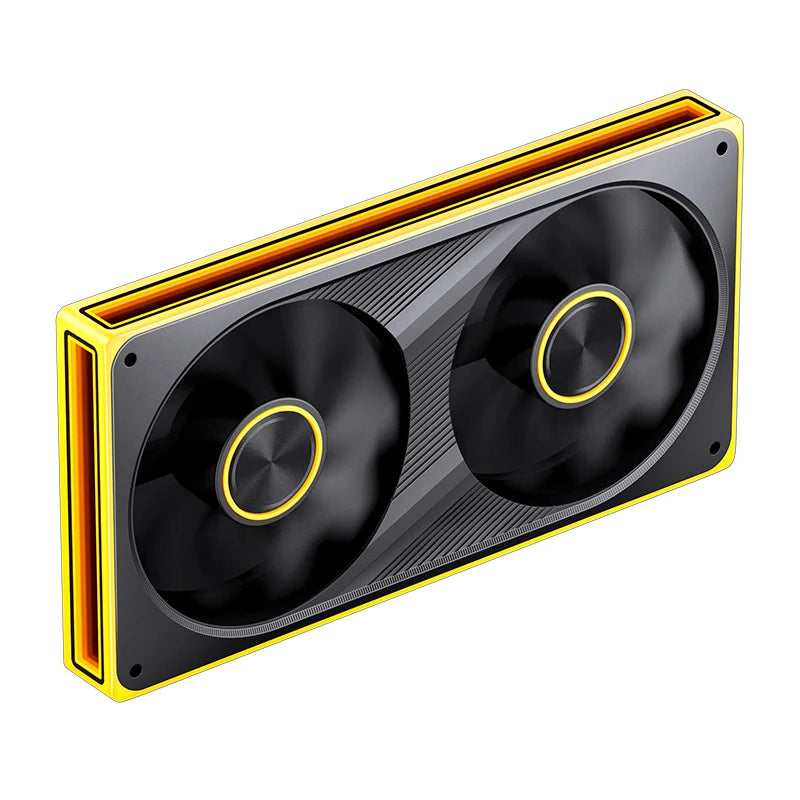

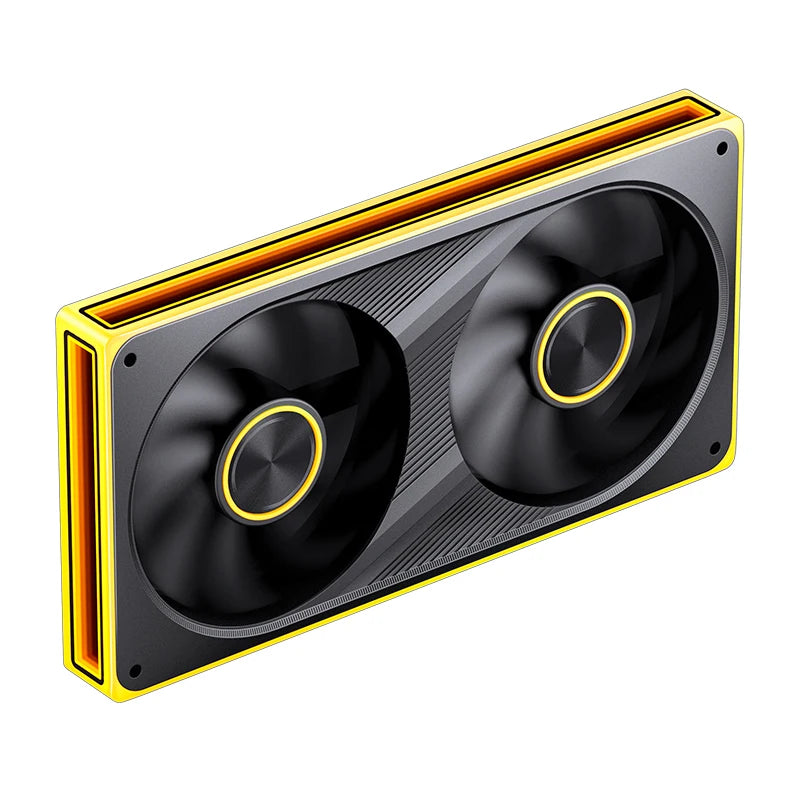

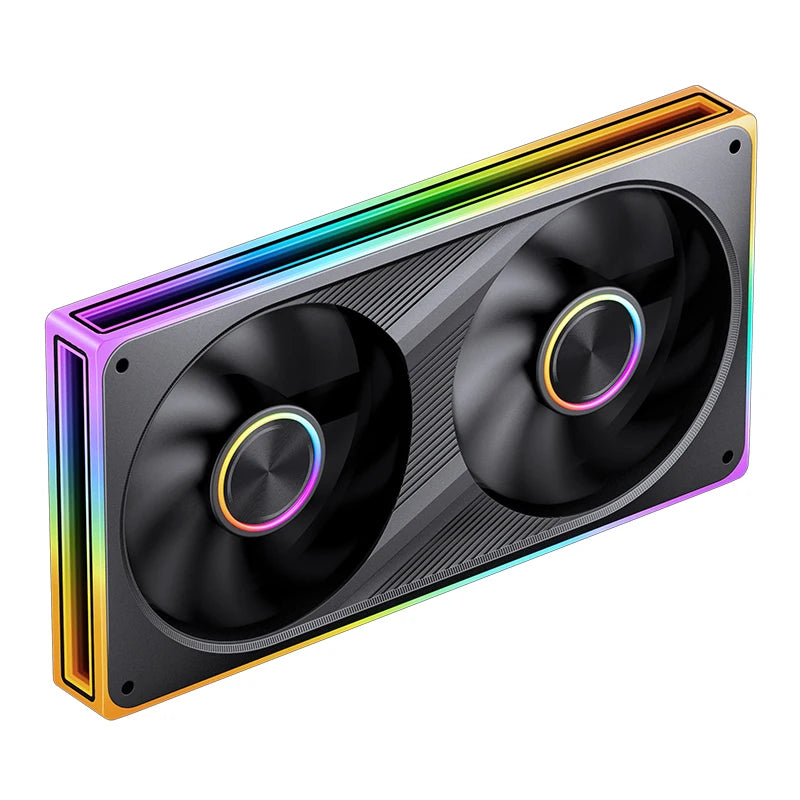

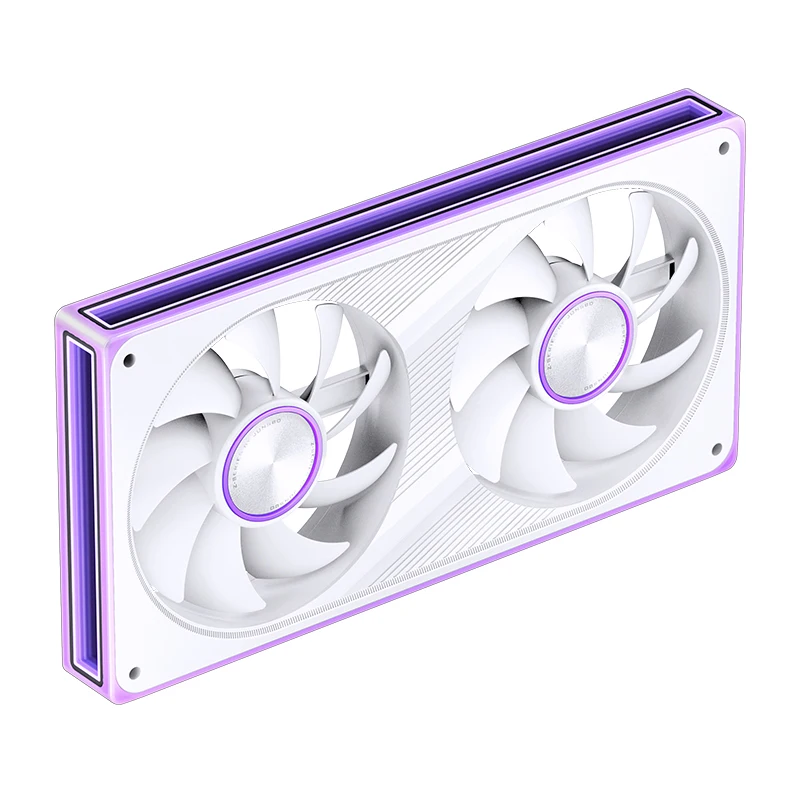

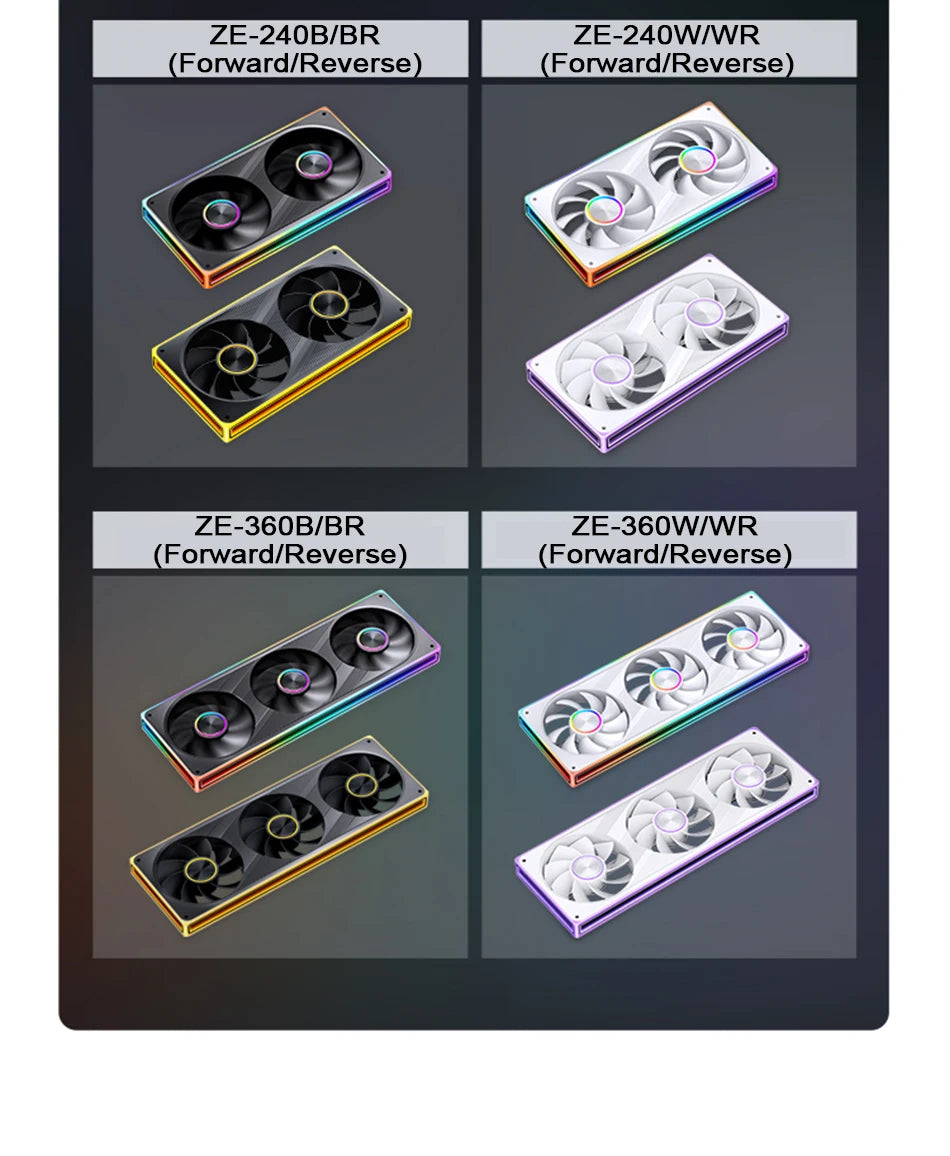

ZE-240

Model: ZE-240 Forward
Fan size: 242mm (L) * 123mm (W) * 28mm (H)
Speed: 700-1800rpm (± 10%)
Airflow volume: 18.75-47.71 CFM
Wind pressure: 0.33-1.86 mmH2O
Noise level: 16.4-30.7 dB（A）
Rated voltage: FAN DC12V LED 5V
Rated current FAN 0.26A LED 1.08A
Power: FAN 3.12W LED 5.40W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN

Model: ZE-240 Reverse
Fan size: 242mm (L) * 123mm (W) * 28mm (H)
Speed: 700-1800rpm (± 10%)
Airflow volume: 19.46-44.58 CFM
Wind pressure: 0.29-1.71 mmH2O
Noise level: 17.3-31.6 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.26A LED 1.08A
Power: FAN 3.12W LED 5.40W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN

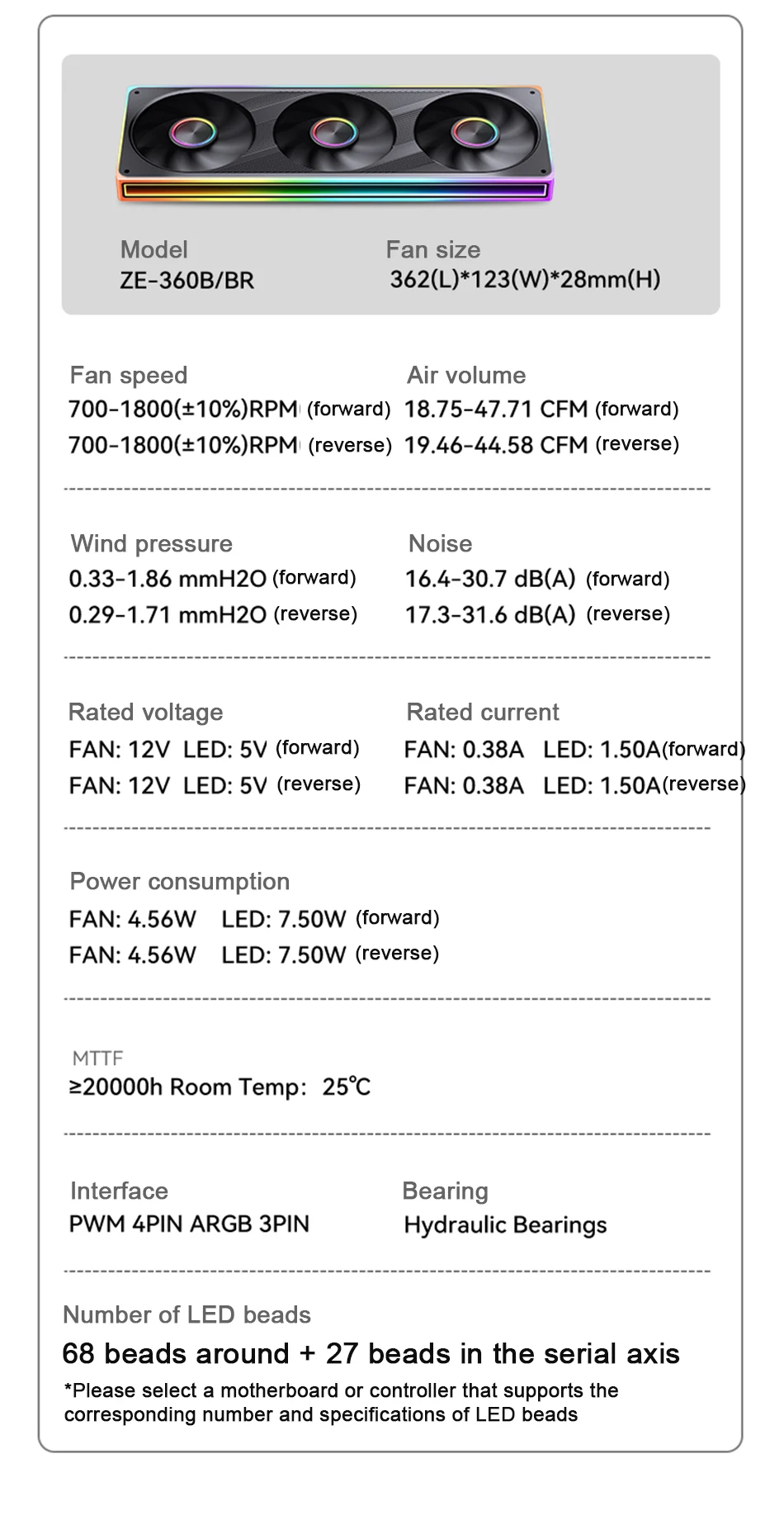

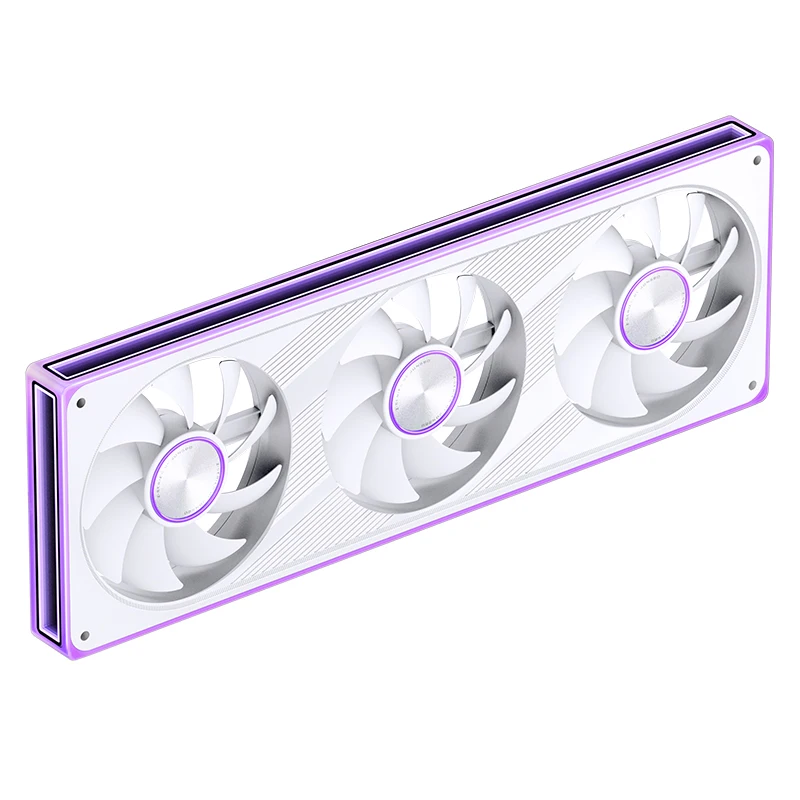

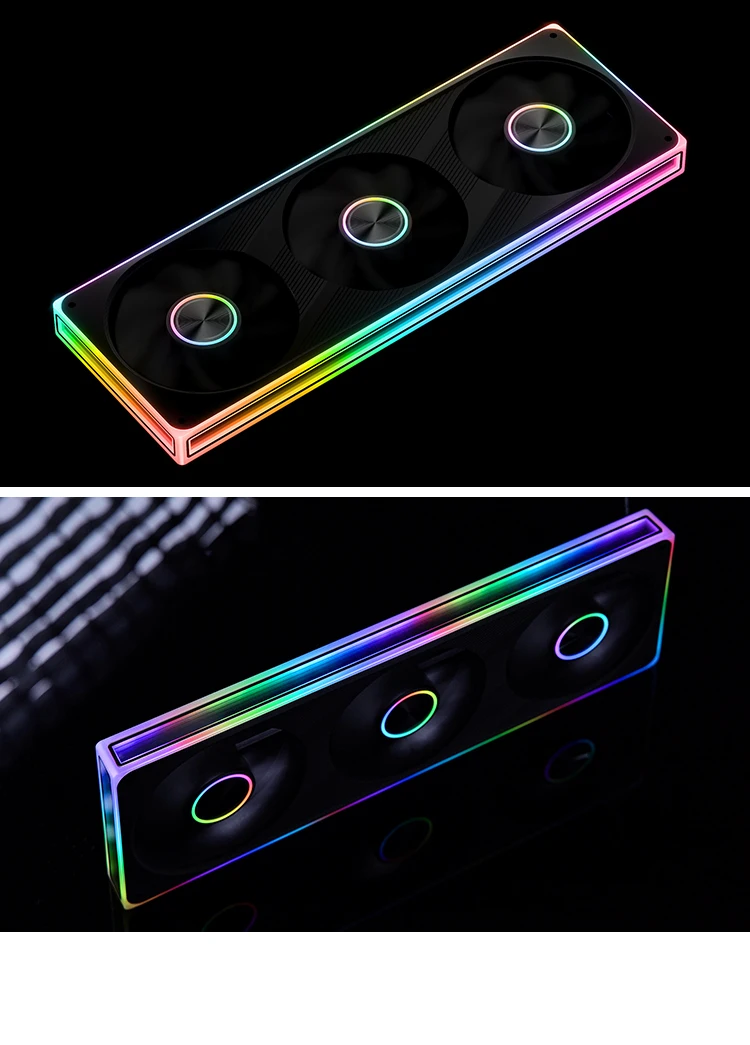

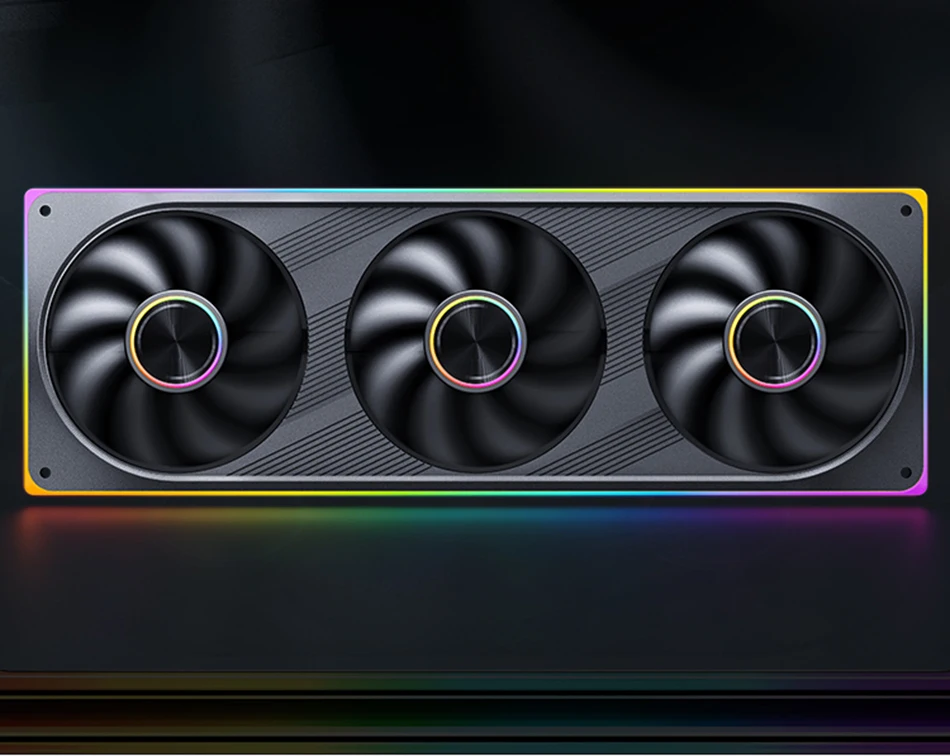

ZE-360

Model: ZE-360 Forward
Fan size: 362mm (L) * 123mm (W) * 28mm (H)
Speed: 700-1800rpm (± 10%)
Airflow: 18.75-47.71 CFM
Wind pressure: 0.33-1.86 mmH2O
Noise level: 16.4-30.7 dB（A）
Rated voltage FAN DC12V LED 5V
Rated current FAN 0.38A LED 1.50A
Power: FAN 4.56W LED 7.50W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN

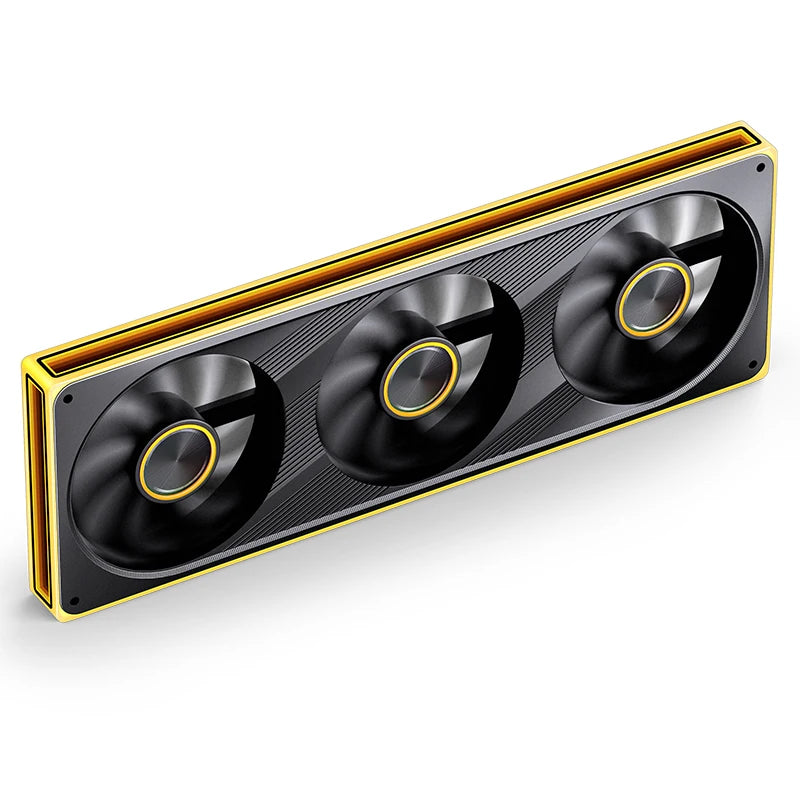

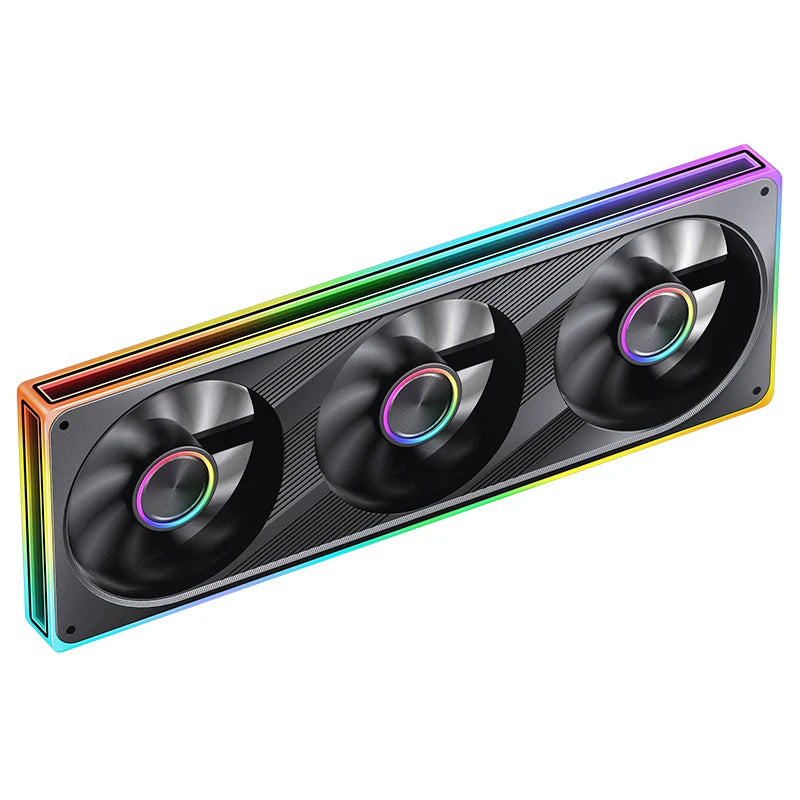

Model: ZE-360 Reverse
Fan size: 362mm (L) * 123mm (W) * 28mm (H)
Speed: 700-1800rpm (± 10%)
Airflow volume: 19.46-44.58 CFM
Wind pressure: 0.29-1.71 mmH2O
Noise level: 17.3-31.6 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.38A LED 1.50A
Power: FAN 4.56W LED 7.50W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
