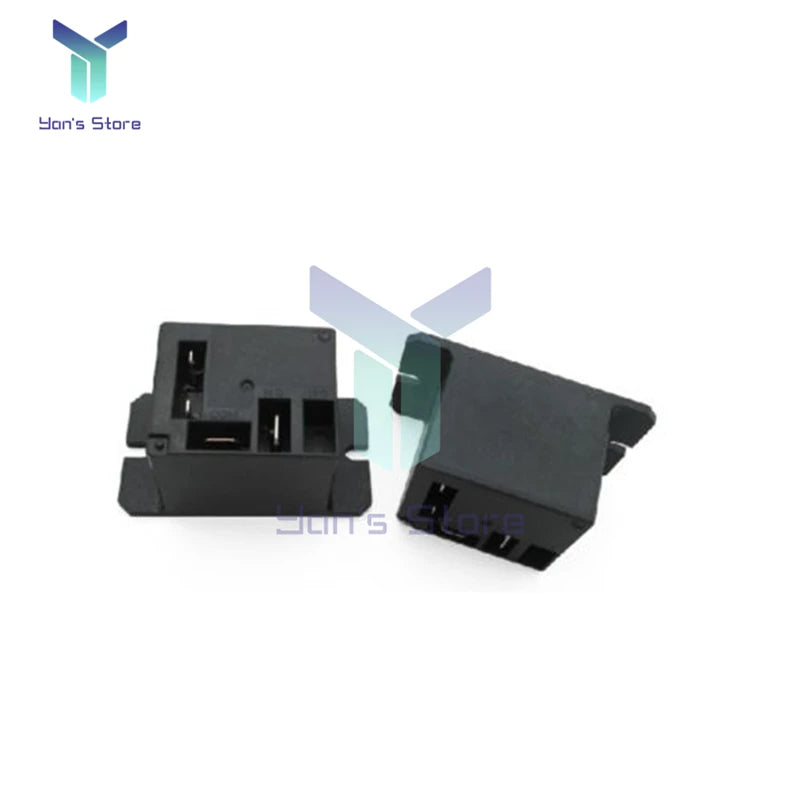

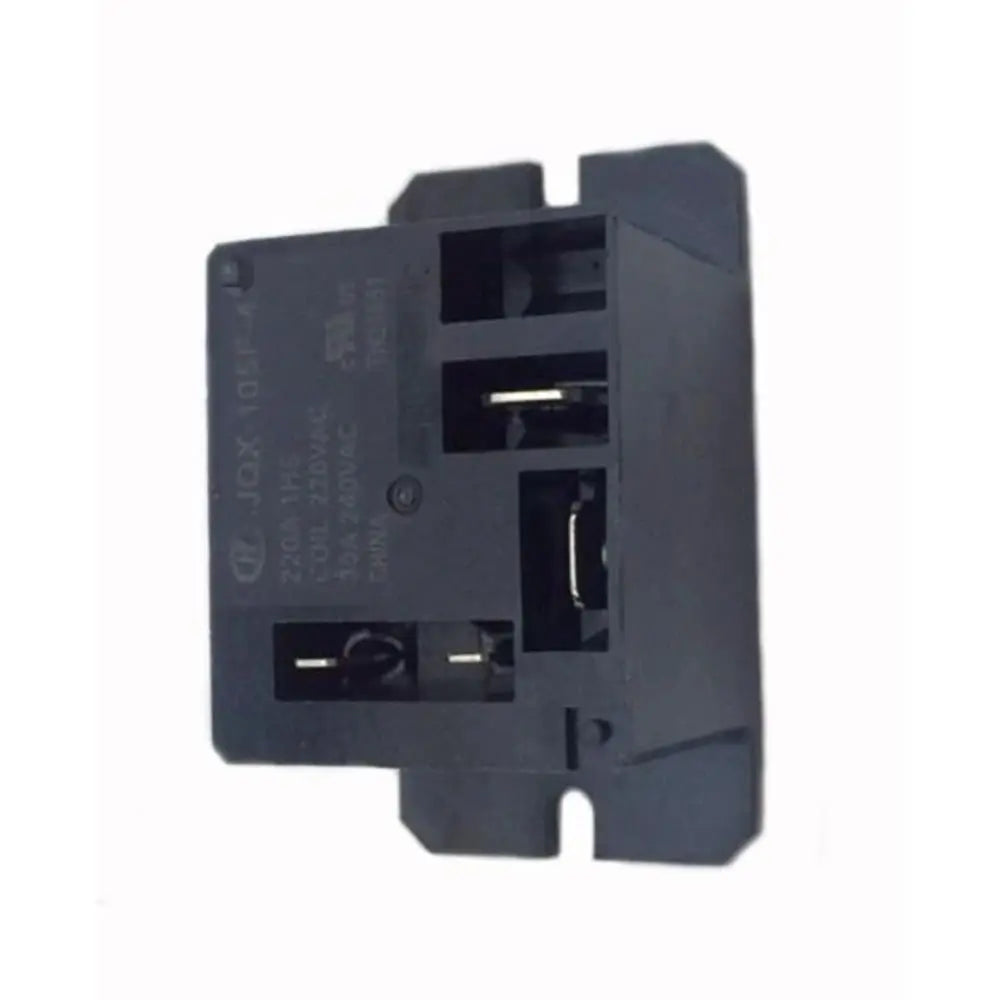

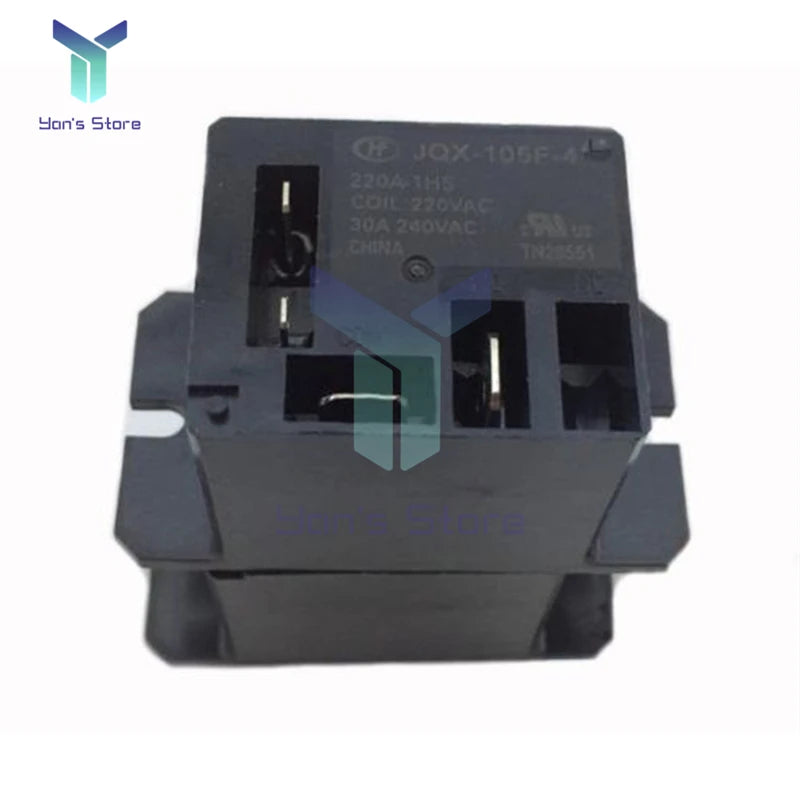

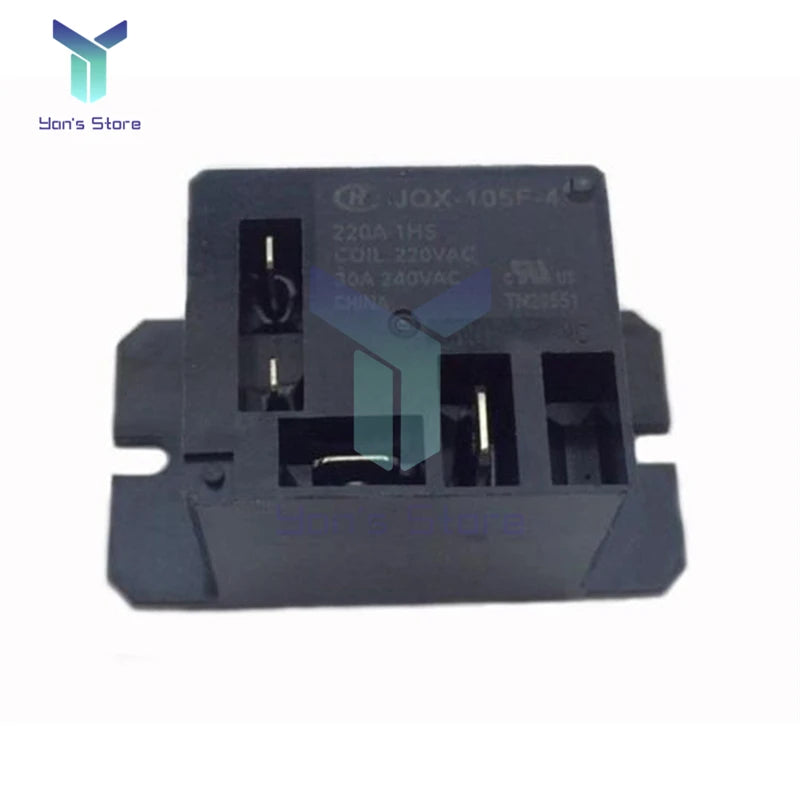

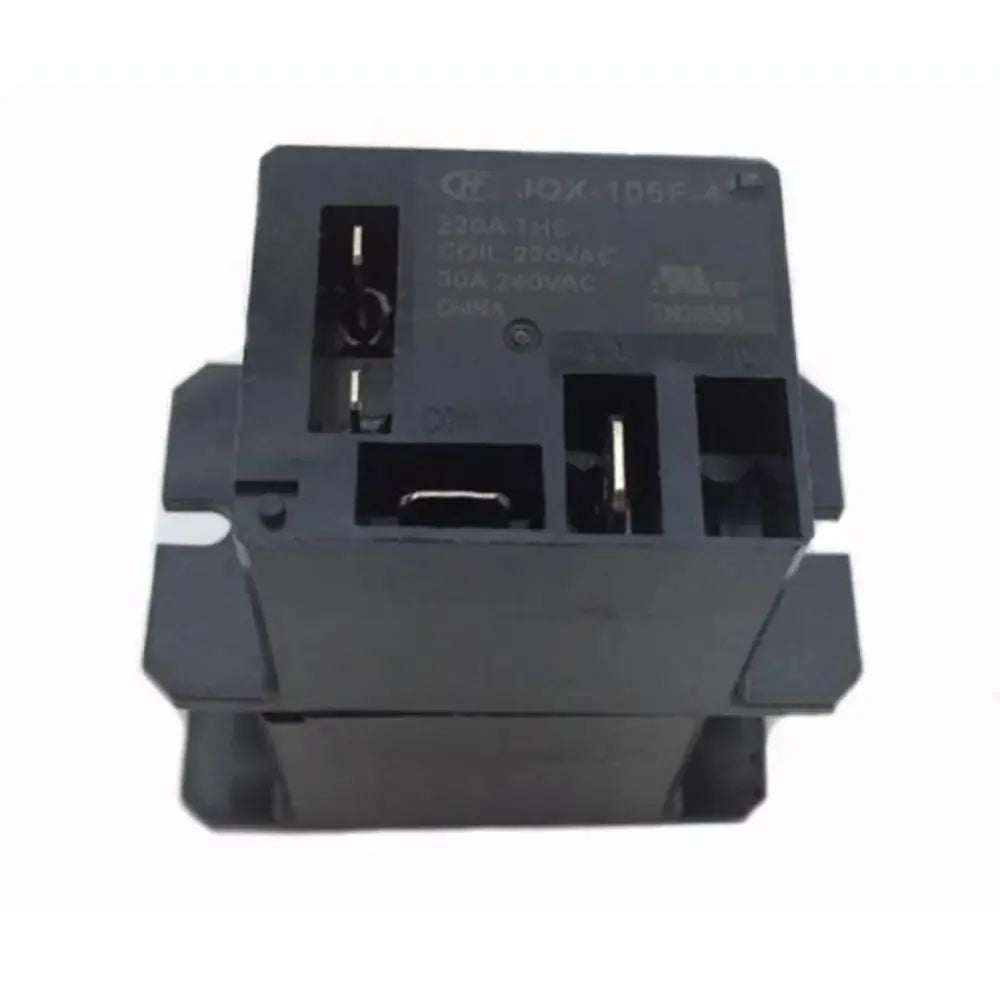

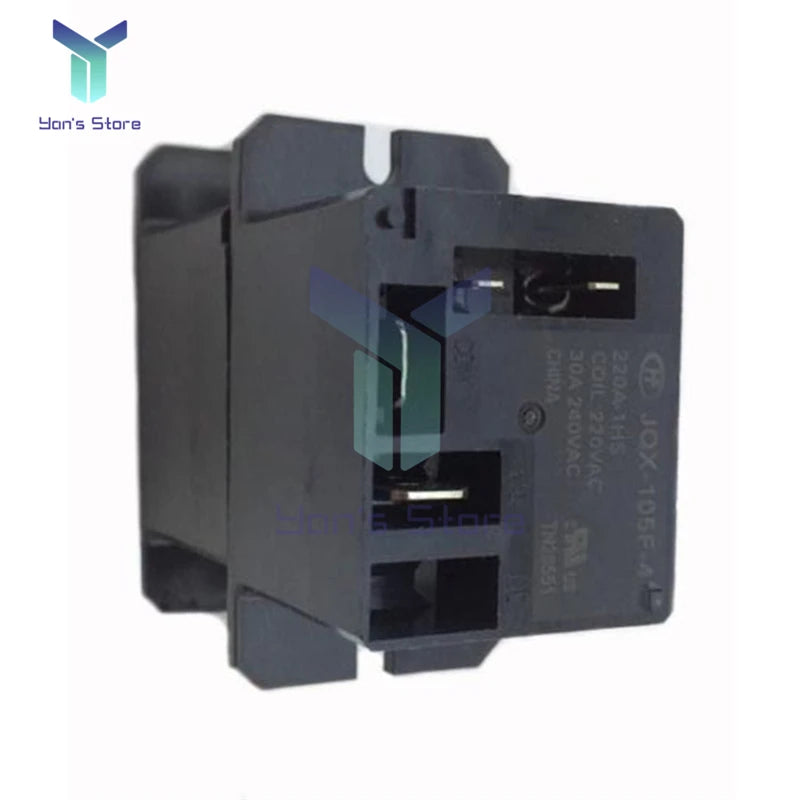

JQX-105F 4-220V 1HS Relay Solid State Air Condition Relay AC 220V 30A HF105F 4 Pin Environmental-Friendly For Fast Connection
Default Title
$19.35
Sale price
$19.35
Regular price
$0.00
Skip to product information
Product selling points:
JQX-105F 4-220V 1HS Relay Solid State Air Condition Relay AC 220V 30A HF105F 4 Pin Environmental-Friendly For Fast Connection
$19.35
Sale price
$19.35
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: Aideepen
Certification: NONE
Choice: yes
Contact Load: High Power
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: JQX-105F-4-220V-1HS
Origin: Mainland China
Power Source: Ac
Protect Feature: Sealed
Theory: Solid State Relay
Use: General Purpose
Voltage: 220V
is_customized: Yes
semi_Choice: yes
Product selling points:
1. Compact product
2. Easy to use
3. Long service life
4. High quality
5. Widely used
Description:
30A switching capability
Withstand voltage between the contacts and the coil is 2.5kV
Printed board terminals, coils and contacts for fast connection
Environmental-friendly (RoHS certificated), Class F coil insulation
Size: 50.2 x 27.5 x 27.8 mm
Specification:
Insulation : 1000MΩ (500VDC)
Withstand Voltage: between coil and contacts 2500VAC 1min
between disconnect contacts 1500VAC 1min
Movement Time: ≤15ms
Release Time: ≤10ms
Impact: Stability 100m/s²(10g)
Intensity 1000m/s² (100g)
Vibration: 10Hz~55Hz 1.5mm Double-amplitude
Weight: About 36g
Package Included:
1PCS * JQX-105F-4-220V-1HS Relay Air Condition Relay AC 220V 30A HF105F 4 Pin
