SPECIFICATIONS

Brand Name: NONE

Certification: CE

Contact Load: High Power

High-concerned chemical: none

Model Number: JQX-30F-2Z-S

Origin: Mainland China

Power Source: Ac

Protect Feature: Dust cover

Theory: Electromagnetic Relay

Use: General Purpose

is_customized: Yes

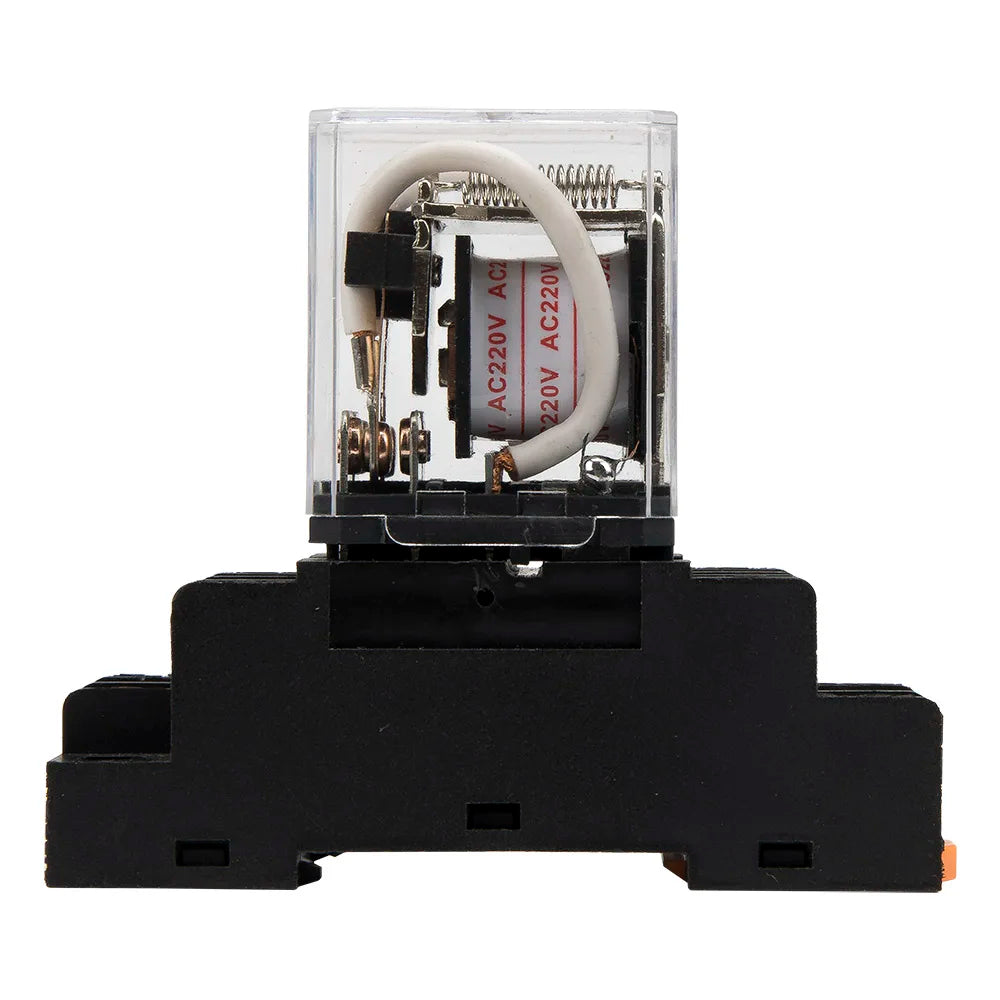

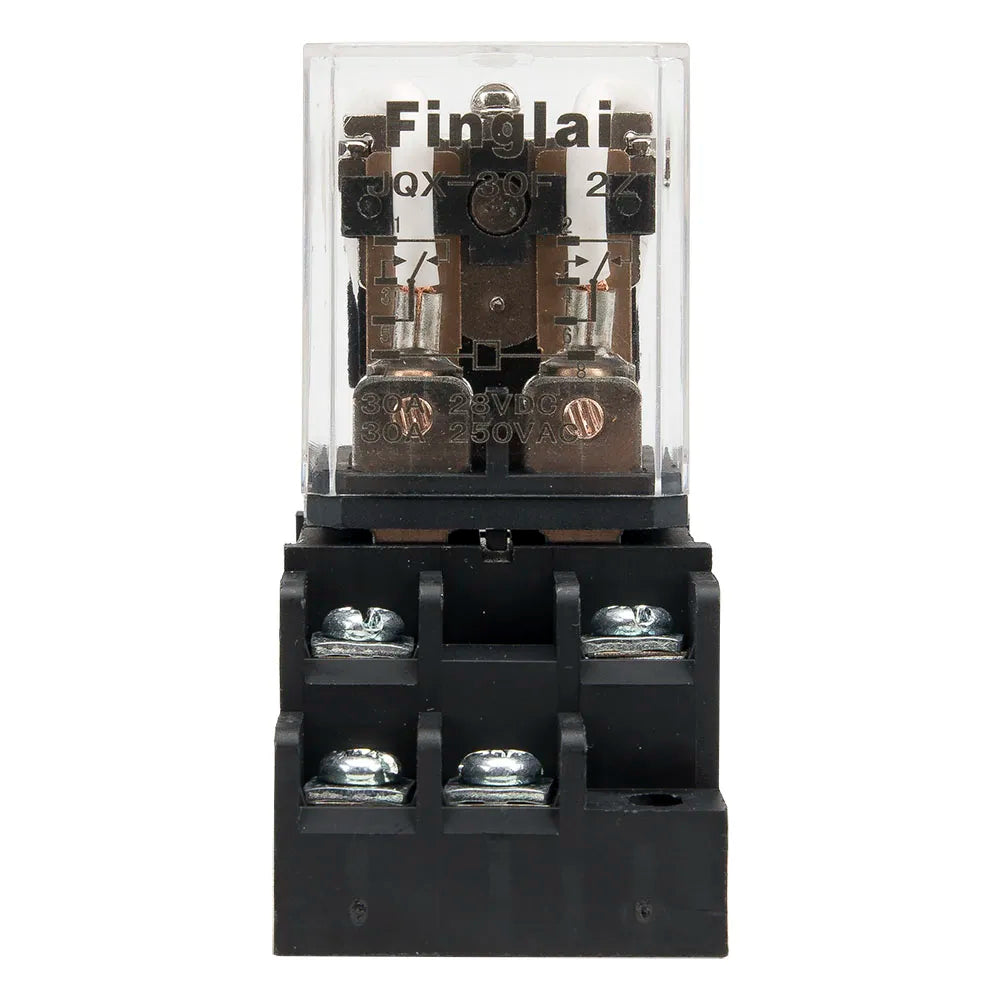

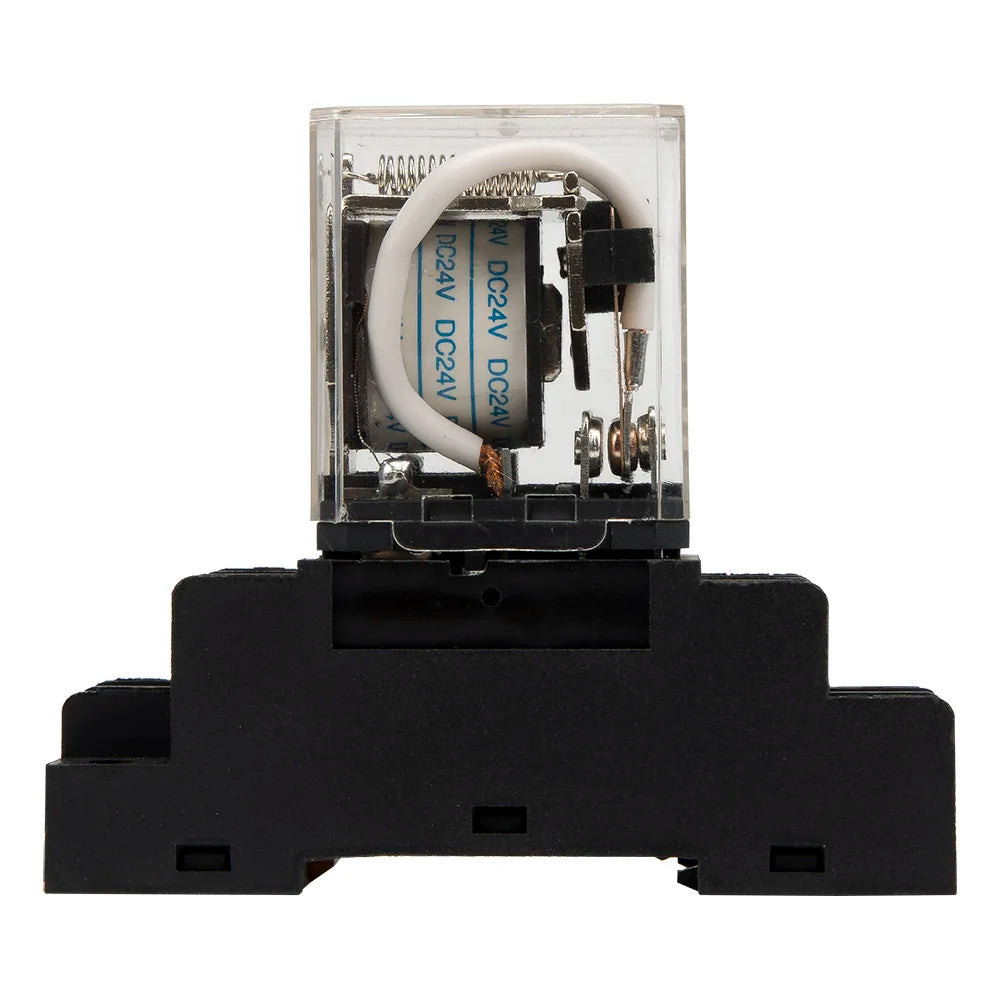

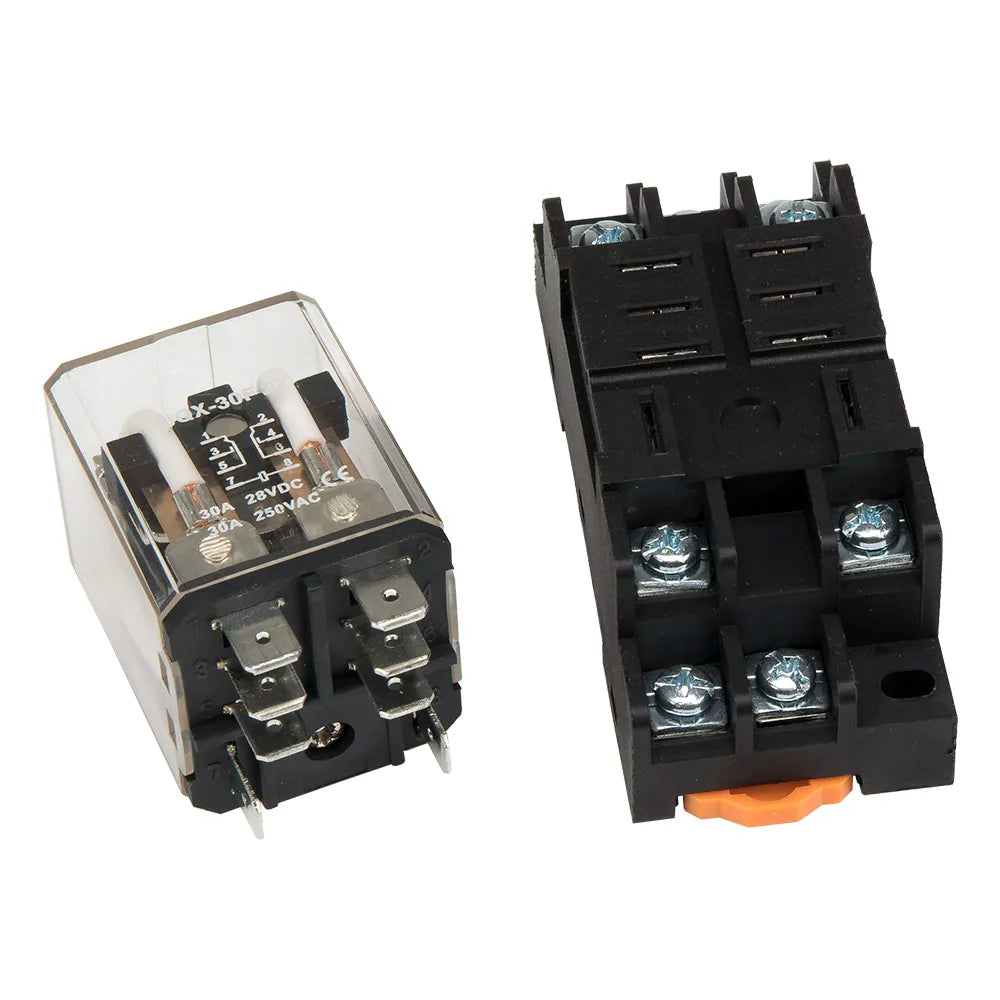

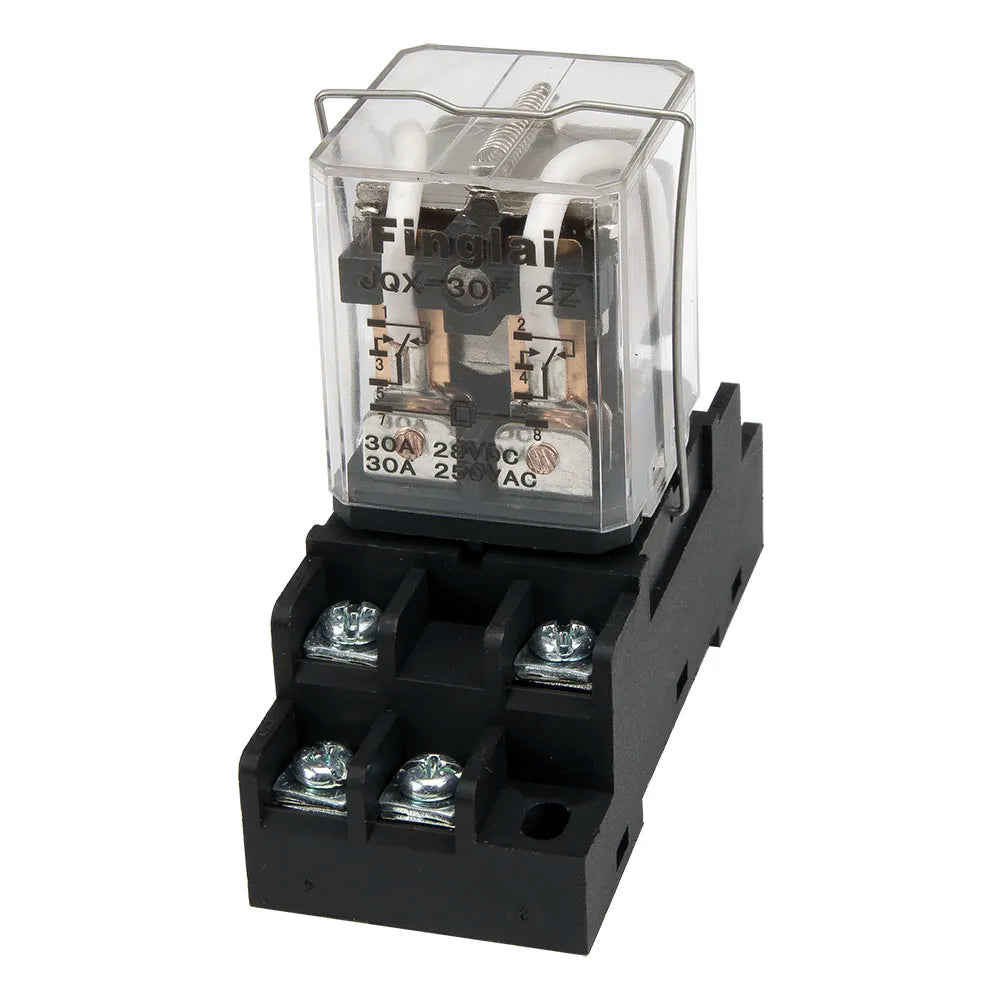

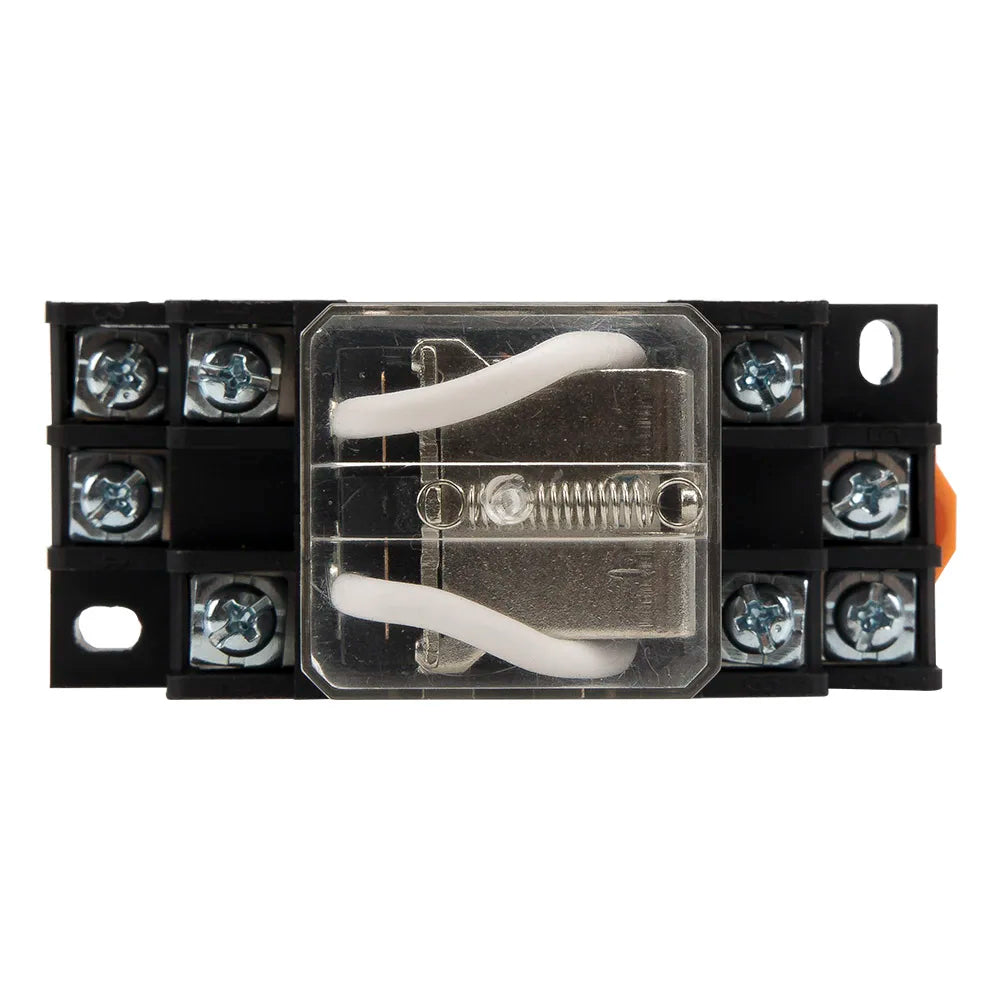

JQX-30F series electromagnetic relay

▇ Model number and type

Model number	Type	Related product
JQX-30F-2Z	DPDT	Visiting...

▇ JQX-30F-2Z electromagnetic relay model number legend

JQX-30F-2Z

Parent Model Number

Socket

-N: Without socket

-S: With socket

Coil voltage

220VAC: 220VAC

110VAC: 110VAC

24VDC: 24VDC

12VDC: 12VDC

▇ General

Model number	JQX-30F series
Contact material	Silver alloy
Contact form	DPDT
Contact rating	30A@28Vdc/250Vac
Rated coil voltage	AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V
Dielectric strength	2,000Vac, 50/60 Hz for 1 min between coil and contacts 1,200Vac, 50/60 Hz for 1 min between opening contacts
Pick-up voltage	DC types: 75% max; AC types: 80% max
Drop-out voltage	DC types: 10% min; AC types: 30% min
Operation voltage	110% max
Contact resistance	100mΩ max
Termination	8 pins
Mounting	Quick connect
Matched socket	FRS01
Mechanical life	1x10 5 operations min
Electrical life	5x10 4 operations min
Insulation resistance	100MΩ min. at 500 VDC
Operating temperature	-25 to 55 °C (-13 to 131 °F)
Operating humidity	35 to 85% RH, no condensation
External dimensions	32.5x34.5x49.5mm
PCS/Box	10
Alias name	JQX-30F series power relay, electric relay, electrical relay

▇ JQX-30F-2Z electromagnetic relay related products

No	Model Number	Socket	Coil Voltage	Related Product
1	JQX-30F-2Z-N220VAC(110VAC, 24VDC, 12VDC)	Without socket	220VAC; 110VAC; 24VDC; 12VDC	Order
2	JQX-30F-2Z-S220VAC(110VAC, 24VDC, 12VDC)	With socket	220VAC; 110VAC; 24VDC; 12VDC	Visiting...
