Description

SPECIFICATIONS

Brand Name: NONE,DGBG

Certification: NONE

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Frequency: 50/60HZ

High-concerned chemical: none

Model Number: JR28-25

Origin: Mainland China

Power Source: Ac

Protect Feature: Epoxy

Relay: 25A RELAY,THERMAL RELAY OVER CURRENT RELAY PROTECTION RELAY

Theory: Thermal Relay

Use: Protective

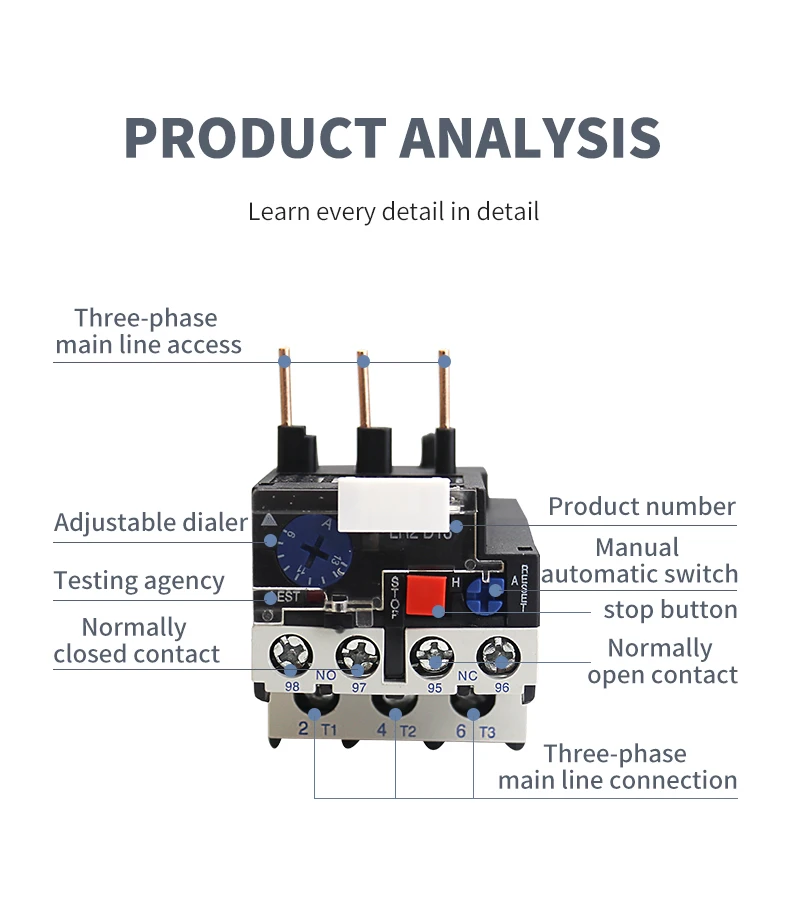

auxiliary contacts: 1NC 1NO

is_customized: Yes

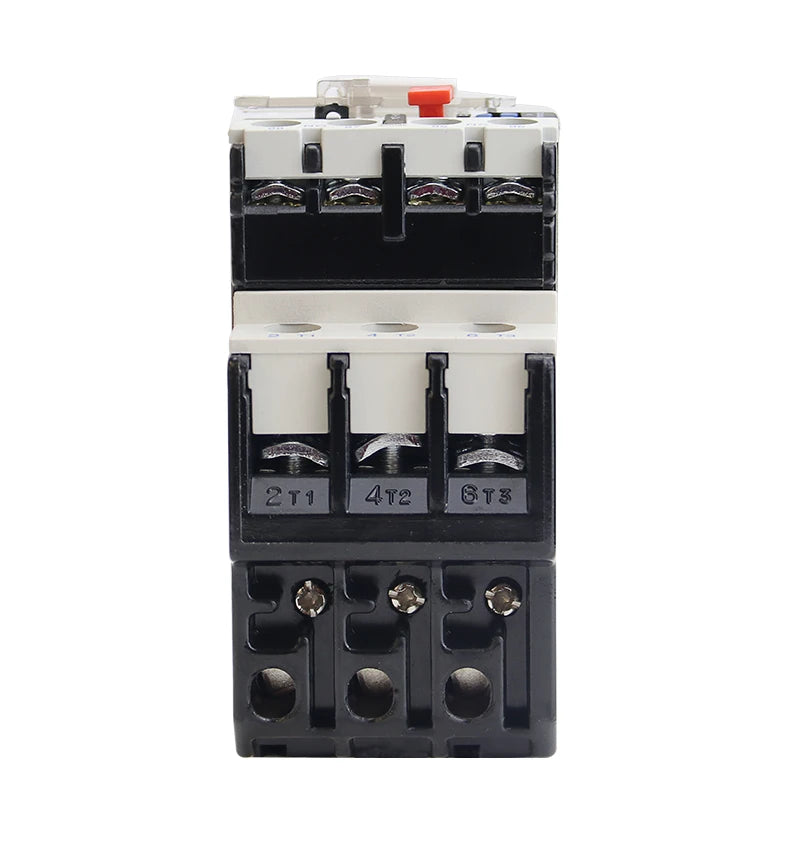

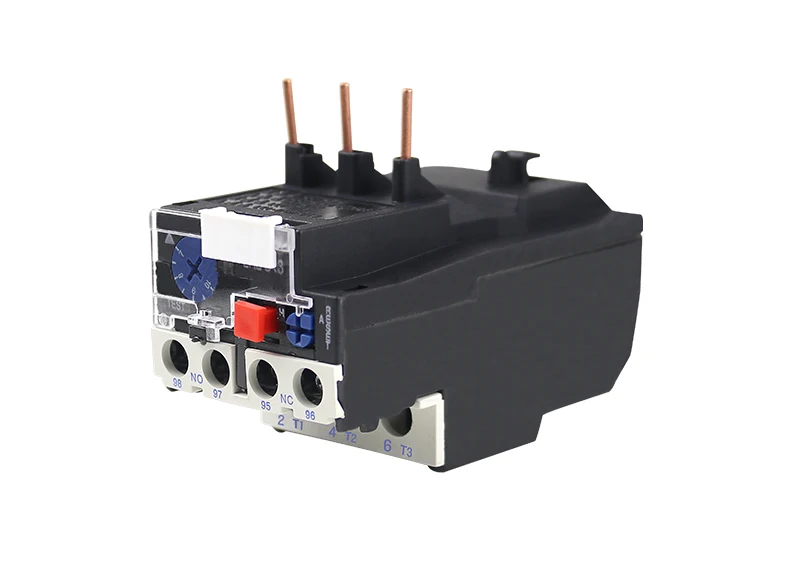

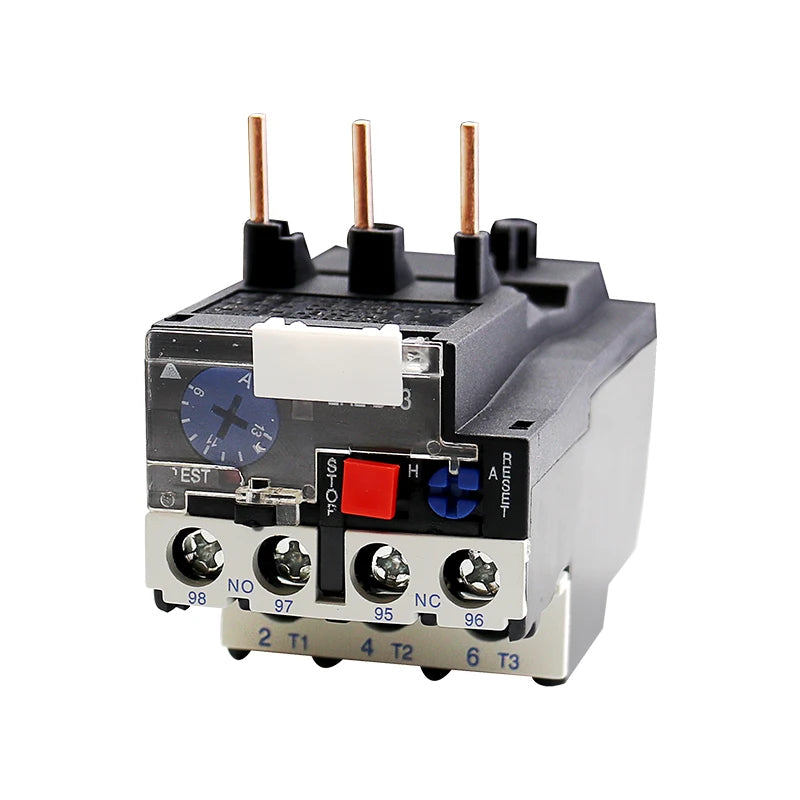

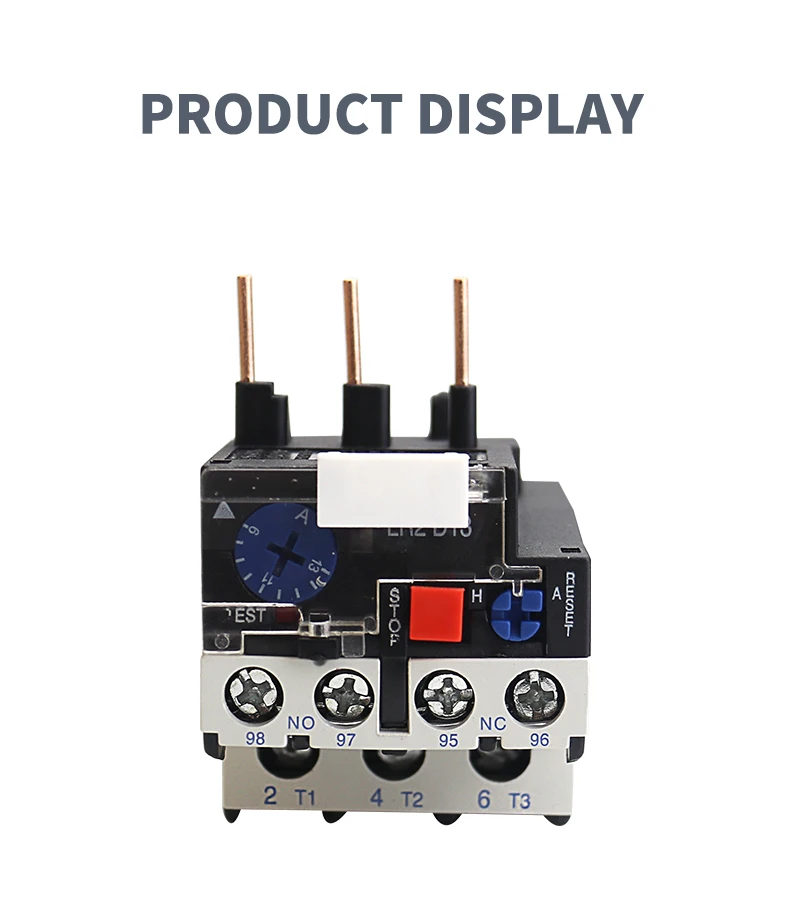

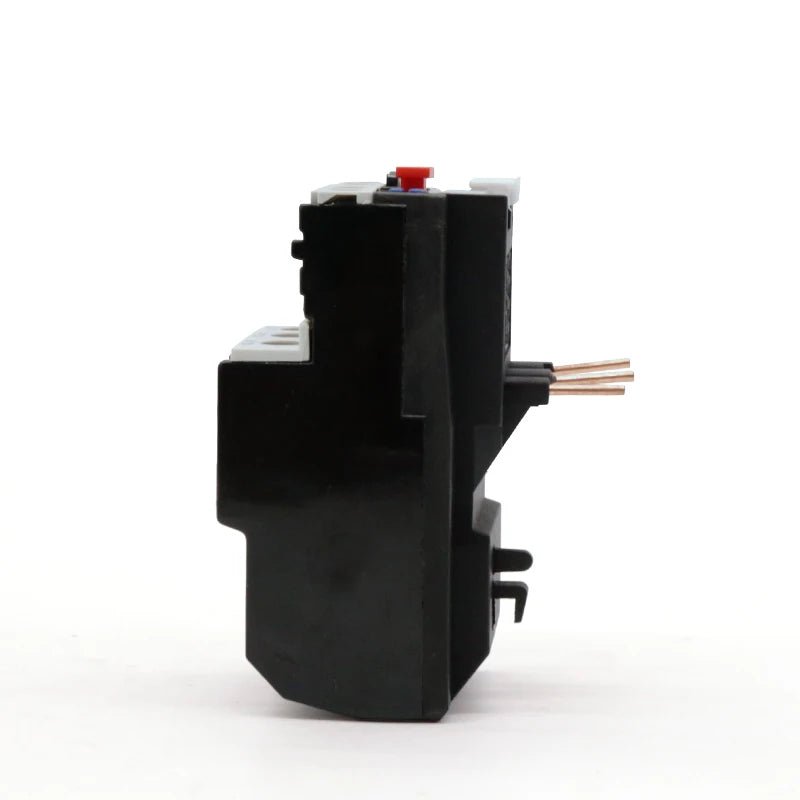

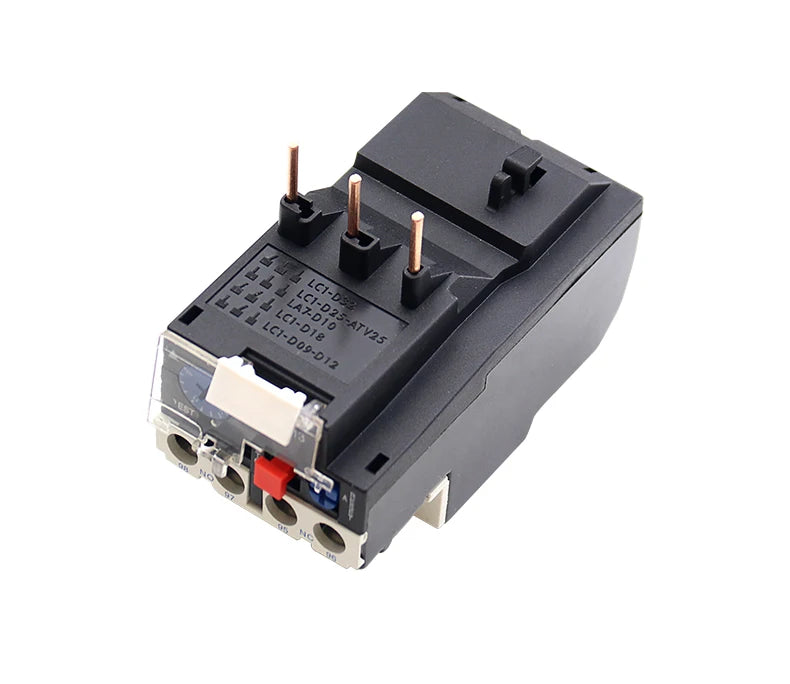

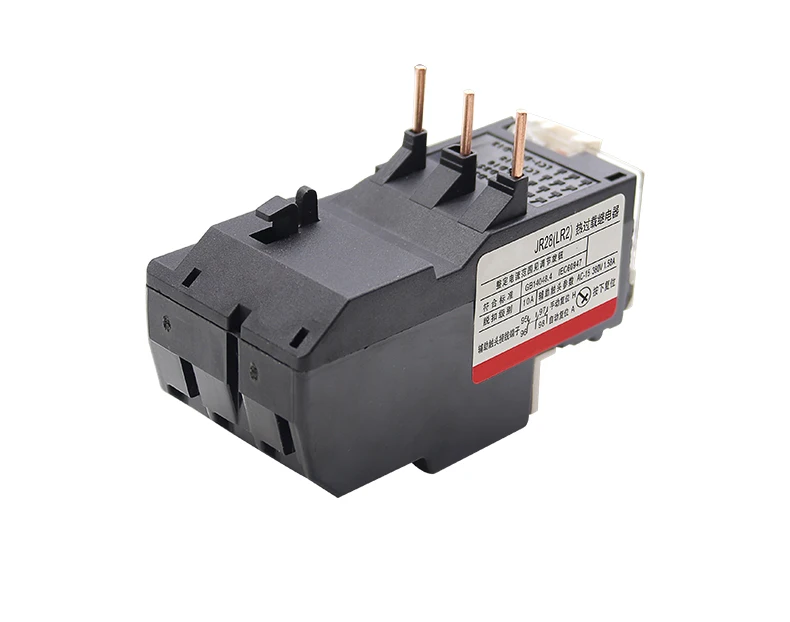

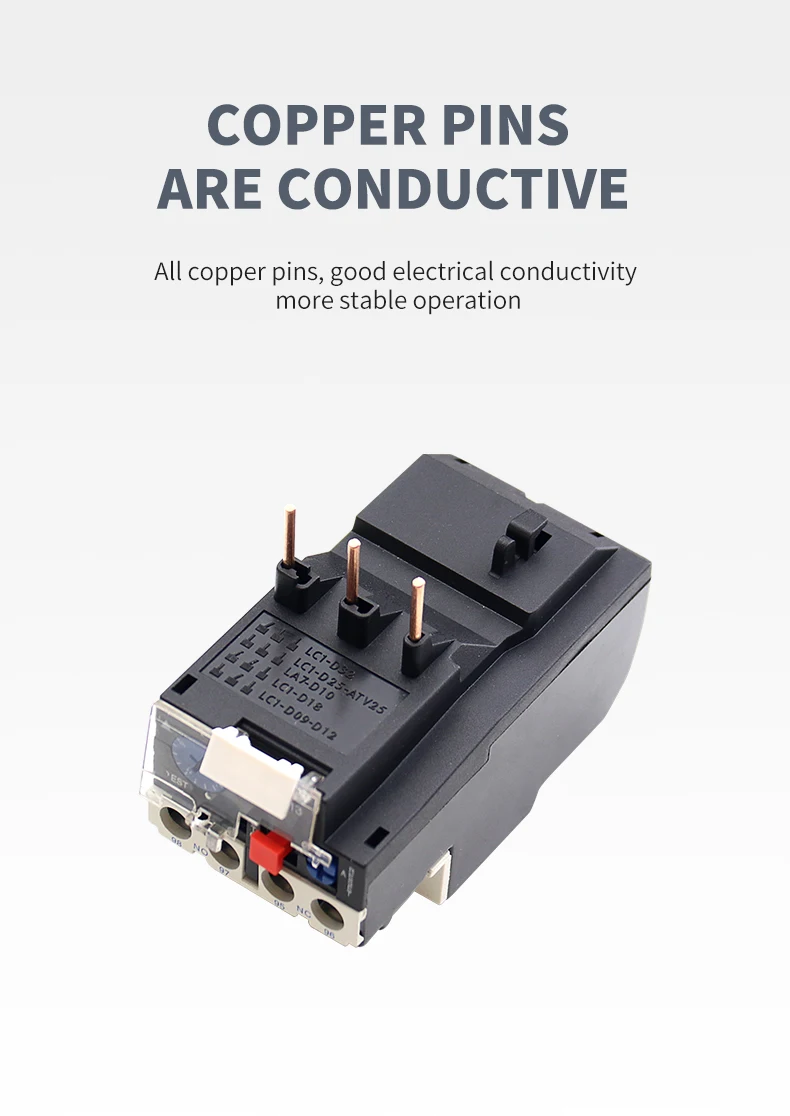

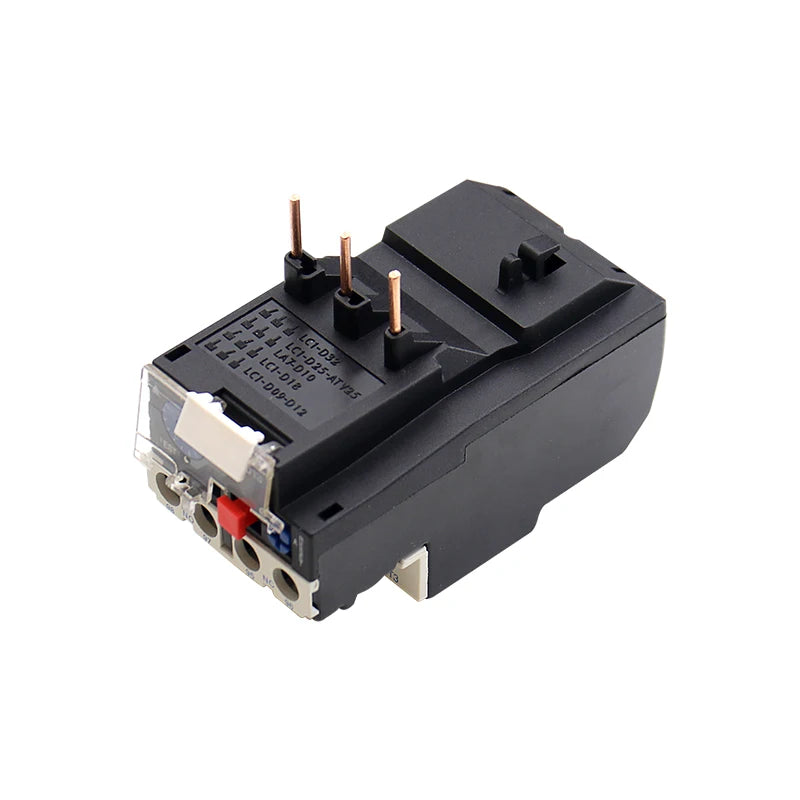

JR28-25 Thermal Overload Relay 1.6A 2.5A 4A 6A 8A 10A 13A 18A 25A LR2D13 Adjustable thermal relay

This series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation & can be pluged in LC1-D/CJX2 series AC contact.

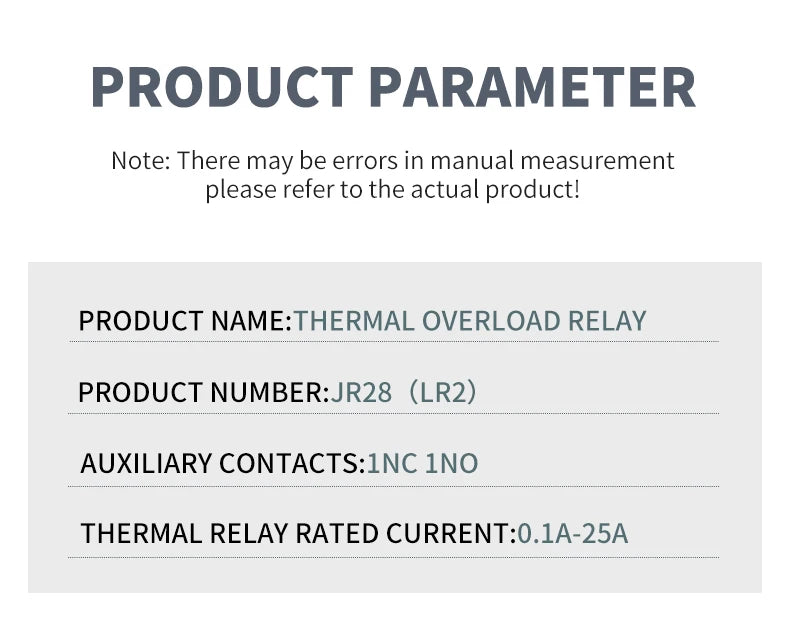

Product Name	Thermal Overload Relay
Model	JR28-25
Material	Plastic, Electronic Components
Thermal Contact	1 NO + 1 NC
Thermal Relay Rated Current	0.1A-25A

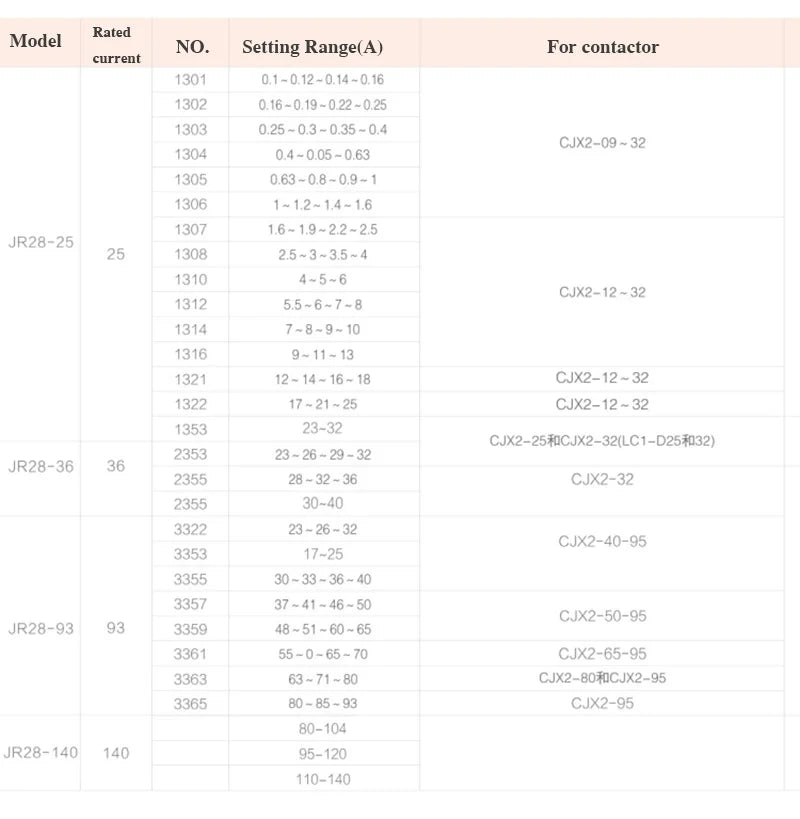

Adjustable Current Range(A) Setting Range	1A-1.6A 1.6A-2.5A 2.5A-4A 4A-6A 5.5A-8A 7A-10A 9A-13A 12A-18A 17A-25A Pls note the current range when place the order
Ui	660V
Frequency	50/60HZ
Tripping Class

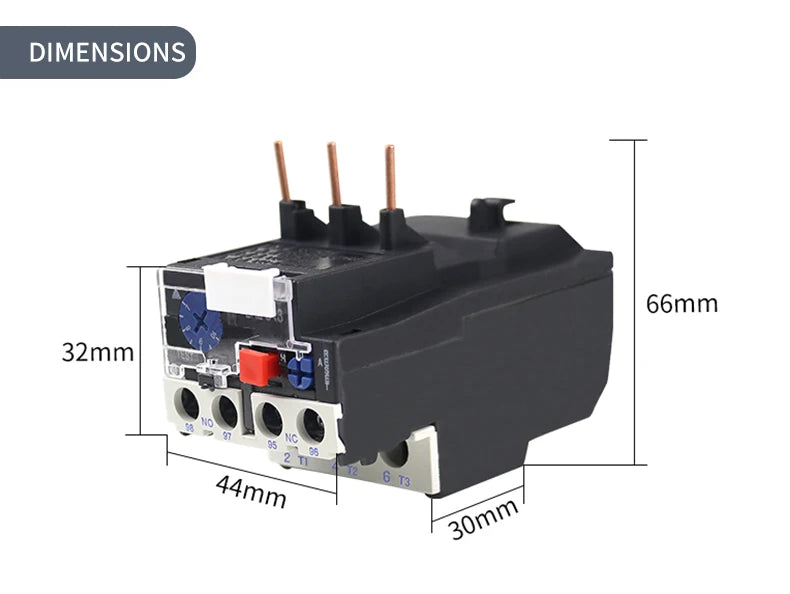

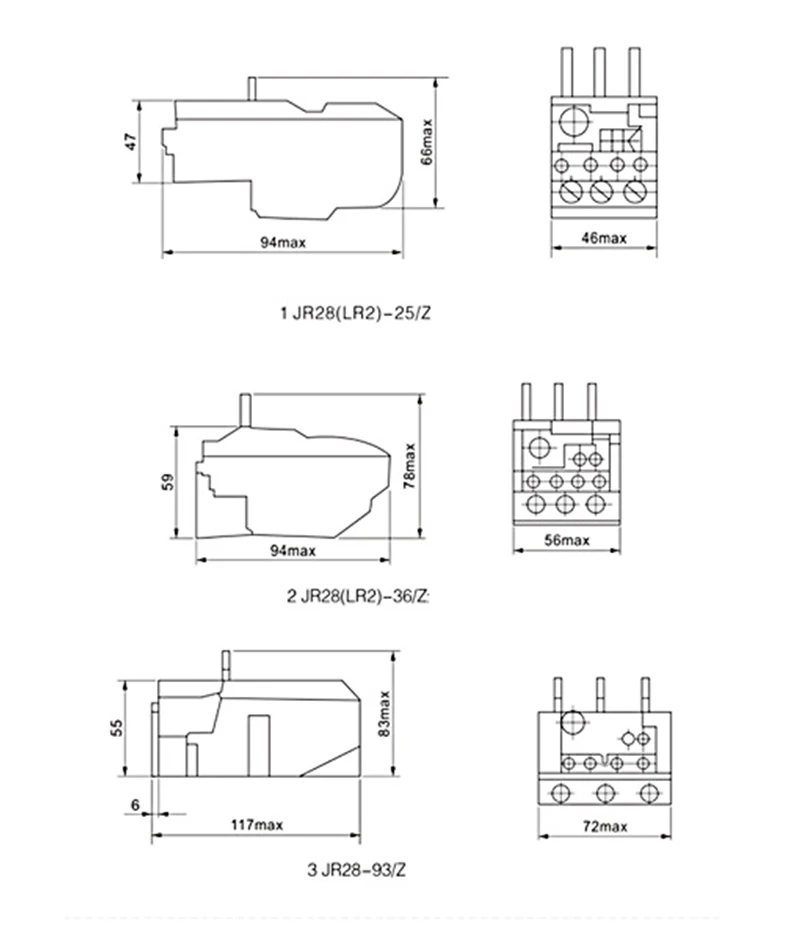

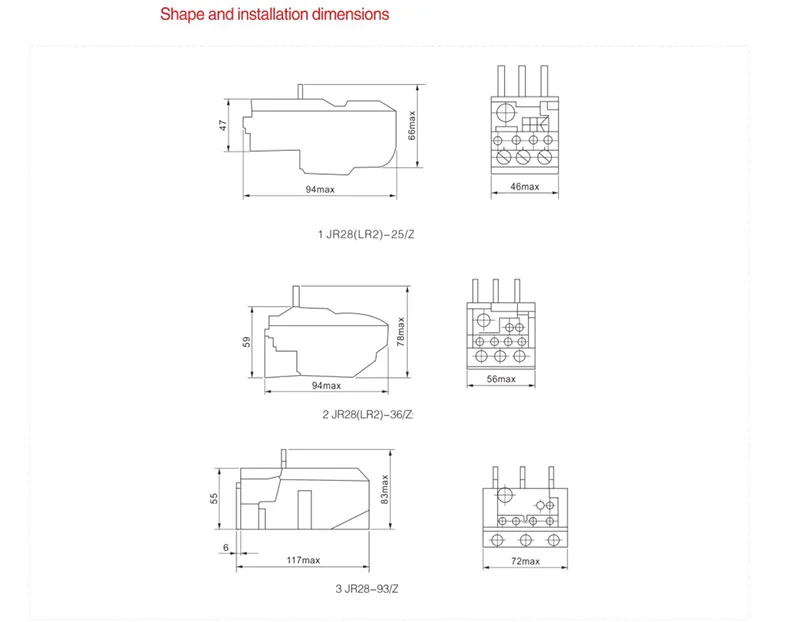

Total Size (Approx.)	7x 4.5x 7.5cm / 2.8"x1.8"x2.95" (LWH)

Color	As Picture Shown
