SPECIFICATIONS

Brand Name: TAIYEDQ

Certification: NONE

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: JRS2-63

Origin: Mainland China

Power Source: Ac

Protect Feature: Sealed

Theory: Thermal Relay

Use: Protective

Voltage: 220/380

is_customized: Yes

JRS2-63 Thermal Overload Relay 3UA59 Electrical Protection Relay for Motor 25A-40A 50A-63A 3P Current Adjustable Relay 50/60Hz

JRS2 3UA series thermal overload relay is suitable for using in power system with AC 50/60Hz

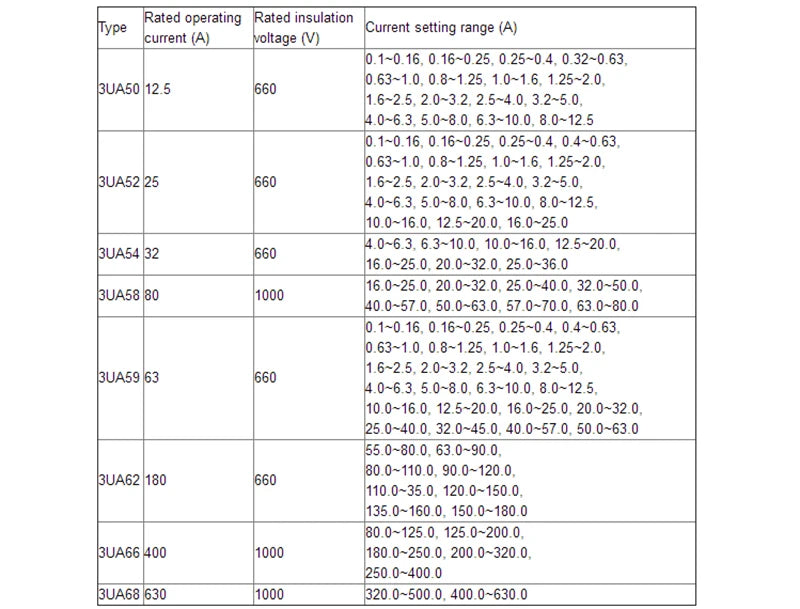

rated operation voltage up to 660V and 1000V, current from 0.1A to 630A.

It is used to protect AC three-phase asynchronous motor against overload and open-phase.

The current setting value can be regulated and the setting current values of many thermal elements are intercrossing overlapping arrangement

Easy selecting by the customers from -25°C to +55°C air temperature as the products have temperature compensating.

The relays have the test push-button for breaking NC contacts, the operating indication and free trip characteristics.

The items conform to IEC60947-5.
