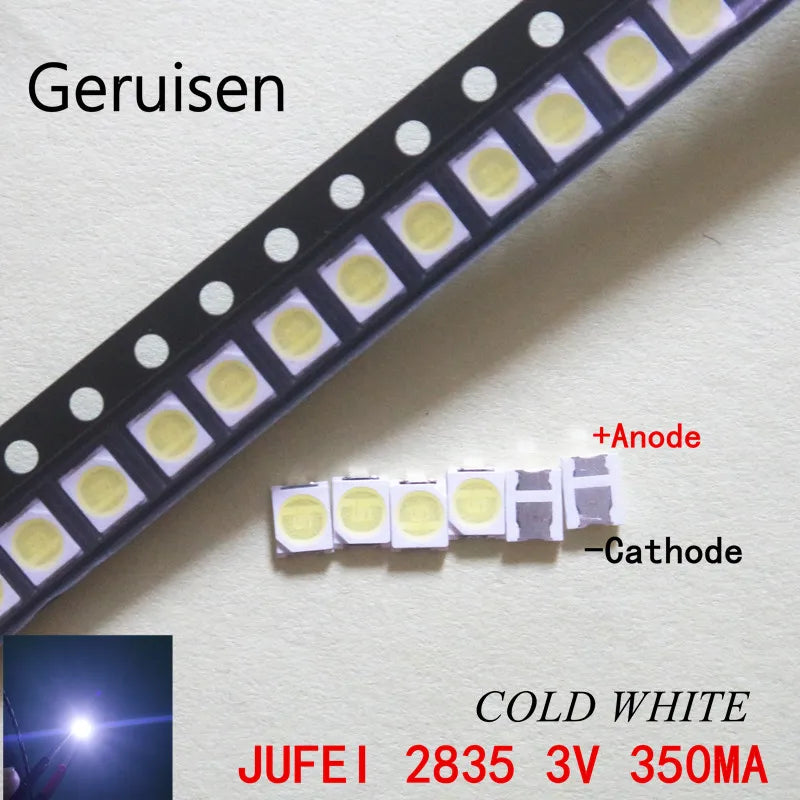

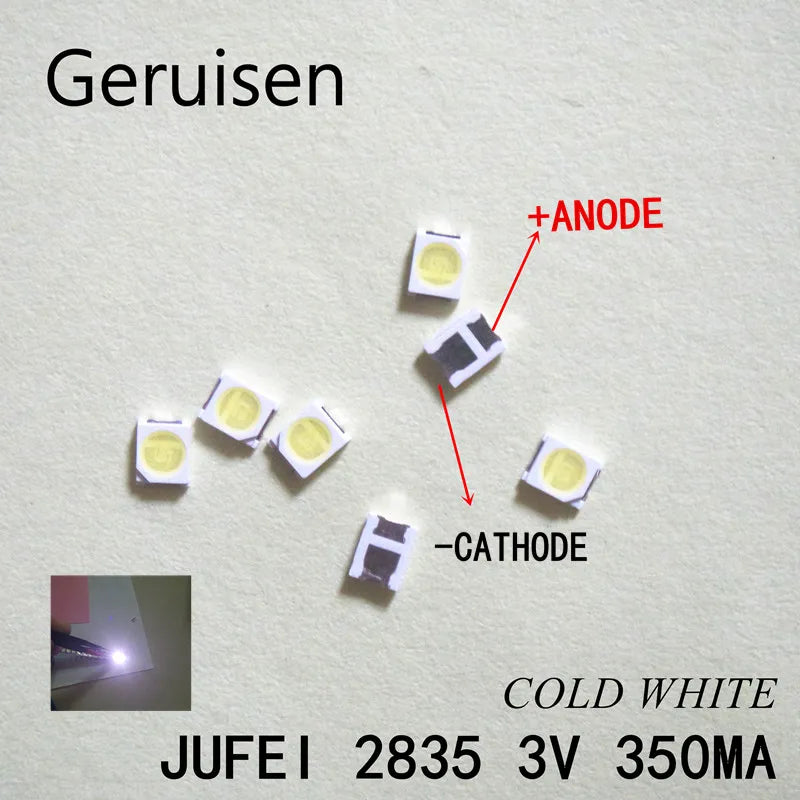

JUFEI LED Backlight 1210 3528 2835 1W 3V 84LM Cool white LCD Backlight for TV TV Application 01.JT.2835BPW1-C 50PCS
Default Title
$4.14
Sale price
$4.14
Regular price
$0.00
Skip to product information
JUFEI LED Backlight 1210 3528 2835 1W 3V 84LM Cool white LCD Backlight for TV TV Application 01.JT.2835BPW1-C 50PCS
$4.14
Sale price
$4.14
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: MUXINZILIGHT
Current: 350MA
High-concerned chemical: none
Item Type: Ball

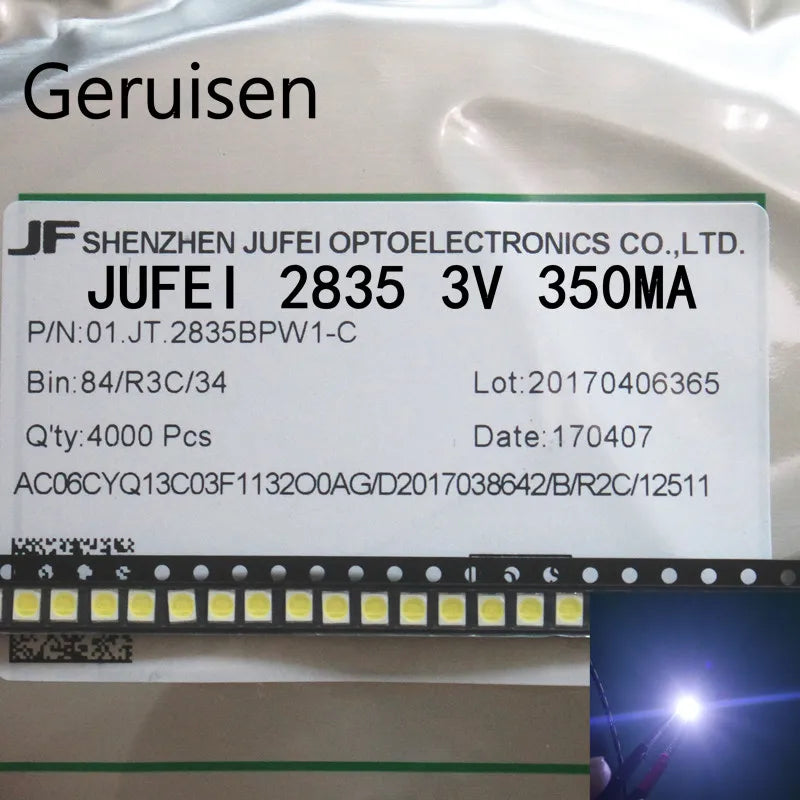

Model Number: 01.JT.2835BPW1-C
Origin: Mainland China
Voltage: 3V
Manufacturer : JUFEI
Origin : China
Package Model:Loaded Quantity 3000PCS Per Reel
Forward Current (IF ): 400mA
Pulse Forward Curren t1 (IFp): 500mA
Reverse Current (IR): 1uA
Reverse Voltage (VR): 5V (1uA)
Power Dissipation (PD): 1.5W
Operatin Tgemperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C
for 10secs
Hand Soldering:350 °C
for 3secs
Junctio Tnemperature (Tj ): 115°C
Forward Voltage (VF): 3.20-3.40V (280mA)
Luminous Flux (LM): 107-111lm (280mA)
Luminous Intensity ( IV ) : cd (280mA)
Wavelength (nm) : -nm mA
CIE : x=0.255 y=0.223 (280mA)
Color Correlated Temperature (CCT):
CRI : 70
Viewing angle : 120°
Lead Frame Type LED Package: 3.5×2.8×0.8mm L×W×H d=2.5mm
