SPECIFICATIONS

Brand Name: GINRI

Contact Load: High Power

Contact capacity: 6A,250VAC

Delay time for overvoltage and undervoltage: 5-8s fixed

Delay time for phase loss, phase unbalance,phase sequence: 1-2s fixed

Input circuit = Measuring circuit: L1,L2,L3 or L1,L2,L3,N

Model Number: JVRD

Origin: Mainland China

Output contacts: 2 C/O(1C/O &1NC for 3-phase 4-wire)

Phase unbalance threshold: 15% fixed

Power Source: Ac

Protect Feature: Sealed

Rated voltage: 220VAC,380VAC,400VAC 440VAC,460VAC

Reset time: 0.5s fixed

Size: Miniature

Theory: Voltage relay

Use: Protective

Voltage: 380V

is_customized: Yes

Note: We sure you can find the best price and quality from here because we are the factory , we are factory directly sales.

Please refer to the ordering information when placing the order.

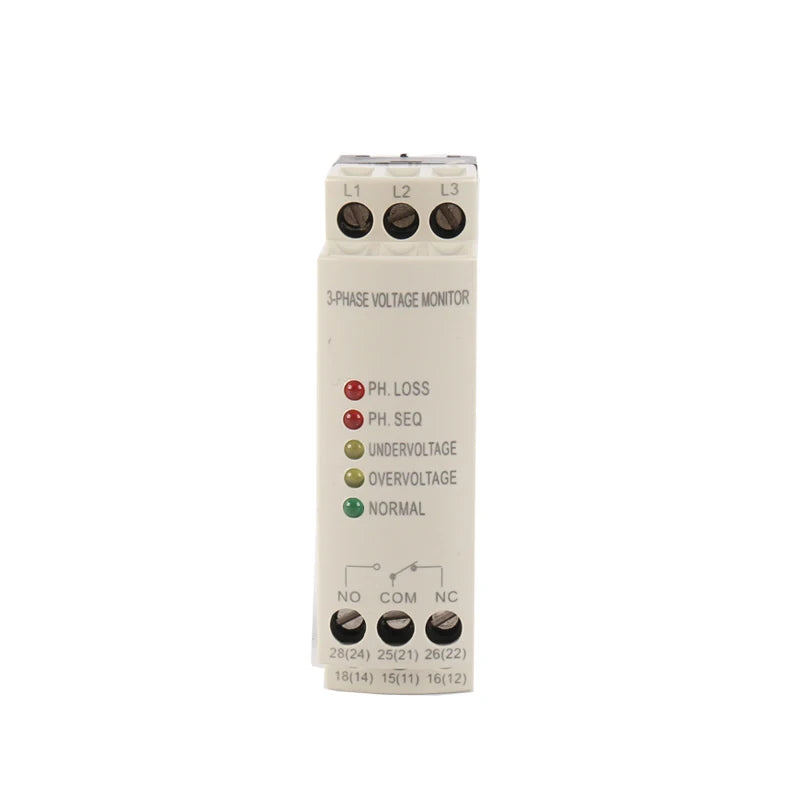

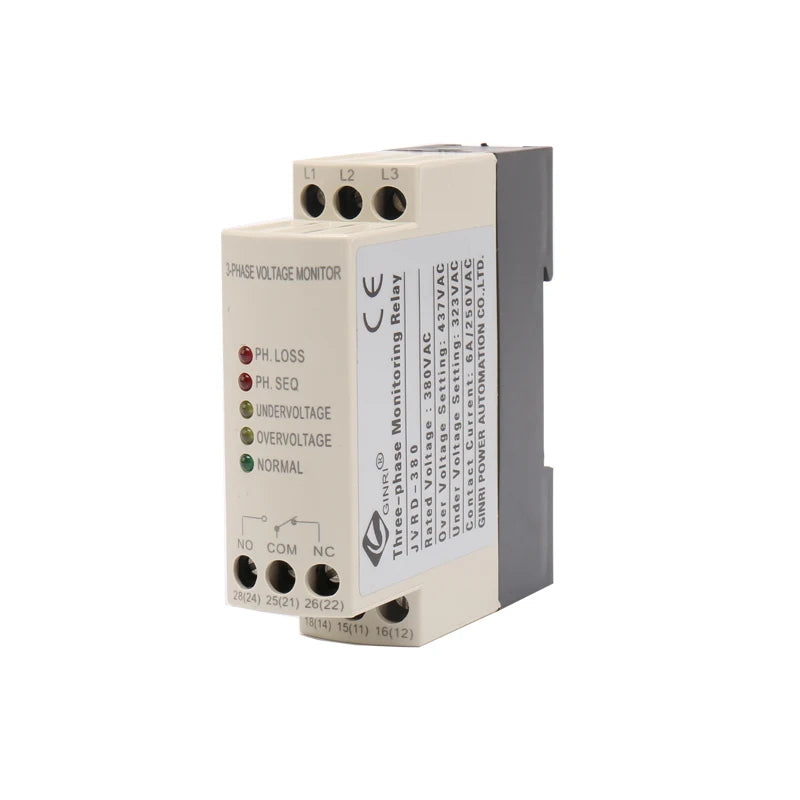

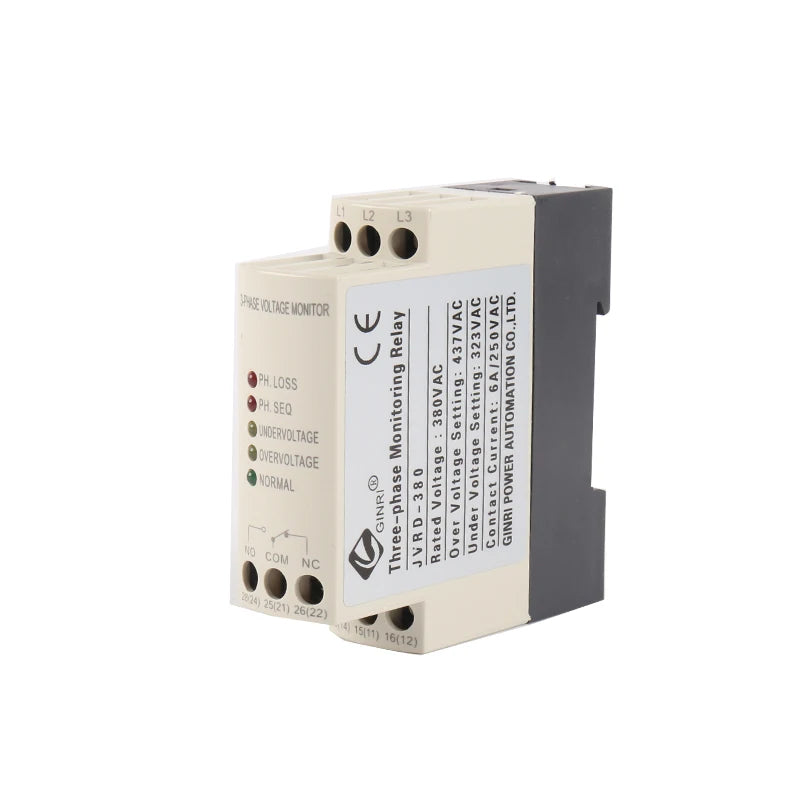

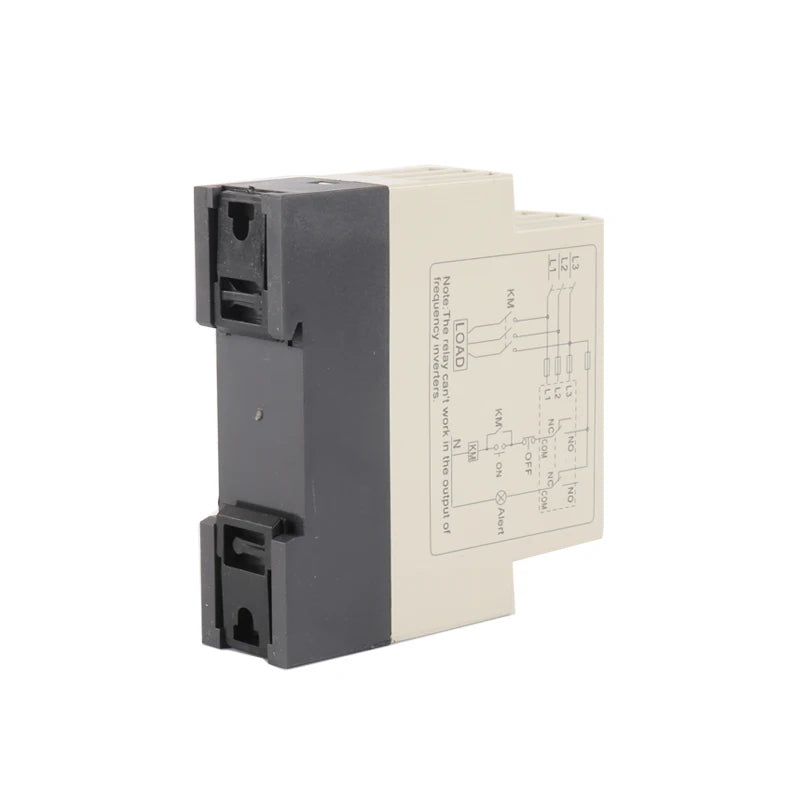

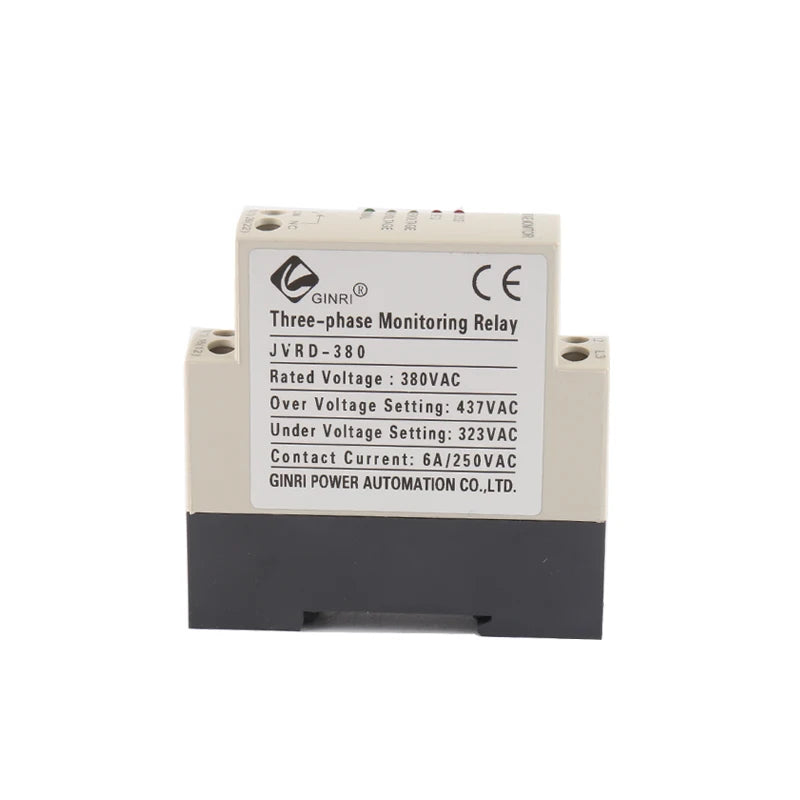

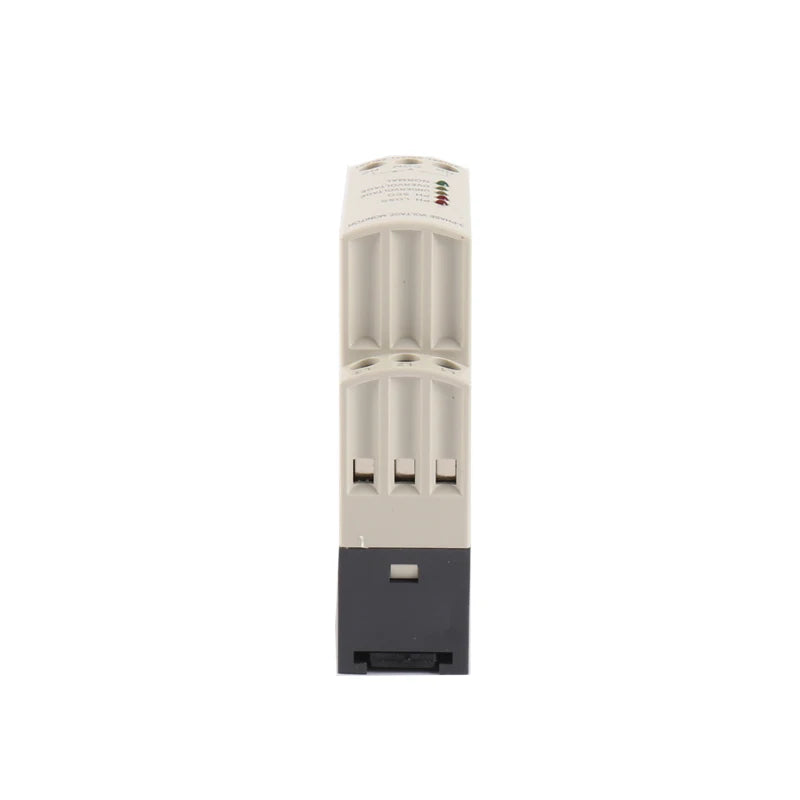

Three-phase Voltage Monitoring Relay

JVRD-220/JVRD-380/JVRD-440/JVRD-460/JVRD-480

♦ Features

-- Compact modular size

  -- Three-phase monitoring of phase sequence, phase loss, over- and undervoltage and phase unbalance

--Powered by the measuring circuit

  -- 2 C/O contacts

  -- 5 LEDs for status indication

♦ Protective Functions

  -- Phase sequence

--Phase loss

--Overvoltage

--Undervoltage

--Phase unbalance

♦ Typical Applications

• Pumps     •Fans

• Blowers    • Motors

• Compressors

♦ Approvals

•CE   •CCC

♦ Technical data

♦ Ordering information

JVRD - 380A

                  1    2

  1.Rated voltage: 220VAC,380VAC,440AC,460VAC,480VAC

  2.Voltage setting range: blank, A, B, C, T (please refer to the technical data)

* Please contact us for further information.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
