SPECIFICATIONS

Features:
OOTDTY

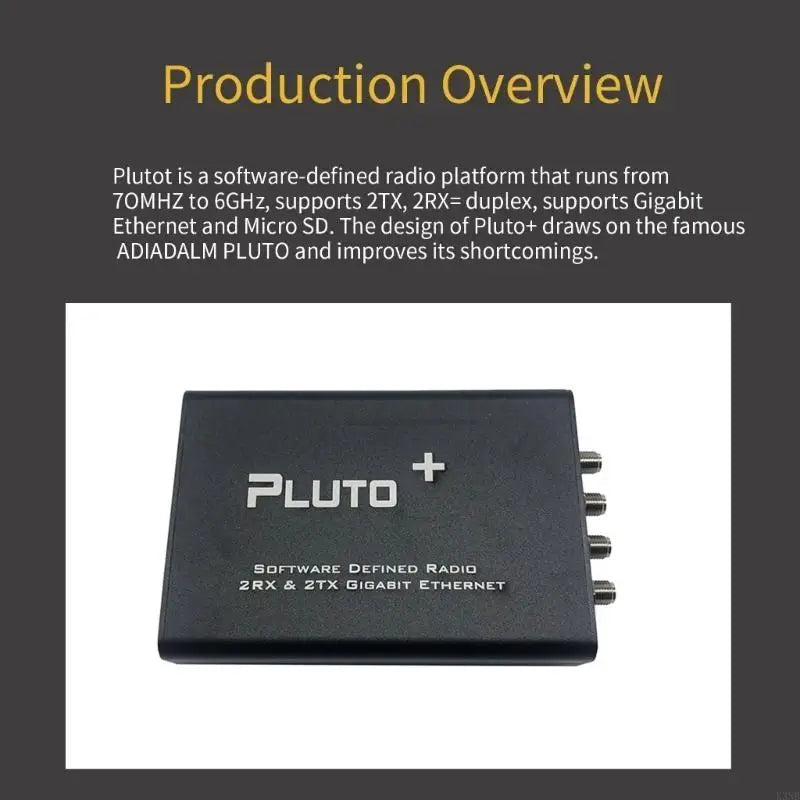

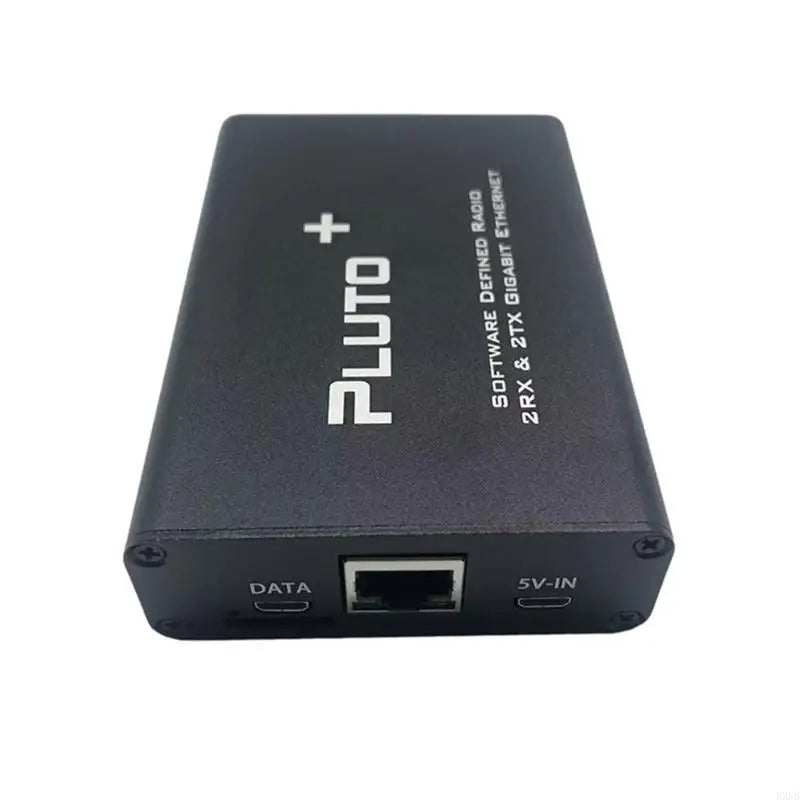

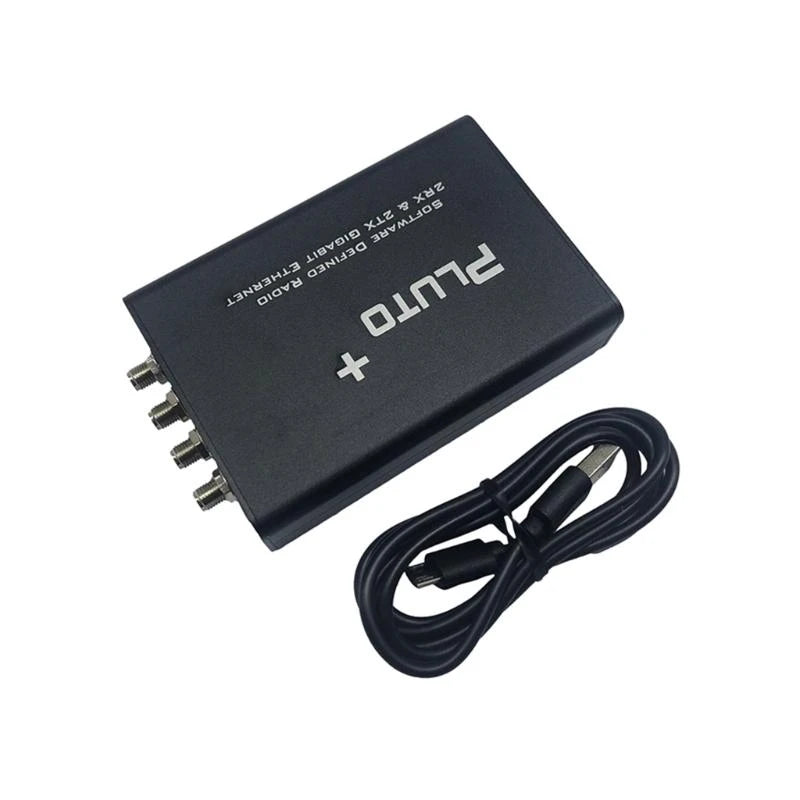

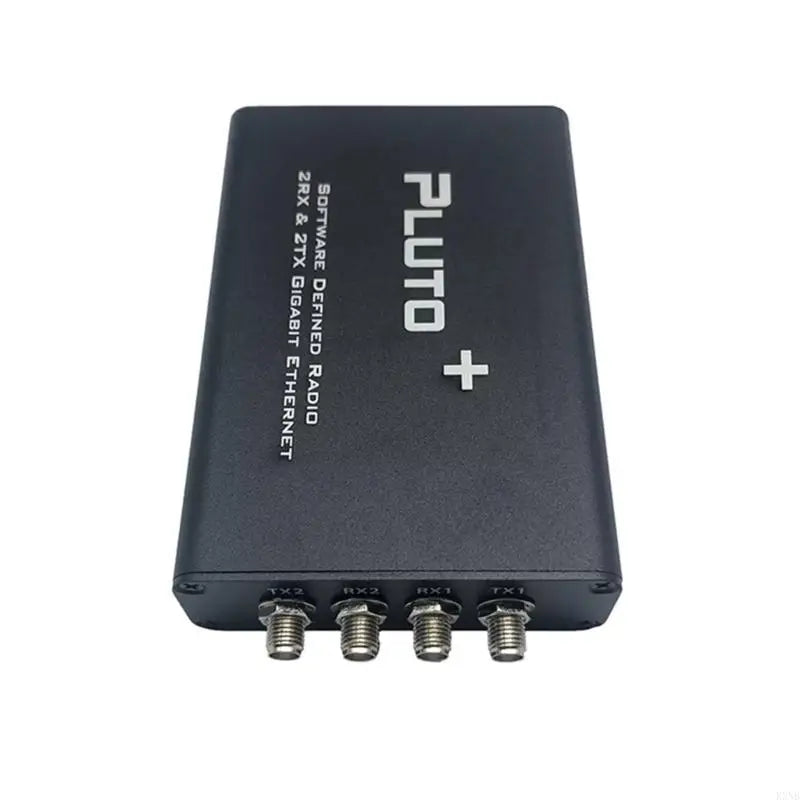

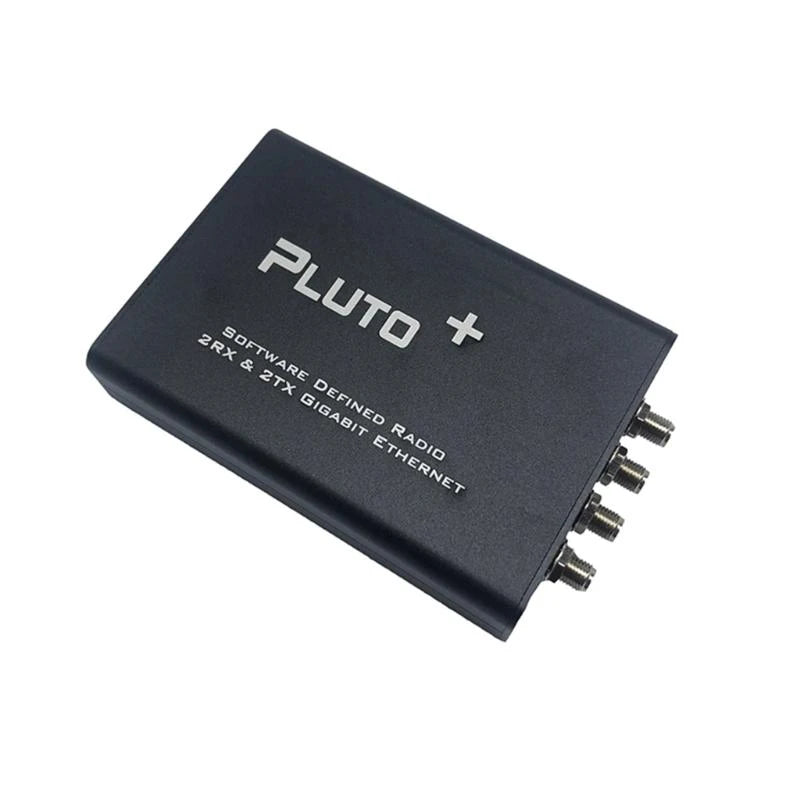

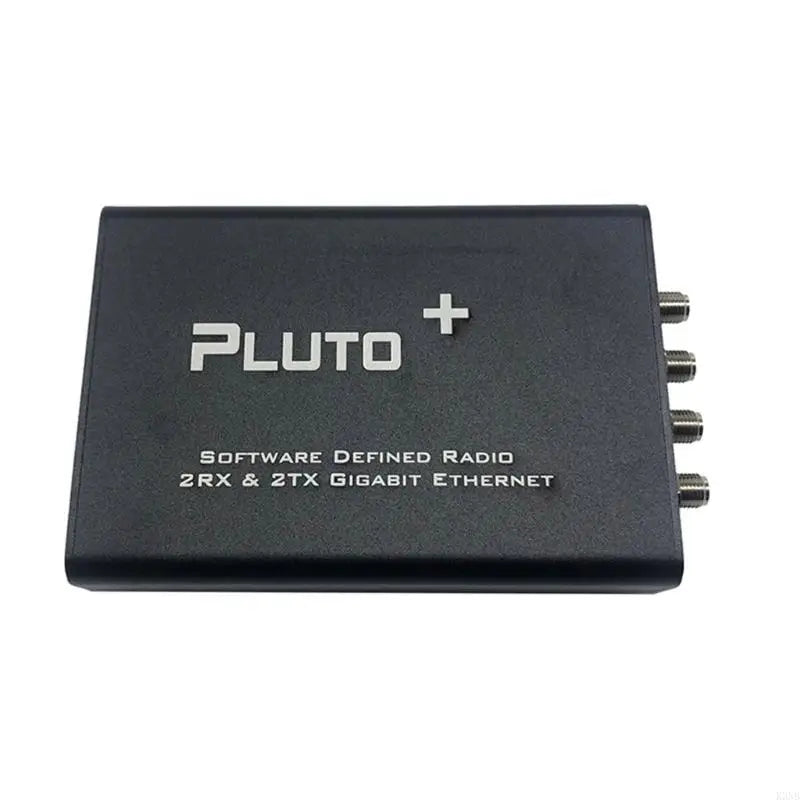

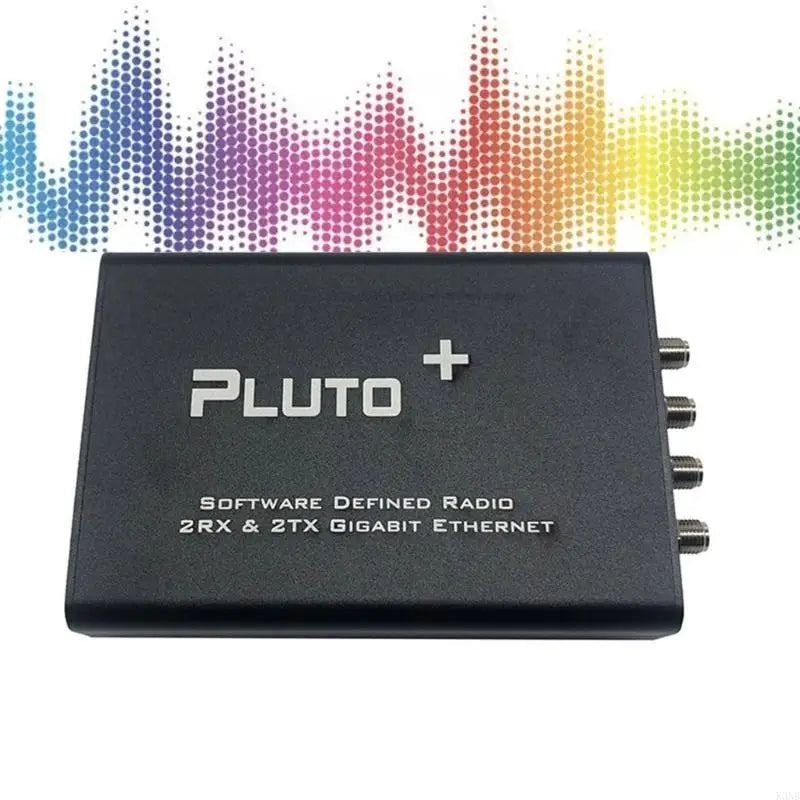

70MHz 6GHZ Software Defined Radio Receiver Transmitter Support 2RX & 2TX AD9361 7010 Gigabit-Ethernet Adapter
Upgraded AD9361 7010 Receiver Experience high-performance radio frequency capabilities; FPGA: Xilinx-ZYNQ 7010 Dual-Core ARM Cortex-A9 667MHz 28k Unit
Wide-Range Coverage With a frequency of 70MHz to 6GHz, this metal-crafted receiver is perfect for capturing signals from various sources.
for Radio Enthusiasts and Professionals Whether you're an amateur radio operator- or a professional in the field, our receiver will meet your needs.
Versatile Usage Use it for spectrum analysis, monitoring, or even as a standalone radio receiver the possibilities are

Specifications:
broadband: 200khz -56Mhz
Antenna channel: 2TX 2RX MIMO-
FPGA: Xilinx-ZYNQ 7010 Dual-Core ARM Cortex-A9 667MHz 28k Logic-Unit
DDR3 512M
Flash：32M
Extended storage: Micro-SD
port: Gigabit-Ethernet port
USB port: USB2.0 OTG integrated with USB-JTAG
Power supply: 5V2A microUSB
Clock: 0.5ppm TCXO
Software: MATLAB- simulink-GNU Radio
Compatibility: Compatible with-ADI ADALM-PLUTO firmware
Material：Metal

Package Includes:
1PC AD9361 7010 Receiver

Note:
Due to the different monitor- and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3mm measuring deviation- due to manual measurement.
