SPECIFICATIONS

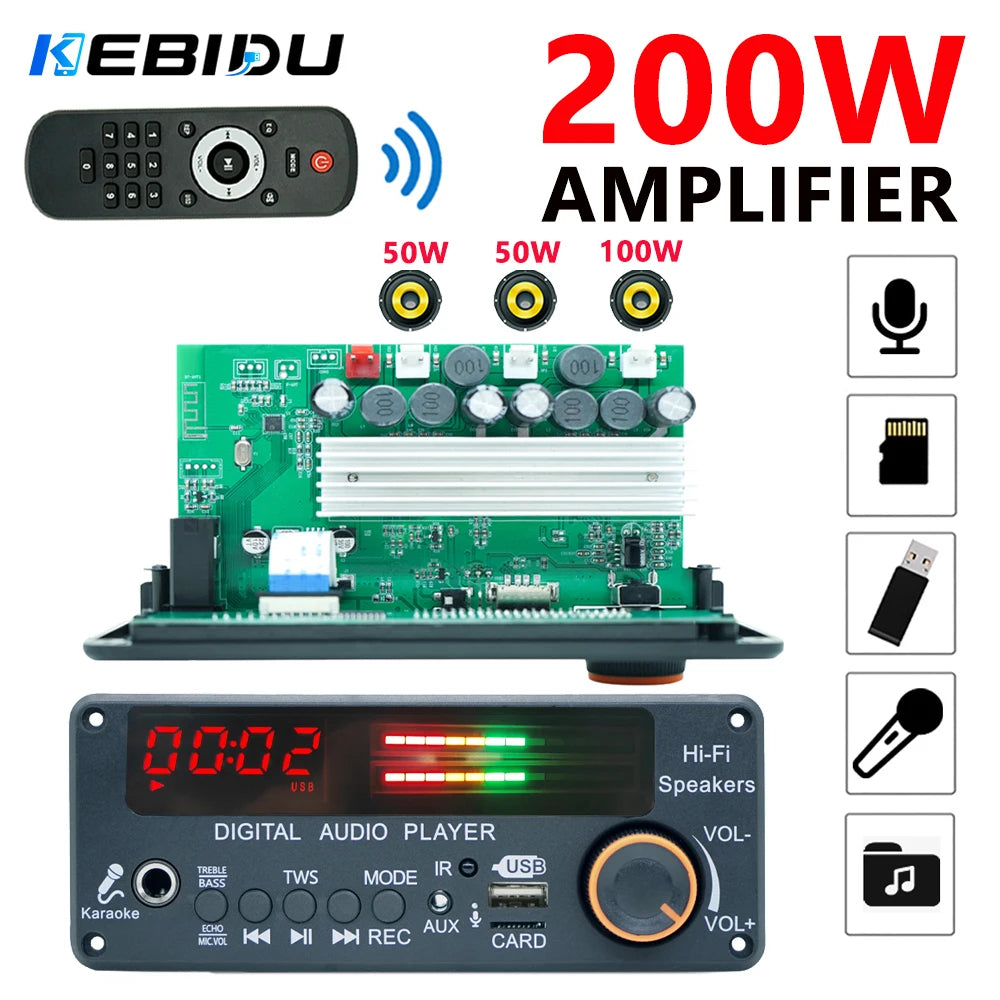

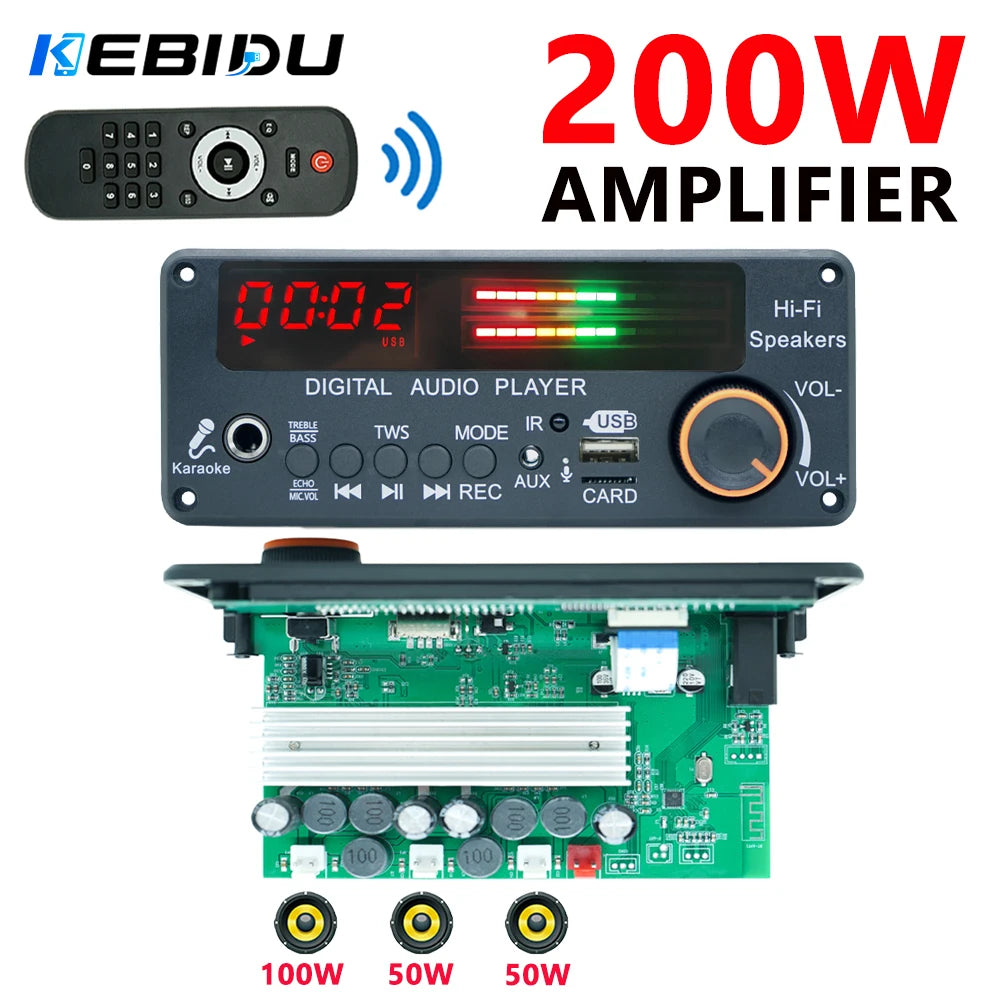

Amplifier: 200W

Audio Format Support: MP3, WAV

Balanced Out: Yes

Battery Life: > 20 hours

Battery Specification: External Power

Bluetooth: Yes

Body Material: Plastic

Brand Name: kebidu

Choice: yes

Compatible Devices: Others

Designed for motor vehicle installation: No

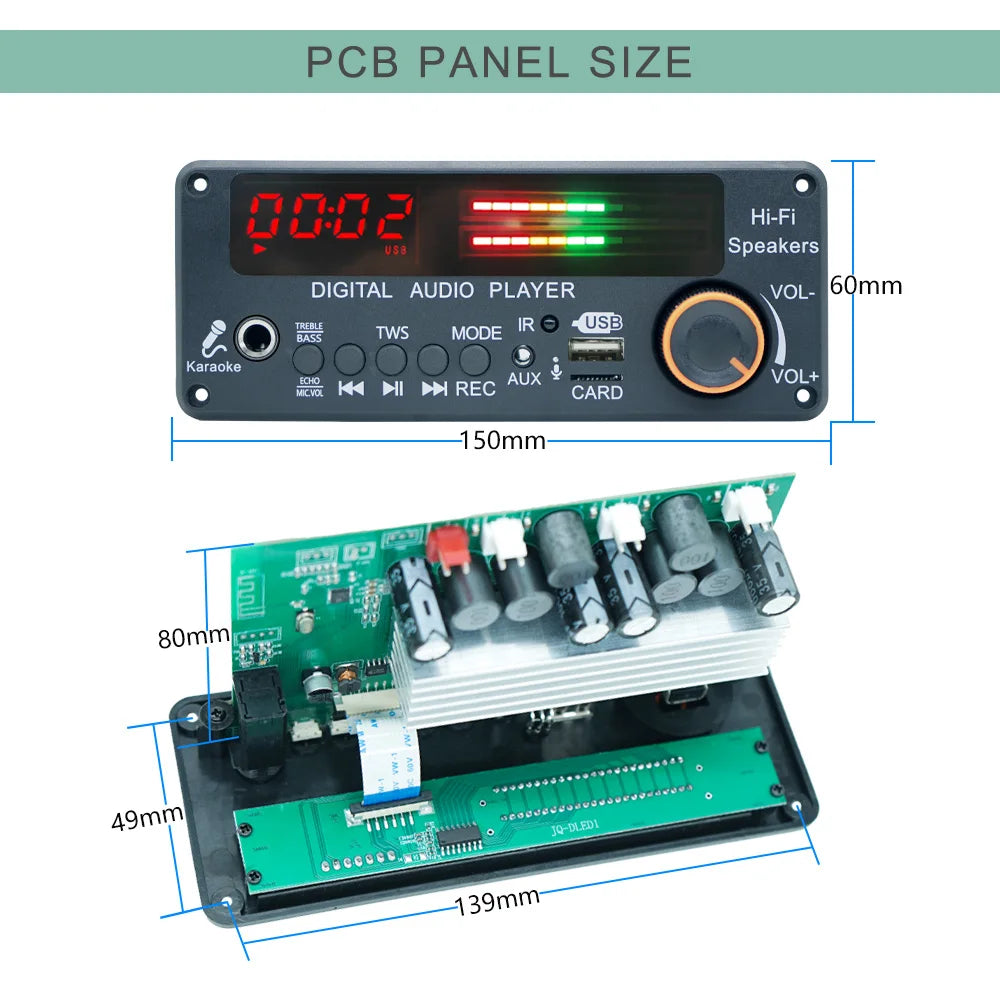

Dimensions (WxHxD): 15*8*6cm

Enclosure material: Plastic

External Memory: Yes

FM frequency: 87-108 MHz

Function: Voice Recorder,Build in Speaker,FM Radio,Bluetooth

Have Speakers or not: Yes

High-concerned chemical: none

Mic interface: 6.5mm

Model Number: Audio Amplifier

Operation Mode: Touch Screen + Remote Control

Origin: Mainland China

Package: Yes

Screen: Yes,LED screen

Signal Noise Ratio: ≥70db

Storage Type: Flash Memory

Storage capacity: Supports up to 32GB

Storage device: U-Disk/TF Card

Streaming Service Compatibility: Other

Style: mp3

Suitable: For Car/Home Speaker Radio

Supports FM: Yes

Supports Recording Function: Yes

TWS function: Supports

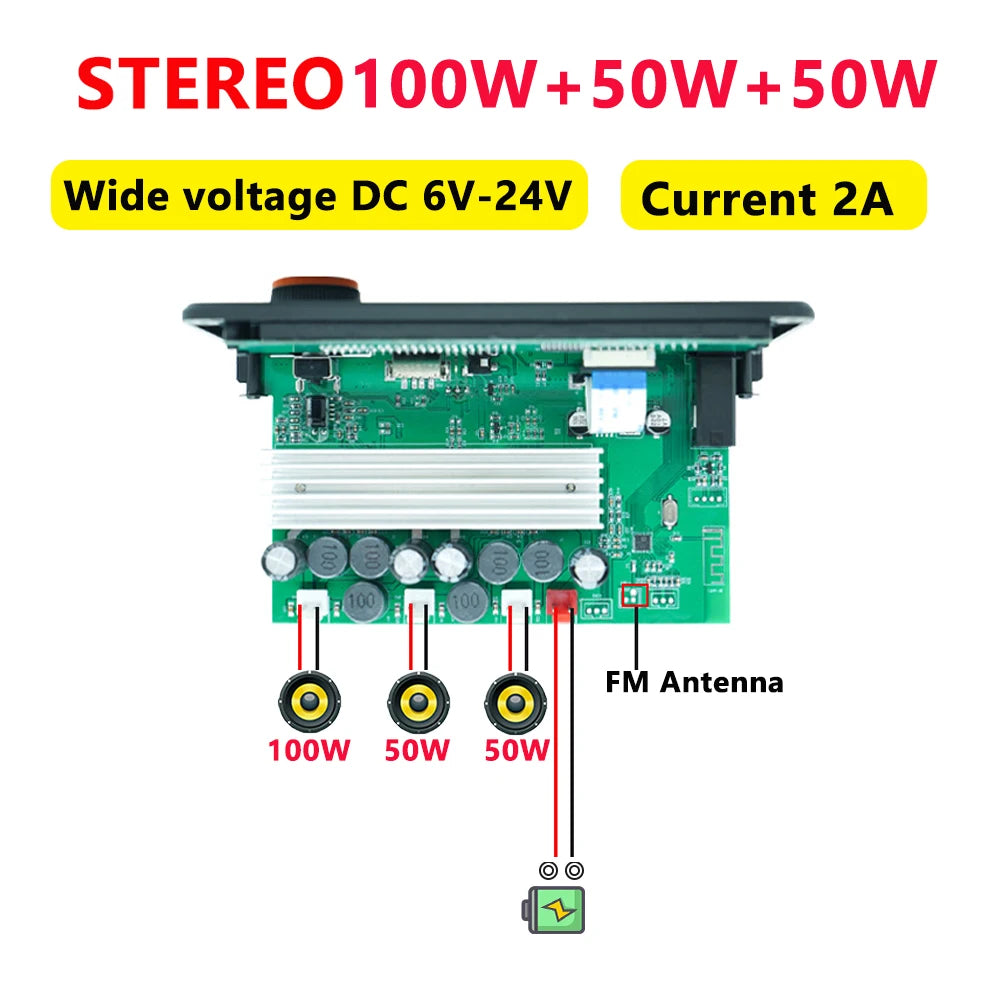

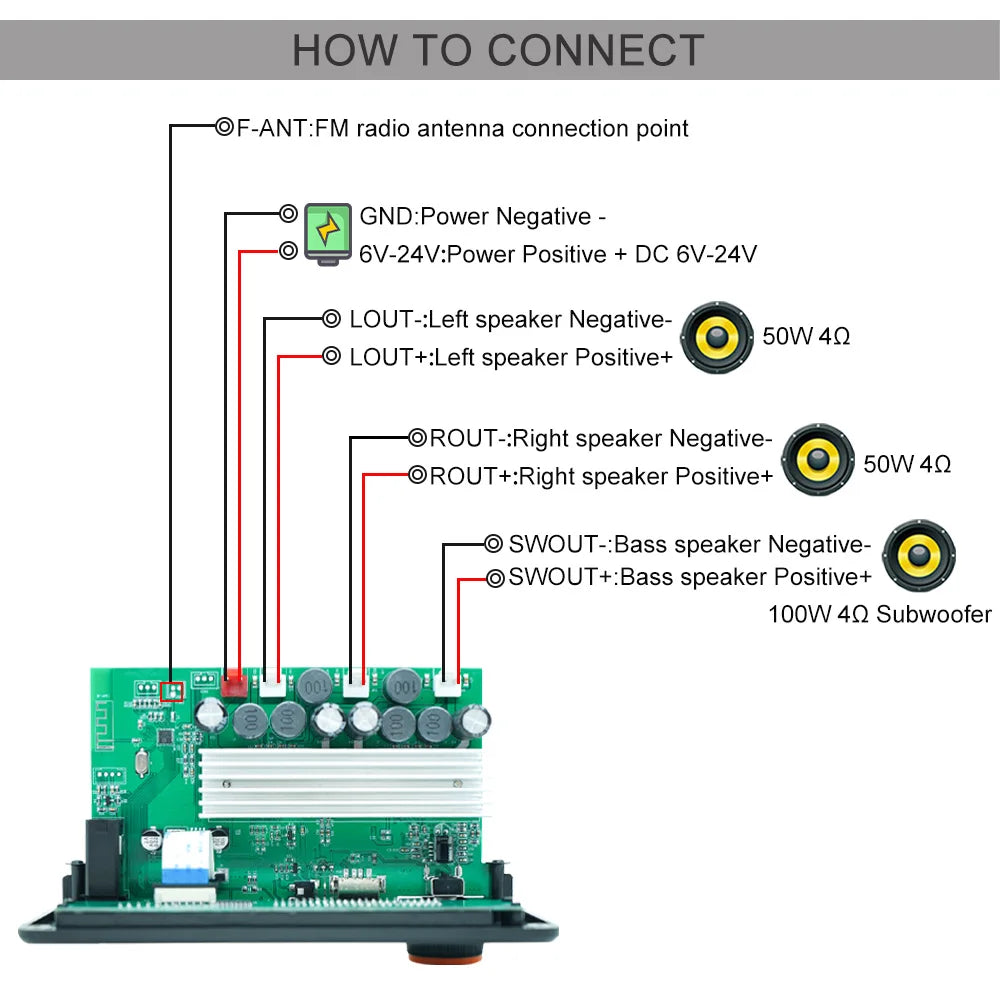

Voltage: DC 6V-24V

WIFI: No

semi_Choice: yes

Feature

1. Bluetooth version 5.3, supports Bluetooth calling function, microphone interface function, recording function, folder switching function, TWS function

2. Music format: MP3/WMA/WAV/FLAC/APE lossless format music

3. Voltage DC 12V, current above 2A, FM frequency: 87-108 MHz

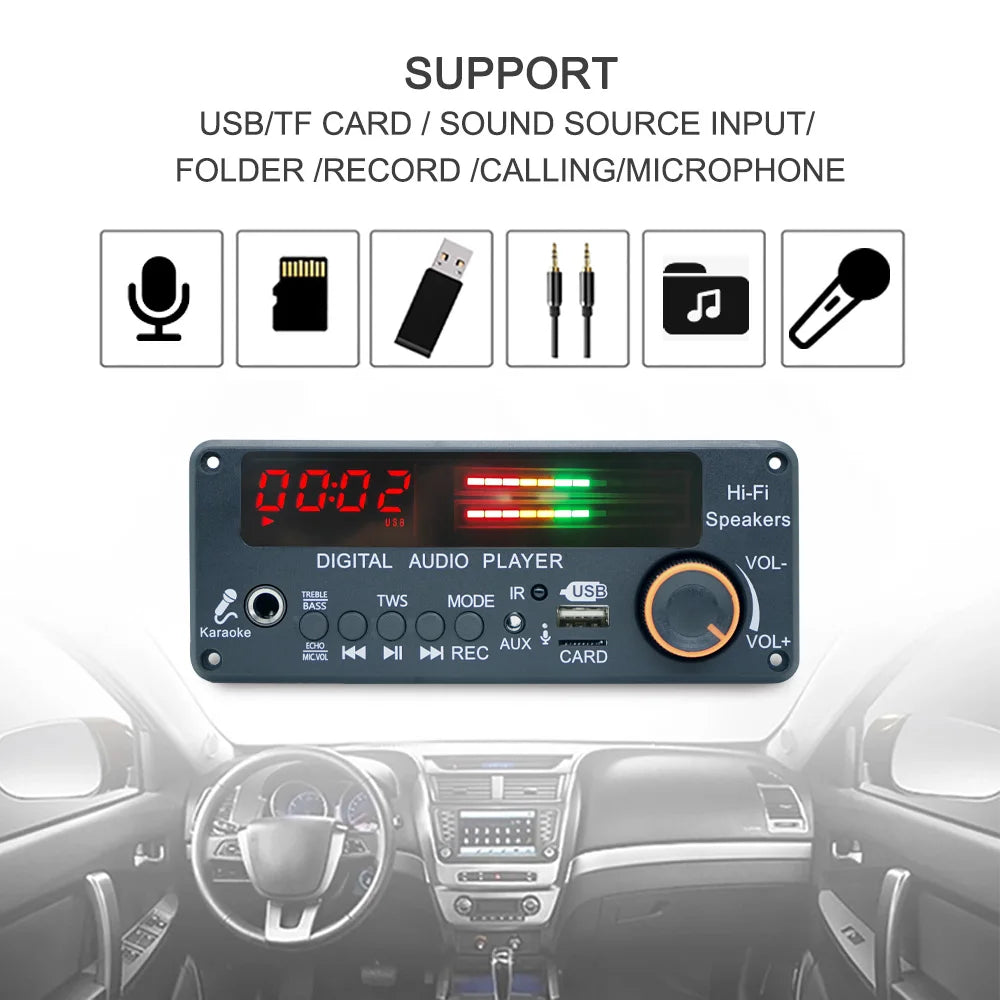

4. Support Function Introduction: Supports MP3/USB/TF/LINE IN/FM/BLUETOTH/Remote Control Connection

5. Support adjustment of treble/bass/microphone sound size/microphone reverberation

Specifications

Amplifier： 200W

FM frequency: 87-108 MHz

Screen: LED screen

Mic interface: 6.5mm

Storage device: U-Disk/TF Card

Storage capacity: Supports up to 32GB

TWS function: Supports

Voltage：DC 12V

Current：2A

Suitable:For Car/Home Speaker Radio

Recording Description

1. Press and hold the MODE button to start recording, then press and hold the MODE button again to cancel the recording function and play the recording file;

2. When recording, it is more necessary to connect a storage device, such as a USB flash drive or TF card;

Under the storage device, such as a USB flash drive or TF card, long press the PLAY/PAUSE button (play/pause) to enter the recording folder and play the recording file.

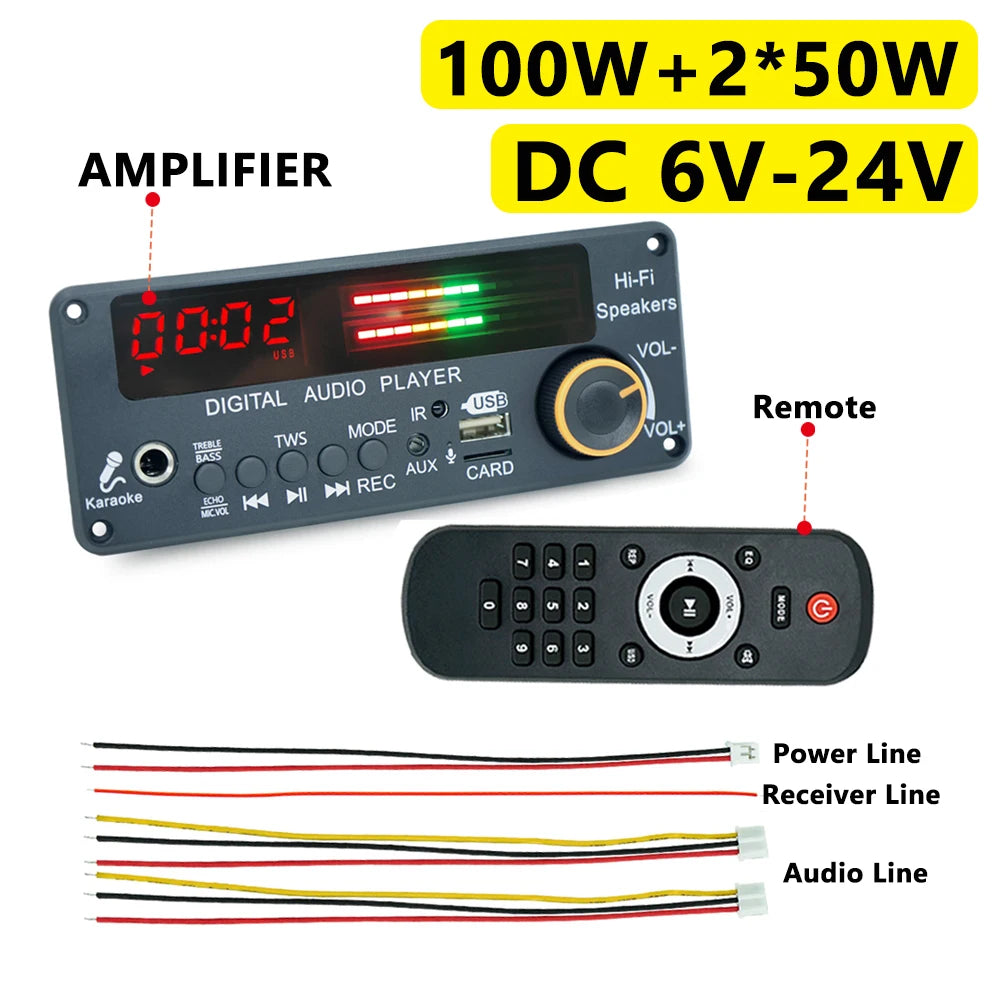

Button and interface

1. LED screen: digital display;

2. LED light bar: The size of the music sound flashes;

3. Microphone interface;

4. TREBLE/BEASS/ECHO/MIC.VOL: Switch between microphone sound size C/microphone reverberation E/high frequency H/low frequency b; Switch to mode first, press the previous or next song to adjust, and confirm automatically after 3 seconds if there is no adjustment;

5. PREV: Short press to select the previous song; Long press to quickly reverse; Double click to switch to the previous folder;

6. PLAY/PAUSE: Short press to pause and play; Long press in the receiving state to activate the FM automatic station; Bluetooth connection successful, long press for TWS function;

7. NEXT: Short press to select the next track; Long press to fast forward; Double click to switch to the next folder;

8. MODE: Switching between USB/TF/FM/AUX/BLUETOOL; Long press the button to start recording, press the button again to cancel the recording function and play the recording file; When recording, it is more necessary to connect a storage device, such as a USB flash drive or TF card;

9. AUX interface: audio input interface;

10. IR: Infrared receiver module;

11. MIC: Supports calling and recording functions;

12. USB interface: connect to a USB flash drive (maximum support 32GB);

13. TF card slot: connect TF storage card (maximum support 32GB);

14. VOL+/VOL -: Rotate the volume to the right to increase, rotate it to the left to decrease.
