SPECIFICATIONS

Brand Name: keyestudio

Choice: yes

Color Depth: blue

Communication way: IIC / I2C communication

Display Mode: 128*64

High-concerned chemical: none

Internal driver chip: SSD1306

Model Number: OLED LCD Display

Origin: Mainland China

Resolution: 128*64

Type: OLED

is_customized: Yes

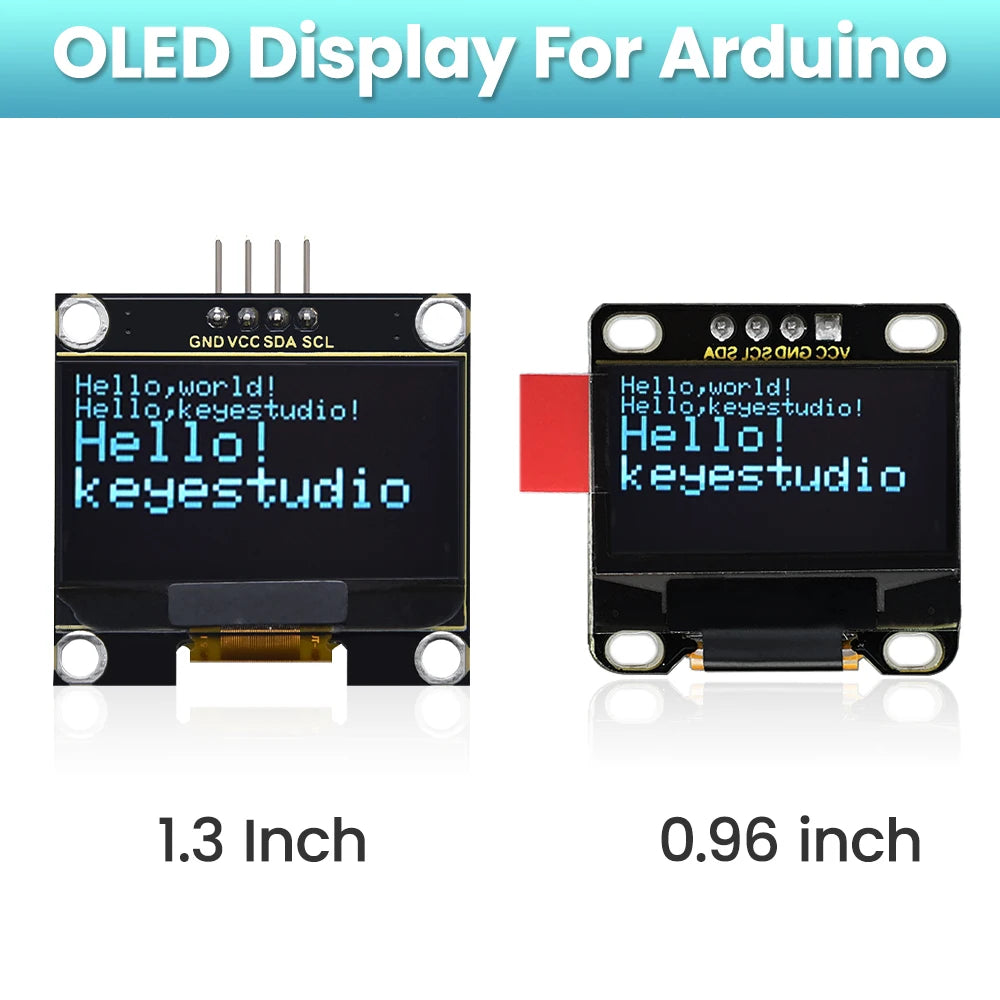

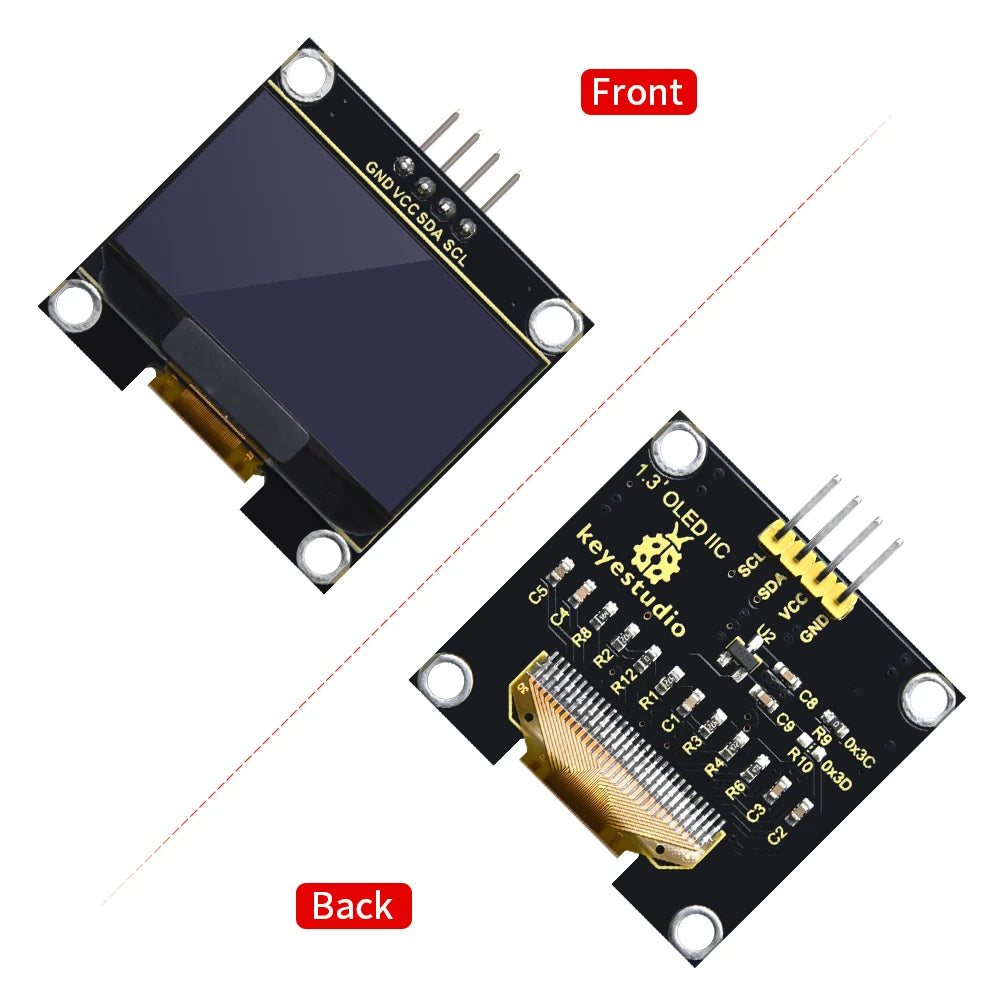

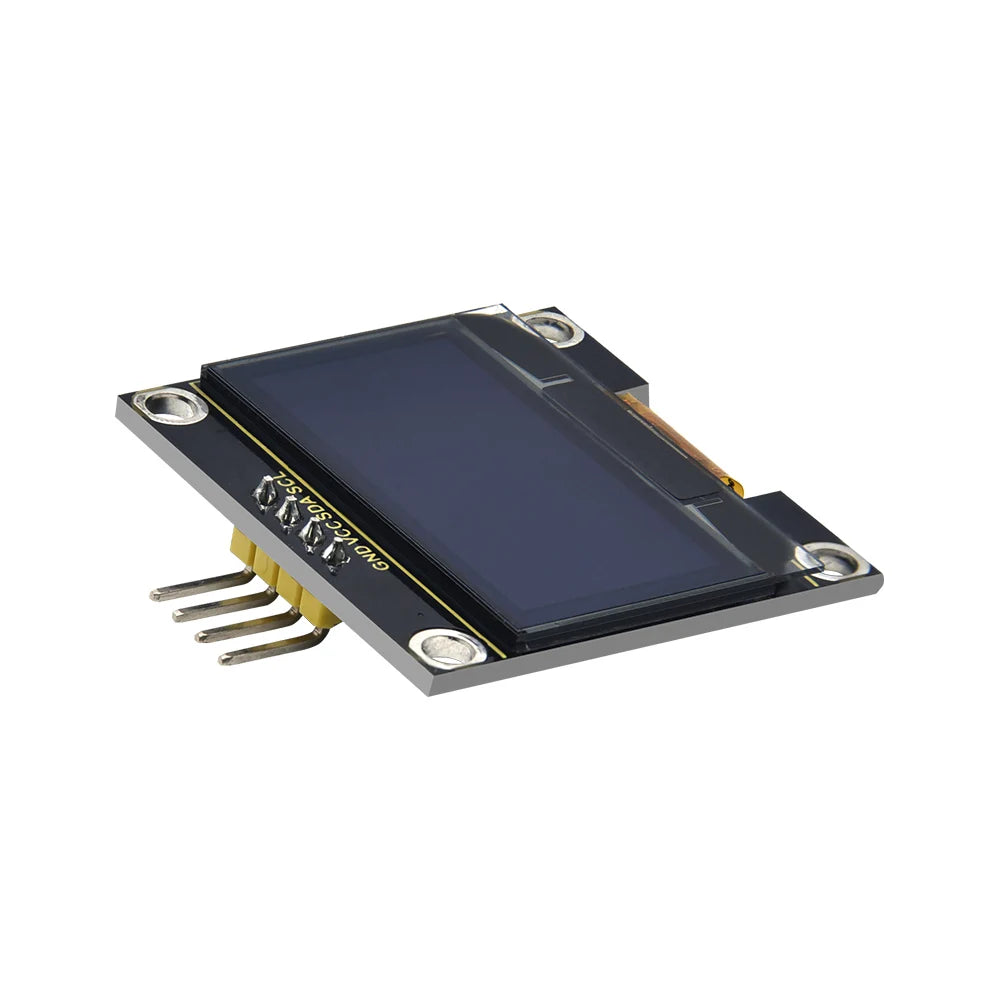

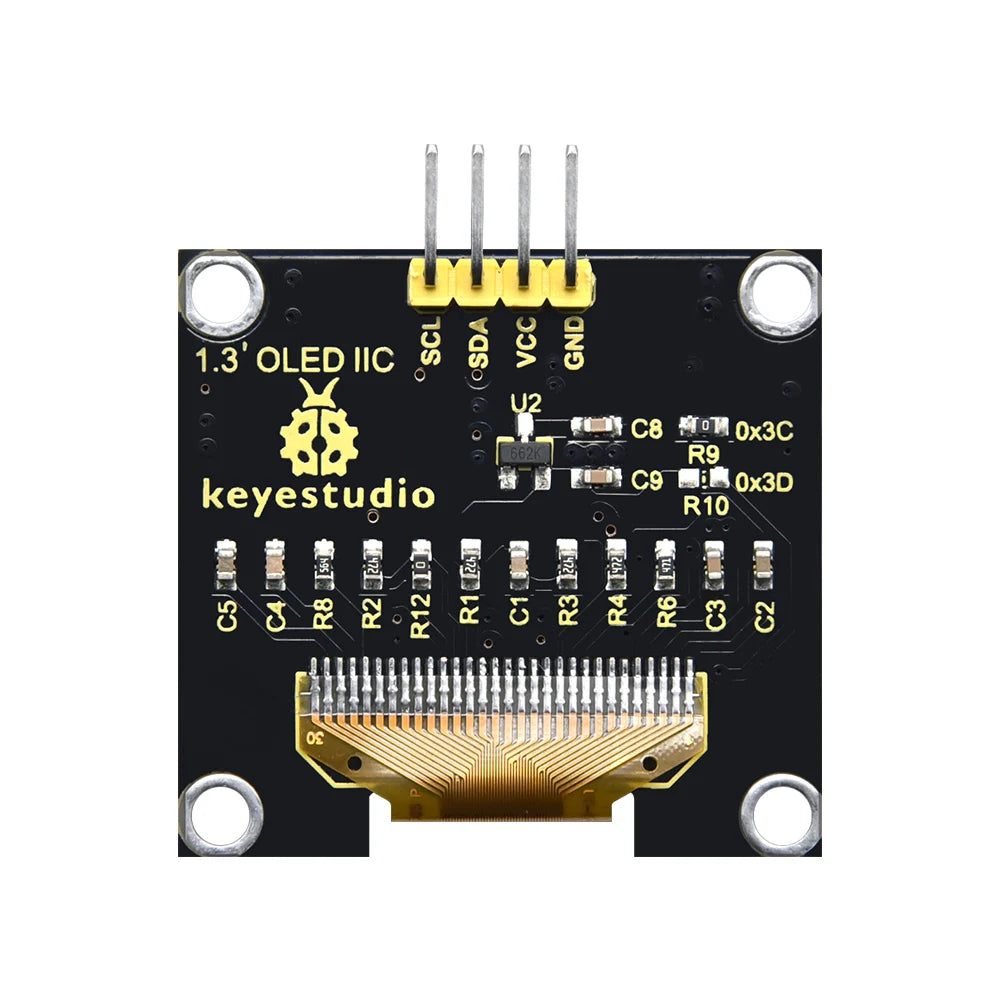

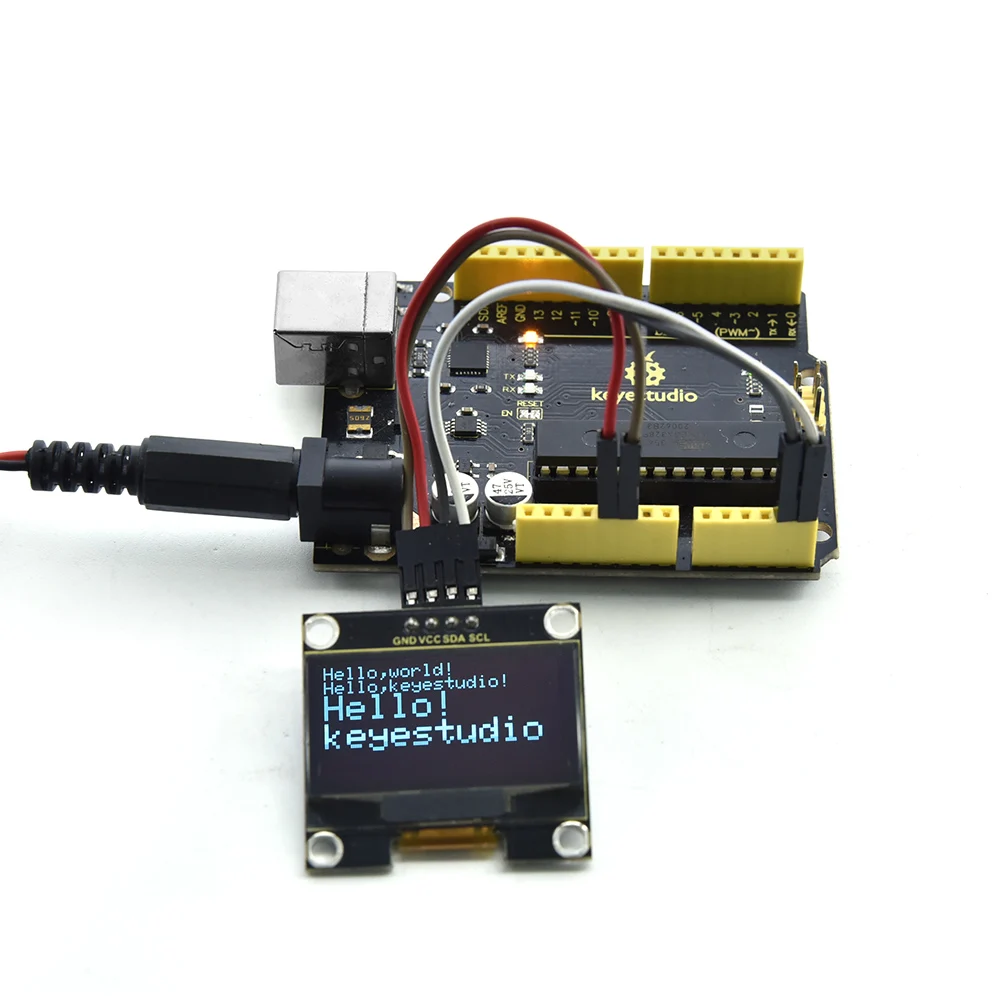

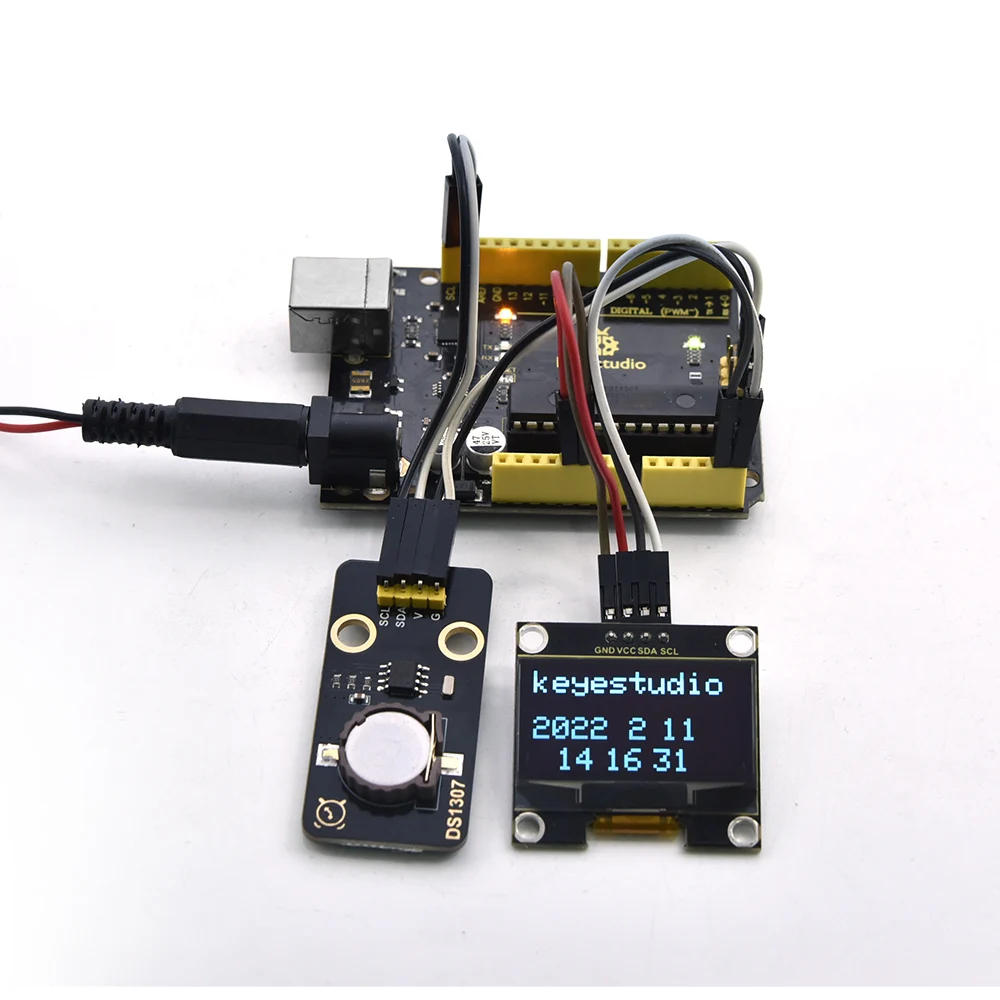

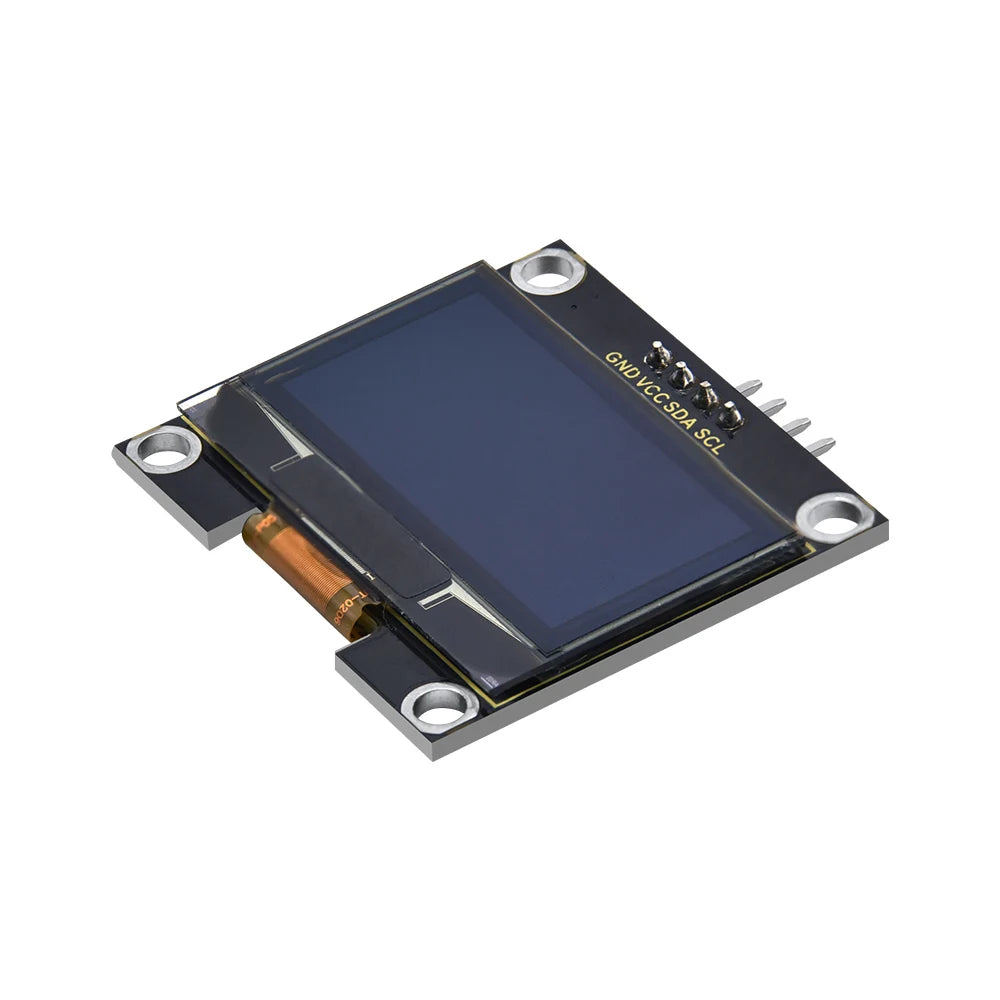

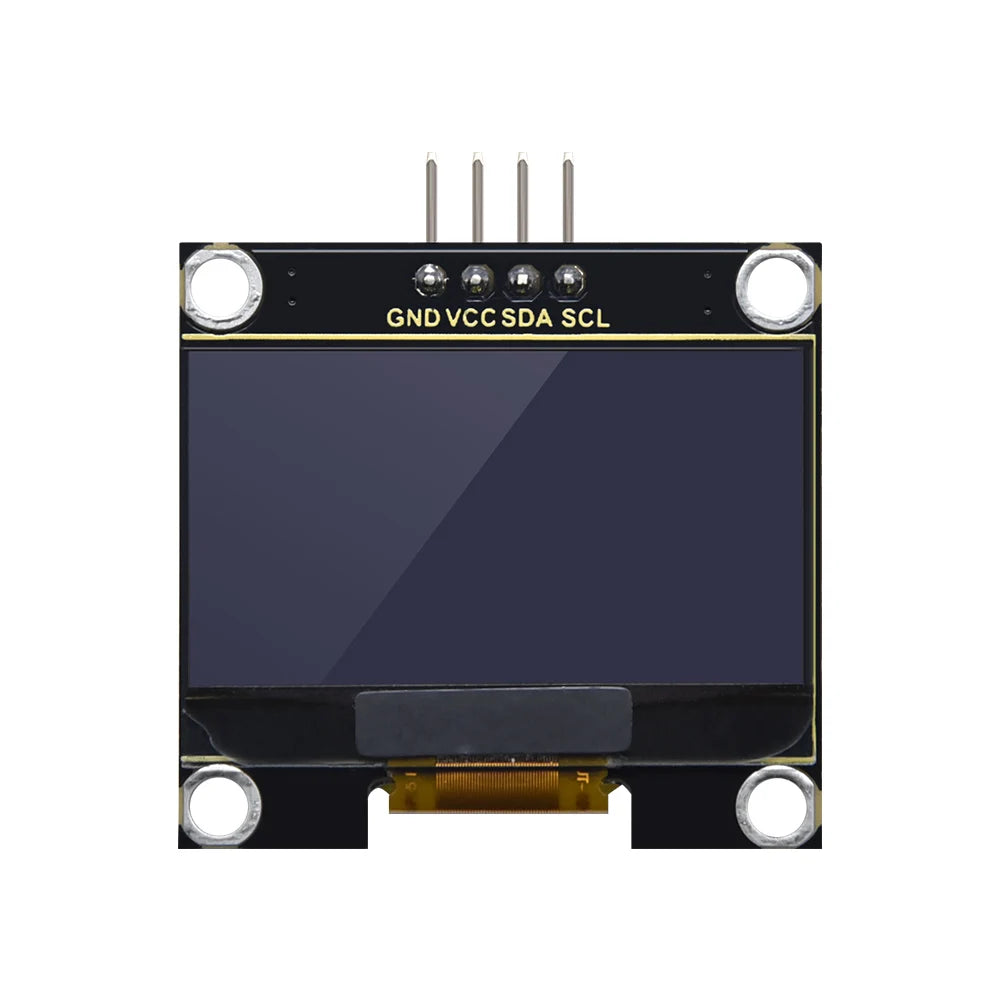

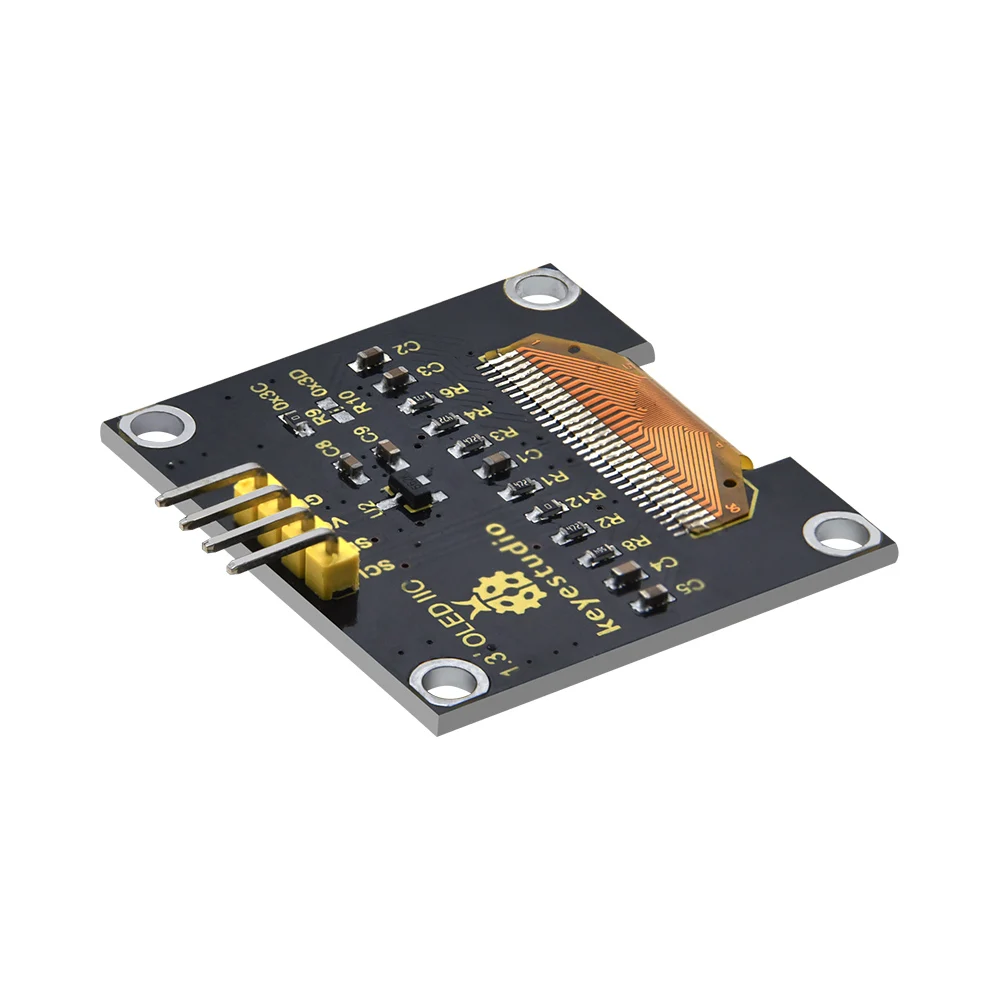

Keyestudio 1.3 128x64 OLED Display with IIC Ports

Description:

OLED is an organic light-emitting diode, also known as organic dot laser display. Composed of a very thin coating of organic materials that emit light and a glass substrate, it has self-luminous properties, a large viewing angle and low power consumption.

It doesn’t need a backlight ( it will light up when the driver and wiring up are correct).

It has high contrast and fast response speed, applied for flexible surface. In addition, it is easy to build.

The module comes with 4 positioning holes, which is convenient for you to fix it on other devices.

Specification:

Working voltage: DC 3.3V-5V

Working current: 30mA

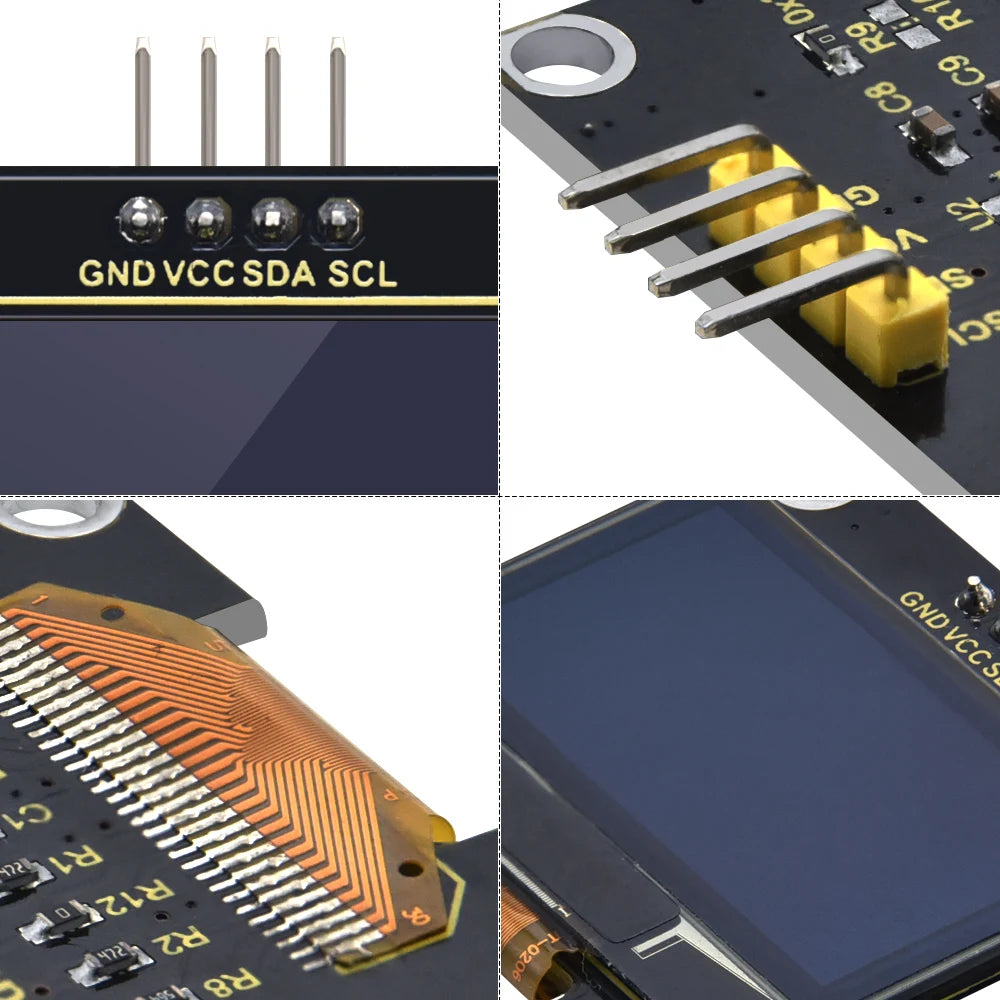

Interface: pin header interface with a pitch of 2.54mm

Communication method: I2C communication

Internal driver chip: SSD1306

Resolution: 128*64

Viewing angle: more than 150°

Size: 33*35*3mm

Hole spacing: 30.5mm (length) 29mm (width)

Weight: 7.1g

Resources:

https://fs.keyestudio.com/KS0532

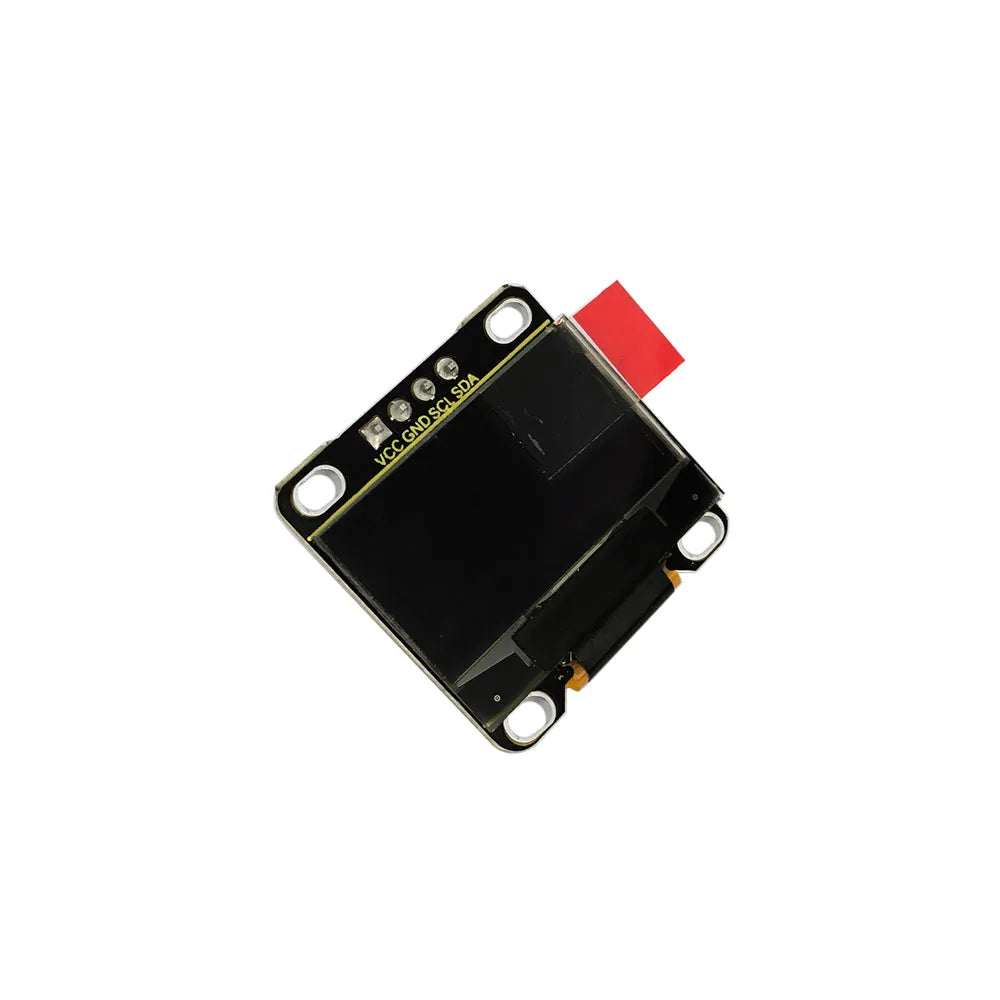

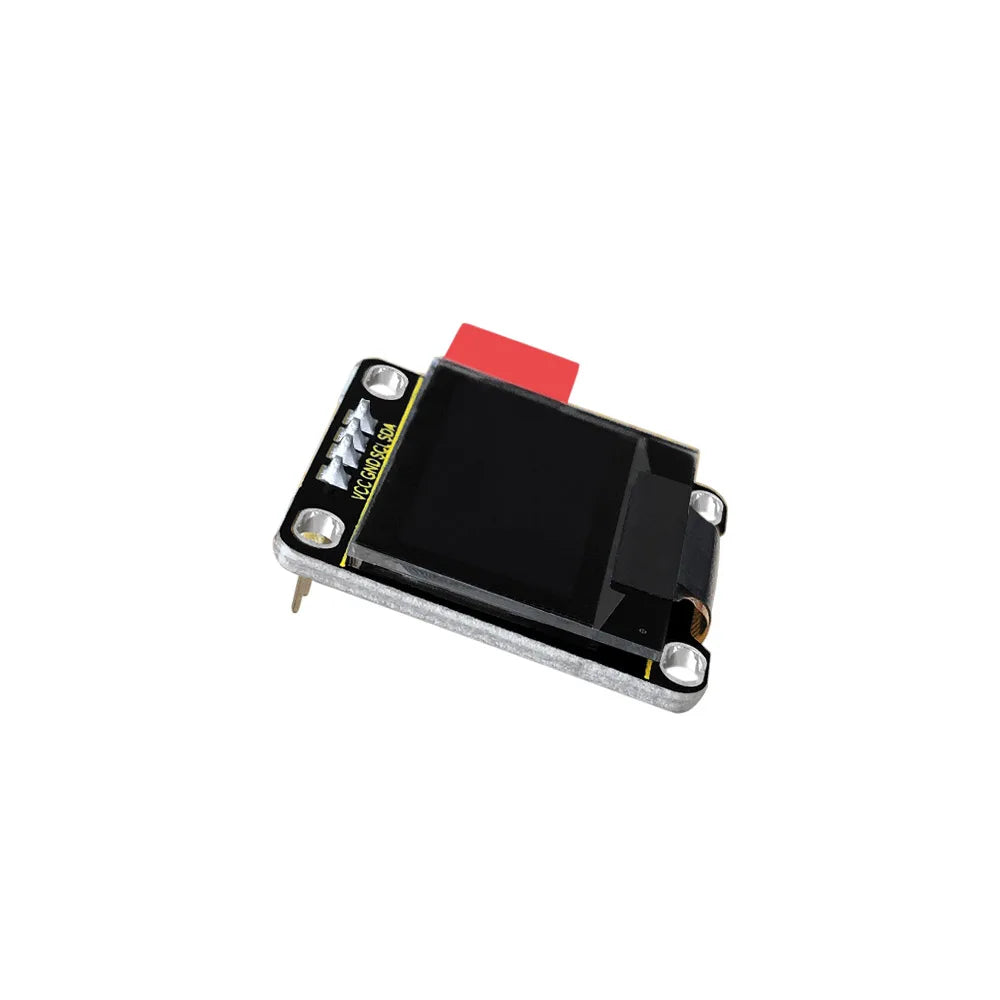

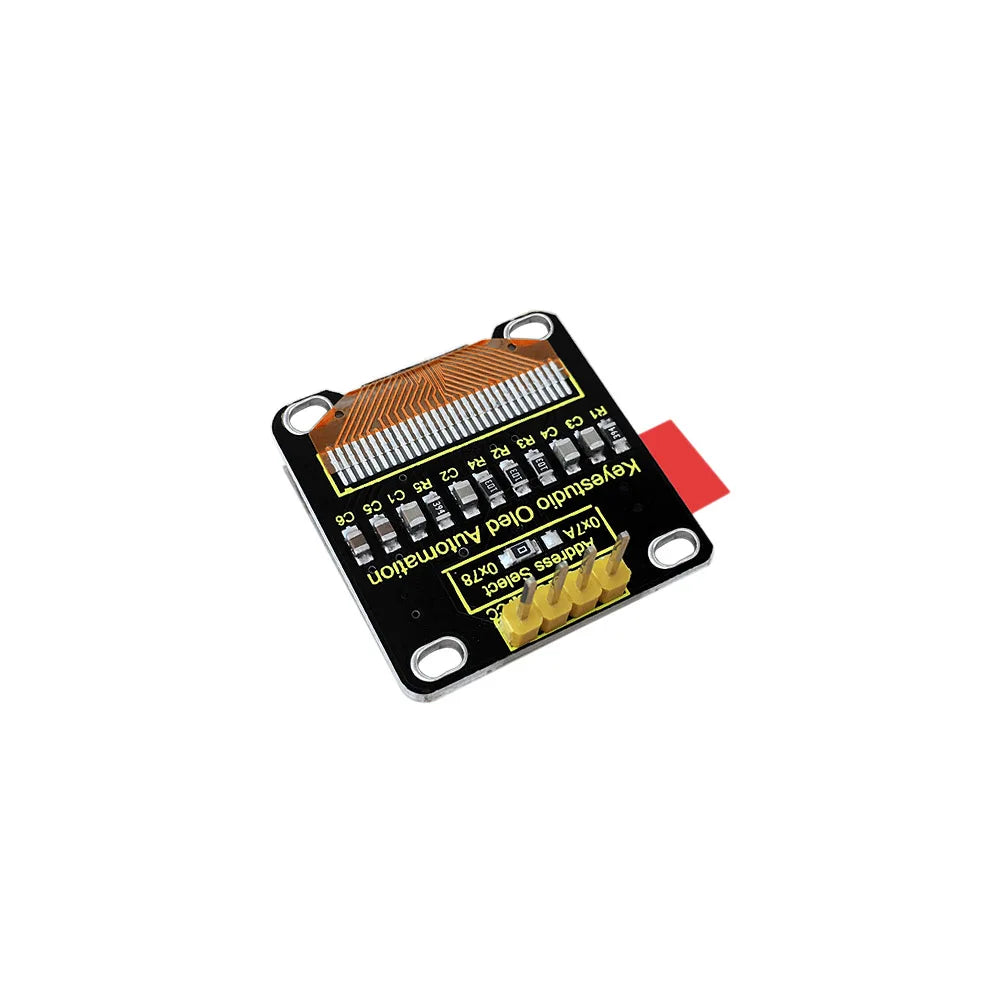

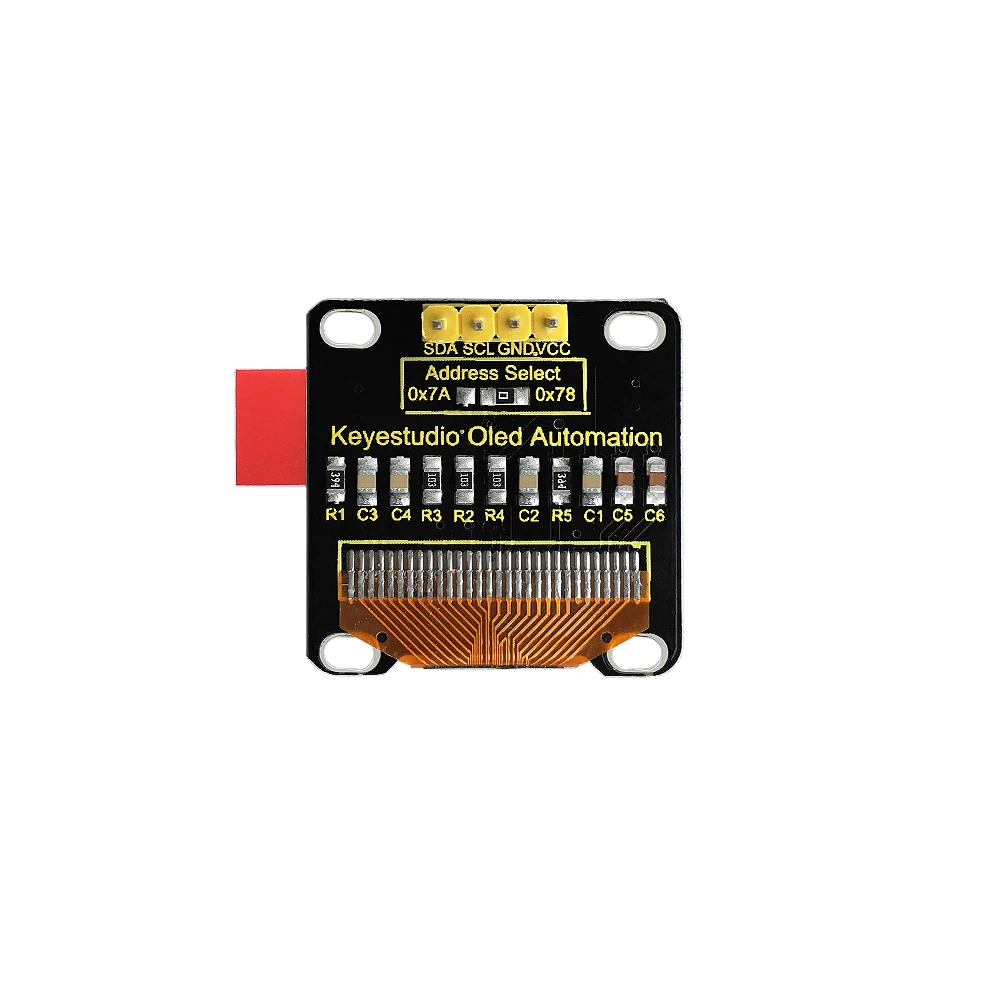

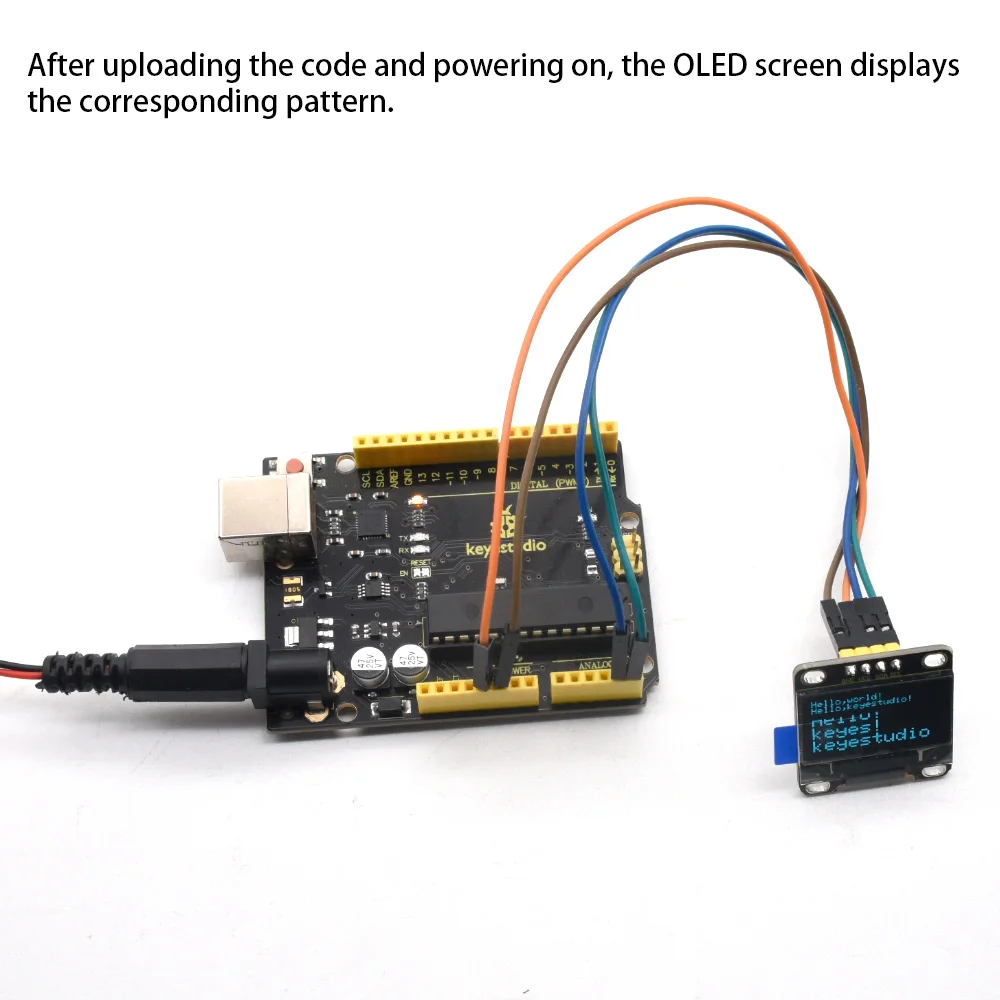

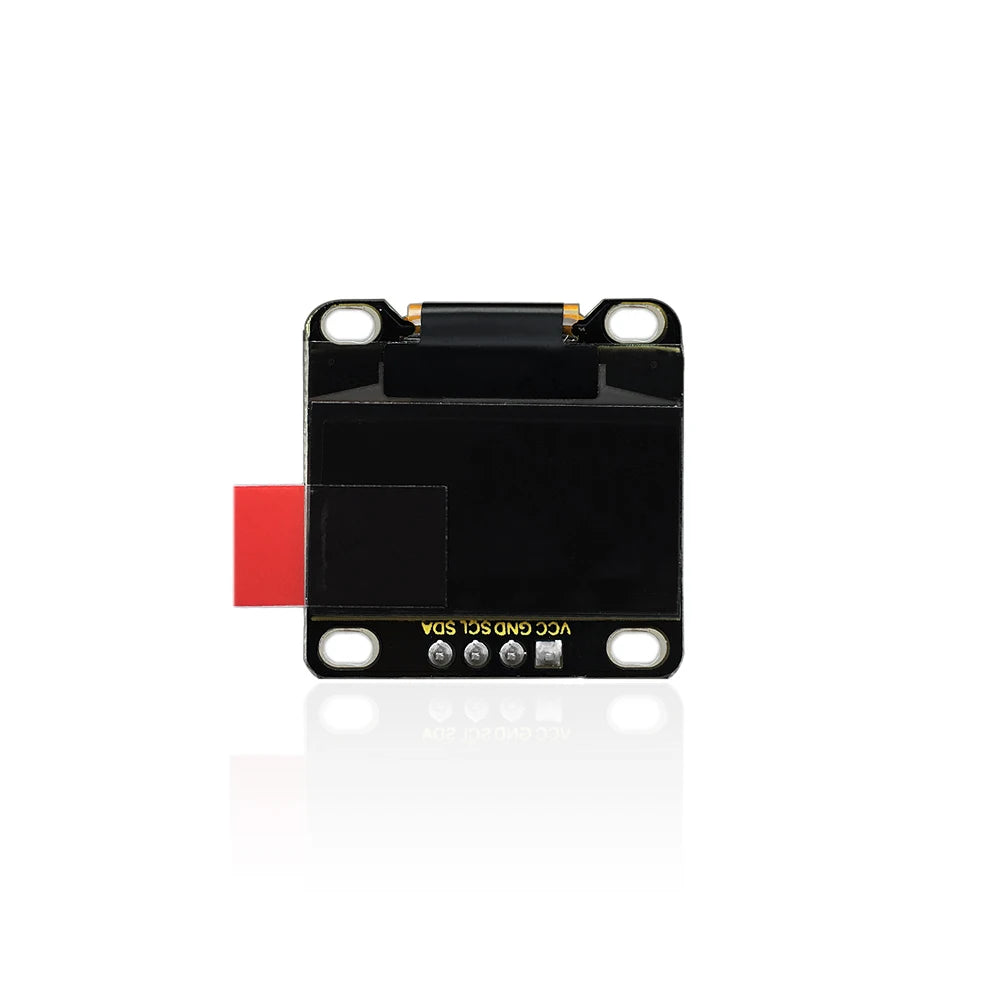

keyestudio0.96 OLED Display Module

Description:

OLED is short for organic light emitting diode. On the microscopic level, an OLED display is a matrix of organic LEDs that light up when they emit energy.

Old LCD (Liquid Crystal Display) technology uses electronically controlled polarizers to change the way light passes or does not pass through them. This requires an external backlight that lights up the whole display underneath. This uses a lot of energy because at the time the display is on, enough light for all pixels must be provided.

The new OLED technology only uses electricity per pixel. Because each pixel creates its own light, only the pixels that are on use electricity. This makes OLED technology very efficient; also, the way these types of OLEDs are built allows them to be very thin compared to LCD.

Specification:

Supply Voltage: 3.3V to 5V

Number of Pixels：128 × 64

Color Depth：blue

Communication way: IIC
