Keyestudio CNC Kit For Arduino CNC Shield V3.0+UNO R3+4pcs DRV8825 Driver +1pc USB Cable Compatible GRBL 0.8c Kit

Keyestudio CNC Kit For Arduino CNC Shield V3.0+UNO R3+4pcs DRV8825 Driver +1pc USB Cable Compatible GRBL 0.8c Kit

$142.11

$142.11 $0.00

Description

SPECIFICATIONS

Application: Electric Toy

Brand Name: keyestudio

CNC Kit: CNC Shield Version 3.0

Compatible: GRBL 0.8c

Condition: New

High-concerned chemical: none

Operating Temperature: 0-40

Origin: Mainland China

Package: DIP

Type: Voltage Regulator

is_customized: Yes

34115371908985779

Introduction:

Keyestudio CNC Shield V3.0 can be used as driver expansion board for engraving machines.

It has total 4 channel slots for DRV8825 stepper motor driver modules (not included) for driving 4 channel of stepper motors. Each channel of stepper motor only needs 2 IO ports, which means 6 IO ports is sufficient to manage 3 stepper motors.

This shield can make quick work for managing stepper motors in your project.

Specification:

Latest Keyestudio CNC Shield Version 3.0

GRBL 0.8c compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)

4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)

2 x End stops for each axis (6 in total)

Spindle enable and direction

Coolant enable

Uses removable Pololu DRV8825 compatible stepper drivers. (A4988, DRV8825 and others)

Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )

Compact design.

Stepper Motors can be connected with 4 pin molex connectors or soldered in place.

Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)

Kit List:

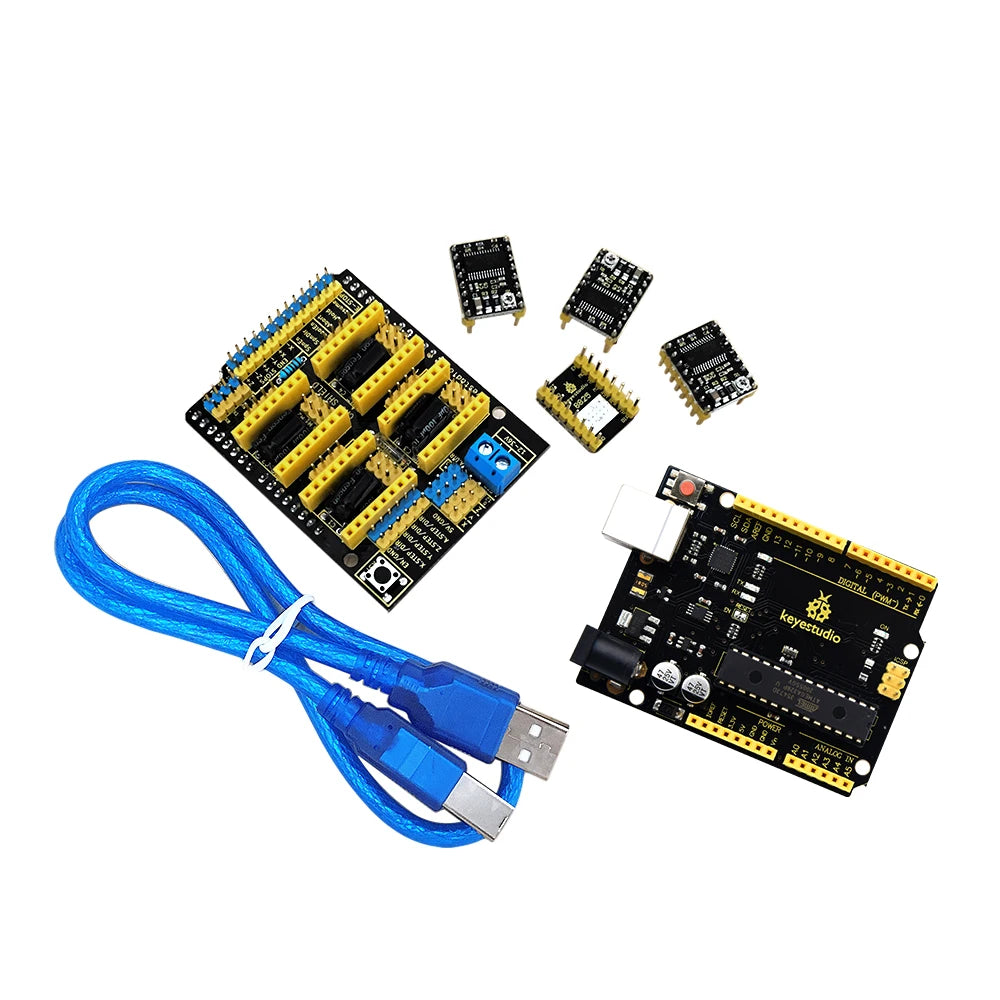

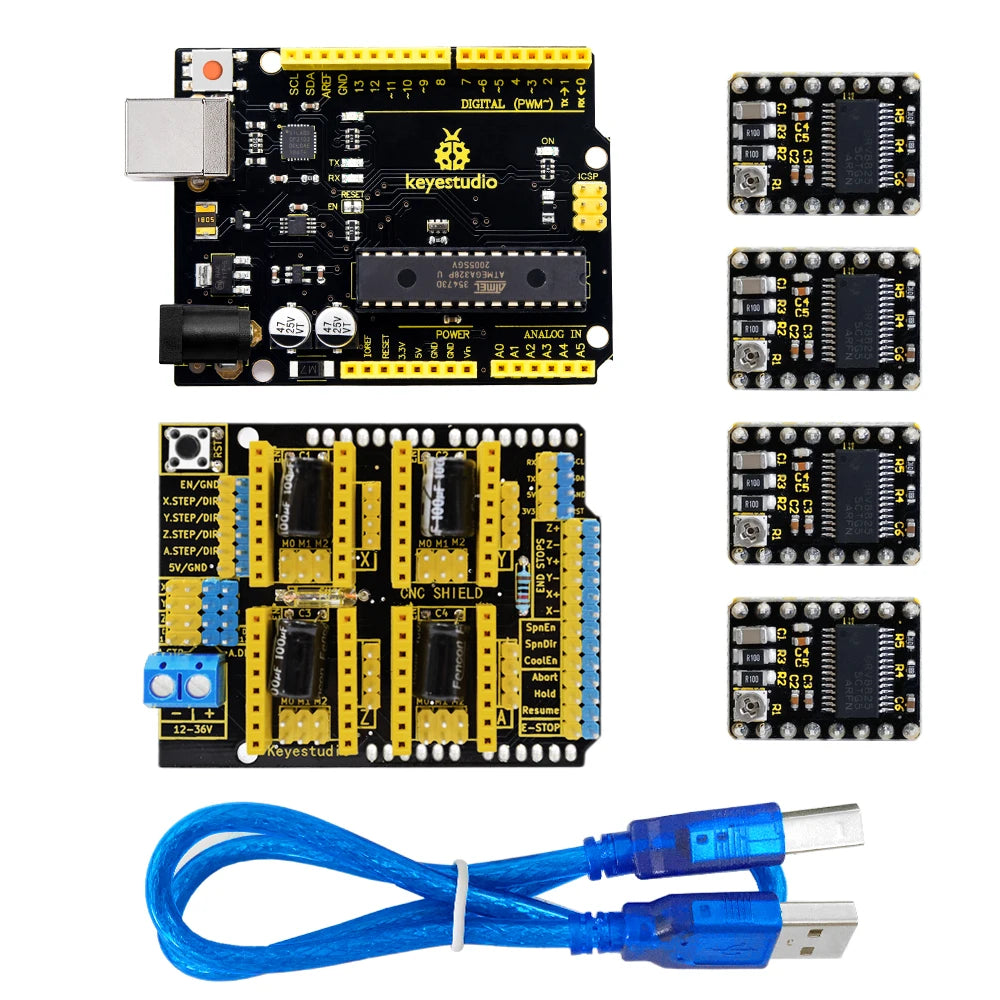

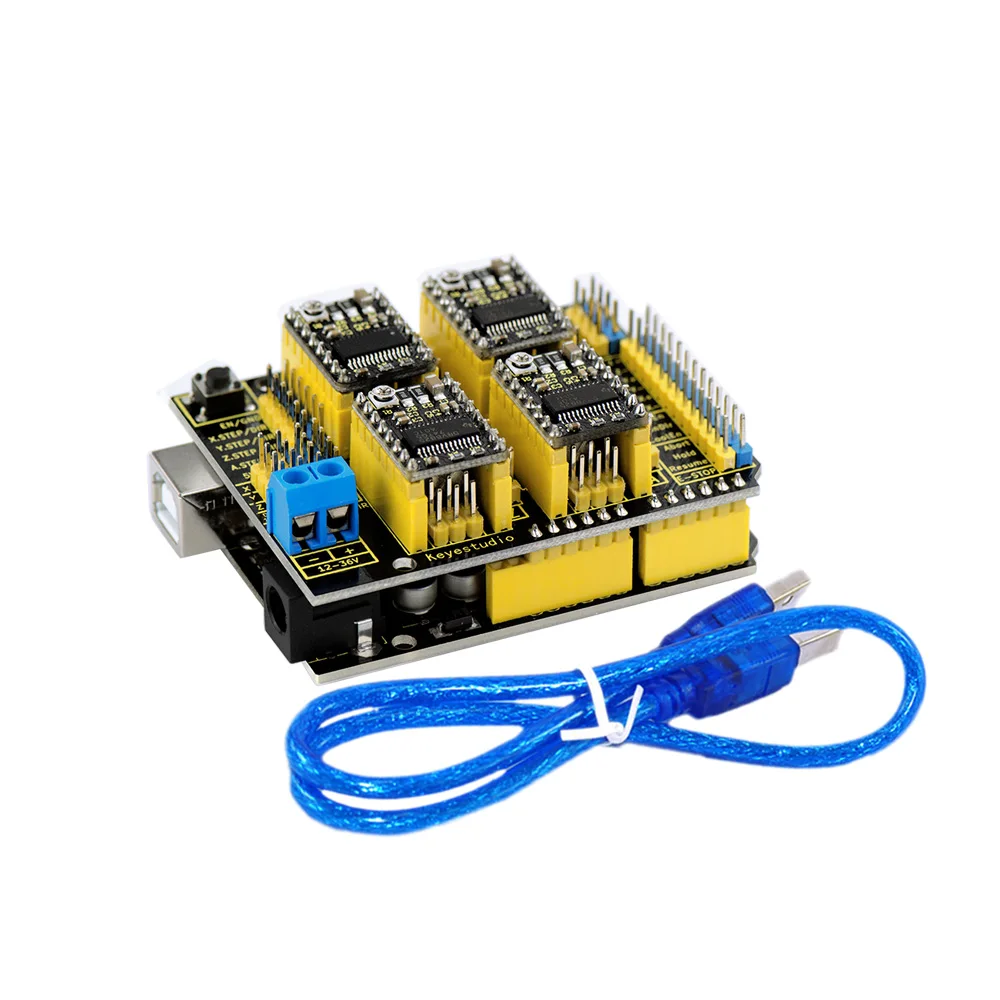

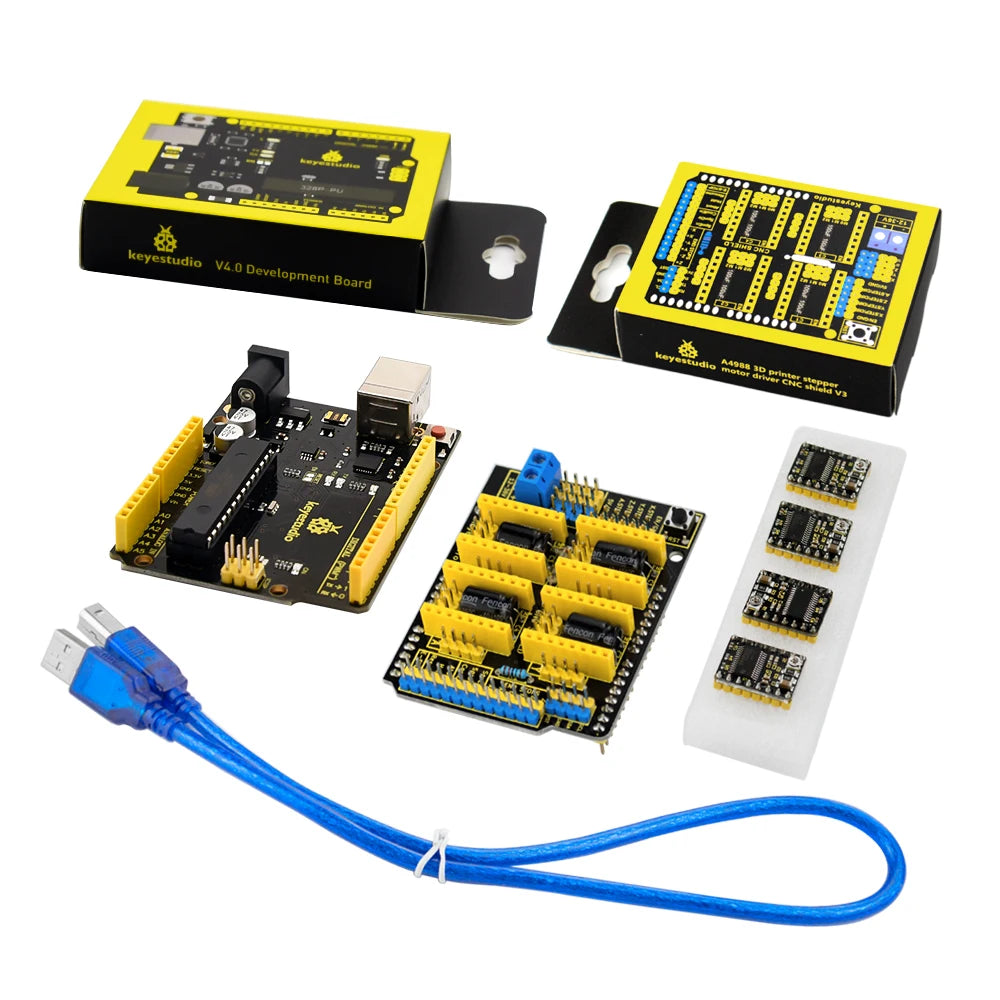

Keyestudio CNC Shield V3.0 *1

Keyestudio REV4 Board *1

DRV8825 Driver *4

USB Cable *1

Resource:

https://fs.keyestudio.com/KS0286
