keyestudio GPS Shield For Arduino UNO R3 Based On NEO-6M-0-001 Module Compatible With UNO R3 And MEGA 2560 Control Board

keyestudio GPS Shield For Arduino UNO R3 Based On NEO-6M-0-001 Module Compatible With UNO R3 And MEGA 2560 Control Board

$87.04

$87.04 $0.00

Description

SPECIFICATIONS

Brand Name: keyestudio

Choice: yes

Condition: New

High-concerned chemical: none

Operating Temperature: 0-40

Origin: Mainland China

Package: DIP

Type: Voltage Regulator

is_customized: Yes

Introduction:

In life, it is becoming more and more popular to use GPS positioning. As for arduino MCU DIY experiments, is there a GPS positioning shield that can be compatible with the Arduino MCU?

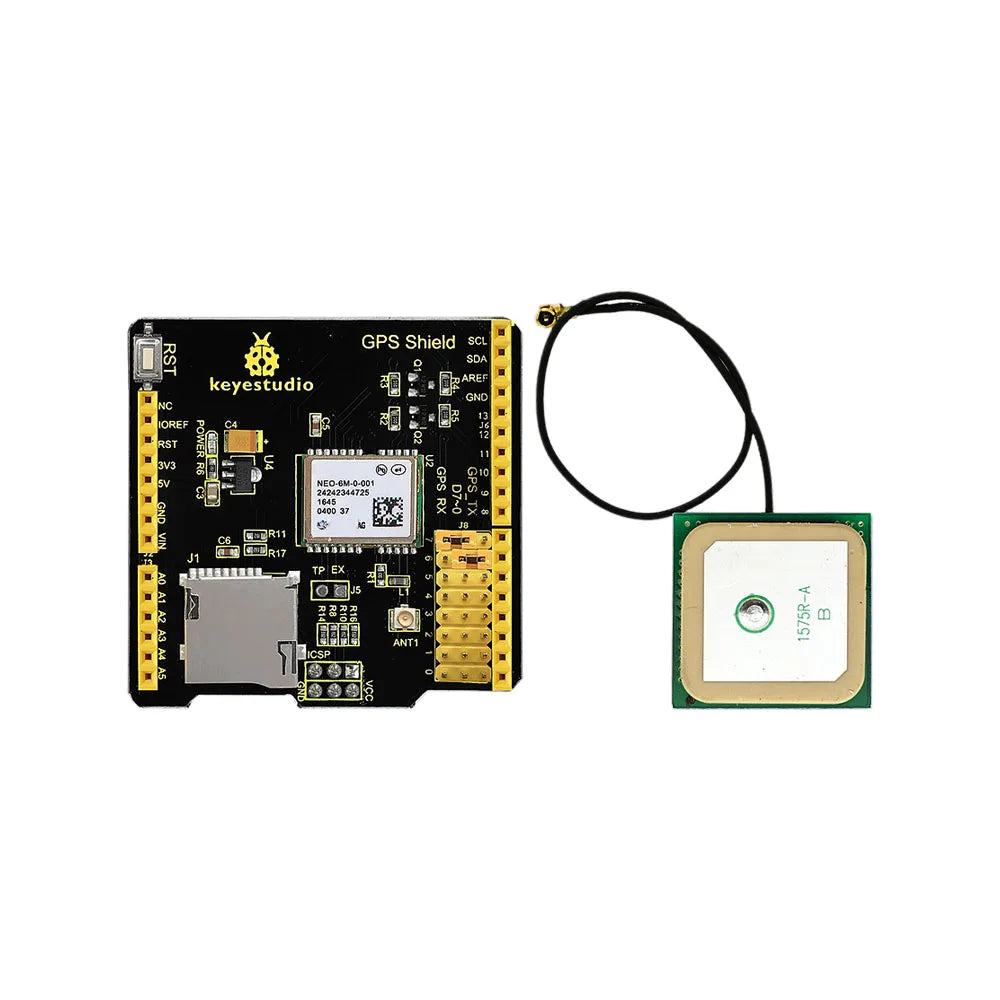

Well, use this keyestudio GPS shield. It is based on the NEO-6M-0-001 module, and those pins are also compatible with UNO R3 and MEGA 2560 control board.

Regular GPS pins (RX, TX) is connected to Arduino D0-D7, and you are able to set the connection pin via the jumper cap.

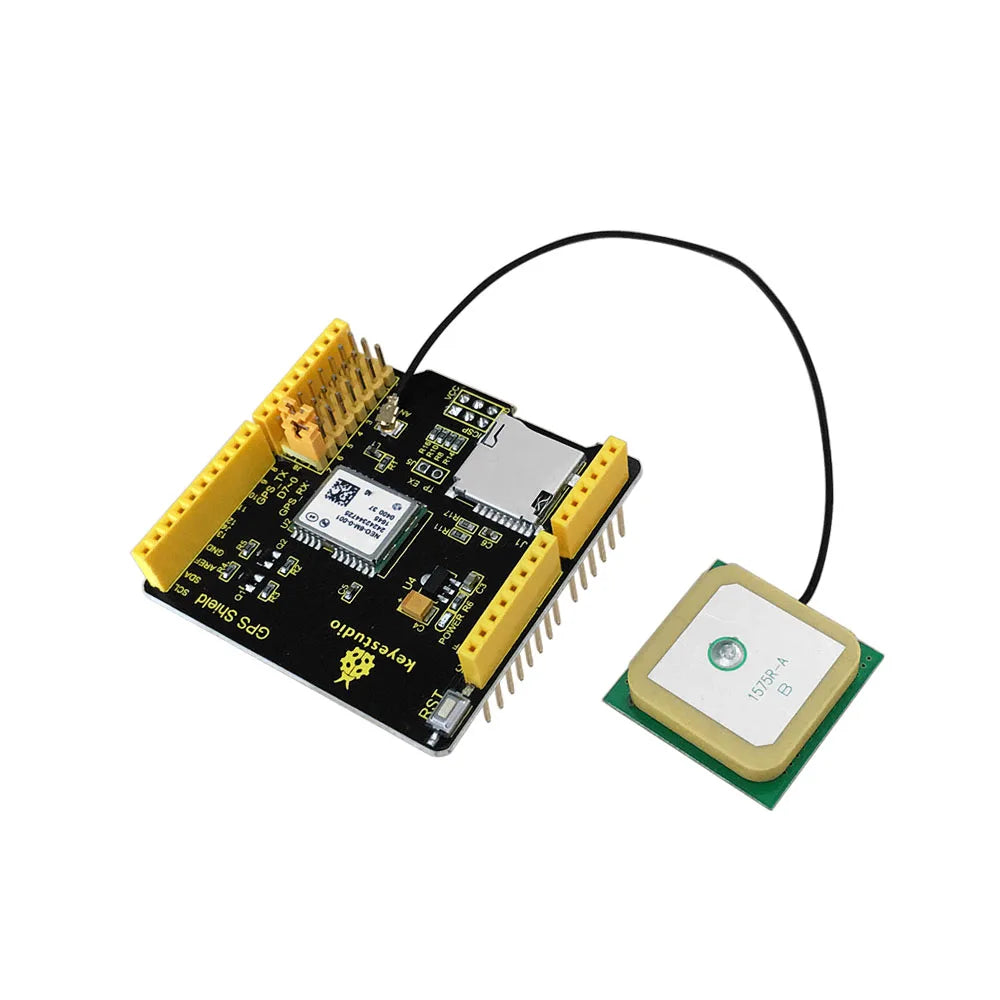

An active antenna is mounted on the GPS shield, allowing you to find your exact location within a few meters. Meanwhile, GPS also provides you with very accurate time!

It can be used in car navigation, personal positioning, fleet management, navigation and navigation.

In particular, this expansion board can only be positioned outdoors and cannot be used for indoor positioning.

Specification:

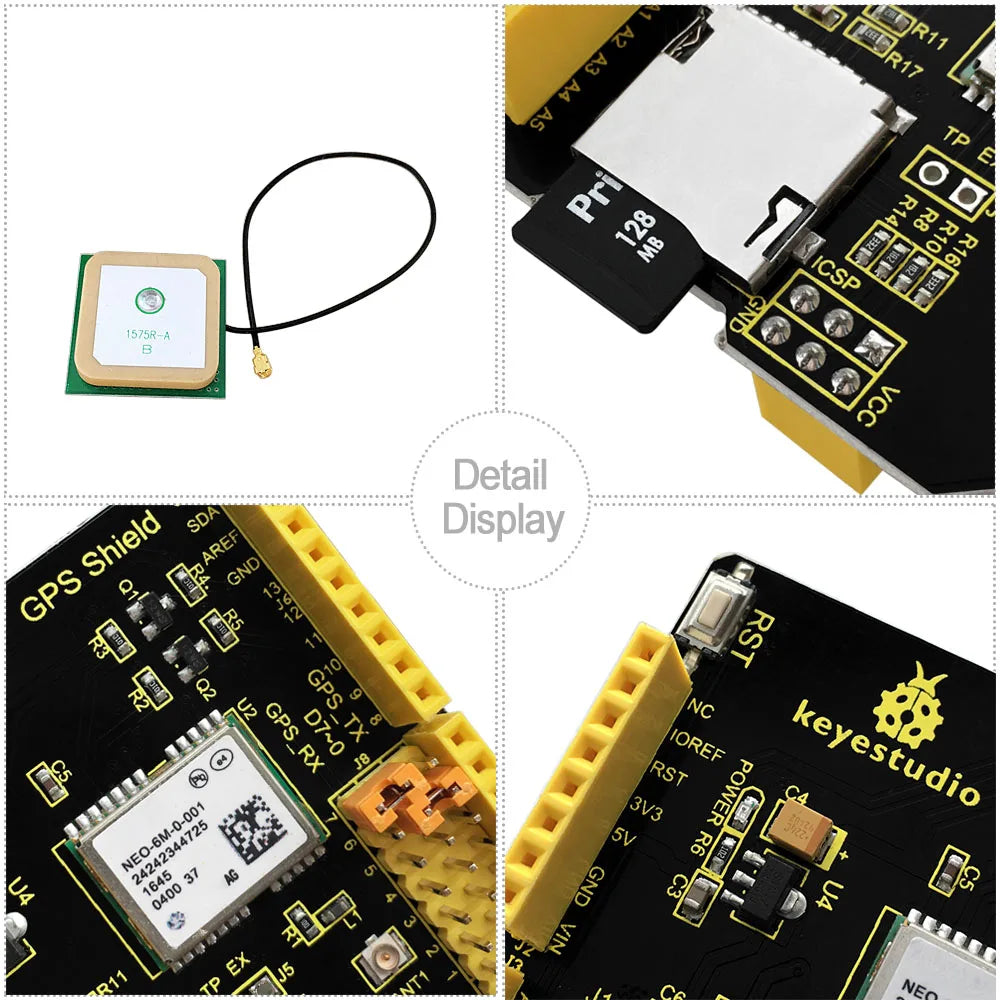

1.Using an active GPS antenna

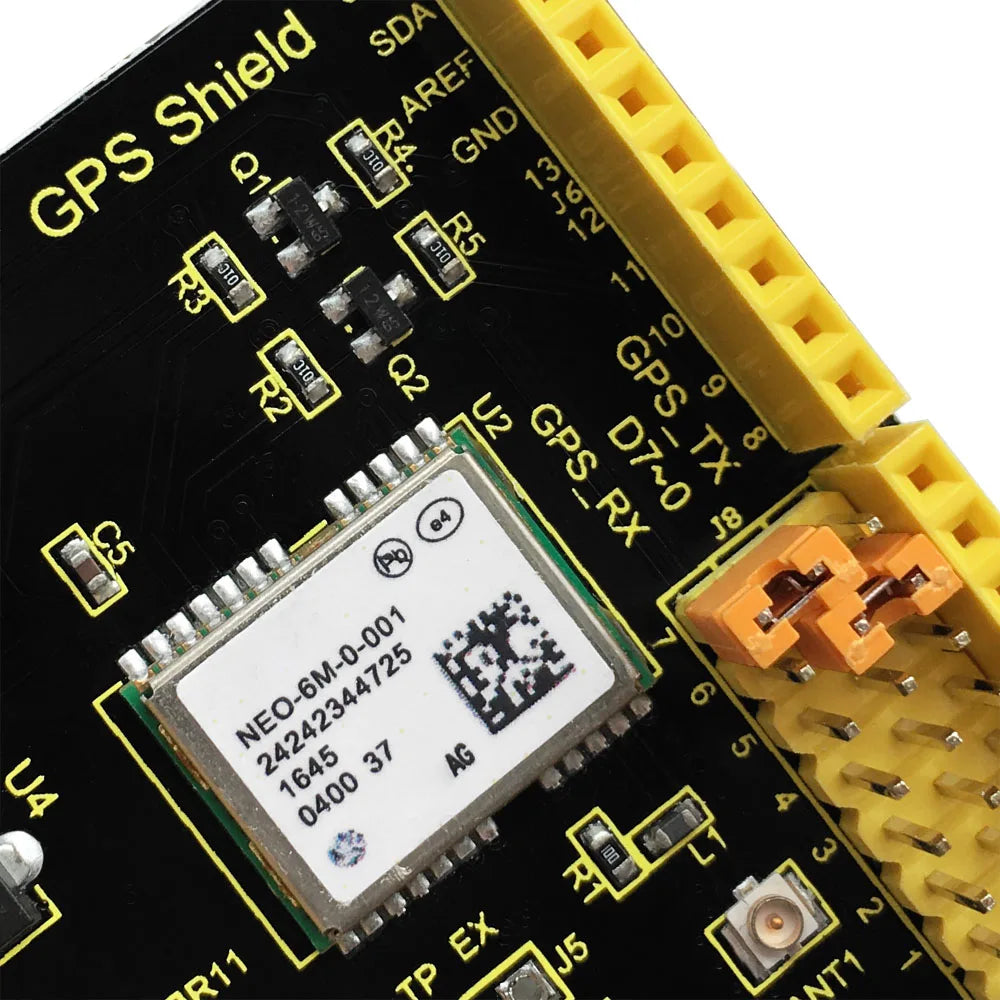

2.Connecting TxD and RxD to Arduino pins (D0-D8 optional) with jumper, and the default jumper caps are D7<-->RX and D6<-->TX.

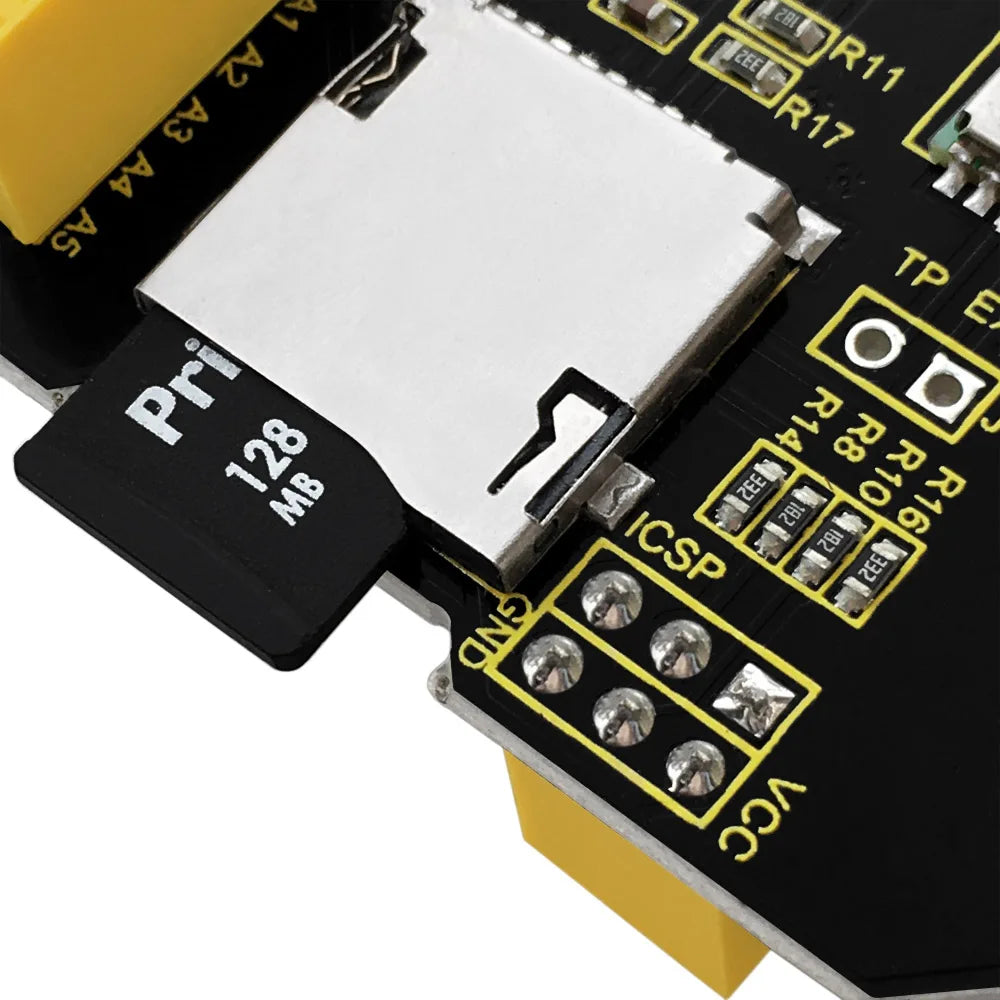

3.Onboard comes with a SD card socket

4.Comes with an ICSP pin

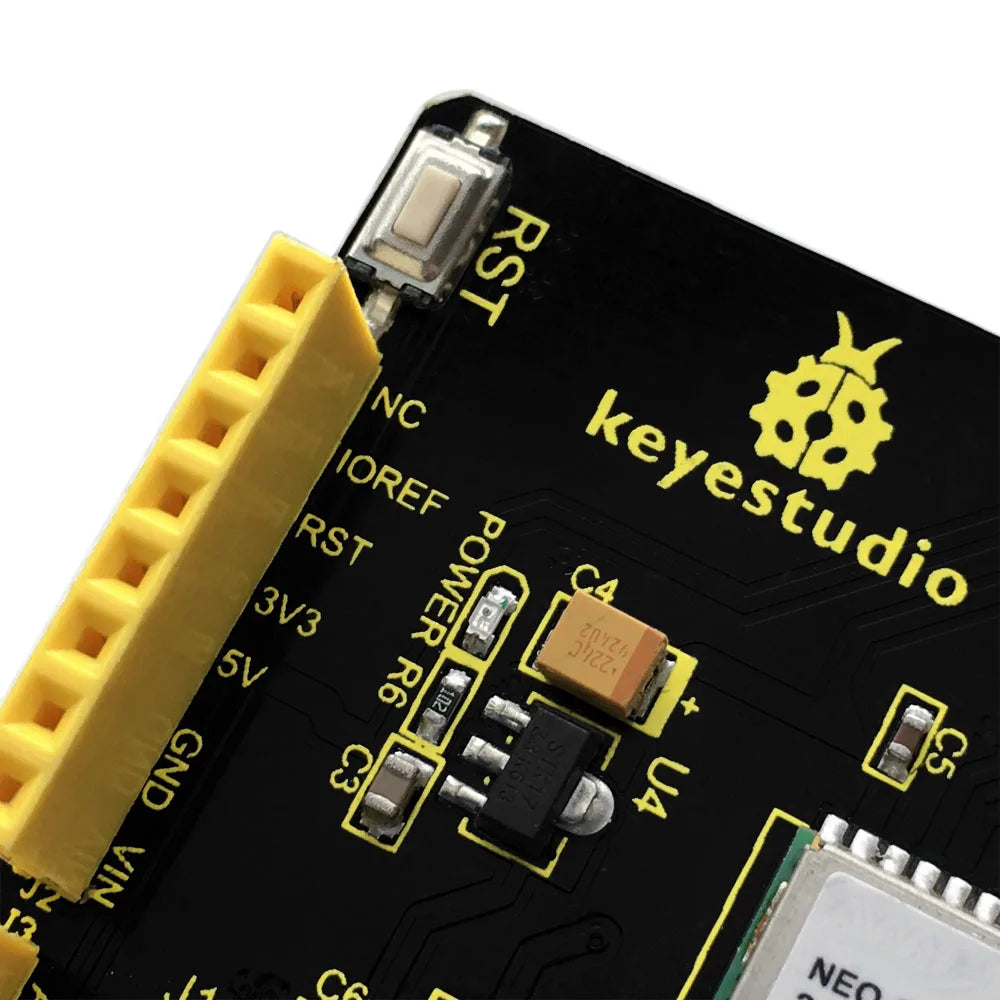

5.Comes with a reset button to reset the Arduino control board

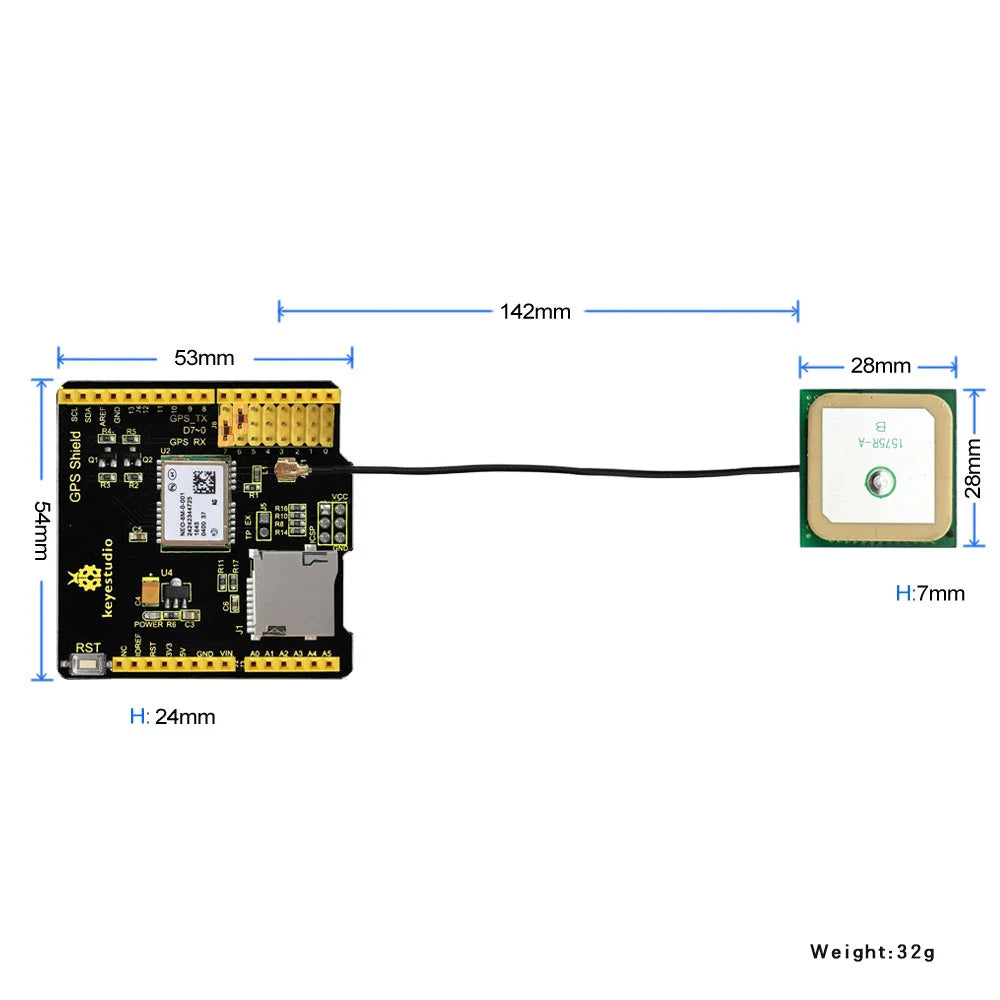

Technical Details:

GPS shield dimensions: 54mm*53mm*24mm

Antenna dimensions: 28mm*28mm*7mm

Antenna lead length: 142mm
