SPECIFICATIONS

AC Voltage: other

Battery Included: no

Brand Name: NONE

Certification: CE

Choice: yes

DC Voltage: other

DIY Supplies: Electrical

Data Record: Yes

Display Type: Pointer Display

High-concerned chemical: none

Operating Mode: Manual Range

Origin: Mainland China

Semi-finishedproduct: No

Product Features:

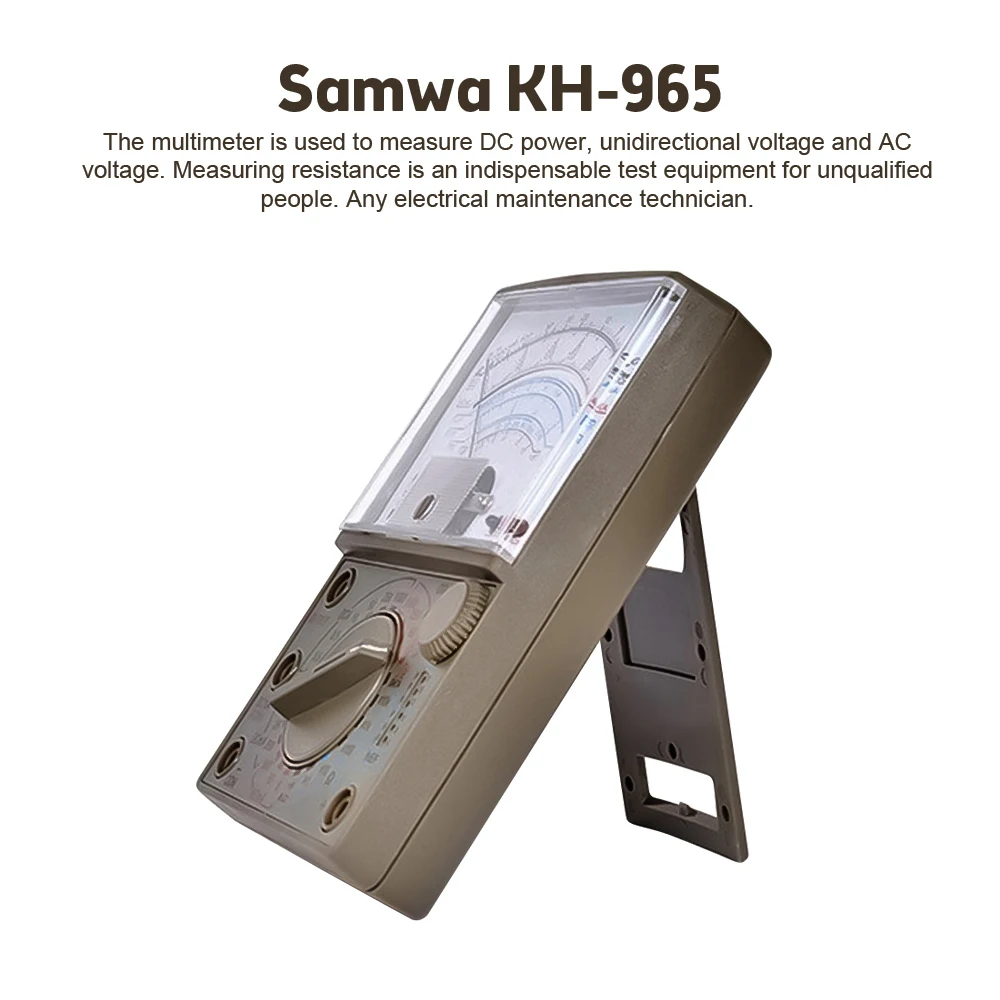

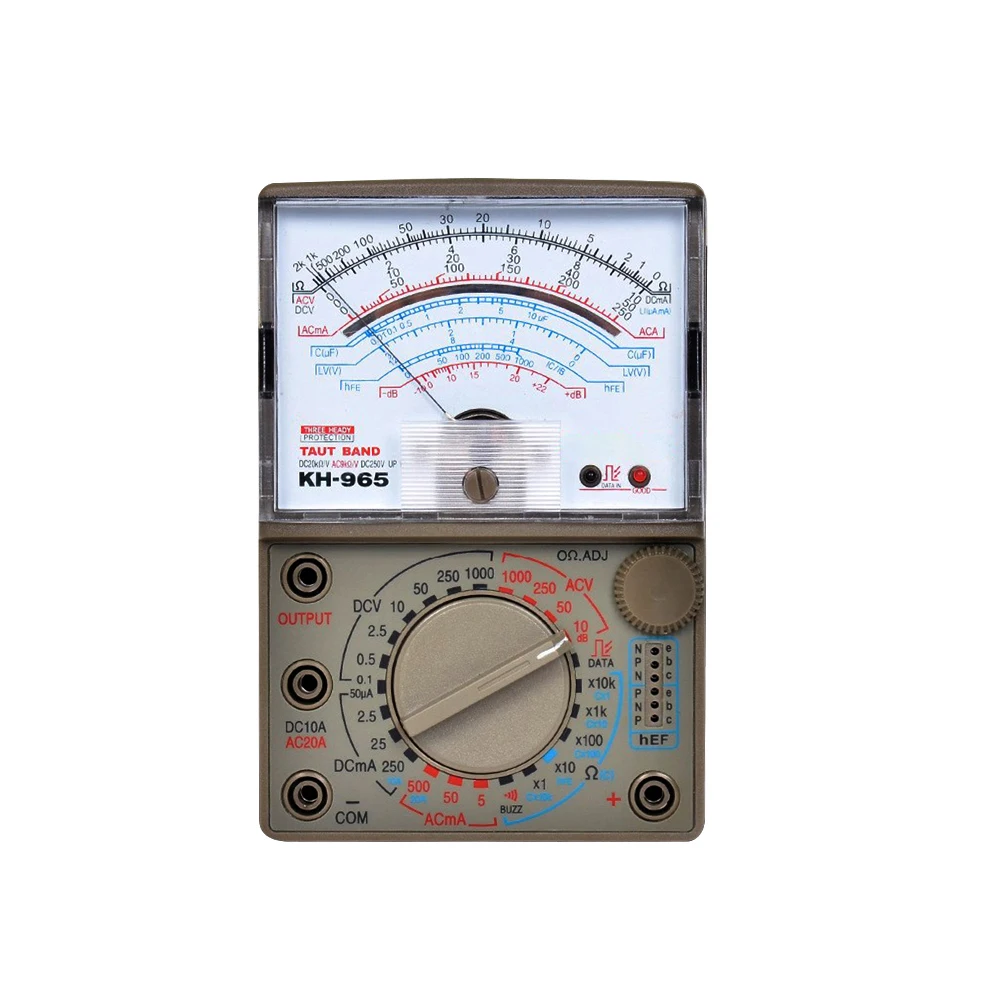

The Samwa KH-965 multimeter is essential for measuring DC power, unidirectional voltage, and AC voltage, as well as resistance, making it an indispensable testing tool for any electrical repair technician.

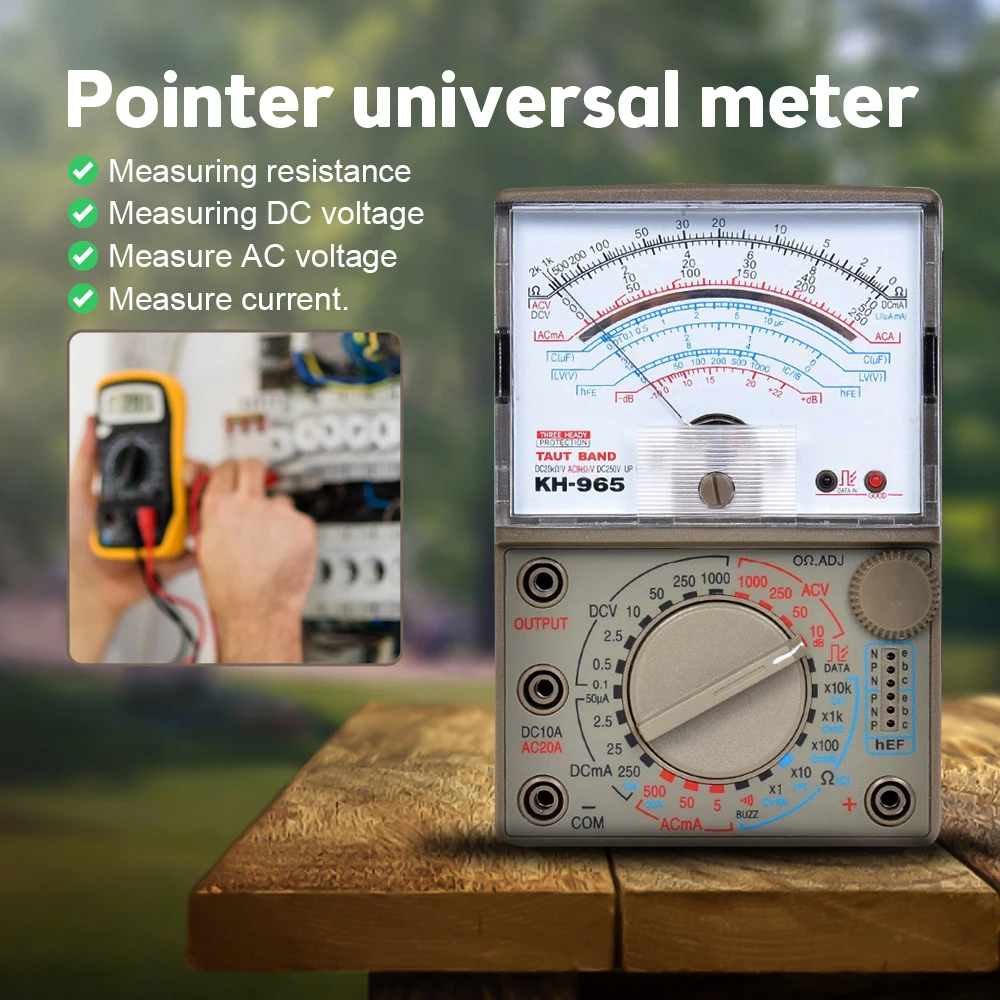

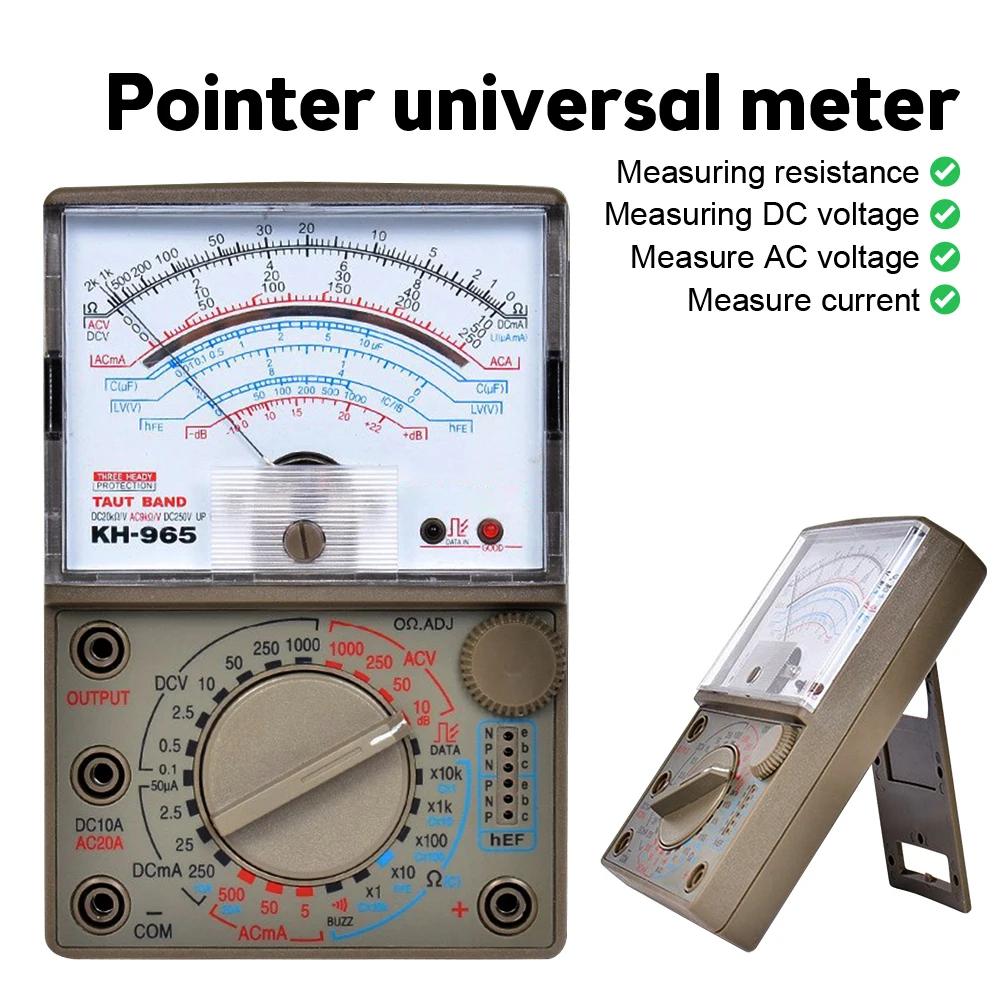

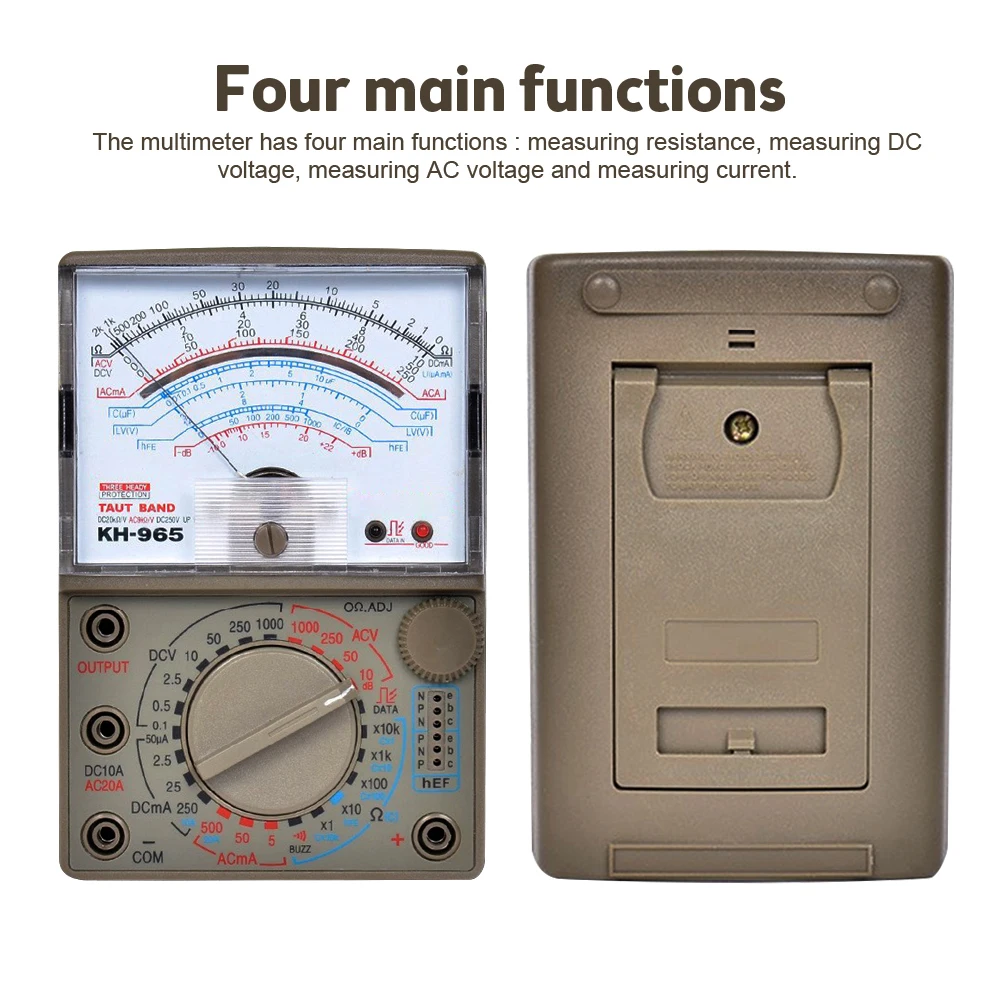

A multimeter has four main functions: measuring resistance, measuring DC voltage, measuring AC voltage, and measuring current.

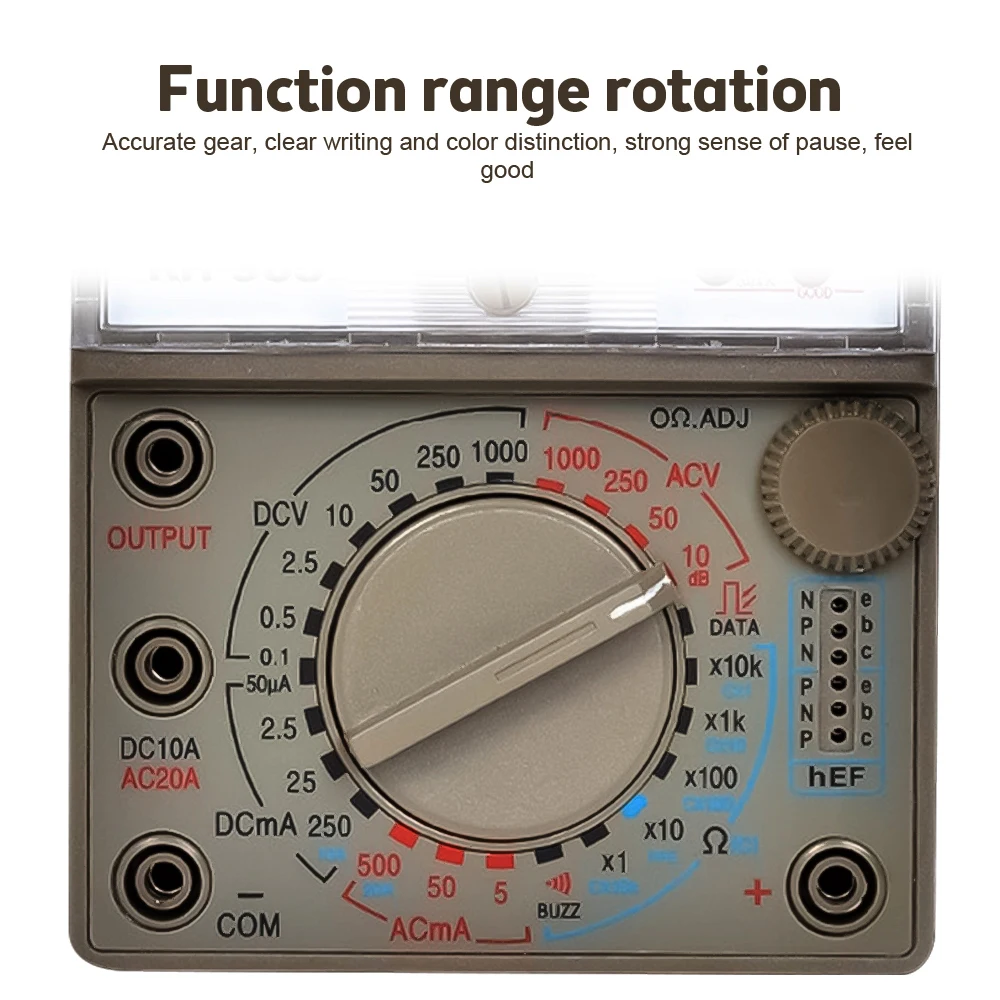

3. The Samwa KH-965 multimeter, manufactured by Donghao, boasts a long service life and stable performance. Its adjustable knobs allow for flexible scale settings, making the repair process of your electronic devices simple and efficient.

4. When measuring AC voltage, we switch the scale to the AC scale, ensuring the AC scale is one step higher than the voltage to be measured.

5. For example, if you are measuring an AC 220V voltage, we will retain the AC 250V scale. If we keep it on the step of the voltage to be measured, the clock indicator pointer will be dramatic. If the bar is too large, the indicator pointer will be inaccurate.

Parameter

Name: KH-965 Multimeter

Material: ABS

Dimensions: 16.5*14*5cm

Color: Gray

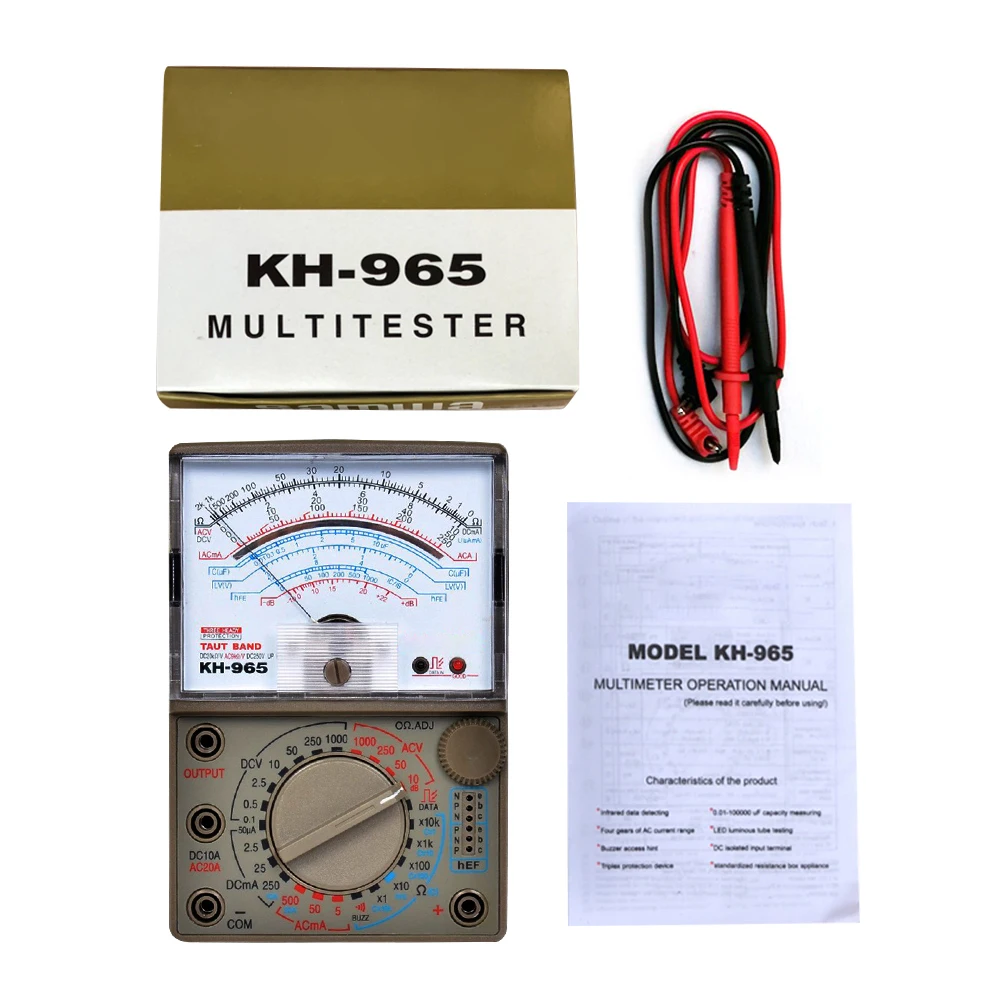

Packing List

1 multimeter

1 x instruction

2 x test leads

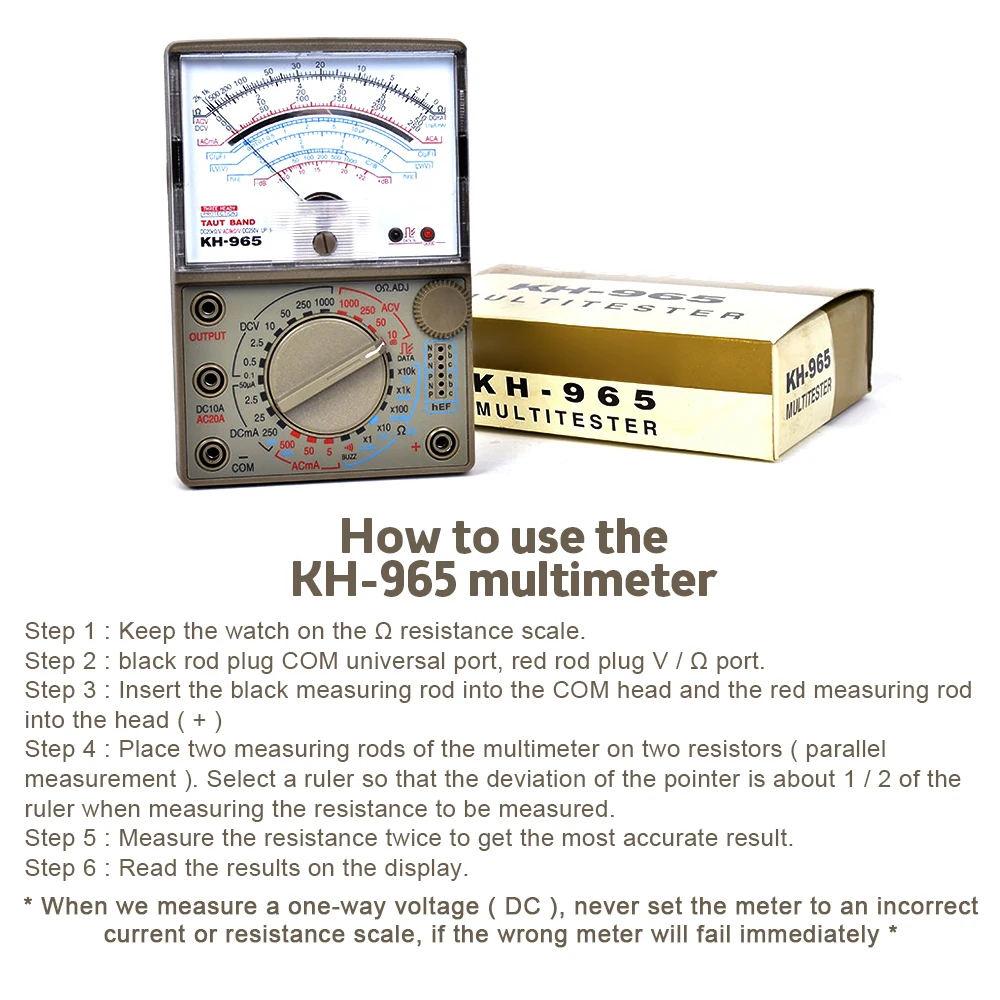

How to Use the Samwa KH-965 Multimeter

Step 1: Keep the watch on the Ω resistance scale.

Step 2: Insert the black probe into the COM universal port and the red probe into the V/Ω port.

Step 3: Insert the black measuring rod into the COM port and the red measuring rod into the head (+)

Step 4: Place the two measuring probes of the multimeter on the two resistors (parallel measurement). Select a scale so that the needle deviation is approximately half of the scale when measuring the resistance to be determined.

Step 5: Measure the resistance. You can take two measurements to obtain the most accurate result.

Step 6: Read the results displayed on the screen.

*When measuring DC voltage, never place the meter on the current or resistance scale by mistake, as this will immediately render the meter useless.*
