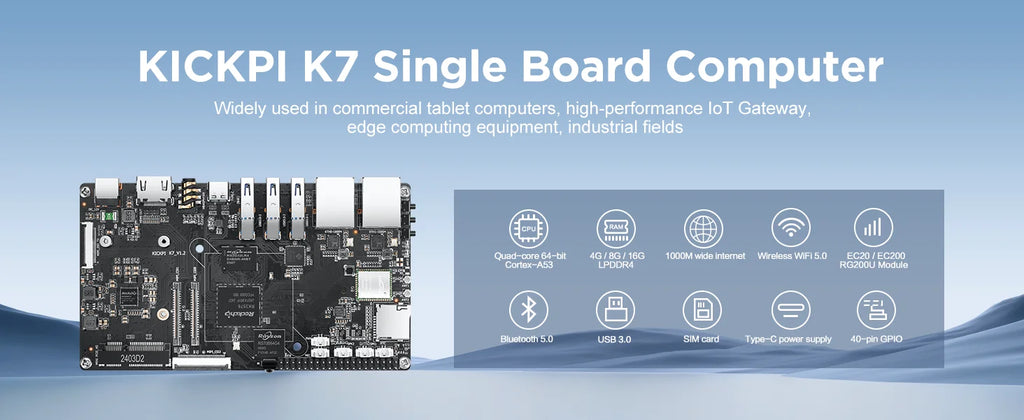

KICKPI K7 RK3576 4GB RAM 32GB eMMC 8-Core Single Board Computer 6TOPS NPU Mali-G52 GPU Android 14 Linux AI Development Board
$1,277.52
Sale price
$1,277.52
Regular price
$0.00
Description
SPECIFICATIONS
Battery Included: no
Brand Name: KICKPI
Certification: FCC
Demo Board Type: ARM
High-concerned chemical: none
Interface: 2 x USB2.0,USB OTG,HDMI-Compatible/RCA Output
Intergrated Feature: 10/100/1000Mbps,WiFi 802.11b/g/n,IR Receiver,Bluetooth
Memory Capacity: 4GB
Model Number: RK3576
Origin: Mainland China
Processor Brand: Rockchip
ROM Capacity: 32 GB
Typical Application Fields: Internet of Things (IoT)
Hardware spec:
Function |
Main Parameter |
Main Controller |
Rockchip RK3576 |
CPU |
Quad-core Cortex-A72 + Quad-core Cortex-A53 |
GPU |
Mali G52 MC3 |
NPU |
RKNN 6 Tops |
Memory |
4G / 8G |
Storage |
16G / 32G |
Systems Supported |
Android 14.0 / Debian12 / Ubuntu2404 |
Power Supply |
DC 12V |
Cooling Fan |
Y ( 5V Power ) |
LED Light |
* Power LED * Work LED |
USB HOST |
USB 3.0 HOST X3 |
USB TYPE-C |
USB3.1 OTG / USB Debug / DP v1.4 |
Infrared Receiver |
Y |
Real-Time Clock |
Y ( HYM8563 ) |
Debug Serial Port |
Y |
Buttons |
* Recovery KEY * RESET KEY * MASKROM KEY * POWER KEY |
Expansion Pins |
Extend Pin Total 40Pin：*UART X5 *SPI X1 *PWM X7 *ADC X3 *I2C X3 *I3C X1 *GPIO X22 *PDM X1 *CAN X2 |
HDMI Display |
X1 ( up to 4K @ 120Hz ) |
MIPI DSI Display |
X1 ( up to 1920*1080 @ 60Hz) |
MIPI SI Camera |
4 Lane X4 |
Speaker |
Y ( Max Power 5W ) |
Headphones |
Y |
Microphone |
Y |
WIFI/Bluetooth |
Y ( RTL8822CS ) |
Ethernet |
1000M X2 |
4G Mobile Network |
Y ( 4G EC20 /EC200) ( 5G RG200) |
TF Card |
Y |
M.2 Hard Drive |
Y |
