SPECIFICATIONS

Application: Digital control; servo motor; robot; automations

Battery Included: no

Brand Name: ZUIDID,HENGXIANG

Certificate: CE; ISO9001

Certification: CE

Connection interface: Radial socket; Radial cable

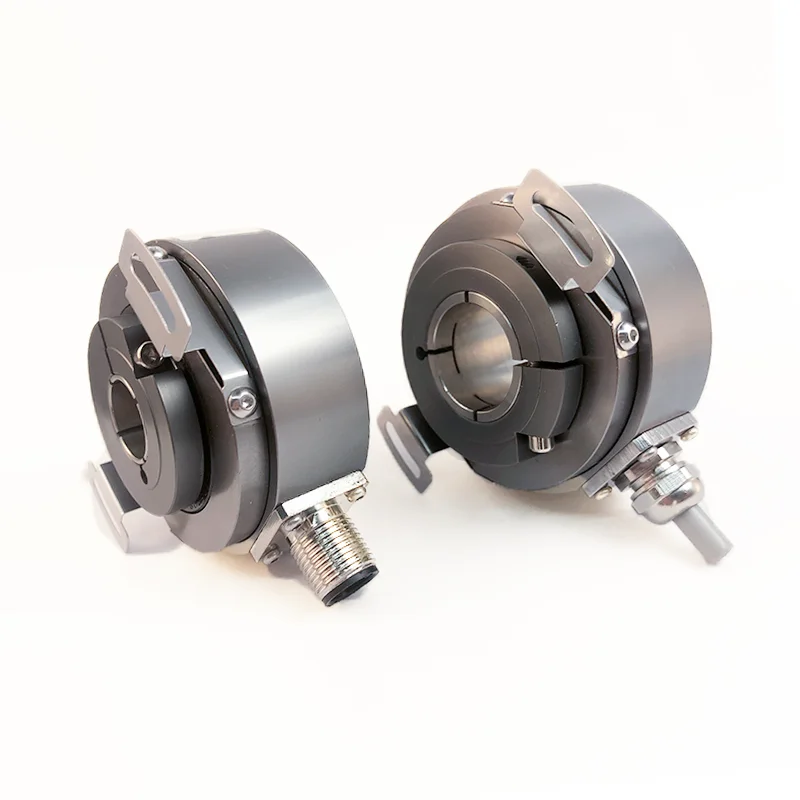

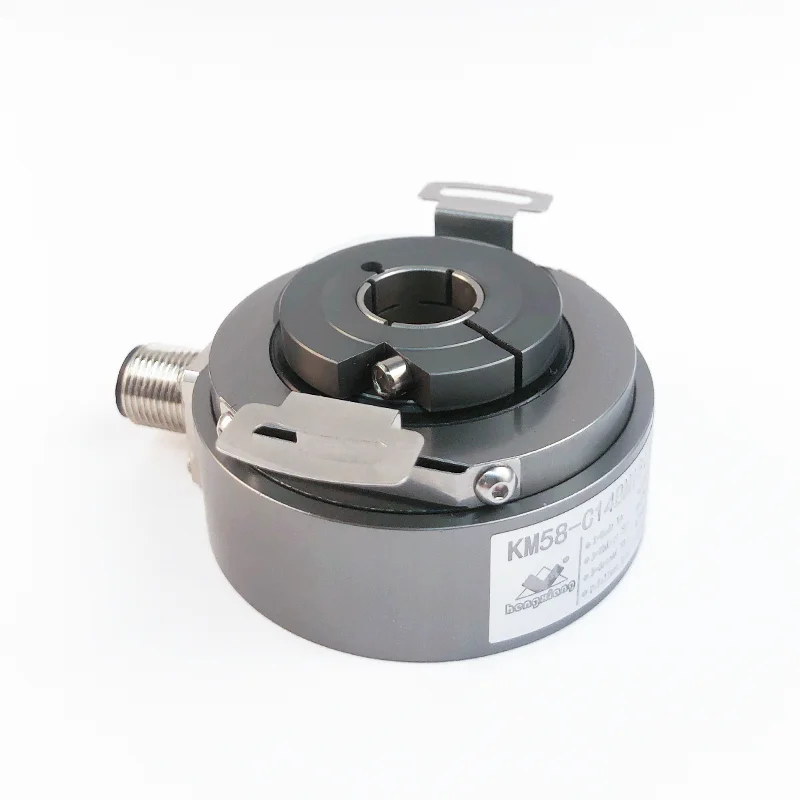

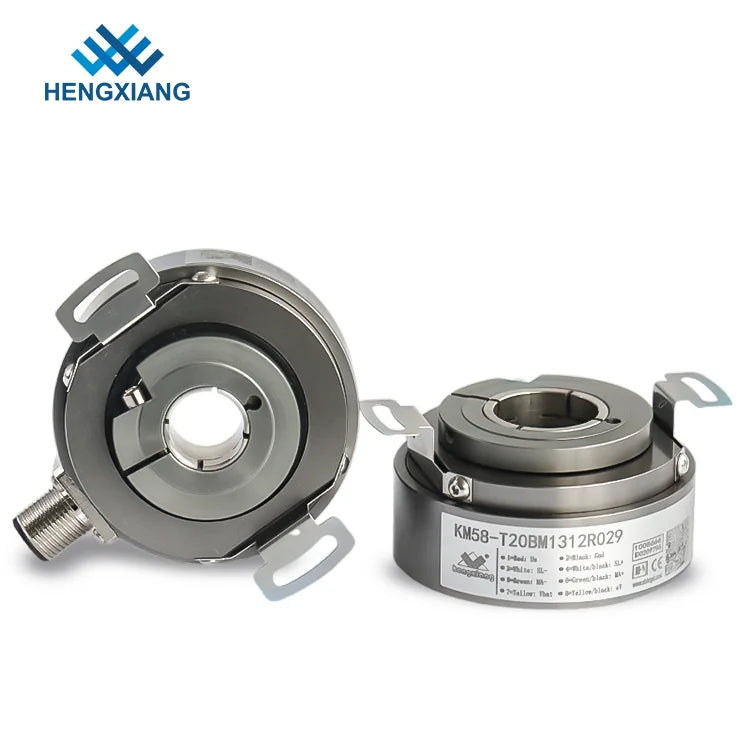

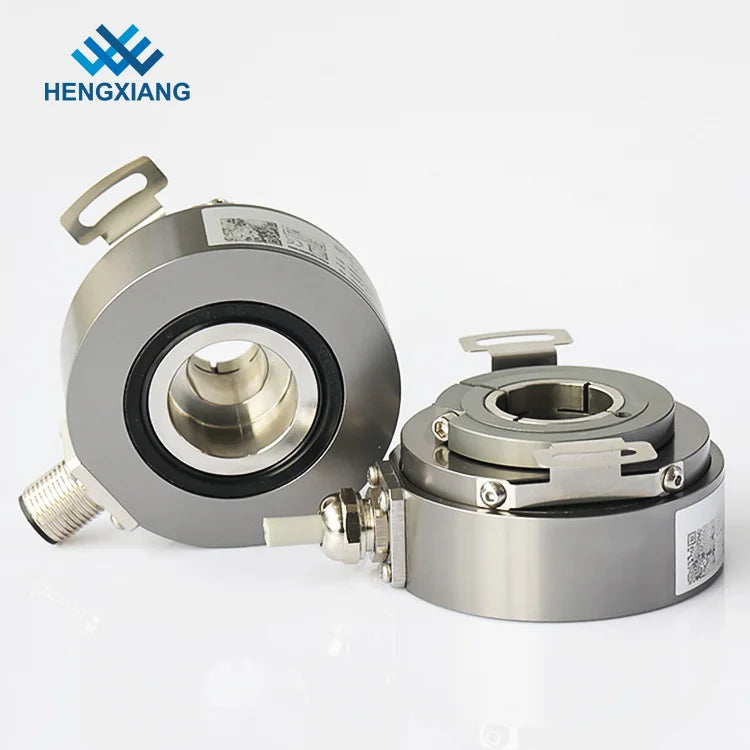

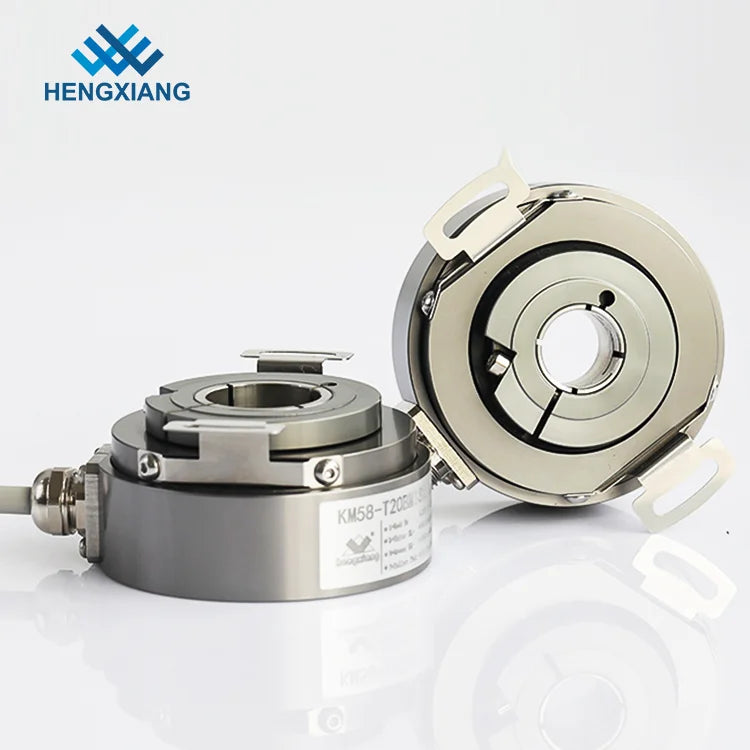

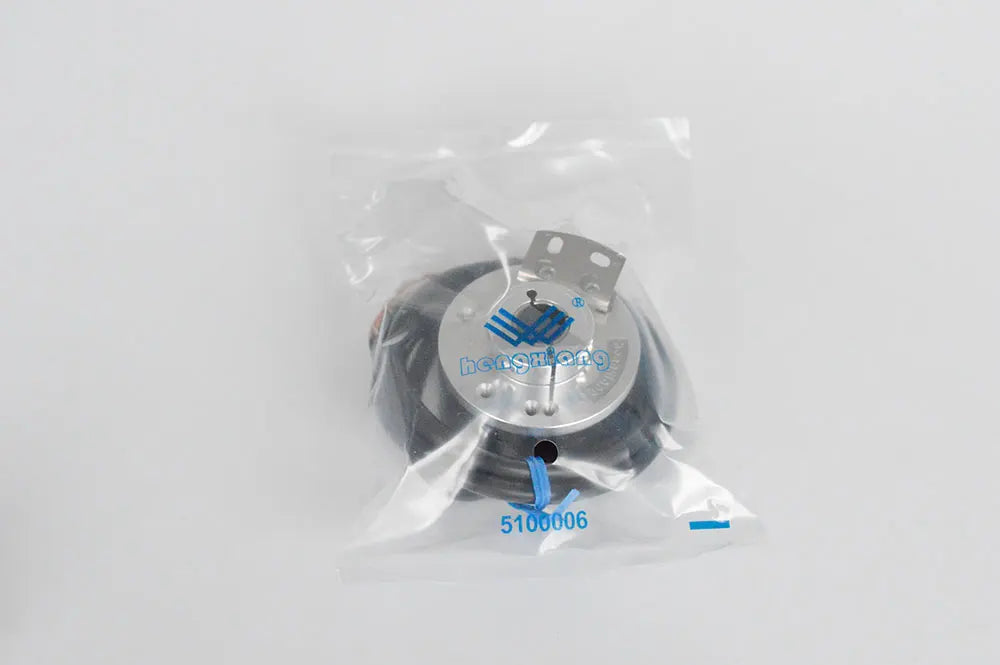

Description: 58mm hollow shaft multi-turn absolute encoder, KM58

Diameter of shaft: 14/18/20/22/24/25mm hollow shaft

Electrical interface: RS-485

Feature: Non-contact photoelectric reflection principle

High-concerned chemical: none

Model Number: KM58

Mounting Type: Spring plate type

Multi-turn: 16Bits +17/19/20/22/24 Bits

Origin: Mainland China

Output: Other

Place of Origin: Shanghai, China

Protection grade: IP65

Resolution: Multi-turn & Single-turn

Semi-finishedproduct: No

Series: Absolute type

Single-turn: 17/19/20/22/24 Bits

Theory: Optical sensor

Type: ABSOLUTE ENCODER

Usage: Optical sensor

If you have any questions, Please contact our customer service:
WhatsApp：+86 152 3213 8097
Email：kaigui8881@163.com

Products Description

WHY CHOOSE HENGXIANG ?.

* Quick response once received customer’s quotation query
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Various encoder models to be selected
* Short lead time
* High quality standard

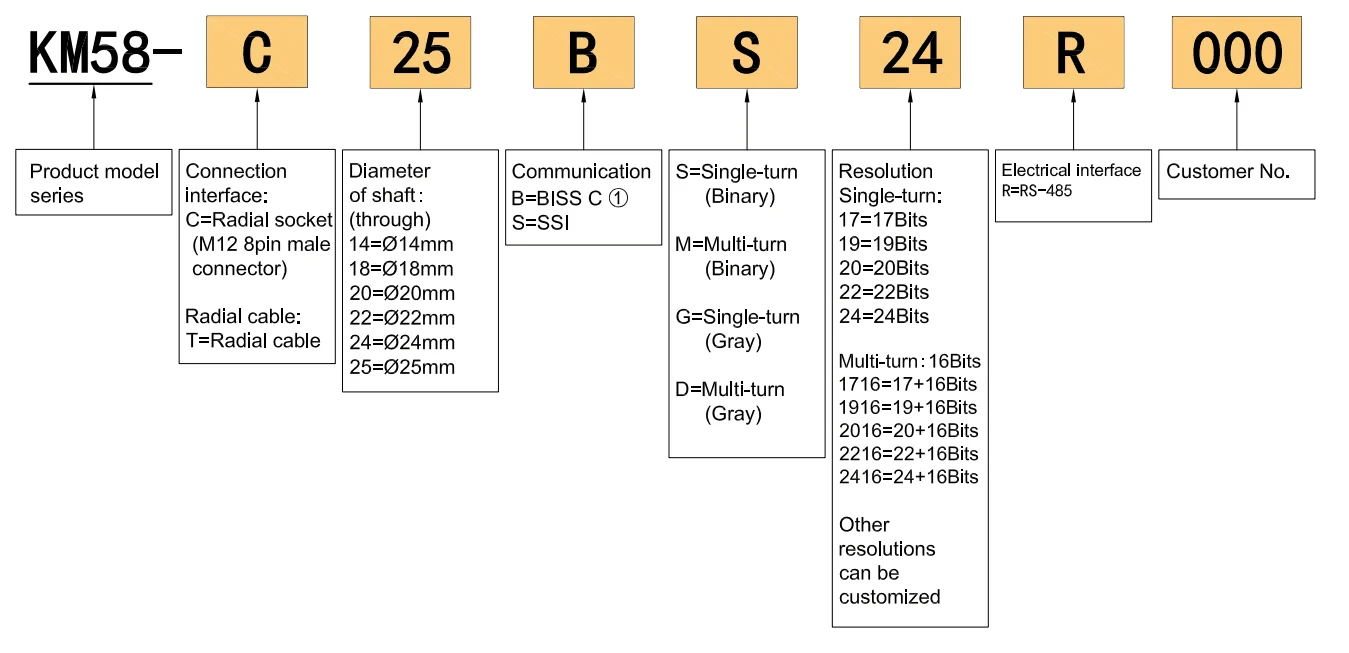

Model Selection Guide

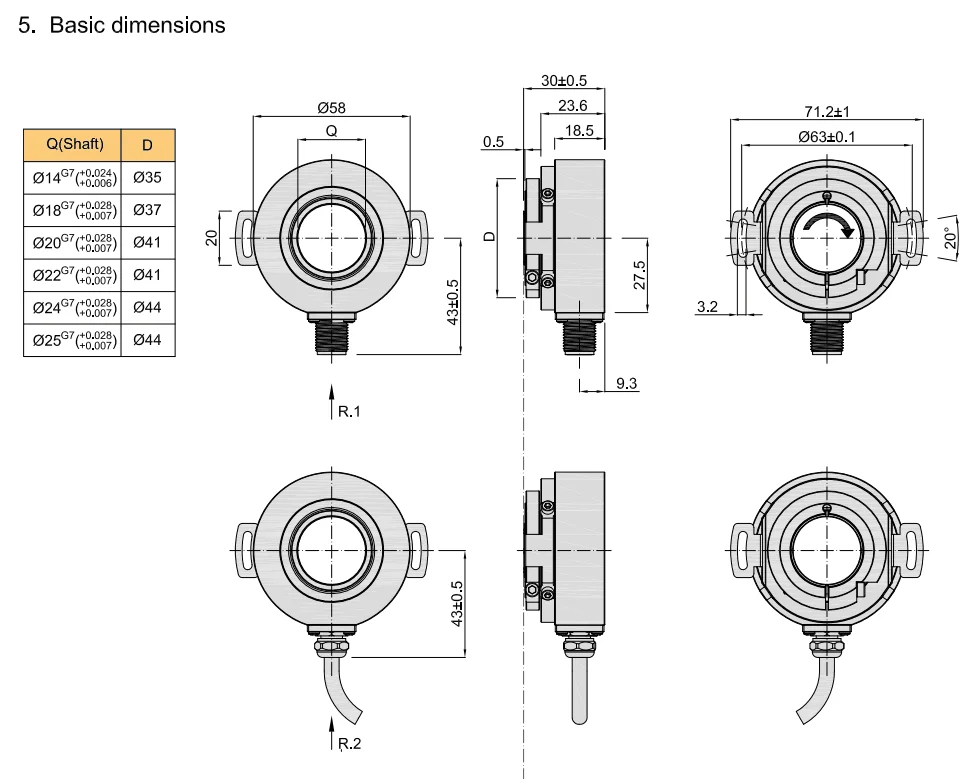

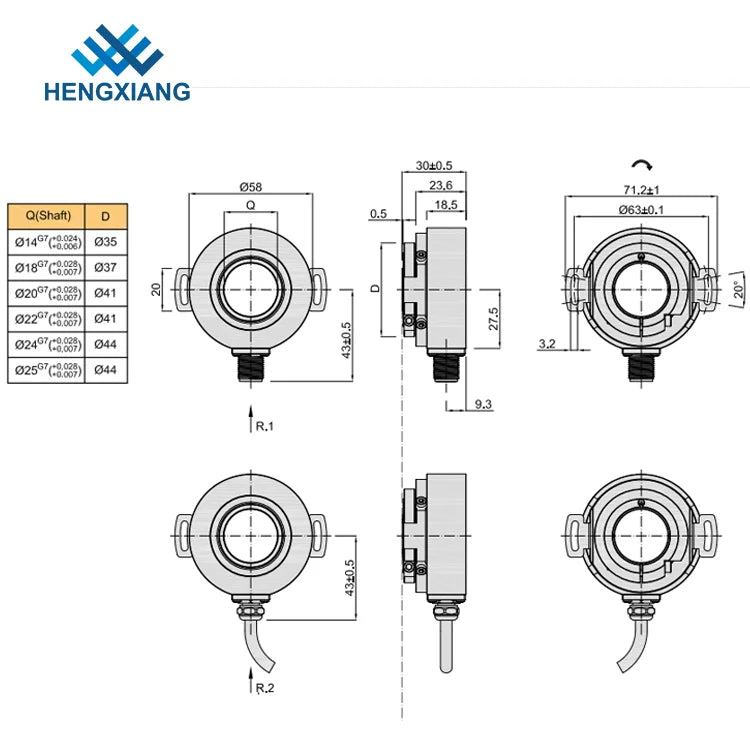

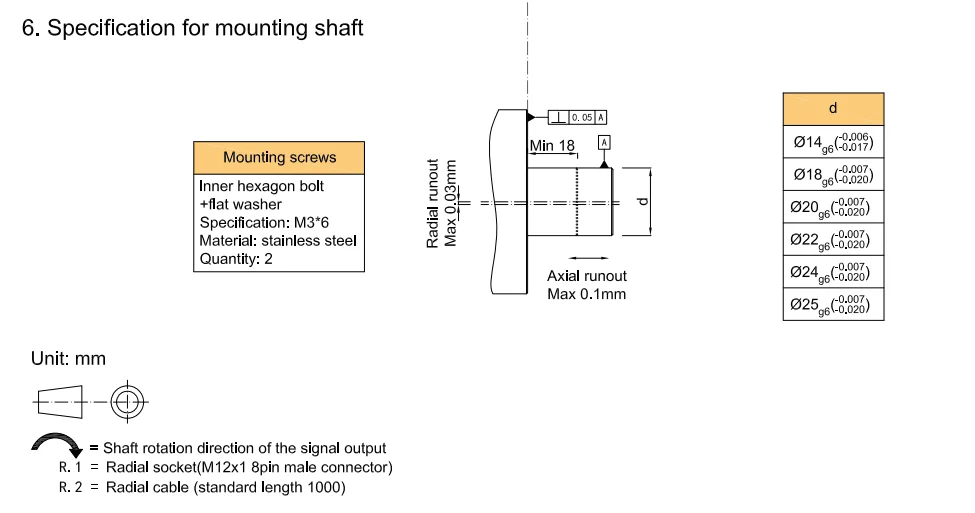

Manufacturing Dimensions

Product Paramenters

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Absolute encoder
External diameter	58mm
Thickness	30mm
Installation dimension	63±0.1mm diameter
Shaft type	Through shaft
Shaft diameter	14mm; 18mm; 20mm; 22mm; 24mm; 25mm
Bit(steps)	Single-turn 17bits; 19bits; 20bits; 22bits; 24bits;Up to 32bits; Multi-turn: 16bits+(17-26bits)
Outlet type	Cable connection; Radial socket
Electrical interface	RS-485
Communication	BISS C (Binary)
		SSI (Binary/Gray)
Protection grade	IP65
Cable length	1M (cable length could be added appropriately by
		require, max 10m)
Response speed	Normal action: 6000min-1
RMS position signal noise	±2 @18 Bits/r
Communication clock frequency	≤10 MHz (BiSS) or ≤5 MHz (SSI)
Starting time	Typical value: 13ms
Absolute position sampling priod	≤75 ns
Mechanical connection	Ring locking with shaft, flexible spring plate fixed connection
starting torque	less than 12x 10-3N.m
Intertia moment	less than 11x 10-6kg.m2
Shaft load	Radial 30N; Axial 20N
Allowed speed	≤6000r rpm
Environmental temperature	Operating:-40 ～+95°C；storage:-40 ～+95°C
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Shock(endure)	980m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	Aluminum alloy
Certification	CE
package	Carton box
Net weight	About 180g (with package)

Product packaging

Product Usage

About Factory

ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical、mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment 、Water conservancy equipment、Electrical equipment、Textile machinery、Carpentrymachinery、Injection machinery、Vulcanizateequipment 、Medical device、CNC machine、Metallurgical machine、Printing machinery、testing machine、Elevator、Servo motor、Packing machine, etc. , and has won trust and high reputation from clients . "HengXiang" brand encoder, has ISO9001：2000 Quality Management System Certificate and CE Certification, moreover, we have own invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project. Our target:Meeting Client's Requirement、Creating Social value、serving clients attentively and Achieving win-win. Sincerely welcome all customers to visit our company, to review and custom "HengXiang" brand products .

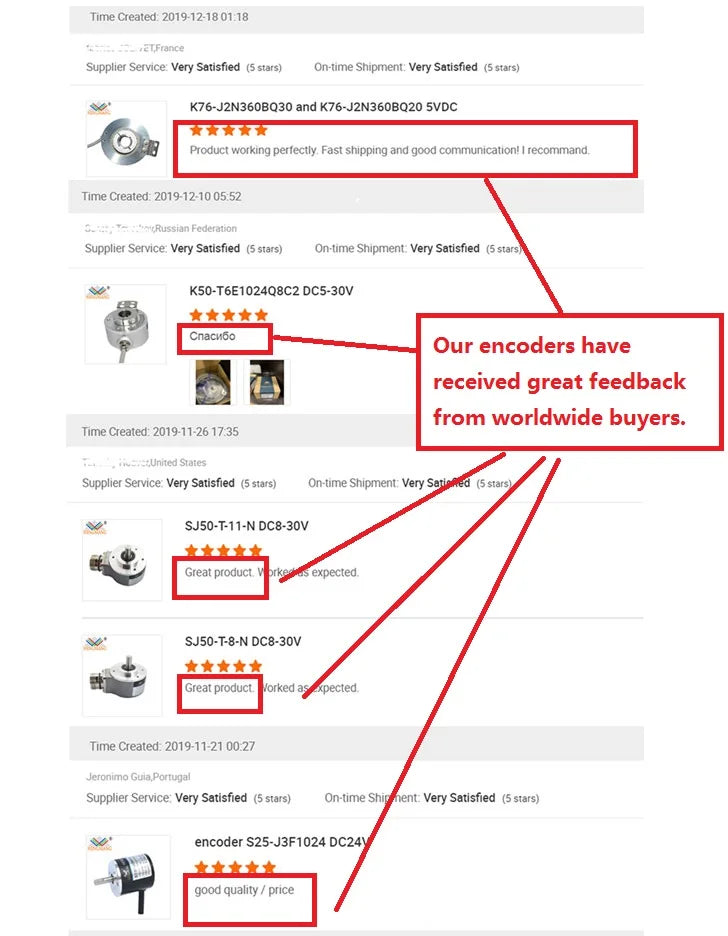

Customers' Feedback
