SPECIFICATIONS

Application: Motor; elevator; CNC; other automations

Brand Name: NONE

Cable length: 1m (could be customized max 100m)

Certificate: CE ISO9001

Connection: Radial cable

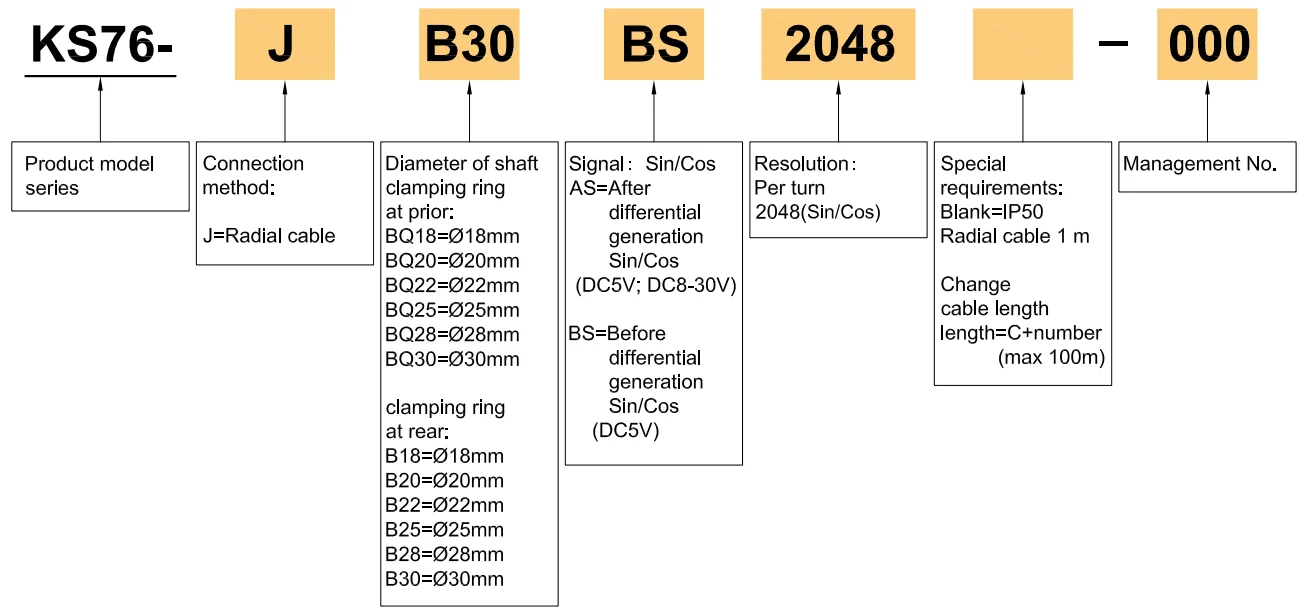

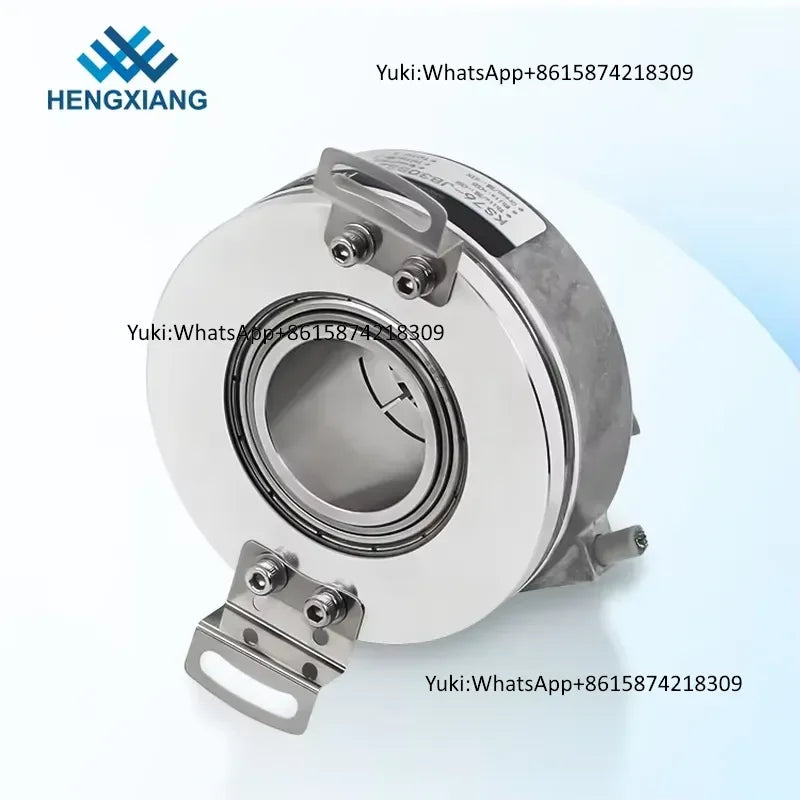

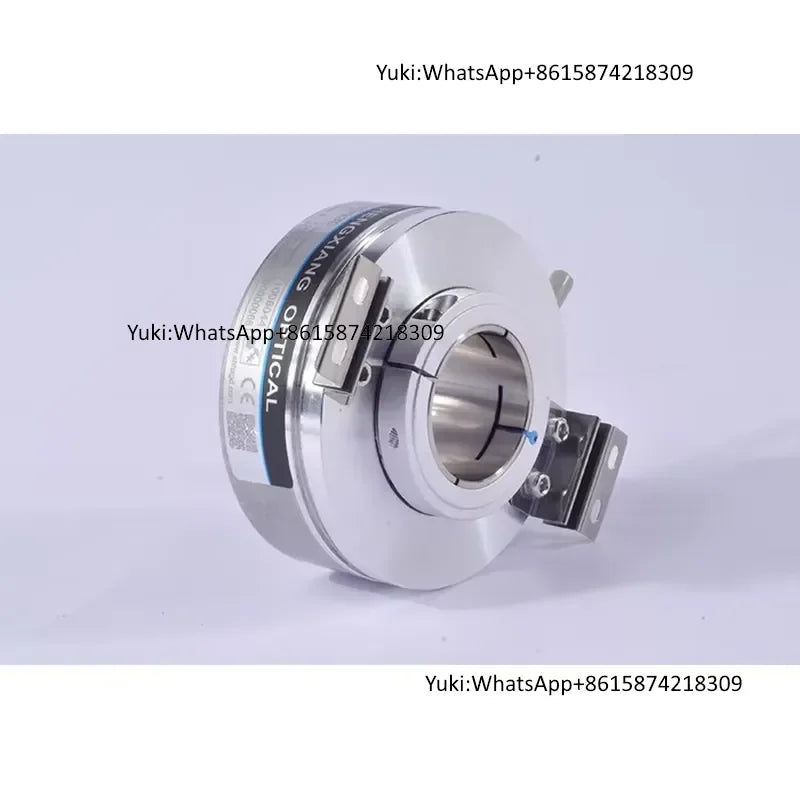

Description: 2048ppr Sin/Cos, 30mm shaft incremental encoder, KS76 encoder

Feature: Resolution per turn Sin/Cos period 2048

MOQ: 1pcs

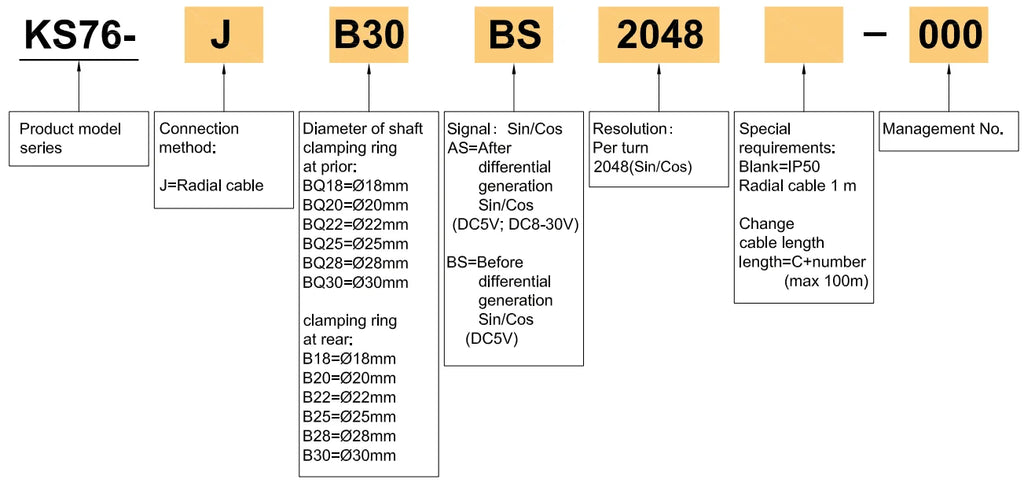

Manufacturer Part Number: KS76

Mounting Type: Spring plate

Origin: Mainland China

Output: Other

Place of Origin: Shanghai, China

Protection grade: IP50

Resolution: 2048ppr (Sin/Cos)

Series: Incremental type

Shaft: 18/20/22/25/28/30mm clamping ring at prior and rear

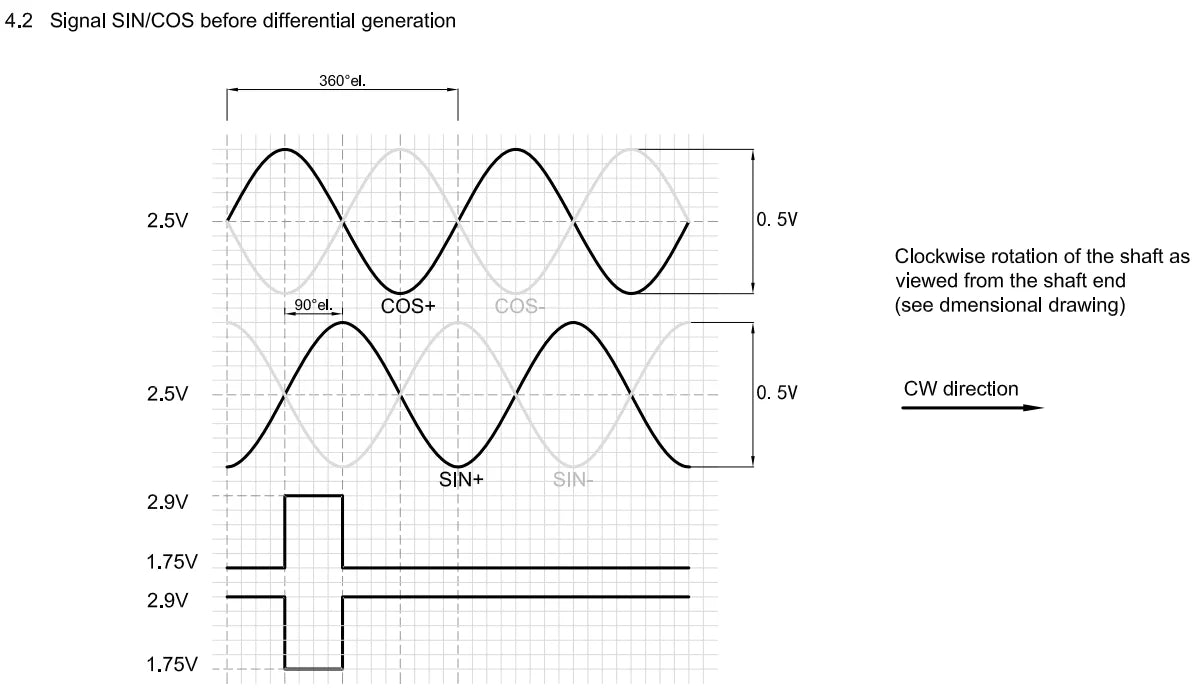

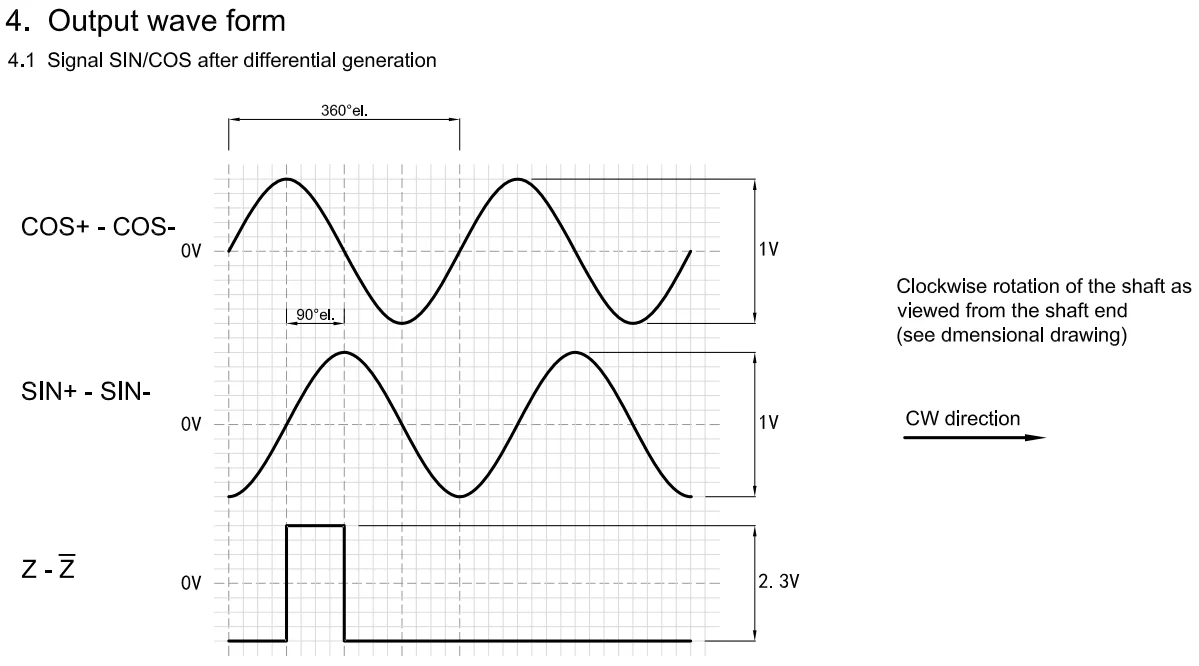

Signal: Sin/Cos (After/before differential generation)

Theory: Optical sensor

Type: Incremental Encoder

Usage: Optical sensor

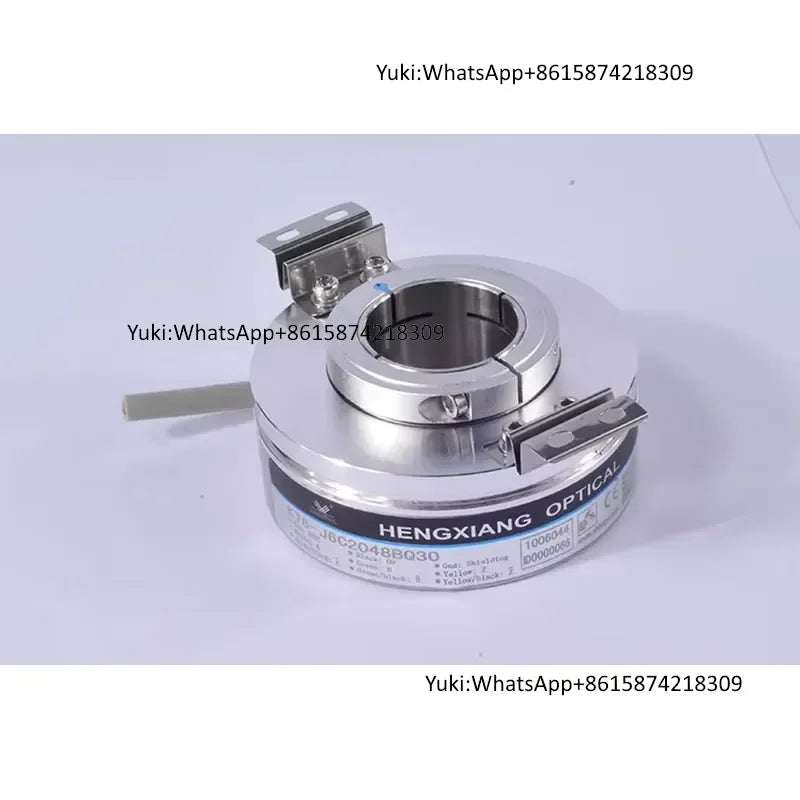

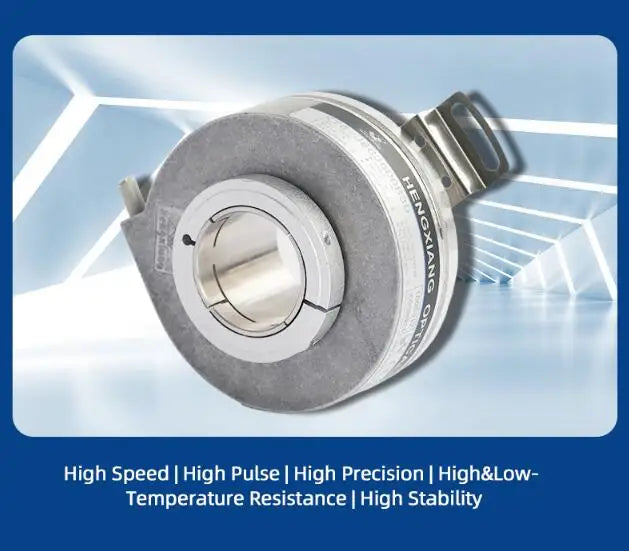

Products Description

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental encoder

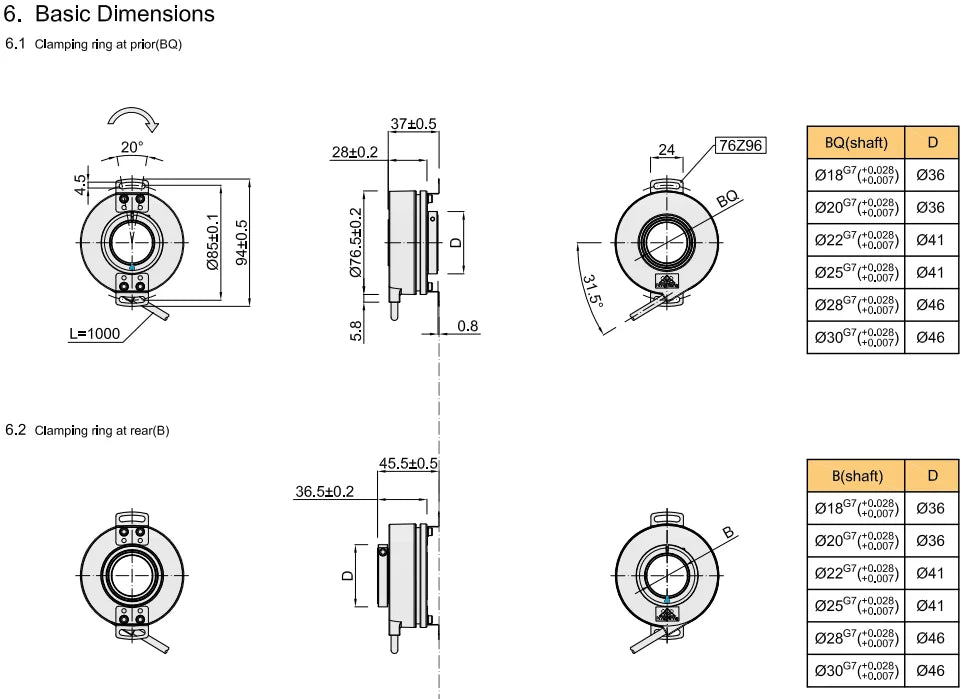

External diameter	76.5mm
Thickness	37mm

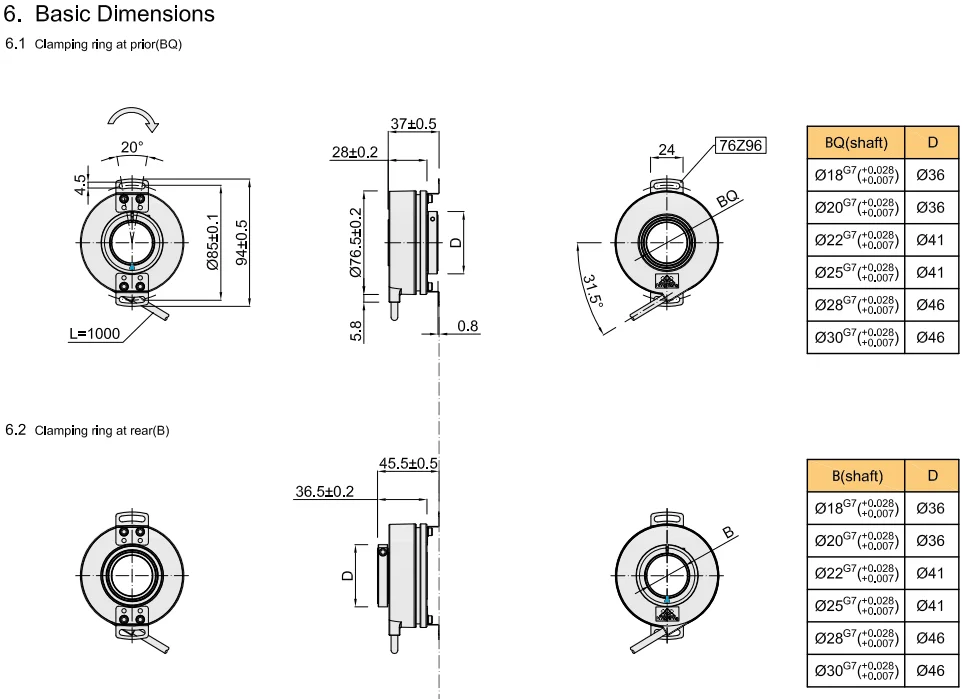

Installation dimension	69mm/85mm/96mm
Hollow shaft type	through hole
Hollow Shaft diameter	18mm/20mm/22mm/25mm/28mm/30mm
Bit(steps)	2048 (Sin/Cos)
Supply voltage	DC5V ； DC8-30V

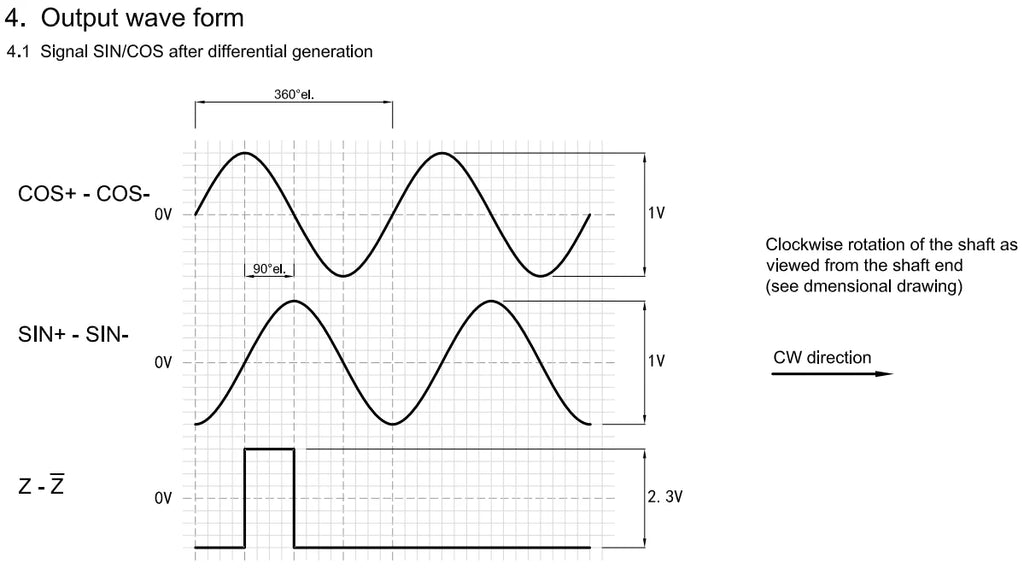

Signal	After differential generation Sin/Cos (DC5V; DC8-30V)
		Before differential generation Sin/Cos (DC5V)
Protection grade	IP50
Cable length	1M (cable length could be added appropriately by
		require, but it need payment individually. Max 100m)
Supply voltage	DC5V; DC8...30V
Maximum output frequency	≤200kHz
Reverse polarity protection	√
Short-circuit protection	√
Starting torque	Less than 80*10^-3 N.m
Operating torque	Less than 100*10^-6 N.m
Permissible movement static	±0.2mm (radial); ±0.3mm (Axial)
Permissible movement dynamic	±0.05mm (radial); ±0.1mm (Axial)
Slew speed	≤3000rpm
Shell material	Aluminum alloy
Shaft material	Stainless steel
Cable length	1000mm
Certification	CE
package	Carton box
Net weight	About 360g (with package)
